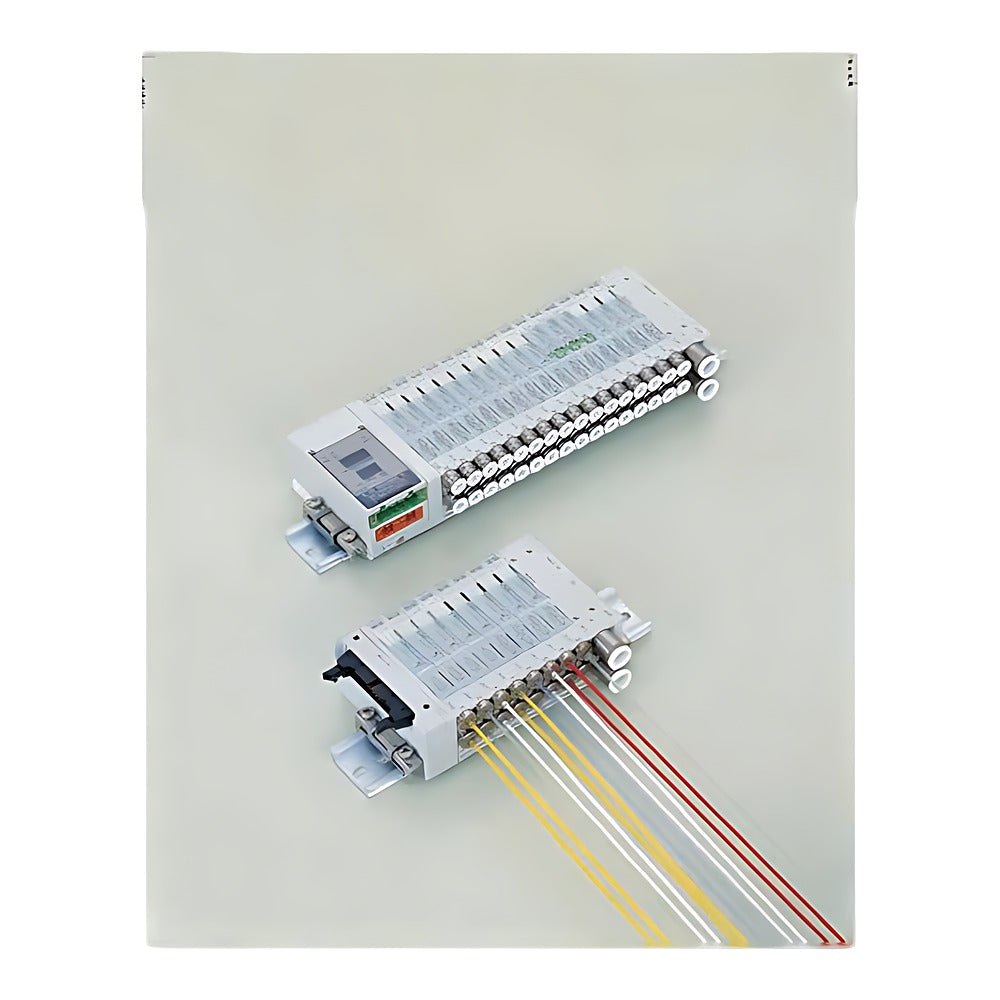

CKD 3QRA/3QRB Direct Acting 3-Port Solenoid Valve (Universal, M5)

CKD 3QRA (direct piping) and 3QRB (sub-plate) direct-acting 3-port universal poppet solenoid valves, self-return or self-holding, single or manifold of 2 to 20 stations.

Key features

Balanced poppet universal valve: pressure can be applied to any port; works with vacuum to -100 kPa
Self-holding (latching) type 2 keeps position without power; self-return type 1 also in high-flow H (2.4 W)
Grommet lead (type 1 only), C connector (lead sideways) or D connector (lead upward) with surge killer and lamp
Response 4+/-1 / 1.5+/-1 ms (ON/OFF, 3QRA11); manifold ports 1 and 3 Rc1/8, port 2 M5
Masking plate kit 3QR1-MP-KIT and socket set 3Q-SOCKET-SET; P4 secondary-battery compatible

Specifications

Valve type	Direct-acting poppet valve, universal
Fluid	Compressed air, vacuum
Max. operating pressure	0.70 MPa
Min. operating pressure	Vacuum -100 kPa
Proof pressure	1.05 MPa
Ambient temperature	-5 to 50 C (no freezing)
Rated voltage	DC24V / DC12V +/-10%
Insulation	Class B
Source	CKD Korea catalog CB-023SK-9, p. 1634-1641

3QRA110-M5-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-C2-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-C2-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-C2H-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-C2H-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-C3-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-C3-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-C3H-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-C3H-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-D2-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-D2-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-D2H-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-D2H-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-D3-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-D3-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA110-M5-D3H-3		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA110-M5-D3H-4		Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-C2-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-C2-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-C2H-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-C2H-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-C3-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-C3-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-C3H-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-C3H-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-D2-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-D2-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-D2H-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-D2H-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-D3-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-D3-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB110-M5-D3H-3		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB110-M5-D3H-4		Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-C2-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-C2-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-C2H-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-C2H-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-C3-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-C3-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-C3H-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-C3H-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-D2-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-D2-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-D2H-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-D2H-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-D3-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-D3-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRA119-M5-D3H-3		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRA119-M5-D3H-4		Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-C2-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-C2-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-C2H-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-C2H-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-C3-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-C3-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-C3H-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-C3H-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-D2-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-D2-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-D2H-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-D2H-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-D3-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-D3-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
3QRB119-00-D3H-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
3QRB119-00-D3H-4		Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
3QRA120-M5-C2-3		Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA120-M5-C3-3		Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA120-M5-D2-3		Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA120-M5-D3-3		Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB120-M5-C2-3		Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB120-M5-C3-3		Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB120-M5-D2-3		Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB120-M5-D3-3		Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA129-M5-C2-3		Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA129-M5-C3-3		Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA129-M5-D2-3		Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRA129-M5-D3-3		Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB129-00-C2-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB129-00-C3-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB129-00-D2-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
3QRB129-00-D3-3		Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
M3QRA110-M5-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-C2-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-C2-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-C2H-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-C2H-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-C3-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-C3-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-C3H-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-C3H-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-D2-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-D2-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-D2H-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-D2H-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-D3-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-D3-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-D3H-2-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRA110-M5-D3H-2-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRA110-M5-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-C2-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-C2-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-C2H-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-C2H-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-C3-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-C3-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-C3H-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-C3H-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-D2-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-D2-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-D2H-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-D2H-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-D3-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-D3-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-D3H-3-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRA110-M5-D3H-3-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRA110-M5-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-C2-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-C2-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-C2H-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-C2H-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-C3-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-C3-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-C3H-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-C3H-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-D2-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-D2-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-D2H-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-D2H-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-D3-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-D3-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-D3H-4-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRA110-M5-D3H-4-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRA110-M5-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-C2-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-C2-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-C2H-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-C2H-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-C3-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-C3-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-C3H-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-C3H-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-D2-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-D2-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-D2H-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-D2H-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-D3-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-D3-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-D3H-5-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRA110-M5-D3H-5-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRA110-M5-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-C2-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-C2-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-C2H-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-C2H-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-C3-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-C3-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-C3H-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-C3H-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-D2-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-D2-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-D2H-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-D2H-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-D3-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-D3-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-D3H-6-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRA110-M5-D3H-6-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRA110-M5-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-C2-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-C2-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-C2H-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-C2H-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-C3-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-C3-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-C3H-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-C3H-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-D2-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-D2-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-D2H-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-D2H-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-D3-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-D3-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-D3H-7-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRA110-M5-D3H-7-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRA110-M5-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-C2-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-C2-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-C2H-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-C2H-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-C3-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-C3-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-C3H-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-C3H-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-D2-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-D2-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-D2H-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-D2H-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-D3-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-D3-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-D3H-8-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRA110-M5-D3H-8-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRA110-M5-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-C2-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-C2-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-C2H-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-C2H-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-C3-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-C3-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-C3H-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-C3H-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-D2-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-D2-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-D2H-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-D2H-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-D3-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-D3-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-D3H-9-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRA110-M5-D3H-9-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRA110-M5-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-C2-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-C2-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-C2H-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-C2H-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-C3-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-C3-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-C3H-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-C3H-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-D2-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-D2-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-D2H-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-D2H-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-D3-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-D3-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-D3H-10-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRA110-M5-D3H-10-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRA110-M5-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-C2-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-C2-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-C2H-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-C2H-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-C3-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-C3-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-C3H-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-C3H-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-D2-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-D2-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-D2H-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-D2H-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-D3-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-D3-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-D3H-11-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRA110-M5-D3H-11-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRA110-M5-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-C2-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-C2-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-C2H-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-C2H-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-C3-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-C3-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-C3H-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-C3H-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-D2-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-D2-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-D2H-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-D2H-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-D3-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-D3-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-D3H-12-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRA110-M5-D3H-12-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRA110-M5-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-C2-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-C2-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-C2H-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-C2H-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-C3-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-C3-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-C3H-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-C3H-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-D2-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-D2-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-D2H-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-D2H-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-D3-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-D3-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-D3H-13-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRA110-M5-D3H-13-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRA110-M5-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-C2-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-C2-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-C2H-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-C2H-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-C3-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-C3-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-C3H-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-C3H-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-D2-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-D2-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-D2H-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-D2H-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-D3-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-D3-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-D3H-14-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRA110-M5-D3H-14-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRA110-M5-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-C2-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-C2-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-C2H-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-C2H-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-C3-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-C3-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-C3H-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-C3H-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-D2-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-D2-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-D2H-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-D2H-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-D3-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-D3-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-D3H-15-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRA110-M5-D3H-15-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRA110-M5-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-C2-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-C2-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-C2H-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-C2H-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-C3-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-C3-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-C3H-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-C3H-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-D2-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-D2-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-D2H-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-D2H-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-D3-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-D3-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-D3H-16-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRA110-M5-D3H-16-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRA110-M5-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-C2-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-C2-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-C2H-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-C2H-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-C3-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-C3-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-C3H-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-C3H-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-D2-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-D2-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-D2H-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-D2H-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-D3-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-D3-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-D3H-17-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRA110-M5-D3H-17-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRA110-M5-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-C2-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-C2-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-C2H-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-C2H-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-C3-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-C3-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-C3H-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-C3H-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-D2-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-D2-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-D2H-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-D2H-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-D3-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-D3-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-D3H-18-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRA110-M5-D3H-18-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRA110-M5-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-C2-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-C2-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-C2H-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-C2H-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-C3-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-C3-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-C3H-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-C3H-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-D2-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-D2-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-D2H-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-D2H-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-D3-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-D3-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-D3H-19-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRA110-M5-D3H-19-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRA110-M5-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-C2-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-C2-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-C2H-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-C2H-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-C3-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-C3-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-C3H-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-C3H-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-D2-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-D2-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-D2H-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-D2H-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-D3-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-D3-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRA110-M5-D3H-20-3		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRA110-M5-D3H-20-4		Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRA120-M5-C2-2-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA120-M5-C3-2-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA120-M5-D2-2-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA120-M5-D3-2-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRA120-M5-C2-3-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA120-M5-C3-3-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA120-M5-D2-3-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA120-M5-D3-3-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRA120-M5-C2-4-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA120-M5-C3-4-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA120-M5-D2-4-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA120-M5-D3-4-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRA120-M5-C2-5-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA120-M5-C3-5-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA120-M5-D2-5-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA120-M5-D3-5-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRA120-M5-C2-6-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA120-M5-C3-6-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA120-M5-D2-6-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA120-M5-D3-6-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRA120-M5-C2-7-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA120-M5-C3-7-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA120-M5-D2-7-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA120-M5-D3-7-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRA120-M5-C2-8-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA120-M5-C3-8-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA120-M5-D2-8-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA120-M5-D3-8-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRA120-M5-C2-9-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA120-M5-C3-9-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA120-M5-D2-9-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA120-M5-D3-9-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRA120-M5-C2-10-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA120-M5-C3-10-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA120-M5-D2-10-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA120-M5-D3-10-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRA120-M5-C2-11-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA120-M5-C3-11-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA120-M5-D2-11-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA120-M5-D3-11-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRA120-M5-C2-12-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA120-M5-C3-12-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA120-M5-D2-12-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA120-M5-D3-12-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRA120-M5-C2-13-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA120-M5-C3-13-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA120-M5-D2-13-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA120-M5-D3-13-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRA120-M5-C2-14-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA120-M5-C3-14-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA120-M5-D2-14-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA120-M5-D3-14-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRA120-M5-C2-15-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA120-M5-C3-15-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA120-M5-D2-15-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA120-M5-D3-15-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRA120-M5-C2-16-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA120-M5-C3-16-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA120-M5-D2-16-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA120-M5-D3-16-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRA120-M5-C2-17-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA120-M5-C3-17-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA120-M5-D2-17-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA120-M5-D3-17-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRA120-M5-C2-18-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA120-M5-C3-18-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA120-M5-D2-18-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA120-M5-D3-18-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRA120-M5-C2-19-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA120-M5-C3-19-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA120-M5-D2-19-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA120-M5-D3-19-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRA120-M5-C2-20-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA120-M5-C3-20-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA120-M5-D2-20-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRA120-M5-D3-20-3		Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-C2-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-C2-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-C2H-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-C2H-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-C3-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-C3-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-C3H-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-C3H-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-D2-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-D2-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-D2H-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-D2H-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-D3-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-D3-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-D3H-2-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
M3QRB110-M5-D3H-2-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
M3QRB110-M5-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-C2-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-C2-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-C2H-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-C2H-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-C3-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-C3-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-C3H-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-C3H-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-D2-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-D2-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-D2H-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-D2H-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-D3-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-D3-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-D3H-3-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
M3QRB110-M5-D3H-3-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
M3QRB110-M5-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-C2-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-C2-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-C2H-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-C2H-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-C3-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-C3-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-C3H-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-C3H-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-D2-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-D2-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-D2H-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-D2H-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-D3-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-D3-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-D3H-4-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
M3QRB110-M5-D3H-4-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
M3QRB110-M5-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-C2-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-C2-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-C2H-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-C2H-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-C3-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-C3-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-C3H-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-C3H-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-D2-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-D2-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-D2H-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-D2H-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-D3-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-D3-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-D3H-5-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
M3QRB110-M5-D3H-5-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
M3QRB110-M5-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-C2-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-C2-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-C2H-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-C2H-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-C3-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-C3-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-C3H-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-C3H-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-D2-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-D2-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-D2H-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-D2H-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-D3-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-D3-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-D3H-6-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
M3QRB110-M5-D3H-6-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
M3QRB110-M5-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-C2-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-C2-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-C2H-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-C2H-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-C3-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-C3-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-C3H-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-C3H-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-D2-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-D2-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-D2H-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-D2H-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-D3-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-D3-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-D3H-7-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
M3QRB110-M5-D3H-7-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
M3QRB110-M5-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-C2-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-C2-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-C2H-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-C2H-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-C3-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-C3-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-C3H-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-C3H-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-D2-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-D2-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-D2H-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-D2H-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-D3-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-D3-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-D3H-8-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
M3QRB110-M5-D3H-8-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
M3QRB110-M5-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-C2-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-C2-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-C2H-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-C2H-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-C3-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-C3-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-C3H-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-C3H-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-D2-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-D2-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-D2H-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-D2H-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-D3-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-D3-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-D3H-9-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
M3QRB110-M5-D3H-9-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
M3QRB110-M5-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-C2-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-C2-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-C2H-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-C2H-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-C3-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-C3-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-C3H-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-C3H-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-D2-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-D2-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-D2H-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-D2H-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-D3-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-D3-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-D3H-10-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
M3QRB110-M5-D3H-10-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
M3QRB110-M5-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-C2-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-C2-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-C2H-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-C2H-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-C3-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-C3-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-C3H-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-C3H-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-D2-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-D2-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-D2H-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-D2H-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-D3-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-D3-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-D3H-11-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
M3QRB110-M5-D3H-11-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
M3QRB110-M5-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-C2-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-C2-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-C2H-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-C2H-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-C3-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-C3-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-C3H-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-C3H-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-D2-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-D2-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-D2H-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-D2H-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-D3-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-D3-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-D3H-12-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
M3QRB110-M5-D3H-12-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
M3QRB110-M5-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-C2-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-C2-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-C2H-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-C2H-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-C3-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-C3-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-C3H-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-C3H-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-D2-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-D2-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-D2H-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-D2H-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-D3-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-D3-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-D3H-13-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
M3QRB110-M5-D3H-13-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
M3QRB110-M5-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-C2-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-C2-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-C2H-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-C2H-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-C3-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-C3-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-C3H-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-C3H-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-D2-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-D2-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-D2H-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-D2H-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-D3-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-D3-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-D3H-14-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
M3QRB110-M5-D3H-14-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
M3QRB110-M5-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-C2-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-C2-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-C2H-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-C2H-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-C3-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-C3-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-C3H-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-C3H-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-D2-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-D2-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-D2H-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-D2H-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-D3-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-D3-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-D3H-15-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
M3QRB110-M5-D3H-15-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
M3QRB110-M5-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-C2-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-C2-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-C2H-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-C2H-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-C3-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-C3-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-C3H-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-C3H-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-D2-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-D2-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-D2H-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-D2H-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-D3-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-D3-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-D3H-16-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
M3QRB110-M5-D3H-16-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
M3QRB110-M5-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-C2-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-C2-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-C2H-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-C2H-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-C3-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-C3-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-C3H-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-C3H-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-D2-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-D2-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-D2H-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-D2H-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-D3-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-D3-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-D3H-17-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
M3QRB110-M5-D3H-17-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
M3QRB110-M5-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-C2-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-C2-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-C2H-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-C2H-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-C3-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-C3-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-C3H-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-C3H-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-D2-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-D2-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-D2H-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-D2H-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-D3-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-D3-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-D3H-18-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
M3QRB110-M5-D3H-18-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
M3QRB110-M5-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-C2-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-C2-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-C2H-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-C2H-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-C3-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-C3-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-C3H-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-C3H-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-D2-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-D2-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-D2H-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-D2H-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-D3-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-D3-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-D3H-19-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
M3QRB110-M5-D3H-19-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
M3QRB110-M5-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-C2-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-C2-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-C2H-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-C2H-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-C3-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-C3-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-C3H-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-C3H-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-D2-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-D2-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-D2H-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-D2H-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-D3-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-D3-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
M3QRB110-M5-D3H-20-3		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
M3QRB110-M5-D3H-20-4		Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
M3QRB120-M5-C2-2-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB120-M5-C3-2-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB120-M5-D2-2-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB120-M5-D3-2-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
M3QRB120-M5-C2-3-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB120-M5-C3-3-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB120-M5-D2-3-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB120-M5-D3-3-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
M3QRB120-M5-C2-4-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB120-M5-C3-4-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB120-M5-D2-4-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB120-M5-D3-4-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
M3QRB120-M5-C2-5-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB120-M5-C3-5-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB120-M5-D2-5-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB120-M5-D3-5-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
M3QRB120-M5-C2-6-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB120-M5-C3-6-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB120-M5-D2-6-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB120-M5-D3-6-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
M3QRB120-M5-C2-7-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB120-M5-C3-7-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB120-M5-D2-7-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB120-M5-D3-7-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
M3QRB120-M5-C2-8-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB120-M5-C3-8-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB120-M5-D2-8-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB120-M5-D3-8-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
M3QRB120-M5-C2-9-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB120-M5-C3-9-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB120-M5-D2-9-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB120-M5-D3-9-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
M3QRB120-M5-C2-10-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB120-M5-C3-10-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB120-M5-D2-10-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB120-M5-D3-10-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
M3QRB120-M5-C2-11-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB120-M5-C3-11-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB120-M5-D2-11-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB120-M5-D3-11-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
M3QRB120-M5-C2-12-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB120-M5-C3-12-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB120-M5-D2-12-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB120-M5-D3-12-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
M3QRB120-M5-C2-13-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB120-M5-C3-13-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB120-M5-D2-13-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB120-M5-D3-13-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
M3QRB120-M5-C2-14-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB120-M5-C3-14-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB120-M5-D2-14-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB120-M5-D3-14-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
M3QRB120-M5-C2-15-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB120-M5-C3-15-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB120-M5-D2-15-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB120-M5-D3-15-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
M3QRB120-M5-C2-16-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB120-M5-C3-16-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB120-M5-D2-16-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB120-M5-D3-16-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
M3QRB120-M5-C2-17-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB120-M5-C3-17-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB120-M5-D2-17-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB120-M5-D3-17-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
M3QRB120-M5-C2-18-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB120-M5-C3-18-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB120-M5-D2-18-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB120-M5-D3-18-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
M3QRB120-M5-C2-19-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB120-M5-C3-19-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB120-M5-D2-19-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB120-M5-D3-19-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
M3QRB120-M5-C2-20-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB120-M5-C3-20-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB120-M5-D2-20-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
M3QRB120-M5-D3-20-3		Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
3QR1-MP-KIT		Type: Masking plate kit \| Switching: - \| Wiring: - \| Flow: - \| Voltage: - \| Stations: 1
3Q-SOCKET-SET		Type: Connector socket set \| Switching: - \| Wiring: Socket, 3 terminals, AWG26-28 \| Flow: - \| Voltage: - \| Stations: 1
3QRA11		Legacy code \| Note: Old base code, see full codes
3QRB11		Legacy code \| Note: Old base code, see full codes
3QRA12		Legacy code \| Note: Old base code, see full codes
3QRB12		Legacy code \| Note: Old base code, see full codes
3QRA110-M5		Legacy code \| Note: Old base code, see full codes
3QRB110-M5		Legacy code \| Note: Old base code, see full codes
M3QRA110-M5		Legacy code \| Note: Old base code, see full codes
M3QRB110-M5		Legacy code \| Note: Old base code, see full codes
3QRA120-M5		Legacy code \| Note: Old base code, see full codes
3QRB120-M5		Legacy code \| Note: Old base code, see full codes
M3QRA120-M5		Legacy code \| Note: Old base code, see full codes
M3QRB120-M5		Legacy code \| Note: Old base code, see full codes

Solenoid ValvesCKD

938 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 3QRA/3QRB Direct Acting 3-Port Solenoid Valve (Universal, M5)

Brand CKD·Solenoid Valves

Available part numbers (938)

3QRA110-M5-3, 3QRA110-M5-4, 3QRA110-M5-C2-3, 3QRA110-M5-C2-4, 3QRA110-M5-C2H-3, 3QRA110-M5-C2H-4, 3QRA110-M5-C3-3, 3QRA110-M5-C3-4, 3QRA110-M5-C3H-3, 3QRA110-M5-C3H-4 + 928 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	3QRA110-M5-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-C2-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-C2-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-C2H-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-C2H-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-C3-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-C3-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-C3H-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-C3H-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-D2-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-D2-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-D2H-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-D2H-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-D3-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-D3-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA110-M5-D3H-3	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA110-M5-D3H-4	Type: Single valve, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-C2-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-C2-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-C2H-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-C2H-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-C3-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-C3-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-C3H-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-C3H-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-D2-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-D2-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-D2H-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-D2H-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-D3-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-D3-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB110-M5-D3H-3	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB110-M5-D3H-4	Type: Single valve, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-C2-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-C2-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-C2H-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-C2H-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-C3-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-C3-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-C3H-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-C3H-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-D2-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-D2-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-D2H-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-D2H-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-D3-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-D3-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRA119-M5-D3H-3	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRA119-M5-D3H-4	Type: Valve only (direct manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-C2-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-C2-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-C2H-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-C2H-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-C3-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-C3-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-C3H-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-C3H-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-D2-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-D2-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-D2H-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-D2H-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-D3-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-D3-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 1
	3QRB119-00-D3H-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 1
	3QRB119-00-D3H-4	Type: Valve only (sub-plate manifold) \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 1
	3QRA120-M5-C2-3	Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA120-M5-C3-3	Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA120-M5-D2-3	Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA120-M5-D3-3	Type: Single valve, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB120-M5-C2-3	Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB120-M5-C3-3	Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB120-M5-D2-3	Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB120-M5-D3-3	Type: Single valve, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA129-M5-C2-3	Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA129-M5-C3-3	Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA129-M5-D2-3	Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRA129-M5-D3-3	Type: Valve only (direct manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB129-00-C2-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB129-00-C3-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB129-00-D2-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	3QRB129-00-D3-3	Type: Valve only (sub-plate manifold) \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 1
	M3QRA110-M5-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-C2-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-C2-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-C2H-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-C2H-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-C3-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-C3-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-C3H-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-C3H-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-D2-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-D2-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-D2H-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-D2H-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-D3-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-D3-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-D3H-2-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRA110-M5-D3H-2-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRA110-M5-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-C2-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-C2-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-C2H-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-C2H-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-C3-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-C3-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-C3H-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-C3H-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-D2-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-D2-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-D2H-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-D2H-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-D3-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-D3-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-D3H-3-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRA110-M5-D3H-3-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRA110-M5-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-C2-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-C2-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-C2H-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-C2H-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-C3-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-C3-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-C3H-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-C3H-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-D2-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-D2-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-D2H-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-D2H-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-D3-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-D3-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-D3H-4-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRA110-M5-D3H-4-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRA110-M5-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-C2-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-C2-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-C2H-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-C2H-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-C3-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-C3-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-C3H-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-C3H-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-D2-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-D2-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-D2H-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-D2H-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-D3-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-D3-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-D3H-5-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRA110-M5-D3H-5-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRA110-M5-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-C2-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-C2-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-C2H-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-C2H-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-C3-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-C3-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-C3H-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-C3H-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-D2-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-D2-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-D2H-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-D2H-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-D3-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-D3-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-D3H-6-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRA110-M5-D3H-6-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRA110-M5-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-C2-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-C2-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-C2H-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-C2H-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-C3-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-C3-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-C3H-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-C3H-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-D2-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-D2-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-D2H-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-D2H-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-D3-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-D3-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-D3H-7-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRA110-M5-D3H-7-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRA110-M5-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-C2-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-C2-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-C2H-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-C2H-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-C3-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-C3-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-C3H-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-C3H-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-D2-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-D2-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-D2H-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-D2H-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-D3-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-D3-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-D3H-8-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRA110-M5-D3H-8-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRA110-M5-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-C2-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-C2-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-C2H-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-C2H-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-C3-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-C3-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-C3H-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-C3H-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-D2-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-D2-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-D2H-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-D2H-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-D3-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-D3-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-D3H-9-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRA110-M5-D3H-9-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRA110-M5-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-C2-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-C2-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-C2H-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-C2H-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-C3-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-C3-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-C3H-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-C3H-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-D2-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-D2-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-D2H-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-D2H-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-D3-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-D3-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-D3H-10-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRA110-M5-D3H-10-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRA110-M5-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-C2-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-C2-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-C2H-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-C2H-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-C3-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-C3-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-C3H-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-C3H-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-D2-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-D2-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-D2H-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-D2H-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-D3-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-D3-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-D3H-11-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRA110-M5-D3H-11-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRA110-M5-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-C2-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-C2-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-C2H-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-C2H-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-C3-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-C3-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-C3H-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-C3H-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-D2-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-D2-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-D2H-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-D2H-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-D3-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-D3-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-D3H-12-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRA110-M5-D3H-12-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRA110-M5-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-C2-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-C2-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-C2H-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-C2H-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-C3-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-C3-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-C3H-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-C3H-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-D2-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-D2-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-D2H-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-D2H-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-D3-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-D3-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-D3H-13-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRA110-M5-D3H-13-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRA110-M5-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-C2-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-C2-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-C2H-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-C2H-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-C3-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-C3-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-C3H-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-C3H-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-D2-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-D2-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-D2H-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-D2H-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-D3-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-D3-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-D3H-14-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRA110-M5-D3H-14-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRA110-M5-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-C2-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-C2-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-C2H-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-C2H-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-C3-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-C3-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-C3H-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-C3H-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-D2-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-D2-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-D2H-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-D2H-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-D3-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-D3-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-D3H-15-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRA110-M5-D3H-15-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRA110-M5-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-C2-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-C2-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-C2H-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-C2H-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-C3-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-C3-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-C3H-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-C3H-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-D2-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-D2-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-D2H-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-D2H-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-D3-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-D3-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-D3H-16-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRA110-M5-D3H-16-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRA110-M5-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-C2-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-C2-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-C2H-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-C2H-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-C3-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-C3-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-C3H-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-C3H-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-D2-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-D2-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-D2H-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-D2H-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-D3-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-D3-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-D3H-17-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRA110-M5-D3H-17-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRA110-M5-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-C2-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-C2-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-C2H-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-C2H-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-C3-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-C3-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-C3H-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-C3H-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-D2-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-D2-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-D2H-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-D2H-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-D3-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-D3-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-D3H-18-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRA110-M5-D3H-18-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRA110-M5-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-C2-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-C2-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-C2H-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-C2H-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-C3-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-C3-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-C3H-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-C3H-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-D2-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-D2-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-D2H-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-D2H-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-D3-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-D3-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-D3H-19-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRA110-M5-D3H-19-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRA110-M5-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-C2-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-C2-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-C2H-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-C2H-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-C3-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-C3-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-C3H-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-C3H-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-D2-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-D2-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-D2H-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-D2H-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-D3-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-D3-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRA110-M5-D3H-20-3	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRA110-M5-D3H-20-4	Type: Manifold, direct piping \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRA120-M5-C2-2-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA120-M5-C3-2-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA120-M5-D2-2-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA120-M5-D3-2-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRA120-M5-C2-3-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA120-M5-C3-3-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA120-M5-D2-3-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA120-M5-D3-3-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRA120-M5-C2-4-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA120-M5-C3-4-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA120-M5-D2-4-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA120-M5-D3-4-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRA120-M5-C2-5-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA120-M5-C3-5-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA120-M5-D2-5-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA120-M5-D3-5-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRA120-M5-C2-6-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA120-M5-C3-6-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA120-M5-D2-6-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA120-M5-D3-6-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRA120-M5-C2-7-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA120-M5-C3-7-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA120-M5-D2-7-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA120-M5-D3-7-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRA120-M5-C2-8-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA120-M5-C3-8-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA120-M5-D2-8-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA120-M5-D3-8-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRA120-M5-C2-9-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA120-M5-C3-9-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA120-M5-D2-9-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA120-M5-D3-9-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRA120-M5-C2-10-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA120-M5-C3-10-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA120-M5-D2-10-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA120-M5-D3-10-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRA120-M5-C2-11-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA120-M5-C3-11-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA120-M5-D2-11-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA120-M5-D3-11-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRA120-M5-C2-12-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA120-M5-C3-12-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA120-M5-D2-12-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA120-M5-D3-12-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRA120-M5-C2-13-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA120-M5-C3-13-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA120-M5-D2-13-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA120-M5-D3-13-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRA120-M5-C2-14-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA120-M5-C3-14-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA120-M5-D2-14-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA120-M5-D3-14-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRA120-M5-C2-15-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA120-M5-C3-15-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA120-M5-D2-15-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA120-M5-D3-15-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRA120-M5-C2-16-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA120-M5-C3-16-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA120-M5-D2-16-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA120-M5-D3-16-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRA120-M5-C2-17-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA120-M5-C3-17-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA120-M5-D2-17-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA120-M5-D3-17-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRA120-M5-C2-18-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA120-M5-C3-18-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA120-M5-D2-18-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA120-M5-D3-18-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRA120-M5-C2-19-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA120-M5-C3-19-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA120-M5-D2-19-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA120-M5-D3-19-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRA120-M5-C2-20-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA120-M5-C3-20-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA120-M5-D2-20-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRA120-M5-D3-20-3	Type: Manifold, direct piping \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-C2-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-C2-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-C2H-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-C2H-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-C3-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-C3-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-C3H-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-C3H-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-D2-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-D2-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-D2H-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-D2H-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-D3-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-D3-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-D3H-2-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 2
	M3QRB110-M5-D3H-2-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 2
	M3QRB110-M5-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-C2-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-C2-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-C2H-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-C2H-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-C3-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-C3-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-C3H-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-C3H-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-D2-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-D2-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-D2H-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-D2H-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-D3-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-D3-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-D3H-3-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 3
	M3QRB110-M5-D3H-3-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 3
	M3QRB110-M5-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-C2-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-C2-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-C2H-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-C2H-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-C3-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-C3-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-C3H-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-C3H-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-D2-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-D2-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-D2H-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-D2H-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-D3-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-D3-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-D3H-4-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 4
	M3QRB110-M5-D3H-4-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 4
	M3QRB110-M5-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-C2-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-C2-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-C2H-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-C2H-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-C3-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-C3-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-C3H-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-C3H-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-D2-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-D2-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-D2H-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-D2H-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-D3-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-D3-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-D3H-5-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 5
	M3QRB110-M5-D3H-5-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 5
	M3QRB110-M5-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-C2-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-C2-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-C2H-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-C2H-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-C3-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-C3-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-C3H-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-C3H-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-D2-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-D2-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-D2H-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-D2H-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-D3-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-D3-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-D3H-6-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 6
	M3QRB110-M5-D3H-6-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 6
	M3QRB110-M5-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-C2-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-C2-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-C2H-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-C2H-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-C3-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-C3-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-C3H-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-C3H-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-D2-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-D2-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-D2H-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-D2H-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-D3-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-D3-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-D3H-7-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 7
	M3QRB110-M5-D3H-7-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 7
	M3QRB110-M5-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-C2-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-C2-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-C2H-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-C2H-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-C3-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-C3-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-C3H-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-C3H-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-D2-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-D2-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-D2H-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-D2H-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-D3-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-D3-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-D3H-8-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 8
	M3QRB110-M5-D3H-8-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 8
	M3QRB110-M5-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-C2-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-C2-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-C2H-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-C2H-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-C3-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-C3-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-C3H-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-C3H-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-D2-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-D2-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-D2H-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-D2H-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-D3-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-D3-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-D3H-9-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 9
	M3QRB110-M5-D3H-9-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 9
	M3QRB110-M5-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-C2-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-C2-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-C2H-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-C2H-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-C3-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-C3-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-C3H-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-C3H-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-D2-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-D2-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-D2H-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-D2H-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-D3-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-D3-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-D3H-10-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 10
	M3QRB110-M5-D3H-10-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 10
	M3QRB110-M5-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-C2-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-C2-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-C2H-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-C2H-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-C3-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-C3-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-C3H-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-C3H-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-D2-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-D2-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-D2H-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-D2H-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-D3-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-D3-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-D3H-11-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 11
	M3QRB110-M5-D3H-11-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 11
	M3QRB110-M5-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-C2-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-C2-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-C2H-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-C2H-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-C3-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-C3-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-C3H-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-C3H-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-D2-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-D2-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-D2H-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-D2H-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-D3-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-D3-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-D3H-12-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 12
	M3QRB110-M5-D3H-12-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 12
	M3QRB110-M5-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-C2-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-C2-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-C2H-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-C2H-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-C3-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-C3-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-C3H-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-C3H-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-D2-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-D2-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-D2H-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-D2H-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-D3-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-D3-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-D3H-13-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 13
	M3QRB110-M5-D3H-13-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 13
	M3QRB110-M5-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-C2-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-C2-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-C2H-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-C2H-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-C3-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-C3-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-C3H-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-C3H-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-D2-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-D2-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-D2H-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-D2H-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-D3-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-D3-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-D3H-14-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 14
	M3QRB110-M5-D3H-14-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 14
	M3QRB110-M5-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-C2-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-C2-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-C2H-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-C2H-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-C3-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-C3-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-C3H-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-C3H-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-D2-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-D2-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-D2H-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-D2H-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-D3-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-D3-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-D3H-15-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 15
	M3QRB110-M5-D3H-15-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 15
	M3QRB110-M5-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-C2-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-C2-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-C2H-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-C2H-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-C3-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-C3-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-C3H-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-C3H-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-D2-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-D2-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-D2H-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-D2H-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-D3-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-D3-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-D3H-16-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 16
	M3QRB110-M5-D3H-16-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 16
	M3QRB110-M5-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-C2-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-C2-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-C2H-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-C2H-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-C3-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-C3-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-C3H-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-C3H-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-D2-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-D2-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-D2H-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-D2H-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-D3-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-D3-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-D3H-17-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 17
	M3QRB110-M5-D3H-17-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 17
	M3QRB110-M5-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-C2-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-C2-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-C2H-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-C2H-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-C3-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-C3-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-C3H-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-C3H-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-D2-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-D2-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-D2H-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-D2H-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-D3-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-D3-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-D3H-18-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 18
	M3QRB110-M5-D3H-18-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 18
	M3QRB110-M5-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-C2-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-C2-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-C2H-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-C2H-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-C3-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-C3-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-C3H-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-C3H-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-D2-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-D2-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-D2H-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-D2H-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-D3-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-D3-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-D3H-19-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 19
	M3QRB110-M5-D3H-19-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 19
	M3QRB110-M5-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: Grommet lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-C2-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-C2-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-C2H-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-C2H-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-C3-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-C3-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-C3H-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-C3H-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: C connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-D2-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-D2-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-D2H-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-D2H-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, lead 300 mm \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-D3-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-D3-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC12V \| Stations: 20
	M3QRB110-M5-D3H-20-3	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC24V \| Stations: 20
	M3QRB110-M5-D3H-20-4	Type: Manifold, sub-plate \| Switching: Single, self-return \| Wiring: D connector, no lead \| Flow: High flow 2.4 W \| Voltage: DC12V \| Stations: 20
	M3QRB120-M5-C2-2-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB120-M5-C3-2-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB120-M5-D2-2-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB120-M5-D3-2-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 2
	M3QRB120-M5-C2-3-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB120-M5-C3-3-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB120-M5-D2-3-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB120-M5-D3-3-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 3
	M3QRB120-M5-C2-4-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB120-M5-C3-4-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB120-M5-D2-4-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB120-M5-D3-4-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 4
	M3QRB120-M5-C2-5-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB120-M5-C3-5-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB120-M5-D2-5-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB120-M5-D3-5-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 5
	M3QRB120-M5-C2-6-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB120-M5-C3-6-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB120-M5-D2-6-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB120-M5-D3-6-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 6
	M3QRB120-M5-C2-7-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB120-M5-C3-7-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB120-M5-D2-7-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB120-M5-D3-7-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 7
	M3QRB120-M5-C2-8-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB120-M5-C3-8-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB120-M5-D2-8-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB120-M5-D3-8-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 8
	M3QRB120-M5-C2-9-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB120-M5-C3-9-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB120-M5-D2-9-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB120-M5-D3-9-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 9
	M3QRB120-M5-C2-10-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB120-M5-C3-10-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB120-M5-D2-10-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB120-M5-D3-10-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 10
	M3QRB120-M5-C2-11-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB120-M5-C3-11-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB120-M5-D2-11-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB120-M5-D3-11-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 11
	M3QRB120-M5-C2-12-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB120-M5-C3-12-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB120-M5-D2-12-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB120-M5-D3-12-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 12
	M3QRB120-M5-C2-13-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB120-M5-C3-13-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB120-M5-D2-13-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB120-M5-D3-13-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 13
	M3QRB120-M5-C2-14-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB120-M5-C3-14-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB120-M5-D2-14-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB120-M5-D3-14-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 14
	M3QRB120-M5-C2-15-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB120-M5-C3-15-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB120-M5-D2-15-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB120-M5-D3-15-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 15
	M3QRB120-M5-C2-16-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB120-M5-C3-16-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB120-M5-D2-16-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB120-M5-D3-16-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 16
	M3QRB120-M5-C2-17-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB120-M5-C3-17-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB120-M5-D2-17-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB120-M5-D3-17-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 17
	M3QRB120-M5-C2-18-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB120-M5-C3-18-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB120-M5-D2-18-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB120-M5-D3-18-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 18
	M3QRB120-M5-C2-19-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB120-M5-C3-19-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB120-M5-D2-19-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB120-M5-D3-19-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 19
	M3QRB120-M5-C2-20-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB120-M5-C3-20-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: C connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB120-M5-D2-20-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, lead 300 mm \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	M3QRB120-M5-D3-20-3	Type: Manifold, sub-plate \| Switching: Single, self-holding (latch) \| Wiring: D connector, no lead \| Flow: Standard 2 W \| Voltage: DC24V \| Stations: 20
	3QR1-MP-KIT	Type: Masking plate kit \| Switching: - \| Wiring: - \| Flow: - \| Voltage: - \| Stations: 1
	3Q-SOCKET-SET	Type: Connector socket set \| Switching: - \| Wiring: Socket, 3 terminals, AWG26-28 \| Flow: - \| Voltage: - \| Stations: 1
	3QRA11	Legacy code \| Note: Old base code, see full codes
	3QRB11	Legacy code \| Note: Old base code, see full codes
	3QRA12	Legacy code \| Note: Old base code, see full codes
	3QRB12	Legacy code \| Note: Old base code, see full codes
	3QRA110-M5	Legacy code \| Note: Old base code, see full codes
	3QRB110-M5	Legacy code \| Note: Old base code, see full codes
	M3QRA110-M5	Legacy code \| Note: Old base code, see full codes
	M3QRB110-M5	Legacy code \| Note: Old base code, see full codes
	3QRA120-M5	Legacy code \| Note: Old base code, see full codes
	3QRB120-M5	Legacy code \| Note: Old base code, see full codes
	M3QRA120-M5	Legacy code \| Note: Old base code, see full codes
	M3QRB120-M5	Legacy code \| Note: Old base code, see full codes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD 3QRA/3QRB Direct Acting 3-Port Solenoid Valve (Universal, M5)
