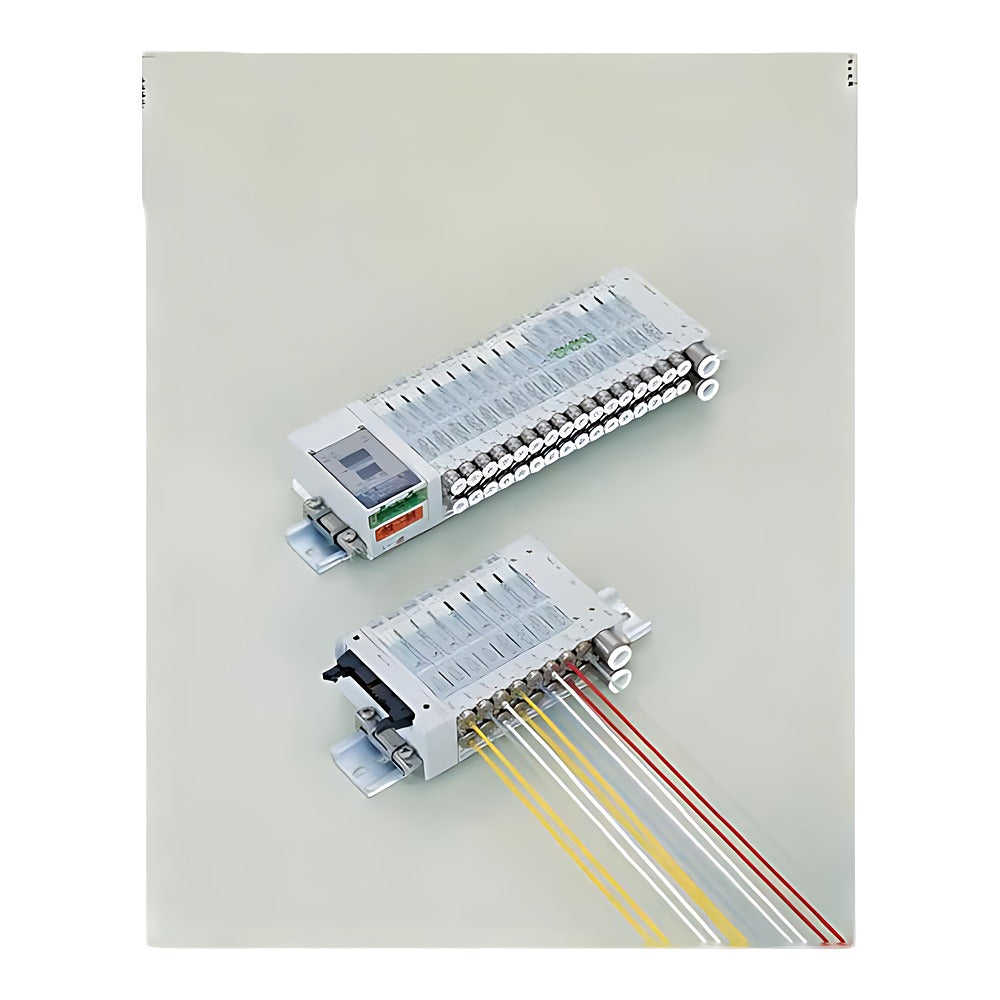

CKD 4F4-4F7 5-Port Solenoid Valve (Selex, Sub-plate Piping)

CKD 4F4-4F7 5-Port Solenoid Valve (Selex, Sub-plate Piping)

CKD 4F4-4F7 pilot operated 5-port Selex solenoid valves with sub-plate piping, Rc1/4 to Rc1 ports, for large cylinders ø63 to ø250.

Key features

  • Switching: 2-position single/double, 3-position all-ports-blocked, A-B-R and P-A-B connection
  • Sub-plate ports Rc1/4-Rc1 with NPT (N) and G (G) versions; valve-only codes (x9-00) without sub-plate
  • Codes listed with locking manual override and DIN terminal box (Pg11); lamp, grommet, conduit and round terminal box wiring available
  • Options: external pilot (K), U bracket (P), surge killer (S), check valve (H), 3-port valve plugs
  • Standard coils AC100V, AC200V, DC24V; AC110V, AC220V, DC12V optional
  • Response time 60 ms (4F4) to 300 ms (4F7)

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient temperature -10 to 60°C (no freezing)
Fluid temperature 5 to 60°C
Protection Dust-proof
Coil insulation Class B (molded coil)
Source CKD Korea catalog CB-023SK-9, p. 1462-1475
4F410-08-AC100V Model: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F410-08-AC200V Model: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F410-08-DC24V Model: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: DC24V
4F410-10-AC100V Model: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F410-10-AC200V Model: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F410-10-DC24V Model: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: DC24V
4F410-08N-AC100V Model: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F410-08N-AC200V Model: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F410-08N-DC24V Model: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: DC24V
4F410-10N-AC100V Model: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F410-10N-AC200V Model: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F410-10N-DC24V Model: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: DC24V
4F410-08G-AC100V Model: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: AC100V 50/60Hz
4F410-08G-AC200V Model: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: AC200V 50/60Hz
4F410-08G-DC24V Model: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: DC24V
4F410-10G-AC100V Model: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: AC100V 50/60Hz
4F410-10G-AC200V Model: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: AC200V 50/60Hz
4F410-10G-DC24V Model: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: DC24V
4F419-00-AC100V Model: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F419-00-AC200V Model: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F419-00-DC24V Model: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F420-08-AC100V Model: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F420-08-AC200V Model: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F420-08-DC24V Model: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: DC24V
4F420-10-AC100V Model: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F420-10-AC200V Model: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F420-10-DC24V Model: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: DC24V
4F420-08N-AC100V Model: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F420-08N-AC200V Model: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F420-08N-DC24V Model: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: DC24V
4F420-10N-AC100V Model: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F420-10N-AC200V Model: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F420-10N-DC24V Model: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: DC24V
4F420-08G-AC100V Model: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: AC100V 50/60Hz
4F420-08G-AC200V Model: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: AC200V 50/60Hz
4F420-08G-DC24V Model: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: DC24V
4F420-10G-AC100V Model: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: AC100V 50/60Hz
4F420-10G-AC200V Model: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: AC200V 50/60Hz
4F420-10G-DC24V Model: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: DC24V
4F429-00-AC100V Model: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F429-00-AC200V Model: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F429-00-DC24V Model: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F430-08-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F430-08-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F430-08-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: DC24V
4F430-10-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F430-10-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F430-10-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: DC24V
4F430-08N-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F430-08N-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F430-08N-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: DC24V
4F430-10N-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F430-10N-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F430-10N-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: DC24V
4F430-08G-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: AC100V 50/60Hz
4F430-08G-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: AC200V 50/60Hz
4F430-08G-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: DC24V
4F430-10G-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC100V 50/60Hz
4F430-10G-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC200V 50/60Hz
4F430-10G-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: DC24V
4F439-00-AC100V Model: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F439-00-AC200V Model: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F439-00-DC24V Model: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F440-08-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F440-08-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F440-08-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: DC24V
4F440-10-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F440-10-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F440-10-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4F440-08N-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F440-08N-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F440-08N-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: DC24V
4F440-10N-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F440-10N-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F440-10N-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: DC24V
4F440-08G-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: AC100V 50/60Hz
4F440-08G-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: AC200V 50/60Hz
4F440-08G-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: DC24V
4F440-10G-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F440-10G-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F440-10G-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: DC24V
4F449-00-AC100V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F449-00-AC200V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F449-00-DC24V Model: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F450-08-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F450-08-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F450-08-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: DC24V
4F450-10-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F450-10-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F450-10-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4F450-08N-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F450-08N-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F450-08N-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: DC24V
4F450-10N-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F450-10N-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F450-10N-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: DC24V
4F450-08G-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: AC100V 50/60Hz
4F450-08G-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: AC200V 50/60Hz
4F450-08G-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: DC24V
4F450-10G-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F450-10G-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F450-10G-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: DC24V
4F459-00-AC100V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F459-00-AC200V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F459-00-DC24V Model: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F510-10-AC100V Model: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F510-10-AC200V Model: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F510-10-DC24V Model: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: DC24V
4F510-15-AC100V Model: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F510-15-AC200V Model: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F510-15-DC24V Model: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: DC24V
4F510-10N-AC100V Model: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F510-10N-AC200V Model: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F510-10N-DC24V Model: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: DC24V
4F510-15N-AC100V Model: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F510-15N-AC200V Model: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F510-15N-DC24V Model: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: DC24V
4F510-10G-AC100V Model: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: AC100V 50/60Hz
4F510-10G-AC200V Model: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: AC200V 50/60Hz
4F510-10G-DC24V Model: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: DC24V
4F510-15G-AC100V Model: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: AC100V 50/60Hz
4F510-15G-AC200V Model: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: AC200V 50/60Hz
4F510-15G-DC24V Model: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: DC24V
4F519-00-AC100V Model: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F519-00-AC200V Model: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F519-00-DC24V Model: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F520-10-AC100V Model: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F520-10-AC200V Model: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F520-10-DC24V Model: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: DC24V
4F520-15-AC100V Model: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F520-15-AC200V Model: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F520-15-DC24V Model: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: DC24V
4F520-10N-AC100V Model: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F520-10N-AC200V Model: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F520-10N-DC24V Model: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: DC24V
4F520-15N-AC100V Model: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F520-15N-AC200V Model: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F520-15N-DC24V Model: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: DC24V
4F520-10G-AC100V Model: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: AC100V 50/60Hz
4F520-10G-AC200V Model: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: AC200V 50/60Hz
4F520-10G-DC24V Model: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: DC24V
4F520-15G-AC100V Model: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: AC100V 50/60Hz
4F520-15G-AC200V Model: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: AC200V 50/60Hz
4F520-15G-DC24V Model: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: DC24V
4F529-00-AC100V Model: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F529-00-AC200V Model: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F529-00-DC24V Model: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F530-10-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F530-10-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F530-10-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: DC24V
4F530-15-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F530-15-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F530-15-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: DC24V
4F530-10N-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F530-10N-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F530-10N-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: DC24V
4F530-15N-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F530-15N-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F530-15N-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: DC24V
4F530-10G-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC100V 50/60Hz
4F530-10G-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC200V 50/60Hz
4F530-10G-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: DC24V
4F530-15G-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC100V 50/60Hz
4F530-15G-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC200V 50/60Hz
4F530-15G-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: DC24V
4F539-00-AC100V Model: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F539-00-AC200V Model: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F539-00-DC24V Model: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F540-10-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F540-10-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F540-10-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4F540-15-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F540-15-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F540-15-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: DC24V
4F540-10N-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F540-10N-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F540-10N-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: DC24V
4F540-15N-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F540-15N-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F540-15N-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: DC24V
4F540-10G-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F540-10G-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F540-10G-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: DC24V
4F540-15G-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F540-15G-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F540-15G-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: DC24V
4F549-00-AC100V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F549-00-AC200V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F549-00-DC24V Model: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F550-10-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F550-10-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F550-10-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4F550-15-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F550-15-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F550-15-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: DC24V
4F550-10N-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F550-10N-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F550-10N-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: DC24V
4F550-15N-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F550-15N-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F550-15N-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: DC24V
4F550-10G-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F550-10G-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F550-10G-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: DC24V
4F550-15G-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F550-15G-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F550-15G-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: DC24V
4F559-00-AC100V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F559-00-AC200V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F559-00-DC24V Model: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F610-15-AC100V Model: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F610-15-AC200V Model: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F610-15-DC24V Model: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: DC24V
4F610-20-AC100V Model: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F610-20-AC200V Model: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F610-20-DC24V Model: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: DC24V
4F610-15N-AC100V Model: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F610-15N-AC200V Model: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F610-15N-DC24V Model: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: DC24V
4F610-20N-AC100V Model: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F610-20N-AC200V Model: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F610-20N-DC24V Model: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: DC24V
4F610-15G-AC100V Model: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: AC100V 50/60Hz
4F610-15G-AC200V Model: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: AC200V 50/60Hz
4F610-15G-DC24V Model: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: DC24V
4F610-20G-AC100V Model: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: AC100V 50/60Hz
4F610-20G-AC200V Model: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: AC200V 50/60Hz
4F610-20G-DC24V Model: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: DC24V
4F619-00-AC100V Model: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F619-00-AC200V Model: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F619-00-DC24V Model: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F620-15-AC100V Model: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F620-15-AC200V Model: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F620-15-DC24V Model: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: DC24V
4F620-20-AC100V Model: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F620-20-AC200V Model: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F620-20-DC24V Model: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: DC24V
4F620-15N-AC100V Model: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F620-15N-AC200V Model: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F620-15N-DC24V Model: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: DC24V
4F620-20N-AC100V Model: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F620-20N-AC200V Model: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F620-20N-DC24V Model: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: DC24V
4F620-15G-AC100V Model: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: AC100V 50/60Hz
4F620-15G-AC200V Model: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: AC200V 50/60Hz
4F620-15G-DC24V Model: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: DC24V
4F620-20G-AC100V Model: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: AC100V 50/60Hz
4F620-20G-AC200V Model: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: AC200V 50/60Hz
4F620-20G-DC24V Model: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: DC24V
4F629-00-AC100V Model: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F629-00-AC200V Model: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F629-00-DC24V Model: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F630-15-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F630-15-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F630-15-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: DC24V
4F630-20-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F630-20-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F630-20-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: DC24V
4F630-15N-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F630-15N-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F630-15N-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: DC24V
4F630-20N-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F630-20N-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F630-20N-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: DC24V
4F630-15G-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC100V 50/60Hz
4F630-15G-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC200V 50/60Hz
4F630-15G-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: DC24V
4F630-20G-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC100V 50/60Hz
4F630-20G-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC200V 50/60Hz
4F630-20G-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: DC24V
4F639-00-AC100V Model: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F639-00-AC200V Model: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F639-00-DC24V Model: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F640-15-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F640-15-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F640-15-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: DC24V
4F640-20-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F640-20-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F640-20-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: DC24V
4F640-15N-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F640-15N-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F640-15N-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: DC24V
4F640-20N-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F640-20N-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F640-20N-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: DC24V
4F640-15G-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F640-15G-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F640-15G-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: DC24V
4F640-20G-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F640-20G-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F640-20G-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: DC24V
4F649-00-AC100V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F649-00-AC200V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F649-00-DC24V Model: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F650-15-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F650-15-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F650-15-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: DC24V
4F650-20-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F650-20-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F650-20-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: DC24V
4F650-15N-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F650-15N-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F650-15N-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: DC24V
4F650-20N-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F650-20N-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F650-20N-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: DC24V
4F650-15G-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F650-15G-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F650-15G-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: DC24V
4F650-20G-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F650-20G-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F650-20G-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: DC24V
4F659-00-AC100V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F659-00-AC200V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F659-00-DC24V Model: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F710-20-AC100V Model: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F710-20-AC200V Model: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F710-20-DC24V Model: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: DC24V
4F710-25-AC100V Model: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: AC100V 50/60Hz
4F710-25-AC200V Model: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: AC200V 50/60Hz
4F710-25-DC24V Model: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: DC24V
4F710-20N-AC100V Model: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F710-20N-AC200V Model: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F710-20N-DC24V Model: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: DC24V
4F710-25N-AC100V Model: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: AC100V 50/60Hz
4F710-25N-AC200V Model: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: AC200V 50/60Hz
4F710-25N-DC24V Model: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: DC24V
4F710-20G-AC100V Model: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: AC100V 50/60Hz
4F710-20G-AC200V Model: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: AC200V 50/60Hz
4F710-20G-DC24V Model: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: DC24V
4F710-25G-AC100V Model: 4F7 | Switching: 2-position single | Port: G1 | Voltage: AC100V 50/60Hz
4F710-25G-AC200V Model: 4F7 | Switching: 2-position single | Port: G1 | Voltage: AC200V 50/60Hz
4F710-25G-DC24V Model: 4F7 | Switching: 2-position single | Port: G1 | Voltage: DC24V
4F719-00-AC100V Model: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F719-00-AC200V Model: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F719-00-DC24V Model: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F720-20-AC100V Model: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F720-20-AC200V Model: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F720-20-DC24V Model: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: DC24V
4F720-25-AC100V Model: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: AC100V 50/60Hz
4F720-25-AC200V Model: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: AC200V 50/60Hz
4F720-25-DC24V Model: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: DC24V
4F720-20N-AC100V Model: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F720-20N-AC200V Model: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F720-20N-DC24V Model: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: DC24V
4F720-25N-AC100V Model: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: AC100V 50/60Hz
4F720-25N-AC200V Model: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: AC200V 50/60Hz
4F720-25N-DC24V Model: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: DC24V
4F720-20G-AC100V Model: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: AC100V 50/60Hz
4F720-20G-AC200V Model: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: AC200V 50/60Hz
4F720-20G-DC24V Model: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: DC24V
4F720-25G-AC100V Model: 4F7 | Switching: 2-position double | Port: G1 | Voltage: AC100V 50/60Hz
4F720-25G-AC200V Model: 4F7 | Switching: 2-position double | Port: G1 | Voltage: AC200V 50/60Hz
4F720-25G-DC24V Model: 4F7 | Switching: 2-position double | Port: G1 | Voltage: DC24V
4F729-00-AC100V Model: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F729-00-AC200V Model: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F729-00-DC24V Model: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F730-20-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F730-20-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F730-20-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: DC24V
4F730-25-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: AC100V 50/60Hz
4F730-25-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: AC200V 50/60Hz
4F730-25-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: DC24V
4F730-20N-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F730-20N-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F730-20N-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: DC24V
4F730-25N-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: AC100V 50/60Hz
4F730-25N-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: AC200V 50/60Hz
4F730-25N-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: DC24V
4F730-20G-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC100V 50/60Hz
4F730-20G-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC200V 50/60Hz
4F730-20G-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: DC24V
4F730-25G-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: AC100V 50/60Hz
4F730-25G-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: AC200V 50/60Hz
4F730-25G-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: DC24V
4F739-00-AC100V Model: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F739-00-AC200V Model: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F739-00-DC24V Model: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F740-20-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F740-20-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F740-20-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: DC24V
4F740-25-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: AC100V 50/60Hz
4F740-25-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: AC200V 50/60Hz
4F740-25-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: DC24V
4F740-20N-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F740-20N-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F740-20N-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: DC24V
4F740-25N-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: AC100V 50/60Hz
4F740-25N-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: AC200V 50/60Hz
4F740-25N-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: DC24V
4F740-20G-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F740-20G-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F740-20G-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: DC24V
4F740-25G-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: AC100V 50/60Hz
4F740-25G-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: AC200V 50/60Hz
4F740-25G-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: DC24V
4F749-00-AC100V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F749-00-AC200V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F749-00-DC24V Model: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F750-20-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F750-20-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F750-20-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: DC24V
4F750-25-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: AC100V 50/60Hz
4F750-25-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: AC200V 50/60Hz
4F750-25-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: DC24V
4F750-20N-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F750-20N-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F750-20N-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: DC24V
4F750-25N-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: AC100V 50/60Hz
4F750-25N-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: AC200V 50/60Hz
4F750-25N-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: DC24V
4F750-20G-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F750-20G-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F750-20G-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: DC24V
4F750-25G-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: AC100V 50/60Hz
4F750-25G-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: AC200V 50/60Hz
4F750-25G-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: DC24V
4F759-00-AC100V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F759-00-AC200V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F759-00-DC24V Model: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F4 Legacy code: 4F4 series base model (see full codes)
4F5 Legacy code: 4F5 series base model (see full codes)
4F6 Legacy code: 4F6 series base model (see full codes)
4F7 Legacy code: 4F7 series base model (see full codes)
Solenoid ValvesCKD
424 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4F4-4F7 5-Port Solenoid Valve (Selex, Sub-plate Piping)

Brand CKD·Solenoid Valves

Available part numbers (424)

4F410-08-AC100V, 4F410-08-AC200V, 4F410-08-DC24V, 4F410-10-AC100V, 4F410-10-AC200V, 4F410-10-DC24V, 4F410-08N-AC100V, 4F410-08N-AC200V, 4F410-08N-DC24V, 4F410-10N-AC100V + 414 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4F410-08-AC100VModel: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F410-08-AC200VModel: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F410-08-DC24VModel: 4F4 | Switching: 2-position single | Port: Rc1/4 | Voltage: DC24V
4F410-10-AC100VModel: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F410-10-AC200VModel: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F410-10-DC24VModel: 4F4 | Switching: 2-position single | Port: Rc3/8 | Voltage: DC24V
4F410-08N-AC100VModel: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F410-08N-AC200VModel: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F410-08N-DC24VModel: 4F4 | Switching: 2-position single | Port: NPT1/4 | Voltage: DC24V
4F410-10N-AC100VModel: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F410-10N-AC200VModel: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F410-10N-DC24VModel: 4F4 | Switching: 2-position single | Port: NPT3/8 | Voltage: DC24V
4F410-08G-AC100VModel: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: AC100V 50/60Hz
4F410-08G-AC200VModel: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: AC200V 50/60Hz
4F410-08G-DC24VModel: 4F4 | Switching: 2-position single | Port: G1/4 | Voltage: DC24V
4F410-10G-AC100VModel: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: AC100V 50/60Hz
4F410-10G-AC200VModel: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: AC200V 50/60Hz
4F410-10G-DC24VModel: 4F4 | Switching: 2-position single | Port: G3/8 | Voltage: DC24V
4F419-00-AC100VModel: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F419-00-AC200VModel: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F419-00-DC24VModel: 4F4 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F420-08-AC100VModel: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F420-08-AC200VModel: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F420-08-DC24VModel: 4F4 | Switching: 2-position double | Port: Rc1/4 | Voltage: DC24V
4F420-10-AC100VModel: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F420-10-AC200VModel: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F420-10-DC24VModel: 4F4 | Switching: 2-position double | Port: Rc3/8 | Voltage: DC24V
4F420-08N-AC100VModel: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F420-08N-AC200VModel: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F420-08N-DC24VModel: 4F4 | Switching: 2-position double | Port: NPT1/4 | Voltage: DC24V
4F420-10N-AC100VModel: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F420-10N-AC200VModel: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F420-10N-DC24VModel: 4F4 | Switching: 2-position double | Port: NPT3/8 | Voltage: DC24V
4F420-08G-AC100VModel: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: AC100V 50/60Hz
4F420-08G-AC200VModel: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: AC200V 50/60Hz
4F420-08G-DC24VModel: 4F4 | Switching: 2-position double | Port: G1/4 | Voltage: DC24V
4F420-10G-AC100VModel: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: AC100V 50/60Hz
4F420-10G-AC200VModel: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: AC200V 50/60Hz
4F420-10G-DC24VModel: 4F4 | Switching: 2-position double | Port: G3/8 | Voltage: DC24V
4F429-00-AC100VModel: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F429-00-AC200VModel: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F429-00-DC24VModel: 4F4 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F430-08-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F430-08-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F430-08-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc1/4 | Voltage: DC24V
4F430-10-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F430-10-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F430-10-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: DC24V
4F430-08N-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F430-08N-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F430-08N-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT1/4 | Voltage: DC24V
4F430-10N-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F430-10N-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F430-10N-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: DC24V
4F430-08G-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: AC100V 50/60Hz
4F430-08G-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: AC200V 50/60Hz
4F430-08G-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: G1/4 | Voltage: DC24V
4F430-10G-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC100V 50/60Hz
4F430-10G-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC200V 50/60Hz
4F430-10G-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: DC24V
4F439-00-AC100VModel: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F439-00-AC200VModel: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F439-00-DC24VModel: 4F4 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F440-08-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F440-08-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F440-08-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc1/4 | Voltage: DC24V
4F440-10-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F440-10-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F440-10-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4F440-08N-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F440-08N-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F440-08N-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT1/4 | Voltage: DC24V
4F440-10N-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F440-10N-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F440-10N-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: DC24V
4F440-08G-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: AC100V 50/60Hz
4F440-08G-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: AC200V 50/60Hz
4F440-08G-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G1/4 | Voltage: DC24V
4F440-10G-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F440-10G-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F440-10G-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: DC24V
4F449-00-AC100VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F449-00-AC200VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F449-00-DC24VModel: 4F4 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F450-08-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: AC100V 50/60Hz
4F450-08-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: AC200V 50/60Hz
4F450-08-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc1/4 | Voltage: DC24V
4F450-10-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F450-10-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F450-10-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4F450-08N-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: AC100V 50/60Hz
4F450-08N-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: AC200V 50/60Hz
4F450-08N-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT1/4 | Voltage: DC24V
4F450-10N-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F450-10N-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F450-10N-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: DC24V
4F450-08G-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: AC100V 50/60Hz
4F450-08G-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: AC200V 50/60Hz
4F450-08G-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G1/4 | Voltage: DC24V
4F450-10G-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F450-10G-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F450-10G-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: DC24V
4F459-00-AC100VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F459-00-AC200VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F459-00-DC24VModel: 4F4 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F510-10-AC100VModel: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F510-10-AC200VModel: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F510-10-DC24VModel: 4F5 | Switching: 2-position single | Port: Rc3/8 | Voltage: DC24V
4F510-15-AC100VModel: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F510-15-AC200VModel: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F510-15-DC24VModel: 4F5 | Switching: 2-position single | Port: Rc1/2 | Voltage: DC24V
4F510-10N-AC100VModel: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F510-10N-AC200VModel: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F510-10N-DC24VModel: 4F5 | Switching: 2-position single | Port: NPT3/8 | Voltage: DC24V
4F510-15N-AC100VModel: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F510-15N-AC200VModel: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F510-15N-DC24VModel: 4F5 | Switching: 2-position single | Port: NPT1/2 | Voltage: DC24V
4F510-10G-AC100VModel: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: AC100V 50/60Hz
4F510-10G-AC200VModel: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: AC200V 50/60Hz
4F510-10G-DC24VModel: 4F5 | Switching: 2-position single | Port: G3/8 | Voltage: DC24V
4F510-15G-AC100VModel: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: AC100V 50/60Hz
4F510-15G-AC200VModel: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: AC200V 50/60Hz
4F510-15G-DC24VModel: 4F5 | Switching: 2-position single | Port: G1/2 | Voltage: DC24V
4F519-00-AC100VModel: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F519-00-AC200VModel: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F519-00-DC24VModel: 4F5 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F520-10-AC100VModel: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F520-10-AC200VModel: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F520-10-DC24VModel: 4F5 | Switching: 2-position double | Port: Rc3/8 | Voltage: DC24V
4F520-15-AC100VModel: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F520-15-AC200VModel: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F520-15-DC24VModel: 4F5 | Switching: 2-position double | Port: Rc1/2 | Voltage: DC24V
4F520-10N-AC100VModel: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F520-10N-AC200VModel: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F520-10N-DC24VModel: 4F5 | Switching: 2-position double | Port: NPT3/8 | Voltage: DC24V
4F520-15N-AC100VModel: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F520-15N-AC200VModel: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F520-15N-DC24VModel: 4F5 | Switching: 2-position double | Port: NPT1/2 | Voltage: DC24V
4F520-10G-AC100VModel: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: AC100V 50/60Hz
4F520-10G-AC200VModel: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: AC200V 50/60Hz
4F520-10G-DC24VModel: 4F5 | Switching: 2-position double | Port: G3/8 | Voltage: DC24V
4F520-15G-AC100VModel: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: AC100V 50/60Hz
4F520-15G-AC200VModel: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: AC200V 50/60Hz
4F520-15G-DC24VModel: 4F5 | Switching: 2-position double | Port: G1/2 | Voltage: DC24V
4F529-00-AC100VModel: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F529-00-AC200VModel: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F529-00-DC24VModel: 4F5 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F530-10-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F530-10-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F530-10-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc3/8 | Voltage: DC24V
4F530-15-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F530-15-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F530-15-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: DC24V
4F530-10N-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F530-10N-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F530-10N-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT3/8 | Voltage: DC24V
4F530-15N-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F530-15N-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F530-15N-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: DC24V
4F530-10G-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC100V 50/60Hz
4F530-10G-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: AC200V 50/60Hz
4F530-10G-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: G3/8 | Voltage: DC24V
4F530-15G-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC100V 50/60Hz
4F530-15G-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC200V 50/60Hz
4F530-15G-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: DC24V
4F539-00-AC100VModel: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F539-00-AC200VModel: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F539-00-DC24VModel: 4F5 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F540-10-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F540-10-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F540-10-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4F540-15-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F540-15-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F540-15-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: DC24V
4F540-10N-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F540-10N-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F540-10N-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT3/8 | Voltage: DC24V
4F540-15N-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F540-15N-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F540-15N-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: DC24V
4F540-10G-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F540-10G-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F540-10G-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G3/8 | Voltage: DC24V
4F540-15G-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F540-15G-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F540-15G-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: DC24V
4F549-00-AC100VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F549-00-AC200VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F549-00-DC24VModel: 4F5 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F550-10-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC100V 50/60Hz
4F550-10-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: AC200V 50/60Hz
4F550-10-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4F550-15-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F550-15-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F550-15-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: DC24V
4F550-10N-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC100V 50/60Hz
4F550-10N-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: AC200V 50/60Hz
4F550-10N-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT3/8 | Voltage: DC24V
4F550-15N-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F550-15N-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F550-15N-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: DC24V
4F550-10G-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC100V 50/60Hz
4F550-10G-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: AC200V 50/60Hz
4F550-10G-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G3/8 | Voltage: DC24V
4F550-15G-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F550-15G-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F550-15G-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: DC24V
4F559-00-AC100VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F559-00-AC200VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F559-00-DC24VModel: 4F5 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F610-15-AC100VModel: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F610-15-AC200VModel: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F610-15-DC24VModel: 4F6 | Switching: 2-position single | Port: Rc1/2 | Voltage: DC24V
4F610-20-AC100VModel: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F610-20-AC200VModel: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F610-20-DC24VModel: 4F6 | Switching: 2-position single | Port: Rc3/4 | Voltage: DC24V
4F610-15N-AC100VModel: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F610-15N-AC200VModel: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F610-15N-DC24VModel: 4F6 | Switching: 2-position single | Port: NPT1/2 | Voltage: DC24V
4F610-20N-AC100VModel: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F610-20N-AC200VModel: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F610-20N-DC24VModel: 4F6 | Switching: 2-position single | Port: NPT3/4 | Voltage: DC24V
4F610-15G-AC100VModel: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: AC100V 50/60Hz
4F610-15G-AC200VModel: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: AC200V 50/60Hz
4F610-15G-DC24VModel: 4F6 | Switching: 2-position single | Port: G1/2 | Voltage: DC24V
4F610-20G-AC100VModel: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: AC100V 50/60Hz
4F610-20G-AC200VModel: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: AC200V 50/60Hz
4F610-20G-DC24VModel: 4F6 | Switching: 2-position single | Port: G3/4 | Voltage: DC24V
4F619-00-AC100VModel: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F619-00-AC200VModel: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F619-00-DC24VModel: 4F6 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F620-15-AC100VModel: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F620-15-AC200VModel: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F620-15-DC24VModel: 4F6 | Switching: 2-position double | Port: Rc1/2 | Voltage: DC24V
4F620-20-AC100VModel: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F620-20-AC200VModel: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F620-20-DC24VModel: 4F6 | Switching: 2-position double | Port: Rc3/4 | Voltage: DC24V
4F620-15N-AC100VModel: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F620-15N-AC200VModel: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F620-15N-DC24VModel: 4F6 | Switching: 2-position double | Port: NPT1/2 | Voltage: DC24V
4F620-20N-AC100VModel: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F620-20N-AC200VModel: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F620-20N-DC24VModel: 4F6 | Switching: 2-position double | Port: NPT3/4 | Voltage: DC24V
4F620-15G-AC100VModel: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: AC100V 50/60Hz
4F620-15G-AC200VModel: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: AC200V 50/60Hz
4F620-15G-DC24VModel: 4F6 | Switching: 2-position double | Port: G1/2 | Voltage: DC24V
4F620-20G-AC100VModel: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: AC100V 50/60Hz
4F620-20G-AC200VModel: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: AC200V 50/60Hz
4F620-20G-DC24VModel: 4F6 | Switching: 2-position double | Port: G3/4 | Voltage: DC24V
4F629-00-AC100VModel: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F629-00-AC200VModel: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F629-00-DC24VModel: 4F6 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F630-15-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F630-15-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F630-15-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc1/2 | Voltage: DC24V
4F630-20-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F630-20-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F630-20-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: DC24V
4F630-15N-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F630-15N-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F630-15N-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT1/2 | Voltage: DC24V
4F630-20N-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F630-20N-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F630-20N-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: DC24V
4F630-15G-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC100V 50/60Hz
4F630-15G-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: AC200V 50/60Hz
4F630-15G-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: G1/2 | Voltage: DC24V
4F630-20G-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC100V 50/60Hz
4F630-20G-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC200V 50/60Hz
4F630-20G-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: DC24V
4F639-00-AC100VModel: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F639-00-AC200VModel: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F639-00-DC24VModel: 4F6 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F640-15-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F640-15-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F640-15-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc1/2 | Voltage: DC24V
4F640-20-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F640-20-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F640-20-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: DC24V
4F640-15N-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F640-15N-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F640-15N-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT1/2 | Voltage: DC24V
4F640-20N-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F640-20N-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F640-20N-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: DC24V
4F640-15G-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F640-15G-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F640-15G-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G1/2 | Voltage: DC24V
4F640-20G-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F640-20G-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F640-20G-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: DC24V
4F649-00-AC100VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F649-00-AC200VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F649-00-DC24VModel: 4F6 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F650-15-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC100V 50/60Hz
4F650-15-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: AC200V 50/60Hz
4F650-15-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc1/2 | Voltage: DC24V
4F650-20-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F650-20-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F650-20-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: DC24V
4F650-15N-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC100V 50/60Hz
4F650-15N-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: AC200V 50/60Hz
4F650-15N-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT1/2 | Voltage: DC24V
4F650-20N-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F650-20N-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F650-20N-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: DC24V
4F650-15G-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC100V 50/60Hz
4F650-15G-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: AC200V 50/60Hz
4F650-15G-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G1/2 | Voltage: DC24V
4F650-20G-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F650-20G-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F650-20G-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: DC24V
4F659-00-AC100VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F659-00-AC200VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F659-00-DC24VModel: 4F6 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F710-20-AC100VModel: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F710-20-AC200VModel: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F710-20-DC24VModel: 4F7 | Switching: 2-position single | Port: Rc3/4 | Voltage: DC24V
4F710-25-AC100VModel: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: AC100V 50/60Hz
4F710-25-AC200VModel: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: AC200V 50/60Hz
4F710-25-DC24VModel: 4F7 | Switching: 2-position single | Port: Rc1 | Voltage: DC24V
4F710-20N-AC100VModel: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F710-20N-AC200VModel: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F710-20N-DC24VModel: 4F7 | Switching: 2-position single | Port: NPT3/4 | Voltage: DC24V
4F710-25N-AC100VModel: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: AC100V 50/60Hz
4F710-25N-AC200VModel: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: AC200V 50/60Hz
4F710-25N-DC24VModel: 4F7 | Switching: 2-position single | Port: NPT1 | Voltage: DC24V
4F710-20G-AC100VModel: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: AC100V 50/60Hz
4F710-20G-AC200VModel: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: AC200V 50/60Hz
4F710-20G-DC24VModel: 4F7 | Switching: 2-position single | Port: G3/4 | Voltage: DC24V
4F710-25G-AC100VModel: 4F7 | Switching: 2-position single | Port: G1 | Voltage: AC100V 50/60Hz
4F710-25G-AC200VModel: 4F7 | Switching: 2-position single | Port: G1 | Voltage: AC200V 50/60Hz
4F710-25G-DC24VModel: 4F7 | Switching: 2-position single | Port: G1 | Voltage: DC24V
4F719-00-AC100VModel: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F719-00-AC200VModel: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F719-00-DC24VModel: 4F7 | Switching: 2-position single | Port: Valve only (no sub-plate) | Voltage: DC24V
4F720-20-AC100VModel: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F720-20-AC200VModel: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F720-20-DC24VModel: 4F7 | Switching: 2-position double | Port: Rc3/4 | Voltage: DC24V
4F720-25-AC100VModel: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: AC100V 50/60Hz
4F720-25-AC200VModel: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: AC200V 50/60Hz
4F720-25-DC24VModel: 4F7 | Switching: 2-position double | Port: Rc1 | Voltage: DC24V
4F720-20N-AC100VModel: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F720-20N-AC200VModel: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F720-20N-DC24VModel: 4F7 | Switching: 2-position double | Port: NPT3/4 | Voltage: DC24V
4F720-25N-AC100VModel: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: AC100V 50/60Hz
4F720-25N-AC200VModel: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: AC200V 50/60Hz
4F720-25N-DC24VModel: 4F7 | Switching: 2-position double | Port: NPT1 | Voltage: DC24V
4F720-20G-AC100VModel: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: AC100V 50/60Hz
4F720-20G-AC200VModel: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: AC200V 50/60Hz
4F720-20G-DC24VModel: 4F7 | Switching: 2-position double | Port: G3/4 | Voltage: DC24V
4F720-25G-AC100VModel: 4F7 | Switching: 2-position double | Port: G1 | Voltage: AC100V 50/60Hz
4F720-25G-AC200VModel: 4F7 | Switching: 2-position double | Port: G1 | Voltage: AC200V 50/60Hz
4F720-25G-DC24VModel: 4F7 | Switching: 2-position double | Port: G1 | Voltage: DC24V
4F729-00-AC100VModel: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F729-00-AC200VModel: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F729-00-DC24VModel: 4F7 | Switching: 2-position double | Port: Valve only (no sub-plate) | Voltage: DC24V
4F730-20-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F730-20-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F730-20-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc3/4 | Voltage: DC24V
4F730-25-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: AC100V 50/60Hz
4F730-25-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: AC200V 50/60Hz
4F730-25-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: Rc1 | Voltage: DC24V
4F730-20N-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F730-20N-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F730-20N-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT3/4 | Voltage: DC24V
4F730-25N-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: AC100V 50/60Hz
4F730-25N-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: AC200V 50/60Hz
4F730-25N-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: NPT1 | Voltage: DC24V
4F730-20G-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC100V 50/60Hz
4F730-20G-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: AC200V 50/60Hz
4F730-20G-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: G3/4 | Voltage: DC24V
4F730-25G-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: AC100V 50/60Hz
4F730-25G-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: AC200V 50/60Hz
4F730-25G-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: G1 | Voltage: DC24V
4F739-00-AC100VModel: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F739-00-AC200VModel: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F739-00-DC24VModel: 4F7 | Switching: 3-position all ports blocked | Port: Valve only (no sub-plate) | Voltage: DC24V
4F740-20-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F740-20-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F740-20-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc3/4 | Voltage: DC24V
4F740-25-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: AC100V 50/60Hz
4F740-25-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: AC200V 50/60Hz
4F740-25-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Rc1 | Voltage: DC24V
4F740-20N-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F740-20N-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F740-20N-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT3/4 | Voltage: DC24V
4F740-25N-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: AC100V 50/60Hz
4F740-25N-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: AC200V 50/60Hz
4F740-25N-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: NPT1 | Voltage: DC24V
4F740-20G-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F740-20G-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F740-20G-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G3/4 | Voltage: DC24V
4F740-25G-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: AC100V 50/60Hz
4F740-25G-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: AC200V 50/60Hz
4F740-25G-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: G1 | Voltage: DC24V
4F749-00-AC100VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F749-00-AC200VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F749-00-DC24VModel: 4F7 | Switching: 3-position A-B-R connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F750-20-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC100V 50/60Hz
4F750-20-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: AC200V 50/60Hz
4F750-20-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc3/4 | Voltage: DC24V
4F750-25-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: AC100V 50/60Hz
4F750-25-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: AC200V 50/60Hz
4F750-25-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Rc1 | Voltage: DC24V
4F750-20N-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC100V 50/60Hz
4F750-20N-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: AC200V 50/60Hz
4F750-20N-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT3/4 | Voltage: DC24V
4F750-25N-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: AC100V 50/60Hz
4F750-25N-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: AC200V 50/60Hz
4F750-25N-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: NPT1 | Voltage: DC24V
4F750-20G-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC100V 50/60Hz
4F750-20G-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: AC200V 50/60Hz
4F750-20G-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G3/4 | Voltage: DC24V
4F750-25G-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: AC100V 50/60Hz
4F750-25G-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: AC200V 50/60Hz
4F750-25G-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: G1 | Voltage: DC24V
4F759-00-AC100VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC100V 50/60Hz
4F759-00-AC200VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: AC200V 50/60Hz
4F759-00-DC24VModel: 4F7 | Switching: 3-position P-A-B connection | Port: Valve only (no sub-plate) | Voltage: DC24V
4F4Legacy code: 4F4 series base model (see full codes)
4F5Legacy code: 4F5 series base model (see full codes)
4F6Legacy code: 4F6 series base model (see full codes)
4F7Legacy code: 4F7 series base model (see full codes)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
