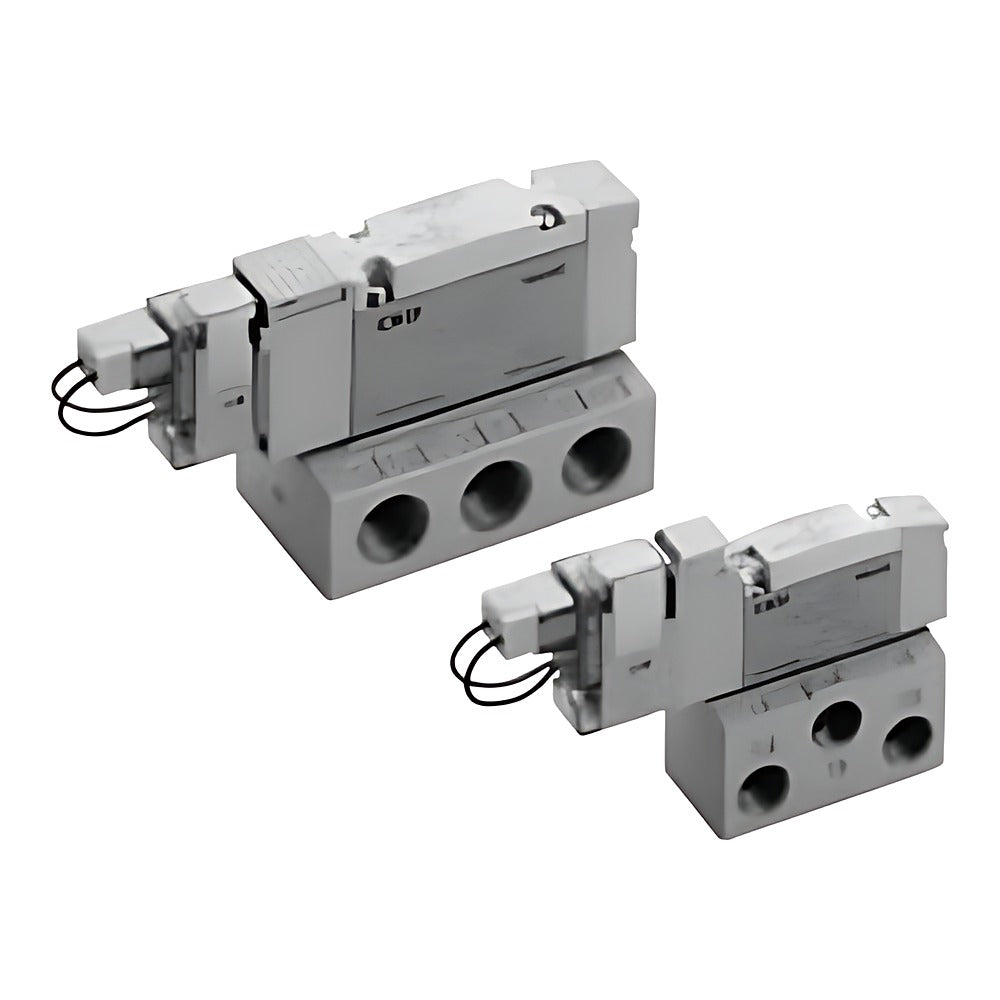

CKD 4GB/3GB-P70 Solenoid Valve (Clean, Single, Base Piping)

CKD 4GB/3GB-P70 Solenoid Valve (Clean, Single, Base Piping)

CKD 4GB1/2/3 5-port and 3GB1/2 dual 3-port pilot solenoid valves on a sub-base, clean-room P70 specification.

Key features

  • Clean-room specification: suffix -P70 (exhaust treatment, dust-generation prevention); -P74 adds copper/silicone/halogen-free materials (made to order, not combinable with option A)
  • 4GB: 2-position single/double, 3-position all-ports-blocked, ABR and PAB; 3GB: dual 3-port types 66/67/76/77
  • Sub-base ports Rc1/8 (size 1), Rc1/4 (size 2), Rc1/4 or Rc3/8 (4GB3)
  • Port code 00 with digit 9 = valve only for mounting on a base (e.g. 4GB119R-00-E2H-3-P70)
  • Options (not expanded): K external pilot, M, H, A, S, E, F; NPT/G sub-base ports made to order

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Operating pressure 0.2-0.7 MPa
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Manual override Non-locking/locking (standard)
Power consumption 0.35 W (0.40 W with lamp) DC
Applicable cylinder bore 20-100 mm
Clean specification P70: exhaust treated (clean room); P74 to order
Code format 4GB<size><sw>0R-<port>-<wiring>-<volt>-P70
Source CKD Korea catalog CB-033S-4, p. 475-506
4GB110R-06-3-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB110R-06-4-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB110R-06-E2-1-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB110R-06-E2-3-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB110R-06-E2-4-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB119R-00-3-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB119R-00-4-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB119R-00-E2-1-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB119R-00-E2-3-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB119R-00-E2-4-P70 Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB120R-06-3-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB120R-06-4-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB120R-06-E2-1-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB120R-06-E2-3-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB120R-06-E2-4-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB129R-00-3-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB129R-00-4-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB129R-00-E2-1-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB129R-00-E2-3-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB129R-00-E2-4-P70 Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB130R-06-3-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB130R-06-4-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB130R-06-E2-1-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB130R-06-E2-3-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB130R-06-E2-4-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB139R-00-3-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB139R-00-4-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB139R-00-E2-1-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB139R-00-E2-3-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB139R-00-E2-4-P70 Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB140R-06-3-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB140R-06-4-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB140R-06-E2-1-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB140R-06-E2-3-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB140R-06-E2-4-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB149R-00-3-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB149R-00-4-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB149R-00-E2-1-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB149R-00-E2-3-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB149R-00-E2-4-P70 Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB150R-06-3-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB150R-06-4-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB150R-06-E2-1-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB150R-06-E2-3-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB150R-06-E2-4-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB159R-00-3-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB159R-00-4-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB159R-00-E2-1-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB159R-00-E2-3-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB159R-00-E2-4-P70 Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB210R-08-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB210R-08-E2-1-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB210R-08-E2-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB210R-08-E2-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-B-1-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB210R-08-B-2-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB210R-08-B-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB210R-08-B-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB219R-00-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB219R-00-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB219R-00-E2-1-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB219R-00-E2-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB219R-00-E2-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB219R-00-B-1-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB219R-00-B-2-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB219R-00-B-3-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB219R-00-B-4-P70 Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB220R-08-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB220R-08-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB220R-08-E2-1-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB220R-08-E2-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB220R-08-E2-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB220R-08-B-1-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB220R-08-B-2-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB220R-08-B-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB220R-08-B-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB229R-00-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB229R-00-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB229R-00-E2-1-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB229R-00-E2-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB229R-00-E2-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB229R-00-B-1-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB229R-00-B-2-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB229R-00-B-3-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB229R-00-B-4-P70 Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB230R-08-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB230R-08-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB230R-08-E2-1-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB230R-08-E2-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB230R-08-E2-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB230R-08-B-1-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB230R-08-B-2-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB230R-08-B-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB230R-08-B-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB239R-00-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB239R-00-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB239R-00-E2-1-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB239R-00-E2-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB239R-00-E2-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB239R-00-B-1-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB239R-00-B-2-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB239R-00-B-3-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB239R-00-B-4-P70 Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB240R-08-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB240R-08-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB240R-08-E2-1-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB240R-08-E2-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB240R-08-E2-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB240R-08-B-1-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB240R-08-B-2-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB240R-08-B-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB240R-08-B-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB249R-00-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB249R-00-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB249R-00-E2-1-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB249R-00-E2-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB249R-00-E2-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB249R-00-B-1-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB249R-00-B-2-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB249R-00-B-3-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB249R-00-B-4-P70 Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB250R-08-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB250R-08-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB250R-08-E2-1-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB250R-08-E2-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB250R-08-E2-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB250R-08-B-1-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB250R-08-B-2-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB250R-08-B-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB250R-08-B-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB259R-00-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB259R-00-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB259R-00-E2-1-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB259R-00-E2-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB259R-00-E2-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB259R-00-B-1-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB259R-00-B-2-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB259R-00-B-3-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB259R-00-B-4-P70 Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-08-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-08-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-08-E2-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-08-E2-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-08-E2-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-08-B-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-08-B-2-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-08-B-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-08-B-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-10-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-10-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-10-E2-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-10-E2-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-10-E2-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-10-B-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-10-B-2-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-10-B-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-10-B-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB319R-00-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB319R-00-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB319R-00-E2-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB319R-00-E2-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB319R-00-E2-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB319R-00-B-1-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB319R-00-B-2-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB319R-00-B-3-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB319R-00-B-4-P70 Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-08-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-08-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-08-E2-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-08-E2-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-08-E2-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-08-B-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-08-B-2-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-08-B-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-08-B-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-10-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-10-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-10-E2-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-10-E2-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-10-E2-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-10-B-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-10-B-2-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-10-B-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-10-B-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB329R-00-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB329R-00-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB329R-00-E2-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB329R-00-E2-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB329R-00-E2-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB329R-00-B-1-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB329R-00-B-2-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB329R-00-B-3-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB329R-00-B-4-P70 Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-08-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-08-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-08-E2-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-08-E2-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-08-E2-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-08-B-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-08-B-2-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-08-B-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-08-B-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-10-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-10-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-10-E2-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-10-E2-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-10-E2-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-10-B-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-10-B-2-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-10-B-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-10-B-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB339R-00-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB339R-00-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB339R-00-E2-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB339R-00-E2-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB339R-00-E2-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB339R-00-B-1-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB339R-00-B-2-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB339R-00-B-3-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB339R-00-B-4-P70 Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-08-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-08-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-08-E2-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-08-E2-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-08-E2-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-08-B-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-08-B-2-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-08-B-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-08-B-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-10-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-10-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-10-E2-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-10-E2-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-10-E2-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-10-B-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-10-B-2-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-10-B-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-10-B-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB349R-00-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB349R-00-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB349R-00-E2-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB349R-00-E2-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB349R-00-E2-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB349R-00-B-1-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB349R-00-B-2-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB349R-00-B-3-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB349R-00-B-4-P70 Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-08-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-08-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-08-E2-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-08-E2-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-08-E2-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-08-B-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-08-B-2-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-08-B-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-08-B-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-10-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-10-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-10-E2-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-10-E2-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-10-E2-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-10-B-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-10-B-2-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-10-B-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-10-B-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB359R-00-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB359R-00-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB359R-00-E2-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB359R-00-E2-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB359R-00-E2-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB359R-00-B-1-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB359R-00-B-2-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB359R-00-B-3-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB359R-00-B-4-P70 Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB1660R-06-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1660R-06-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1660R-06-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1660R-06-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1660R-06-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1669R-00-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1669R-00-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1669R-00-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1669R-00-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1669R-00-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1670R-06-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1670R-06-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1670R-06-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1670R-06-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1670R-06-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1679R-00-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1679R-00-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1679R-00-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1679R-00-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1679R-00-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1760R-06-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1760R-06-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1760R-06-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1760R-06-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1760R-06-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1769R-00-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1769R-00-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1769R-00-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1769R-00-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1769R-00-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1770R-06-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1770R-06-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1770R-06-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1770R-06-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1770R-06-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1779R-00-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1779R-00-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1779R-00-E2-1-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1779R-00-E2-3-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1779R-00-E2-4-P70 Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2660R-08-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2660R-08-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2660R-08-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2660R-08-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2660R-08-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2660R-08-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2660R-08-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2660R-08-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2660R-08-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2669R-00-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2669R-00-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2669R-00-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2669R-00-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2669R-00-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2669R-00-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2669R-00-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2669R-00-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2669R-00-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2670R-08-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2670R-08-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2670R-08-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2670R-08-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2670R-08-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2670R-08-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2670R-08-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2670R-08-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2670R-08-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2679R-00-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2679R-00-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2679R-00-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2679R-00-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2679R-00-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2679R-00-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2679R-00-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2679R-00-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2679R-00-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2760R-08-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2760R-08-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2760R-08-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2760R-08-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2760R-08-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2760R-08-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2760R-08-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2760R-08-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2760R-08-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2769R-00-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2769R-00-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2769R-00-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2769R-00-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2769R-00-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2769R-00-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2769R-00-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2769R-00-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2769R-00-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2770R-08-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2770R-08-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2770R-08-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2770R-08-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2770R-08-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2770R-08-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2770R-08-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2770R-08-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2770R-08-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2779R-00-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2779R-00-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2779R-00-E2-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2779R-00-E2-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2779R-00-E2-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2779R-00-B-1-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2779R-00-B-2-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2779R-00-B-3-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2779R-00-B-4-P70 Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
Solenoid ValvesCKD
387 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4GB/3GB-P70 Solenoid Valve (Clean, Single, Base Piping)

Brand CKD·Solenoid Valves

Available part numbers (387)

4GB110R-06-3-P70, 4GB110R-06-4-P70, 4GB110R-06-E2-1-P70, 4GB110R-06-E2-3-P70, 4GB110R-06-E2-4-P70, 4GB119R-00-3-P70, 4GB119R-00-4-P70, 4GB119R-00-E2-1-P70, 4GB119R-00-E2-3-P70, 4GB119R-00-E2-4-P70 + 377 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4GB110R-06-3-P70Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB110R-06-4-P70Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB110R-06-E2-1-P70Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB110R-06-E2-3-P70Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB110R-06-E2-4-P70Model: 4GB1 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB119R-00-3-P70Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB119R-00-4-P70Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB119R-00-E2-1-P70Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB119R-00-E2-3-P70Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB119R-00-E2-4-P70Model: 4GB1 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB120R-06-3-P70Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB120R-06-4-P70Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB120R-06-E2-1-P70Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB120R-06-E2-3-P70Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB120R-06-E2-4-P70Model: 4GB1 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB129R-00-3-P70Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB129R-00-4-P70Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB129R-00-E2-1-P70Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB129R-00-E2-3-P70Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB129R-00-E2-4-P70Model: 4GB1 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB130R-06-3-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB130R-06-4-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB130R-06-E2-1-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB130R-06-E2-3-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB130R-06-E2-4-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB139R-00-3-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB139R-00-4-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB139R-00-E2-1-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB139R-00-E2-3-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB139R-00-E2-4-P70Model: 4GB1 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB140R-06-3-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB140R-06-4-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB140R-06-E2-1-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB140R-06-E2-3-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB140R-06-E2-4-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB149R-00-3-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB149R-00-4-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB149R-00-E2-1-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB149R-00-E2-3-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB149R-00-E2-4-P70Model: 4GB1 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB150R-06-3-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB150R-06-4-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB150R-06-E2-1-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB150R-06-E2-3-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB150R-06-E2-4-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB159R-00-3-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB159R-00-4-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB159R-00-E2-1-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB159R-00-E2-3-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB159R-00-E2-4-P70Model: 4GB1 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB210R-08-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB210R-08-E2-1-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB210R-08-E2-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB210R-08-E2-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-B-1-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB210R-08-B-2-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB210R-08-B-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB210R-08-B-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB219R-00-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB219R-00-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB219R-00-E2-1-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB219R-00-E2-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB219R-00-E2-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB219R-00-B-1-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB219R-00-B-2-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB219R-00-B-3-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB219R-00-B-4-P70Model: 4GB2 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB220R-08-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB220R-08-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB220R-08-E2-1-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB220R-08-E2-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB220R-08-E2-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB220R-08-B-1-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB220R-08-B-2-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB220R-08-B-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB220R-08-B-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB229R-00-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB229R-00-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB229R-00-E2-1-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB229R-00-E2-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB229R-00-E2-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB229R-00-B-1-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB229R-00-B-2-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB229R-00-B-3-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB229R-00-B-4-P70Model: 4GB2 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB230R-08-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB230R-08-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB230R-08-E2-1-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB230R-08-E2-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB230R-08-E2-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB230R-08-B-1-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB230R-08-B-2-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB230R-08-B-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB230R-08-B-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB239R-00-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB239R-00-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB239R-00-E2-1-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB239R-00-E2-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB239R-00-E2-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB239R-00-B-1-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB239R-00-B-2-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB239R-00-B-3-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB239R-00-B-4-P70Model: 4GB2 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB240R-08-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB240R-08-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB240R-08-E2-1-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB240R-08-E2-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB240R-08-E2-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB240R-08-B-1-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB240R-08-B-2-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB240R-08-B-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB240R-08-B-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB249R-00-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB249R-00-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB249R-00-E2-1-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB249R-00-E2-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB249R-00-E2-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB249R-00-B-1-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB249R-00-B-2-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB249R-00-B-3-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB249R-00-B-4-P70Model: 4GB2 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB250R-08-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB250R-08-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB250R-08-E2-1-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB250R-08-E2-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB250R-08-E2-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB250R-08-B-1-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB250R-08-B-2-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB250R-08-B-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB250R-08-B-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB259R-00-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB259R-00-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB259R-00-E2-1-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB259R-00-E2-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB259R-00-E2-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB259R-00-B-1-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB259R-00-B-2-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB259R-00-B-3-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB259R-00-B-4-P70Model: 4GB2 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-08-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-08-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-08-E2-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-08-E2-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-08-E2-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-08-B-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-08-B-2-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-08-B-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-08-B-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-10-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-10-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-10-E2-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-10-E2-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-10-E2-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-10-B-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-10-B-2-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-10-B-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-10-B-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB319R-00-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB319R-00-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB319R-00-E2-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB319R-00-E2-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB319R-00-E2-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB319R-00-B-1-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB319R-00-B-2-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB319R-00-B-3-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB319R-00-B-4-P70Model: 4GB3 | Switching: 2-pos single | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-08-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-08-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-08-E2-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-08-E2-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-08-E2-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-08-B-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-08-B-2-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-08-B-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-08-B-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-10-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-10-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-10-E2-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-10-E2-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-10-E2-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-10-B-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-10-B-2-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-10-B-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-10-B-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB329R-00-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB329R-00-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB329R-00-E2-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB329R-00-E2-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB329R-00-E2-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB329R-00-B-1-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB329R-00-B-2-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB329R-00-B-3-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB329R-00-B-4-P70Model: 4GB3 | Switching: 2-pos double | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-08-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-08-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-08-E2-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-08-E2-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-08-E2-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-08-B-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-08-B-2-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-08-B-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-08-B-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-10-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-10-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-10-E2-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-10-E2-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-10-E2-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-10-B-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-10-B-2-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-10-B-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-10-B-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB339R-00-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB339R-00-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB339R-00-E2-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB339R-00-E2-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB339R-00-E2-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB339R-00-B-1-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB339R-00-B-2-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB339R-00-B-3-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB339R-00-B-4-P70Model: 4GB3 | Switching: 3-pos all ports blocked | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-08-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-08-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-08-E2-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-08-E2-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-08-E2-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-08-B-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-08-B-2-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-08-B-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-08-B-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-10-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-10-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-10-E2-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-10-E2-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-10-E2-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-10-B-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-10-B-2-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-10-B-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-10-B-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB349R-00-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB349R-00-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB349R-00-E2-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB349R-00-E2-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB349R-00-E2-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB349R-00-B-1-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB349R-00-B-2-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB349R-00-B-3-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB349R-00-B-4-P70Model: 4GB3 | Switching: 3-pos ABR connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-08-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-08-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-08-E2-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-08-E2-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-08-E2-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-08-B-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-08-B-2-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-08-B-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-08-B-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-10-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-10-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-10-E2-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-10-E2-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-10-E2-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-10-B-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-10-B-2-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-10-B-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-10-B-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB359R-00-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB359R-00-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB359R-00-E2-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB359R-00-E2-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB359R-00-E2-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB359R-00-B-1-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB359R-00-B-2-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB359R-00-B-3-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB359R-00-B-4-P70Model: 4GB3 | Switching: 3-pos PAB connection | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB1660R-06-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1660R-06-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1660R-06-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1660R-06-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1660R-06-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1669R-00-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1669R-00-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1669R-00-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1669R-00-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1669R-00-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1670R-06-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1670R-06-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1670R-06-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1670R-06-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1670R-06-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1679R-00-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1679R-00-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1679R-00-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1679R-00-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1679R-00-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1760R-06-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1760R-06-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1760R-06-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1760R-06-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1760R-06-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1769R-00-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1769R-00-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1769R-00-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1769R-00-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1769R-00-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1770R-06-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1770R-06-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1770R-06-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1770R-06-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1770R-06-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB1779R-00-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB1779R-00-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB1779R-00-E2-1-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB1779R-00-E2-3-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB1779R-00-E2-4-P70Model: 3GB1 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2660R-08-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2660R-08-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2660R-08-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2660R-08-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2660R-08-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2660R-08-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2660R-08-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2660R-08-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2660R-08-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2669R-00-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2669R-00-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2669R-00-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2669R-00-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2669R-00-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2669R-00-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2669R-00-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2669R-00-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2669R-00-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2670R-08-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2670R-08-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2670R-08-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2670R-08-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2670R-08-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2670R-08-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2670R-08-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2670R-08-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2670R-08-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2679R-00-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2679R-00-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2679R-00-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2679R-00-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2679R-00-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2679R-00-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2679R-00-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2679R-00-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2679R-00-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NC/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2760R-08-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2760R-08-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2760R-08-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2760R-08-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2760R-08-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2760R-08-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2760R-08-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2760R-08-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2760R-08-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2769R-00-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2769R-00-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2769R-00-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2769R-00-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2769R-00-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2769R-00-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2769R-00-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2769R-00-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2769R-00-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NC | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2770R-08-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2770R-08-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2770R-08-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2770R-08-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2770R-08-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2770R-08-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2770R-08-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2770R-08-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2770R-08-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
3GB2779R-00-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC24V
3GB2779R-00-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: Grommet lead 300 mm | Voltage: DC12V
3GB2779R-00-E2-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
3GB2779R-00-E2-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
3GB2779R-00-E2-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
3GB2779R-00-B-1-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
3GB2779R-00-B-2-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
3GB2779R-00-B-3-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
3GB2779R-00-B-4-P70Model: 3GB2 | Switching: Dual 3-port, NO/NO | A/B port: None (valve for base mount) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
