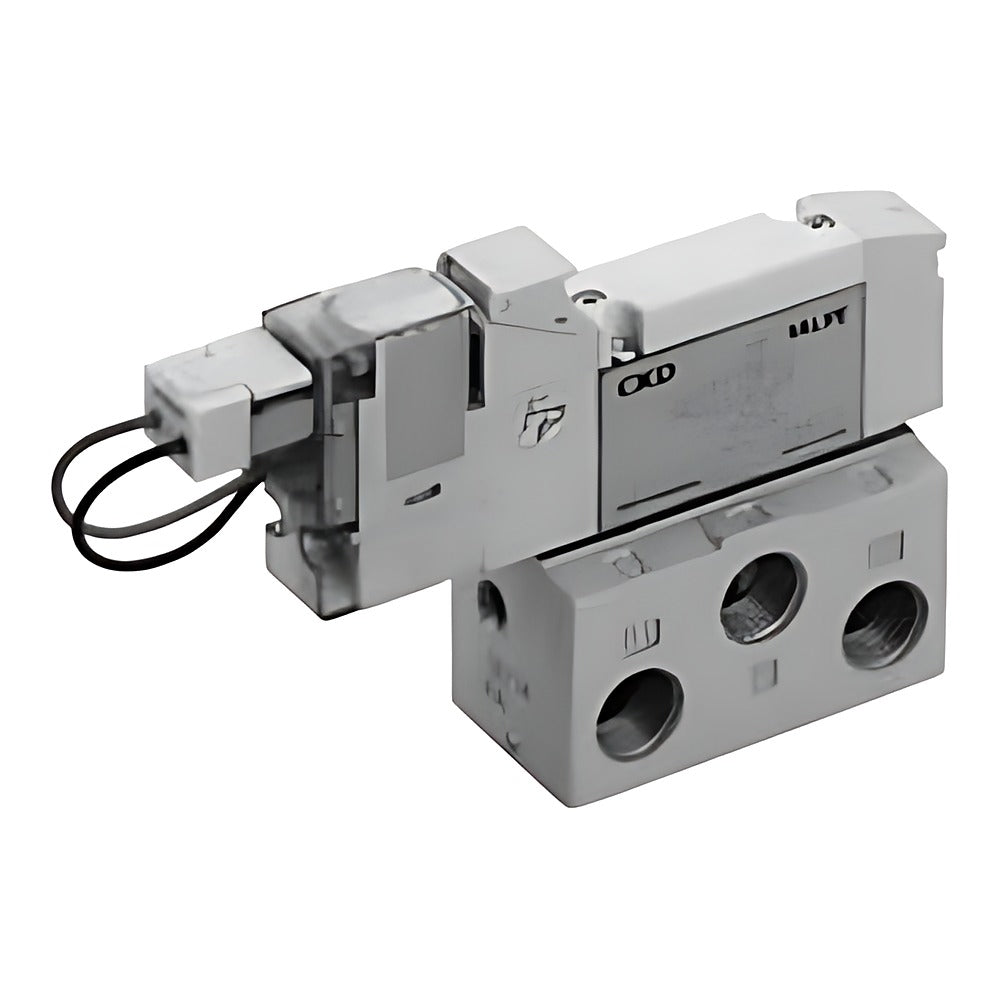

CKD 4GB-FP1 5-Port Pilot Solenoid Valve (Single, Base Piping, Food)

CKD 4GB-FP1 5-Port Pilot Solenoid Valve (Single, Base Piping, Food)

CKD 4GB1/2/3-FP1 pilot-operated 5-port solenoid valves on a sub-base (base piping) with NSF H1 food-grade grease, plus valves for base mounting.

Key features

  • 2-position single/double and 3-position all ports blocked, ABR and PAB
  • Sub-base ports Rc1/8 (4GB1), Rc1/4 (4GB2), Rc1/4 or Rc3/8 (4GB3)
  • Port code 00 with digit 9 = valve for mounting on a base (e.g. 4GB119R-00-E2H-3-FP1)
  • Grommet lead (DC only), E connector or DIN terminal box (4GB2/4GB3)
  • Options (not expanded): M, H, K external pilot, S surge-less, E low-heat circuit, F A/B port filter

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Operating pressure 0.2-0.7 MPa
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Manual override Non-locking/locking (standard)
Lubricant NSF H1 food-grade grease
Protection Dust-proof
Applicable cylinder bore 20-100 mm
Code format 4GB<size><sw>0R-<port>-<wiring>-<volt>-FP1
Source CKD Korea catalog CC-1271K-5, p. 128-130
4GB110R-06-3-FP1 Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB110R-06-4-FP1 Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB110R-06-E2-1-FP1 Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB110R-06-E2-3-FP1 Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB110R-06-E2-4-FP1 Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB119R-00-3-FP1 Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB119R-00-4-FP1 Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB119R-00-E2-1-FP1 Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB119R-00-E2-3-FP1 Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB119R-00-E2-4-FP1 Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB120R-06-3-FP1 Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB120R-06-4-FP1 Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB120R-06-E2-1-FP1 Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB120R-06-E2-3-FP1 Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB120R-06-E2-4-FP1 Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB129R-00-3-FP1 Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB129R-00-4-FP1 Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB129R-00-E2-1-FP1 Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB129R-00-E2-3-FP1 Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB129R-00-E2-4-FP1 Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB130R-06-3-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB130R-06-4-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB130R-06-E2-1-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB130R-06-E2-3-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB130R-06-E2-4-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB139R-00-3-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB139R-00-4-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB139R-00-E2-1-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB139R-00-E2-3-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB139R-00-E2-4-FP1 Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB140R-06-3-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB140R-06-4-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB140R-06-E2-1-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB140R-06-E2-3-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB140R-06-E2-4-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB149R-00-3-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB149R-00-4-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB149R-00-E2-1-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB149R-00-E2-3-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB149R-00-E2-4-FP1 Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB150R-06-3-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB150R-06-4-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB150R-06-E2-1-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB150R-06-E2-3-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB150R-06-E2-4-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB159R-00-3-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB159R-00-4-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB159R-00-E2-1-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB159R-00-E2-3-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB159R-00-E2-4-FP1 Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB210R-08-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB210R-08-E2-1-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB210R-08-E2-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB210R-08-E2-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-B-1-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB210R-08-B-2-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB210R-08-B-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB210R-08-B-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB219R-00-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB219R-00-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB219R-00-E2-1-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB219R-00-E2-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB219R-00-E2-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB219R-00-B-1-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB219R-00-B-2-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB219R-00-B-3-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB219R-00-B-4-FP1 Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB220R-08-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB220R-08-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB220R-08-E2-1-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB220R-08-E2-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB220R-08-E2-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB220R-08-B-1-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB220R-08-B-2-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB220R-08-B-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB220R-08-B-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB229R-00-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB229R-00-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB229R-00-E2-1-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB229R-00-E2-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB229R-00-E2-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB229R-00-B-1-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB229R-00-B-2-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB229R-00-B-3-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB229R-00-B-4-FP1 Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB230R-08-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB230R-08-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB230R-08-E2-1-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB230R-08-E2-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB230R-08-E2-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB230R-08-B-1-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB230R-08-B-2-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB230R-08-B-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB230R-08-B-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB239R-00-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB239R-00-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB239R-00-E2-1-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB239R-00-E2-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB239R-00-E2-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB239R-00-B-1-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB239R-00-B-2-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB239R-00-B-3-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB239R-00-B-4-FP1 Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB240R-08-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB240R-08-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB240R-08-E2-1-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB240R-08-E2-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB240R-08-E2-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB240R-08-B-1-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB240R-08-B-2-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB240R-08-B-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB240R-08-B-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB249R-00-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB249R-00-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB249R-00-E2-1-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB249R-00-E2-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB249R-00-E2-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB249R-00-B-1-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB249R-00-B-2-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB249R-00-B-3-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB249R-00-B-4-FP1 Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB250R-08-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB250R-08-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB250R-08-E2-1-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB250R-08-E2-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB250R-08-E2-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB250R-08-B-1-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB250R-08-B-2-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB250R-08-B-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB250R-08-B-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB259R-00-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB259R-00-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB259R-00-E2-1-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB259R-00-E2-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB259R-00-E2-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB259R-00-B-1-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB259R-00-B-2-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB259R-00-B-3-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB259R-00-B-4-FP1 Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-08-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-08-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-08-E2-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-08-E2-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-08-E2-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-08-B-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-08-B-2-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-08-B-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-08-B-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-10-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-10-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-10-E2-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-10-E2-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-10-E2-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-10-B-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-10-B-2-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-10-B-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-10-B-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB319R-00-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB319R-00-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB319R-00-E2-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB319R-00-E2-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB319R-00-E2-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB319R-00-B-1-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB319R-00-B-2-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB319R-00-B-3-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB319R-00-B-4-FP1 Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-08-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-08-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-08-E2-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-08-E2-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-08-E2-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-08-B-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-08-B-2-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-08-B-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-08-B-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-10-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-10-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-10-E2-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-10-E2-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-10-E2-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-10-B-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-10-B-2-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-10-B-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-10-B-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB329R-00-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB329R-00-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB329R-00-E2-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB329R-00-E2-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB329R-00-E2-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB329R-00-B-1-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB329R-00-B-2-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB329R-00-B-3-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB329R-00-B-4-FP1 Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-08-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-08-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-08-E2-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-08-E2-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-08-E2-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-08-B-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-08-B-2-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-08-B-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-08-B-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-10-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-10-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-10-E2-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-10-E2-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-10-E2-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-10-B-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-10-B-2-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-10-B-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-10-B-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB339R-00-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB339R-00-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB339R-00-E2-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB339R-00-E2-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB339R-00-E2-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB339R-00-B-1-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB339R-00-B-2-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB339R-00-B-3-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB339R-00-B-4-FP1 Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-08-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-08-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-08-E2-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-08-E2-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-08-E2-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-08-B-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-08-B-2-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-08-B-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-08-B-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-10-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-10-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-10-E2-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-10-E2-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-10-E2-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-10-B-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-10-B-2-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-10-B-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-10-B-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB349R-00-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB349R-00-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB349R-00-E2-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB349R-00-E2-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB349R-00-E2-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB349R-00-B-1-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB349R-00-B-2-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB349R-00-B-3-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB349R-00-B-4-FP1 Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-08-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-08-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-08-E2-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-08-E2-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-08-E2-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-08-B-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-08-B-2-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-08-B-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-08-B-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-10-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-10-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-10-E2-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-10-E2-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-10-E2-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-10-B-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-10-B-2-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-10-B-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-10-B-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB359R-00-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB359R-00-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB359R-00-E2-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB359R-00-E2-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB359R-00-E2-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB359R-00-B-1-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB359R-00-B-2-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB359R-00-B-3-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB359R-00-B-4-FP1 Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
Solenoid ValvesCKD
275 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4GB-FP1 5-Port Pilot Solenoid Valve (Single, Base Piping, Food)

Brand CKD·Solenoid Valves

Available part numbers (275)

4GB110R-06-3-FP1, 4GB110R-06-4-FP1, 4GB110R-06-E2-1-FP1, 4GB110R-06-E2-3-FP1, 4GB110R-06-E2-4-FP1, 4GB119R-00-3-FP1, 4GB119R-00-4-FP1, 4GB119R-00-E2-1-FP1, 4GB119R-00-E2-3-FP1, 4GB119R-00-E2-4-FP1 + 265 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4GB110R-06-3-FP1Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB110R-06-4-FP1Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB110R-06-E2-1-FP1Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB110R-06-E2-3-FP1Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB110R-06-E2-4-FP1Model: 4GB1 | Switching: 2-pos single | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB119R-00-3-FP1Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB119R-00-4-FP1Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB119R-00-E2-1-FP1Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB119R-00-E2-3-FP1Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB119R-00-E2-4-FP1Model: 4GB1 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB120R-06-3-FP1Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB120R-06-4-FP1Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB120R-06-E2-1-FP1Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB120R-06-E2-3-FP1Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB120R-06-E2-4-FP1Model: 4GB1 | Switching: 2-pos double | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB129R-00-3-FP1Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB129R-00-4-FP1Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB129R-00-E2-1-FP1Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB129R-00-E2-3-FP1Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB129R-00-E2-4-FP1Model: 4GB1 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB130R-06-3-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB130R-06-4-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB130R-06-E2-1-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB130R-06-E2-3-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB130R-06-E2-4-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB139R-00-3-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB139R-00-4-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB139R-00-E2-1-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB139R-00-E2-3-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB139R-00-E2-4-FP1Model: 4GB1 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB140R-06-3-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB140R-06-4-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB140R-06-E2-1-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB140R-06-E2-3-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB140R-06-E2-4-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB149R-00-3-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB149R-00-4-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB149R-00-E2-1-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB149R-00-E2-3-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB149R-00-E2-4-FP1Model: 4GB1 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB150R-06-3-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB150R-06-4-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB150R-06-E2-1-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB150R-06-E2-3-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB150R-06-E2-4-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: Rc1/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB159R-00-3-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB159R-00-4-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB159R-00-E2-1-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB159R-00-E2-3-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB159R-00-E2-4-FP1Model: 4GB1 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB210R-08-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB210R-08-E2-1-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB210R-08-E2-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB210R-08-E2-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB210R-08-B-1-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB210R-08-B-2-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB210R-08-B-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB210R-08-B-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB219R-00-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB219R-00-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB219R-00-E2-1-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB219R-00-E2-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB219R-00-E2-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB219R-00-B-1-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB219R-00-B-2-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB219R-00-B-3-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB219R-00-B-4-FP1Model: 4GB2 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB220R-08-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB220R-08-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB220R-08-E2-1-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB220R-08-E2-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB220R-08-E2-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB220R-08-B-1-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB220R-08-B-2-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB220R-08-B-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB220R-08-B-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB229R-00-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB229R-00-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB229R-00-E2-1-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB229R-00-E2-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB229R-00-E2-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB229R-00-B-1-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB229R-00-B-2-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB229R-00-B-3-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB229R-00-B-4-FP1Model: 4GB2 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB230R-08-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB230R-08-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB230R-08-E2-1-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB230R-08-E2-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB230R-08-E2-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB230R-08-B-1-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB230R-08-B-2-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB230R-08-B-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB230R-08-B-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB239R-00-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB239R-00-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB239R-00-E2-1-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB239R-00-E2-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB239R-00-E2-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB239R-00-B-1-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB239R-00-B-2-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB239R-00-B-3-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB239R-00-B-4-FP1Model: 4GB2 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB240R-08-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB240R-08-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB240R-08-E2-1-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB240R-08-E2-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB240R-08-E2-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB240R-08-B-1-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB240R-08-B-2-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB240R-08-B-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB240R-08-B-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB249R-00-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB249R-00-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB249R-00-E2-1-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB249R-00-E2-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB249R-00-E2-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB249R-00-B-1-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB249R-00-B-2-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB249R-00-B-3-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB249R-00-B-4-FP1Model: 4GB2 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB250R-08-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB250R-08-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB250R-08-E2-1-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB250R-08-E2-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB250R-08-E2-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB250R-08-B-1-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB250R-08-B-2-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB250R-08-B-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB250R-08-B-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB259R-00-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB259R-00-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB259R-00-E2-1-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB259R-00-E2-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB259R-00-E2-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB259R-00-B-1-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB259R-00-B-2-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB259R-00-B-3-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB259R-00-B-4-FP1Model: 4GB2 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-08-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-08-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-08-E2-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-08-E2-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-08-E2-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-08-B-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-08-B-2-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-08-B-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-08-B-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB310R-10-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB310R-10-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB310R-10-E2-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB310R-10-E2-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB310R-10-E2-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB310R-10-B-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB310R-10-B-2-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB310R-10-B-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB310R-10-B-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB319R-00-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB319R-00-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB319R-00-E2-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB319R-00-E2-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB319R-00-E2-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB319R-00-B-1-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB319R-00-B-2-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB319R-00-B-3-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB319R-00-B-4-FP1Model: 4GB3 | Switching: 2-pos single | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-08-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-08-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-08-E2-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-08-E2-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-08-E2-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-08-B-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-08-B-2-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-08-B-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-08-B-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB320R-10-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB320R-10-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB320R-10-E2-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB320R-10-E2-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB320R-10-E2-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB320R-10-B-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB320R-10-B-2-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB320R-10-B-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB320R-10-B-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB329R-00-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB329R-00-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB329R-00-E2-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB329R-00-E2-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB329R-00-E2-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB329R-00-B-1-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB329R-00-B-2-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB329R-00-B-3-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB329R-00-B-4-FP1Model: 4GB3 | Switching: 2-pos double | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-08-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-08-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-08-E2-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-08-E2-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-08-E2-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-08-B-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-08-B-2-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-08-B-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-08-B-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB330R-10-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB330R-10-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB330R-10-E2-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB330R-10-E2-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB330R-10-E2-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB330R-10-B-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB330R-10-B-2-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB330R-10-B-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB330R-10-B-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB339R-00-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB339R-00-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB339R-00-E2-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB339R-00-E2-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB339R-00-E2-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB339R-00-B-1-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB339R-00-B-2-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB339R-00-B-3-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB339R-00-B-4-FP1Model: 4GB3 | Switching: 3-pos all ports blocked | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-08-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-08-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-08-E2-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-08-E2-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-08-E2-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-08-B-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-08-B-2-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-08-B-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-08-B-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB340R-10-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB340R-10-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB340R-10-E2-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB340R-10-E2-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB340R-10-E2-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB340R-10-B-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB340R-10-B-2-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB340R-10-B-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB340R-10-B-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB349R-00-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB349R-00-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB349R-00-E2-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB349R-00-E2-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB349R-00-E2-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB349R-00-B-1-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB349R-00-B-2-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB349R-00-B-3-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB349R-00-B-4-FP1Model: 4GB3 | Switching: 3-pos ABR connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-08-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-08-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-08-E2-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-08-E2-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-08-E2-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-08-B-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-08-B-2-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-08-B-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-08-B-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc1/4 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB350R-10-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB350R-10-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB350R-10-E2-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB350R-10-E2-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB350R-10-E2-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB350R-10-B-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB350R-10-B-2-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB350R-10-B-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB350R-10-B-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: Rc3/8 | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V
4GB359R-00-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC24V
4GB359R-00-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: Grommet lead 300 mm | Voltage: DC12V
4GB359R-00-E2-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: AC100V
4GB359R-00-E2-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC24V
4GB359R-00-E2-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: E connector 300 mm, SK+lamp | Voltage: DC12V
4GB359R-00-B-1-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC100V
4GB359R-00-B-2-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: AC200V
4GB359R-00-B-3-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC24V
4GB359R-00-B-4-FP1Model: 4GB3 | Switching: 3-pos PAB connection | Port: None (valve for base) | Wiring: DIN terminal box, SK+lamp | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
