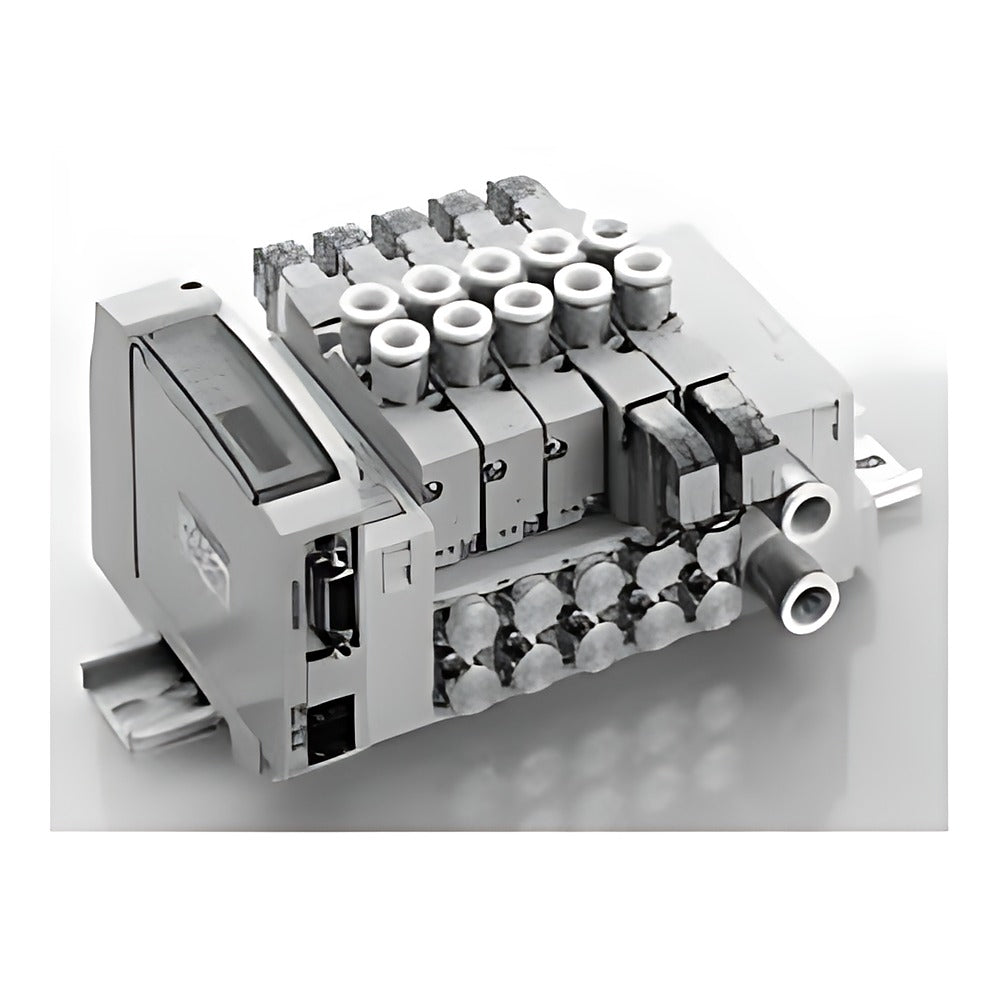

• CKD 4GD/4GE A2N Valve for Wiring-Reduced Manifolds (Base-Mount)
1 1

CKD 4GD/4GE A2N Valve for Wiring-Reduced Manifolds (Base-Mount)

CKD 4GD/4GE A2N Valve for Wiring-Reduced Manifolds (Base-Mount)

CKD 3GD/4GD (A/B ports on valve) and 3GE/4GE (ports on base) pilot-operated solenoid valves with A2N connector for M4GD/M4GE-T integrated and MN4GD/MN4GE-T block wiring-reduced manifolds.

Key features

  • A2N: A-type downward connector, lamp and surge killer, no lead wire (plugs into the manifold wiring)
  • 5-port 2-position single/double and 3-position closed/ABR/PAB; 3-port N.C., N.O. and dual 3-port (66)
  • 4GD/3GD valves carry the A/B push-in or threaded ports; 4GE/3GE base-piped valves use port code 00
  • Option H (exhaust malfunction prevention valve, not for 3-position closed/PAB), A (ozone/coolant resistant) and F (A/B filter) appended after A2N
  • Same valve codes are used as spare/add-on valves for M4GD-T, M4GE-T, MN4GD-T and MN4GE-T manifolds

Specifications

Wiring A2N (A connector, lamp+surge, no lead)
Operation Pilot operated soft spool
Operating pressure 0.2 to 0.7 MPa
Manual override Non-lock/lock
Fluid Compressed air
Use Mounting on wiring-reduced manifolds
Source CKD Korea catalog CB-023SK-9, p. 612-613, 632-633, 708-710, 724-726
3GD119R-C4-A2N-3 Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC24V
3GD119R-C4-A2N-4 Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC12V
3GD119R-C6-A2N-3 Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD119R-C6-A2N-4 Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD119R-M5-A2N-3 Model: 3GD1 | Switching: 2-pos single N.C. | Port: M5 female | Voltage: DC24V
3GD119R-M5-A2N-4 Model: 3GD1 | Switching: 2-pos single N.C. | Port: M5 female | Voltage: DC12V
3GD1119R-C4-A2N-3 Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC24V
3GD1119R-C4-A2N-4 Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC12V
3GD1119R-C6-A2N-3 Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD1119R-C6-A2N-4 Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD1119R-M5-A2N-3 Model: 3GD1 | Switching: 2-pos single N.O. | Port: M5 female | Voltage: DC24V
3GD1119R-M5-A2N-4 Model: 3GD1 | Switching: 2-pos single N.O. | Port: M5 female | Voltage: DC12V
3GD1669R-C4-A2N-3 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC24V
3GD1669R-C4-A2N-4 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC12V
3GD1669R-C6-A2N-3 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC24V
3GD1669R-C6-A2N-4 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC12V
3GD1669R-M5-A2N-3 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: M5 female | Voltage: DC24V
3GD1669R-M5-A2N-4 Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: M5 female | Voltage: DC12V
3GD219R-C4-A2N-3 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC24V
3GD219R-C4-A2N-4 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC12V
3GD219R-C6-A2N-3 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD219R-C6-A2N-4 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD219R-C8-A2N-3 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC24V
3GD219R-C8-A2N-4 Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC12V
3GD219R-06-A2N-3 Model: 3GD2 | Switching: 2-pos single N.C. | Port: Rc1/8 female | Voltage: DC24V
3GD219R-06-A2N-4 Model: 3GD2 | Switching: 2-pos single N.C. | Port: Rc1/8 female | Voltage: DC12V
3GD2119R-C4-A2N-3 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC24V
3GD2119R-C4-A2N-4 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC12V
3GD2119R-C6-A2N-3 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD2119R-C6-A2N-4 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD2119R-C8-A2N-3 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC24V
3GD2119R-C8-A2N-4 Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC12V
3GD2119R-06-A2N-3 Model: 3GD2 | Switching: 2-pos single N.O. | Port: Rc1/8 female | Voltage: DC24V
3GD2119R-06-A2N-4 Model: 3GD2 | Switching: 2-pos single N.O. | Port: Rc1/8 female | Voltage: DC12V
3GD2669R-C4-A2N-3 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC24V
3GD2669R-C4-A2N-4 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC12V
3GD2669R-C6-A2N-3 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC24V
3GD2669R-C6-A2N-4 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC12V
3GD2669R-C8-A2N-3 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø8 push-in | Voltage: DC24V
3GD2669R-C8-A2N-4 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø8 push-in | Voltage: DC12V
3GD2669R-06-A2N-3 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: Rc1/8 female | Voltage: DC24V
3GD2669R-06-A2N-4 Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: Rc1/8 female | Voltage: DC12V
3GD319R-C6-A2N-3 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD319R-C6-A2N-4 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD319R-C8-A2N-3 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC24V
3GD319R-C8-A2N-4 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC12V
3GD319R-C10-A2N-3 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø10 push-in | Voltage: DC24V
3GD319R-C10-A2N-4 Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø10 push-in | Voltage: DC12V
3GD319R-08-A2N-3 Model: 3GD3 | Switching: 2-pos single N.C. | Port: Rc1/4 female | Voltage: DC24V
3GD319R-08-A2N-4 Model: 3GD3 | Switching: 2-pos single N.C. | Port: Rc1/4 female | Voltage: DC12V
3GD3119R-C6-A2N-3 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD3119R-C6-A2N-4 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD3119R-C8-A2N-3 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC24V
3GD3119R-C8-A2N-4 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC12V
3GD3119R-C10-A2N-3 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø10 push-in | Voltage: DC24V
3GD3119R-C10-A2N-4 Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø10 push-in | Voltage: DC12V
3GD3119R-08-A2N-3 Model: 3GD3 | Switching: 2-pos single N.O. | Port: Rc1/4 female | Voltage: DC24V
3GD3119R-08-A2N-4 Model: 3GD3 | Switching: 2-pos single N.O. | Port: Rc1/4 female | Voltage: DC12V
4GD119R-C4-A2N-3 Model: 4GD1 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC24V
4GD119R-C4-A2N-4 Model: 4GD1 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC12V
4GD119R-C6-A2N-3 Model: 4GD1 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD119R-C6-A2N-4 Model: 4GD1 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD119R-M5-A2N-3 Model: 4GD1 | Switching: 2-pos single | Port: M5 female | Voltage: DC24V
4GD119R-M5-A2N-4 Model: 4GD1 | Switching: 2-pos single | Port: M5 female | Voltage: DC12V
4GD129R-C4-A2N-3 Model: 4GD1 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC24V
4GD129R-C4-A2N-4 Model: 4GD1 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC12V
4GD129R-C6-A2N-3 Model: 4GD1 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD129R-C6-A2N-4 Model: 4GD1 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD129R-M5-A2N-3 Model: 4GD1 | Switching: 2-pos double | Port: M5 female | Voltage: DC24V
4GD129R-M5-A2N-4 Model: 4GD1 | Switching: 2-pos double | Port: M5 female | Voltage: DC12V
4GD139R-C4-A2N-3 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC24V
4GD139R-C4-A2N-4 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC12V
4GD139R-C6-A2N-3 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD139R-C6-A2N-4 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD139R-M5-A2N-3 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: M5 female | Voltage: DC24V
4GD139R-M5-A2N-4 Model: 4GD1 | Switching: 3-pos all ports blocked | Port: M5 female | Voltage: DC12V
4GD149R-C4-A2N-3 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC24V
4GD149R-C4-A2N-4 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC12V
4GD149R-C6-A2N-3 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD149R-C6-A2N-4 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD149R-M5-A2N-3 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: M5 female | Voltage: DC24V
4GD149R-M5-A2N-4 Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: M5 female | Voltage: DC12V
4GD159R-C4-A2N-3 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC24V
4GD159R-C4-A2N-4 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC12V
4GD159R-C6-A2N-3 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD159R-C6-A2N-4 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD159R-M5-A2N-3 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: M5 female | Voltage: DC24V
4GD159R-M5-A2N-4 Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: M5 female | Voltage: DC12V
4GD219R-C4-A2N-3 Model: 4GD2 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC24V
4GD219R-C4-A2N-4 Model: 4GD2 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC12V
4GD219R-C6-A2N-3 Model: 4GD2 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD219R-C6-A2N-4 Model: 4GD2 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD219R-C8-A2N-3 Model: 4GD2 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC24V
4GD219R-C8-A2N-4 Model: 4GD2 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC12V
4GD219R-06-A2N-3 Model: 4GD2 | Switching: 2-pos single | Port: Rc1/8 female | Voltage: DC24V
4GD219R-06-A2N-4 Model: 4GD2 | Switching: 2-pos single | Port: Rc1/8 female | Voltage: DC12V
4GD229R-C4-A2N-3 Model: 4GD2 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC24V
4GD229R-C4-A2N-4 Model: 4GD2 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC12V
4GD229R-C6-A2N-3 Model: 4GD2 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD229R-C6-A2N-4 Model: 4GD2 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD229R-C8-A2N-3 Model: 4GD2 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC24V
4GD229R-C8-A2N-4 Model: 4GD2 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC12V
4GD229R-06-A2N-3 Model: 4GD2 | Switching: 2-pos double | Port: Rc1/8 female | Voltage: DC24V
4GD229R-06-A2N-4 Model: 4GD2 | Switching: 2-pos double | Port: Rc1/8 female | Voltage: DC12V
4GD239R-C4-A2N-3 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC24V
4GD239R-C4-A2N-4 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC12V
4GD239R-C6-A2N-3 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD239R-C6-A2N-4 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD239R-C8-A2N-3 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC24V
4GD239R-C8-A2N-4 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC12V
4GD239R-06-A2N-3 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: Rc1/8 female | Voltage: DC24V
4GD239R-06-A2N-4 Model: 4GD2 | Switching: 3-pos all ports blocked | Port: Rc1/8 female | Voltage: DC12V
4GD249R-C4-A2N-3 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC24V
4GD249R-C4-A2N-4 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC12V
4GD249R-C6-A2N-3 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD249R-C6-A2N-4 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD249R-C8-A2N-3 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC24V
4GD249R-C8-A2N-4 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC12V
4GD249R-06-A2N-3 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: Rc1/8 female | Voltage: DC24V
4GD249R-06-A2N-4 Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: Rc1/8 female | Voltage: DC12V
4GD259R-C4-A2N-3 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC24V
4GD259R-C4-A2N-4 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC12V
4GD259R-C6-A2N-3 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD259R-C6-A2N-4 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD259R-C8-A2N-3 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC24V
4GD259R-C8-A2N-4 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC12V
4GD259R-06-A2N-3 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: Rc1/8 female | Voltage: DC24V
4GD259R-06-A2N-4 Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: Rc1/8 female | Voltage: DC12V
4GD319R-C6-A2N-3 Model: 4GD3 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD319R-C6-A2N-4 Model: 4GD3 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD319R-C8-A2N-3 Model: 4GD3 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC24V
4GD319R-C8-A2N-4 Model: 4GD3 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC12V
4GD319R-C10-A2N-3 Model: 4GD3 | Switching: 2-pos single | Port: ø10 push-in | Voltage: DC24V
4GD319R-C10-A2N-4 Model: 4GD3 | Switching: 2-pos single | Port: ø10 push-in | Voltage: DC12V
4GD319R-08-A2N-3 Model: 4GD3 | Switching: 2-pos single | Port: Rc1/4 female | Voltage: DC24V
4GD319R-08-A2N-4 Model: 4GD3 | Switching: 2-pos single | Port: Rc1/4 female | Voltage: DC12V
4GD329R-C6-A2N-3 Model: 4GD3 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD329R-C6-A2N-4 Model: 4GD3 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD329R-C8-A2N-3 Model: 4GD3 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC24V
4GD329R-C8-A2N-4 Model: 4GD3 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC12V
4GD329R-C10-A2N-3 Model: 4GD3 | Switching: 2-pos double | Port: ø10 push-in | Voltage: DC24V
4GD329R-C10-A2N-4 Model: 4GD3 | Switching: 2-pos double | Port: ø10 push-in | Voltage: DC12V
4GD329R-08-A2N-3 Model: 4GD3 | Switching: 2-pos double | Port: Rc1/4 female | Voltage: DC24V
4GD329R-08-A2N-4 Model: 4GD3 | Switching: 2-pos double | Port: Rc1/4 female | Voltage: DC12V
4GD339R-C6-A2N-3 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD339R-C6-A2N-4 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD339R-C8-A2N-3 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC24V
4GD339R-C8-A2N-4 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC12V
4GD339R-C10-A2N-3 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø10 push-in | Voltage: DC24V
4GD339R-C10-A2N-4 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø10 push-in | Voltage: DC12V
4GD339R-08-A2N-3 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: Rc1/4 female | Voltage: DC24V
4GD339R-08-A2N-4 Model: 4GD3 | Switching: 3-pos all ports blocked | Port: Rc1/4 female | Voltage: DC12V
4GD349R-C6-A2N-3 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD349R-C6-A2N-4 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD349R-C8-A2N-3 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC24V
4GD349R-C8-A2N-4 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC12V
4GD349R-C10-A2N-3 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø10 push-in | Voltage: DC24V
4GD349R-C10-A2N-4 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø10 push-in | Voltage: DC12V
4GD349R-08-A2N-3 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: Rc1/4 female | Voltage: DC24V
4GD349R-08-A2N-4 Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: Rc1/4 female | Voltage: DC12V
4GD359R-C6-A2N-3 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD359R-C6-A2N-4 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD359R-C8-A2N-3 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC24V
4GD359R-C8-A2N-4 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC12V
4GD359R-C10-A2N-3 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø10 push-in | Voltage: DC24V
4GD359R-C10-A2N-4 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø10 push-in | Voltage: DC12V
4GD359R-08-A2N-3 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: Rc1/4 female | Voltage: DC24V
4GD359R-08-A2N-4 Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: Rc1/4 female | Voltage: DC12V
3GE1669R-00-A2N-3 Model: 3GE1 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC24V
3GE1669R-00-A2N-4 Model: 3GE1 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC12V
3GE2669R-00-A2N-3 Model: 3GE2 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC24V
3GE2669R-00-A2N-4 Model: 3GE2 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC12V
4GE119R-00-A2N-3 Model: 4GE1 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE119R-00-A2N-4 Model: 4GE1 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE129R-00-A2N-3 Model: 4GE1 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE129R-00-A2N-4 Model: 4GE1 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE139R-00-A2N-3 Model: 4GE1 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE139R-00-A2N-4 Model: 4GE1 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE149R-00-A2N-3 Model: 4GE1 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE149R-00-A2N-4 Model: 4GE1 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE159R-00-A2N-3 Model: 4GE1 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE159R-00-A2N-4 Model: 4GE1 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GE219R-00-A2N-3 Model: 4GE2 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE219R-00-A2N-4 Model: 4GE2 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE229R-00-A2N-3 Model: 4GE2 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE229R-00-A2N-4 Model: 4GE2 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE239R-00-A2N-3 Model: 4GE2 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE239R-00-A2N-4 Model: 4GE2 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE249R-00-A2N-3 Model: 4GE2 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE249R-00-A2N-4 Model: 4GE2 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE259R-00-A2N-3 Model: 4GE2 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE259R-00-A2N-4 Model: 4GE2 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GE319R-00-A2N-3 Model: 4GE3 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE319R-00-A2N-4 Model: 4GE3 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE329R-00-A2N-3 Model: 4GE3 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE329R-00-A2N-4 Model: 4GE3 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE339R-00-A2N-3 Model: 4GE3 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE339R-00-A2N-4 Model: 4GE3 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE349R-00-A2N-3 Model: 4GE3 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE349R-00-A2N-4 Model: 4GE3 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE359R-00-A2N-3 Model: 4GE3 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE359R-00-A2N-4 Model: 4GE3 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GD129R-M5-A2NH-3 Model: 4GD1 with exhaust malfunction valve (H) | Switching: 2-pos double | Port: M5 female | Voltage: DC24V
4GE129R-00-A2NH-3 Model: 4GE1 with exhaust malfunction valve (H) | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
Solenoid ValvesCKD
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4GD/4GE A2N Valve for Wiring-Reduced Manifolds (Base-Mount)

Brand CKD·Solenoid Valves

Available part numbers (204)

3GD119R-C4-A2N-3, 3GD119R-C4-A2N-4, 3GD119R-C6-A2N-3, 3GD119R-C6-A2N-4, 3GD119R-M5-A2N-3, 3GD119R-M5-A2N-4, 3GD1119R-C4-A2N-3, 3GD1119R-C4-A2N-4, 3GD1119R-C6-A2N-3, 3GD1119R-C6-A2N-4 + 194 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3GD119R-C4-A2N-3Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC24V
3GD119R-C4-A2N-4Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC12V
3GD119R-C6-A2N-3Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD119R-C6-A2N-4Model: 3GD1 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD119R-M5-A2N-3Model: 3GD1 | Switching: 2-pos single N.C. | Port: M5 female | Voltage: DC24V
3GD119R-M5-A2N-4Model: 3GD1 | Switching: 2-pos single N.C. | Port: M5 female | Voltage: DC12V
3GD1119R-C4-A2N-3Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC24V
3GD1119R-C4-A2N-4Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC12V
3GD1119R-C6-A2N-3Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD1119R-C6-A2N-4Model: 3GD1 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD1119R-M5-A2N-3Model: 3GD1 | Switching: 2-pos single N.O. | Port: M5 female | Voltage: DC24V
3GD1119R-M5-A2N-4Model: 3GD1 | Switching: 2-pos single N.O. | Port: M5 female | Voltage: DC12V
3GD1669R-C4-A2N-3Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC24V
3GD1669R-C4-A2N-4Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC12V
3GD1669R-C6-A2N-3Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC24V
3GD1669R-C6-A2N-4Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC12V
3GD1669R-M5-A2N-3Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: M5 female | Voltage: DC24V
3GD1669R-M5-A2N-4Model: 3GD1 | Switching: Dual 3-port N.C./N.C. | Port: M5 female | Voltage: DC12V
3GD219R-C4-A2N-3Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC24V
3GD219R-C4-A2N-4Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø4 push-in | Voltage: DC12V
3GD219R-C6-A2N-3Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD219R-C6-A2N-4Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD219R-C8-A2N-3Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC24V
3GD219R-C8-A2N-4Model: 3GD2 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC12V
3GD219R-06-A2N-3Model: 3GD2 | Switching: 2-pos single N.C. | Port: Rc1/8 female | Voltage: DC24V
3GD219R-06-A2N-4Model: 3GD2 | Switching: 2-pos single N.C. | Port: Rc1/8 female | Voltage: DC12V
3GD2119R-C4-A2N-3Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC24V
3GD2119R-C4-A2N-4Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø4 push-in | Voltage: DC12V
3GD2119R-C6-A2N-3Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD2119R-C6-A2N-4Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD2119R-C8-A2N-3Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC24V
3GD2119R-C8-A2N-4Model: 3GD2 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC12V
3GD2119R-06-A2N-3Model: 3GD2 | Switching: 2-pos single N.O. | Port: Rc1/8 female | Voltage: DC24V
3GD2119R-06-A2N-4Model: 3GD2 | Switching: 2-pos single N.O. | Port: Rc1/8 female | Voltage: DC12V
3GD2669R-C4-A2N-3Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC24V
3GD2669R-C4-A2N-4Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø4 push-in | Voltage: DC12V
3GD2669R-C6-A2N-3Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC24V
3GD2669R-C6-A2N-4Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø6 push-in | Voltage: DC12V
3GD2669R-C8-A2N-3Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø8 push-in | Voltage: DC24V
3GD2669R-C8-A2N-4Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: ø8 push-in | Voltage: DC12V
3GD2669R-06-A2N-3Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: Rc1/8 female | Voltage: DC24V
3GD2669R-06-A2N-4Model: 3GD2 | Switching: Dual 3-port N.C./N.C. | Port: Rc1/8 female | Voltage: DC12V
3GD319R-C6-A2N-3Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC24V
3GD319R-C6-A2N-4Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø6 push-in | Voltage: DC12V
3GD319R-C8-A2N-3Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC24V
3GD319R-C8-A2N-4Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø8 push-in | Voltage: DC12V
3GD319R-C10-A2N-3Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø10 push-in | Voltage: DC24V
3GD319R-C10-A2N-4Model: 3GD3 | Switching: 2-pos single N.C. | Port: ø10 push-in | Voltage: DC12V
3GD319R-08-A2N-3Model: 3GD3 | Switching: 2-pos single N.C. | Port: Rc1/4 female | Voltage: DC24V
3GD319R-08-A2N-4Model: 3GD3 | Switching: 2-pos single N.C. | Port: Rc1/4 female | Voltage: DC12V
3GD3119R-C6-A2N-3Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC24V
3GD3119R-C6-A2N-4Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø6 push-in | Voltage: DC12V
3GD3119R-C8-A2N-3Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC24V
3GD3119R-C8-A2N-4Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø8 push-in | Voltage: DC12V
3GD3119R-C10-A2N-3Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø10 push-in | Voltage: DC24V
3GD3119R-C10-A2N-4Model: 3GD3 | Switching: 2-pos single N.O. | Port: ø10 push-in | Voltage: DC12V
3GD3119R-08-A2N-3Model: 3GD3 | Switching: 2-pos single N.O. | Port: Rc1/4 female | Voltage: DC24V
3GD3119R-08-A2N-4Model: 3GD3 | Switching: 2-pos single N.O. | Port: Rc1/4 female | Voltage: DC12V
4GD119R-C4-A2N-3Model: 4GD1 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC24V
4GD119R-C4-A2N-4Model: 4GD1 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC12V
4GD119R-C6-A2N-3Model: 4GD1 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD119R-C6-A2N-4Model: 4GD1 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD119R-M5-A2N-3Model: 4GD1 | Switching: 2-pos single | Port: M5 female | Voltage: DC24V
4GD119R-M5-A2N-4Model: 4GD1 | Switching: 2-pos single | Port: M5 female | Voltage: DC12V
4GD129R-C4-A2N-3Model: 4GD1 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC24V
4GD129R-C4-A2N-4Model: 4GD1 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC12V
4GD129R-C6-A2N-3Model: 4GD1 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD129R-C6-A2N-4Model: 4GD1 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD129R-M5-A2N-3Model: 4GD1 | Switching: 2-pos double | Port: M5 female | Voltage: DC24V
4GD129R-M5-A2N-4Model: 4GD1 | Switching: 2-pos double | Port: M5 female | Voltage: DC12V
4GD139R-C4-A2N-3Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC24V
4GD139R-C4-A2N-4Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC12V
4GD139R-C6-A2N-3Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD139R-C6-A2N-4Model: 4GD1 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD139R-M5-A2N-3Model: 4GD1 | Switching: 3-pos all ports blocked | Port: M5 female | Voltage: DC24V
4GD139R-M5-A2N-4Model: 4GD1 | Switching: 3-pos all ports blocked | Port: M5 female | Voltage: DC12V
4GD149R-C4-A2N-3Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC24V
4GD149R-C4-A2N-4Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC12V
4GD149R-C6-A2N-3Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD149R-C6-A2N-4Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD149R-M5-A2N-3Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: M5 female | Voltage: DC24V
4GD149R-M5-A2N-4Model: 4GD1 | Switching: 3-pos A/B/R connection | Port: M5 female | Voltage: DC12V
4GD159R-C4-A2N-3Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC24V
4GD159R-C4-A2N-4Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC12V
4GD159R-C6-A2N-3Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD159R-C6-A2N-4Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD159R-M5-A2N-3Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: M5 female | Voltage: DC24V
4GD159R-M5-A2N-4Model: 4GD1 | Switching: 3-pos P/A/B connection | Port: M5 female | Voltage: DC12V
4GD219R-C4-A2N-3Model: 4GD2 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC24V
4GD219R-C4-A2N-4Model: 4GD2 | Switching: 2-pos single | Port: ø4 push-in | Voltage: DC12V
4GD219R-C6-A2N-3Model: 4GD2 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD219R-C6-A2N-4Model: 4GD2 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD219R-C8-A2N-3Model: 4GD2 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC24V
4GD219R-C8-A2N-4Model: 4GD2 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC12V
4GD219R-06-A2N-3Model: 4GD2 | Switching: 2-pos single | Port: Rc1/8 female | Voltage: DC24V
4GD219R-06-A2N-4Model: 4GD2 | Switching: 2-pos single | Port: Rc1/8 female | Voltage: DC12V
4GD229R-C4-A2N-3Model: 4GD2 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC24V
4GD229R-C4-A2N-4Model: 4GD2 | Switching: 2-pos double | Port: ø4 push-in | Voltage: DC12V
4GD229R-C6-A2N-3Model: 4GD2 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD229R-C6-A2N-4Model: 4GD2 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD229R-C8-A2N-3Model: 4GD2 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC24V
4GD229R-C8-A2N-4Model: 4GD2 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC12V
4GD229R-06-A2N-3Model: 4GD2 | Switching: 2-pos double | Port: Rc1/8 female | Voltage: DC24V
4GD229R-06-A2N-4Model: 4GD2 | Switching: 2-pos double | Port: Rc1/8 female | Voltage: DC12V
4GD239R-C4-A2N-3Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC24V
4GD239R-C4-A2N-4Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø4 push-in | Voltage: DC12V
4GD239R-C6-A2N-3Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD239R-C6-A2N-4Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD239R-C8-A2N-3Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC24V
4GD239R-C8-A2N-4Model: 4GD2 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC12V
4GD239R-06-A2N-3Model: 4GD2 | Switching: 3-pos all ports blocked | Port: Rc1/8 female | Voltage: DC24V
4GD239R-06-A2N-4Model: 4GD2 | Switching: 3-pos all ports blocked | Port: Rc1/8 female | Voltage: DC12V
4GD249R-C4-A2N-3Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC24V
4GD249R-C4-A2N-4Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø4 push-in | Voltage: DC12V
4GD249R-C6-A2N-3Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD249R-C6-A2N-4Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD249R-C8-A2N-3Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC24V
4GD249R-C8-A2N-4Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC12V
4GD249R-06-A2N-3Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: Rc1/8 female | Voltage: DC24V
4GD249R-06-A2N-4Model: 4GD2 | Switching: 3-pos A/B/R connection | Port: Rc1/8 female | Voltage: DC12V
4GD259R-C4-A2N-3Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC24V
4GD259R-C4-A2N-4Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø4 push-in | Voltage: DC12V
4GD259R-C6-A2N-3Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD259R-C6-A2N-4Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD259R-C8-A2N-3Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC24V
4GD259R-C8-A2N-4Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC12V
4GD259R-06-A2N-3Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: Rc1/8 female | Voltage: DC24V
4GD259R-06-A2N-4Model: 4GD2 | Switching: 3-pos P/A/B connection | Port: Rc1/8 female | Voltage: DC12V
4GD319R-C6-A2N-3Model: 4GD3 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC24V
4GD319R-C6-A2N-4Model: 4GD3 | Switching: 2-pos single | Port: ø6 push-in | Voltage: DC12V
4GD319R-C8-A2N-3Model: 4GD3 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC24V
4GD319R-C8-A2N-4Model: 4GD3 | Switching: 2-pos single | Port: ø8 push-in | Voltage: DC12V
4GD319R-C10-A2N-3Model: 4GD3 | Switching: 2-pos single | Port: ø10 push-in | Voltage: DC24V
4GD319R-C10-A2N-4Model: 4GD3 | Switching: 2-pos single | Port: ø10 push-in | Voltage: DC12V
4GD319R-08-A2N-3Model: 4GD3 | Switching: 2-pos single | Port: Rc1/4 female | Voltage: DC24V
4GD319R-08-A2N-4Model: 4GD3 | Switching: 2-pos single | Port: Rc1/4 female | Voltage: DC12V
4GD329R-C6-A2N-3Model: 4GD3 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC24V
4GD329R-C6-A2N-4Model: 4GD3 | Switching: 2-pos double | Port: ø6 push-in | Voltage: DC12V
4GD329R-C8-A2N-3Model: 4GD3 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC24V
4GD329R-C8-A2N-4Model: 4GD3 | Switching: 2-pos double | Port: ø8 push-in | Voltage: DC12V
4GD329R-C10-A2N-3Model: 4GD3 | Switching: 2-pos double | Port: ø10 push-in | Voltage: DC24V
4GD329R-C10-A2N-4Model: 4GD3 | Switching: 2-pos double | Port: ø10 push-in | Voltage: DC12V
4GD329R-08-A2N-3Model: 4GD3 | Switching: 2-pos double | Port: Rc1/4 female | Voltage: DC24V
4GD329R-08-A2N-4Model: 4GD3 | Switching: 2-pos double | Port: Rc1/4 female | Voltage: DC12V
4GD339R-C6-A2N-3Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC24V
4GD339R-C6-A2N-4Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø6 push-in | Voltage: DC12V
4GD339R-C8-A2N-3Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC24V
4GD339R-C8-A2N-4Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø8 push-in | Voltage: DC12V
4GD339R-C10-A2N-3Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø10 push-in | Voltage: DC24V
4GD339R-C10-A2N-4Model: 4GD3 | Switching: 3-pos all ports blocked | Port: ø10 push-in | Voltage: DC12V
4GD339R-08-A2N-3Model: 4GD3 | Switching: 3-pos all ports blocked | Port: Rc1/4 female | Voltage: DC24V
4GD339R-08-A2N-4Model: 4GD3 | Switching: 3-pos all ports blocked | Port: Rc1/4 female | Voltage: DC12V
4GD349R-C6-A2N-3Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC24V
4GD349R-C6-A2N-4Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø6 push-in | Voltage: DC12V
4GD349R-C8-A2N-3Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC24V
4GD349R-C8-A2N-4Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø8 push-in | Voltage: DC12V
4GD349R-C10-A2N-3Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø10 push-in | Voltage: DC24V
4GD349R-C10-A2N-4Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: ø10 push-in | Voltage: DC12V
4GD349R-08-A2N-3Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: Rc1/4 female | Voltage: DC24V
4GD349R-08-A2N-4Model: 4GD3 | Switching: 3-pos A/B/R connection | Port: Rc1/4 female | Voltage: DC12V
4GD359R-C6-A2N-3Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC24V
4GD359R-C6-A2N-4Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø6 push-in | Voltage: DC12V
4GD359R-C8-A2N-3Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC24V
4GD359R-C8-A2N-4Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø8 push-in | Voltage: DC12V
4GD359R-C10-A2N-3Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø10 push-in | Voltage: DC24V
4GD359R-C10-A2N-4Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: ø10 push-in | Voltage: DC12V
4GD359R-08-A2N-3Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: Rc1/4 female | Voltage: DC24V
4GD359R-08-A2N-4Model: 4GD3 | Switching: 3-pos P/A/B connection | Port: Rc1/4 female | Voltage: DC12V
3GE1669R-00-A2N-3Model: 3GE1 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC24V
3GE1669R-00-A2N-4Model: 3GE1 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC12V
3GE2669R-00-A2N-3Model: 3GE2 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC24V
3GE2669R-00-A2N-4Model: 3GE2 | Switching: Dual 3-port N.C./N.C. | Port: None (base-mount valve) | Voltage: DC12V
4GE119R-00-A2N-3Model: 4GE1 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE119R-00-A2N-4Model: 4GE1 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE129R-00-A2N-3Model: 4GE1 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE129R-00-A2N-4Model: 4GE1 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE139R-00-A2N-3Model: 4GE1 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE139R-00-A2N-4Model: 4GE1 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE149R-00-A2N-3Model: 4GE1 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE149R-00-A2N-4Model: 4GE1 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE159R-00-A2N-3Model: 4GE1 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE159R-00-A2N-4Model: 4GE1 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GE219R-00-A2N-3Model: 4GE2 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE219R-00-A2N-4Model: 4GE2 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE229R-00-A2N-3Model: 4GE2 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE229R-00-A2N-4Model: 4GE2 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE239R-00-A2N-3Model: 4GE2 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE239R-00-A2N-4Model: 4GE2 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE249R-00-A2N-3Model: 4GE2 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE249R-00-A2N-4Model: 4GE2 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE259R-00-A2N-3Model: 4GE2 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE259R-00-A2N-4Model: 4GE2 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GE319R-00-A2N-3Model: 4GE3 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC24V
4GE319R-00-A2N-4Model: 4GE3 | Switching: 2-pos single | Port: None (base-mount valve) | Voltage: DC12V
4GE329R-00-A2N-3Model: 4GE3 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V
4GE329R-00-A2N-4Model: 4GE3 | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC12V
4GE339R-00-A2N-3Model: 4GE3 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC24V
4GE339R-00-A2N-4Model: 4GE3 | Switching: 3-pos all ports blocked | Port: None (base-mount valve) | Voltage: DC12V
4GE349R-00-A2N-3Model: 4GE3 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC24V
4GE349R-00-A2N-4Model: 4GE3 | Switching: 3-pos A/B/R connection | Port: None (base-mount valve) | Voltage: DC12V
4GE359R-00-A2N-3Model: 4GE3 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC24V
4GE359R-00-A2N-4Model: 4GE3 | Switching: 3-pos P/A/B connection | Port: None (base-mount valve) | Voltage: DC12V
4GD129R-M5-A2NH-3Model: 4GD1 with exhaust malfunction valve (H) | Switching: 2-pos double | Port: M5 female | Voltage: DC24V
4GE129R-00-A2NH-3Model: 4GE1 with exhaust malfunction valve (H) | Switching: 2-pos double | Port: None (base-mount valve) | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
