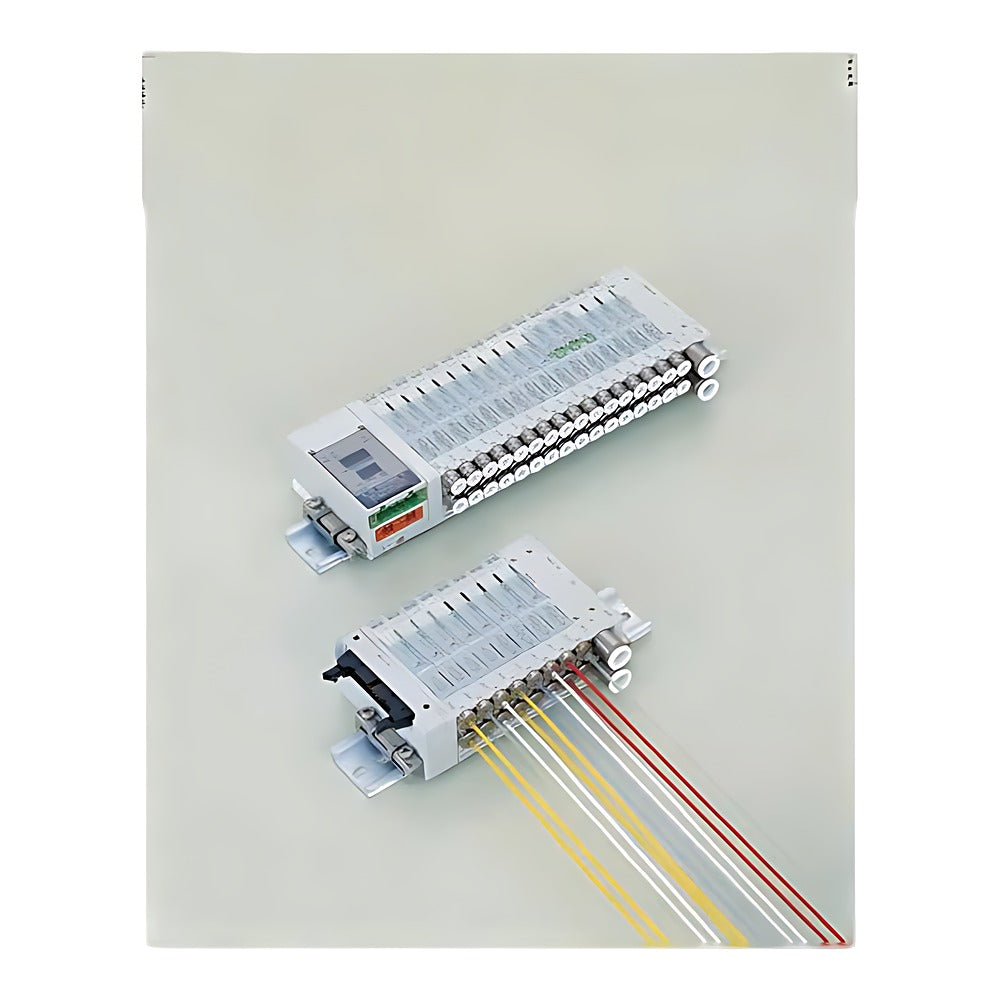

CKD 4KA2 Selex 5-Port Solenoid Valve (Direct Piping)

CKD 4KA2 pilot operated Selex 5-port solenoid valve for direct piping, 18 mm valve width, Rc/NPT/G1/8 or ø6/ø8 one-touch ports.

Key features

Selex valve family: valve widths 15, 18, 23 and 29 mm (KA1/KA2/KA3/KA4) for ø20 to ø160 cylinders
Electrical entry: grommet lead, small terminal box B (L/LS with lamp/surge), C or D connector; C2/D2 with surge killer and lamp listed, lead lengths C00-C23/D00-D23 on request
Ports: Rc (or M5), NPT (N) or G (G) thread, or one-touch fittings GS with the matching R port thread
Voltages AC100V, AC200V, DC24V standard; DC12V, AC110V, AC220V optional; M1 locking manual override optional
Options: P mounting plate (2-pos single), S surge killer, -A cutting oil resistant (FKM); ozone resistant P11, non-copper/PTFE P6, CE ST

Specifications

Valve type	Pilot operated soft spool valve
Fluid	Compressed air
Max. operating pressure	0.70 MPa
Proof pressure	1.05 MPa
Ambient temperature	-5 to 50°C (no freezing)
Fluid temperature	5 to 50°C
Power consumption	AC100V 1.8/1.4 W, DC24V 1.8 W (KA1/2, KB1/2)
Applicable cylinder bore	ø20 to ø160
Min. operating pressure	0.15 (double 0.10, 3-pos 0.20) MPa
Flow (C)	2.3 to 2.9 dm3/(s·bar)
Model	4KA2
Source	CKD Korea catalog CB-023SK-9, p. 1340-1353

4KA210-06-AC100V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-06-AC200V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-06-DC24V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-06-B-AC100V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-06-B-AC200V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-06-B-DC24V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-06-C2-AC100V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-06-C2-AC200V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-06-C2-DC24V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-06-D2-AC100V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-06-D2-AC200V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-06-D2-DC24V		Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS6-AC100V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS6-AC200V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS6-DC24V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS6-B-AC100V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS6-B-AC200V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS6-B-DC24V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS6-C2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS6-C2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS6-C2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS6-D2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS6-D2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS6-D2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS8-AC100V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS8-AC200V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS8-DC24V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS8-B-AC100V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS8-B-AC200V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS8-B-DC24V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS8-C2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS8-C2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS8-C2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS8-D2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS8-D2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS8-D2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-06N-AC100V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-06N-AC200V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-06N-DC24V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-06N-B-AC100V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-06N-B-AC200V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-06N-B-DC24V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-06N-C2-AC100V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-06N-C2-AC200V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-06N-C2-DC24V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-06N-D2-AC100V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-06N-D2-AC200V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-06N-D2-DC24V		Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS6N-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS6N-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS6N-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS6N-B-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS6N-B-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS6N-B-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS6N-C2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS6N-C2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS6N-C2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS6N-D2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS6N-D2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS6N-D2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS8N-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS8N-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS8N-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS8N-B-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS8N-B-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS8N-B-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS8N-C2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS8N-C2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS8N-C2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS8N-D2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS8N-D2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS8N-D2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-06G-AC100V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-06G-AC200V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-06G-DC24V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-06G-B-AC100V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-06G-B-AC200V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-06G-B-DC24V		Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-06G-C2-AC100V		Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-06G-C2-AC200V		Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-06G-C2-DC24V		Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-06G-D2-AC100V		Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-06G-D2-AC200V		Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-06G-D2-DC24V		Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS6G-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS6G-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS6G-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS6G-B-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS6G-B-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS6G-B-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS6G-C2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS6G-C2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS6G-C2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS6G-D2-AC100V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS6G-D2-AC200V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS6G-D2-DC24V		Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA210-GS8G-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA210-GS8G-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA210-GS8G-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA210-GS8G-B-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA210-GS8G-B-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA210-GS8G-B-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA210-GS8G-C2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA210-GS8G-C2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA210-GS8G-C2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA210-GS8G-D2-AC100V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA210-GS8G-D2-AC200V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA210-GS8G-D2-DC24V		Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-06-AC100V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-06-AC200V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-06-DC24V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-06-B-AC100V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-06-B-AC200V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-06-B-DC24V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-06-C2-AC100V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-06-C2-AC200V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-06-C2-DC24V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-06-D2-AC100V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-06-D2-AC200V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-06-D2-DC24V		Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS6-AC100V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS6-AC200V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS6-DC24V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS6-B-AC100V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS6-B-AC200V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS6-B-DC24V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS6-C2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS6-C2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS6-C2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS6-D2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS6-D2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS6-D2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS8-AC100V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS8-AC200V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS8-DC24V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS8-B-AC100V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS8-B-AC200V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS8-B-DC24V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS8-C2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS8-C2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS8-C2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS8-D2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS8-D2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS8-D2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-06N-AC100V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-06N-AC200V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-06N-DC24V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-06N-B-AC100V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-06N-B-AC200V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-06N-B-DC24V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-06N-C2-AC100V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-06N-C2-AC200V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-06N-C2-DC24V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-06N-D2-AC100V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-06N-D2-AC200V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-06N-D2-DC24V		Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS6N-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS6N-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS6N-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS6N-B-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS6N-B-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS6N-B-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS6N-C2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS6N-C2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS6N-C2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS6N-D2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS6N-D2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS6N-D2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS8N-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS8N-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS8N-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS8N-B-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS8N-B-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS8N-B-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS8N-C2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS8N-C2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS8N-C2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS8N-D2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS8N-D2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS8N-D2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-06G-AC100V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-06G-AC200V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-06G-DC24V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-06G-B-AC100V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-06G-B-AC200V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-06G-B-DC24V		Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-06G-C2-AC100V		Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-06G-C2-AC200V		Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-06G-C2-DC24V		Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-06G-D2-AC100V		Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-06G-D2-AC200V		Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-06G-D2-DC24V		Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS6G-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS6G-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS6G-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS6G-B-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS6G-B-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS6G-B-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS6G-C2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS6G-C2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS6G-C2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS6G-D2-AC100V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS6G-D2-AC200V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS6G-D2-DC24V		Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA220-GS8G-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA220-GS8G-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA220-GS8G-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA220-GS8G-B-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA220-GS8G-B-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA220-GS8G-B-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA220-GS8G-C2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA220-GS8G-C2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA220-GS8G-C2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA220-GS8G-D2-AC100V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA220-GS8G-D2-AC200V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA220-GS8G-D2-DC24V		Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-06-AC100V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-06-AC200V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-06-DC24V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-06-B-AC100V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-06-B-AC200V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-06-B-DC24V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-06-C2-AC100V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-06-C2-AC200V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-06-C2-DC24V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-06-D2-AC100V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-06-D2-AC200V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-06-D2-DC24V		Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS6-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS6-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS6-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS6-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS6-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS6-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS6-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS6-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS6-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS6-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS6-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS6-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS8-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS8-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS8-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS8-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS8-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS8-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS8-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS8-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS8-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS8-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS8-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS8-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-06N-AC100V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-06N-AC200V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-06N-DC24V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-06N-B-AC100V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-06N-B-AC200V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-06N-B-DC24V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-06N-C2-AC100V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-06N-C2-AC200V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-06N-C2-DC24V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-06N-D2-AC100V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-06N-D2-AC200V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-06N-D2-DC24V		Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS6N-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS6N-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS6N-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS6N-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS6N-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS6N-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS6N-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS6N-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS6N-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS6N-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS6N-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS6N-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS8N-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS8N-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS8N-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS8N-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS8N-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS8N-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS8N-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS8N-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS8N-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS8N-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS8N-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS8N-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-06G-AC100V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-06G-AC200V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-06G-DC24V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-06G-B-AC100V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-06G-B-AC200V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-06G-B-DC24V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-06G-C2-AC100V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-06G-C2-AC200V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-06G-C2-DC24V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-06G-D2-AC100V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-06G-D2-AC200V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-06G-D2-DC24V		Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS6G-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS6G-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS6G-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS6G-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS6G-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS6G-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS6G-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS6G-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS6G-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS6G-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS6G-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS6G-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA230-GS8G-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA230-GS8G-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA230-GS8G-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA230-GS8G-B-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA230-GS8G-B-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA230-GS8G-B-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA230-GS8G-C2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA230-GS8G-C2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA230-GS8G-C2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA230-GS8G-D2-AC100V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA230-GS8G-D2-AC200V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA230-GS8G-D2-DC24V		Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-06-AC100V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-06-AC200V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-06-DC24V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-06-B-AC100V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-06-B-AC200V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-06-B-DC24V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-06-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-06-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-06-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-06-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-06-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-06-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS6-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS6-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS6-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS6-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS6-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS6-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS6-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS6-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS6-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS6-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS6-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS6-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS8-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS8-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS8-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS8-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS8-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS8-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS8-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS8-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS8-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS8-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS8-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS8-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-06N-AC100V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-06N-AC200V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-06N-DC24V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-06N-B-AC100V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-06N-B-AC200V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-06N-B-DC24V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-06N-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-06N-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-06N-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-06N-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-06N-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-06N-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS6N-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS6N-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS6N-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS6N-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS6N-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS6N-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS6N-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS6N-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS6N-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS6N-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS6N-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS6N-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS8N-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS8N-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS8N-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS8N-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS8N-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS8N-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS8N-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS8N-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS8N-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS8N-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS8N-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS8N-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-06G-AC100V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-06G-AC200V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-06G-DC24V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-06G-B-AC100V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-06G-B-AC200V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-06G-B-DC24V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-06G-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-06G-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-06G-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-06G-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-06G-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-06G-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS6G-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS6G-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS6G-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS6G-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS6G-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS6G-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS6G-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS6G-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS6G-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS6G-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS6G-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS6G-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA240-GS8G-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA240-GS8G-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA240-GS8G-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA240-GS8G-B-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA240-GS8G-B-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA240-GS8G-B-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA240-GS8G-C2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA240-GS8G-C2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA240-GS8G-C2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA240-GS8G-D2-AC100V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA240-GS8G-D2-AC200V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA240-GS8G-D2-DC24V		Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-06-AC100V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-06-AC200V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-06-DC24V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-06-B-AC100V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-06-B-AC200V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-06-B-DC24V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-06-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-06-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-06-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-06-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-06-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-06-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS6-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS6-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS6-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS6-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS6-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS6-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS6-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS6-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS6-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS6-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS6-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS6-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS8-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS8-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS8-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS8-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS8-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS8-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS8-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS8-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS8-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS8-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS8-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS8-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-06N-AC100V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-06N-AC200V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-06N-DC24V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-06N-B-AC100V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-06N-B-AC200V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-06N-B-DC24V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-06N-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-06N-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-06N-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-06N-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-06N-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-06N-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS6N-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS6N-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS6N-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS6N-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS6N-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS6N-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS6N-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS6N-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS6N-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS6N-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS6N-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS6N-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS8N-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS8N-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS8N-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS8N-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS8N-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS8N-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS8N-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS8N-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS8N-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS8N-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS8N-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS8N-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-06G-AC100V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-06G-AC200V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-06G-DC24V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-06G-B-AC100V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-06G-B-AC200V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-06G-B-DC24V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-06G-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-06G-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-06G-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-06G-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-06G-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-06G-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS6G-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS6G-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS6G-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS6G-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS6G-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS6G-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS6G-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS6G-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS6G-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS6G-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS6G-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS6G-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
4KA250-GS8G-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
4KA250-GS8G-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
4KA250-GS8G-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
4KA250-GS8G-B-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
4KA250-GS8G-B-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
4KA250-GS8G-B-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
4KA250-GS8G-C2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
4KA250-GS8G-C2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
4KA250-GS8G-C2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
4KA250-GS8G-D2-AC100V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
4KA250-GS8G-D2-AC200V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
4KA250-GS8G-D2-DC24V		Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V

Solenoid ValvesCKD

540 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4KA2 Selex 5-Port Solenoid Valve (Direct Piping)

Brand CKD·Solenoid Valves

Available part numbers (540)

4KA210-06-AC100V, 4KA210-06-AC200V, 4KA210-06-DC24V, 4KA210-06-B-AC100V, 4KA210-06-B-AC200V, 4KA210-06-B-DC24V, 4KA210-06-C2-AC100V, 4KA210-06-C2-AC200V, 4KA210-06-C2-DC24V, 4KA210-06-D2-AC100V + 530 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	4KA210-06-AC100V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-06-AC200V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-06-DC24V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-06-B-AC100V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-06-B-AC200V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-06-B-DC24V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-06-C2-AC100V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-06-C2-AC200V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-06-C2-DC24V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-06-D2-AC100V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-06-D2-AC200V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-06-D2-DC24V	Switching: 2-pos single \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6-AC100V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS6-AC200V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS6-DC24V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS6-B-AC100V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS6-B-AC200V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS6-B-DC24V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS6-C2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6-C2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6-C2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6-D2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6-D2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6-D2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8-AC100V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS8-AC200V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS8-DC24V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS8-B-AC100V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS8-B-AC200V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS8-B-DC24V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS8-C2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8-C2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8-C2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8-D2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8-D2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8-D2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-06N-AC100V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-06N-AC200V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-06N-DC24V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-06N-B-AC100V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-06N-B-AC200V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-06N-B-DC24V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-06N-C2-AC100V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-06N-C2-AC200V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-06N-C2-DC24V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-06N-D2-AC100V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-06N-D2-AC200V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-06N-D2-DC24V	Switching: 2-pos single \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6N-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS6N-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS6N-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS6N-B-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS6N-B-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS6N-B-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS6N-C2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6N-C2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6N-C2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6N-D2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6N-D2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6N-D2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8N-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS8N-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS8N-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS8N-B-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS8N-B-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS8N-B-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS8N-C2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8N-C2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8N-C2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8N-D2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8N-D2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8N-D2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-06G-AC100V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-06G-AC200V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-06G-DC24V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-06G-B-AC100V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-06G-B-AC200V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-06G-B-DC24V	Switching: 2-pos single \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-06G-C2-AC100V	Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-06G-C2-AC200V	Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-06G-C2-DC24V	Switching: 2-pos single \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-06G-D2-AC100V	Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-06G-D2-AC200V	Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-06G-D2-DC24V	Switching: 2-pos single \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6G-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS6G-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS6G-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS6G-B-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS6G-B-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS6G-B-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS6G-C2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6G-C2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6G-C2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS6G-D2-AC100V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS6G-D2-AC200V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS6G-D2-DC24V	Switching: 2-pos single \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8G-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA210-GS8G-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA210-GS8G-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA210-GS8G-B-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA210-GS8G-B-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA210-GS8G-B-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA210-GS8G-C2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8G-C2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8G-C2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA210-GS8G-D2-AC100V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA210-GS8G-D2-AC200V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA210-GS8G-D2-DC24V	Switching: 2-pos single \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-06-AC100V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-06-AC200V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-06-DC24V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-06-B-AC100V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-06-B-AC200V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-06-B-DC24V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-06-C2-AC100V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-06-C2-AC200V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-06-C2-DC24V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-06-D2-AC100V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-06-D2-AC200V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-06-D2-DC24V	Switching: 2-pos double \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6-AC100V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS6-AC200V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS6-DC24V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS6-B-AC100V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS6-B-AC200V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS6-B-DC24V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS6-C2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6-C2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6-C2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6-D2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6-D2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6-D2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8-AC100V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS8-AC200V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS8-DC24V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS8-B-AC100V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS8-B-AC200V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS8-B-DC24V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS8-C2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8-C2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8-C2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8-D2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8-D2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8-D2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-06N-AC100V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-06N-AC200V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-06N-DC24V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-06N-B-AC100V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-06N-B-AC200V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-06N-B-DC24V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-06N-C2-AC100V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-06N-C2-AC200V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-06N-C2-DC24V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-06N-D2-AC100V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-06N-D2-AC200V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-06N-D2-DC24V	Switching: 2-pos double \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6N-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS6N-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS6N-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS6N-B-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS6N-B-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS6N-B-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS6N-C2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6N-C2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6N-C2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6N-D2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6N-D2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6N-D2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8N-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS8N-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS8N-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS8N-B-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS8N-B-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS8N-B-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS8N-C2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8N-C2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8N-C2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8N-D2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8N-D2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8N-D2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-06G-AC100V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-06G-AC200V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-06G-DC24V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-06G-B-AC100V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-06G-B-AC200V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-06G-B-DC24V	Switching: 2-pos double \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-06G-C2-AC100V	Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-06G-C2-AC200V	Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-06G-C2-DC24V	Switching: 2-pos double \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-06G-D2-AC100V	Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-06G-D2-AC200V	Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-06G-D2-DC24V	Switching: 2-pos double \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6G-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS6G-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS6G-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS6G-B-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS6G-B-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS6G-B-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS6G-C2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6G-C2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6G-C2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS6G-D2-AC100V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS6G-D2-AC200V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS6G-D2-DC24V	Switching: 2-pos double \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8G-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA220-GS8G-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA220-GS8G-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA220-GS8G-B-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA220-GS8G-B-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA220-GS8G-B-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA220-GS8G-C2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8G-C2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8G-C2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA220-GS8G-D2-AC100V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA220-GS8G-D2-AC200V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA220-GS8G-D2-DC24V	Switching: 2-pos double \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-06-AC100V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-06-AC200V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-06-DC24V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-06-B-AC100V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-06-B-AC200V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-06-B-DC24V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-06-C2-AC100V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-06-C2-AC200V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-06-C2-DC24V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-06-D2-AC100V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-06-D2-AC200V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-06-D2-DC24V	Switching: 3-pos all ports blocked \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS6-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS6-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS6-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS6-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS6-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS6-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS8-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS8-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS8-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS8-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS8-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS8-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-06N-AC100V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-06N-AC200V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-06N-DC24V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-06N-B-AC100V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-06N-B-AC200V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-06N-B-DC24V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-06N-C2-AC100V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-06N-C2-AC200V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-06N-C2-DC24V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-06N-D2-AC100V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-06N-D2-AC200V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-06N-D2-DC24V	Switching: 3-pos all ports blocked \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6N-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS6N-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS6N-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS6N-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS6N-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS6N-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS6N-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6N-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6N-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6N-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6N-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6N-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8N-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS8N-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS8N-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS8N-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS8N-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS8N-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS8N-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8N-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8N-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8N-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8N-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8N-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-06G-AC100V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-06G-AC200V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-06G-DC24V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-06G-B-AC100V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-06G-B-AC200V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-06G-B-DC24V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-06G-C2-AC100V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-06G-C2-AC200V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-06G-C2-DC24V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-06G-D2-AC100V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-06G-D2-AC200V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-06G-D2-DC24V	Switching: 3-pos all ports blocked \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6G-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS6G-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS6G-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS6G-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS6G-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS6G-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS6G-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6G-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6G-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS6G-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS6G-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS6G-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8G-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA230-GS8G-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA230-GS8G-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA230-GS8G-B-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA230-GS8G-B-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA230-GS8G-B-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA230-GS8G-C2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8G-C2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8G-C2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA230-GS8G-D2-AC100V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA230-GS8G-D2-AC200V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA230-GS8G-D2-DC24V	Switching: 3-pos all ports blocked \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-06-AC100V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-06-AC200V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-06-DC24V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-06-B-AC100V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-06-B-AC200V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-06-B-DC24V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-06-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-06-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-06-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-06-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-06-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-06-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS6-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS6-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS6-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS6-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS6-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS6-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS8-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS8-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS8-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS8-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS8-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS8-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-06N-AC100V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-06N-AC200V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-06N-DC24V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-06N-B-AC100V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-06N-B-AC200V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-06N-B-DC24V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-06N-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-06N-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-06N-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-06N-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-06N-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-06N-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6N-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS6N-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS6N-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS6N-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS6N-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS6N-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS6N-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6N-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6N-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6N-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6N-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6N-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8N-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS8N-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS8N-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS8N-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS8N-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS8N-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS8N-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8N-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8N-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8N-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8N-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8N-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-06G-AC100V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-06G-AC200V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-06G-DC24V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-06G-B-AC100V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-06G-B-AC200V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-06G-B-DC24V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-06G-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-06G-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-06G-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-06G-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-06G-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-06G-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6G-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS6G-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS6G-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS6G-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS6G-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS6G-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS6G-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6G-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6G-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS6G-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS6G-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS6G-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8G-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA240-GS8G-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA240-GS8G-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA240-GS8G-B-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA240-GS8G-B-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA240-GS8G-B-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA240-GS8G-C2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8G-C2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8G-C2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA240-GS8G-D2-AC100V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA240-GS8G-D2-AC200V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA240-GS8G-D2-DC24V	Switching: 3-pos A-B-R connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-06-AC100V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-06-AC200V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-06-DC24V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-06-B-AC100V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-06-B-AC200V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-06-B-DC24V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-06-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-06-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-06-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-06-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-06-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-06-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: Rc1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS6-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS6-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS6-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS6-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS6-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS6-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS8-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS8-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS8-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS8-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS8-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS8-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-06N-AC100V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-06N-AC200V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-06N-DC24V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-06N-B-AC100V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-06N-B-AC200V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-06N-B-DC24V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-06N-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-06N-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-06N-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-06N-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-06N-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-06N-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: NPT1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6N-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS6N-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS6N-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS6N-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS6N-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS6N-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS6N-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6N-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6N-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6N-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6N-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6N-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8N-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS8N-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS8N-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS8N-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS8N-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS8N-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS8N-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8N-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8N-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8N-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8N-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8N-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R NPT \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-06G-AC100V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-06G-AC200V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-06G-DC24V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-06G-B-AC100V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-06G-B-AC200V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-06G-B-DC24V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-06G-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-06G-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-06G-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-06G-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-06G-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-06G-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: G1/8 \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6G-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS6G-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS6G-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS6G-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS6G-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS6G-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS6G-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6G-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6G-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS6G-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS6G-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS6G-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø6 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8G-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC100V
	4KA250-GS8G-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: AC200V
	4KA250-GS8G-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	4KA250-GS8G-B-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC100V
	4KA250-GS8G-B-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: AC200V
	4KA250-GS8G-B-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: Small terminal box \| Voltage: DC24V
	4KA250-GS8G-C2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8G-C2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8G-C2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: C connector, surge+lamp \| Voltage: DC24V
	4KA250-GS8G-D2-AC100V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC100V
	4KA250-GS8G-D2-AC200V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: AC200V
	4KA250-GS8G-D2-DC24V	Switching: 3-pos P-A-B connection \| Port: ø8 one-touch, R G \| Wiring: D connector, surge+lamp \| Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD 4KA2 Selex 5-Port Solenoid Valve (Direct Piping)
