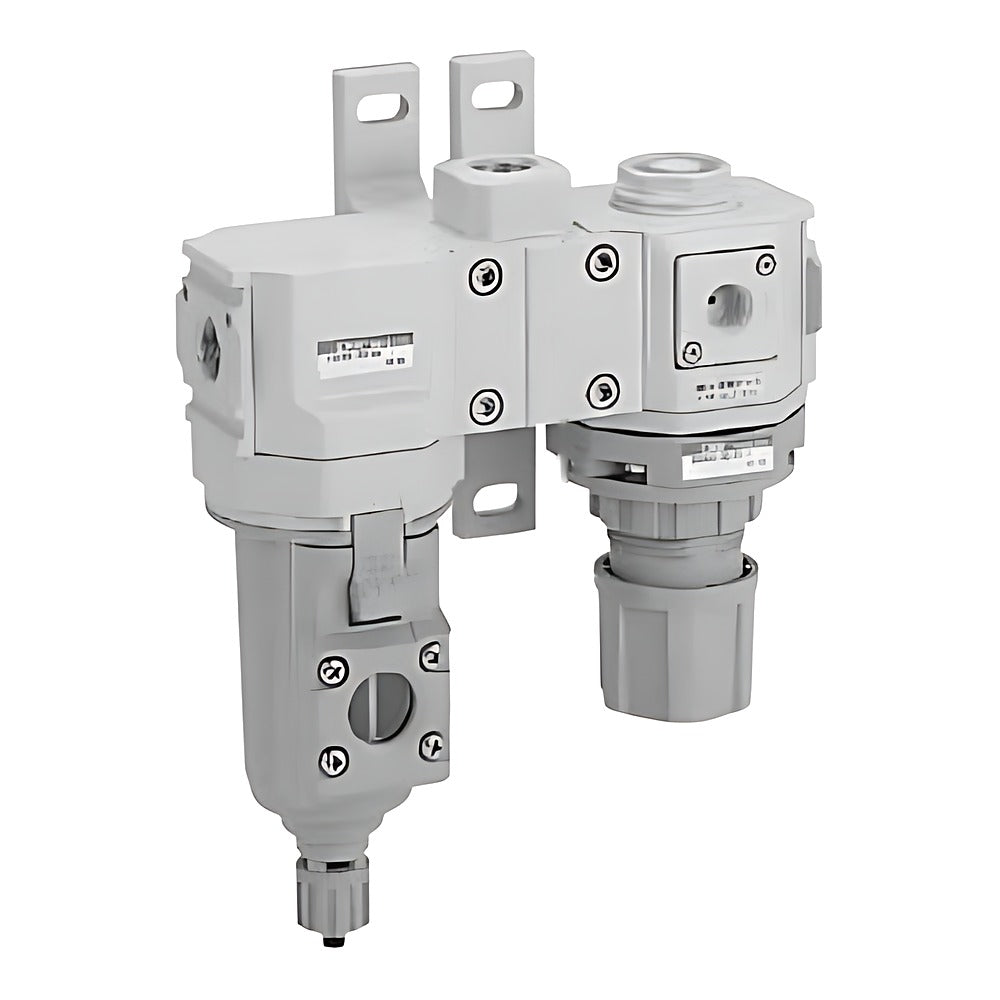

CKD A100/A400/A800-W and AW400/AW800 Piping Adapter Sets

CKD A100/A400/A800-W and AW400/AW800 Piping Adapter Sets

CKD piping adapter sets for modular F.R.L units, with or without T bracket set, including outdoor AW types.

Key features

  • A100-W (1000), A400-W (2000/3000/4000) and A800-W (6000/8000 series)
  • Rc, NPT or G threads; ports 1/8 to 1-1/4
  • Versions with T bracket set B11W, B31W, B41W or B81W
  • Outdoor AW400/AW800 adapters (Rc) for outdoor series
  • Aluminium die-cast, painted; O-ring and gasket included

Specifications

Material Aluminium die-cast, painted
Seal O-ring and gasket included
Applicable series 1000 to 8000 series modular FRL
Joiner Joiner set included
Thread suffix None: Rc, N: NPT, G: G
RoHS Compliant
Source CKD Korea catalog CB-024SK-9, p. 415-420
A100-6-W Model: A100-W | Port: 1/8 | Thread: Rc | T bracket: None
A100-6N-W Model: A100-W | Port: 1/8 | Thread: NPT | T bracket: None
A100-6G-W Model: A100-W | Port: 1/8 | Thread: G | T bracket: None
A100-8-W Model: A100-W | Port: 1/4 | Thread: Rc | T bracket: None
A100-8N-W Model: A100-W | Port: 1/4 | Thread: NPT | T bracket: None
A100-8G-W Model: A100-W | Port: 1/4 | Thread: G | T bracket: None
A100-10-W Model: A100-W | Port: 3/8 | Thread: Rc | T bracket: None
A100-10N-W Model: A100-W | Port: 3/8 | Thread: NPT | T bracket: None
A100-10G-W Model: A100-W | Port: 3/8 | Thread: G | T bracket: None
A400-8-W Model: A400-W | Port: 1/4 | Thread: Rc | T bracket: None
A400-8N-W Model: A400-W | Port: 1/4 | Thread: NPT | T bracket: None
A400-8G-W Model: A400-W | Port: 1/4 | Thread: G | T bracket: None
A400-10-W Model: A400-W | Port: 3/8 | Thread: Rc | T bracket: None
A400-10N-W Model: A400-W | Port: 3/8 | Thread: NPT | T bracket: None
A400-10G-W Model: A400-W | Port: 3/8 | Thread: G | T bracket: None
A400-15-W Model: A400-W | Port: 1/2 | Thread: Rc | T bracket: None
A400-15N-W Model: A400-W | Port: 1/2 | Thread: NPT | T bracket: None
A400-15G-W Model: A400-W | Port: 1/2 | Thread: G | T bracket: None
A400-20-W Model: A400-W | Port: 3/4 | Thread: Rc | T bracket: None
A400-20N-W Model: A400-W | Port: 3/4 | Thread: NPT | T bracket: None
A400-20G-W Model: A400-W | Port: 3/4 | Thread: G | T bracket: None
A400-25-W Model: A400-W | Port: 1 | Thread: Rc | T bracket: None
A400-25N-W Model: A400-W | Port: 1 | Thread: NPT | T bracket: None
A400-25G-W Model: A400-W | Port: 1 | Thread: G | T bracket: None
A800-20-W Model: A800-W | Port: 3/4 | Thread: Rc | T bracket: None
A800-20N-W Model: A800-W | Port: 3/4 | Thread: NPT | T bracket: None
A800-20G-W Model: A800-W | Port: 3/4 | Thread: G | T bracket: None
A800-25-W Model: A800-W | Port: 1 | Thread: Rc | T bracket: None
A800-25N-W Model: A800-W | Port: 1 | Thread: NPT | T bracket: None
A800-25G-W Model: A800-W | Port: 1 | Thread: G | T bracket: None
A800-32-W Model: A800-W | Port: 1-1/4 | Thread: Rc | T bracket: None
A800-32N-W Model: A800-W | Port: 1-1/4 | Thread: NPT | T bracket: None
A800-32G-W Model: A800-W | Port: 1-1/4 | Thread: G | T bracket: None
A100-6-W-B11W Model: A100-W | Port: 1/8 | Thread: Rc | T bracket: B11W (1000 series)
A100-6N-W-B11W Model: A100-W | Port: 1/8 | Thread: NPT | T bracket: B11W (1000 series)
A100-6G-W-B11W Model: A100-W | Port: 1/8 | Thread: G | T bracket: B11W (1000 series)
A100-8-W-B11W Model: A100-W | Port: 1/4 | Thread: Rc | T bracket: B11W (1000 series)
A100-8N-W-B11W Model: A100-W | Port: 1/4 | Thread: NPT | T bracket: B11W (1000 series)
A100-8G-W-B11W Model: A100-W | Port: 1/4 | Thread: G | T bracket: B11W (1000 series)
A100-10-W-B11W Model: A100-W | Port: 3/8 | Thread: Rc | T bracket: B11W (1000 series)
A100-10N-W-B11W Model: A100-W | Port: 3/8 | Thread: NPT | T bracket: B11W (1000 series)
A100-10G-W-B11W Model: A100-W | Port: 3/8 | Thread: G | T bracket: B11W (1000 series)
A400-8-W-B31W Model: A400-W | Port: 1/4 | Thread: Rc | T bracket: B31W (2000/3000)
A400-8N-W-B31W Model: A400-W | Port: 1/4 | Thread: NPT | T bracket: B31W (2000/3000)
A400-8G-W-B31W Model: A400-W | Port: 1/4 | Thread: G | T bracket: B31W (2000/3000)
A400-10-W-B31W Model: A400-W | Port: 3/8 | Thread: Rc | T bracket: B31W (2000/3000)
A400-10N-W-B31W Model: A400-W | Port: 3/8 | Thread: NPT | T bracket: B31W (2000/3000)
A400-10G-W-B31W Model: A400-W | Port: 3/8 | Thread: G | T bracket: B31W (2000/3000)
A400-15-W-B31W Model: A400-W | Port: 1/2 | Thread: Rc | T bracket: B31W (2000/3000)
A400-15N-W-B31W Model: A400-W | Port: 1/2 | Thread: NPT | T bracket: B31W (2000/3000)
A400-15G-W-B31W Model: A400-W | Port: 1/2 | Thread: G | T bracket: B31W (2000/3000)
A400-8-W-B41W Model: A400-W | Port: 1/4 | Thread: Rc | T bracket: B41W (4000 series)
A400-8N-W-B41W Model: A400-W | Port: 1/4 | Thread: NPT | T bracket: B41W (4000 series)
A400-8G-W-B41W Model: A400-W | Port: 1/4 | Thread: G | T bracket: B41W (4000 series)
A400-10-W-B41W Model: A400-W | Port: 3/8 | Thread: Rc | T bracket: B41W (4000 series)
A400-10N-W-B41W Model: A400-W | Port: 3/8 | Thread: NPT | T bracket: B41W (4000 series)
A400-10G-W-B41W Model: A400-W | Port: 3/8 | Thread: G | T bracket: B41W (4000 series)
A400-15-W-B41W Model: A400-W | Port: 1/2 | Thread: Rc | T bracket: B41W (4000 series)
A400-15N-W-B41W Model: A400-W | Port: 1/2 | Thread: NPT | T bracket: B41W (4000 series)
A400-15G-W-B41W Model: A400-W | Port: 1/2 | Thread: G | T bracket: B41W (4000 series)
A400-20-W-B41W Model: A400-W | Port: 3/4 | Thread: Rc | T bracket: B41W (4000 series)
A400-20N-W-B41W Model: A400-W | Port: 3/4 | Thread: NPT | T bracket: B41W (4000 series)
A400-20G-W-B41W Model: A400-W | Port: 3/4 | Thread: G | T bracket: B41W (4000 series)
A400-25-W-B41W Model: A400-W | Port: 1 | Thread: Rc | T bracket: B41W (4000 series)
A400-25N-W-B41W Model: A400-W | Port: 1 | Thread: NPT | T bracket: B41W (4000 series)
A400-25G-W-B41W Model: A400-W | Port: 1 | Thread: G | T bracket: B41W (4000 series)
A800-20-W-B81W Model: A800-W | Port: 3/4 | Thread: Rc | T bracket: B81W (6000/8000 series)
A800-20N-W-B81W Model: A800-W | Port: 3/4 | Thread: NPT | T bracket: B81W (6000/8000 series)
A800-20G-W-B81W Model: A800-W | Port: 3/4 | Thread: G | T bracket: B81W (6000/8000 series)
A800-25-W-B81W Model: A800-W | Port: 1 | Thread: Rc | T bracket: B81W (6000/8000 series)
A800-25N-W-B81W Model: A800-W | Port: 1 | Thread: NPT | T bracket: B81W (6000/8000 series)
A800-25G-W-B81W Model: A800-W | Port: 1 | Thread: G | T bracket: B81W (6000/8000 series)
A800-32-W-B81W Model: A800-W | Port: 1-1/4 | Thread: Rc | T bracket: B81W (6000/8000 series)
A800-32N-W-B81W Model: A800-W | Port: 1-1/4 | Thread: NPT | T bracket: B81W (6000/8000 series)
A800-32G-W-B81W Model: A800-W | Port: 1-1/4 | Thread: G | T bracket: B81W (6000/8000 series)
AW400-8-W Model: AW400 (outdoor) | Port: 1/4 | Thread: Rc | T bracket: None
AW400-8-W-B41W Model: AW400 (outdoor) | Port: 1/4 | Thread: Rc | T bracket: B41W
AW400-10-W Model: AW400 (outdoor) | Port: 3/8 | Thread: Rc | T bracket: None
AW400-10-W-B41W Model: AW400 (outdoor) | Port: 3/8 | Thread: Rc | T bracket: B41W
AW400-15-W Model: AW400 (outdoor) | Port: 1/2 | Thread: Rc | T bracket: None
AW400-15-W-B41W Model: AW400 (outdoor) | Port: 1/2 | Thread: Rc | T bracket: B41W
AW400-20-W Model: AW400 (outdoor) | Port: 3/4 | Thread: Rc | T bracket: None
AW400-20-W-B41W Model: AW400 (outdoor) | Port: 3/4 | Thread: Rc | T bracket: B41W
AW400-25-W Model: AW400 (outdoor) | Port: 1 | Thread: Rc | T bracket: None
AW400-25-W-B41W Model: AW400 (outdoor) | Port: 1 | Thread: Rc | T bracket: B41W
AW800-20-W Model: AW800 (outdoor) | Port: 3/4 | Thread: Rc | T bracket: None
AW800-20-W-B81W Model: AW800 (outdoor) | Port: 3/4 | Thread: Rc | T bracket: B81W
AW800-25-W Model: AW800 (outdoor) | Port: 1 | Thread: Rc | T bracket: None
AW800-25-W-B81W Model: AW800 (outdoor) | Port: 1 | Thread: Rc | T bracket: B81W
AW800-32-W Model: AW800 (outdoor) | Port: 1-1/4 | Thread: Rc | T bracket: None
AW800-32-W-B81W Model: AW800 (outdoor) | Port: 1-1/4 | Thread: Rc | T bracket: B81W
FRL AccessoriesCKD
91 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD A100/A400/A800-W and AW400/AW800 Piping Adapter Sets

Brand CKD·FRL Accessories

Available part numbers (91)

A100-6-W, A100-6N-W, A100-6G-W, A100-8-W, A100-8N-W, A100-8G-W, A100-10-W, A100-10N-W, A100-10G-W, A400-8-W + 81 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
