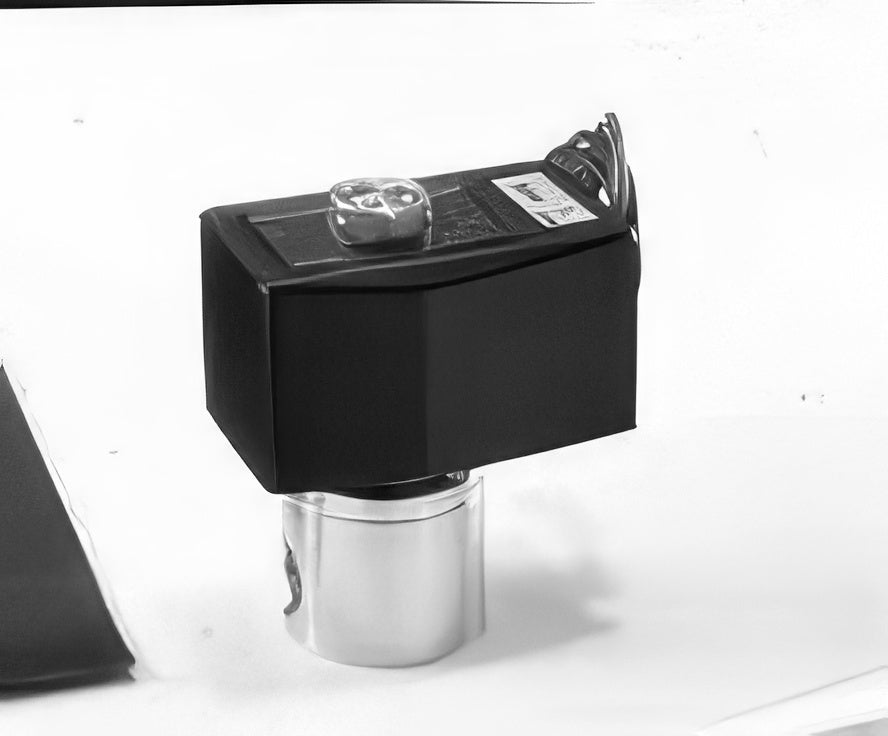

CKD A2-5800/A2-3400 Cryogenic 2-Port Solenoid Valve (MTO)

CKD A2-5800/A2-3400 Cryogenic 2-Port Solenoid Valve (MTO)

CKD A2-5800/A2-3400 made-to-order NC 2-port solenoid valves for liquid nitrogen and inert cryogenic liquids down to -196 C, Rc1/4 and Rc3/8.

Key features

  • Usable with cryogenic fluids such as liquid nitrogen (-196 C)
  • Molded coil resistant to condensation
  • Three flow types: direct-acting poppet (A2-5800) and pilot kick poppet (A2-3400)
  • For cryo-freezers, semiconductor testers, X-ray analyzers, bio storage
  • Made-to-order product

Specifications

Fluid LN2, inert liquids
Fluid temperature -196 to 50 C
Ambient temperature -20 to 40 C
Rated voltage AC100V, AC200V (full-wave), DC12V, DC24V
Mounting Coil upward, vertical
Source CKD Korea catalog CB-03-1SK-9, p. 1232-1233
A2-5800-02-3 Port: Rc1/4 | Orifice: 3 mm | Operating pressure: 0-1.0 MPa | Cv: 0.22
A2-5800-02-5 Port: Rc1/4 | Orifice: 5 mm | Operating pressure: 0-0.4 MPa | Cv: 0.6
A2-3400-03-12 Port: Rc3/8 | Orifice: 12 mm | Operating pressure: 0-0.8 MPa | Cv: 2.7
2-Port Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD A2-5800/A2-3400 Cryogenic 2-Port Solenoid Valve (MTO)

Brand CKD·2-Port Solenoid Valves

Available part numbers (3)

A2-5800-02-3, A2-5800-02-5, A2-3400-03-12

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A2-5800-02-3Port: Rc1/4 | Orifice: 3 mm | Operating pressure: 0-1.0 MPa | Cv: 0.22
A2-5800-02-5Port: Rc1/4 | Orifice: 5 mm | Operating pressure: 0-0.4 MPa | Cv: 0.6
A2-3400-03-12Port: Rc3/8 | Orifice: 12 mm | Operating pressure: 0-0.8 MPa | Cv: 2.7
