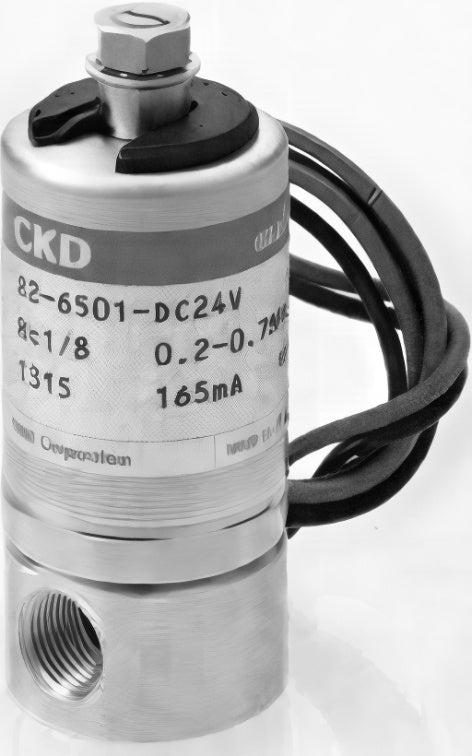

CKD A2-6500 Proportional Solenoid Valve (MTO)

CKD A2-6500 Proportional Solenoid Valve (MTO)

CKD A2-6500 series made-to-order NC proportional solenoid valve that controls compressed-air flow steplessly in proportion to coil current, Rc1/8.

Key features

  • Flow varies in proportion to coil current for multi-step and metered flow control
  • Brass body, FKM seal; closes with power off
  • Seat leakage 1 cm3/min or less when closed
  • Coil DC12V (0-330 mA) or DC24V (0-165 mA), 0-4 W
  • Made-to-order product

Specifications

Fluid Compressed air
Port Rc1/8
Fluid / ambient temperature 0 to 50 C
Mounting Coil upward, vertical only
Repeatability 3% F.S. or less
Source CKD Korea catalog CB-03-1SK-9, p. 1240
A2-6501 Orifice: 1.6 mm | Max. pressure differential: 0.7 MPa | Control flow: 0-100 L/min
A2-6502 Orifice: 2.3 mm | Max. pressure differential: 0.35 MPa | Control flow: 0-100 L/min
A2-6503 Orifice: 3.2 mm | Max. pressure differential: 0.15 MPa | Control flow: 0-80 L/min
2-Port Solenoid ValvesCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD A2-6500 Proportional Solenoid Valve (MTO)

Brand CKD·2-Port Solenoid Valves

Available part numbers (3)

A2-6501, A2-6502, A2-6503

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A2-6501Orifice: 1.6 mm | Max. pressure differential: 0.7 MPa | Control flow: 0-100 L/min
A2-6502Orifice: 2.3 mm | Max. pressure differential: 0.35 MPa | Control flow: 0-100 L/min
A2-6503Orifice: 3.2 mm | Max. pressure differential: 0.15 MPa | Control flow: 0-80 L/min
