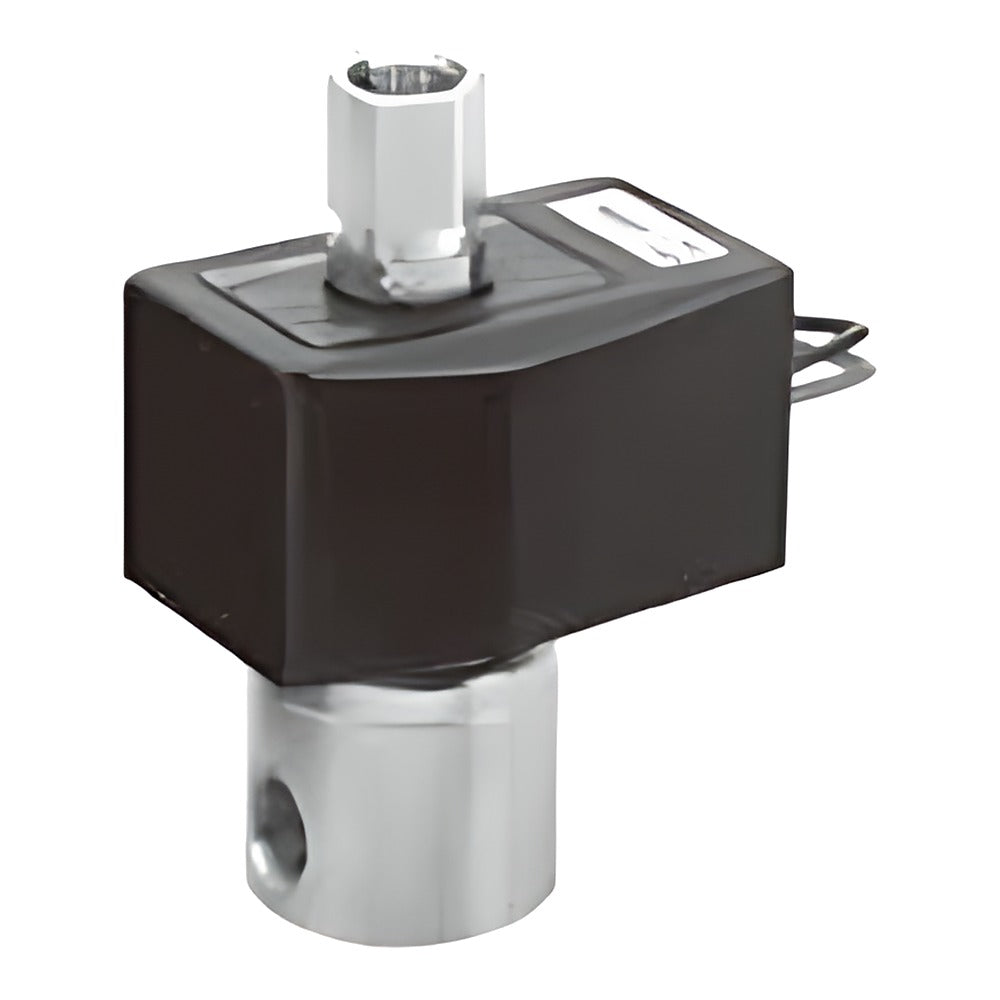

CKD AB31/AB41-FP2 MULTILEX Direct Acting 2-Port Solenoid Valve (NC)

CKD AB31/AB41-FP2 MULTILEX Direct Acting 2-Port Solenoid Valve (NC)

CKD AB31/AB41-FP2 MULTILEX direct-acting normally closed 2-port solenoid valve with stainless steel body for air, water, oil and steam in food processing.

Key features

  • Normally closed direct-acting poppet
  • AB31 Rc1/8, Rc1/4 (orifice 2 mm); AB41 Rc1/4, Rc3/8 (orifice 3 or 4 mm)
  • FKM seal (M) for air/water/oil or PTFE seal (N) for steam
  • Coil housings: open frame lead wire or HP terminal box (G1/2), standard, class H or diode built-in
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Body Stainless steel
Valve structure Direct acting poppet
Ambient temperature -20 to 60 C
Mounting Any
Fluid Air, low vacuum, water, oil, hot water, steam
Proof pressure 25 MPa (hydraulic)
Protection IP65 equivalent
Source CKD Korea catalog CC-1271K-5, p. 388-389
AB31-01-2-M3AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-01-2-M3AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-01-2-M3AFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-01-2-M3AFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-01-2-M3AFP2-DC48V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-01-2-M3AFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-01-2-M3IFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB31-01-2-M3IFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB31-01-2-M3IFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB31-01-2-M3IFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB31-01-2-M3IFP2-DC48V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB31-01-2-M3IFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB31-01-2-M3JFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-01-2-M3JFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-01-2-M3JFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-01-2-M3JFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-01-2-M3JFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-01-2-M4AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-01-2-M4AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-01-2-M4MFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-01-2-M4MFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-01-2-M4NFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-01-2-M4NFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-01-2-M5AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-01-2-M5AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-01-2-M5IFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-01-2-M5IFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-01-2-M5JFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-01-2-M5JFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-01-2-N3AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-01-2-N3AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-01-2-N3AFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-01-2-N3AFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-01-2-N3AFP2-DC48V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-01-2-N3AFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-01-2-N3IFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB31-01-2-N3IFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB31-01-2-N3IFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB31-01-2-N3IFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB31-01-2-N3IFP2-DC48V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB31-01-2-N3IFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB31-01-2-N3JFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-01-2-N3JFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-01-2-N3JFP2-DC12V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-01-2-N3JFP2-DC24V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-01-2-N3JFP2-DC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-01-2-N4AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-01-2-N4AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-01-2-N4MFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-01-2-N4MFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-01-2-N4NFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-01-2-N4NFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-01-2-N5AFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-01-2-N5AFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-01-2-N5IFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-01-2-N5IFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-01-2-N5JFP2-AC100V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-01-2-N5JFP2-AC200V Model: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-02-2-M3AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-02-2-M3AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-02-2-M3AFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-02-2-M3AFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-02-2-M3AFP2-DC48V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-02-2-M3AFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-02-2-M3IFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB31-02-2-M3IFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB31-02-2-M3IFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB31-02-2-M3IFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB31-02-2-M3IFP2-DC48V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB31-02-2-M3IFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB31-02-2-M3JFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-02-2-M3JFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-02-2-M3JFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-02-2-M3JFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-02-2-M3JFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-02-2-M4AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-02-2-M4AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-02-2-M4MFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-02-2-M4MFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-02-2-M4NFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-02-2-M4NFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-02-2-M5AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-02-2-M5AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-02-2-M5IFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-02-2-M5IFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-02-2-M5JFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-02-2-M5JFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-02-2-N3AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-02-2-N3AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-02-2-N3AFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-02-2-N3AFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-02-2-N3AFP2-DC48V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-02-2-N3AFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-02-2-N3IFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB31-02-2-N3IFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB31-02-2-N3IFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB31-02-2-N3IFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB31-02-2-N3IFP2-DC48V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB31-02-2-N3IFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB31-02-2-N3JFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-02-2-N3JFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-02-2-N3JFP2-DC12V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-02-2-N3JFP2-DC24V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-02-2-N3JFP2-DC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-02-2-N4AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-02-2-N4AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-02-2-N4MFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-02-2-N4MFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-02-2-N4NFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-02-2-N4NFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-02-2-N5AFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-02-2-N5AFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-02-2-N5IFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-02-2-N5IFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-02-2-N5JFP2-AC100V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-02-2-N5JFP2-AC200V Model: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-3-M3AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-3-M3AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-3-M3AFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-3-M3AFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-3-M3AFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-3-M3AFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-3-M3IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-3-M3IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-3-M3IFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-3-M3IFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-3-M3IFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-3-M3IFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-3-M3JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-3-M3JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-3-M3JFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-3-M3JFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-3-M3JFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-3-M4AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-3-M4AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-3-M4MFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-3-M4MFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-3-M4NFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-3-M4NFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-3-M5AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-3-M5AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-3-M5IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-3-M5IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-3-M5JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-3-M5JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-3-N3AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-3-N3AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-3-N3AFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-3-N3AFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-3-N3AFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-3-N3AFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-3-N3IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-3-N3IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-3-N3IFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-3-N3IFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-3-N3IFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-3-N3IFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-3-N3JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-3-N3JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-3-N3JFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-3-N3JFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-3-N3JFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-3-N4AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-3-N4AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-3-N4MFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-3-N4MFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-3-N4NFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-3-N4NFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-3-N5AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-3-N5AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-3-N5IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-3-N5IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-3-N5JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-3-N5JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-5-M3AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-5-M3AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-5-M3AFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-5-M3AFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-5-M3AFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-5-M3AFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-5-M3IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-5-M3IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-5-M3IFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-5-M3IFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-5-M3IFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-5-M3IFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-5-M3JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-5-M3JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-5-M3JFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-5-M3JFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-5-M3JFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-5-M4AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-5-M4AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-5-M4MFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-5-M4MFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-5-M4NFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-5-M4NFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-5-M5AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-5-M5AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-5-M5IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-5-M5IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-5-M5JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-5-M5JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-5-N3AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-5-N3AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-5-N3AFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-5-N3AFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-5-N3AFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-5-N3AFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-5-N3IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-5-N3IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-5-N3IFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-5-N3IFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-5-N3IFP2-DC48V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-5-N3IFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-5-N3JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-5-N3JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-5-N3JFP2-DC12V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-5-N3JFP2-DC24V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-5-N3JFP2-DC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-5-N4AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-5-N4AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-5-N4MFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-5-N4MFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-5-N4NFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-5-N4NFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-5-N5AFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-5-N5AFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-5-N5IFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-5-N5IFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-5-N5JFP2-AC100V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-5-N5JFP2-AC200V Model: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-3-M3AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-3-M3AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-3-M3AFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-3-M3AFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-3-M3AFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-3-M3AFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-3-M3IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-3-M3IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-3-M3IFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-3-M3IFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-3-M3IFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-3-M3IFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-3-M3JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-3-M3JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-3-M3JFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-3-M3JFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-3-M3JFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-3-M4AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-3-M4AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-3-M4MFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-3-M4MFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-3-M4NFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-3-M4NFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-3-M5AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-3-M5AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-3-M5IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-3-M5IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-3-M5JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-3-M5JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-3-N3AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-3-N3AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-3-N3AFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-3-N3AFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-3-N3AFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-3-N3AFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-3-N3IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-3-N3IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-3-N3IFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-3-N3IFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-3-N3IFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-3-N3IFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-3-N3JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-3-N3JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-3-N3JFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-3-N3JFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-3-N3JFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-3-N4AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-3-N4AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-3-N4MFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-3-N4MFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-3-N4NFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-3-N4NFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-3-N5AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-3-N5AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-3-N5IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-3-N5IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-3-N5JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-3-N5JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-5-M3AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-5-M3AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-5-M3AFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-5-M3AFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-5-M3AFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-5-M3AFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-5-M3IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-5-M3IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-5-M3IFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-5-M3IFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-5-M3IFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-5-M3IFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-5-M3JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-5-M3JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-5-M3JFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-5-M3JFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-5-M3JFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-5-M4AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-5-M4AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-5-M4MFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-5-M4MFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-5-M4NFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-5-M4NFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-5-M5AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-5-M5AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-5-M5IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-5-M5IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-5-M5JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-5-M5JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-5-N3AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-5-N3AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-5-N3AFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-5-N3AFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-5-N3AFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-5-N3AFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-5-N3IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-5-N3IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-5-N3IFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-5-N3IFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-5-N3IFP2-DC48V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-5-N3IFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-5-N3JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-5-N3JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-5-N3JFP2-DC12V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-5-N3JFP2-DC24V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-5-N3JFP2-DC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-5-N4AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-5-N4AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-5-N4MFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-5-N4MFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-5-N4NFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-5-N4NFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-5-N5AFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-5-N5AFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-5-N5IFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-5-N5IFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-5-N5JFP2-AC100V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-5-N5JFP2-AC200V Model: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
2-Port Solenoid ValvesCKD
348 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AB31/AB41-FP2 MULTILEX Direct Acting 2-Port Solenoid Valve (NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (348)

AB31-01-2-M3AFP2-AC100V, AB31-01-2-M3AFP2-AC200V, AB31-01-2-M3AFP2-DC12V, AB31-01-2-M3AFP2-DC24V, AB31-01-2-M3AFP2-DC48V, AB31-01-2-M3AFP2-DC100V, AB31-01-2-M3IFP2-AC100V, AB31-01-2-M3IFP2-AC200V, AB31-01-2-M3IFP2-DC12V, AB31-01-2-M3IFP2-DC24V + 338 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB31-01-2-M3AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-01-2-M3AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-01-2-M3AFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-01-2-M3AFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-01-2-M3AFP2-DC48VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-01-2-M3AFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-01-2-M3IFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB31-01-2-M3IFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB31-01-2-M3IFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB31-01-2-M3IFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB31-01-2-M3IFP2-DC48VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB31-01-2-M3IFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB31-01-2-M3JFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-01-2-M3JFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-01-2-M3JFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-01-2-M3JFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-01-2-M3JFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-01-2-M4AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-01-2-M4AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-01-2-M4MFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-01-2-M4MFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-01-2-M4NFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-01-2-M4NFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-01-2-M5AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-01-2-M5AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-01-2-M5IFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-01-2-M5IFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-01-2-M5JFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-01-2-M5JFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-01-2-N3AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-01-2-N3AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-01-2-N3AFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-01-2-N3AFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-01-2-N3AFP2-DC48VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-01-2-N3AFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-01-2-N3IFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB31-01-2-N3IFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB31-01-2-N3IFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB31-01-2-N3IFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB31-01-2-N3IFP2-DC48VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB31-01-2-N3IFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB31-01-2-N3JFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-01-2-N3JFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-01-2-N3JFP2-DC12VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-01-2-N3JFP2-DC24VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-01-2-N3JFP2-DC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-01-2-N4AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-01-2-N4AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-01-2-N4MFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-01-2-N4MFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-01-2-N4NFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-01-2-N4NFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-01-2-N5AFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-01-2-N5AFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-01-2-N5IFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-01-2-N5IFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-01-2-N5JFP2-AC100VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-01-2-N5JFP2-AC200VModel: AB31 | Port: Rc1/8 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-02-2-M3AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-02-2-M3AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-02-2-M3AFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-02-2-M3AFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-02-2-M3AFP2-DC48VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-02-2-M3AFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-02-2-M3IFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB31-02-2-M3IFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB31-02-2-M3IFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB31-02-2-M3IFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB31-02-2-M3IFP2-DC48VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB31-02-2-M3IFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB31-02-2-M3JFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-02-2-M3JFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-02-2-M3JFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-02-2-M3JFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-02-2-M3JFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-02-2-M4AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-02-2-M4AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-02-2-M4MFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-02-2-M4MFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-02-2-M4NFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-02-2-M4NFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-02-2-M5AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-02-2-M5AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-02-2-M5IFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-02-2-M5IFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-02-2-M5JFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-02-2-M5JFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB31-02-2-N3AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB31-02-2-N3AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB31-02-2-N3AFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB31-02-2-N3AFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB31-02-2-N3AFP2-DC48VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB31-02-2-N3AFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB31-02-2-N3IFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB31-02-2-N3IFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB31-02-2-N3IFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB31-02-2-N3IFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB31-02-2-N3IFP2-DC48VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB31-02-2-N3IFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB31-02-2-N3JFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB31-02-2-N3JFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB31-02-2-N3JFP2-DC12VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB31-02-2-N3JFP2-DC24VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB31-02-2-N3JFP2-DC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB31-02-2-N4AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB31-02-2-N4AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB31-02-2-N4MFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB31-02-2-N4MFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB31-02-2-N4NFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB31-02-2-N4NFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB31-02-2-N5AFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB31-02-2-N5AFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB31-02-2-N5IFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB31-02-2-N5IFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB31-02-2-N5JFP2-AC100VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB31-02-2-N5JFP2-AC200VModel: AB31 | Port: Rc1/4 | Orifice: 2 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-3-M3AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-3-M3AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-3-M3AFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-3-M3AFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-3-M3AFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-3-M3AFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-3-M3IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-3-M3IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-3-M3IFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-3-M3IFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-3-M3IFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-3-M3IFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-3-M3JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-3-M3JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-3-M3JFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-3-M3JFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-3-M3JFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-3-M4AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-3-M4AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-3-M4MFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-3-M4MFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-3-M4NFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-3-M4NFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-3-M5AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-3-M5AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-3-M5IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-3-M5IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-3-M5JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-3-M5JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-3-N3AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-3-N3AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-3-N3AFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-3-N3AFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-3-N3AFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-3-N3AFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-3-N3IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-3-N3IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-3-N3IFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-3-N3IFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-3-N3IFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-3-N3IFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-3-N3JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-3-N3JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-3-N3JFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-3-N3JFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-3-N3JFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-3-N4AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-3-N4AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-3-N4MFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-3-N4MFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-3-N4NFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-3-N4NFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-3-N5AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-3-N5AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-3-N5IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-3-N5IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-3-N5JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-3-N5JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-5-M3AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-5-M3AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-5-M3AFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-5-M3AFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-5-M3AFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-5-M3AFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-5-M3IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-5-M3IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-5-M3IFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-5-M3IFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-5-M3IFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-5-M3IFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-5-M3JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-5-M3JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-5-M3JFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-5-M3JFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-5-M3JFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-5-M4AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-5-M4AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-5-M4MFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-5-M4MFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-5-M4NFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-5-M4NFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-5-M5AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-5-M5AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-5-M5IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-5-M5IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-5-M5JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-5-M5JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-02-5-N3AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-02-5-N3AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-02-5-N3AFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-02-5-N3AFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-02-5-N3AFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-02-5-N3AFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-02-5-N3IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-02-5-N3IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-02-5-N3IFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-02-5-N3IFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-02-5-N3IFP2-DC48VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-02-5-N3IFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-02-5-N3JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-02-5-N3JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-02-5-N3JFP2-DC12VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-02-5-N3JFP2-DC24VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-02-5-N3JFP2-DC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-02-5-N4AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-02-5-N4AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-02-5-N4MFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-02-5-N4MFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-02-5-N4NFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-02-5-N4NFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-02-5-N5AFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-02-5-N5AFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-02-5-N5IFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-02-5-N5IFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-02-5-N5JFP2-AC100VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-02-5-N5JFP2-AC200VModel: AB41 | Port: Rc1/4 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-3-M3AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-3-M3AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-3-M3AFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-3-M3AFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-3-M3AFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-3-M3AFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-3-M3IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-3-M3IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-3-M3IFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-3-M3IFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-3-M3IFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-3-M3IFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-3-M3JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-3-M3JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-3-M3JFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-3-M3JFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-3-M3JFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-3-M4AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-3-M4AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-3-M4MFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-3-M4MFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-3-M4NFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-3-M4NFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-3-M5AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-3-M5AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-3-M5IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-3-M5IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-3-M5JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-3-M5JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-3-N3AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-3-N3AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-3-N3AFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-3-N3AFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-3-N3AFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-3-N3AFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-3-N3IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-3-N3IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-3-N3IFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-3-N3IFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-3-N3IFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-3-N3IFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-3-N3JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-3-N3JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-3-N3JFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-3-N3JFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-3-N3JFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-3-N4AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-3-N4AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-3-N4MFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-3-N4MFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-3-N4NFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-3-N4NFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-3-N5AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-3-N5AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-3-N5IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-3-N5IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-3-N5JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-3-N5JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-5-M3AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-5-M3AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-5-M3AFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-5-M3AFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-5-M3AFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-5-M3AFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-5-M3IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-5-M3IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-5-M3IFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-5-M3IFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-5-M3IFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-5-M3IFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-5-M3JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-5-M3JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-5-M3JFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-5-M3JFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-5-M3JFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-5-M4AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-5-M4AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-5-M4MFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-5-M4MFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-5-M4NFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-5-M4NFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-5-M5AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-5-M5AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-5-M5IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-5-M5IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-5-M5JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-5-M5JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AB41-03-5-N3AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AB41-03-5-N3AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AB41-03-5-N3AFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AB41-03-5-N3AFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AB41-03-5-N3AFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AB41-03-5-N3AFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AB41-03-5-N3IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AB41-03-5-N3IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AB41-03-5-N3IFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AB41-03-5-N3IFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AB41-03-5-N3IFP2-DC48VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AB41-03-5-N3IFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AB41-03-5-N3JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AB41-03-5-N3JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AB41-03-5-N3JFP2-DC12VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AB41-03-5-N3JFP2-DC24VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AB41-03-5-N3JFP2-DC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AB41-03-5-N4AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AB41-03-5-N4AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AB41-03-5-N4MFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AB41-03-5-N4MFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AB41-03-5-N4NFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AB41-03-5-N4NFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AB41-03-5-N5AFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AB41-03-5-N5AFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AB41-03-5-N5IFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AB41-03-5-N5IFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AB41-03-5-N5JFP2-AC100VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AB41-03-5-N5JFP2-AC200VModel: AB41 | Port: Rc3/8 | Orifice: 4 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
