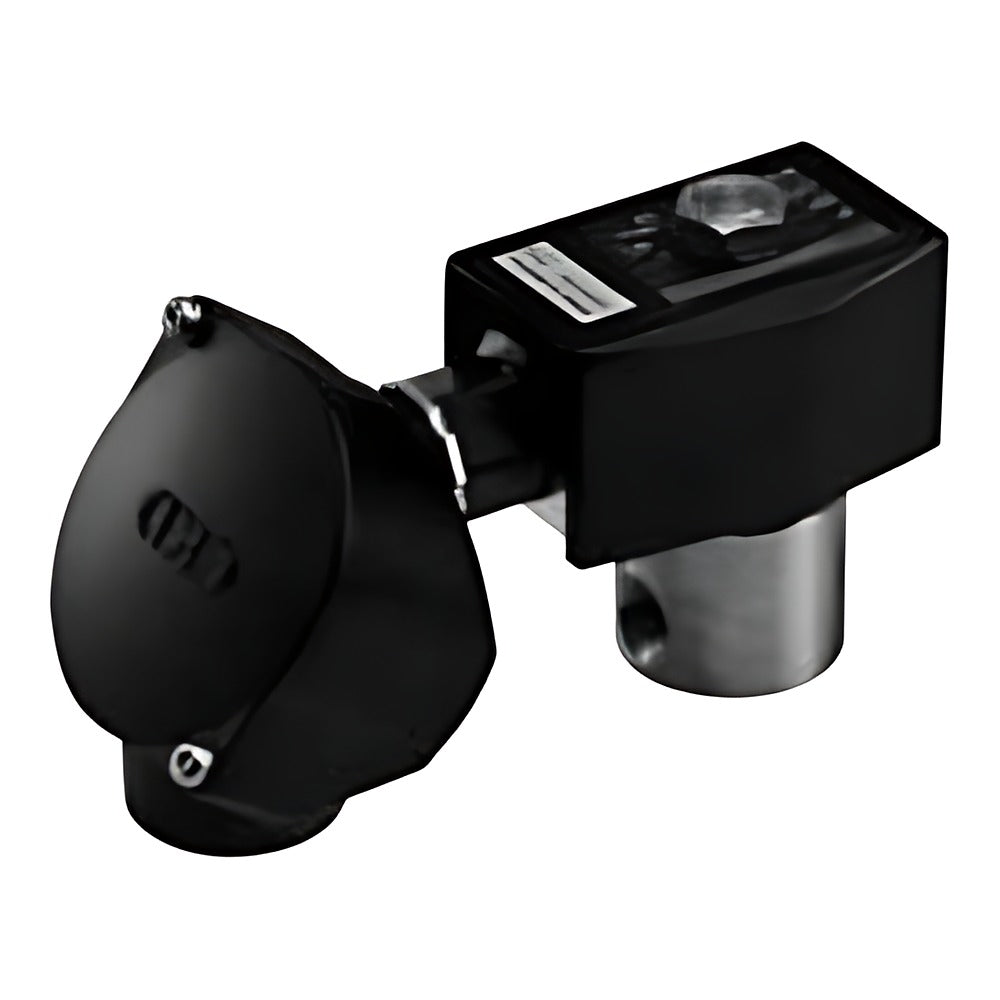

CKD AB41-W MULTILEX Direct Acting 2-Port Solenoid Valve (Outdoor)

CKD AB41-W MULTILEX Direct Acting 2-Port Solenoid Valve (Outdoor)

CKD AB41-W outdoor direct-acting NC 2-port solenoid valve (MULTILEX) for air, low vacuum, water, kerosene and oil, Rc1/4 to Rc1/2.

Key features

  • Outdoor WEATHER PROOF series: passed 960 h combined cycle test (JIS H8502), 1000 h sunshine weather meter and 400 h ozone exposure tests
  • Direct-acting poppet, NC (opens when energized), orifice phi 1.5 to phi 10
  • Stainless steel body with NBR (D) or FKM (E) seal
  • Open-frame coil with circular terminal box G1/2, with or without lamp; IP65
  • Bracket (B), cable gland (D/E/F), surge killer (S) and 3-year warranty (WG) not multiplied

Specifications

Fluid Air, low vacuum, water, kerosene, oil
Proof pressure 25 MPa (hydraulic)
Max. operating pressure 5 MPa
Ambient temperature -20 to 60 C (NBR), -10 to 60 C (FKM)
Insulation Class 130 (B)
Protection IP65
Mounting Coil upright vertical
Source CKD Korea catalog CC-1276K, p. 52-55
AB41-02-1-D3EW-AC100V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-1-D3EW-AC200V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-1-D3LW-AC100V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-1-D3LW-AC200V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-1-E3EW-AC100V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-1-E3EW-AC200V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-1-E3LW-AC100V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-1-E3LW-AC200V Port: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-2-D3EW-AC100V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-2-D3EW-AC200V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-2-D3LW-AC100V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-2-D3LW-AC200V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-2-E3EW-AC100V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-2-E3EW-AC200V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-2-E3LW-AC100V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-2-E3LW-AC200V Port: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-3-D3EW-AC100V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-3-D3EW-AC200V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-3-D3LW-AC100V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-3-D3LW-AC200V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-3-E3EW-AC100V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-3-E3EW-AC200V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-3-E3LW-AC100V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-3-E3LW-AC200V Port: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-4-D3EW-AC100V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-4-D3EW-AC200V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-4-D3LW-AC100V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-4-D3LW-AC200V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-4-E3EW-AC100V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-4-E3EW-AC200V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-4-E3LW-AC100V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-4-E3LW-AC200V Port: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-5-D3EW-AC100V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-5-D3EW-AC200V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-5-D3LW-AC100V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-5-D3LW-AC200V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-5-E3EW-AC100V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-5-E3EW-AC200V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-5-E3LW-AC100V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-5-E3LW-AC200V Port: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-6-D3EW-AC100V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-6-D3EW-AC200V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-6-D3LW-AC100V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-6-D3LW-AC200V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-6-E3EW-AC100V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-6-E3EW-AC200V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-6-E3LW-AC100V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-6-E3LW-AC200V Port: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-7-D3EW-AC100V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-7-D3EW-AC200V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-7-D3LW-AC100V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-7-D3LW-AC200V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-7-E3EW-AC100V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-7-E3EW-AC200V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-7-E3LW-AC100V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-7-E3LW-AC200V Port: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-1-D3EW-AC100V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-1-D3EW-AC200V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-1-D3LW-AC100V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-1-D3LW-AC200V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-1-E3EW-AC100V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-1-E3EW-AC200V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-1-E3LW-AC100V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-1-E3LW-AC200V Port: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-2-D3EW-AC100V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-2-D3EW-AC200V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-2-D3LW-AC100V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-2-D3LW-AC200V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-2-E3EW-AC100V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-2-E3EW-AC200V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-2-E3LW-AC100V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-2-E3LW-AC200V Port: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-3-D3EW-AC100V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-3-D3EW-AC200V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-3-D3LW-AC100V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-3-D3LW-AC200V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-3-E3EW-AC100V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-3-E3EW-AC200V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-3-E3LW-AC100V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-3-E3LW-AC200V Port: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-4-D3EW-AC100V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-4-D3EW-AC200V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-4-D3LW-AC100V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-4-D3LW-AC200V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-4-E3EW-AC100V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-4-E3EW-AC200V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-4-E3LW-AC100V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-4-E3LW-AC200V Port: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-5-D3EW-AC100V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-5-D3EW-AC200V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-5-D3LW-AC100V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-5-D3LW-AC200V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-5-E3EW-AC100V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-5-E3EW-AC200V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-5-E3LW-AC100V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-5-E3LW-AC200V Port: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-6-D3EW-AC100V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-6-D3EW-AC200V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-6-D3LW-AC100V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-6-D3LW-AC200V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-6-E3EW-AC100V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-6-E3EW-AC200V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-6-E3LW-AC100V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-6-E3LW-AC200V Port: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-7-D3EW-AC100V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-7-D3EW-AC200V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-7-D3LW-AC100V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-7-D3LW-AC200V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-7-E3EW-AC100V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-7-E3EW-AC200V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-7-E3LW-AC100V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-7-E3LW-AC200V Port: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-8-D3EW-AC100V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-8-D3EW-AC200V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-8-D3LW-AC100V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-8-D3LW-AC200V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-8-E3EW-AC100V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-8-E3EW-AC200V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-8-E3LW-AC100V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-8-E3LW-AC200V Port: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-04-8-D3EW-AC100V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-04-8-D3EW-AC200V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-04-8-D3LW-AC100V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-04-8-D3LW-AC200V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-04-8-E3EW-AC100V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-04-8-E3EW-AC200V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-04-8-E3LW-AC100V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-04-8-E3LW-AC200V Port: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
Solenoid ValvesCKD
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AB41-W MULTILEX Direct Acting 2-Port Solenoid Valve (Outdoor)

Brand CKD·Solenoid Valves

Available part numbers (128)

AB41-02-1-D3EW-AC100V, AB41-02-1-D3EW-AC200V, AB41-02-1-D3LW-AC100V, AB41-02-1-D3LW-AC200V, AB41-02-1-E3EW-AC100V, AB41-02-1-E3EW-AC200V, AB41-02-1-E3LW-AC100V, AB41-02-1-E3LW-AC200V, AB41-02-2-D3EW-AC100V, AB41-02-2-D3EW-AC200V + 118 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB41-02-1-D3EW-AC100VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-1-D3EW-AC200VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-1-D3LW-AC100VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-1-D3LW-AC200VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-1-E3EW-AC100VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-1-E3EW-AC200VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-1-E3LW-AC100VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-1-E3LW-AC200VPort: Rc1/4 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-2-D3EW-AC100VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-2-D3EW-AC200VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-2-D3LW-AC100VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-2-D3LW-AC200VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-2-E3EW-AC100VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-2-E3EW-AC200VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-2-E3LW-AC100VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-2-E3LW-AC200VPort: Rc1/4 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-3-D3EW-AC100VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-3-D3EW-AC200VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-3-D3LW-AC100VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-3-D3LW-AC200VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-3-E3EW-AC100VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-3-E3EW-AC200VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-3-E3LW-AC100VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-3-E3LW-AC200VPort: Rc1/4 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-4-D3EW-AC100VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-4-D3EW-AC200VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-4-D3LW-AC100VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-4-D3LW-AC200VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-4-E3EW-AC100VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-4-E3EW-AC200VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-4-E3LW-AC100VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-4-E3LW-AC200VPort: Rc1/4 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-5-D3EW-AC100VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-5-D3EW-AC200VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-5-D3LW-AC100VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-5-D3LW-AC200VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-5-E3EW-AC100VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-5-E3EW-AC200VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-5-E3LW-AC100VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-5-E3LW-AC200VPort: Rc1/4 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-6-D3EW-AC100VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-6-D3EW-AC200VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-6-D3LW-AC100VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-6-D3LW-AC200VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-6-E3EW-AC100VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-6-E3EW-AC200VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-6-E3LW-AC100VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-6-E3LW-AC200VPort: Rc1/4 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-7-D3EW-AC100VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-02-7-D3EW-AC200VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-02-7-D3LW-AC100VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-7-D3LW-AC200VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-02-7-E3EW-AC100VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-02-7-E3EW-AC200VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-02-7-E3LW-AC100VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-02-7-E3LW-AC200VPort: Rc1/4 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-1-D3EW-AC100VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-1-D3EW-AC200VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-1-D3LW-AC100VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-1-D3LW-AC200VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-1-E3EW-AC100VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-1-E3EW-AC200VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-1-E3LW-AC100VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-1-E3LW-AC200VPort: Rc3/8 | Orifice: phi 1.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-2-D3EW-AC100VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-2-D3EW-AC200VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-2-D3LW-AC100VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-2-D3LW-AC200VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-2-E3EW-AC100VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-2-E3EW-AC200VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-2-E3LW-AC100VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-2-E3LW-AC200VPort: Rc3/8 | Orifice: phi 2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-3-D3EW-AC100VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-3-D3EW-AC200VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-3-D3LW-AC100VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-3-D3LW-AC200VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-3-E3EW-AC100VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-3-E3EW-AC200VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-3-E3LW-AC100VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-3-E3LW-AC200VPort: Rc3/8 | Orifice: phi 3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-4-D3EW-AC100VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-4-D3EW-AC200VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-4-D3LW-AC100VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-4-D3LW-AC200VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-4-E3EW-AC100VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-4-E3EW-AC200VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-4-E3LW-AC100VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-4-E3LW-AC200VPort: Rc3/8 | Orifice: phi 3.5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-5-D3EW-AC100VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-5-D3EW-AC200VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-5-D3LW-AC100VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-5-D3LW-AC200VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-5-E3EW-AC100VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-5-E3EW-AC200VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-5-E3LW-AC100VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-5-E3LW-AC200VPort: Rc3/8 | Orifice: phi 4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-6-D3EW-AC100VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-6-D3EW-AC200VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-6-D3LW-AC100VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-6-D3LW-AC200VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-6-E3EW-AC100VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-6-E3EW-AC200VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-6-E3LW-AC100VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-6-E3LW-AC200VPort: Rc3/8 | Orifice: phi 5 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-7-D3EW-AC100VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-7-D3EW-AC200VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-7-D3LW-AC100VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-7-D3LW-AC200VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-7-E3EW-AC100VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-7-E3EW-AC200VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-7-E3LW-AC100VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-7-E3LW-AC200VPort: Rc3/8 | Orifice: phi 7 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-8-D3EW-AC100VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-03-8-D3EW-AC200VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-03-8-D3LW-AC100VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-8-D3LW-AC200VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-03-8-E3EW-AC100VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-03-8-E3EW-AC200VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-03-8-E3LW-AC100VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-03-8-E3LW-AC200VPort: Rc3/8 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AB41-04-8-D3EW-AC100VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AB41-04-8-D3EW-AC200VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AB41-04-8-D3LW-AC100VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AB41-04-8-D3LW-AC200VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AB41-04-8-E3EW-AC100VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AB41-04-8-E3EW-AC200VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AB41-04-8-E3LW-AC100VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AB41-04-8-E3LW-AC200VPort: Rc1/2 | Orifice: phi 10 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
