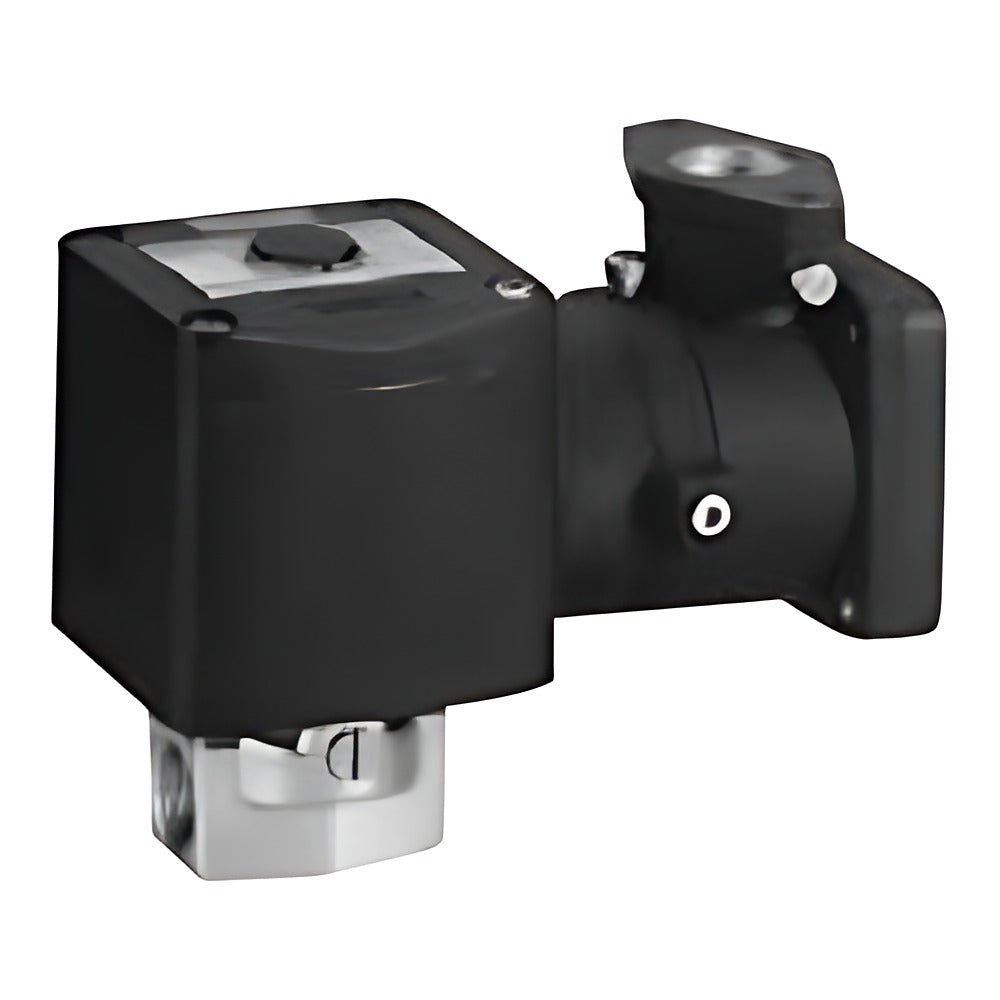

CKD AB41E4-Z Explosion-Proof 2-Port Solenoid Valve (Dry Air, d2G4)

CKD AB41E4-Z Explosion-Proof 2-Port Solenoid Valve (Dry Air, d2G4)

CKD MULTILEX AB41E4-Z flameproof direct-acting 2-port solenoid valve (NC) for dry air, inert gas and low vacuum, Rc1/4 and Rc3/8, orifice 1.5 to 7 mm.

Key features

  • For dry air (atmospheric dew point -60 C or above), inert gas and low vacuum; leakage current spec defined
  • All body/seal versions oil-free treated (H, J, P, L, M, R)
  • Coil 3 (class B) for DC12/24/48/100V; coil 5 (class B, diode built-in) for AC100V/AC200V
  • Flameproof d2G4, Japan type-approved; China NEPSI version with suffix CN
  • Options manual override A and mounting plate B not multiplied; entry T (G1/2) in listed codes

Specifications

Fluid Dry air, inert gas, low vacuum
Operating pressure differential 0 to 4 MPa (by orifice)
Max. working pressure 5 MPa
Proof pressure 25 MPa (water)
Fluid temperature -10 to 45 C
Ambient temperature -10 to 45 C
Seat leakage 0.2 cm3/min (ANR) or less
Protection IP65 equivalent
Type approval Japan T64361
Source CKD Korea catalog CB-03-1SK-9, p. 500-503
AB41E4-02-1-H3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-H3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-H3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-H3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-H5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-H5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-J3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-J3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-J3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-J3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-J5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-J5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-P3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-P3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-P3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-P3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-P5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-P5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-L3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-L3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-L3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-L3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-L5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-L5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-M3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-M3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-M3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-M3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-M5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-M5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-R3TZ-DC12V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-R3TZ-DC24V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-R3TZ-DC48V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-R3TZ-DC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-R5TZ-AC100V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-R5TZ-AC200V Port: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-H3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-H3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-H3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-H3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-H5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-H5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-J3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-J3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-J3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-J3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-J5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-J5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-P3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-P3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-P3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-P3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-P5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-P5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-L3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-L3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-L3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-L3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-L5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-L5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-M3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-M3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-M3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-M3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-M5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-M5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-R3TZ-DC12V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-R3TZ-DC24V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-R3TZ-DC48V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-R3TZ-DC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-R5TZ-AC100V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-R5TZ-AC200V Port: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-H3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-H3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-H3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-H3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-H5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-H5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-J3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-J3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-J3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-J3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-J5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-J5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-P3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-P3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-P3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-P3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-P5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-P5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-L3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-L3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-L3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-L3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-L5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-L5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-M3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-M3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-M3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-M3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-M5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-M5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-R3TZ-DC12V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-R3TZ-DC24V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-R3TZ-DC48V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-R3TZ-DC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-R5TZ-AC100V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-R5TZ-AC200V Port: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-H3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-H3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-H3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-H3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-H5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-H5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-J3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-J3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-J3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-J3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-J5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-J5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-P3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-P3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-P3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-P3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-P5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-P5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-L3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-L3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-L3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-L3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-L5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-L5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-M3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-M3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-M3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-M3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-M5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-M5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-R3TZ-DC12V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-R3TZ-DC24V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-R3TZ-DC48V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-R3TZ-DC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-R5TZ-AC100V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-R5TZ-AC200V Port: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-H3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-H3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-H3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-H3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-H5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-H5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-J3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-J3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-J3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-J3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-J5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-J5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-P3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-P3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-P3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-P3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-P5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-P5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-L3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-L3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-L3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-L3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-L5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-L5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-M3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-M3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-M3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-M3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-M5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-M5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-R3TZ-DC12V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-R3TZ-DC24V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-R3TZ-DC48V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-R3TZ-DC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-R5TZ-AC100V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-R5TZ-AC200V Port: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-H3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-H3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-H3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-H3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-H5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-H5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-J3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-J3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-J3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-J3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-J5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-J5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-P3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-P3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-P3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-P3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-P5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-P5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-L3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-L3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-L3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-L3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-L5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-L5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-M3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-M3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-M3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-M3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-M5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-M5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-R3TZ-DC12V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-R3TZ-DC24V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-R3TZ-DC48V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-R3TZ-DC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-R5TZ-AC100V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-R5TZ-AC200V Port: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-H3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-H3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-H3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-H3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-H5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-H5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-J3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-J3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-J3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-J3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-J5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-J5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-P3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-P3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-P3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-P3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-P5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-P5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-L3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-L3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-L3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-L3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-L5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-L5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-M3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-M3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-M3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-M3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-M5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-M5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-R3TZ-DC12V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-R3TZ-DC24V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-R3TZ-DC48V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-R3TZ-DC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-R5TZ-AC100V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-R5TZ-AC200V Port: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-H3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-H3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-H3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-H3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-H5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-H5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-J3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-J3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-J3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-J3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-J5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-J5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-P3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-P3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-P3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-P3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-P5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-P5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-L3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-L3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-L3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-L3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-L5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-L5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-M3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-M3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-M3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-M3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-M5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-M5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-R3TZ-DC12V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-R3TZ-DC24V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-R3TZ-DC48V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-R3TZ-DC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-R5TZ-AC100V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-R5TZ-AC200V Port: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-H3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-H3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-H3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-H3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-H5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-H5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-J3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-J3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-J3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-J3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-J5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-J5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-P3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-P3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-P3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-P3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-P5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-P5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-L3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-L3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-L3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-L3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-L5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-L5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-M3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-M3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-M3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-M3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-M5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-M5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-R3TZ-DC12V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-R3TZ-DC24V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-R3TZ-DC48V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-R3TZ-DC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-R5TZ-AC100V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-R5TZ-AC200V Port: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-H3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-H3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-H3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-H3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-H5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-H5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-J3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-J3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-J3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-J3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-J5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-J5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-P3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-P3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-P3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-P3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-P5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-P5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-L3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-L3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-L3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-L3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-L5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-L5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-M3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-M3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-M3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-M3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-M5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-M5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-R3TZ-DC12V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-R3TZ-DC24V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-R3TZ-DC48V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-R3TZ-DC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-R5TZ-AC100V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-R5TZ-AC200V Port: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-H3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-H3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-H3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-H3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-H5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-H5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-J3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-J3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-J3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-J3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-J5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-J5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-P3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-P3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-P3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-P3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-P5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-P5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-L3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-L3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-L3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-L3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-L5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-L5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-M3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-M3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-M3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-M3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-M5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-M5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-R3TZ-DC12V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-R3TZ-DC24V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-R3TZ-DC48V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-R3TZ-DC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-R5TZ-AC100V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-R5TZ-AC200V Port: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-H3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-H3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-H3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-H3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-H5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-H5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-J3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-J3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-J3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-J3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-J5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-J5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-P3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-P3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-P3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-P3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-P5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-P5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-L3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-L3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-L3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-L3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-L5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-L5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-M3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-M3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-M3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-M3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-M5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-M5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-R3TZ-DC12V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-R3TZ-DC24V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-R3TZ-DC48V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-R3TZ-DC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-R5TZ-AC100V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-R5TZ-AC200V Port: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-H3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-H3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-H3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-H3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-H5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-H5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-J3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-J3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-J3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-J3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-J5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-J5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-P3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-P3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-P3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-P3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-P5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-P5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-L3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-L3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-L3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-L3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-L5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-L5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-M3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-M3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-M3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-M3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-M5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-M5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-R3TZ-DC12V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-R3TZ-DC24V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-R3TZ-DC48V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-R3TZ-DC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-R5TZ-AC100V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-R5TZ-AC200V Port: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-H3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-H3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-H3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-H3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-H5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-H5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-J3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-J3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-J3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-J3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-J5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-J5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-P3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-P3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-P3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-P3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-P5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-P5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-L3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-L3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-L3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-L3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-L5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-L5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-M3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-M3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-M3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-M3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-M5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-M5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-R3TZ-DC12V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-R3TZ-DC24V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-R3TZ-DC48V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-R3TZ-DC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-R5TZ-AC100V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-R5TZ-AC200V Port: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
Explosion-Proof Solenoid ValvesCKD
504 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AB41E4-Z Explosion-Proof 2-Port Solenoid Valve (Dry Air, d2G4)

Brand CKD·Explosion-Proof Solenoid Valves

Available part numbers (504)

AB41E4-02-1-H3TZ-DC12V, AB41E4-02-1-H3TZ-DC24V, AB41E4-02-1-H3TZ-DC48V, AB41E4-02-1-H3TZ-DC100V, AB41E4-02-1-H5TZ-AC100V, AB41E4-02-1-H5TZ-AC200V, AB41E4-02-1-J3TZ-DC12V, AB41E4-02-1-J3TZ-DC24V, AB41E4-02-1-J3TZ-DC48V, AB41E4-02-1-J3TZ-DC100V + 494 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AB41E4-02-1-H3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-H3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-H3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-H3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-H5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-H5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-J3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-J3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-J3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-J3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-J5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-J5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-P3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-P3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-P3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-P3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-P5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-P5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-L3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-L3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-L3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-L3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-L5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-L5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-M3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-M3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-M3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-M3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-M5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-M5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-1-R3TZ-DC12VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-1-R3TZ-DC24VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-1-R3TZ-DC48VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-1-R3TZ-DC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-1-R5TZ-AC100VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-1-R5TZ-AC200VPort: Rc1/4 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-H3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-H3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-H3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-H3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-H5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-H5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-J3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-J3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-J3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-J3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-J5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-J5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-P3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-P3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-P3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-P3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-P5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-P5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-L3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-L3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-L3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-L3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-L5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-L5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-M3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-M3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-M3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-M3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-M5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-M5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-2-R3TZ-DC12VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-2-R3TZ-DC24VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-2-R3TZ-DC48VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-2-R3TZ-DC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-2-R5TZ-AC100VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-2-R5TZ-AC200VPort: Rc1/4 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-H3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-H3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-H3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-H3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-H5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-H5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-J3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-J3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-J3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-J3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-J5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-J5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-P3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-P3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-P3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-P3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-P5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-P5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-L3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-L3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-L3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-L3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-L5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-L5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-M3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-M3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-M3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-M3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-M5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-M5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-3-R3TZ-DC12VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-3-R3TZ-DC24VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-3-R3TZ-DC48VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-3-R3TZ-DC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-3-R5TZ-AC100VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-3-R5TZ-AC200VPort: Rc1/4 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-H3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-H3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-H3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-H3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-H5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-H5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-J3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-J3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-J3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-J3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-J5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-J5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-P3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-P3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-P3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-P3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-P5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-P5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-L3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-L3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-L3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-L3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-L5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-L5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-M3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-M3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-M3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-M3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-M5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-M5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-4-R3TZ-DC12VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-4-R3TZ-DC24VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-4-R3TZ-DC48VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-4-R3TZ-DC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-4-R5TZ-AC100VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-4-R5TZ-AC200VPort: Rc1/4 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-H3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-H3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-H3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-H3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-H5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-H5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-J3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-J3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-J3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-J3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-J5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-J5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-P3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-P3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-P3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-P3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-P5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-P5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-L3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-L3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-L3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-L3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-L5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-L5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-M3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-M3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-M3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-M3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-M5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-M5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-5-R3TZ-DC12VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-5-R3TZ-DC24VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-5-R3TZ-DC48VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-5-R3TZ-DC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-5-R5TZ-AC100VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-5-R5TZ-AC200VPort: Rc1/4 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-H3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-H3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-H3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-H3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-H5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-H5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-J3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-J3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-J3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-J3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-J5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-J5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-P3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-P3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-P3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-P3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-P5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-P5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-L3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-L3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-L3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-L3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-L5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-L5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-M3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-M3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-M3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-M3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-M5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-M5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-6-R3TZ-DC12VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-6-R3TZ-DC24VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-6-R3TZ-DC48VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-6-R3TZ-DC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-6-R5TZ-AC100VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-6-R5TZ-AC200VPort: Rc1/4 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-H3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-H3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-H3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-H3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-H5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-H5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-J3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-J3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-J3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-J3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-J5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-J5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-P3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-P3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-P3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-P3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-P5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-P5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-L3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-L3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-L3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-L3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-L5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-L5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-M3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-M3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-M3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-M3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-M5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-M5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-02-7-R3TZ-DC12VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-02-7-R3TZ-DC24VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-02-7-R3TZ-DC48VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-02-7-R3TZ-DC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-02-7-R5TZ-AC100VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-02-7-R5TZ-AC200VPort: Rc1/4 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-H3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-H3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-H3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-H3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-H5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-H5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-J3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-J3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-J3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-J3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-J5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-J5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-P3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-P3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-P3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-P3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-P5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-P5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-L3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-L3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-L3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-L3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-L5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-L5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-M3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-M3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-M3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-M3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-M5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-M5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-1-R3TZ-DC12VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-1-R3TZ-DC24VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-1-R3TZ-DC48VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-1-R3TZ-DC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-1-R5TZ-AC100VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-1-R5TZ-AC200VPort: Rc3/8 | Orifice: 1.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-H3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-H3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-H3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-H3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-H5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-H5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-J3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-J3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-J3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-J3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-J5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-J5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-P3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-P3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-P3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-P3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-P5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-P5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-L3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-L3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-L3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-L3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-L5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-L5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-M3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-M3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-M3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-M3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-M5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-M5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-2-R3TZ-DC12VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-2-R3TZ-DC24VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-2-R3TZ-DC48VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-2-R3TZ-DC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-2-R5TZ-AC100VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-2-R5TZ-AC200VPort: Rc3/8 | Orifice: 2 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-H3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-H3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-H3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-H3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-H5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-H5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-J3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-J3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-J3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-J3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-J5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-J5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-P3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-P3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-P3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-P3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-P5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-P5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-L3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-L3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-L3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-L3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-L5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-L5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-M3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-M3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-M3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-M3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-M5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-M5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-3-R3TZ-DC12VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-3-R3TZ-DC24VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-3-R3TZ-DC48VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-3-R3TZ-DC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-3-R5TZ-AC100VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-3-R5TZ-AC200VPort: Rc3/8 | Orifice: 3 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-H3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-H3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-H3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-H3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-H5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-H5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-J3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-J3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-J3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-J3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-J5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-J5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-P3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-P3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-P3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-P3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-P5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-P5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-L3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-L3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-L3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-L3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-L5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-L5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-M3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-M3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-M3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-M3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-M5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-M5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-4-R3TZ-DC12VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-4-R3TZ-DC24VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-4-R3TZ-DC48VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-4-R3TZ-DC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-4-R5TZ-AC100VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-4-R5TZ-AC200VPort: Rc3/8 | Orifice: 3.5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-H3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-H3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-H3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-H3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-H5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-H5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-J3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-J3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-J3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-J3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-J5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-J5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-P3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-P3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-P3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-P3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-P5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-P5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-L3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-L3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-L3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-L3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-L5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-L5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-M3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-M3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-M3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-M3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-M5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-M5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-5-R3TZ-DC12VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-5-R3TZ-DC24VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-5-R3TZ-DC48VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-5-R3TZ-DC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-5-R5TZ-AC100VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-5-R5TZ-AC200VPort: Rc3/8 | Orifice: 4 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-H3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-H3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-H3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-H3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-H5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-H5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-J3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-J3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-J3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-J3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-J5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-J5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-P3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-P3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-P3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-P3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-P5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-P5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-L3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-L3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-L3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-L3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-L5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-L5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-M3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-M3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-M3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-M3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-M5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-M5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-6-R3TZ-DC12VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-6-R3TZ-DC24VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-6-R3TZ-DC48VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-6-R3TZ-DC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-6-R5TZ-AC100VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-6-R5TZ-AC200VPort: Rc3/8 | Orifice: 5 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-H3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-H3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-H3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-H3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-H5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-H5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-J3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-J3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-J3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-J3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-J5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-J5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-P3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-P3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-P3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-P3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-P5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-P5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Brass / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-L3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-L3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-L3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-L3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-L5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-L5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / NBR, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-M3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-M3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-M3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-M3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-M5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-M5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / FKM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V
AB41E4-03-7-R3TZ-DC12VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC12V
AB41E4-03-7-R3TZ-DC24VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC24V
AB41E4-03-7-R3TZ-DC48VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC48V
AB41E4-03-7-R3TZ-DC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B | Voltage: DC100V
AB41E4-03-7-R5TZ-AC100VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC100V
AB41E4-03-7-R5TZ-AC200VPort: Rc3/8 | Orifice: 7 mm | Body/Seal: Stainless / EPDM, oil-free | Coil: Class B, diode built-in | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
