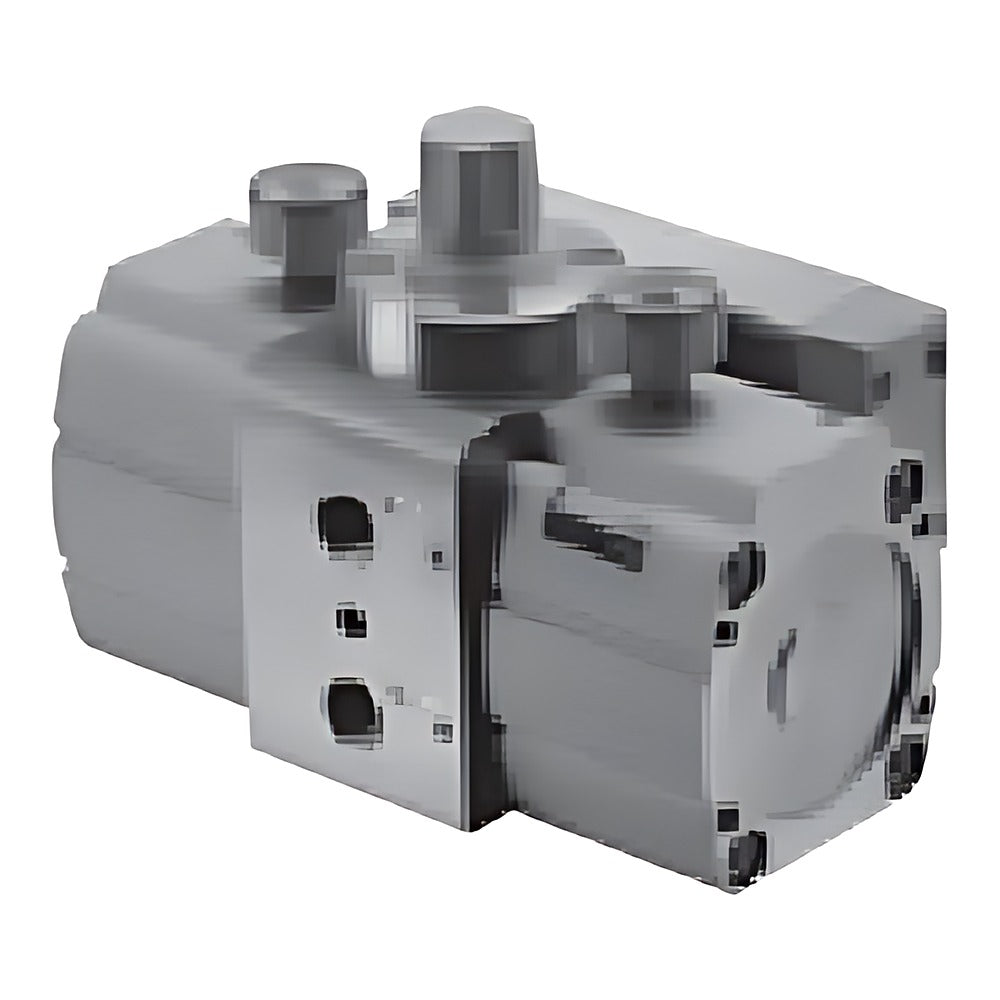

CKD ABP2-HP1 Air Booster (Rc1/4, Long-Life)

CKD ABP2-HP1 Air Booster (Rc1/4, Long-Life)

CKD ABP2-HP1 long-life air booster that raises line pressure up to twice the supply pressure (max. 0.99 MPa) without electricity.

Key features

  • Pneumatically driven double-piston booster with built-in pressure regulator and changeover valve
  • Set pressure from supply +0.1 MPa up to twice supply pressure, max. 0.99 MPa
  • Durability 10 million cycles (nominal)
  • Options: pressure gauges, silencers or high-noise-reduction silencers, foot brackets or tank mounting base
  • NPT and G threads are made to order; pairs with AT2 air tanks; example ABP2-02R-GSN-HP1

Specifications

Port size Rc1/4 (bottom/back Rc1/8)
Body thread Rc
Max. operating pressure 0.99 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.5 MPa
Boost ratio Up to 2x
Ambient temperature 0 to 50°C
Lubrication Not allowed
Mass 2.0 kg
Source CKD Korea catalog CC-1421KR-7, p. 184-185
ABP2-02R-NNN-HP1 Pressure gauge: None | Silencer: None | Bracket: None
ABP2-02R-NNB-HP1 Pressure gauge: None | Silencer: None | Bracket: Foot brackets (2)
ABP2-02R-NNT-HP1 Pressure gauge: None | Silencer: None | Bracket: Base for tank mounting
ABP2-02R-NSN-HP1 Pressure gauge: None | Silencer: Silencers (2) | Bracket: None
ABP2-02R-NSB-HP1 Pressure gauge: None | Silencer: Silencers (2) | Bracket: Foot brackets (2)
ABP2-02R-NST-HP1 Pressure gauge: None | Silencer: Silencers (2) | Bracket: Base for tank mounting
ABP2-02R-NHN-HP1 Pressure gauge: None | Silencer: High-noise-reduction silencers (2) | Bracket: None
ABP2-02R-NHB-HP1 Pressure gauge: None | Silencer: High-noise-reduction silencers (2) | Bracket: Foot brackets (2)
ABP2-02R-NHT-HP1 Pressure gauge: None | Silencer: High-noise-reduction silencers (2) | Bracket: Base for tank mounting
ABP2-02R-GNN-HP1 Pressure gauge: Gauges (2) | Silencer: None | Bracket: None
ABP2-02R-GNB-HP1 Pressure gauge: Gauges (2) | Silencer: None | Bracket: Foot brackets (2)
ABP2-02R-GNT-HP1 Pressure gauge: Gauges (2) | Silencer: None | Bracket: Base for tank mounting
ABP2-02R-GSN-HP1 Pressure gauge: Gauges (2) | Silencer: Silencers (2) | Bracket: None
ABP2-02R-GSB-HP1 Pressure gauge: Gauges (2) | Silencer: Silencers (2) | Bracket: Foot brackets (2)
ABP2-02R-GST-HP1 Pressure gauge: Gauges (2) | Silencer: Silencers (2) | Bracket: Base for tank mounting
ABP2-02R-GHN-HP1 Pressure gauge: Gauges (2) | Silencer: High-noise-reduction silencers (2) | Bracket: None
ABP2-02R-GHB-HP1 Pressure gauge: Gauges (2) | Silencer: High-noise-reduction silencers (2) | Bracket: Foot brackets (2)
ABP2-02R-GHT-HP1 Pressure gauge: Gauges (2) | Silencer: High-noise-reduction silencers (2) | Bracket: Base for tank mounting
