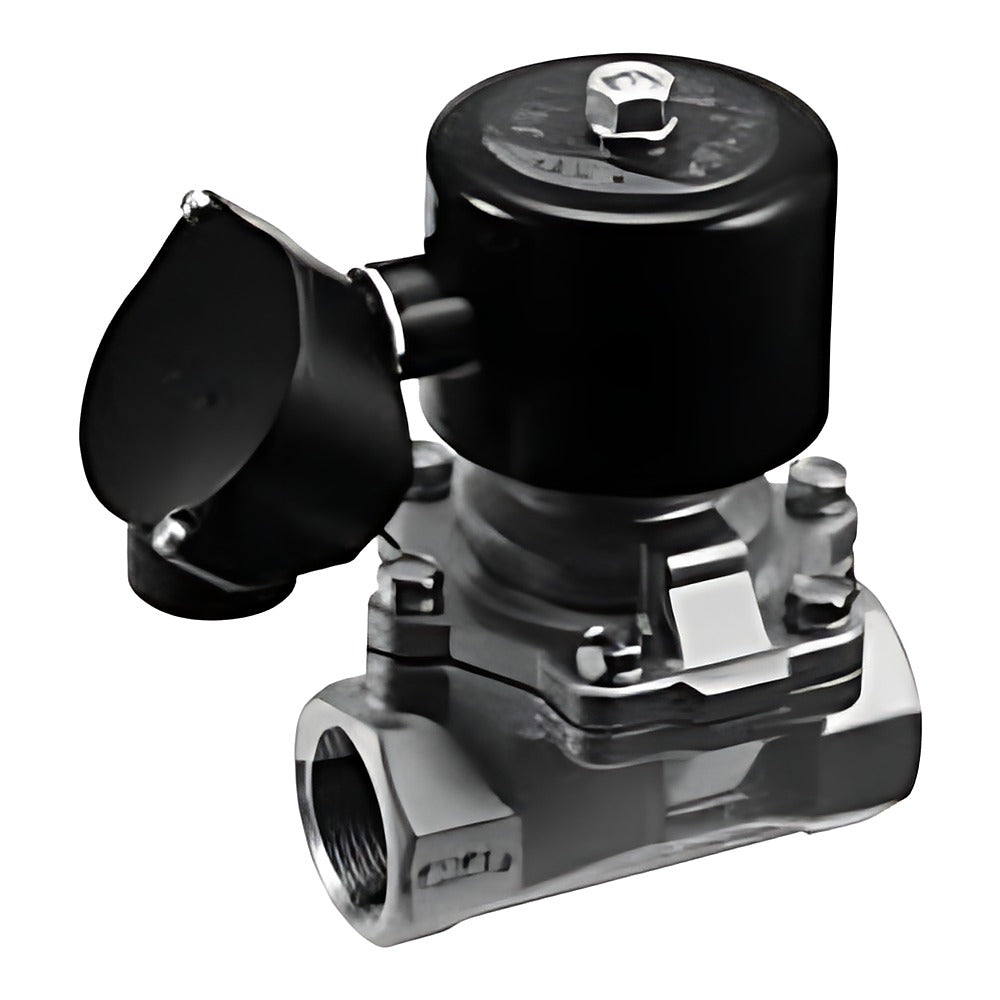

CKD ADK21-W MULTILEX Pilot Kick 2-Port Solenoid Valve (Outdoor)

CKD ADK21-W MULTILEX Pilot Kick 2-Port Solenoid Valve (Outdoor)

CKD ADK21-W outdoor pilot-kick NC 2-port diaphragm solenoid valve, Rc1 1/4 to Rc2 or 32 to 50 JIS 10K flange.

Key features

  • Outdoor WEATHER PROOF series: passed 960 h combined cycle test (JIS H8502), 1000 h sunshine weather meter and 400 h ozone exposure tests
  • Pilot-kick diaphragm drive; operates from 0 MPa differential pressure
  • Orifice 35 / 43 / 53 mm; threaded (A) or flanged (F) body (mating flange not included)
  • Stainless steel body, NBR (D) or FKM (E) seal
  • Cable gland, surge killer and WG warranty options not multiplied

Specifications

Fluid Air, low vacuum, water, kerosene, oil
Max. operating pressure 1 MPa
Operating differential 0 to 0.7 MPa
Proof pressure 3.2 MPa (hydraulic)
Insulation Class 130 (B)
Protection IP65
Source CKD Korea catalog CC-1276K, p. 64-67
ADK21-32A-D3EW-AC100V Port: Rc1 1/4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-32A-D3EW-AC200V Port: Rc1 1/4 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-32A-D3LW-AC100V Port: Rc1 1/4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-32A-D3LW-AC200V Port: Rc1 1/4 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-32A-E3EW-AC100V Port: Rc1 1/4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-32A-E3EW-AC200V Port: Rc1 1/4 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-32A-E3LW-AC100V Port: Rc1 1/4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-32A-E3LW-AC200V Port: Rc1 1/4 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-32F-D3EW-AC100V Port: 32 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-32F-D3EW-AC200V Port: 32 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-32F-D3LW-AC100V Port: 32 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-32F-D3LW-AC200V Port: 32 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-32F-E3EW-AC100V Port: 32 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-32F-E3EW-AC200V Port: 32 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-32F-E3LW-AC100V Port: 32 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-32F-E3LW-AC200V Port: 32 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-40A-D3EW-AC100V Port: Rc1 1/2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-40A-D3EW-AC200V Port: Rc1 1/2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-40A-D3LW-AC100V Port: Rc1 1/2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-40A-D3LW-AC200V Port: Rc1 1/2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-40A-E3EW-AC100V Port: Rc1 1/2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-40A-E3EW-AC200V Port: Rc1 1/2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-40A-E3LW-AC100V Port: Rc1 1/2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-40A-E3LW-AC200V Port: Rc1 1/2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-40F-D3EW-AC100V Port: 40 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-40F-D3EW-AC200V Port: 40 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-40F-D3LW-AC100V Port: 40 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-40F-D3LW-AC200V Port: 40 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-40F-E3EW-AC100V Port: 40 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-40F-E3EW-AC200V Port: 40 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-40F-E3LW-AC100V Port: 40 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-40F-E3LW-AC200V Port: 40 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-50A-D3EW-AC100V Port: Rc2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-50A-D3EW-AC200V Port: Rc2 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-50A-D3LW-AC100V Port: Rc2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-50A-D3LW-AC200V Port: Rc2 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-50A-E3EW-AC100V Port: Rc2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-50A-E3EW-AC200V Port: Rc2 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-50A-E3LW-AC100V Port: Rc2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-50A-E3LW-AC200V Port: Rc2 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-50F-D3EW-AC100V Port: 50 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
ADK21-50F-D3EW-AC200V Port: 50 flange | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
ADK21-50F-D3LW-AC100V Port: 50 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-50F-D3LW-AC200V Port: 50 flange | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
ADK21-50F-E3EW-AC100V Port: 50 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
ADK21-50F-E3EW-AC200V Port: 50 flange | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
ADK21-50F-E3LW-AC100V Port: 50 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
ADK21-50F-E3LW-AC200V Port: 50 flange | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
Solenoid ValvesCKD
48 product codes available in this family
