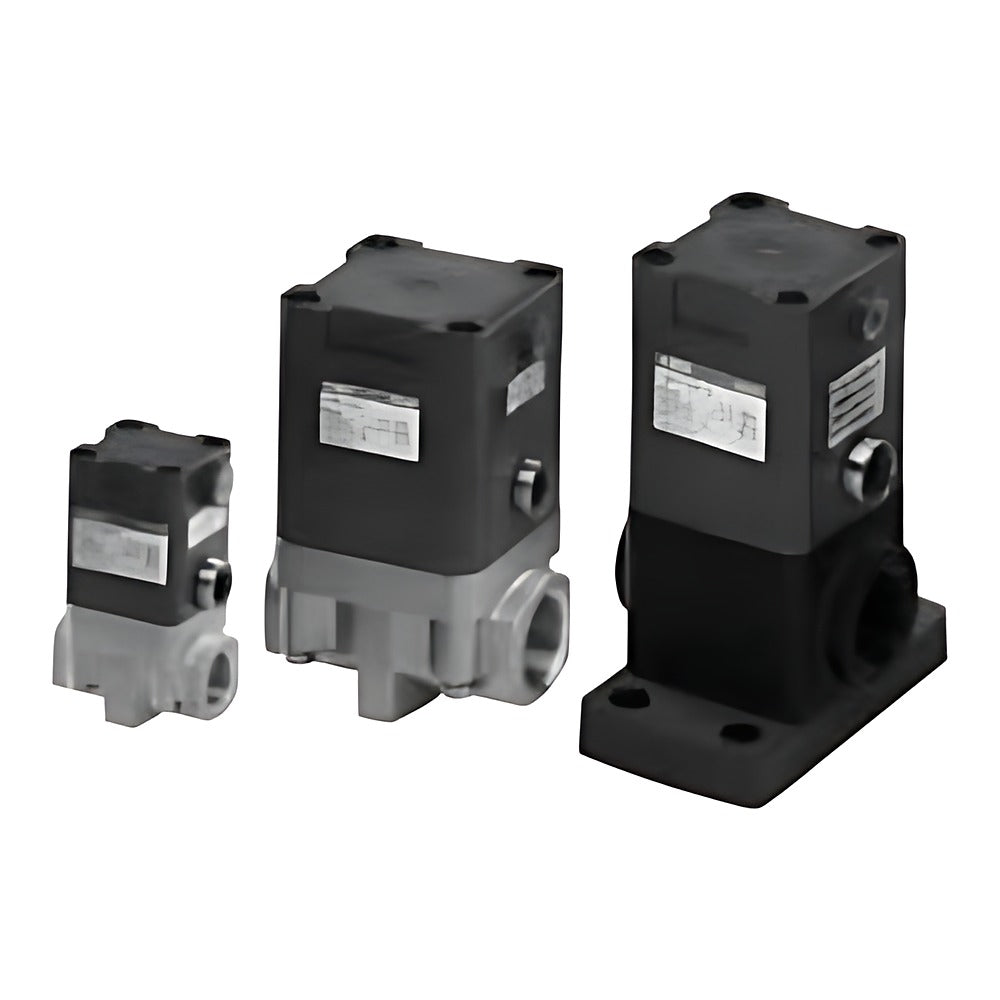

CKD ADK11-Z-FP2 Pilot Kick 2-Port Solenoid Valve for Dry Air (NC)

CKD ADK11-Z-FP2 Pilot Kick 2-Port Solenoid Valve for Dry Air (NC)

CKD ADK11-Z-FP2 MULTILEX pilot kick diaphragm-driven 2-port solenoid valve for dry air and inert gas, stainless body with FKM seal.

Key features

  • Normally closed, pilot kick poppet with diaphragm drive; operates from 0 MPa
  • Rc1/4 to Rc1 ports, stainless steel body, FKM seal (M)
  • For dry air down to -60 C atmospheric dew point, inert gas and low vacuum
  • DC24V (3A/3I/3J) or AC100V/AC200V diode coils (5A/5I/5J)
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Dry air, inert gas, low vacuum
Operating pressure differential 0 to 0.7 MPa (by size)
Proof pressure 4 MPa (hydraulic)
Fluid temperature 5 to 40 C
Protection IP65 equivalent
Mounting Any
Source CKD Korea catalog CC-1271K-5, p. 396-397
ADK11-8A-M3AZFP2-DC24V Port: Rc1/4 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-8A-M3IZFP2-DC24V Port: Rc1/4 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-8A-M3JZFP2-DC24V Port: Rc1/4 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-8A-M5AZFP2-AC100V Port: Rc1/4 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-8A-M5AZFP2-AC200V Port: Rc1/4 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-8A-M5IZFP2-AC100V Port: Rc1/4 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-8A-M5IZFP2-AC200V Port: Rc1/4 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-8A-M5JZFP2-AC100V Port: Rc1/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-8A-M5JZFP2-AC200V Port: Rc1/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-10A-M3AZFP2-DC24V Port: Rc3/8 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-10A-M3IZFP2-DC24V Port: Rc3/8 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-10A-M3JZFP2-DC24V Port: Rc3/8 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-10A-M5AZFP2-AC100V Port: Rc3/8 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-10A-M5AZFP2-AC200V Port: Rc3/8 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-10A-M5IZFP2-AC100V Port: Rc3/8 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-10A-M5IZFP2-AC200V Port: Rc3/8 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-10A-M5JZFP2-AC100V Port: Rc3/8 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-10A-M5JZFP2-AC200V Port: Rc3/8 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-15A-M3AZFP2-DC24V Port: Rc1/2 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-15A-M3IZFP2-DC24V Port: Rc1/2 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-15A-M3JZFP2-DC24V Port: Rc1/2 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-15A-M5AZFP2-AC100V Port: Rc1/2 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-15A-M5AZFP2-AC200V Port: Rc1/2 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-15A-M5IZFP2-AC100V Port: Rc1/2 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-15A-M5IZFP2-AC200V Port: Rc1/2 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-15A-M5JZFP2-AC100V Port: Rc1/2 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-15A-M5JZFP2-AC200V Port: Rc1/2 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-20A-M3AZFP2-DC24V Port: Rc3/4 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-20A-M3IZFP2-DC24V Port: Rc3/4 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-20A-M3JZFP2-DC24V Port: Rc3/4 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-20A-M5AZFP2-AC100V Port: Rc3/4 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-20A-M5AZFP2-AC200V Port: Rc3/4 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-20A-M5IZFP2-AC100V Port: Rc3/4 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-20A-M5IZFP2-AC200V Port: Rc3/4 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-20A-M5JZFP2-AC100V Port: Rc3/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-20A-M5JZFP2-AC200V Port: Rc3/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-25A-M3AZFP2-DC24V Port: Rc1 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-25A-M3IZFP2-DC24V Port: Rc1 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-25A-M3JZFP2-DC24V Port: Rc1 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-25A-M5AZFP2-AC100V Port: Rc1 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-25A-M5AZFP2-AC200V Port: Rc1 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-25A-M5IZFP2-AC100V Port: Rc1 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-25A-M5IZFP2-AC200V Port: Rc1 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-25A-M5JZFP2-AC100V Port: Rc1 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-25A-M5JZFP2-AC200V Port: Rc1 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
2-Port Solenoid ValvesCKD
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ADK11-Z-FP2 Pilot Kick 2-Port Solenoid Valve for Dry Air (NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (45)

ADK11-8A-M3AZFP2-DC24V, ADK11-8A-M3IZFP2-DC24V, ADK11-8A-M3JZFP2-DC24V, ADK11-8A-M5AZFP2-AC100V, ADK11-8A-M5AZFP2-AC200V, ADK11-8A-M5IZFP2-AC100V, ADK11-8A-M5IZFP2-AC200V, ADK11-8A-M5JZFP2-AC100V, ADK11-8A-M5JZFP2-AC200V, ADK11-10A-M3AZFP2-DC24V + 35 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ADK11-8A-M3AZFP2-DC24VPort: Rc1/4 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-8A-M3IZFP2-DC24VPort: Rc1/4 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-8A-M3JZFP2-DC24VPort: Rc1/4 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-8A-M5AZFP2-AC100VPort: Rc1/4 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-8A-M5AZFP2-AC200VPort: Rc1/4 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-8A-M5IZFP2-AC100VPort: Rc1/4 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-8A-M5IZFP2-AC200VPort: Rc1/4 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-8A-M5JZFP2-AC100VPort: Rc1/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-8A-M5JZFP2-AC200VPort: Rc1/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-10A-M3AZFP2-DC24VPort: Rc3/8 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-10A-M3IZFP2-DC24VPort: Rc3/8 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-10A-M3JZFP2-DC24VPort: Rc3/8 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-10A-M5AZFP2-AC100VPort: Rc3/8 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-10A-M5AZFP2-AC200VPort: Rc3/8 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-10A-M5IZFP2-AC100VPort: Rc3/8 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-10A-M5IZFP2-AC200VPort: Rc3/8 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-10A-M5JZFP2-AC100VPort: Rc3/8 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-10A-M5JZFP2-AC200VPort: Rc3/8 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-15A-M3AZFP2-DC24VPort: Rc1/2 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-15A-M3IZFP2-DC24VPort: Rc1/2 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-15A-M3JZFP2-DC24VPort: Rc1/2 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-15A-M5AZFP2-AC100VPort: Rc1/2 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-15A-M5AZFP2-AC200VPort: Rc1/2 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-15A-M5IZFP2-AC100VPort: Rc1/2 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-15A-M5IZFP2-AC200VPort: Rc1/2 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-15A-M5JZFP2-AC100VPort: Rc1/2 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-15A-M5JZFP2-AC200VPort: Rc1/2 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-20A-M3AZFP2-DC24VPort: Rc3/4 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-20A-M3IZFP2-DC24VPort: Rc3/4 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-20A-M3JZFP2-DC24VPort: Rc3/4 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-20A-M5AZFP2-AC100VPort: Rc3/4 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-20A-M5AZFP2-AC200VPort: Rc3/4 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-20A-M5IZFP2-AC100VPort: Rc3/4 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-20A-M5IZFP2-AC200VPort: Rc3/4 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-20A-M5JZFP2-AC100VPort: Rc3/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-20A-M5JZFP2-AC200VPort: Rc3/4 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
ADK11-25A-M3AZFP2-DC24VPort: Rc1 | Coil housing: Open frame, lead wire | Voltage: DC24V
ADK11-25A-M3IZFP2-DC24VPort: Rc1 | Coil housing: HP terminal box | Voltage: DC24V
ADK11-25A-M3JZFP2-DC24VPort: Rc1 | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
ADK11-25A-M5AZFP2-AC100VPort: Rc1 | Coil housing: Diode built-in, lead wire | Voltage: AC100V
ADK11-25A-M5AZFP2-AC200VPort: Rc1 | Coil housing: Diode built-in, lead wire | Voltage: AC200V
ADK11-25A-M5IZFP2-AC100VPort: Rc1 | Coil housing: Diode built-in, HP box | Voltage: AC100V
ADK11-25A-M5IZFP2-AC200VPort: Rc1 | Coil housing: Diode built-in, HP box | Voltage: AC200V
ADK11-25A-M5JZFP2-AC100VPort: Rc1 | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
ADK11-25A-M5JZFP2-AC200VPort: Rc1 | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
