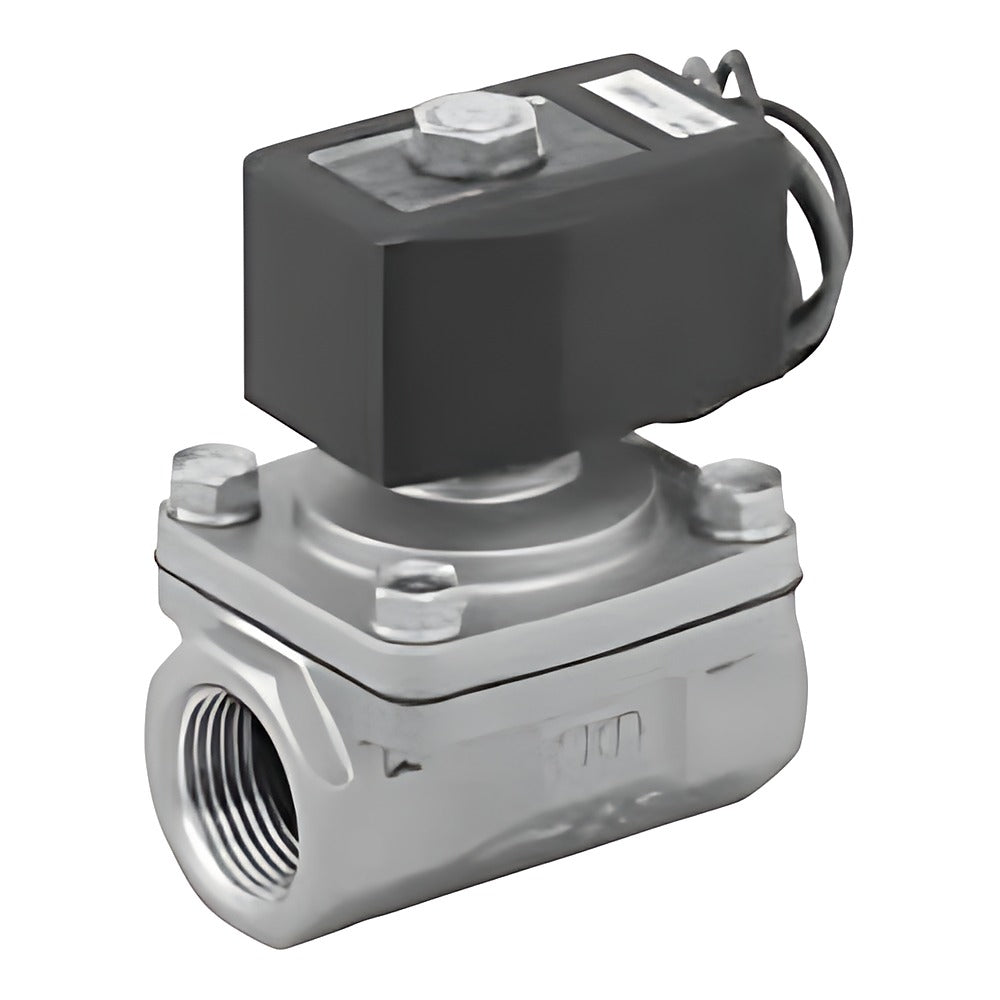

CKD ADK11-ZP90 Clean Blow Pilot Kick 2-Port Valve (Rc1/4-Rc1)

CKD ADK11-ZP90 Clean Blow Pilot Kick 2-Port Valve (Rc1/4-Rc1)

CKD ADK11-ZP90 MULTILEX pilot-kick diaphragm 2-port solenoid valve for clean blow, normally closed, in P90 low-particle, oil-free specification.

Key features

  • Pilot-kick poppet with diaphragm drive: operates from 0 MPa differential pressure
  • P90 clean specification: low dust generation, oil-prohibited, no copper alloys, stainless gas-wetted parts
  • Ports Rc1/4 to Rc1 with 12-28 mm orifices; stainless body with nitrile rubber seal
  • Open-frame coil: 3A for DC voltages, 5A with built-in diode and surge killer for AC voltages
  • Optional mounting plate (B); install a final filter (e.g. FCS500) on the outlet side

Specifications

Fluid Air, inert gas, low vacuum (1.33 kPa abs)
Operating pressure differential 0 to 0.7 MPa (see max per size)
Max. operating pressure 2 MPa
Proof pressure (water) 4 MPa
Fluid / ambient temperature -10 to 40 C
Seat leakage 1 cm3/min (ANR) or less
Insulation class Class B (130)
Power consumption AC 17 W / DC 14 W
Code format ADK11-<port>A-L<coil>[B]ZP90-<voltage>
Source CKD Korea catalog CB-033S-4, p. 1110-1114
ADK11-8A-L3AZP90-DC12V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC12V
ADK11-8A-L3AZP90-DC24V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC24V
ADK11-8A-L3AZP90-DC48V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC48V
ADK11-8A-L3AZP90-DC100V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC100V
ADK11-8A-L3ABZP90-DC12V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC12V
ADK11-8A-L3ABZP90-DC24V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC24V
ADK11-8A-L3ABZP90-DC48V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC48V
ADK11-8A-L3ABZP90-DC100V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC100V
ADK11-8A-L5AZP90-AC100V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC100V
ADK11-8A-L5AZP90-AC200V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC200V
ADK11-8A-L5ABZP90-AC100V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC100V
ADK11-8A-L5ABZP90-AC200V Port: Rc1/4 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC200V
ADK11-10A-L3AZP90-DC12V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC12V
ADK11-10A-L3AZP90-DC24V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC24V
ADK11-10A-L3AZP90-DC48V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC48V
ADK11-10A-L3AZP90-DC100V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC100V
ADK11-10A-L3ABZP90-DC12V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC12V
ADK11-10A-L3ABZP90-DC24V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC24V
ADK11-10A-L3ABZP90-DC48V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC48V
ADK11-10A-L3ABZP90-DC100V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC100V
ADK11-10A-L5AZP90-AC100V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC100V
ADK11-10A-L5AZP90-AC200V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC200V
ADK11-10A-L5ABZP90-AC100V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC100V
ADK11-10A-L5ABZP90-AC200V Port: Rc3/8 | Orifice: 12 mm, max 0.7 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC200V
ADK11-15A-L3AZP90-DC12V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC12V
ADK11-15A-L3AZP90-DC24V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC24V
ADK11-15A-L3AZP90-DC48V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC48V
ADK11-15A-L3AZP90-DC100V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC100V
ADK11-15A-L3ABZP90-DC12V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC12V
ADK11-15A-L3ABZP90-DC24V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC24V
ADK11-15A-L3ABZP90-DC48V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC48V
ADK11-15A-L3ABZP90-DC100V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC100V
ADK11-15A-L5AZP90-AC100V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC100V
ADK11-15A-L5AZP90-AC200V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC200V
ADK11-15A-L5ABZP90-AC100V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC100V
ADK11-15A-L5ABZP90-AC200V Port: Rc1/2 | Orifice: 16 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC200V
ADK11-20A-L3AZP90-DC12V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC12V
ADK11-20A-L3AZP90-DC24V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC24V
ADK11-20A-L3AZP90-DC48V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC48V
ADK11-20A-L3AZP90-DC100V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC100V
ADK11-20A-L3ABZP90-DC12V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC12V
ADK11-20A-L3ABZP90-DC24V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC24V
ADK11-20A-L3ABZP90-DC48V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC48V
ADK11-20A-L3ABZP90-DC100V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC100V
ADK11-20A-L5AZP90-AC100V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC100V
ADK11-20A-L5AZP90-AC200V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC200V
ADK11-20A-L5ABZP90-AC100V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC100V
ADK11-20A-L5ABZP90-AC200V Port: Rc3/4 | Orifice: 23 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC200V
ADK11-25A-L3AZP90-DC12V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC12V
ADK11-25A-L3AZP90-DC24V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC24V
ADK11-25A-L3AZP90-DC48V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC48V
ADK11-25A-L3AZP90-DC100V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: No | Voltage: DC100V
ADK11-25A-L3ABZP90-DC12V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC12V
ADK11-25A-L3ABZP90-DC24V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC24V
ADK11-25A-L3ABZP90-DC48V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC48V
ADK11-25A-L3ABZP90-DC100V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame (DC) | Mounting plate: Yes | Voltage: DC100V
ADK11-25A-L5AZP90-AC100V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC100V
ADK11-25A-L5AZP90-AC200V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: No | Voltage: AC200V
ADK11-25A-L5ABZP90-AC100V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC100V
ADK11-25A-L5ABZP90-AC200V Port: Rc1 | Orifice: 28 mm, max 0.6 MPa | Coil housing: Open frame, diode (AC) | Mounting plate: Yes | Voltage: AC200V
