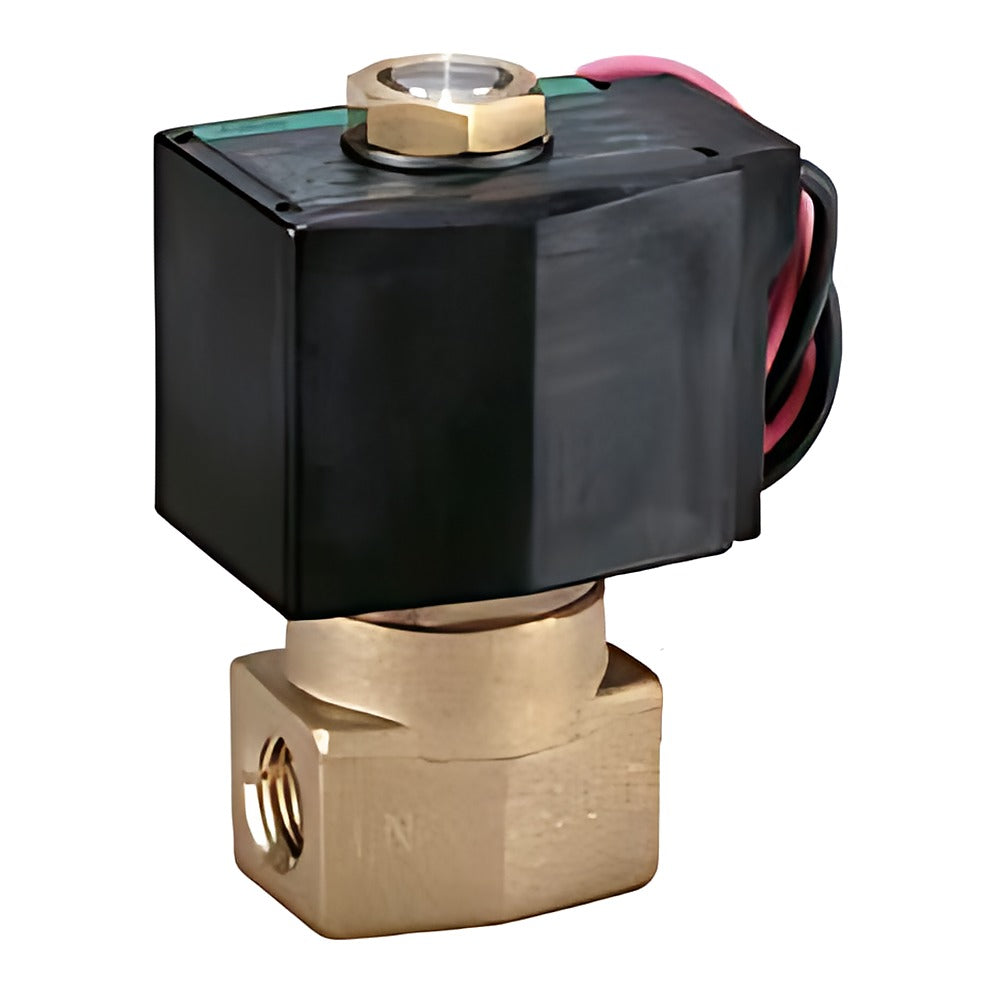

CKD AG3/AG4-Z MULTILEX Dry Air Direct 3-Port Solenoid Valve

CKD MULTILEX AG31/41 (universal), AG33/43 (NC pressurized) and AG34/44 (NO pressurized) direct-acting 3-port solenoid valves for dry air, inert gas and low vacuum.

Key features

Direct-acting poppet 3-port valves in universal, NC-pressurized and NO-pressurized types
Rc1/8 to Rc3/8 ports; G and NPT versions orderable (1G-3G, 1N-3N)
Brass or stainless body with NBR, FKM or EPDM seal, oil-free treated (AG34/44 NO seal FKM)
Coils: 3A open frame DC, 5A diode AC; HP terminal box versions also available
Options not multiplied: manual override (A), mounting plate (B), cable gland/conduit, surge killer (S)

Specifications

Fluid	Dry air (dew point -60°C+), inert gas, low vacuum
Fluid temperature	-10 to 45°C
Ambient temperature	-10 to 45°C
Coil insulation	Class B (130)
Valve seat leakage	0.2 cm3/min (ANR) max.
Mounting	Any orientation
Operating pressure diff.	0-1 MPa (by type and orifice)
Max. working pressure	1 MPa (NO pressurized 1.5 MPa)
Proof pressure	25 MPa (water)
Source	CKD Korea catalog CB-03-1SK-9, p. 412-417

AG31-01-1-H3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-H3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-H3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-H3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-H5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-H5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-1-J3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-J3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-J3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-J3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-J5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-J5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-1-P3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-P3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-P3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-P3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-P5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-P5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-1-L3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-L3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-L3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-L3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-L5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-L5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-1-M3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-M3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-M3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-M3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-M5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-M5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-1-R3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-1-R3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-1-R3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-1-R3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-1-R5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-1-R5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-H3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-H3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-H3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-H3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-H5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-H5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-J3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-J3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-J3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-J3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-J5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-J5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-P3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-P3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-P3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-P3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-P5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-P5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-L3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-L3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-L3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-L3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-L5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-L5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-M3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-M3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-M3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-M3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-M5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-M5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-01-2-R3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-01-2-R3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-01-2-R3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-01-2-R3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-01-2-R5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-01-2-R5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-H3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-H3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-H3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-H3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-H5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-H5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-J3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-J3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-J3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-J3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-J5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-J5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-P3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-P3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-P3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-P3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-P5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-P5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-L3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-L3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-L3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-L3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-L5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-L5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-M3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-M3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-M3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-M3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-M5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-M5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-1-R3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-1-R3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-1-R3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-1-R3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-1-R5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-1-R5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-H3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-H3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-H3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-H3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-H5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-H5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-J3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-J3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-J3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-J3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-J5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-J5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-P3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-P3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-P3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-P3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-P5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-P5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-L3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-L3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-L3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-L3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-L5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-L5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-M3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-M3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-M3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-M3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-M5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-M5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG31-02-2-R3AZ-DC12V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG31-02-2-R3AZ-DC24V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG31-02-2-R3AZ-DC48V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG31-02-2-R3AZ-DC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG31-02-2-R5AZ-AC100V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG31-02-2-R5AZ-AC200V		Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-H3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-H3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-H3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-H3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-H5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-H5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-J3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-J3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-J3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-J3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-J5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-J5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-P3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-P3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-P3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-P3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-P5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-P5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-L3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-L3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-L3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-L3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-L5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-L5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-M3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-M3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-M3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-M3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-M5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-M5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-1-R3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-1-R3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-1-R3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-1-R3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-1-R5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-1-R5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-H3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-H3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-H3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-H3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-H5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-H5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-J3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-J3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-J3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-J3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-J5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-J5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-P3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-P3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-P3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-P3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-P5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-P5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-L3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-L3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-L3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-L3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-L5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-L5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-M3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-M3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-M3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-M3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-M5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-M5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-02-2-R3AZ-DC12V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-02-2-R3AZ-DC24V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-02-2-R3AZ-DC48V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-02-2-R3AZ-DC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-02-2-R5AZ-AC100V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-02-2-R5AZ-AC200V		Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-H3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-H3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-H3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-H3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-H5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-H5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-J3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-J3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-J3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-J3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-J5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-J5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-P3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-P3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-P3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-P3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-P5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-P5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-L3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-L3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-L3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-L3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-L5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-L5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-M3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-M3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-M3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-M3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-M5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-M5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-1-R3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-1-R3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-1-R3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-1-R3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-1-R5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-1-R5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-H3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-H3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-H3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-H3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-H5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-H5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-J3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-J3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-J3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-J3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-J5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-J5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-P3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-P3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-P3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-P3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-P5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-P5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-L3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-L3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-L3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-L3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-L5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-L5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-M3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-M3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-M3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-M3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-M5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-M5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG41-03-2-R3AZ-DC12V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG41-03-2-R3AZ-DC24V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG41-03-2-R3AZ-DC48V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG41-03-2-R3AZ-DC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG41-03-2-R5AZ-AC100V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG41-03-2-R5AZ-AC200V		Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-H3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-H3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-H3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-H3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-H5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-H5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-J3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-J3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-J3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-J3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-J5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-J5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-P3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-P3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-P3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-P3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-P5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-P5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-L3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-L3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-L3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-L3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-L5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-L5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-M3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-M3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-M3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-M3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-M5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-M5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-1-R3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-1-R3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-1-R3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-1-R3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-1-R5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-1-R5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-H3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-H3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-H3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-H3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-H5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-H5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-J3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-J3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-J3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-J3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-J5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-J5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-P3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-P3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-P3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-P3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-P5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-P5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-L3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-L3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-L3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-L3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-L5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-L5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-M3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-M3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-M3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-M3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-M5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-M5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-01-2-R3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-01-2-R3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-01-2-R3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-01-2-R3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-01-2-R5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-01-2-R5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-H3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-H3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-H3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-H3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-H5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-H5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-J3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-J3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-J3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-J3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-J5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-J5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-P3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-P3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-P3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-P3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-P5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-P5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-L3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-L3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-L3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-L3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-L5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-L5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-M3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-M3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-M3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-M3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-M5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-M5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-1-R3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-1-R3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-1-R3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-1-R3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-1-R5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-1-R5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-H3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-H3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-H3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-H3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-H5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-H5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-J3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-J3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-J3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-J3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-J5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-J5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-P3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-P3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-P3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-P3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-P5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-P5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-L3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-L3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-L3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-L3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-L5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-L5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-M3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-M3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-M3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-M3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-M5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-M5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG33-02-2-R3AZ-DC12V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG33-02-2-R3AZ-DC24V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG33-02-2-R3AZ-DC48V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG33-02-2-R3AZ-DC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG33-02-2-R5AZ-AC100V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG33-02-2-R5AZ-AC200V		Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-H3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-H3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-H3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-H3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-H5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-H5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-J3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-J3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-J3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-J3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-J5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-J5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-P3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-P3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-P3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-P3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-P5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-P5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-L3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-L3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-L3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-L3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-L5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-L5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-M3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-M3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-M3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-M3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-M5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-M5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-4-R3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-4-R3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-4-R3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-4-R3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-4-R5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-4-R5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-H3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-H3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-H3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-H3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-H5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-H5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-J3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-J3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-J3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-J3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-J5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-J5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-P3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-P3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-P3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-P3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-P5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-P5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-L3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-L3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-L3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-L3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-L5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-L5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-M3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-M3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-M3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-M3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-M5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-M5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-02-5-R3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-02-5-R3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-02-5-R3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-02-5-R3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-02-5-R5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-02-5-R5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-H3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-H3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-H3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-H3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-H5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-H5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-J3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-J3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-J3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-J3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-J5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-J5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-P3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-P3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-P3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-P3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-P5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-P5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-L3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-L3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-L3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-L3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-L5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-L5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-M3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-M3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-M3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-M3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-M5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-M5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-4-R3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-4-R3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-4-R3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-4-R3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-4-R5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-4-R5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-H3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-H3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-H3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-H3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-H5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-H5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-J3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-J3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-J3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-J3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-J5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-J5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-P3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-P3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-P3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-P3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-P5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-P5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-L3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-L3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-L3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-L3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-L5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-L5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-M3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-M3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-M3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-M3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-M5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-M5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG43-03-5-R3AZ-DC12V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG43-03-5-R3AZ-DC24V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG43-03-5-R3AZ-DC48V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG43-03-5-R3AZ-DC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG43-03-5-R5AZ-AC100V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG43-03-5-R5AZ-AC200V		Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-H3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-H3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-H3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-H3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-H5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-H5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-J3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-J3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-J3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-J3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-J5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-J5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-P3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-P3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-P3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-P3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-P5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-P5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-L3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-L3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-L3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-L3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-L5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-L5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-M3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-M3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-M3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-M3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-M5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-M5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-1-R3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-1-R3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-1-R3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-1-R3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-1-R5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-1-R5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-H3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-H3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-H3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-H3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-H5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-H5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-J3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-J3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-J3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-J3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-J5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-J5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-P3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-P3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-P3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-P3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-P5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-P5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-L3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-L3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-L3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-L3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-L5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-L5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-M3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-M3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-M3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-M3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-M5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-M5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-01-2-R3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-01-2-R3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-01-2-R3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-01-2-R3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-01-2-R5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-01-2-R5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-H3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-H3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-H3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-H3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-H5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-H5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-J3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-J3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-J3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-J3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-J5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-J5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-P3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-P3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-P3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-P3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-P5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-P5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-L3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-L3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-L3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-L3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-L5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-L5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-M3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-M3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-M3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-M3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-M5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-M5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-1-R3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-1-R3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-1-R3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-1-R3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-1-R5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-1-R5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-H3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-H3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-H3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-H3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-H5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-H5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-J3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-J3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-J3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-J3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-J5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-J5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-P3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-P3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-P3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-P3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-P5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-P5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-L3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-L3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-L3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-L3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-L5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-L5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-M3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-M3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-M3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-M3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-M5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-M5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG34-02-2-R3AZ-DC12V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG34-02-2-R3AZ-DC24V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG34-02-2-R3AZ-DC48V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG34-02-2-R3AZ-DC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG34-02-2-R5AZ-AC100V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG34-02-2-R5AZ-AC200V		Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-1-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-1-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-1-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-1-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-1-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-1-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-3-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-3-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-3-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-3-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-3-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-3-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-02-4-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-02-4-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-02-4-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-02-4-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-02-4-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-02-4-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-1-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-1-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-1-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-1-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-1-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-1-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-3-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-3-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-3-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-3-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-3-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-3-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-H3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-H3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-H3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-H3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-H5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-H5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-J3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-J3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-J3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-J3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-J5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-J5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-P3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-P3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-P3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-P3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-P5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-P5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-L3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-L3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-L3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-L3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-L5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-L5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-M3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-M3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-M3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-M3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-M5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-M5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
AG44-03-4-R3AZ-DC12V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
AG44-03-4-R3AZ-DC24V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
AG44-03-4-R3AZ-DC48V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
AG44-03-4-R3AZ-DC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
AG44-03-4-R5AZ-AC100V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
AG44-03-4-R5AZ-AC200V		Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V

Solenoid ValvesCKD

936 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AG3/AG4-Z MULTILEX Dry Air Direct 3-Port Solenoid Valve

Brand CKD·Solenoid Valves

Available part numbers (936)

AG31-01-1-H3AZ-DC12V, AG31-01-1-H3AZ-DC24V, AG31-01-1-H3AZ-DC48V, AG31-01-1-H3AZ-DC100V, AG31-01-1-H5AZ-AC100V, AG31-01-1-H5AZ-AC200V, AG31-01-1-J3AZ-DC12V, AG31-01-1-J3AZ-DC24V, AG31-01-1-J3AZ-DC48V, AG31-01-1-J3AZ-DC100V + 926 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AG31-01-1-H3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-H3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-H3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-H3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-H5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-H5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-1-J3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-J3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-J3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-J3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-J5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-J5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-1-P3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-P3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-P3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-P3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-P5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-P5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-1-L3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-L3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-L3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-L3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-L5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-L5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-1-M3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-M3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-M3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-M3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-M5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-M5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-1-R3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-1-R3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-1-R3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-1-R3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-1-R5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-1-R5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-H3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-H3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-H3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-H3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-H5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-H5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-J3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-J3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-J3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-J3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-J5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-J5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-P3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-P3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-P3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-P3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-P5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-P5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-L3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-L3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-L3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-L3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-L5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-L5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-M3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-M3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-M3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-M3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-M5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-M5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-01-2-R3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-01-2-R3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-01-2-R3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-01-2-R3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-01-2-R5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-01-2-R5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-H3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-H3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-H3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-H3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-H5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-H5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-J3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-J3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-J3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-J3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-J5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-J5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-P3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-P3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-P3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-P3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-P5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-P5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-L3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-L3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-L3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-L3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-L5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-L5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-M3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-M3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-M3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-M3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-M5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-M5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-1-R3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-1-R3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-1-R3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-1-R3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-1-R5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-1-R5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-H3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-H3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-H3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-H3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-H5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-H5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-J3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-J3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-J3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-J3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-J5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-J5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-P3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-P3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-P3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-P3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-P5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-P5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-L3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-L3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-L3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-L3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-L5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-L5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-M3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-M3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-M3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-M3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-M5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-M5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG31-02-2-R3AZ-DC12V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG31-02-2-R3AZ-DC24V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG31-02-2-R3AZ-DC48V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG31-02-2-R3AZ-DC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG31-02-2-R5AZ-AC100V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG31-02-2-R5AZ-AC200V	Model: AG31-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-H3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-H3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-H3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-H3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-H5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-H5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-J3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-J3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-J3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-J3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-J5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-J5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-P3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-P3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-P3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-P3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-P5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-P5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-L3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-L3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-L3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-L3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-L5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-L5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-M3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-M3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-M3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-M3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-M5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-M5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-1-R3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-1-R3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-1-R3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-1-R3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-1-R5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-1-R5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-H3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-H3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-H3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-H3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-H5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-H5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-J3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-J3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-J3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-J3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-J5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-J5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-P3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-P3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-P3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-P3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-P5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-P5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-L3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-L3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-L3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-L3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-L5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-L5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-M3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-M3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-M3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-M3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-M5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-M5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-02-2-R3AZ-DC12V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-02-2-R3AZ-DC24V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-02-2-R3AZ-DC48V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-02-2-R3AZ-DC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-02-2-R5AZ-AC100V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-02-2-R5AZ-AC200V	Model: AG41-Z universal \| Port: Rc1/4 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-H3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-H3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-H3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-H3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-H5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-H5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-J3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-J3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-J3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-J3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-J5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-J5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-P3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-P3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-P3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-P3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-P5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-P5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-L3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-L3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-L3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-L3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-L5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-L5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-M3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-M3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-M3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-M3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-M5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-M5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-1-R3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-1-R3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-1-R3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-1-R3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-1-R5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-1-R5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-H3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-H3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-H3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-H3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-H5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-H5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-J3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-J3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-J3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-J3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-J5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-J5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-P3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-P3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-P3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-P3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-P5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-P5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-L3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-L3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-L3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-L3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-L5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-L5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-M3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-M3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-M3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-M3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-M5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-M5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG41-03-2-R3AZ-DC12V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG41-03-2-R3AZ-DC24V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG41-03-2-R3AZ-DC48V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG41-03-2-R3AZ-DC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG41-03-2-R5AZ-AC100V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG41-03-2-R5AZ-AC200V	Model: AG41-Z universal \| Port: Rc3/8 \| Orifice: TOP 2.3 / BODY 2.3 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-H3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-H3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-H3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-H3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-H5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-H5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-J3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-J3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-J3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-J3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-J5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-J5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-P3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-P3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-P3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-P3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-P5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-P5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-L3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-L3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-L3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-L3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-L5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-L5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-M3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-M3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-M3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-M3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-M5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-M5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-1-R3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-1-R3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-1-R3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-1-R3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-1-R5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-1-R5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-H3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-H3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-H3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-H3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-H5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-H5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-J3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-J3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-J3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-J3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-J5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-J5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-P3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-P3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-P3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-P3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-P5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-P5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-L3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-L3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-L3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-L3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-L5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-L5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-M3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-M3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-M3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-M3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-M5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-M5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-01-2-R3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-01-2-R3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-01-2-R3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-01-2-R3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-01-2-R5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-01-2-R5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-H3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-H3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-H3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-H3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-H5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-H5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-J3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-J3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-J3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-J3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-J5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-J5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-P3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-P3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-P3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-P3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-P5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-P5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-L3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-L3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-L3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-L3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-L5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-L5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-M3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-M3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-M3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-M3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-M5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-M5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-1-R3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-1-R3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-1-R3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-1-R3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-1-R5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-1-R5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-H3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-H3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-H3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-H3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-H5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-H5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-J3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-J3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-J3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-J3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-J5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-J5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-P3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-P3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-P3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-P3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-P5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-P5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-L3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-L3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-L3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-L3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-L5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-L5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-M3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-M3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-M3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-M3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-M5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-M5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG33-02-2-R3AZ-DC12V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG33-02-2-R3AZ-DC24V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG33-02-2-R3AZ-DC48V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG33-02-2-R3AZ-DC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG33-02-2-R5AZ-AC100V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG33-02-2-R5AZ-AC200V	Model: AG33-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-H3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-H3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-H3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-H3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-H5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-H5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-J3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-J3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-J3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-J3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-J5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-J5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-P3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-P3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-P3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-P3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-P5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-P5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-L3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-L3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-L3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-L3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-L5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-L5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-M3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-M3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-M3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-M3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-M5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-M5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-4-R3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-4-R3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-4-R3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-4-R3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-4-R5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-4-R5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-H3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-H3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-H3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-H3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-H5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-H5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-J3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-J3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-J3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-J3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-J5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-J5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-P3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-P3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-P3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-P3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-P5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-P5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-L3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-L3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-L3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-L3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-L5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-L5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-M3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-M3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-M3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-M3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-M5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-M5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-02-5-R3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-02-5-R3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-02-5-R3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-02-5-R3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-02-5-R5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-02-5-R5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc1/4 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-H3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-H3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-H3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-H3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-H5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-H5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-J3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-J3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-J3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-J3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-J5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-J5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-P3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-P3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-P3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-P3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-P5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-P5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-L3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-L3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-L3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-L3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-L5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-L5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-M3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-M3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-M3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-M3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-M5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-M5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-4-R3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-4-R3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-4-R3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-4-R3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-4-R5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-4-R5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-H3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-H3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-H3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-H3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-H5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-H5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-J3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-J3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-J3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-J3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-J5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-J5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-P3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-P3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-P3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-P3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-P5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-P5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-L3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-L3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-L3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-L3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-L5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-L5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-M3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-M3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-M3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-M3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-M5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-M5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG43-03-5-R3AZ-DC12V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG43-03-5-R3AZ-DC24V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG43-03-5-R3AZ-DC48V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG43-03-5-R3AZ-DC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG43-03-5-R5AZ-AC100V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG43-03-5-R5AZ-AC200V	Model: AG43-Z NC pressurized \| Port: Rc3/8 \| Orifice: TOP 3.5 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-H3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-H3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-H3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-H3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-H5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-H5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-J3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-J3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-J3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-J3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-J5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-J5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-P3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-P3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-P3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-P3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-P5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-P5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-L3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-L3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-L3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-L3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-L5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-L5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-M3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-M3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-M3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-M3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-M5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-M5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-1-R3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-1-R3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-1-R3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-1-R3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-1-R5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-1-R5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-H3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-H3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-H3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-H3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-H5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-H5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-J3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-J3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-J3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-J3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-J5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-J5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-P3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-P3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-P3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-P3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-P5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-P5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-L3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-L3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-L3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-L3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-L5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-L5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-M3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-M3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-M3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-M3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-M5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-M5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-01-2-R3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-01-2-R3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-01-2-R3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-01-2-R3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-01-2-R5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-01-2-R5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-H3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-H3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-H3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-H3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-H5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-H5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-J3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-J3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-J3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-J3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-J5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-J5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-P3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-P3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-P3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-P3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-P5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-P5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-L3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-L3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-L3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-L3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-L5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-L5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-M3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-M3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-M3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-M3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-M5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-M5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-1-R3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-1-R3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-1-R3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-1-R3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-1-R5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-1-R5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 1.5 / BODY 1.5 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-H3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-H3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-H3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-H3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-H5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-H5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-J3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-J3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-J3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-J3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-J5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-J5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-P3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-P3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-P3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-P3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-P5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-P5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-L3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-L3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-L3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-L3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-L5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-L5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-M3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-M3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-M3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-M3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-M5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-M5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG34-02-2-R3AZ-DC12V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG34-02-2-R3AZ-DC24V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG34-02-2-R3AZ-DC48V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG34-02-2-R3AZ-DC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG34-02-2-R5AZ-AC100V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG34-02-2-R5AZ-AC200V	Model: AG34-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-1-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-1-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-1-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-1-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-1-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-1-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-3-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-3-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-3-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-3-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-3-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-3-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-02-4-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-02-4-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-02-4-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-02-4-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-02-4-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-02-4-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc1/4 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-1-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-1-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-1-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-1-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-1-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-1-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 2.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-3-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-3-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-3-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-3-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-3-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-3-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 2.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-H3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-H3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-H3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-H3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-H5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-H5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-J3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-J3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-J3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-J3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-J5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-J5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-P3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-P3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-P3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-P3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-P5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-P5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Brass, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-L3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-L3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-L3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-L3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-L5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-L5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, NBR, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-M3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-M3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-M3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-M3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-M5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-M5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, FKM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V
	AG44-03-4-R3AZ-DC12V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC12V
	AG44-03-4-R3AZ-DC24V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC24V
	AG44-03-4-R3AZ-DC48V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC48V
	AG44-03-4-R3AZ-DC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead wire (DC) \| Voltage: DC100V
	AG44-03-4-R5AZ-AC100V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC100V
	AG44-03-4-R5AZ-AC200V	Model: AG44-Z NO pressurized \| Port: Rc3/8 \| Orifice: TOP 3.0 / BODY 3.0 mm \| Body/seal: Stainless, EPDM, oil-free \| Coil: Open frame lead, diode (AC) \| Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AG3/AG4-Z MULTILEX Dry Air Direct 3-Port Solenoid Valve
