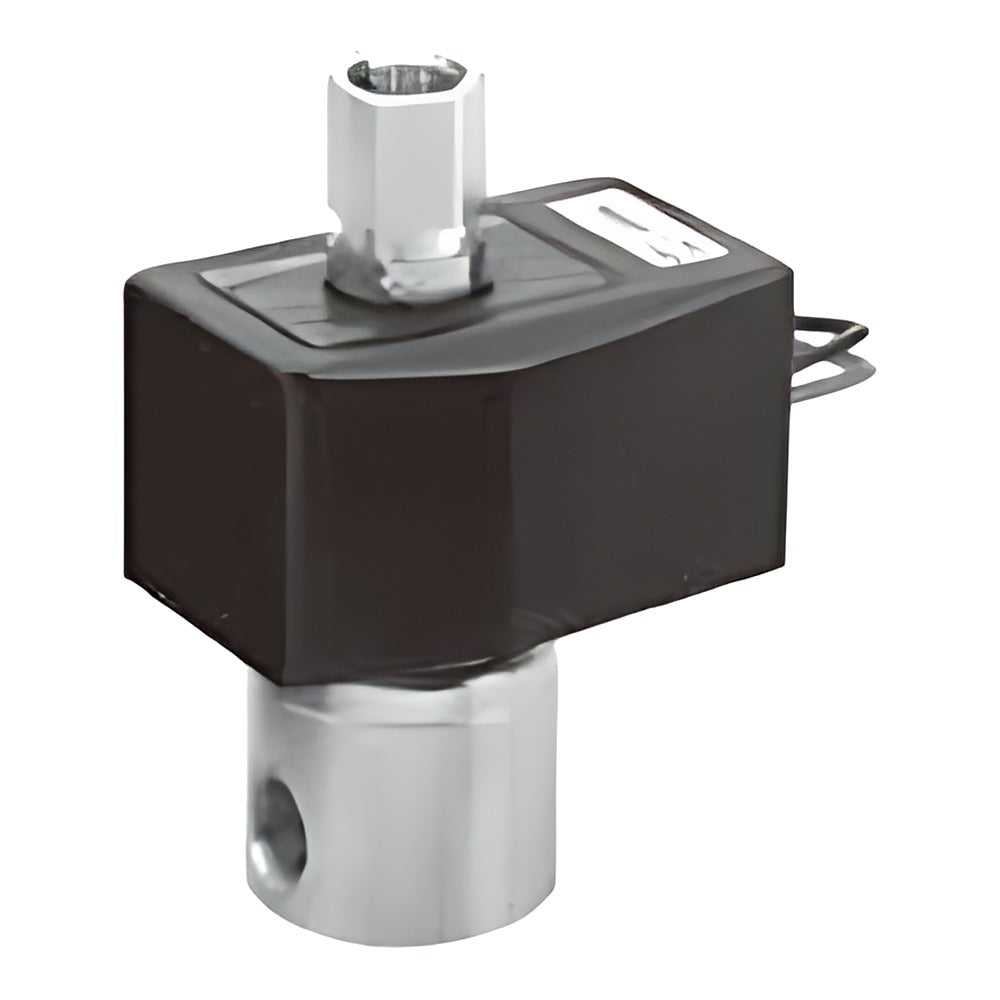

CKD AG31/AG41-FP2 MULTILEX Direct Acting 3-Port Valve (Universal)

CKD AG31/AG41-FP2 MULTILEX Direct Acting 3-Port Valve (Universal)

CKD AG31/AG41-FP2 MULTILEX direct-acting universal 3-port solenoid valve with stainless steel body for food processing.

Key features

  • Universal 3-port direct-acting poppet
  • AG31 Rc1/8, Rc1/4; AG41 Rc1/4, Rc3/8
  • FKM (M) or PTFE (N) seal
  • Coil housings: open frame lead wire or HP terminal box (G1/2), standard, class H or diode built-in
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Body Stainless steel
Valve structure Direct acting poppet
Ambient temperature -20 to 60 C
Mounting Any
Function Universal
Protection IP65 equivalent
Source CKD Korea catalog CC-1271K-5, p. 390-391
AG31-01-1-M3AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-1-M3AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-1-M3AFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-1-M3AFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-1-M3AFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-1-M3AFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-1-M3IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-1-M3IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-1-M3IFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-1-M3IFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-1-M3IFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-1-M3IFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-1-M3JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-1-M3JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-1-M3JFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-1-M3JFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-1-M3JFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-1-M4AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-1-M4AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-1-M4MFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-1-M4MFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-1-M4NFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-1-M4NFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-1-M5AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-1-M5AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-1-M5IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-1-M5IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-1-M5JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-1-M5JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-1-N3AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-1-N3AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-1-N3AFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-1-N3AFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-1-N3AFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-1-N3AFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-1-N3IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-1-N3IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-1-N3IFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-1-N3IFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-1-N3IFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-1-N3IFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-1-N3JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-1-N3JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-1-N3JFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-1-N3JFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-1-N3JFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-1-N4AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-1-N4AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-1-N4MFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-1-N4MFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-1-N4NFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-1-N4NFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-1-N5AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-1-N5AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-1-N5IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-1-N5IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-1-N5JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-1-N5JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-2-M3AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-2-M3AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-2-M3AFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-2-M3AFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-2-M3AFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-2-M3AFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-2-M3IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-2-M3IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-2-M3IFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-2-M3IFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-2-M3IFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-2-M3IFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-2-M3JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-2-M3JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-2-M3JFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-2-M3JFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-2-M3JFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-2-M4AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-2-M4AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-2-M4MFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-2-M4MFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-2-M4NFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-2-M4NFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-2-M5AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-2-M5AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-2-M5IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-2-M5IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-2-M5JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-2-M5JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-2-N3AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-2-N3AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-2-N3AFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-2-N3AFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-2-N3AFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-2-N3AFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-2-N3IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-2-N3IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-2-N3IFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-2-N3IFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-2-N3IFP2-DC48V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-2-N3IFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-2-N3JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-2-N3JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-2-N3JFP2-DC12V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-2-N3JFP2-DC24V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-2-N3JFP2-DC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-2-N4AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-2-N4AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-2-N4MFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-2-N4MFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-2-N4NFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-2-N4NFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-2-N5AFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-2-N5AFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-2-N5IFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-2-N5IFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-2-N5JFP2-AC100V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-2-N5JFP2-AC200V Model: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-1-M3AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-1-M3AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-1-M3AFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-1-M3AFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-1-M3AFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-1-M3AFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-1-M3IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-1-M3IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-1-M3IFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-1-M3IFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-1-M3IFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-1-M3IFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-1-M3JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-1-M3JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-1-M3JFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-1-M3JFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-1-M3JFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-1-M4AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-1-M4AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-1-M4MFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-1-M4MFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-1-M4NFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-1-M4NFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-1-M5AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-1-M5AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-1-M5IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-1-M5IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-1-M5JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-1-M5JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-1-N3AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-1-N3AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-1-N3AFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-1-N3AFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-1-N3AFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-1-N3AFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-1-N3IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-1-N3IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-1-N3IFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-1-N3IFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-1-N3IFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-1-N3IFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-1-N3JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-1-N3JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-1-N3JFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-1-N3JFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-1-N3JFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-1-N4AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-1-N4AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-1-N4MFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-1-N4MFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-1-N4NFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-1-N4NFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-1-N5AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-1-N5AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-1-N5IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-1-N5IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-1-N5JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-1-N5JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-2-M3AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-2-M3AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-2-M3AFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-2-M3AFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-2-M3AFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-2-M3AFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-2-M3IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-2-M3IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-2-M3IFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-2-M3IFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-2-M3IFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-2-M3IFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-2-M3JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-2-M3JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-2-M3JFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-2-M3JFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-2-M3JFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-2-M4AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-2-M4AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-2-M4MFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-2-M4MFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-2-M4NFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-2-M4NFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-2-M5AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-2-M5AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-2-M5IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-2-M5IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-2-M5JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-2-M5JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-2-N3AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-2-N3AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-2-N3AFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-2-N3AFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-2-N3AFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-2-N3AFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-2-N3IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-2-N3IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-2-N3IFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-2-N3IFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-2-N3IFP2-DC48V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-2-N3IFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-2-N3JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-2-N3JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-2-N3JFP2-DC12V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-2-N3JFP2-DC24V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-2-N3JFP2-DC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-2-N4AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-2-N4AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-2-N4MFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-2-N4MFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-2-N4NFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-2-N4NFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-2-N5AFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-2-N5AFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-2-N5IFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-2-N5IFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-2-N5JFP2-AC100V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-2-N5JFP2-AC200V Model: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-1-M3AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-1-M3AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-1-M3AFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-1-M3AFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-1-M3AFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-1-M3AFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-1-M3IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-1-M3IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-1-M3IFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-1-M3IFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-1-M3IFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-1-M3IFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-1-M3JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-1-M3JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-1-M3JFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-1-M3JFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-1-M3JFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-1-M4AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-1-M4AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-1-M4MFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-1-M4MFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-1-M4NFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-1-M4NFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-1-M5AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-1-M5AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-1-M5IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-1-M5IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-1-M5JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-1-M5JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-1-N3AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-1-N3AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-1-N3AFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-1-N3AFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-1-N3AFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-1-N3AFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-1-N3IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-1-N3IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-1-N3IFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-1-N3IFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-1-N3IFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-1-N3IFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-1-N3JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-1-N3JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-1-N3JFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-1-N3JFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-1-N3JFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-1-N4AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-1-N4AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-1-N4MFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-1-N4MFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-1-N4NFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-1-N4NFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-1-N5AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-1-N5AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-1-N5IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-1-N5IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-1-N5JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-1-N5JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-2-M3AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-2-M3AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-2-M3AFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-2-M3AFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-2-M3AFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-2-M3AFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-2-M3IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-2-M3IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-2-M3IFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-2-M3IFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-2-M3IFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-2-M3IFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-2-M3JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-2-M3JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-2-M3JFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-2-M3JFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-2-M3JFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-2-M4AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-2-M4AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-2-M4MFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-2-M4MFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-2-M4NFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-2-M4NFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-2-M5AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-2-M5AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-2-M5IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-2-M5IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-2-M5JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-2-M5JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-2-N3AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-2-N3AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-2-N3AFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-2-N3AFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-2-N3AFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-2-N3AFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-2-N3IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-2-N3IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-2-N3IFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-2-N3IFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-2-N3IFP2-DC48V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-2-N3IFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-2-N3JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-2-N3JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-2-N3JFP2-DC12V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-2-N3JFP2-DC24V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-2-N3JFP2-DC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-2-N4AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-2-N4AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-2-N4MFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-2-N4MFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-2-N4NFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-2-N4NFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-2-N5AFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-2-N5AFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-2-N5IFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-2-N5IFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-2-N5JFP2-AC100V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-2-N5JFP2-AC200V Model: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-1-M3AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-1-M3AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-1-M3AFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-1-M3AFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-1-M3AFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-1-M3AFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-1-M3IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-1-M3IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-1-M3IFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-1-M3IFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-1-M3IFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-1-M3IFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-1-M3JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-1-M3JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-1-M3JFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-1-M3JFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-1-M3JFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-1-M4AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-1-M4AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-1-M4MFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-1-M4MFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-1-M4NFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-1-M4NFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-1-M5AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-1-M5AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-1-M5IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-1-M5IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-1-M5JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-1-M5JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-1-N3AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-1-N3AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-1-N3AFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-1-N3AFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-1-N3AFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-1-N3AFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-1-N3IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-1-N3IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-1-N3IFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-1-N3IFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-1-N3IFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-1-N3IFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-1-N3JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-1-N3JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-1-N3JFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-1-N3JFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-1-N3JFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-1-N4AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-1-N4AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-1-N4MFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-1-N4MFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-1-N4NFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-1-N4NFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-1-N5AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-1-N5AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-1-N5IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-1-N5IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-1-N5JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-1-N5JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-2-M3AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-2-M3AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-2-M3AFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-2-M3AFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-2-M3AFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-2-M3AFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-2-M3IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-2-M3IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-2-M3IFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-2-M3IFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-2-M3IFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-2-M3IFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-2-M3JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-2-M3JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-2-M3JFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-2-M3JFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-2-M3JFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-2-M4AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-2-M4AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-2-M4MFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-2-M4MFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-2-M4NFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-2-M4NFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-2-M5AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-2-M5AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-2-M5IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-2-M5IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-2-M5JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-2-M5JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-2-N3AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-2-N3AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-2-N3AFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-2-N3AFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-2-N3AFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-2-N3AFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-2-N3IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-2-N3IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-2-N3IFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-2-N3IFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-2-N3IFP2-DC48V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-2-N3IFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-2-N3JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-2-N3JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-2-N3JFP2-DC12V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-2-N3JFP2-DC24V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-2-N3JFP2-DC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-2-N4AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-2-N4AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-2-N4MFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-2-N4MFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-2-N4NFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-2-N4NFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-2-N5AFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-2-N5AFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-2-N5IFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-2-N5IFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-2-N5JFP2-AC100V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-2-N5JFP2-AC200V Model: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
3-Port Solenoid ValvesCKD
464 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AG31/AG41-FP2 MULTILEX Direct Acting 3-Port Valve (Universal)

Brand CKD·3-Port Solenoid Valves

Available part numbers (464)

AG31-01-1-M3AFP2-AC100V, AG31-01-1-M3AFP2-AC200V, AG31-01-1-M3AFP2-DC12V, AG31-01-1-M3AFP2-DC24V, AG31-01-1-M3AFP2-DC48V, AG31-01-1-M3AFP2-DC100V, AG31-01-1-M3IFP2-AC100V, AG31-01-1-M3IFP2-AC200V, AG31-01-1-M3IFP2-DC12V, AG31-01-1-M3IFP2-DC24V + 454 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG31-01-1-M3AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-1-M3AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-1-M3AFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-1-M3AFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-1-M3AFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-1-M3AFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-1-M3IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-1-M3IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-1-M3IFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-1-M3IFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-1-M3IFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-1-M3IFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-1-M3JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-1-M3JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-1-M3JFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-1-M3JFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-1-M3JFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-1-M4AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-1-M4AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-1-M4MFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-1-M4MFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-1-M4NFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-1-M4NFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-1-M5AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-1-M5AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-1-M5IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-1-M5IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-1-M5JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-1-M5JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-1-N3AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-1-N3AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-1-N3AFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-1-N3AFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-1-N3AFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-1-N3AFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-1-N3IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-1-N3IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-1-N3IFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-1-N3IFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-1-N3IFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-1-N3IFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-1-N3JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-1-N3JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-1-N3JFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-1-N3JFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-1-N3JFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-1-N4AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-1-N4AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-1-N4MFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-1-N4MFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-1-N4NFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-1-N4NFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-1-N5AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-1-N5AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-1-N5IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-1-N5IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-1-N5JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-1-N5JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-2-M3AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-2-M3AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-2-M3AFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-2-M3AFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-2-M3AFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-2-M3AFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-2-M3IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-2-M3IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-2-M3IFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-2-M3IFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-2-M3IFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-2-M3IFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-2-M3JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-2-M3JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-2-M3JFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-2-M3JFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-2-M3JFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-2-M4AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-2-M4AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-2-M4MFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-2-M4MFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-2-M4NFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-2-M4NFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-2-M5AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-2-M5AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-2-M5IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-2-M5IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-2-M5JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-2-M5JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-01-2-N3AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-01-2-N3AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-01-2-N3AFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-01-2-N3AFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-01-2-N3AFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-01-2-N3AFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-01-2-N3IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-01-2-N3IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-01-2-N3IFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-01-2-N3IFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-01-2-N3IFP2-DC48VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-01-2-N3IFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-01-2-N3JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-01-2-N3JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-01-2-N3JFP2-DC12VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-01-2-N3JFP2-DC24VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-01-2-N3JFP2-DC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-01-2-N4AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-01-2-N4AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-01-2-N4MFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-01-2-N4MFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-01-2-N4NFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-01-2-N4NFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-01-2-N5AFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-01-2-N5AFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-01-2-N5IFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-01-2-N5IFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-01-2-N5JFP2-AC100VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-01-2-N5JFP2-AC200VModel: AG31 | Port: Rc1/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-1-M3AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-1-M3AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-1-M3AFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-1-M3AFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-1-M3AFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-1-M3AFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-1-M3IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-1-M3IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-1-M3IFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-1-M3IFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-1-M3IFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-1-M3IFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-1-M3JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-1-M3JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-1-M3JFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-1-M3JFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-1-M3JFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-1-M4AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-1-M4AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-1-M4MFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-1-M4MFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-1-M4NFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-1-M4NFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-1-M5AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-1-M5AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-1-M5IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-1-M5IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-1-M5JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-1-M5JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-1-N3AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-1-N3AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-1-N3AFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-1-N3AFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-1-N3AFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-1-N3AFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-1-N3IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-1-N3IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-1-N3IFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-1-N3IFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-1-N3IFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-1-N3IFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-1-N3JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-1-N3JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-1-N3JFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-1-N3JFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-1-N3JFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-1-N4AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-1-N4AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-1-N4MFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-1-N4MFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-1-N4NFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-1-N4NFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-1-N5AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-1-N5AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-1-N5IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-1-N5IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-1-N5JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-1-N5JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 1.5 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-2-M3AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-2-M3AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-2-M3AFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-2-M3AFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-2-M3AFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-2-M3AFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-2-M3IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-2-M3IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-2-M3IFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-2-M3IFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-2-M3IFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-2-M3IFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-2-M3JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-2-M3JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-2-M3JFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-2-M3JFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-2-M3JFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-2-M4AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-2-M4AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-2-M4MFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-2-M4MFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-2-M4NFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-2-M4NFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-2-M5AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-2-M5AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-2-M5IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-2-M5IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-2-M5JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-2-M5JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG31-02-2-N3AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG31-02-2-N3AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG31-02-2-N3AFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG31-02-2-N3AFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG31-02-2-N3AFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG31-02-2-N3AFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG31-02-2-N3IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG31-02-2-N3IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG31-02-2-N3IFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG31-02-2-N3IFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG31-02-2-N3IFP2-DC48VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG31-02-2-N3IFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG31-02-2-N3JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG31-02-2-N3JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG31-02-2-N3JFP2-DC12VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG31-02-2-N3JFP2-DC24VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG31-02-2-N3JFP2-DC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG31-02-2-N4AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG31-02-2-N4AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG31-02-2-N4MFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG31-02-2-N4MFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG31-02-2-N4NFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG31-02-2-N4NFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG31-02-2-N5AFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG31-02-2-N5AFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG31-02-2-N5IFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG31-02-2-N5IFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG31-02-2-N5JFP2-AC100VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG31-02-2-N5JFP2-AC200VModel: AG31 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-1-M3AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-1-M3AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-1-M3AFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-1-M3AFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-1-M3AFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-1-M3AFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-1-M3IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-1-M3IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-1-M3IFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-1-M3IFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-1-M3IFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-1-M3IFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-1-M3JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-1-M3JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-1-M3JFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-1-M3JFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-1-M3JFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-1-M4AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-1-M4AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-1-M4MFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-1-M4MFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-1-M4NFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-1-M4NFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-1-M5AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-1-M5AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-1-M5IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-1-M5IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-1-M5JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-1-M5JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-1-N3AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-1-N3AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-1-N3AFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-1-N3AFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-1-N3AFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-1-N3AFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-1-N3IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-1-N3IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-1-N3IFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-1-N3IFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-1-N3IFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-1-N3IFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-1-N3JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-1-N3JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-1-N3JFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-1-N3JFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-1-N3JFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-1-N4AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-1-N4AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-1-N4MFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-1-N4MFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-1-N4NFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-1-N4NFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-1-N5AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-1-N5AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-1-N5IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-1-N5IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-1-N5JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-1-N5JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-2-M3AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-2-M3AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-2-M3AFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-2-M3AFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-2-M3AFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-2-M3AFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-2-M3IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-2-M3IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-2-M3IFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-2-M3IFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-2-M3IFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-2-M3IFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-2-M3JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-2-M3JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-2-M3JFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-2-M3JFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-2-M3JFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-2-M4AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-2-M4AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-2-M4MFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-2-M4MFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-2-M4NFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-2-M4NFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-2-M5AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-2-M5AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-2-M5IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-2-M5IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-2-M5JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-2-M5JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-02-2-N3AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-02-2-N3AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-02-2-N3AFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-02-2-N3AFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-02-2-N3AFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-02-2-N3AFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-02-2-N3IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-02-2-N3IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-02-2-N3IFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-02-2-N3IFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-02-2-N3IFP2-DC48VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-02-2-N3IFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-02-2-N3JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-02-2-N3JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-02-2-N3JFP2-DC12VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-02-2-N3JFP2-DC24VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-02-2-N3JFP2-DC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-02-2-N4AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-02-2-N4AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-02-2-N4MFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-02-2-N4MFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-02-2-N4NFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-02-2-N4NFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-02-2-N5AFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-02-2-N5AFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-02-2-N5IFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-02-2-N5IFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-02-2-N5JFP2-AC100VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-02-2-N5JFP2-AC200VModel: AG41 | Port: Rc1/4 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-1-M3AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-1-M3AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-1-M3AFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-1-M3AFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-1-M3AFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-1-M3AFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-1-M3IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-1-M3IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-1-M3IFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-1-M3IFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-1-M3IFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-1-M3IFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-1-M3JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-1-M3JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-1-M3JFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-1-M3JFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-1-M3JFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-1-M4AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-1-M4AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-1-M4MFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-1-M4MFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-1-M4NFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-1-M4NFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-1-M5AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-1-M5AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-1-M5IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-1-M5IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-1-M5JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-1-M5JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-1-N3AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-1-N3AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-1-N3AFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-1-N3AFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-1-N3AFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-1-N3AFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-1-N3IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-1-N3IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-1-N3IFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-1-N3IFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-1-N3IFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-1-N3IFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-1-N3JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-1-N3JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-1-N3JFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-1-N3JFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-1-N3JFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-1-N4AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-1-N4AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-1-N4MFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-1-N4MFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-1-N4NFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-1-N4NFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-1-N5AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-1-N5AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-1-N5IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-1-N5IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-1-N5JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-1-N5JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.0 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-2-M3AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-2-M3AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-2-M3AFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-2-M3AFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-2-M3AFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-2-M3AFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-2-M3IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-2-M3IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-2-M3IFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-2-M3IFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-2-M3IFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-2-M3IFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-2-M3JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-2-M3JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-2-M3JFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-2-M3JFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-2-M3JFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-2-M4AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-2-M4AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-2-M4MFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-2-M4MFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-2-M4NFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-2-M4NFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-2-M5AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-2-M5AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-2-M5IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-2-M5IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-2-M5JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-2-M5JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: FKM | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG41-03-2-N3AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC100V
AG41-03-2-N3AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: AC200V
AG41-03-2-N3AFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC12V
AG41-03-2-N3AFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC24V
AG41-03-2-N3AFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC48V
AG41-03-2-N3AFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Open frame, lead wire | Voltage: DC100V
AG41-03-2-N3IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC100V
AG41-03-2-N3IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: AC200V
AG41-03-2-N3IFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC12V
AG41-03-2-N3IFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC24V
AG41-03-2-N3IFP2-DC48VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC48V
AG41-03-2-N3IFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box | Voltage: DC100V
AG41-03-2-N3JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG41-03-2-N3JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG41-03-2-N3JFP2-DC12VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG41-03-2-N3JFP2-DC24VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG41-03-2-N3JFP2-DC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG41-03-2-N4AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC100V
AG41-03-2-N4AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, lead wire | Voltage: AC200V
AG41-03-2-N4MFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG41-03-2-N4MFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG41-03-2-N4NFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG41-03-2-N4NFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG41-03-2-N5AFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG41-03-2-N5AFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG41-03-2-N5IFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG41-03-2-N5IFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG41-03-2-N5JFP2-AC100VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG41-03-2-N5JFP2-AC200VModel: AG41 | Port: Rc3/8 | Orifice: 2.3 mm | Seal: PTFE | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
