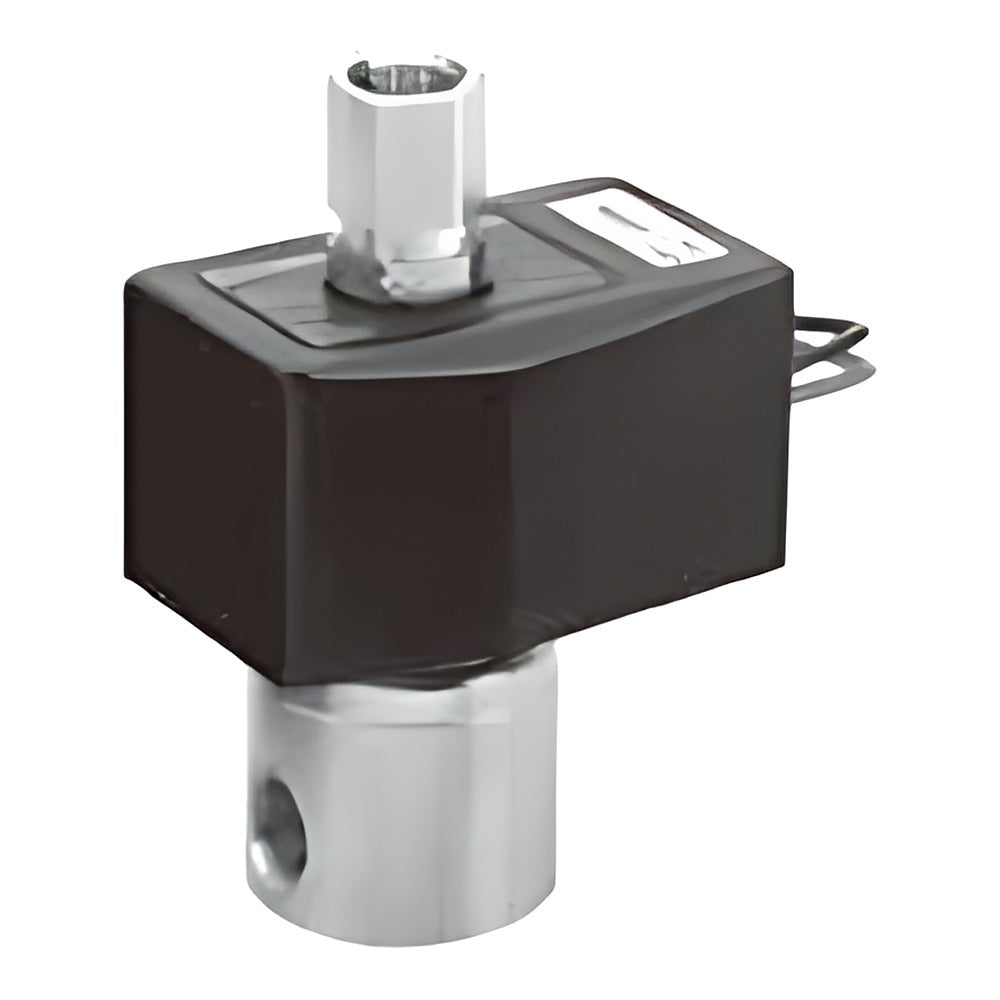

CKD AG34/AG44-FP2 MULTILEX Direct Acting 3-Port Valve (NO Pressure)

CKD AG34/AG44-FP2 MULTILEX Direct Acting 3-Port Valve (NO Pressure)

CKD AG34/AG44-FP2 MULTILEX direct-acting 3-port solenoid valve, NO pressurised type, with stainless steel body and FKM seal.

Key features

  • NO pressurised 3-port direct-acting poppet
  • AG34 Rc1/8, Rc1/4; AG44 Rc1/4, Rc3/8
  • FKM seal (M)
  • Coil housings: open frame lead wire or HP terminal box (G1/2), standard, class H or diode built-in
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Body Stainless steel
Valve structure Direct acting poppet
Ambient temperature -20 to 60 C
Mounting Any
Function NO pressurised
Protection IP65 equivalent
Seal FKM
Source CKD Korea catalog CC-1271K-5, p. 394-395
AG34-01-1-M3AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-01-1-M3AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-01-1-M3AFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-01-1-M3AFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-01-1-M3AFP2-DC48V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-01-1-M3AFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-01-1-M3IFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-01-1-M3IFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-01-1-M3IFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-01-1-M3IFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-01-1-M3IFP2-DC48V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-01-1-M3IFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-01-1-M3JFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-01-1-M3JFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-01-1-M3JFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-01-1-M3JFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-01-1-M3JFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-01-1-M4AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-01-1-M4AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-01-1-M4MFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-01-1-M4MFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-01-1-M4NFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-01-1-M4NFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-01-1-M5AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-01-1-M5AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-01-1-M5IFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-01-1-M5IFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-01-1-M5JFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-01-1-M5JFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-01-2-M3AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-01-2-M3AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-01-2-M3AFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-01-2-M3AFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-01-2-M3AFP2-DC48V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-01-2-M3AFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-01-2-M3IFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-01-2-M3IFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-01-2-M3IFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-01-2-M3IFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-01-2-M3IFP2-DC48V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-01-2-M3IFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-01-2-M3JFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-01-2-M3JFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-01-2-M3JFP2-DC12V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-01-2-M3JFP2-DC24V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-01-2-M3JFP2-DC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-01-2-M4AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-01-2-M4AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-01-2-M4MFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-01-2-M4MFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-01-2-M4NFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-01-2-M4NFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-01-2-M5AFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-01-2-M5AFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-01-2-M5IFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-01-2-M5IFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-01-2-M5JFP2-AC100V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-01-2-M5JFP2-AC200V Model: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-02-1-M3AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-02-1-M3AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-02-1-M3AFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-02-1-M3AFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-02-1-M3AFP2-DC48V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-02-1-M3AFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-02-1-M3IFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-02-1-M3IFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-02-1-M3IFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-02-1-M3IFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-02-1-M3IFP2-DC48V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-02-1-M3IFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-02-1-M3JFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-02-1-M3JFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-02-1-M3JFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-02-1-M3JFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-02-1-M3JFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-02-1-M4AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-02-1-M4AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-02-1-M4MFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-02-1-M4MFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-02-1-M4NFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-02-1-M4NFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-02-1-M5AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-02-1-M5AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-02-1-M5IFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-02-1-M5IFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-02-1-M5JFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-02-1-M5JFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-02-2-M3AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-02-2-M3AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-02-2-M3AFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-02-2-M3AFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-02-2-M3AFP2-DC48V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-02-2-M3AFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-02-2-M3IFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-02-2-M3IFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-02-2-M3IFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-02-2-M3IFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-02-2-M3IFP2-DC48V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-02-2-M3IFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-02-2-M3JFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-02-2-M3JFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-02-2-M3JFP2-DC12V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-02-2-M3JFP2-DC24V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-02-2-M3JFP2-DC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-02-2-M4AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-02-2-M4AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-02-2-M4MFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-02-2-M4MFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-02-2-M4NFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-02-2-M4NFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-02-2-M5AFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-02-2-M5AFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-02-2-M5IFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-02-2-M5IFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-02-2-M5JFP2-AC100V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-02-2-M5JFP2-AC200V Model: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-1-M3AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-1-M3AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-1-M3AFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-1-M3AFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-1-M3AFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-1-M3AFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-1-M3IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-1-M3IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-1-M3IFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-1-M3IFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-1-M3IFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-1-M3IFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-1-M3JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-1-M3JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-1-M3JFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-1-M3JFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-1-M3JFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-1-M4AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-1-M4AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-1-M4MFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-1-M4MFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-1-M4NFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-1-M4NFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-1-M5AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-1-M5AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-1-M5IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-1-M5IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-1-M5JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-1-M5JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-3-M3AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-3-M3AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-3-M3AFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-3-M3AFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-3-M3AFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-3-M3AFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-3-M3IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-3-M3IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-3-M3IFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-3-M3IFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-3-M3IFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-3-M3IFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-3-M3JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-3-M3JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-3-M3JFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-3-M3JFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-3-M3JFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-3-M4AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-3-M4AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-3-M4MFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-3-M4MFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-3-M4NFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-3-M4NFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-3-M5AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-3-M5AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-3-M5IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-3-M5IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-3-M5JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-3-M5JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-4-M3AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-4-M3AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-4-M3AFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-4-M3AFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-4-M3AFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-4-M3AFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-4-M3IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-4-M3IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-4-M3IFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-4-M3IFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-4-M3IFP2-DC48V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-4-M3IFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-4-M3JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-4-M3JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-4-M3JFP2-DC12V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-4-M3JFP2-DC24V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-4-M3JFP2-DC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-4-M4AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-4-M4AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-4-M4MFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-4-M4MFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-4-M4NFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-4-M4NFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-4-M5AFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-4-M5AFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-4-M5IFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-4-M5IFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-4-M5JFP2-AC100V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-4-M5JFP2-AC200V Model: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-1-M3AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-1-M3AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-1-M3AFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-1-M3AFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-1-M3AFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-1-M3AFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-1-M3IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-1-M3IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-1-M3IFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-1-M3IFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-1-M3IFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-1-M3IFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-1-M3JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-1-M3JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-1-M3JFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-1-M3JFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-1-M3JFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-1-M4AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-1-M4AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-1-M4MFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-1-M4MFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-1-M4NFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-1-M4NFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-1-M5AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-1-M5AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-1-M5IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-1-M5IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-1-M5JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-1-M5JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-3-M3AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-3-M3AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-3-M3AFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-3-M3AFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-3-M3AFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-3-M3AFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-3-M3IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-3-M3IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-3-M3IFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-3-M3IFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-3-M3IFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-3-M3IFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-3-M3JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-3-M3JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-3-M3JFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-3-M3JFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-3-M3JFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-3-M4AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-3-M4AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-3-M4MFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-3-M4MFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-3-M4NFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-3-M4NFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-3-M5AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-3-M5AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-3-M5IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-3-M5IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-3-M5JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-3-M5JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-4-M3AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-4-M3AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-4-M3AFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-4-M3AFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-4-M3AFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-4-M3AFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-4-M3IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-4-M3IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-4-M3IFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-4-M3IFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-4-M3IFP2-DC48V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-4-M3IFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-4-M3JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-4-M3JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-4-M3JFP2-DC12V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-4-M3JFP2-DC24V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-4-M3JFP2-DC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-4-M4AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-4-M4AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-4-M4MFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-4-M4MFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-4-M4NFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-4-M4NFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-4-M5AFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-4-M5AFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-4-M5IFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-4-M5IFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-4-M5JFP2-AC100V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-4-M5JFP2-AC200V Model: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
3-Port Solenoid ValvesCKD
290 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AG34/AG44-FP2 MULTILEX Direct Acting 3-Port Valve (NO Pressure)

Brand CKD·3-Port Solenoid Valves

Available part numbers (290)

AG34-01-1-M3AFP2-AC100V, AG34-01-1-M3AFP2-AC200V, AG34-01-1-M3AFP2-DC12V, AG34-01-1-M3AFP2-DC24V, AG34-01-1-M3AFP2-DC48V, AG34-01-1-M3AFP2-DC100V, AG34-01-1-M3IFP2-AC100V, AG34-01-1-M3IFP2-AC200V, AG34-01-1-M3IFP2-DC12V, AG34-01-1-M3IFP2-DC24V + 280 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG34-01-1-M3AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-01-1-M3AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-01-1-M3AFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-01-1-M3AFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-01-1-M3AFP2-DC48VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-01-1-M3AFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-01-1-M3IFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-01-1-M3IFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-01-1-M3IFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-01-1-M3IFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-01-1-M3IFP2-DC48VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-01-1-M3IFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-01-1-M3JFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-01-1-M3JFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-01-1-M3JFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-01-1-M3JFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-01-1-M3JFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-01-1-M4AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-01-1-M4AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-01-1-M4MFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-01-1-M4MFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-01-1-M4NFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-01-1-M4NFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-01-1-M5AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-01-1-M5AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-01-1-M5IFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-01-1-M5IFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-01-1-M5JFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-01-1-M5JFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-01-2-M3AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-01-2-M3AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-01-2-M3AFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-01-2-M3AFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-01-2-M3AFP2-DC48VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-01-2-M3AFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-01-2-M3IFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-01-2-M3IFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-01-2-M3IFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-01-2-M3IFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-01-2-M3IFP2-DC48VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-01-2-M3IFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-01-2-M3JFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-01-2-M3JFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-01-2-M3JFP2-DC12VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-01-2-M3JFP2-DC24VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-01-2-M3JFP2-DC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-01-2-M4AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-01-2-M4AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-01-2-M4MFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-01-2-M4MFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-01-2-M4NFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-01-2-M4NFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-01-2-M5AFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-01-2-M5AFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-01-2-M5IFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-01-2-M5IFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-01-2-M5JFP2-AC100VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-01-2-M5JFP2-AC200VModel: AG34 | Port: Rc1/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-02-1-M3AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-02-1-M3AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-02-1-M3AFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-02-1-M3AFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-02-1-M3AFP2-DC48VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-02-1-M3AFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-02-1-M3IFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-02-1-M3IFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-02-1-M3IFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-02-1-M3IFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-02-1-M3IFP2-DC48VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-02-1-M3IFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-02-1-M3JFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-02-1-M3JFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-02-1-M3JFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-02-1-M3JFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-02-1-M3JFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-02-1-M4AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-02-1-M4AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-02-1-M4MFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-02-1-M4MFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-02-1-M4NFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-02-1-M4NFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-02-1-M5AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-02-1-M5AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-02-1-M5IFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-02-1-M5IFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-02-1-M5JFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-02-1-M5JFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 1.5 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG34-02-2-M3AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG34-02-2-M3AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG34-02-2-M3AFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG34-02-2-M3AFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG34-02-2-M3AFP2-DC48VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG34-02-2-M3AFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG34-02-2-M3IFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG34-02-2-M3IFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG34-02-2-M3IFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG34-02-2-M3IFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG34-02-2-M3IFP2-DC48VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG34-02-2-M3IFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG34-02-2-M3JFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG34-02-2-M3JFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG34-02-2-M3JFP2-DC12VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG34-02-2-M3JFP2-DC24VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG34-02-2-M3JFP2-DC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG34-02-2-M4AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG34-02-2-M4AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG34-02-2-M4MFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG34-02-2-M4MFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG34-02-2-M4NFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG34-02-2-M4NFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG34-02-2-M5AFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG34-02-2-M5AFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG34-02-2-M5IFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG34-02-2-M5IFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG34-02-2-M5JFP2-AC100VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG34-02-2-M5JFP2-AC200VModel: AG34 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-1-M3AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-1-M3AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-1-M3AFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-1-M3AFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-1-M3AFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-1-M3AFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-1-M3IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-1-M3IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-1-M3IFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-1-M3IFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-1-M3IFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-1-M3IFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-1-M3JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-1-M3JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-1-M3JFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-1-M3JFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-1-M3JFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-1-M4AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-1-M4AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-1-M4MFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-1-M4MFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-1-M4NFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-1-M4NFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-1-M5AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-1-M5AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-1-M5IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-1-M5IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-1-M5JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-1-M5JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-3-M3AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-3-M3AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-3-M3AFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-3-M3AFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-3-M3AFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-3-M3AFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-3-M3IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-3-M3IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-3-M3IFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-3-M3IFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-3-M3IFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-3-M3IFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-3-M3JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-3-M3JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-3-M3JFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-3-M3JFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-3-M3JFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-3-M4AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-3-M4AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-3-M4MFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-3-M4MFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-3-M4NFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-3-M4NFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-3-M5AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-3-M5AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-3-M5IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-3-M5IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-3-M5JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-3-M5JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-02-4-M3AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-02-4-M3AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-02-4-M3AFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-02-4-M3AFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-02-4-M3AFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-02-4-M3AFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-02-4-M3IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-02-4-M3IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-02-4-M3IFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-02-4-M3IFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-02-4-M3IFP2-DC48VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-02-4-M3IFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-02-4-M3JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-02-4-M3JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-02-4-M3JFP2-DC12VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-02-4-M3JFP2-DC24VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-02-4-M3JFP2-DC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-02-4-M4AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-02-4-M4AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-02-4-M4MFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-02-4-M4MFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-02-4-M4NFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-02-4-M4NFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-02-4-M5AFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-02-4-M5AFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-02-4-M5IFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-02-4-M5IFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-02-4-M5JFP2-AC100VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-02-4-M5JFP2-AC200VModel: AG44 | Port: Rc1/4 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-1-M3AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-1-M3AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-1-M3AFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-1-M3AFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-1-M3AFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-1-M3AFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-1-M3IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-1-M3IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-1-M3IFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-1-M3IFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-1-M3IFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-1-M3IFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-1-M3JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-1-M3JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-1-M3JFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-1-M3JFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-1-M3JFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-1-M4AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-1-M4AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-1-M4MFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-1-M4MFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-1-M4NFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-1-M4NFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-1-M5AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-1-M5AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-1-M5IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-1-M5IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-1-M5JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-1-M5JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-3-M3AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-3-M3AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-3-M3AFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-3-M3AFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-3-M3AFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-3-M3AFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-3-M3IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-3-M3IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-3-M3IFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-3-M3IFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-3-M3IFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-3-M3IFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-3-M3JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-3-M3JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-3-M3JFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-3-M3JFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-3-M3JFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-3-M4AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-3-M4AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-3-M4MFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-3-M4MFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-3-M4NFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-3-M4NFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-3-M5AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-3-M5AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-3-M5IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-3-M5IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-3-M5JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-3-M5JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 2.0/3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V
AG44-03-4-M3AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC100V
AG44-03-4-M3AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: AC200V
AG44-03-4-M3AFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC12V
AG44-03-4-M3AFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC24V
AG44-03-4-M3AFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC48V
AG44-03-4-M3AFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Open frame, lead wire | Voltage: DC100V
AG44-03-4-M3IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC100V
AG44-03-4-M3IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: AC200V
AG44-03-4-M3IFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC12V
AG44-03-4-M3IFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC24V
AG44-03-4-M3IFP2-DC48VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC48V
AG44-03-4-M3IFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box | Voltage: DC100V
AG44-03-4-M3JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC100V
AG44-03-4-M3JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: AC200V
AG44-03-4-M3JFP2-DC12VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC12V
AG44-03-4-M3JFP2-DC24VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC24V
AG44-03-4-M3JFP2-DC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: HP terminal box w/ lamp | Voltage: DC100V
AG44-03-4-M4AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC100V
AG44-03-4-M4AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, lead wire | Voltage: AC200V
AG44-03-4-M4MFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC100V
AG44-03-4-M4MFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP terminal box | Voltage: AC200V
AG44-03-4-M4NFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC100V
AG44-03-4-M4NFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Class H, HP box w/ lamp | Voltage: AC200V
AG44-03-4-M5AFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC100V
AG44-03-4-M5AFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, lead wire | Voltage: AC200V
AG44-03-4-M5IFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC100V
AG44-03-4-M5IFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode built-in, HP box | Voltage: AC200V
AG44-03-4-M5JFP2-AC100VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC100V
AG44-03-4-M5JFP2-AC200VModel: AG44 | Port: Rc3/8 | Orifice: 3.0 mm | Coil housing: Diode, HP box w/ lamp | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
