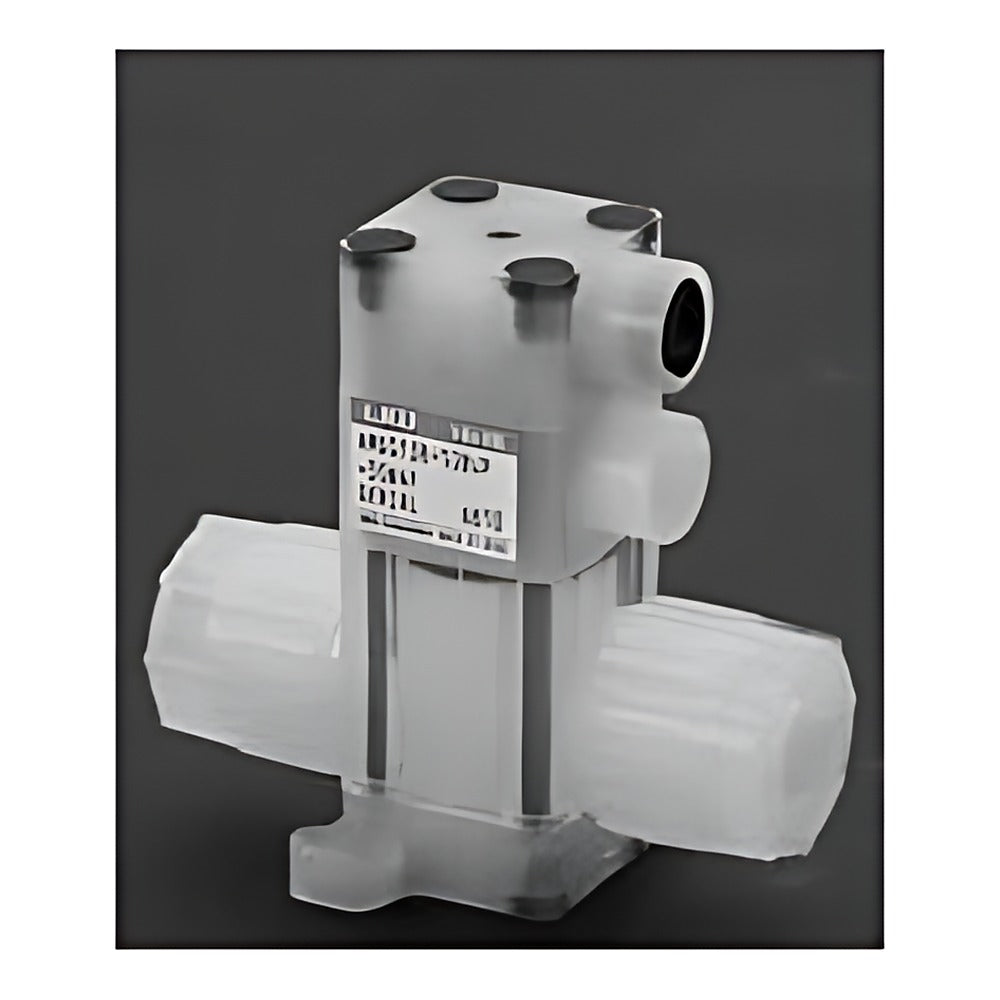

CKD AMD0*3R Air Operated Valve for Chemicals (Orifice 3.5-8 mm)

CKD AMD0*3R air-operated 2-port diaphragm valve for chemicals and pure water with integrated fittings, OD6 to OD10 / 1/4 to 3/8 in tube, orifice 3.5 to 8 mm.

Key features

Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
Wide chemical compatibility (acids and alkalis); operating pressure range A-B and B-A 0.5 MPa
Actuator options 00 ON-OFF with indicator or 10 with flow adjustment
Three mounting methods: F flange, H 4-point flange, X bottom; pilot port direction 1-4
Order example: AMD013R-10UP-00N4F; PTFE body (UR) is made to order

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure	1.0 MPa
Operating pressure A-B / B-A	0-0.5 MPa
Seat leakage	0 (water)
Back pressure	0-0.5 MPa
Pilot port	Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure	NC/NO 0.35-0.5 MPa, double 0.3-0.4 MPa
Cv	0.28 (3.5) / 0.34 (4) / 0.64 (6) / 0.7 (7) / 0.8 (8)
Mass	0.10 kg
Source	CKD Korea catalog CB-03-1SK-9, p. 1170-1173

AMD013R-6UP-00N4F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-6UP-00N4H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-6UP-00N4X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-6UP-00N1F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-6UP-00N1H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-6UP-00N1X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-6UP-00N2F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-6UP-00N2H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-6UP-00N2X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-6UP-00N3F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-6UP-00N3H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-6UP-00N3X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-6UP-10N4F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-6UP-10N4H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-6UP-10N4X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-6UP-10N1F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-6UP-10N1H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-6UP-10N1X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-6UP-10N2F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-6UP-10N2H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-6UP-10N2X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-6UP-10N3F		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-6UP-10N3H		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-6UP-10N3X		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8BUP-00N4F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8BUP-00N4H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8BUP-00N4X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8BUP-00N1F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8BUP-00N1H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8BUP-00N1X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8BUP-00N2F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8BUP-00N2H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8BUP-00N2X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8BUP-00N3F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8BUP-00N3H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8BUP-00N3X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8BUP-10N4F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8BUP-10N4H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8BUP-10N4X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8BUP-10N1F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8BUP-10N1H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8BUP-10N1X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8BUP-10N2F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8BUP-10N2H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8BUP-10N2X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8BUP-10N3F		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8BUP-10N3H		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8BUP-10N3X		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8UP-00N4F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8UP-00N4H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8UP-00N4X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8UP-00N1F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8UP-00N1H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8UP-00N1X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8UP-00N2F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8UP-00N2H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8UP-00N2X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8UP-00N3F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8UP-00N3H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8UP-00N3X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8UP-10N4F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8UP-10N4H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8UP-10N4X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8UP-10N1F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8UP-10N1H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8UP-10N1X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8UP-10N2F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8UP-10N2H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8UP-10N2X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8UP-10N3F		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8UP-10N3H		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8UP-10N3X		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10UP-00N4F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10UP-00N4H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10UP-00N4X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10UP-00N1F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10UP-00N1H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10UP-00N1X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10UP-00N2F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10UP-00N2H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10UP-00N2X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10UP-00N3F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10UP-00N3H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10UP-00N3X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10UP-10N4F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10UP-10N4H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10UP-10N4X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10UP-10N1F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10UP-10N1H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10UP-10N1X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10UP-10N2F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10UP-10N2H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10UP-10N2X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10UP-10N3F		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10UP-10N3H		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10UP-10N3X		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10BUP-00N4F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10BUP-00N4H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10BUP-00N4X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10BUP-00N1F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10BUP-00N1H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10BUP-00N1X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10BUP-00N2F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10BUP-00N2H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10BUP-00N2X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10BUP-00N3F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10BUP-00N3H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10BUP-00N3X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10BUP-10N4F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10BUP-10N4H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10BUP-10N4X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10BUP-10N1F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10BUP-10N1H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10BUP-10N1X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10BUP-10N2F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10BUP-10N2H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10BUP-10N2X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10BUP-10N3F		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10BUP-10N3H		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10BUP-10N3X		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-6UR-00N4F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-6UR-00N4H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-6UR-00N4X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-6UR-00N1F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-6UR-00N1H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-6UR-00N1X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-6UR-00N2F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-6UR-00N2H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-6UR-00N2X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-6UR-00N3F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-6UR-00N3H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-6UR-00N3X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-6UR-10N4F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-6UR-10N4H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-6UR-10N4X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-6UR-10N1F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-6UR-10N1H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-6UR-10N1X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-6UR-10N2F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-6UR-10N2H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-6UR-10N2X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-6UR-10N3F		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-6UR-10N3H		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-6UR-10N3X		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8BUR-00N4F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8BUR-00N4H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8BUR-00N4X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8BUR-00N1F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8BUR-00N1H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8BUR-00N1X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8BUR-00N2F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8BUR-00N2H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8BUR-00N2X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8BUR-00N3F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8BUR-00N3H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8BUR-00N3X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8BUR-10N4F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8BUR-10N4H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8BUR-10N4X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8BUR-10N1F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8BUR-10N1H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8BUR-10N1X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8BUR-10N2F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8BUR-10N2H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8BUR-10N2X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8BUR-10N3F		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8BUR-10N3H		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8BUR-10N3X		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8UR-00N4F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8UR-00N4H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8UR-00N4X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8UR-00N1F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8UR-00N1H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8UR-00N1X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8UR-00N2F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8UR-00N2H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8UR-00N2X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8UR-00N3F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8UR-00N3H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8UR-00N3X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-8UR-10N4F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-8UR-10N4H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-8UR-10N4X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-8UR-10N1F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-8UR-10N1H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-8UR-10N1X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-8UR-10N2F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-8UR-10N2H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-8UR-10N2X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-8UR-10N3F		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-8UR-10N3H		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-8UR-10N3X		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10UR-00N4F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10UR-00N4H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10UR-00N4X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10UR-00N1F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10UR-00N1H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10UR-00N1X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10UR-00N2F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10UR-00N2H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10UR-00N2X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10UR-00N3F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10UR-00N3H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10UR-00N3X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10UR-10N4F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10UR-10N4H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10UR-10N4X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10UR-10N1F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10UR-10N1H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10UR-10N1X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10UR-10N2F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10UR-10N2H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10UR-10N2X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10UR-10N3F		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10UR-10N3H		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10UR-10N3X		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10BUR-00N4F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10BUR-00N4H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10BUR-00N4X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10BUR-00N1F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10BUR-00N1H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10BUR-00N1X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10BUR-00N2F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10BUR-00N2H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10BUR-00N2X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10BUR-00N3F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10BUR-00N3H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10BUR-00N3X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD013R-10BUR-10N4F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD013R-10BUR-10N4H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD013R-10BUR-10N4X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD013R-10BUR-10N1F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD013R-10BUR-10N1H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD013R-10BUR-10N1X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD013R-10BUR-10N2F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD013R-10BUR-10N2H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD013R-10BUR-10N2X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD013R-10BUR-10N3F		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD013R-10BUR-10N3H		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD013R-10BUR-10N3X		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-6UP-00N4F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-6UP-00N4H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-6UP-00N4X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-6UP-00N1F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-6UP-00N1H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-6UP-00N1X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-6UP-00N2F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-6UP-00N2H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-6UP-00N2X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-6UP-00N3F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-6UP-00N3H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-6UP-00N3X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-6UP-10N4F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-6UP-10N4H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-6UP-10N4X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-6UP-10N1F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-6UP-10N1H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-6UP-10N1X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-6UP-10N2F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-6UP-10N2H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-6UP-10N2X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-6UP-10N3F		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-6UP-10N3H		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-6UP-10N3X		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8BUP-00N4F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8BUP-00N4H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8BUP-00N4X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8BUP-00N1F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8BUP-00N1H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8BUP-00N1X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8BUP-00N2F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8BUP-00N2H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8BUP-00N2X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8BUP-00N3F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8BUP-00N3H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8BUP-00N3X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8BUP-10N4F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8BUP-10N4H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8BUP-10N4X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8BUP-10N1F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8BUP-10N1H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8BUP-10N1X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8BUP-10N2F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8BUP-10N2H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8BUP-10N2X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8BUP-10N3F		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8BUP-10N3H		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8BUP-10N3X		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8UP-00N4F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8UP-00N4H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8UP-00N4X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8UP-00N1F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8UP-00N1H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8UP-00N1X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8UP-00N2F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8UP-00N2H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8UP-00N2X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8UP-00N3F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8UP-00N3H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8UP-00N3X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8UP-10N4F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8UP-10N4H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8UP-10N4X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8UP-10N1F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8UP-10N1H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8UP-10N1X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8UP-10N2F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8UP-10N2H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8UP-10N2X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8UP-10N3F		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8UP-10N3H		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8UP-10N3X		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10UP-00N4F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10UP-00N4H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10UP-00N4X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10UP-00N1F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10UP-00N1H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10UP-00N1X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10UP-00N2F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10UP-00N2H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10UP-00N2X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10UP-00N3F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10UP-00N3H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10UP-00N3X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10UP-10N4F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10UP-10N4H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10UP-10N4X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10UP-10N1F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10UP-10N1H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10UP-10N1X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10UP-10N2F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10UP-10N2H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10UP-10N2X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10UP-10N3F		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10UP-10N3H		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10UP-10N3X		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10BUP-00N4F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10BUP-00N4H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10BUP-00N4X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10BUP-00N1F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10BUP-00N1H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10BUP-00N1X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10BUP-00N2F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10BUP-00N2H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10BUP-00N2X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10BUP-00N3F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10BUP-00N3H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10BUP-00N3X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10BUP-10N4F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10BUP-10N4H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10BUP-10N4X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10BUP-10N1F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10BUP-10N1H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10BUP-10N1X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10BUP-10N2F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10BUP-10N2H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10BUP-10N2X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10BUP-10N3F		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10BUP-10N3H		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10BUP-10N3X		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-6UR-00N4F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-6UR-00N4H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-6UR-00N4X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-6UR-00N1F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-6UR-00N1H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-6UR-00N1X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-6UR-00N2F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-6UR-00N2H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-6UR-00N2X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-6UR-00N3F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-6UR-00N3H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-6UR-00N3X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-6UR-10N4F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-6UR-10N4H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-6UR-10N4X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-6UR-10N1F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-6UR-10N1H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-6UR-10N1X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-6UR-10N2F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-6UR-10N2H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-6UR-10N2X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-6UR-10N3F		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-6UR-10N3H		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-6UR-10N3X		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8BUR-00N4F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8BUR-00N4H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8BUR-00N4X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8BUR-00N1F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8BUR-00N1H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8BUR-00N1X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8BUR-00N2F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8BUR-00N2H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8BUR-00N2X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8BUR-00N3F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8BUR-00N3H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8BUR-00N3X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8BUR-10N4F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8BUR-10N4H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8BUR-10N4X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8BUR-10N1F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8BUR-10N1H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8BUR-10N1X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8BUR-10N2F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8BUR-10N2H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8BUR-10N2X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8BUR-10N3F		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8BUR-10N3H		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8BUR-10N3X		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8UR-00N4F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8UR-00N4H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8UR-00N4X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8UR-00N1F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8UR-00N1H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8UR-00N1X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8UR-00N2F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8UR-00N2H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8UR-00N2X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8UR-00N3F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8UR-00N3H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8UR-00N3X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-8UR-10N4F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-8UR-10N4H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-8UR-10N4X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-8UR-10N1F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-8UR-10N1H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-8UR-10N1X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-8UR-10N2F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-8UR-10N2H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-8UR-10N2X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-8UR-10N3F		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-8UR-10N3H		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-8UR-10N3X		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10UR-00N4F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10UR-00N4H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10UR-00N4X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10UR-00N1F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10UR-00N1H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10UR-00N1X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10UR-00N2F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10UR-00N2H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10UR-00N2X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10UR-00N3F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10UR-00N3H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10UR-00N3X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10UR-10N4F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10UR-10N4H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10UR-10N4X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10UR-10N1F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10UR-10N1H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10UR-10N1X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10UR-10N2F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10UR-10N2H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10UR-10N2X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10UR-10N3F		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10UR-10N3H		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10UR-10N3X		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10BUR-00N4F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10BUR-00N4H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10BUR-00N4X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10BUR-00N1F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10BUR-00N1H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10BUR-00N1X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10BUR-00N2F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10BUR-00N2H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10BUR-00N2X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10BUR-00N3F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10BUR-00N3H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10BUR-00N3X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD023R-10BUR-10N4F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD023R-10BUR-10N4H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD023R-10BUR-10N4X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD023R-10BUR-10N1F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD023R-10BUR-10N1H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD023R-10BUR-10N1X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD023R-10BUR-10N2F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD023R-10BUR-10N2H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD023R-10BUR-10N2X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD023R-10BUR-10N3F		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD023R-10BUR-10N3H		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD023R-10BUR-10N3X		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-6UP-00N4F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-6UP-00N4H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-6UP-00N4X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-6UP-00N1F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-6UP-00N1H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-6UP-00N1X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-6UP-00N2F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-6UP-00N2H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-6UP-00N2X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-6UP-00N3F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-6UP-00N3H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-6UP-00N3X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-6UP-10N4F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-6UP-10N4H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-6UP-10N4X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-6UP-10N1F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-6UP-10N1H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-6UP-10N1X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-6UP-10N2F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-6UP-10N2H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-6UP-10N2X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-6UP-10N3F		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-6UP-10N3H		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-6UP-10N3X		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8BUP-00N4F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8BUP-00N4H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8BUP-00N4X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8BUP-00N1F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8BUP-00N1H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8BUP-00N1X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8BUP-00N2F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8BUP-00N2H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8BUP-00N2X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8BUP-00N3F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8BUP-00N3H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8BUP-00N3X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8BUP-10N4F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8BUP-10N4H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8BUP-10N4X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8BUP-10N1F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8BUP-10N1H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8BUP-10N1X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8BUP-10N2F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8BUP-10N2H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8BUP-10N2X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8BUP-10N3F		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8BUP-10N3H		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8BUP-10N3X		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8UP-00N4F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8UP-00N4H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8UP-00N4X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8UP-00N1F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8UP-00N1H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8UP-00N1X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8UP-00N2F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8UP-00N2H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8UP-00N2X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8UP-00N3F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8UP-00N3H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8UP-00N3X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8UP-10N4F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8UP-10N4H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8UP-10N4X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8UP-10N1F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8UP-10N1H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8UP-10N1X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8UP-10N2F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8UP-10N2H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8UP-10N2X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8UP-10N3F		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8UP-10N3H		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8UP-10N3X		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10UP-00N4F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10UP-00N4H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10UP-00N4X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10UP-00N1F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10UP-00N1H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10UP-00N1X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10UP-00N2F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10UP-00N2H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10UP-00N2X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10UP-00N3F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10UP-00N3H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10UP-00N3X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10UP-10N4F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10UP-10N4H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10UP-10N4X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10UP-10N1F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10UP-10N1H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10UP-10N1X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10UP-10N2F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10UP-10N2H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10UP-10N2X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10UP-10N3F		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10UP-10N3H		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10UP-10N3X		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10BUP-00N4F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10BUP-00N4H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10BUP-00N4X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10BUP-00N1F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10BUP-00N1H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10BUP-00N1X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10BUP-00N2F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10BUP-00N2H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10BUP-00N2X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10BUP-00N3F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10BUP-00N3H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10BUP-00N3X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10BUP-10N4F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10BUP-10N4H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10BUP-10N4X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10BUP-10N1F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10BUP-10N1H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10BUP-10N1X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10BUP-10N2F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10BUP-10N2H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10BUP-10N2X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10BUP-10N3F		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10BUP-10N3H		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10BUP-10N3X		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-6UR-00N4F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-6UR-00N4H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-6UR-00N4X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-6UR-00N1F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-6UR-00N1H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-6UR-00N1X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-6UR-00N2F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-6UR-00N2H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-6UR-00N2X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-6UR-00N3F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-6UR-00N3H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-6UR-00N3X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-6UR-10N4F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-6UR-10N4H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-6UR-10N4X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-6UR-10N1F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-6UR-10N1H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-6UR-10N1X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-6UR-10N2F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-6UR-10N2H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-6UR-10N2X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-6UR-10N3F		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-6UR-10N3H		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-6UR-10N3X		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8BUR-00N4F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8BUR-00N4H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8BUR-00N4X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8BUR-00N1F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8BUR-00N1H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8BUR-00N1X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8BUR-00N2F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8BUR-00N2H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8BUR-00N2X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8BUR-00N3F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8BUR-00N3H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8BUR-00N3X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8BUR-10N4F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8BUR-10N4H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8BUR-10N4X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8BUR-10N1F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8BUR-10N1H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8BUR-10N1X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8BUR-10N2F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8BUR-10N2H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8BUR-10N2X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8BUR-10N3F		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8BUR-10N3H		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8BUR-10N3X		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8UR-00N4F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8UR-00N4H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8UR-00N4X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8UR-00N1F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8UR-00N1H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8UR-00N1X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8UR-00N2F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8UR-00N2H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8UR-00N2X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8UR-00N3F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8UR-00N3H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8UR-00N3X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-8UR-10N4F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-8UR-10N4H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-8UR-10N4X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-8UR-10N1F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-8UR-10N1H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-8UR-10N1X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-8UR-10N2F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-8UR-10N2H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-8UR-10N2X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-8UR-10N3F		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-8UR-10N3H		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-8UR-10N3X		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10UR-00N4F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10UR-00N4H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10UR-00N4X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10UR-00N1F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10UR-00N1H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10UR-00N1X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10UR-00N2F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10UR-00N2H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10UR-00N2X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10UR-00N3F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10UR-00N3H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10UR-00N3X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10UR-10N4F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10UR-10N4H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10UR-10N4X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10UR-10N1F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10UR-10N1H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10UR-10N1X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10UR-10N2F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10UR-10N2H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10UR-10N2X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10UR-10N3F		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10UR-10N3H		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10UR-10N3X		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10BUR-00N4F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10BUR-00N4H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10BUR-00N4X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10BUR-00N1F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10BUR-00N1H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10BUR-00N1X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10BUR-00N2F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10BUR-00N2H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10BUR-00N2X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10BUR-00N3F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10BUR-00N3H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10BUR-00N3X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD033R-10BUR-10N4F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD033R-10BUR-10N4H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD033R-10BUR-10N4X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD033R-10BUR-10N1F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD033R-10BUR-10N1H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD033R-10BUR-10N1X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD033R-10BUR-10N2F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD033R-10BUR-10N2H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD033R-10BUR-10N2X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD033R-10BUR-10N3F		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD033R-10BUR-10N3H		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD033R-10BUR-10N3X		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount

Air Operated ValvesCKD

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMD0*3R Air Operated Valve for Chemicals (Orifice 3.5-8 mm)

Brand CKD·Air Operated Valves

Available part numbers (720)

AMD013R-6UP-00N4F, AMD013R-6UP-00N4H, AMD013R-6UP-00N4X, AMD013R-6UP-00N1F, AMD013R-6UP-00N1H, AMD013R-6UP-00N1X, AMD013R-6UP-00N2F, AMD013R-6UP-00N2H, AMD013R-6UP-00N2X, AMD013R-6UP-00N3F + 710 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMD013R-6UP-00N4F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-6UP-00N4H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-6UP-00N4X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-6UP-00N1F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-6UP-00N1H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-6UP-00N1X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-6UP-00N2F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-6UP-00N2H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-6UP-00N2X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-6UP-00N3F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-6UP-00N3H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-6UP-00N3X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-6UP-10N4F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-6UP-10N4H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-6UP-10N4X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-6UP-10N1F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-6UP-10N1H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-6UP-10N1X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-6UP-10N2F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-6UP-10N2H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-6UP-10N2X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-6UP-10N3F	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-6UP-10N3H	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-6UP-10N3X	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8BUP-00N4F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8BUP-00N4H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8BUP-00N4X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8BUP-00N1F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8BUP-00N1H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8BUP-00N1X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8BUP-00N2F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8BUP-00N2H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8BUP-00N2X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8BUP-00N3F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8BUP-00N3H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8BUP-00N3X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8BUP-10N4F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8BUP-10N4H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8BUP-10N4X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8BUP-10N1F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8BUP-10N1H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8BUP-10N1X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8BUP-10N2F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8BUP-10N2H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8BUP-10N2X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8BUP-10N3F	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8BUP-10N3H	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8BUP-10N3X	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8UP-00N4F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8UP-00N4H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8UP-00N4X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8UP-00N1F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8UP-00N1H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8UP-00N1X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8UP-00N2F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8UP-00N2H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8UP-00N2X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8UP-00N3F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8UP-00N3H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8UP-00N3X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8UP-10N4F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8UP-10N4H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8UP-10N4X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8UP-10N1F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8UP-10N1H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8UP-10N1X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8UP-10N2F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8UP-10N2H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8UP-10N2X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8UP-10N3F	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8UP-10N3H	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8UP-10N3X	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10UP-00N4F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10UP-00N4H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10UP-00N4X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10UP-00N1F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10UP-00N1H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10UP-00N1X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10UP-00N2F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10UP-00N2H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10UP-00N2X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10UP-00N3F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10UP-00N3H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10UP-00N3X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10UP-10N4F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10UP-10N4H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10UP-10N4X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10UP-10N1F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10UP-10N1H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10UP-10N1X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10UP-10N2F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10UP-10N2H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10UP-10N2X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10UP-10N3F	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10UP-10N3H	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10UP-10N3X	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10BUP-00N4F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10BUP-00N4H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10BUP-00N4X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10BUP-00N1F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10BUP-00N1H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10BUP-00N1X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10BUP-00N2F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10BUP-00N2H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10BUP-00N2X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10BUP-00N3F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10BUP-00N3H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10BUP-00N3X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10BUP-10N4F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10BUP-10N4H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10BUP-10N4X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10BUP-10N1F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10BUP-10N1H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10BUP-10N1X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10BUP-10N2F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10BUP-10N2H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10BUP-10N2X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10BUP-10N3F	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10BUP-10N3H	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10BUP-10N3X	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-6UR-00N4F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-6UR-00N4H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-6UR-00N4X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-6UR-00N1F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-6UR-00N1H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-6UR-00N1X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-6UR-00N2F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-6UR-00N2H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-6UR-00N2X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-6UR-00N3F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-6UR-00N3H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-6UR-00N3X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-6UR-10N4F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-6UR-10N4H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-6UR-10N4X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-6UR-10N1F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-6UR-10N1H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-6UR-10N1X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-6UR-10N2F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-6UR-10N2H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-6UR-10N2X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-6UR-10N3F	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-6UR-10N3H	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-6UR-10N3X	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8BUR-00N4F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8BUR-00N4H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8BUR-00N4X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8BUR-00N1F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8BUR-00N1H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8BUR-00N1X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8BUR-00N2F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8BUR-00N2H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8BUR-00N2X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8BUR-00N3F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8BUR-00N3H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8BUR-00N3X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8BUR-10N4F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8BUR-10N4H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8BUR-10N4X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8BUR-10N1F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8BUR-10N1H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8BUR-10N1X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8BUR-10N2F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8BUR-10N2H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8BUR-10N2X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8BUR-10N3F	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8BUR-10N3H	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8BUR-10N3X	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8UR-00N4F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8UR-00N4H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8UR-00N4X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8UR-00N1F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8UR-00N1H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8UR-00N1X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8UR-00N2F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8UR-00N2H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8UR-00N2X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8UR-00N3F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8UR-00N3H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8UR-00N3X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-8UR-10N4F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-8UR-10N4H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-8UR-10N4X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-8UR-10N1F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-8UR-10N1H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-8UR-10N1X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-8UR-10N2F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-8UR-10N2H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-8UR-10N2X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-8UR-10N3F	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-8UR-10N3H	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-8UR-10N3X	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10UR-00N4F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10UR-00N4H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10UR-00N4X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10UR-00N1F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10UR-00N1H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10UR-00N1X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10UR-00N2F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10UR-00N2H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10UR-00N2X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10UR-00N3F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10UR-00N3H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10UR-00N3X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10UR-10N4F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10UR-10N4H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10UR-10N4X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10UR-10N1F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10UR-10N1H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10UR-10N1X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10UR-10N2F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10UR-10N2H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10UR-10N2X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10UR-10N3F	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10UR-10N3H	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10UR-10N3X	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10BUR-00N4F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10BUR-00N4H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10BUR-00N4X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10BUR-00N1F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10BUR-00N1H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10BUR-00N1X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10BUR-00N2F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10BUR-00N2H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10BUR-00N2X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10BUR-00N3F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10BUR-00N3H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10BUR-00N3X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD013R-10BUR-10N4F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD013R-10BUR-10N4H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD013R-10BUR-10N4X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD013R-10BUR-10N1F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD013R-10BUR-10N1H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD013R-10BUR-10N1X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD013R-10BUR-10N2F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD013R-10BUR-10N2H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD013R-10BUR-10N2X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD013R-10BUR-10N3F	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD013R-10BUR-10N3H	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD013R-10BUR-10N3X	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-6UP-00N4F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-6UP-00N4H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-6UP-00N4X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-6UP-00N1F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-6UP-00N1H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-6UP-00N1X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-6UP-00N2F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-6UP-00N2H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-6UP-00N2X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-6UP-00N3F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-6UP-00N3H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-6UP-00N3X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-6UP-10N4F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-6UP-10N4H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-6UP-10N4X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-6UP-10N1F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-6UP-10N1H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-6UP-10N1X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-6UP-10N2F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-6UP-10N2H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-6UP-10N2X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-6UP-10N3F	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-6UP-10N3H	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-6UP-10N3X	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8BUP-00N4F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8BUP-00N4H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8BUP-00N4X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8BUP-00N1F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8BUP-00N1H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8BUP-00N1X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8BUP-00N2F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8BUP-00N2H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8BUP-00N2X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8BUP-00N3F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8BUP-00N3H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8BUP-00N3X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8BUP-10N4F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8BUP-10N4H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8BUP-10N4X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8BUP-10N1F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8BUP-10N1H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8BUP-10N1X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8BUP-10N2F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8BUP-10N2H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8BUP-10N2X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8BUP-10N3F	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8BUP-10N3H	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8BUP-10N3X	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8UP-00N4F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8UP-00N4H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8UP-00N4X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8UP-00N1F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8UP-00N1H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8UP-00N1X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8UP-00N2F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8UP-00N2H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8UP-00N2X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8UP-00N3F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8UP-00N3H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8UP-00N3X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8UP-10N4F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8UP-10N4H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8UP-10N4X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8UP-10N1F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8UP-10N1H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8UP-10N1X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8UP-10N2F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8UP-10N2H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8UP-10N2X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8UP-10N3F	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8UP-10N3H	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8UP-10N3X	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10UP-00N4F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10UP-00N4H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10UP-00N4X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10UP-00N1F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10UP-00N1H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10UP-00N1X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10UP-00N2F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10UP-00N2H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10UP-00N2X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10UP-00N3F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10UP-00N3H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10UP-00N3X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10UP-10N4F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10UP-10N4H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10UP-10N4X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10UP-10N1F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10UP-10N1H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10UP-10N1X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10UP-10N2F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10UP-10N2H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10UP-10N2X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10UP-10N3F	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10UP-10N3H	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10UP-10N3X	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10BUP-00N4F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10BUP-00N4H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10BUP-00N4X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10BUP-00N1F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10BUP-00N1H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10BUP-00N1X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10BUP-00N2F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10BUP-00N2H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10BUP-00N2X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10BUP-00N3F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10BUP-00N3H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10BUP-00N3X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10BUP-10N4F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10BUP-10N4H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10BUP-10N4X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10BUP-10N1F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10BUP-10N1H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10BUP-10N1X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10BUP-10N2F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10BUP-10N2H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10BUP-10N2X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10BUP-10N3F	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10BUP-10N3H	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10BUP-10N3X	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-6UR-00N4F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-6UR-00N4H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-6UR-00N4X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-6UR-00N1F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-6UR-00N1H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-6UR-00N1X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-6UR-00N2F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-6UR-00N2H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-6UR-00N2X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-6UR-00N3F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-6UR-00N3H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-6UR-00N3X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-6UR-10N4F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-6UR-10N4H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-6UR-10N4X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-6UR-10N1F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-6UR-10N1H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-6UR-10N1X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-6UR-10N2F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-6UR-10N2H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-6UR-10N2X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-6UR-10N3F	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-6UR-10N3H	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-6UR-10N3X	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8BUR-00N4F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8BUR-00N4H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8BUR-00N4X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8BUR-00N1F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8BUR-00N1H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8BUR-00N1X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8BUR-00N2F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8BUR-00N2H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8BUR-00N2X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8BUR-00N3F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8BUR-00N3H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8BUR-00N3X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8BUR-10N4F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8BUR-10N4H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8BUR-10N4X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8BUR-10N1F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8BUR-10N1H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8BUR-10N1X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8BUR-10N2F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8BUR-10N2H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8BUR-10N2X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8BUR-10N3F	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8BUR-10N3H	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8BUR-10N3X	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8UR-00N4F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8UR-00N4H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8UR-00N4X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8UR-00N1F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8UR-00N1H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8UR-00N1X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8UR-00N2F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8UR-00N2H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8UR-00N2X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8UR-00N3F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8UR-00N3H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8UR-00N3X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-8UR-10N4F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-8UR-10N4H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-8UR-10N4X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-8UR-10N1F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-8UR-10N1H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-8UR-10N1X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-8UR-10N2F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-8UR-10N2H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-8UR-10N2X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-8UR-10N3F	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-8UR-10N3H	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-8UR-10N3X	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10UR-00N4F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10UR-00N4H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10UR-00N4X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10UR-00N1F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10UR-00N1H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10UR-00N1X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10UR-00N2F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10UR-00N2H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10UR-00N2X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10UR-00N3F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10UR-00N3H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10UR-00N3X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10UR-10N4F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10UR-10N4H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10UR-10N4X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10UR-10N1F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10UR-10N1H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10UR-10N1X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10UR-10N2F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10UR-10N2H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10UR-10N2X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10UR-10N3F	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10UR-10N3H	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10UR-10N3X	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10BUR-00N4F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10BUR-00N4H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10BUR-00N4X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10BUR-00N1F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10BUR-00N1H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10BUR-00N1X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10BUR-00N2F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10BUR-00N2H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10BUR-00N2X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10BUR-00N3F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10BUR-00N3H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10BUR-00N3X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD023R-10BUR-10N4F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD023R-10BUR-10N4H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD023R-10BUR-10N4X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD023R-10BUR-10N1F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD023R-10BUR-10N1H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD023R-10BUR-10N1X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD023R-10BUR-10N2F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD023R-10BUR-10N2H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD023R-10BUR-10N2X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD023R-10BUR-10N3F	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD023R-10BUR-10N3H	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD023R-10BUR-10N3X	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-6UP-00N4F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-6UP-00N4H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-6UP-00N4X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-6UP-00N1F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-6UP-00N1H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-6UP-00N1X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-6UP-00N2F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-6UP-00N2H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-6UP-00N2X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-6UP-00N3F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-6UP-00N3H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-6UP-00N3X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-6UP-10N4F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-6UP-10N4H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-6UP-10N4X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-6UP-10N1F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-6UP-10N1H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-6UP-10N1X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-6UP-10N2F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-6UP-10N2H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-6UP-10N2X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-6UP-10N3F	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-6UP-10N3H	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-6UP-10N3X	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8BUP-00N4F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8BUP-00N4H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8BUP-00N4X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8BUP-00N1F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8BUP-00N1H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8BUP-00N1X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8BUP-00N2F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8BUP-00N2H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8BUP-00N2X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8BUP-00N3F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8BUP-00N3H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8BUP-00N3X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8BUP-10N4F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8BUP-10N4H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8BUP-10N4X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8BUP-10N1F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8BUP-10N1H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8BUP-10N1X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8BUP-10N2F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8BUP-10N2H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8BUP-10N2X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8BUP-10N3F	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8BUP-10N3H	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8BUP-10N3X	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8UP-00N4F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8UP-00N4H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8UP-00N4X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8UP-00N1F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8UP-00N1H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8UP-00N1X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8UP-00N2F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8UP-00N2H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8UP-00N2X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8UP-00N3F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8UP-00N3H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8UP-00N3X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8UP-10N4F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8UP-10N4H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8UP-10N4X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8UP-10N1F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8UP-10N1H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8UP-10N1X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8UP-10N2F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8UP-10N2H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8UP-10N2X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8UP-10N3F	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8UP-10N3H	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8UP-10N3X	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10UP-00N4F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10UP-00N4H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10UP-00N4X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10UP-00N1F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10UP-00N1H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10UP-00N1X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10UP-00N2F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10UP-00N2H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10UP-00N2X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10UP-00N3F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10UP-00N3H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10UP-00N3X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10UP-10N4F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10UP-10N4H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10UP-10N4X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10UP-10N1F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10UP-10N1H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10UP-10N1X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10UP-10N2F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10UP-10N2H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10UP-10N2X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10UP-10N3F	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10UP-10N3H	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10UP-10N3X	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10BUP-00N4F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10BUP-00N4H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10BUP-00N4X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10BUP-00N1F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10BUP-00N1H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10BUP-00N1X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10BUP-00N2F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10BUP-00N2H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10BUP-00N2X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10BUP-00N3F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10BUP-00N3H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10BUP-00N3X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10BUP-10N4F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10BUP-10N4H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10BUP-10N4X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10BUP-10N1F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10BUP-10N1H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10BUP-10N1X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10BUP-10N2F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10BUP-10N2H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10BUP-10N2X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10BUP-10N3F	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10BUP-10N3H	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10BUP-10N3X	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-6UR-00N4F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-6UR-00N4H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-6UR-00N4X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-6UR-00N1F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-6UR-00N1H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-6UR-00N1X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-6UR-00N2F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-6UR-00N2H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-6UR-00N2X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-6UR-00N3F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-6UR-00N3H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-6UR-00N3X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-6UR-10N4F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-6UR-10N4H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-6UR-10N4X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-6UR-10N1F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-6UR-10N1H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-6UR-10N1X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-6UR-10N2F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-6UR-10N2H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-6UR-10N2X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-6UR-10N3F	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-6UR-10N3H	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-6UR-10N3X	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8BUR-00N4F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8BUR-00N4H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8BUR-00N4X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8BUR-00N1F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8BUR-00N1H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8BUR-00N1X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8BUR-00N2F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8BUR-00N2H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8BUR-00N2X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8BUR-00N3F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8BUR-00N3H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8BUR-00N3X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8BUR-10N4F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8BUR-10N4H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8BUR-10N4X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8BUR-10N1F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8BUR-10N1H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8BUR-10N1X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8BUR-10N2F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8BUR-10N2H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8BUR-10N2X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8BUR-10N3F	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8BUR-10N3H	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8BUR-10N3X	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8UR-00N4F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8UR-00N4H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8UR-00N4X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8UR-00N1F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8UR-00N1H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8UR-00N1X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8UR-00N2F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8UR-00N2H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8UR-00N2X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8UR-00N3F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8UR-00N3H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8UR-00N3X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-8UR-10N4F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-8UR-10N4H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-8UR-10N4X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-8UR-10N1F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-8UR-10N1H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-8UR-10N1X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-8UR-10N2F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-8UR-10N2H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-8UR-10N2X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-8UR-10N3F	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-8UR-10N3H	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-8UR-10N3X	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10UR-00N4F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10UR-00N4H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10UR-00N4X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10UR-00N1F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10UR-00N1H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10UR-00N1X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10UR-00N2F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10UR-00N2H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10UR-00N2X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10UR-00N3F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10UR-00N3H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10UR-00N3X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10UR-10N4F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10UR-10N4H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10UR-10N4X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10UR-10N1F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10UR-10N1H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10UR-10N1X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10UR-10N2F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10UR-10N2H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10UR-10N2X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10UR-10N3F	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10UR-10N3H	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10UR-10N3X	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10BUR-00N4F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10BUR-00N4H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10BUR-00N4X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10BUR-00N1F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10BUR-00N1H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10BUR-00N1X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10BUR-00N2F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10BUR-00N2H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10BUR-00N2X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10BUR-00N3F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10BUR-00N3H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10BUR-00N3X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD033R-10BUR-10N4F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD033R-10BUR-10N4H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD033R-10BUR-10N4X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD033R-10BUR-10N1F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD033R-10BUR-10N1H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD033R-10BUR-10N1X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD033R-10BUR-10N2F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD033R-10BUR-10N2H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD033R-10BUR-10N2X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD033R-10BUR-10N3F	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD033R-10BUR-10N3H	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD033R-10BUR-10N3X	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AMD0*3R Air Operated Valve for Chemicals (Orifice 3.5-8 mm)
