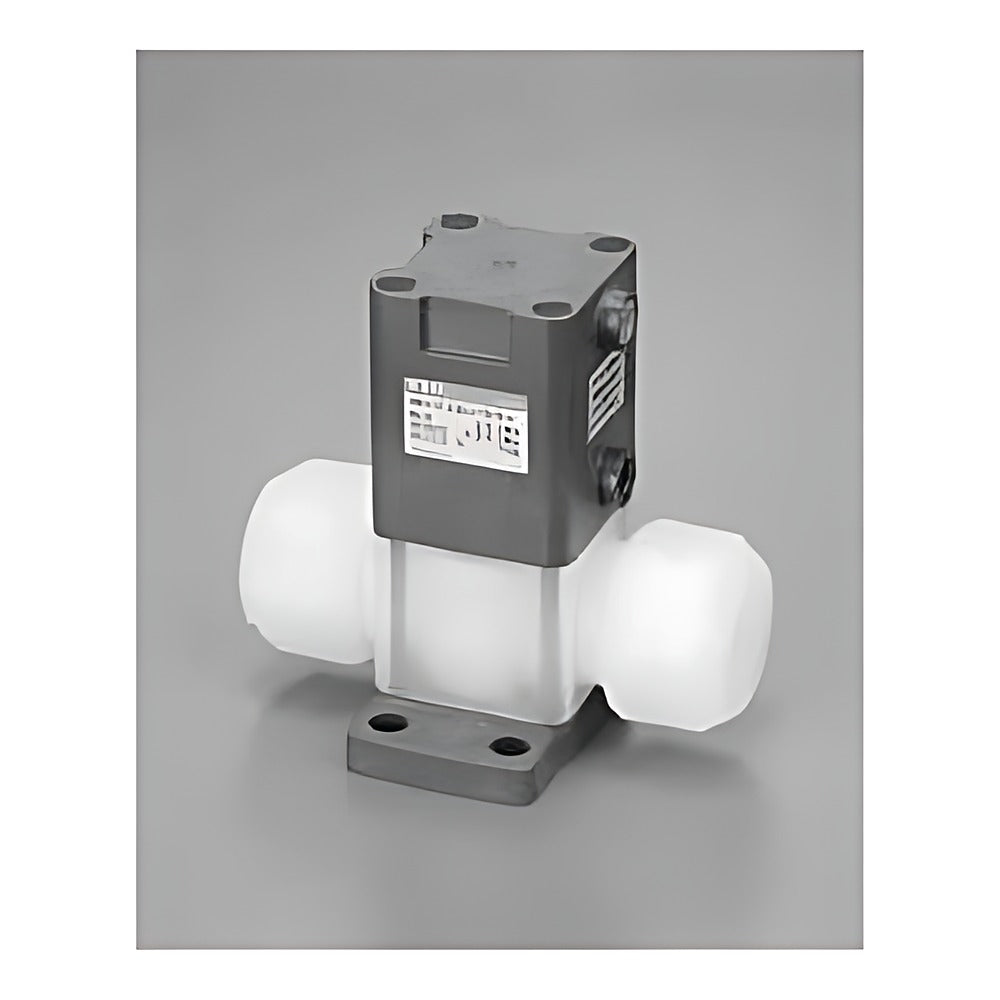

CKD AMD3*2 Chemical Air Operated Valve (Part2, 12 mm / 1/2" Tube)

CKD AMD3*2 Part2 chemical air-operated 2-port diaphragm valve with integrated fittings for OD 12 mm and 1/2" tube.

Key features

NC, NO and double-acting actuators; PFA molded or PTFE machined body (PTFE machined bodies made to order)
Options: ON-OFF (0), flow adjustment (1), bypass (2), flow adj. + bypass (3), indicator (6), bypass + indicator (7)
Integrated Super pillar, Super 300 P, F-LOCK 20A/60, Final Lock and Flare Tek fittings
Fluid symbol (M ammonia, P nitric/HF acid, Y high temp 5-160 C, E high temp PTFE body) is appended after the pilot-port direction; rows list the standard version
High-pressure versions (suffix B: both ports 0.3 MPa, Q: 0.4 MPa) and pilot-port reinforcing ring (R) are ordered as suffixes and not expanded; bottom-mount type (X) likewise

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5-90 C (high-temp versions 5-160 C)
Proof pressure	1.0 MPa
Operating pressure	A to B 0-0.3 MPa, B to A 0-0.1 MPa
Seat leakage	0 cm3/min (water pressure)
Pilot port	Rc1/8
Orifice	9.4-10 mm (Cv 1.8)
Bypass orifice	2.3 mm
Mass	0.21 kg
Model	AMD3*2
Source	CKD Korea catalog CB-031K-15, p. 72-83

AMD312-12US-10-0-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-12US-10-0-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-12US-10-0-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-12US-10-0-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-12US-10-1-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-12US-10-1-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-12US-10-1-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-12US-10-1-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-12US-10-2-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD312-12US-10-2-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD312-12US-10-2-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD312-12US-10-2-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD312-12US-10-3-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-12US-10-3-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-12US-10-3-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-12US-10-3-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-12US-10-6-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-12US-10-6-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-12US-10-6-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-12US-10-6-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-12US-10-7-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-12US-10-7-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-12US-10-7-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-12US-10-7-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUS-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUS-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUS-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUS-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUS-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUS-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUS-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUS-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUS-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUS-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUS-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUS-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUS-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUS-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUS-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUS-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUS-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUS-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUS-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUS-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUS-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUS-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUS-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUS-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-12UP-10-0-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-12UP-10-0-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-12UP-10-0-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-12UP-10-0-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-12UP-10-1-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-12UP-10-1-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-12UP-10-1-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-12UP-10-1-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-12UP-10-2-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD312-12UP-10-2-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD312-12UP-10-2-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD312-12UP-10-2-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD312-12UP-10-3-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-12UP-10-3-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-12UP-10-3-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-12UP-10-3-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-12UP-10-6-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-12UP-10-6-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-12UP-10-6-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-12UP-10-6-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-12UP-10-7-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-12UP-10-7-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-12UP-10-7-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-12UP-10-7-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUP-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUP-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUP-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUP-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUP-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUP-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUP-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUP-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUP-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUP-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUP-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUP-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUP-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUP-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUP-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUP-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUP-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUP-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUP-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUP-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUP-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUP-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUP-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUP-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-12UA-10-0-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-12UA-10-0-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-12UA-10-0-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-12UA-10-0-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-12UA-10-1-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-12UA-10-1-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-12UA-10-1-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-12UA-10-1-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-12UA-10-2-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD312-12UA-10-2-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD312-12UA-10-2-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD312-12UA-10-2-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD312-12UA-10-3-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-12UA-10-3-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-12UA-10-3-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-12UA-10-3-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-12UA-10-6-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-12UA-10-6-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-12UA-10-6-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-12UA-10-6-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-12UA-10-7-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-12UA-10-7-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-12UA-10-7-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-12UA-10-7-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUA-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUA-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUA-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUA-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUA-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUA-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUA-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUA-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUA-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUA-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUA-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUA-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUA-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUA-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUA-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUA-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUA-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUA-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUA-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUA-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUA-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUA-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUA-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUA-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-12UR-10-0-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-12UR-10-0-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-12UR-10-0-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-12UR-10-0-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-12UR-10-1-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-12UR-10-1-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-12UR-10-1-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-12UR-10-1-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-12UR-10-2-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD312-12UR-10-2-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD312-12UR-10-2-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD312-12UR-10-2-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD312-12UR-10-3-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-12UR-10-3-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-12UR-10-3-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-12UR-10-3-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-12UR-10-6-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-12UR-10-6-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-12UR-10-6-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-12UR-10-6-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-12UR-10-7-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-12UR-10-7-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-12UR-10-7-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-12UR-10-7-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUR-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUR-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUR-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUR-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUR-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUR-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUR-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUR-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUR-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUR-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUR-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUR-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUR-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUR-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUR-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUR-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUR-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUR-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUR-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUR-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUR-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUR-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUR-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUR-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-12UK-10-0-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-12UK-10-0-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-12UK-10-0-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-12UK-10-0-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-12UK-10-1-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-12UK-10-1-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-12UK-10-1-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-12UK-10-1-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-12UK-10-2-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD312-12UK-10-2-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD312-12UK-10-2-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD312-12UK-10-2-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD312-12UK-10-3-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-12UK-10-3-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-12UK-10-3-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-12UK-10-3-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-12UK-10-6-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-12UK-10-6-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-12UK-10-6-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-12UK-10-6-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-12UK-10-7-4		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-12UK-10-7-1		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-12UK-10-7-2		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-12UK-10-7-3		Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUK-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUK-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUK-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUK-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUK-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUK-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUK-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUK-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUK-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUK-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUK-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUK-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUK-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUK-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUK-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUK-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUK-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUK-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUK-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUK-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUK-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUK-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUK-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUK-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD312-15BUW-10-0-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD312-15BUW-10-0-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD312-15BUW-10-0-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD312-15BUW-10-0-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD312-15BUW-10-1-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD312-15BUW-10-1-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD312-15BUW-10-1-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD312-15BUW-10-1-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD312-15BUW-10-2-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD312-15BUW-10-2-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD312-15BUW-10-2-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD312-15BUW-10-2-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD312-15BUW-10-3-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD312-15BUW-10-3-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD312-15BUW-10-3-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD312-15BUW-10-3-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD312-15BUW-10-6-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD312-15BUW-10-6-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD312-15BUW-10-6-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD312-15BUW-10-6-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD312-15BUW-10-7-4		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD312-15BUW-10-7-1		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD312-15BUW-10-7-2		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD312-15BUW-10-7-3		Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-12US-10-0-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-12US-10-0-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-12US-10-0-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-12US-10-0-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-12US-10-1-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-12US-10-1-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-12US-10-1-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-12US-10-1-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-12US-10-2-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD322-12US-10-2-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD322-12US-10-2-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD322-12US-10-2-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD322-12US-10-3-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-12US-10-3-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-12US-10-3-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-12US-10-3-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-12US-10-6-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-12US-10-6-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-12US-10-6-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-12US-10-6-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-12US-10-7-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-12US-10-7-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-12US-10-7-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-12US-10-7-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUS-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUS-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUS-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUS-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUS-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUS-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUS-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUS-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUS-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUS-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUS-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUS-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUS-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUS-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUS-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUS-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUS-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUS-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUS-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUS-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUS-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUS-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUS-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUS-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-12UP-10-0-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-12UP-10-0-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-12UP-10-0-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-12UP-10-0-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-12UP-10-1-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-12UP-10-1-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-12UP-10-1-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-12UP-10-1-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-12UP-10-2-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD322-12UP-10-2-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD322-12UP-10-2-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD322-12UP-10-2-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD322-12UP-10-3-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-12UP-10-3-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-12UP-10-3-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-12UP-10-3-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-12UP-10-6-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-12UP-10-6-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-12UP-10-6-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-12UP-10-6-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-12UP-10-7-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-12UP-10-7-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-12UP-10-7-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-12UP-10-7-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUP-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUP-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUP-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUP-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUP-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUP-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUP-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUP-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUP-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUP-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUP-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUP-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUP-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUP-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUP-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUP-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUP-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUP-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUP-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUP-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUP-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUP-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUP-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUP-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-12UA-10-0-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-12UA-10-0-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-12UA-10-0-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-12UA-10-0-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-12UA-10-1-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-12UA-10-1-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-12UA-10-1-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-12UA-10-1-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-12UA-10-2-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD322-12UA-10-2-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD322-12UA-10-2-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD322-12UA-10-2-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD322-12UA-10-3-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-12UA-10-3-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-12UA-10-3-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-12UA-10-3-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-12UA-10-6-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-12UA-10-6-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-12UA-10-6-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-12UA-10-6-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-12UA-10-7-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-12UA-10-7-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-12UA-10-7-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-12UA-10-7-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUA-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUA-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUA-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUA-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUA-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUA-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUA-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUA-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUA-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUA-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUA-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUA-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUA-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUA-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUA-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUA-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUA-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUA-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUA-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUA-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUA-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUA-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUA-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUA-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-12UR-10-0-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-12UR-10-0-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-12UR-10-0-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-12UR-10-0-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-12UR-10-1-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-12UR-10-1-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-12UR-10-1-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-12UR-10-1-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-12UR-10-2-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD322-12UR-10-2-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD322-12UR-10-2-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD322-12UR-10-2-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD322-12UR-10-3-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-12UR-10-3-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-12UR-10-3-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-12UR-10-3-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-12UR-10-6-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-12UR-10-6-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-12UR-10-6-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-12UR-10-6-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-12UR-10-7-4		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-12UR-10-7-1		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-12UR-10-7-2		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-12UR-10-7-3		Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUR-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUR-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUR-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUR-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUR-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUR-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUR-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUR-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUR-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUR-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUR-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUR-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUR-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUR-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUR-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUR-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUR-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUR-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUR-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUR-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUR-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUR-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUR-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUR-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-12UK-10-0-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-12UK-10-0-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-12UK-10-0-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-12UK-10-0-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-12UK-10-1-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-12UK-10-1-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-12UK-10-1-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-12UK-10-1-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-12UK-10-2-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD322-12UK-10-2-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD322-12UK-10-2-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD322-12UK-10-2-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD322-12UK-10-3-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-12UK-10-3-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-12UK-10-3-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-12UK-10-3-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-12UK-10-6-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-12UK-10-6-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-12UK-10-6-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-12UK-10-6-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-12UK-10-7-4		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-12UK-10-7-1		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-12UK-10-7-2		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-12UK-10-7-3		Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUK-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUK-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUK-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUK-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUK-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUK-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUK-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUK-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUK-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUK-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUK-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUK-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUK-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUK-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUK-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUK-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUK-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUK-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUK-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUK-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUK-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUK-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUK-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUK-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD322-15BUW-10-0-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD322-15BUW-10-0-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD322-15BUW-10-0-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD322-15BUW-10-0-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD322-15BUW-10-1-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD322-15BUW-10-1-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD322-15BUW-10-1-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD322-15BUW-10-1-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD322-15BUW-10-2-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD322-15BUW-10-2-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD322-15BUW-10-2-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD322-15BUW-10-2-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD322-15BUW-10-3-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD322-15BUW-10-3-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD322-15BUW-10-3-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD322-15BUW-10-3-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD322-15BUW-10-6-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD322-15BUW-10-6-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD322-15BUW-10-6-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD322-15BUW-10-6-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD322-15BUW-10-7-4		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD322-15BUW-10-7-1		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD322-15BUW-10-7-2		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD322-15BUW-10-7-3		Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-12US-10-0-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-12US-10-0-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-12US-10-0-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-12US-10-0-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-12US-10-1-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-12US-10-1-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-12US-10-1-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-12US-10-1-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-12US-10-2-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD332-12US-10-2-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD332-12US-10-2-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD332-12US-10-2-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD332-12US-10-3-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-12US-10-3-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-12US-10-3-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-12US-10-3-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-12US-10-6-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-12US-10-6-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-12US-10-6-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-12US-10-6-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-12US-10-7-4		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-12US-10-7-1		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-12US-10-7-2		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-12US-10-7-3		Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUS-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUS-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUS-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUS-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUS-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUS-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUS-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUS-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUS-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUS-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUS-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUS-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUS-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUS-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUS-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUS-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUS-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUS-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUS-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUS-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUS-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUS-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUS-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUS-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-12UP-10-0-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-12UP-10-0-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-12UP-10-0-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-12UP-10-0-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-12UP-10-1-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-12UP-10-1-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-12UP-10-1-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-12UP-10-1-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-12UP-10-2-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD332-12UP-10-2-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD332-12UP-10-2-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD332-12UP-10-2-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD332-12UP-10-3-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-12UP-10-3-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-12UP-10-3-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-12UP-10-3-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-12UP-10-6-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-12UP-10-6-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-12UP-10-6-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-12UP-10-6-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-12UP-10-7-4		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-12UP-10-7-1		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-12UP-10-7-2		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-12UP-10-7-3		Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUP-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUP-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUP-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUP-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUP-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUP-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUP-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUP-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUP-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUP-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUP-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUP-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUP-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUP-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUP-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUP-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUP-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUP-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUP-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUP-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUP-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUP-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUP-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUP-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-12UA-10-0-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-12UA-10-0-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-12UA-10-0-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-12UA-10-0-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-12UA-10-1-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-12UA-10-1-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-12UA-10-1-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-12UA-10-1-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-12UA-10-2-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD332-12UA-10-2-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD332-12UA-10-2-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD332-12UA-10-2-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD332-12UA-10-3-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-12UA-10-3-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-12UA-10-3-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-12UA-10-3-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-12UA-10-6-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-12UA-10-6-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-12UA-10-6-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-12UA-10-6-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-12UA-10-7-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-12UA-10-7-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-12UA-10-7-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-12UA-10-7-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUA-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUA-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUA-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUA-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUA-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUA-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUA-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUA-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUA-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUA-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUA-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUA-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUA-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUA-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUA-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUA-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUA-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUA-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUA-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUA-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUA-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUA-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUA-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUA-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-12UR-10-0-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-12UR-10-0-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-12UR-10-0-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-12UR-10-0-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-12UR-10-1-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-12UR-10-1-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-12UR-10-1-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-12UR-10-1-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-12UR-10-2-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD332-12UR-10-2-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD332-12UR-10-2-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD332-12UR-10-2-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD332-12UR-10-3-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-12UR-10-3-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-12UR-10-3-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-12UR-10-3-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-12UR-10-6-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-12UR-10-6-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-12UR-10-6-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-12UR-10-6-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-12UR-10-7-4		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-12UR-10-7-1		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-12UR-10-7-2		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-12UR-10-7-3		Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUR-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUR-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUR-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUR-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUR-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUR-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUR-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUR-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUR-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUR-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUR-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUR-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUR-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUR-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUR-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUR-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUR-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUR-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUR-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUR-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUR-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUR-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUR-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUR-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-12UK-10-0-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-12UK-10-0-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-12UK-10-0-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-12UK-10-0-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-12UK-10-1-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-12UK-10-1-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-12UK-10-1-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-12UK-10-1-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-12UK-10-2-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD332-12UK-10-2-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD332-12UK-10-2-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD332-12UK-10-2-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD332-12UK-10-3-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-12UK-10-3-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-12UK-10-3-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-12UK-10-3-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-12UK-10-6-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-12UK-10-6-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-12UK-10-6-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-12UK-10-6-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-12UK-10-7-4		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-12UK-10-7-1		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-12UK-10-7-2		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-12UK-10-7-3		Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUK-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUK-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUK-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUK-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUK-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUK-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUK-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUK-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUK-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUK-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUK-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUK-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUK-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUK-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUK-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUK-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUK-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUK-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUK-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUK-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUK-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUK-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUK-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUK-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD332-15BUW-10-0-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD332-15BUW-10-0-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD332-15BUW-10-0-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD332-15BUW-10-0-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD332-15BUW-10-1-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD332-15BUW-10-1-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD332-15BUW-10-1-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD332-15BUW-10-1-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD332-15BUW-10-2-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD332-15BUW-10-2-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD332-15BUW-10-2-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD332-15BUW-10-2-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD332-15BUW-10-3-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD332-15BUW-10-3-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD332-15BUW-10-3-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD332-15BUW-10-3-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD332-15BUW-10-6-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD332-15BUW-10-6-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD332-15BUW-10-6-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD332-15BUW-10-6-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD332-15BUW-10-7-4		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD332-15BUW-10-7-1		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD332-15BUW-10-7-2		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD332-15BUW-10-7-3		Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3

Air Operated ValvesCKD

792 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMD3*2 Chemical Air Operated Valve (Part2, 12 mm / 1/2" Tube)

Brand CKD·Air Operated Valves

Available part numbers (792)

AMD312-12US-10-0-4, AMD312-12US-10-0-1, AMD312-12US-10-0-2, AMD312-12US-10-0-3, AMD312-12US-10-1-4, AMD312-12US-10-1-1, AMD312-12US-10-1-2, AMD312-12US-10-1-3, AMD312-12US-10-2-4, AMD312-12US-10-2-1 + 782 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMD312-12US-10-0-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-12US-10-0-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-12US-10-0-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-12US-10-0-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-12US-10-1-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-12US-10-1-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-12US-10-1-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-12US-10-1-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-12US-10-2-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD312-12US-10-2-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD312-12US-10-2-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD312-12US-10-2-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD312-12US-10-3-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-12US-10-3-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-12US-10-3-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-12US-10-3-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-12US-10-6-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-12US-10-6-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-12US-10-6-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-12US-10-6-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-12US-10-7-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-12US-10-7-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-12US-10-7-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-12US-10-7-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUS-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUS-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUS-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUS-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUS-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUS-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUS-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUS-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUS-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUS-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUS-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUS-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUS-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUS-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUS-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUS-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUS-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUS-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUS-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUS-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUS-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUS-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUS-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUS-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-12UP-10-0-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-12UP-10-0-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-12UP-10-0-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-12UP-10-0-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-12UP-10-1-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-12UP-10-1-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-12UP-10-1-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-12UP-10-1-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-12UP-10-2-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD312-12UP-10-2-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD312-12UP-10-2-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD312-12UP-10-2-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD312-12UP-10-3-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-12UP-10-3-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-12UP-10-3-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-12UP-10-3-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-12UP-10-6-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-12UP-10-6-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-12UP-10-6-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-12UP-10-6-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-12UP-10-7-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-12UP-10-7-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-12UP-10-7-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-12UP-10-7-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUP-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUP-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUP-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUP-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUP-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUP-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUP-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUP-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUP-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUP-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUP-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUP-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUP-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUP-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUP-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUP-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUP-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUP-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUP-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUP-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUP-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUP-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUP-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUP-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-12UA-10-0-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-12UA-10-0-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-12UA-10-0-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-12UA-10-0-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-12UA-10-1-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-12UA-10-1-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-12UA-10-1-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-12UA-10-1-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-12UA-10-2-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD312-12UA-10-2-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD312-12UA-10-2-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD312-12UA-10-2-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD312-12UA-10-3-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-12UA-10-3-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-12UA-10-3-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-12UA-10-3-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-12UA-10-6-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-12UA-10-6-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-12UA-10-6-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-12UA-10-6-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-12UA-10-7-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-12UA-10-7-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-12UA-10-7-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-12UA-10-7-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUA-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUA-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUA-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUA-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUA-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUA-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUA-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUA-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUA-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUA-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUA-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUA-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUA-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUA-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUA-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUA-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUA-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUA-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUA-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUA-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUA-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUA-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUA-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUA-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-12UR-10-0-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-12UR-10-0-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-12UR-10-0-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-12UR-10-0-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-12UR-10-1-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-12UR-10-1-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-12UR-10-1-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-12UR-10-1-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-12UR-10-2-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD312-12UR-10-2-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD312-12UR-10-2-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD312-12UR-10-2-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD312-12UR-10-3-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-12UR-10-3-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-12UR-10-3-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-12UR-10-3-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-12UR-10-6-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-12UR-10-6-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-12UR-10-6-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-12UR-10-6-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-12UR-10-7-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-12UR-10-7-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-12UR-10-7-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-12UR-10-7-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUR-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUR-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUR-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUR-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUR-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUR-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUR-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUR-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUR-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUR-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUR-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUR-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUR-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUR-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUR-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUR-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUR-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUR-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUR-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUR-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUR-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUR-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUR-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUR-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-12UK-10-0-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-12UK-10-0-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-12UK-10-0-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-12UK-10-0-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-12UK-10-1-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-12UK-10-1-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-12UK-10-1-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-12UK-10-1-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-12UK-10-2-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD312-12UK-10-2-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD312-12UK-10-2-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD312-12UK-10-2-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD312-12UK-10-3-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-12UK-10-3-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-12UK-10-3-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-12UK-10-3-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-12UK-10-6-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-12UK-10-6-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-12UK-10-6-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-12UK-10-6-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-12UK-10-7-4	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-12UK-10-7-1	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-12UK-10-7-2	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-12UK-10-7-3	Action: NC (normally closed) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUK-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUK-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUK-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUK-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUK-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUK-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUK-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUK-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUK-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUK-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUK-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUK-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUK-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUK-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUK-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUK-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUK-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUK-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUK-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUK-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUK-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUK-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUK-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUK-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD312-15BUW-10-0-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD312-15BUW-10-0-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD312-15BUW-10-0-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD312-15BUW-10-0-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD312-15BUW-10-1-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD312-15BUW-10-1-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD312-15BUW-10-1-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD312-15BUW-10-1-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD312-15BUW-10-2-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD312-15BUW-10-2-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD312-15BUW-10-2-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD312-15BUW-10-2-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD312-15BUW-10-3-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD312-15BUW-10-3-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD312-15BUW-10-3-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD312-15BUW-10-3-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD312-15BUW-10-6-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD312-15BUW-10-6-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD312-15BUW-10-6-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD312-15BUW-10-6-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD312-15BUW-10-7-4	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD312-15BUW-10-7-1	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD312-15BUW-10-7-2	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD312-15BUW-10-7-3	Action: NC (normally closed) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-12US-10-0-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-12US-10-0-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-12US-10-0-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-12US-10-0-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-12US-10-1-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-12US-10-1-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-12US-10-1-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-12US-10-1-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-12US-10-2-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD322-12US-10-2-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD322-12US-10-2-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD322-12US-10-2-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD322-12US-10-3-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-12US-10-3-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-12US-10-3-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-12US-10-3-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-12US-10-6-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-12US-10-6-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-12US-10-6-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-12US-10-6-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-12US-10-7-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-12US-10-7-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-12US-10-7-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-12US-10-7-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUS-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUS-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUS-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUS-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUS-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUS-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUS-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUS-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUS-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUS-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUS-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUS-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUS-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUS-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUS-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUS-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUS-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUS-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUS-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUS-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUS-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUS-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUS-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUS-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-12UP-10-0-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-12UP-10-0-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-12UP-10-0-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-12UP-10-0-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-12UP-10-1-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-12UP-10-1-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-12UP-10-1-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-12UP-10-1-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-12UP-10-2-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD322-12UP-10-2-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD322-12UP-10-2-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD322-12UP-10-2-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD322-12UP-10-3-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-12UP-10-3-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-12UP-10-3-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-12UP-10-3-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-12UP-10-6-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-12UP-10-6-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-12UP-10-6-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-12UP-10-6-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-12UP-10-7-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-12UP-10-7-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-12UP-10-7-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-12UP-10-7-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUP-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUP-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUP-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUP-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUP-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUP-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUP-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUP-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUP-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUP-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUP-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUP-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUP-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUP-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUP-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUP-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUP-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUP-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUP-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUP-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUP-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUP-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUP-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUP-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-12UA-10-0-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-12UA-10-0-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-12UA-10-0-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-12UA-10-0-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-12UA-10-1-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-12UA-10-1-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-12UA-10-1-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-12UA-10-1-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-12UA-10-2-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD322-12UA-10-2-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD322-12UA-10-2-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD322-12UA-10-2-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD322-12UA-10-3-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-12UA-10-3-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-12UA-10-3-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-12UA-10-3-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-12UA-10-6-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-12UA-10-6-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-12UA-10-6-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-12UA-10-6-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-12UA-10-7-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-12UA-10-7-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-12UA-10-7-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-12UA-10-7-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUA-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUA-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUA-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUA-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUA-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUA-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUA-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUA-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUA-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUA-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUA-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUA-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUA-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUA-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUA-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUA-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUA-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUA-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUA-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUA-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUA-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUA-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUA-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUA-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-12UR-10-0-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-12UR-10-0-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-12UR-10-0-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-12UR-10-0-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-12UR-10-1-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-12UR-10-1-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-12UR-10-1-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-12UR-10-1-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-12UR-10-2-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD322-12UR-10-2-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD322-12UR-10-2-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD322-12UR-10-2-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD322-12UR-10-3-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-12UR-10-3-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-12UR-10-3-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-12UR-10-3-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-12UR-10-6-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-12UR-10-6-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-12UR-10-6-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-12UR-10-6-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-12UR-10-7-4	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-12UR-10-7-1	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-12UR-10-7-2	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-12UR-10-7-3	Action: NO (normally open) \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUR-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUR-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUR-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUR-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUR-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUR-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUR-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUR-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUR-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUR-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUR-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUR-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUR-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUR-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUR-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUR-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUR-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUR-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUR-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUR-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUR-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUR-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUR-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUR-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-12UK-10-0-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-12UK-10-0-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-12UK-10-0-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-12UK-10-0-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-12UK-10-1-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-12UK-10-1-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-12UK-10-1-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-12UK-10-1-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-12UK-10-2-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD322-12UK-10-2-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD322-12UK-10-2-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD322-12UK-10-2-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD322-12UK-10-3-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-12UK-10-3-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-12UK-10-3-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-12UK-10-3-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-12UK-10-6-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-12UK-10-6-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-12UK-10-6-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-12UK-10-6-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-12UK-10-7-4	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-12UK-10-7-1	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-12UK-10-7-2	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-12UK-10-7-3	Action: NO (normally open) \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUK-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUK-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUK-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUK-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUK-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUK-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUK-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUK-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUK-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUK-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUK-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUK-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUK-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUK-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUK-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUK-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUK-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUK-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUK-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUK-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUK-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUK-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUK-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUK-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD322-15BUW-10-0-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD322-15BUW-10-0-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD322-15BUW-10-0-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD322-15BUW-10-0-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD322-15BUW-10-1-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD322-15BUW-10-1-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD322-15BUW-10-1-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD322-15BUW-10-1-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD322-15BUW-10-2-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD322-15BUW-10-2-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD322-15BUW-10-2-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD322-15BUW-10-2-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD322-15BUW-10-3-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD322-15BUW-10-3-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD322-15BUW-10-3-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD322-15BUW-10-3-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD322-15BUW-10-6-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD322-15BUW-10-6-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD322-15BUW-10-6-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD322-15BUW-10-6-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD322-15BUW-10-7-4	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD322-15BUW-10-7-1	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD322-15BUW-10-7-2	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD322-15BUW-10-7-3	Action: NO (normally open) \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-12US-10-0-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-12US-10-0-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-12US-10-0-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-12US-10-0-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-12US-10-1-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-12US-10-1-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-12US-10-1-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-12US-10-1-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-12US-10-2-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD332-12US-10-2-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD332-12US-10-2-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD332-12US-10-2-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD332-12US-10-3-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-12US-10-3-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-12US-10-3-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-12US-10-3-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-12US-10-6-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-12US-10-6-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-12US-10-6-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-12US-10-6-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-12US-10-7-4	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-12US-10-7-1	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-12US-10-7-2	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-12US-10-7-3	Action: Double acting \| Connection: OD 12 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUS-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUS-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUS-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUS-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUS-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUS-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUS-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUS-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUS-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUS-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUS-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUS-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUS-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUS-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUS-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUS-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUS-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUS-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUS-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUS-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUS-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUS-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUS-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUS-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-12UP-10-0-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-12UP-10-0-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-12UP-10-0-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-12UP-10-0-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-12UP-10-1-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-12UP-10-1-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-12UP-10-1-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-12UP-10-1-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-12UP-10-2-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD332-12UP-10-2-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD332-12UP-10-2-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD332-12UP-10-2-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD332-12UP-10-3-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-12UP-10-3-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-12UP-10-3-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-12UP-10-3-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-12UP-10-6-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-12UP-10-6-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-12UP-10-6-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-12UP-10-6-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-12UP-10-7-4	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-12UP-10-7-1	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-12UP-10-7-2	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-12UP-10-7-3	Action: Double acting \| Connection: OD 12 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUP-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUP-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUP-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUP-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUP-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUP-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUP-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUP-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUP-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUP-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUP-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUP-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUP-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUP-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUP-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUP-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUP-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUP-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUP-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUP-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUP-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUP-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUP-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUP-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-12UA-10-0-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-12UA-10-0-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-12UA-10-0-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-12UA-10-0-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-12UA-10-1-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-12UA-10-1-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-12UA-10-1-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-12UA-10-1-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-12UA-10-2-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD332-12UA-10-2-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD332-12UA-10-2-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD332-12UA-10-2-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD332-12UA-10-3-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-12UA-10-3-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-12UA-10-3-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-12UA-10-3-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-12UA-10-6-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-12UA-10-6-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-12UA-10-6-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-12UA-10-6-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-12UA-10-7-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-12UA-10-7-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-12UA-10-7-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-12UA-10-7-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUA-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUA-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUA-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUA-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUA-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUA-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUA-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUA-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUA-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUA-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUA-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUA-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUA-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUA-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUA-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUA-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUA-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUA-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUA-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUA-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUA-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUA-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUA-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUA-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-12UR-10-0-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-12UR-10-0-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-12UR-10-0-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-12UR-10-0-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-12UR-10-1-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-12UR-10-1-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-12UR-10-1-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-12UR-10-1-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-12UR-10-2-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD332-12UR-10-2-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD332-12UR-10-2-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD332-12UR-10-2-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD332-12UR-10-3-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-12UR-10-3-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-12UR-10-3-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-12UR-10-3-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-12UR-10-6-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-12UR-10-6-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-12UR-10-6-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-12UR-10-6-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-12UR-10-7-4	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-12UR-10-7-1	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-12UR-10-7-2	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-12UR-10-7-3	Action: Double acting \| Connection: OD 12 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUR-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUR-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUR-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUR-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUR-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUR-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUR-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUR-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUR-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUR-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUR-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUR-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUR-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUR-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUR-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUR-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUR-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUR-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUR-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUR-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUR-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUR-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUR-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUR-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-12UK-10-0-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-12UK-10-0-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-12UK-10-0-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-12UK-10-0-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-12UK-10-1-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-12UK-10-1-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-12UK-10-1-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-12UK-10-1-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-12UK-10-2-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD332-12UK-10-2-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD332-12UK-10-2-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD332-12UK-10-2-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD332-12UK-10-3-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-12UK-10-3-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-12UK-10-3-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-12UK-10-3-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-12UK-10-6-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-12UK-10-6-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-12UK-10-6-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-12UK-10-6-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-12UK-10-7-4	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-12UK-10-7-1	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-12UK-10-7-2	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-12UK-10-7-3	Action: Double acting \| Connection: OD 12 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUK-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUK-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUK-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUK-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUK-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUK-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUK-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUK-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUK-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUK-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUK-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUK-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUK-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUK-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUK-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUK-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUK-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUK-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUK-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUK-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUK-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUK-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUK-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUK-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD332-15BUW-10-0-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD332-15BUW-10-0-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD332-15BUW-10-0-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD332-15BUW-10-0-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD332-15BUW-10-1-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD332-15BUW-10-1-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD332-15BUW-10-1-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD332-15BUW-10-1-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD332-15BUW-10-2-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD332-15BUW-10-2-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD332-15BUW-10-2-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD332-15BUW-10-2-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD332-15BUW-10-3-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD332-15BUW-10-3-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD332-15BUW-10-3-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD332-15BUW-10-3-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD332-15BUW-10-6-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD332-15BUW-10-6-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD332-15BUW-10-6-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD332-15BUW-10-6-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD332-15BUW-10-7-4	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD332-15BUW-10-7-1	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD332-15BUW-10-7-2	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD332-15BUW-10-7-3	Action: Double acting \| Connection: OD 1/2" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AMD3*2 Chemical Air Operated Valve (Part2, 12 mm / 1/2" Tube)
