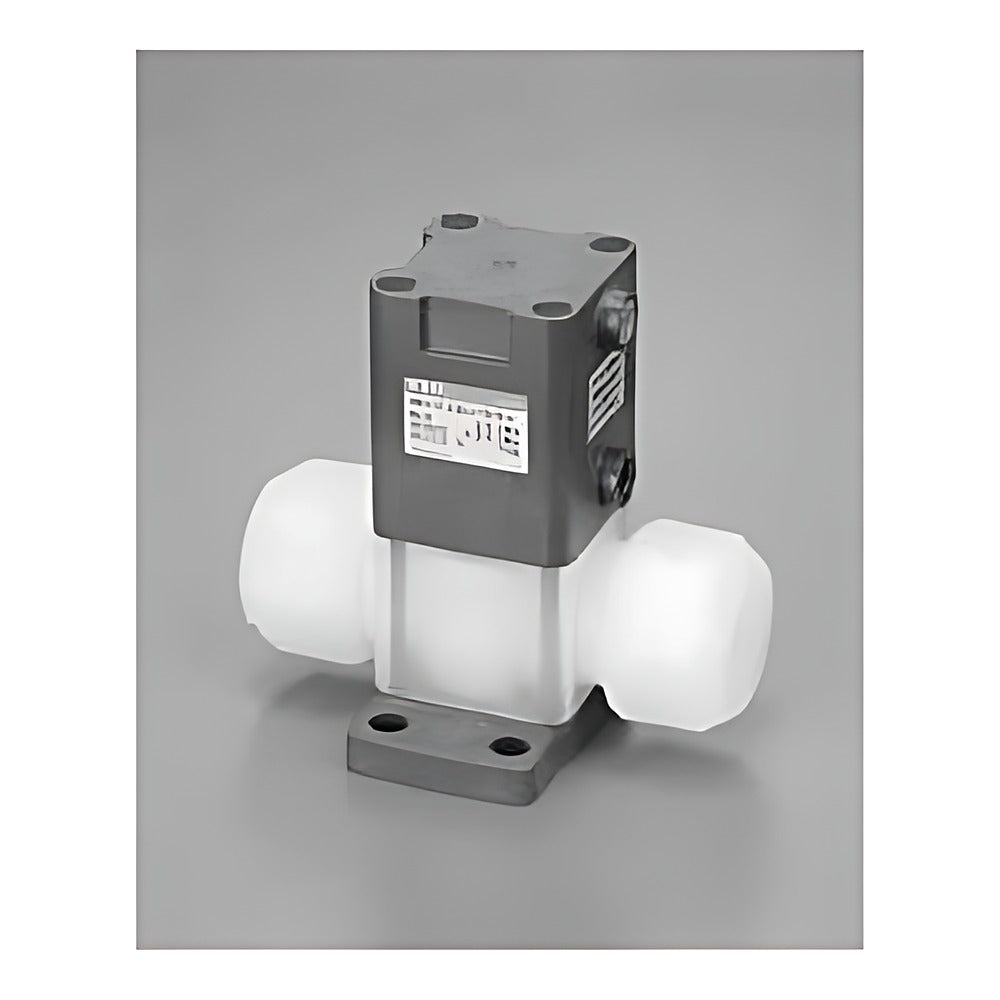

CKD AMD42/AMD52 Chemical Air Operated Valve (Part2, 3/4"-1")

CKD AMD4*2 and AMD5*2 Part2 chemical air-operated 2-port diaphragm valves for OD 3/4", 25 mm and 1" tube and PVC union connection.

Key features

NC, NO and double-acting actuators; PFA molded or PTFE machined body (PTFE machined bodies made to order)
Options: ON-OFF (0), flow adjustment (1), bypass (2), flow adj. + bypass (3), indicator (6), bypass + indicator (7)
Integrated Super pillar, Super 300 P, F-LOCK 20A/60, Final Lock and Flare Tek fittings
AMD5*2 also with PVC union fittings (15AU/20AU, options 0/1/6 only; bypass types see AMD41L)
Fluid symbol (M ammonia, P nitric/HF acid, Y high temp 5-160 C, E high temp PTFE body) is appended after the pilot-port direction; rows list the standard version. High-pressure versions (suffix B: both ports 0.3 MPa, Q: 0.4 MPa) and pilot-port reinforcing ring (R) are ordered as suffixes and not expanded

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5-90 C (high-temp versions 5-160 C)
Proof pressure	1.0 MPa
Operating pressure	A to B 0-0.3 MPa, B to A 0-0.1 MPa
Seat leakage	0 cm3/min (water pressure)
Pilot port	Rc1/8
Orifice	14.7-16 mm (AMD4), 20 mm (AMD5)
Cv	5 (AMD4), 8 (AMD5)
Bypass orifice	6 mm
Mass	0.42 kg (AMD4), 0.84 kg (AMD5)
Export control	Export-controlled item
Source	CKD Korea catalog CB-031K-15, p. 72-83

AMD412-20BUS-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUS-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUS-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUS-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUS-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUS-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUS-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUS-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUS-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUS-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUS-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUS-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUS-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUS-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUS-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUS-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUS-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUS-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUS-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUS-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUS-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUS-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUS-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUS-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD412-20BUP-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUP-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUP-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUP-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUP-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUP-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUP-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUP-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUP-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUP-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUP-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUP-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUP-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUP-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUP-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUP-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUP-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUP-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUP-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUP-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUP-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUP-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUP-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUP-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD412-20BUA-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUA-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUA-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUA-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUA-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUA-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUA-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUA-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUA-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUA-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUA-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUA-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUA-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUA-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUA-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUA-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUA-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUA-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUA-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUA-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUA-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUA-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUA-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUA-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD412-20BUR-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUR-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUR-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUR-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUR-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUR-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUR-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUR-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUR-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUR-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUR-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUR-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUR-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUR-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUR-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUR-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUR-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUR-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUR-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUR-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUR-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUR-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUR-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUR-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD412-20BUK-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUK-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUK-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUK-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUK-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUK-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUK-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUK-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUK-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUK-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUK-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUK-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUK-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUK-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUK-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUK-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUK-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUK-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUK-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUK-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUK-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUK-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUK-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUK-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD412-20BUW-16-0-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD412-20BUW-16-0-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD412-20BUW-16-0-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD412-20BUW-16-0-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD412-20BUW-16-1-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD412-20BUW-16-1-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD412-20BUW-16-1-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD412-20BUW-16-1-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD412-20BUW-16-2-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD412-20BUW-16-2-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD412-20BUW-16-2-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD412-20BUW-16-2-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD412-20BUW-16-3-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD412-20BUW-16-3-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD412-20BUW-16-3-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD412-20BUW-16-3-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD412-20BUW-16-6-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD412-20BUW-16-6-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD412-20BUW-16-6-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD412-20BUW-16-6-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD412-20BUW-16-7-4		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD412-20BUW-16-7-1		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD412-20BUW-16-7-2		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD412-20BUW-16-7-3		Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUS-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUS-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUS-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUS-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUS-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUS-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUS-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUS-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUS-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUS-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUS-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUS-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUS-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUS-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUS-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUS-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUS-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUS-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUS-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUS-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUS-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUS-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUS-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUS-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUP-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUP-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUP-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUP-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUP-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUP-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUP-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUP-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUP-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUP-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUP-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUP-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUP-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUP-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUP-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUP-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUP-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUP-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUP-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUP-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUP-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUP-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUP-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUP-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUA-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUA-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUA-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUA-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUA-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUA-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUA-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUA-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUA-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUA-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUA-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUA-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUA-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUA-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUA-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUA-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUA-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUA-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUA-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUA-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUA-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUA-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUA-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUA-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUR-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUR-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUR-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUR-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUR-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUR-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUR-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUR-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUR-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUR-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUR-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUR-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUR-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUR-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUR-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUR-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUR-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUR-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUR-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUR-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUR-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUR-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUR-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUR-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUK-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUK-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUK-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUK-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUK-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUK-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUK-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUK-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUK-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUK-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUK-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUK-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUK-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUK-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUK-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUK-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUK-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUK-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUK-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUK-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUK-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUK-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUK-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUK-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD422-20BUW-16-0-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD422-20BUW-16-0-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD422-20BUW-16-0-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD422-20BUW-16-0-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD422-20BUW-16-1-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD422-20BUW-16-1-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD422-20BUW-16-1-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD422-20BUW-16-1-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD422-20BUW-16-2-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD422-20BUW-16-2-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD422-20BUW-16-2-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD422-20BUW-16-2-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD422-20BUW-16-3-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD422-20BUW-16-3-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD422-20BUW-16-3-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD422-20BUW-16-3-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD422-20BUW-16-6-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD422-20BUW-16-6-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD422-20BUW-16-6-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD422-20BUW-16-6-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD422-20BUW-16-7-4		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD422-20BUW-16-7-1		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD422-20BUW-16-7-2		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD422-20BUW-16-7-3		Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUS-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUS-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUS-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUS-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUS-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUS-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUS-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUS-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUS-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUS-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUS-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUS-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUS-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUS-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUS-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUS-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUS-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUS-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUS-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUS-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUS-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUS-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUS-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUS-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUP-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUP-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUP-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUP-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUP-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUP-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUP-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUP-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUP-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUP-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUP-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUP-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUP-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUP-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUP-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUP-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUP-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUP-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUP-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUP-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUP-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUP-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUP-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUP-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUA-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUA-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUA-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUA-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUA-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUA-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUA-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUA-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUA-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUA-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUA-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUA-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUA-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUA-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUA-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUA-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUA-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUA-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUA-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUA-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUA-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUA-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUA-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUA-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUR-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUR-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUR-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUR-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUR-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUR-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUR-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUR-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUR-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUR-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUR-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUR-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUR-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUR-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUR-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUR-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUR-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUR-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUR-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUR-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUR-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUR-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUR-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUR-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUK-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUK-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUK-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUK-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUK-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUK-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUK-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUK-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUK-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUK-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUK-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUK-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUK-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUK-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUK-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUK-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUK-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUK-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUK-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUK-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUK-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUK-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUK-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUK-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD432-20BUW-16-0-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD432-20BUW-16-0-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD432-20BUW-16-0-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD432-20BUW-16-0-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD432-20BUW-16-1-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD432-20BUW-16-1-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD432-20BUW-16-1-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD432-20BUW-16-1-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD432-20BUW-16-2-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD432-20BUW-16-2-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD432-20BUW-16-2-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD432-20BUW-16-2-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD432-20BUW-16-3-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD432-20BUW-16-3-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD432-20BUW-16-3-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD432-20BUW-16-3-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD432-20BUW-16-6-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD432-20BUW-16-6-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD432-20BUW-16-6-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD432-20BUW-16-6-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD432-20BUW-16-7-4		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD432-20BUW-16-7-1		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD432-20BUW-16-7-2		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD432-20BUW-16-7-3		Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25US-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25US-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25US-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25US-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25US-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25US-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25US-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25US-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25US-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD512-25US-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD512-25US-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD512-25US-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD512-25US-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25US-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25US-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25US-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25US-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25US-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25US-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25US-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25US-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25US-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25US-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25US-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUS-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUS-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUS-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUS-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUS-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUS-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUS-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUS-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUS-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUS-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUS-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUS-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUS-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUS-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUS-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUS-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUS-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUS-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUS-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUS-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUS-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUS-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUS-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUS-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25UP-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25UP-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25UP-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25UP-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25UP-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25UP-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25UP-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25UP-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25UP-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD512-25UP-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD512-25UP-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD512-25UP-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD512-25UP-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25UP-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25UP-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25UP-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25UP-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25UP-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25UP-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25UP-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25UP-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25UP-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25UP-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25UP-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUP-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUP-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUP-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUP-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUP-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUP-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUP-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUP-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUP-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUP-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUP-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUP-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUP-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUP-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUP-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUP-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUP-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUP-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUP-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUP-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUP-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUP-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUP-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUP-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUA-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUA-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUA-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUA-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUA-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUA-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUA-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUA-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUA-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUA-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUA-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUA-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUA-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUA-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUA-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUA-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUA-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUA-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUA-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUA-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUA-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUA-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUA-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUA-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25UR-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25UR-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25UR-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25UR-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25UR-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25UR-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25UR-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25UR-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25UR-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD512-25UR-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD512-25UR-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD512-25UR-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD512-25UR-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25UR-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25UR-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25UR-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25UR-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25UR-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25UR-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25UR-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25UR-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25UR-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25UR-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25UR-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUR-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUR-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUR-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUR-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUR-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUR-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUR-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUR-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUR-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUR-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUR-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUR-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUR-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUR-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUR-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUR-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUR-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUR-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUR-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUR-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUR-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUR-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUR-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUR-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25UK-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25UK-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25UK-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25UK-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25UK-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25UK-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25UK-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25UK-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25UK-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD512-25UK-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD512-25UK-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD512-25UK-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD512-25UK-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25UK-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25UK-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25UK-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25UK-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25UK-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25UK-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25UK-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25UK-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25UK-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25UK-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25UK-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUK-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUK-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUK-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUK-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUK-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUK-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUK-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUK-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUK-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUK-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUK-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUK-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUK-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUK-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUK-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUK-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUK-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUK-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUK-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUK-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUK-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUK-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUK-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUK-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-25BUW-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-25BUW-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-25BUW-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-25BUW-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-25BUW-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-25BUW-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-25BUW-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-25BUW-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-25BUW-20-2-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD512-25BUW-20-2-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD512-25BUW-20-2-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD512-25BUW-20-2-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD512-25BUW-20-3-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD512-25BUW-20-3-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD512-25BUW-20-3-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD512-25BUW-20-3-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD512-25BUW-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-25BUW-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-25BUW-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-25BUW-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-25BUW-20-7-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD512-25BUW-20-7-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD512-25BUW-20-7-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD512-25BUW-20-7-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD512-15AU-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-15AU-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-15AU-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-15AU-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-15AU-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-15AU-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-15AU-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-15AU-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-15AU-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-15AU-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-15AU-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-15AU-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD512-20AU-20-0-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
AMD512-20AU-20-0-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
AMD512-20AU-20-0-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
AMD512-20AU-20-0-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
AMD512-20AU-20-1-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
AMD512-20AU-20-1-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
AMD512-20AU-20-1-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
AMD512-20AU-20-1-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
AMD512-20AU-20-6-4		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD512-20AU-20-6-1		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD512-20AU-20-6-2		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD512-20AU-20-6-3		Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25US-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25US-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25US-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25US-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25US-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25US-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25US-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25US-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25US-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD522-25US-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD522-25US-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD522-25US-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD522-25US-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25US-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25US-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25US-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25US-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25US-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25US-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25US-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25US-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25US-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25US-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25US-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUS-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUS-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUS-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUS-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUS-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUS-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUS-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUS-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUS-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUS-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUS-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUS-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUS-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUS-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUS-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUS-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUS-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUS-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUS-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUS-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUS-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUS-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUS-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUS-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25UP-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25UP-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25UP-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25UP-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25UP-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25UP-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25UP-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25UP-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25UP-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD522-25UP-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD522-25UP-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD522-25UP-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD522-25UP-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25UP-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25UP-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25UP-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25UP-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25UP-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25UP-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25UP-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25UP-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25UP-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25UP-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25UP-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUP-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUP-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUP-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUP-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUP-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUP-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUP-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUP-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUP-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUP-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUP-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUP-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUP-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUP-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUP-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUP-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUP-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUP-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUP-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUP-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUP-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUP-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUP-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUP-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUA-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUA-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUA-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUA-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUA-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUA-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUA-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUA-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUA-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUA-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUA-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUA-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUA-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUA-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUA-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUA-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUA-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUA-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUA-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUA-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUA-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUA-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUA-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUA-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25UR-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25UR-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25UR-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25UR-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25UR-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25UR-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25UR-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25UR-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25UR-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD522-25UR-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD522-25UR-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD522-25UR-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD522-25UR-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25UR-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25UR-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25UR-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25UR-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25UR-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25UR-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25UR-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25UR-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25UR-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25UR-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25UR-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUR-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUR-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUR-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUR-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUR-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUR-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUR-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUR-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUR-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUR-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUR-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUR-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUR-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUR-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUR-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUR-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUR-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUR-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUR-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUR-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUR-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUR-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUR-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUR-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25UK-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25UK-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25UK-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25UK-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25UK-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25UK-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25UK-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25UK-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25UK-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD522-25UK-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD522-25UK-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD522-25UK-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD522-25UK-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25UK-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25UK-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25UK-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25UK-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25UK-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25UK-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25UK-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25UK-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25UK-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25UK-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25UK-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUK-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUK-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUK-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUK-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUK-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUK-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUK-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUK-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUK-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUK-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUK-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUK-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUK-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUK-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUK-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUK-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUK-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUK-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUK-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUK-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUK-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUK-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUK-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUK-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-25BUW-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-25BUW-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-25BUW-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-25BUW-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-25BUW-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-25BUW-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-25BUW-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-25BUW-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-25BUW-20-2-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD522-25BUW-20-2-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD522-25BUW-20-2-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD522-25BUW-20-2-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD522-25BUW-20-3-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD522-25BUW-20-3-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD522-25BUW-20-3-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD522-25BUW-20-3-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD522-25BUW-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-25BUW-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-25BUW-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-25BUW-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-25BUW-20-7-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD522-25BUW-20-7-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD522-25BUW-20-7-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD522-25BUW-20-7-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD522-15AU-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-15AU-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-15AU-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-15AU-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-15AU-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-15AU-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-15AU-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-15AU-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-15AU-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-15AU-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-15AU-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-15AU-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD522-20AU-20-0-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
AMD522-20AU-20-0-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
AMD522-20AU-20-0-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
AMD522-20AU-20-0-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
AMD522-20AU-20-1-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
AMD522-20AU-20-1-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
AMD522-20AU-20-1-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
AMD522-20AU-20-1-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
AMD522-20AU-20-6-4		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD522-20AU-20-6-1		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD522-20AU-20-6-2		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD522-20AU-20-6-3		Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25US-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25US-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25US-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25US-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25US-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25US-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25US-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25US-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25US-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD532-25US-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD532-25US-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD532-25US-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD532-25US-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25US-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25US-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25US-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25US-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25US-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25US-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25US-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25US-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25US-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25US-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25US-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUS-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUS-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUS-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUS-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUS-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUS-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUS-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUS-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUS-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUS-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUS-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUS-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUS-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUS-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUS-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUS-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUS-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUS-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUS-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUS-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUS-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUS-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUS-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUS-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25UP-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25UP-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25UP-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25UP-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25UP-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25UP-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25UP-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25UP-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25UP-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD532-25UP-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD532-25UP-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD532-25UP-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD532-25UP-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25UP-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25UP-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25UP-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25UP-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25UP-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25UP-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25UP-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25UP-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25UP-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25UP-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25UP-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUP-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUP-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUP-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUP-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUP-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUP-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUP-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUP-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUP-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUP-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUP-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUP-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUP-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUP-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUP-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUP-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUP-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUP-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUP-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUP-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUP-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUP-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUP-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUP-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUA-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUA-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUA-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUA-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUA-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUA-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUA-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUA-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUA-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUA-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUA-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUA-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUA-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUA-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUA-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUA-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUA-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUA-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUA-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUA-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUA-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUA-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUA-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUA-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25UR-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25UR-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25UR-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25UR-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25UR-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25UR-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25UR-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25UR-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25UR-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD532-25UR-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD532-25UR-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD532-25UR-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD532-25UR-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25UR-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25UR-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25UR-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25UR-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25UR-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25UR-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25UR-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25UR-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25UR-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25UR-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25UR-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUR-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUR-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUR-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUR-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUR-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUR-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUR-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUR-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUR-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUR-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUR-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUR-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUR-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUR-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUR-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUR-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUR-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUR-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUR-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUR-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUR-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUR-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUR-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUR-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25UK-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25UK-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25UK-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25UK-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25UK-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25UK-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25UK-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25UK-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25UK-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD532-25UK-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD532-25UK-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD532-25UK-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD532-25UK-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25UK-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25UK-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25UK-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25UK-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25UK-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25UK-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25UK-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25UK-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25UK-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25UK-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25UK-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUK-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUK-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUK-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUK-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUK-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUK-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUK-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUK-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUK-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUK-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUK-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUK-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUK-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUK-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUK-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUK-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUK-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUK-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUK-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUK-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUK-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUK-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUK-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUK-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-25BUW-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-25BUW-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-25BUW-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-25BUW-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-25BUW-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-25BUW-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-25BUW-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-25BUW-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-25BUW-20-2-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
AMD532-25BUW-20-2-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
AMD532-25BUW-20-2-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
AMD532-25BUW-20-2-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
AMD532-25BUW-20-3-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
AMD532-25BUW-20-3-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
AMD532-25BUW-20-3-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
AMD532-25BUW-20-3-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
AMD532-25BUW-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-25BUW-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-25BUW-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-25BUW-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-25BUW-20-7-4		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
AMD532-25BUW-20-7-1		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
AMD532-25BUW-20-7-2		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
AMD532-25BUW-20-7-3		Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
AMD532-15AU-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-15AU-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-15AU-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-15AU-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-15AU-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-15AU-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-15AU-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-15AU-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-15AU-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-15AU-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-15AU-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-15AU-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
AMD532-20AU-20-0-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
AMD532-20AU-20-0-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
AMD532-20AU-20-0-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
AMD532-20AU-20-0-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
AMD532-20AU-20-1-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
AMD532-20AU-20-1-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
AMD532-20AU-20-1-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
AMD532-20AU-20-1-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
AMD532-20AU-20-6-4		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
AMD532-20AU-20-6-1		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
AMD532-20AU-20-6-2		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
AMD532-20AU-20-6-3		Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3

Air Operated ValvesCKD

1224 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMD42/AMD52 Chemical Air Operated Valve (Part2, 3/4"-1")

Brand CKD·Air Operated Valves

Available part numbers (1224)

AMD412-20BUS-16-0-4, AMD412-20BUS-16-0-1, AMD412-20BUS-16-0-2, AMD412-20BUS-16-0-3, AMD412-20BUS-16-1-4, AMD412-20BUS-16-1-1, AMD412-20BUS-16-1-2, AMD412-20BUS-16-1-3, AMD412-20BUS-16-2-4, AMD412-20BUS-16-2-1 + 1214 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMD412-20BUS-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUS-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUS-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUS-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUS-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUS-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUS-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUS-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUS-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUS-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUS-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUS-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUS-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUS-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUS-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUS-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUS-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUS-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUS-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUS-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUS-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUS-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUS-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUS-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD412-20BUP-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUP-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUP-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUP-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUP-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUP-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUP-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUP-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUP-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUP-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUP-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUP-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUP-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUP-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUP-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUP-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUP-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUP-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUP-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUP-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUP-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUP-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUP-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUP-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD412-20BUA-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUA-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUA-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUA-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUA-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUA-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUA-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUA-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUA-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUA-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUA-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUA-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUA-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUA-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUA-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUA-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUA-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUA-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUA-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUA-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUA-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUA-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUA-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUA-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD412-20BUR-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUR-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUR-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUR-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUR-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUR-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUR-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUR-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUR-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUR-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUR-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUR-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUR-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUR-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUR-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUR-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUR-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUR-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUR-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUR-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUR-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUR-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUR-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUR-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD412-20BUK-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUK-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUK-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUK-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUK-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUK-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUK-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUK-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUK-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUK-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUK-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUK-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUK-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUK-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUK-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUK-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUK-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUK-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUK-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUK-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUK-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUK-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUK-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUK-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD412-20BUW-16-0-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD412-20BUW-16-0-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD412-20BUW-16-0-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD412-20BUW-16-0-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD412-20BUW-16-1-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD412-20BUW-16-1-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD412-20BUW-16-1-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD412-20BUW-16-1-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD412-20BUW-16-2-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD412-20BUW-16-2-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD412-20BUW-16-2-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD412-20BUW-16-2-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD412-20BUW-16-3-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD412-20BUW-16-3-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD412-20BUW-16-3-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD412-20BUW-16-3-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD412-20BUW-16-6-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD412-20BUW-16-6-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD412-20BUW-16-6-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD412-20BUW-16-6-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD412-20BUW-16-7-4	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD412-20BUW-16-7-1	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD412-20BUW-16-7-2	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD412-20BUW-16-7-3	Model: AMD4*2 \| Action: NC (normally closed) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUS-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUS-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUS-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUS-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUS-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUS-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUS-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUS-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUS-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUS-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUS-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUS-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUS-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUS-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUS-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUS-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUS-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUS-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUS-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUS-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUS-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUS-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUS-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUS-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUP-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUP-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUP-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUP-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUP-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUP-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUP-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUP-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUP-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUP-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUP-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUP-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUP-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUP-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUP-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUP-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUP-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUP-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUP-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUP-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUP-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUP-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUP-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUP-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUA-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUA-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUA-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUA-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUA-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUA-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUA-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUA-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUA-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUA-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUA-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUA-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUA-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUA-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUA-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUA-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUA-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUA-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUA-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUA-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUA-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUA-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUA-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUA-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUR-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUR-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUR-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUR-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUR-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUR-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUR-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUR-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUR-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUR-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUR-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUR-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUR-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUR-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUR-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUR-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUR-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUR-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUR-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUR-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUR-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUR-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUR-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUR-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUK-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUK-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUK-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUK-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUK-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUK-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUK-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUK-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUK-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUK-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUK-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUK-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUK-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUK-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUK-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUK-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUK-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUK-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUK-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUK-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUK-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUK-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUK-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUK-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD422-20BUW-16-0-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD422-20BUW-16-0-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD422-20BUW-16-0-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD422-20BUW-16-0-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD422-20BUW-16-1-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD422-20BUW-16-1-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD422-20BUW-16-1-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD422-20BUW-16-1-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD422-20BUW-16-2-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD422-20BUW-16-2-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD422-20BUW-16-2-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD422-20BUW-16-2-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD422-20BUW-16-3-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD422-20BUW-16-3-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD422-20BUW-16-3-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD422-20BUW-16-3-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD422-20BUW-16-6-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD422-20BUW-16-6-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD422-20BUW-16-6-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD422-20BUW-16-6-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD422-20BUW-16-7-4	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD422-20BUW-16-7-1	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD422-20BUW-16-7-2	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD422-20BUW-16-7-3	Model: AMD4*2 \| Action: NO (normally open) \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUS-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUS-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUS-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUS-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUS-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUS-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUS-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUS-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUS-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUS-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUS-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUS-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUS-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUS-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUS-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUS-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUS-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUS-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUS-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUS-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUS-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUS-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUS-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUS-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUP-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUP-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUP-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUP-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUP-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUP-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUP-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUP-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUP-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUP-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUP-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUP-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUP-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUP-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUP-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUP-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUP-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUP-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUP-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUP-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUP-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUP-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUP-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUP-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUA-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUA-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUA-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUA-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUA-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUA-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUA-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUA-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUA-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUA-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUA-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUA-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUA-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUA-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUA-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUA-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUA-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUA-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUA-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUA-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUA-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUA-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUA-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUA-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUR-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUR-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUR-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUR-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUR-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUR-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUR-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUR-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUR-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUR-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUR-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUR-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUR-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUR-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUR-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUR-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUR-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUR-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUR-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUR-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUR-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUR-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUR-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUR-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUK-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUK-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUK-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUK-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUK-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUK-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUK-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUK-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUK-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUK-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUK-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUK-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUK-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUK-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUK-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUK-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUK-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUK-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUK-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUK-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUK-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUK-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUK-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUK-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD432-20BUW-16-0-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD432-20BUW-16-0-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD432-20BUW-16-0-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD432-20BUW-16-0-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD432-20BUW-16-1-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD432-20BUW-16-1-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD432-20BUW-16-1-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD432-20BUW-16-1-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD432-20BUW-16-2-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD432-20BUW-16-2-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD432-20BUW-16-2-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD432-20BUW-16-2-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD432-20BUW-16-3-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD432-20BUW-16-3-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD432-20BUW-16-3-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD432-20BUW-16-3-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD432-20BUW-16-6-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD432-20BUW-16-6-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD432-20BUW-16-6-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD432-20BUW-16-6-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD432-20BUW-16-7-4	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD432-20BUW-16-7-1	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD432-20BUW-16-7-2	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD432-20BUW-16-7-3	Model: AMD4*2 \| Action: Double acting \| Connection: OD 3/4" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25US-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25US-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25US-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25US-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25US-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25US-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25US-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25US-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25US-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD512-25US-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD512-25US-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD512-25US-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD512-25US-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25US-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25US-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25US-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25US-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25US-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25US-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25US-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25US-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25US-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25US-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25US-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUS-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUS-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUS-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUS-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUS-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUS-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUS-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUS-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUS-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUS-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUS-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUS-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUS-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUS-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUS-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUS-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUS-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUS-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUS-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUS-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUS-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUS-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUS-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUS-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25UP-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25UP-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25UP-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25UP-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25UP-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25UP-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25UP-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25UP-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25UP-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD512-25UP-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD512-25UP-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD512-25UP-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD512-25UP-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25UP-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25UP-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25UP-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25UP-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25UP-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25UP-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25UP-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25UP-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25UP-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25UP-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25UP-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUP-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUP-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUP-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUP-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUP-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUP-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUP-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUP-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUP-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUP-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUP-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUP-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUP-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUP-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUP-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUP-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUP-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUP-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUP-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUP-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUP-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUP-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUP-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUP-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUA-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUA-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUA-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUA-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUA-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUA-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUA-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUA-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUA-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUA-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUA-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUA-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUA-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUA-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUA-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUA-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUA-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUA-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUA-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUA-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUA-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUA-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUA-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUA-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25UR-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25UR-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25UR-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25UR-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25UR-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25UR-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25UR-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25UR-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25UR-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD512-25UR-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD512-25UR-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD512-25UR-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD512-25UR-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25UR-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25UR-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25UR-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25UR-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25UR-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25UR-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25UR-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25UR-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25UR-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25UR-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25UR-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUR-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUR-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUR-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUR-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUR-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUR-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUR-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUR-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUR-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUR-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUR-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUR-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUR-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUR-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUR-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUR-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUR-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUR-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUR-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUR-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUR-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUR-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUR-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUR-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25UK-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25UK-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25UK-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25UK-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25UK-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25UK-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25UK-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25UK-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25UK-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD512-25UK-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD512-25UK-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD512-25UK-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD512-25UK-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25UK-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25UK-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25UK-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25UK-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25UK-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25UK-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25UK-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25UK-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25UK-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25UK-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25UK-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUK-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUK-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUK-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUK-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUK-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUK-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUK-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUK-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUK-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUK-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUK-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUK-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUK-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUK-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUK-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUK-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUK-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUK-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUK-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUK-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUK-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUK-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUK-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUK-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-25BUW-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-25BUW-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-25BUW-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-25BUW-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-25BUW-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-25BUW-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-25BUW-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-25BUW-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-25BUW-20-2-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD512-25BUW-20-2-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD512-25BUW-20-2-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD512-25BUW-20-2-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD512-25BUW-20-3-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD512-25BUW-20-3-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD512-25BUW-20-3-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD512-25BUW-20-3-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD512-25BUW-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-25BUW-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-25BUW-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-25BUW-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-25BUW-20-7-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD512-25BUW-20-7-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD512-25BUW-20-7-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD512-25BUW-20-7-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD512-15AU-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-15AU-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-15AU-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-15AU-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-15AU-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-15AU-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-15AU-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-15AU-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-15AU-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-15AU-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-15AU-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-15AU-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD512-20AU-20-0-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD512-20AU-20-0-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD512-20AU-20-0-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD512-20AU-20-0-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD512-20AU-20-1-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD512-20AU-20-1-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD512-20AU-20-1-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD512-20AU-20-1-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD512-20AU-20-6-4	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD512-20AU-20-6-1	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD512-20AU-20-6-2	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD512-20AU-20-6-3	Model: AMD5*2 \| Action: NC (normally closed) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25US-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25US-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25US-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25US-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25US-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25US-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25US-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25US-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25US-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD522-25US-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD522-25US-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD522-25US-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD522-25US-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25US-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25US-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25US-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25US-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25US-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25US-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25US-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25US-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25US-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25US-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25US-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUS-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUS-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUS-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUS-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUS-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUS-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUS-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUS-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUS-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUS-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUS-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUS-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUS-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUS-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUS-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUS-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUS-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUS-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUS-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUS-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUS-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUS-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUS-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUS-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25UP-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25UP-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25UP-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25UP-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25UP-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25UP-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25UP-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25UP-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25UP-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD522-25UP-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD522-25UP-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD522-25UP-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD522-25UP-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25UP-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25UP-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25UP-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25UP-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25UP-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25UP-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25UP-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25UP-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25UP-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25UP-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25UP-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUP-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUP-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUP-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUP-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUP-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUP-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUP-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUP-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUP-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUP-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUP-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUP-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUP-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUP-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUP-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUP-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUP-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUP-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUP-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUP-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUP-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUP-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUP-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUP-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUA-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUA-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUA-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUA-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUA-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUA-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUA-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUA-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUA-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUA-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUA-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUA-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUA-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUA-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUA-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUA-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUA-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUA-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUA-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUA-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUA-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUA-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUA-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUA-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25UR-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25UR-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25UR-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25UR-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25UR-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25UR-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25UR-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25UR-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25UR-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD522-25UR-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD522-25UR-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD522-25UR-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD522-25UR-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25UR-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25UR-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25UR-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25UR-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25UR-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25UR-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25UR-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25UR-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25UR-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25UR-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25UR-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUR-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUR-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUR-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUR-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUR-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUR-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUR-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUR-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUR-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUR-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUR-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUR-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUR-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUR-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUR-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUR-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUR-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUR-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUR-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUR-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUR-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUR-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUR-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUR-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25UK-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25UK-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25UK-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25UK-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25UK-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25UK-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25UK-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25UK-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25UK-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD522-25UK-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD522-25UK-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD522-25UK-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD522-25UK-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25UK-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25UK-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25UK-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25UK-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25UK-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25UK-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25UK-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25UK-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25UK-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25UK-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25UK-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUK-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUK-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUK-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUK-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUK-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUK-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUK-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUK-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUK-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUK-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUK-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUK-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUK-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUK-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUK-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUK-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUK-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUK-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUK-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUK-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUK-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUK-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUK-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUK-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-25BUW-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-25BUW-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-25BUW-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-25BUW-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-25BUW-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-25BUW-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-25BUW-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-25BUW-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-25BUW-20-2-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD522-25BUW-20-2-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD522-25BUW-20-2-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD522-25BUW-20-2-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD522-25BUW-20-3-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD522-25BUW-20-3-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD522-25BUW-20-3-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD522-25BUW-20-3-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD522-25BUW-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-25BUW-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-25BUW-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-25BUW-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-25BUW-20-7-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD522-25BUW-20-7-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD522-25BUW-20-7-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD522-25BUW-20-7-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD522-15AU-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-15AU-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-15AU-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-15AU-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-15AU-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-15AU-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-15AU-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-15AU-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-15AU-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-15AU-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-15AU-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-15AU-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD522-20AU-20-0-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD522-20AU-20-0-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD522-20AU-20-0-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD522-20AU-20-0-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD522-20AU-20-1-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD522-20AU-20-1-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD522-20AU-20-1-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD522-20AU-20-1-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD522-20AU-20-6-4	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD522-20AU-20-6-1	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD522-20AU-20-6-2	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD522-20AU-20-6-3	Model: AMD5*2 \| Action: NO (normally open) \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25US-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25US-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25US-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25US-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25US-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25US-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25US-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25US-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25US-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD532-25US-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD532-25US-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD532-25US-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD532-25US-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25US-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25US-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25US-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25US-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25US-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25US-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25US-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25US-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25US-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25US-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25US-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUS-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUS-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUS-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUS-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUS-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUS-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUS-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUS-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUS-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUS-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUS-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUS-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUS-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUS-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUS-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUS-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUS-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUS-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUS-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUS-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUS-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUS-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUS-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUS-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super pillar \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25UP-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25UP-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25UP-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25UP-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25UP-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25UP-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25UP-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25UP-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25UP-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD532-25UP-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD532-25UP-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD532-25UP-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD532-25UP-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25UP-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25UP-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25UP-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25UP-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25UP-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25UP-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25UP-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25UP-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25UP-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25UP-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25UP-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUP-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUP-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUP-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUP-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUP-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUP-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUP-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUP-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUP-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUP-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUP-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUP-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUP-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUP-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUP-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUP-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUP-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUP-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUP-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUP-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUP-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUP-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUP-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUP-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Super 300 P \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUA-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUA-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUA-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUA-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUA-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUA-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUA-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUA-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUA-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUA-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUA-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUA-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUA-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUA-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUA-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUA-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUA-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUA-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUA-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUA-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUA-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUA-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUA-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUA-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 20A \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25UR-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25UR-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25UR-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25UR-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25UR-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25UR-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25UR-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25UR-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25UR-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD532-25UR-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD532-25UR-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD532-25UR-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD532-25UR-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25UR-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25UR-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25UR-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25UR-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25UR-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25UR-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25UR-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25UR-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25UR-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25UR-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25UR-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUR-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUR-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUR-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUR-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUR-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUR-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUR-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUR-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUR-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUR-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUR-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUR-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUR-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUR-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUR-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUR-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUR-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUR-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUR-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUR-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUR-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUR-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUR-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUR-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, F-LOCK 60 \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25UK-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25UK-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25UK-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25UK-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25UK-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25UK-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25UK-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25UK-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25UK-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD532-25UK-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD532-25UK-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD532-25UK-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD532-25UK-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25UK-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25UK-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25UK-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25UK-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25UK-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25UK-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25UK-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25UK-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25UK-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25UK-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25UK-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 25 mm tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUK-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUK-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUK-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUK-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUK-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUK-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUK-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUK-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUK-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUK-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUK-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUK-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUK-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUK-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUK-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUK-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUK-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUK-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUK-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUK-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUK-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUK-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUK-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUK-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Final Lock \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-25BUW-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-25BUW-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-25BUW-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-25BUW-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-25BUW-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-25BUW-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-25BUW-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-25BUW-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-25BUW-20-2-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 4
	AMD532-25BUW-20-2-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 1
	AMD532-25BUW-20-2-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 2
	AMD532-25BUW-20-2-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: With bypass \| Pilot port dir: 3
	AMD532-25BUW-20-3-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 4
	AMD532-25BUW-20-3-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 1
	AMD532-25BUW-20-3-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 2
	AMD532-25BUW-20-3-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Flow adj. + bypass \| Pilot port dir: 3
	AMD532-25BUW-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-25BUW-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-25BUW-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-25BUW-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-25BUW-20-7-4	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 4
	AMD532-25BUW-20-7-1	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 1
	AMD532-25BUW-20-7-2	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 2
	AMD532-25BUW-20-7-3	Model: AMD5*2 \| Action: Double acting \| Connection: OD 1" tube, Flare Tek \| Option: Bypass + indicator \| Pilot port dir: 3
	AMD532-15AU-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-15AU-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-15AU-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-15AU-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-15AU-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-15AU-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-15AU-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-15AU-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-15AU-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-15AU-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-15AU-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-15AU-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 15 \| Option: ON-OFF, indicator \| Pilot port dir: 3
	AMD532-20AU-20-0-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 4
	AMD532-20AU-20-0-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 1
	AMD532-20AU-20-0-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 2
	AMD532-20AU-20-0-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF only \| Pilot port dir: 3
	AMD532-20AU-20-1-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 4
	AMD532-20AU-20-1-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 1
	AMD532-20AU-20-1-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 2
	AMD532-20AU-20-1-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: Flow adjustment \| Pilot port dir: 3
	AMD532-20AU-20-6-4	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 4
	AMD532-20AU-20-6-1	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 1
	AMD532-20AU-20-6-2	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 2
	AMD532-20AU-20-6-3	Model: AMD5*2 \| Action: Double acting \| Connection: PVC union, nominal 20 \| Option: ON-OFF, indicator \| Pilot port dir: 3

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AMD42/AMD52 Chemical Air Operated Valve (Part2, 3/4"-1")
