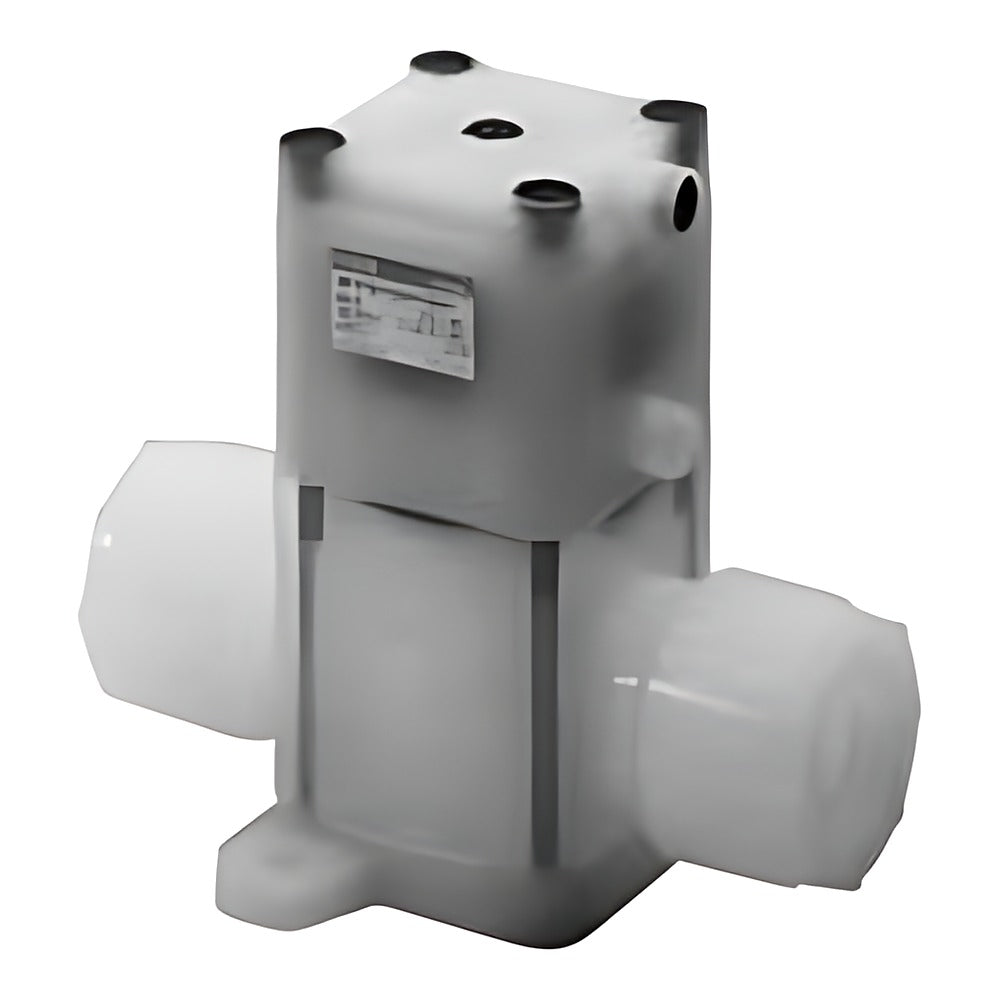

CKD AMD5*3R Air Operated Valve for Chemicals (Orifice 20 mm)

CKD AMD5*3R air-operated 2-port diaphragm valve for chemicals and pure water with integrated fittings, OD25 / 1 in tube, normal or bypass body.

Key features

Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
Wide chemical compatibility (acids and alkalis); operating pressure range A-B and B-A 0.5 MPa
Actuator 00 ON-OFF with indicator or 10 with flow adjustment; body N normal or B with bypass orifice
Sensor-equipped actuators (A1/A3/B1/B3 NPN, C1/D1 PNP; cable 1 m or 3 m) replace 00/10 in the code and are not expanded
Mounting F/H/X and pilot port direction 1-4 in code; order example: AMD513R-25BUP-00N4F

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5-120 C (N), 5-90 C (B); HF 5-80 C
Proof pressure	1.0 MPa
Operating pressure A-B / B-A	0-0.5 MPa
Seat leakage	0 (water)
Back pressure	0-0.5 MPa
Pilot port	Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure	NC/NO 0.35-0.5 MPa, double 0.3-0.4 MPa
Cv	8 (20)
Mass	0.91 kg (N), 1.0 kg (B)
Source	CKD Korea catalog CB-03-1SK-9, p. 1182-1185

AMD513R-25UP-00N4F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UP-00N4H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UP-00N4X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UP-00N1F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UP-00N1H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UP-00N1X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UP-00N2F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UP-00N2H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UP-00N2X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UP-00N3F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UP-00N3H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UP-00N3X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UP-00B4F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UP-00B4H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UP-00B4X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UP-00B1F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UP-00B1H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UP-00B1X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UP-00B2F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UP-00B2H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UP-00B2X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UP-00B3F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UP-00B3H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UP-00B3X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UP-10N4F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UP-10N4H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UP-10N4X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UP-10N1F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UP-10N1H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UP-10N1X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UP-10N2F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UP-10N2H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UP-10N2X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UP-10N3F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UP-10N3H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UP-10N3X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UP-10B4F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UP-10B4H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UP-10B4X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UP-10B1F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UP-10B1H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UP-10B1X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UP-10B2F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UP-10B2H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UP-10B2X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UP-10B3F		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UP-10B3H		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UP-10B3X		Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUP-00N4F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUP-00N4H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUP-00N4X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUP-00N1F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUP-00N1H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUP-00N1X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUP-00N2F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUP-00N2H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUP-00N2X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUP-00N3F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUP-00N3H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUP-00N3X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUP-00B4F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUP-00B4H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUP-00B4X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUP-00B1F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUP-00B1H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUP-00B1X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUP-00B2F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUP-00B2H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUP-00B2X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUP-00B3F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUP-00B3H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUP-00B3X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUP-10N4F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUP-10N4H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUP-10N4X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUP-10N1F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUP-10N1H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUP-10N1X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUP-10N2F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUP-10N2H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUP-10N2X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUP-10N3F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUP-10N3H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUP-10N3X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUP-10B4F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUP-10B4H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUP-10B4X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUP-10B1F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUP-10B1H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUP-10B1X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUP-10B2F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUP-10B2H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUP-10B2X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUP-10B3F		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUP-10B3H		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUP-10B3X		Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UR-00N4F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UR-00N4H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UR-00N4X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UR-00N1F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UR-00N1H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UR-00N1X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UR-00N2F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UR-00N2H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UR-00N2X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UR-00N3F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UR-00N3H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UR-00N3X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UR-00B4F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UR-00B4H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UR-00B4X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UR-00B1F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UR-00B1H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UR-00B1X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UR-00B2F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UR-00B2H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UR-00B2X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UR-00B3F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UR-00B3H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UR-00B3X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UR-10N4F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UR-10N4H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UR-10N4X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UR-10N1F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UR-10N1H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UR-10N1X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UR-10N2F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UR-10N2H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UR-10N2X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UR-10N3F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UR-10N3H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UR-10N3X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25UR-10B4F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25UR-10B4H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25UR-10B4X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25UR-10B1F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25UR-10B1H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25UR-10B1X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25UR-10B2F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25UR-10B2H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25UR-10B2X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25UR-10B3F		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25UR-10B3H		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25UR-10B3X		Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUR-00N4F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUR-00N4H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUR-00N4X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUR-00N1F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUR-00N1H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUR-00N1X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUR-00N2F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUR-00N2H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUR-00N2X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUR-00N3F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUR-00N3H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUR-00N3X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUR-00B4F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUR-00B4H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUR-00B4X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUR-00B1F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUR-00B1H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUR-00B1X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUR-00B2F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUR-00B2H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUR-00B2X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUR-00B3F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUR-00B3H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUR-00B3X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUR-10N4F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUR-10N4H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUR-10N4X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUR-10N1F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUR-10N1H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUR-10N1X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUR-10N2F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUR-10N2H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUR-10N2X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUR-10N3F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUR-10N3H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUR-10N3X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD513R-25BUR-10B4F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD513R-25BUR-10B4H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD513R-25BUR-10B4X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD513R-25BUR-10B1F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD513R-25BUR-10B1H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD513R-25BUR-10B1X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD513R-25BUR-10B2F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD513R-25BUR-10B2H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD513R-25BUR-10B2X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD513R-25BUR-10B3F		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD513R-25BUR-10B3H		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD513R-25BUR-10B3X		Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UP-00N4F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UP-00N4H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UP-00N4X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UP-00N1F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UP-00N1H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UP-00N1X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UP-00N2F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UP-00N2H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UP-00N2X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UP-00N3F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UP-00N3H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UP-00N3X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UP-00B4F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UP-00B4H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UP-00B4X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UP-00B1F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UP-00B1H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UP-00B1X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UP-00B2F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UP-00B2H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UP-00B2X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UP-00B3F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UP-00B3H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UP-00B3X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UP-10N4F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UP-10N4H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UP-10N4X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UP-10N1F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UP-10N1H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UP-10N1X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UP-10N2F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UP-10N2H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UP-10N2X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UP-10N3F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UP-10N3H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UP-10N3X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UP-10B4F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UP-10B4H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UP-10B4X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UP-10B1F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UP-10B1H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UP-10B1X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UP-10B2F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UP-10B2H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UP-10B2X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UP-10B3F		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UP-10B3H		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UP-10B3X		Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUP-00N4F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUP-00N4H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUP-00N4X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUP-00N1F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUP-00N1H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUP-00N1X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUP-00N2F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUP-00N2H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUP-00N2X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUP-00N3F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUP-00N3H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUP-00N3X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUP-00B4F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUP-00B4H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUP-00B4X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUP-00B1F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUP-00B1H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUP-00B1X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUP-00B2F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUP-00B2H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUP-00B2X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUP-00B3F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUP-00B3H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUP-00B3X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUP-10N4F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUP-10N4H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUP-10N4X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUP-10N1F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUP-10N1H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUP-10N1X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUP-10N2F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUP-10N2H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUP-10N2X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUP-10N3F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUP-10N3H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUP-10N3X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUP-10B4F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUP-10B4H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUP-10B4X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUP-10B1F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUP-10B1H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUP-10B1X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUP-10B2F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUP-10B2H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUP-10B2X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUP-10B3F		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUP-10B3H		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUP-10B3X		Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UR-00N4F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UR-00N4H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UR-00N4X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UR-00N1F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UR-00N1H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UR-00N1X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UR-00N2F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UR-00N2H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UR-00N2X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UR-00N3F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UR-00N3H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UR-00N3X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UR-00B4F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UR-00B4H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UR-00B4X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UR-00B1F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UR-00B1H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UR-00B1X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UR-00B2F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UR-00B2H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UR-00B2X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UR-00B3F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UR-00B3H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UR-00B3X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UR-10N4F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UR-10N4H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UR-10N4X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UR-10N1F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UR-10N1H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UR-10N1X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UR-10N2F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UR-10N2H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UR-10N2X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UR-10N3F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UR-10N3H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UR-10N3X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25UR-10B4F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25UR-10B4H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25UR-10B4X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25UR-10B1F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25UR-10B1H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25UR-10B1X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25UR-10B2F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25UR-10B2H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25UR-10B2X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25UR-10B3F		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25UR-10B3H		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25UR-10B3X		Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUR-00N4F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUR-00N4H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUR-00N4X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUR-00N1F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUR-00N1H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUR-00N1X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUR-00N2F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUR-00N2H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUR-00N2X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUR-00N3F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUR-00N3H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUR-00N3X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUR-00B4F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUR-00B4H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUR-00B4X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUR-00B1F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUR-00B1H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUR-00B1X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUR-00B2F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUR-00B2H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUR-00B2X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUR-00B3F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUR-00B3H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUR-00B3X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUR-10N4F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUR-10N4H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUR-10N4X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUR-10N1F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUR-10N1H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUR-10N1X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUR-10N2F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUR-10N2H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUR-10N2X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUR-10N3F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUR-10N3H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUR-10N3X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD523R-25BUR-10B4F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD523R-25BUR-10B4H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD523R-25BUR-10B4X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD523R-25BUR-10B1F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD523R-25BUR-10B1H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD523R-25BUR-10B1X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD523R-25BUR-10B2F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD523R-25BUR-10B2H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD523R-25BUR-10B2X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD523R-25BUR-10B3F		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD523R-25BUR-10B3H		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD523R-25BUR-10B3X		Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UP-00N4F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UP-00N4H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UP-00N4X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UP-00N1F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UP-00N1H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UP-00N1X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UP-00N2F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UP-00N2H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UP-00N2X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UP-00N3F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UP-00N3H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UP-00N3X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UP-00B4F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UP-00B4H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UP-00B4X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UP-00B1F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UP-00B1H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UP-00B1X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UP-00B2F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UP-00B2H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UP-00B2X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UP-00B3F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UP-00B3H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UP-00B3X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UP-10N4F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UP-10N4H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UP-10N4X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UP-10N1F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UP-10N1H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UP-10N1X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UP-10N2F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UP-10N2H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UP-10N2X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UP-10N3F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UP-10N3H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UP-10N3X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UP-10B4F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UP-10B4H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UP-10B4X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UP-10B1F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UP-10B1H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UP-10B1X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UP-10B2F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UP-10B2H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UP-10B2X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UP-10B3F		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UP-10B3H		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UP-10B3X		Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUP-00N4F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUP-00N4H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUP-00N4X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUP-00N1F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUP-00N1H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUP-00N1X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUP-00N2F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUP-00N2H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUP-00N2X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUP-00N3F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUP-00N3H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUP-00N3X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUP-00B4F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUP-00B4H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUP-00B4X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUP-00B1F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUP-00B1H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUP-00B1X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUP-00B2F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUP-00B2H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUP-00B2X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUP-00B3F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUP-00B3H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUP-00B3X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUP-10N4F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUP-10N4H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUP-10N4X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUP-10N1F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUP-10N1H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUP-10N1X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUP-10N2F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUP-10N2H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUP-10N2X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUP-10N3F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUP-10N3H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUP-10N3X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUP-10B4F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUP-10B4H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUP-10B4X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUP-10B1F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUP-10B1H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUP-10B1X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUP-10B2F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUP-10B2H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUP-10B2X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUP-10B3F		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUP-10B3H		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUP-10B3X		Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UR-00N4F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UR-00N4H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UR-00N4X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UR-00N1F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UR-00N1H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UR-00N1X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UR-00N2F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UR-00N2H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UR-00N2X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UR-00N3F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UR-00N3H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UR-00N3X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UR-00B4F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UR-00B4H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UR-00B4X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UR-00B1F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UR-00B1H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UR-00B1X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UR-00B2F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UR-00B2H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UR-00B2X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UR-00B3F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UR-00B3H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UR-00B3X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UR-10N4F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UR-10N4H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UR-10N4X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UR-10N1F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UR-10N1H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UR-10N1X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UR-10N2F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UR-10N2H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UR-10N2X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UR-10N3F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UR-10N3H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UR-10N3X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25UR-10B4F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25UR-10B4H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25UR-10B4X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25UR-10B1F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25UR-10B1H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25UR-10B1X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25UR-10B2F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25UR-10B2H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25UR-10B2X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25UR-10B3F		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25UR-10B3H		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25UR-10B3X		Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUR-00N4F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUR-00N4H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUR-00N4X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUR-00N1F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUR-00N1H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUR-00N1X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUR-00N2F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUR-00N2H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUR-00N2X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUR-00N3F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUR-00N3H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUR-00N3X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUR-00B4F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUR-00B4H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUR-00B4X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUR-00B1F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUR-00B1H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUR-00B1X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUR-00B2F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUR-00B2H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUR-00B2X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUR-00B3F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUR-00B3H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUR-00B3X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUR-10N4F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUR-10N4H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUR-10N4X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUR-10N1F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUR-10N1H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUR-10N1X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUR-10N2F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUR-10N2H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUR-10N2X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUR-10N3F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUR-10N3H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUR-10N3X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
AMD533R-25BUR-10B4F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
AMD533R-25BUR-10B4H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
AMD533R-25BUR-10B4X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
AMD533R-25BUR-10B1F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
AMD533R-25BUR-10B1H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
AMD533R-25BUR-10B1X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
AMD533R-25BUR-10B2F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
AMD533R-25BUR-10B2H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
AMD533R-25BUR-10B2X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
AMD533R-25BUR-10B3F		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
AMD533R-25BUR-10B3H		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
AMD533R-25BUR-10B3X		Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount

Air Operated ValvesCKD

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMD5*3R Air Operated Valve for Chemicals (Orifice 20 mm)

Brand CKD·Air Operated Valves

Available part numbers (576)

AMD513R-25UP-00N4F, AMD513R-25UP-00N4H, AMD513R-25UP-00N4X, AMD513R-25UP-00N1F, AMD513R-25UP-00N1H, AMD513R-25UP-00N1X, AMD513R-25UP-00N2F, AMD513R-25UP-00N2H, AMD513R-25UP-00N2X, AMD513R-25UP-00N3F + 566 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMD513R-25UP-00N4F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UP-00N4H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UP-00N4X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UP-00N1F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UP-00N1H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UP-00N1X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UP-00N2F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UP-00N2H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UP-00N2X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UP-00N3F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UP-00N3H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UP-00N3X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UP-00B4F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UP-00B4H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UP-00B4X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UP-00B1F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UP-00B1H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UP-00B1X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UP-00B2F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UP-00B2H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UP-00B2X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UP-00B3F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UP-00B3H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UP-00B3X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UP-10N4F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UP-10N4H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UP-10N4X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UP-10N1F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UP-10N1H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UP-10N1X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UP-10N2F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UP-10N2H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UP-10N2X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UP-10N3F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UP-10N3H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UP-10N3X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UP-10B4F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UP-10B4H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UP-10B4X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UP-10B1F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UP-10B1H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UP-10B1X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UP-10B2F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UP-10B2H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UP-10B2X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UP-10B3F	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UP-10B3H	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UP-10B3X	Action: NC \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUP-00N4F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUP-00N4H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUP-00N4X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUP-00N1F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUP-00N1H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUP-00N1X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUP-00N2F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUP-00N2H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUP-00N2X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUP-00N3F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUP-00N3H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUP-00N3X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUP-00B4F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUP-00B4H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUP-00B4X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUP-00B1F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUP-00B1H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUP-00B1X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUP-00B2F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUP-00B2H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUP-00B2X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUP-00B3F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUP-00B3H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUP-00B3X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUP-10N4F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUP-10N4H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUP-10N4X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUP-10N1F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUP-10N1H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUP-10N1X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUP-10N2F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUP-10N2H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUP-10N2X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUP-10N3F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUP-10N3H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUP-10N3X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUP-10B4F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUP-10B4H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUP-10B4X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUP-10B1F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUP-10B1H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUP-10B1X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUP-10B2F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUP-10B2H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUP-10B2X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUP-10B3F	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUP-10B3H	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUP-10B3X	Action: NC \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UR-00N4F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UR-00N4H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UR-00N4X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UR-00N1F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UR-00N1H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UR-00N1X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UR-00N2F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UR-00N2H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UR-00N2X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UR-00N3F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UR-00N3H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UR-00N3X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UR-00B4F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UR-00B4H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UR-00B4X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UR-00B1F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UR-00B1H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UR-00B1X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UR-00B2F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UR-00B2H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UR-00B2X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UR-00B3F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UR-00B3H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UR-00B3X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UR-10N4F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UR-10N4H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UR-10N4X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UR-10N1F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UR-10N1H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UR-10N1X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UR-10N2F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UR-10N2H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UR-10N2X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UR-10N3F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UR-10N3H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UR-10N3X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25UR-10B4F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25UR-10B4H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25UR-10B4X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25UR-10B1F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25UR-10B1H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25UR-10B1X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25UR-10B2F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25UR-10B2H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25UR-10B2X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25UR-10B3F	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25UR-10B3H	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25UR-10B3X	Action: NC \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUR-00N4F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUR-00N4H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUR-00N4X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUR-00N1F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUR-00N1H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUR-00N1X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUR-00N2F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUR-00N2H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUR-00N2X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUR-00N3F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUR-00N3H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUR-00N3X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUR-00B4F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUR-00B4H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUR-00B4X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUR-00B1F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUR-00B1H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUR-00B1X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUR-00B2F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUR-00B2H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUR-00B2X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUR-00B3F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUR-00B3H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUR-00B3X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUR-10N4F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUR-10N4H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUR-10N4X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUR-10N1F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUR-10N1H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUR-10N1X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUR-10N2F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUR-10N2H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUR-10N2X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUR-10N3F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUR-10N3H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUR-10N3X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD513R-25BUR-10B4F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD513R-25BUR-10B4H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD513R-25BUR-10B4X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD513R-25BUR-10B1F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD513R-25BUR-10B1H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD513R-25BUR-10B1X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD513R-25BUR-10B2F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD513R-25BUR-10B2H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD513R-25BUR-10B2X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD513R-25BUR-10B3F	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD513R-25BUR-10B3H	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD513R-25BUR-10B3X	Action: NC \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UP-00N4F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UP-00N4H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UP-00N4X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UP-00N1F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UP-00N1H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UP-00N1X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UP-00N2F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UP-00N2H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UP-00N2X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UP-00N3F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UP-00N3H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UP-00N3X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UP-00B4F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UP-00B4H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UP-00B4X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UP-00B1F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UP-00B1H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UP-00B1X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UP-00B2F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UP-00B2H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UP-00B2X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UP-00B3F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UP-00B3H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UP-00B3X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UP-10N4F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UP-10N4H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UP-10N4X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UP-10N1F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UP-10N1H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UP-10N1X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UP-10N2F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UP-10N2H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UP-10N2X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UP-10N3F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UP-10N3H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UP-10N3X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UP-10B4F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UP-10B4H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UP-10B4X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UP-10B1F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UP-10B1H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UP-10B1X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UP-10B2F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UP-10B2H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UP-10B2X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UP-10B3F	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UP-10B3H	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UP-10B3X	Action: NO \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUP-00N4F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUP-00N4H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUP-00N4X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUP-00N1F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUP-00N1H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUP-00N1X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUP-00N2F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUP-00N2H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUP-00N2X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUP-00N3F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUP-00N3H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUP-00N3X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUP-00B4F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUP-00B4H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUP-00B4X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUP-00B1F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUP-00B1H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUP-00B1X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUP-00B2F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUP-00B2H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUP-00B2X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUP-00B3F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUP-00B3H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUP-00B3X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUP-10N4F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUP-10N4H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUP-10N4X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUP-10N1F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUP-10N1H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUP-10N1X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUP-10N2F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUP-10N2H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUP-10N2X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUP-10N3F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUP-10N3H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUP-10N3X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUP-10B4F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUP-10B4H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUP-10B4X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUP-10B1F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUP-10B1H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUP-10B1X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUP-10B2F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUP-10B2H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUP-10B2X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUP-10B3F	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUP-10B3H	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUP-10B3X	Action: NO \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UR-00N4F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UR-00N4H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UR-00N4X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UR-00N1F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UR-00N1H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UR-00N1X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UR-00N2F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UR-00N2H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UR-00N2X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UR-00N3F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UR-00N3H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UR-00N3X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UR-00B4F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UR-00B4H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UR-00B4X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UR-00B1F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UR-00B1H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UR-00B1X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UR-00B2F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UR-00B2H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UR-00B2X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UR-00B3F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UR-00B3H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UR-00B3X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UR-10N4F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UR-10N4H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UR-10N4X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UR-10N1F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UR-10N1H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UR-10N1X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UR-10N2F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UR-10N2H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UR-10N2X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UR-10N3F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UR-10N3H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UR-10N3X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25UR-10B4F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25UR-10B4H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25UR-10B4X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25UR-10B1F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25UR-10B1H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25UR-10B1X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25UR-10B2F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25UR-10B2H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25UR-10B2X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25UR-10B3F	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25UR-10B3H	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25UR-10B3X	Action: NO \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUR-00N4F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUR-00N4H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUR-00N4X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUR-00N1F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUR-00N1H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUR-00N1X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUR-00N2F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUR-00N2H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUR-00N2X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUR-00N3F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUR-00N3H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUR-00N3X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUR-00B4F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUR-00B4H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUR-00B4X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUR-00B1F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUR-00B1H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUR-00B1X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUR-00B2F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUR-00B2H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUR-00B2X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUR-00B3F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUR-00B3H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUR-00B3X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUR-10N4F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUR-10N4H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUR-10N4X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUR-10N1F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUR-10N1H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUR-10N1X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUR-10N2F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUR-10N2H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUR-10N2X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUR-10N3F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUR-10N3H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUR-10N3X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD523R-25BUR-10B4F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD523R-25BUR-10B4H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD523R-25BUR-10B4X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD523R-25BUR-10B1F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD523R-25BUR-10B1H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD523R-25BUR-10B1X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD523R-25BUR-10B2F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD523R-25BUR-10B2H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD523R-25BUR-10B2X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD523R-25BUR-10B3F	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD523R-25BUR-10B3H	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD523R-25BUR-10B3X	Action: NO \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UP-00N4F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UP-00N4H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UP-00N4X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UP-00N1F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UP-00N1H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UP-00N1X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UP-00N2F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UP-00N2H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UP-00N2X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UP-00N3F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UP-00N3H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UP-00N3X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UP-00B4F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UP-00B4H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UP-00B4X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UP-00B1F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UP-00B1H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UP-00B1X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UP-00B2F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UP-00B2H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UP-00B2X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UP-00B3F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UP-00B3H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UP-00B3X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UP-10N4F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UP-10N4H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UP-10N4X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UP-10N1F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UP-10N1H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UP-10N1X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UP-10N2F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UP-10N2H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UP-10N2X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UP-10N3F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UP-10N3H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UP-10N3X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UP-10B4F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UP-10B4H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UP-10B4X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UP-10B1F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UP-10B1H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UP-10B1X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UP-10B2F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UP-10B2H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UP-10B2X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UP-10B3F	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UP-10B3H	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UP-10B3X	Action: Double acting \| Connection: Pillar S300 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUP-00N4F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUP-00N4H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUP-00N4X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUP-00N1F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUP-00N1H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUP-00N1X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUP-00N2F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUP-00N2H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUP-00N2X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUP-00N3F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUP-00N3H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUP-00N3X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUP-00B4F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUP-00B4H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUP-00B4X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUP-00B1F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUP-00B1H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUP-00B1X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUP-00B2F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUP-00B2H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUP-00B2X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUP-00B3F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUP-00B3H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUP-00B3X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUP-10N4F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUP-10N4H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUP-10N4X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUP-10N1F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUP-10N1H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUP-10N1X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUP-10N2F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUP-10N2H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUP-10N2X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUP-10N3F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUP-10N3H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUP-10N3X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PFA) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUP-10B4F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUP-10B4H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUP-10B4X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUP-10B1F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUP-10B1H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUP-10B1X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUP-10B2F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUP-10B2H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUP-10B2X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUP-10B3F	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUP-10B3H	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUP-10B3X	Action: Double acting \| Connection: Pillar S300 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UR-00N4F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UR-00N4H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UR-00N4X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UR-00N1F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UR-00N1H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UR-00N1X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UR-00N2F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UR-00N2H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UR-00N2X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UR-00N3F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UR-00N3H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UR-00N3X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UR-00B4F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UR-00B4H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UR-00B4X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UR-00B1F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UR-00B1H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UR-00B1X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UR-00B2F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UR-00B2H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UR-00B2X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UR-00B3F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UR-00B3H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UR-00B3X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UR-10N4F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UR-10N4H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UR-10N4X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UR-10N1F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UR-10N1H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UR-10N1X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UR-10N2F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UR-10N2H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UR-10N2X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UR-10N3F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UR-10N3H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UR-10N3X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25UR-10B4F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25UR-10B4H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25UR-10B4X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25UR-10B1F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25UR-10B1H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25UR-10B1X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25UR-10B2F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25UR-10B2H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25UR-10B2X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25UR-10B3F	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25UR-10B3H	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25UR-10B3X	Action: Double acting \| Connection: F-LOCK 60 OD25x22 (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUR-00N4F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUR-00N4H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUR-00N4X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUR-00N1F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUR-00N1H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUR-00N1X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUR-00N2F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUR-00N2H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUR-00N2X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUR-00N3F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUR-00N3H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUR-00N3X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUR-00B4F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUR-00B4H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUR-00B4X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUR-00B1F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUR-00B1H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUR-00B1X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUR-00B2F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUR-00B2H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUR-00B2X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUR-00B3F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUR-00B3H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUR-00B3X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: ON-OFF, indicator \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUR-10N4F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUR-10N4H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUR-10N4X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUR-10N1F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUR-10N1H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUR-10N1X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUR-10N2F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUR-10N2H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUR-10N2X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUR-10N3F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUR-10N3H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUR-10N3X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Normal (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount
	AMD533R-25BUR-10B4F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Flange
	AMD533R-25BUR-10B4H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: 4-point flange
	AMD533R-25BUR-10B4X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 4 \| Mounting: Bottom mount
	AMD533R-25BUR-10B1F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Flange
	AMD533R-25BUR-10B1H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: 4-point flange
	AMD533R-25BUR-10B1X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 1 \| Mounting: Bottom mount
	AMD533R-25BUR-10B2F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Flange
	AMD533R-25BUR-10B2H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: 4-point flange
	AMD533R-25BUR-10B2X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 2 \| Mounting: Bottom mount
	AMD533R-25BUR-10B3F	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Flange
	AMD533R-25BUR-10B3H	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: 4-point flange
	AMD533R-25BUR-10B3X	Action: Double acting \| Connection: F-LOCK 60 1x7/8 in (orif. 20) \| Actuator: With flow adjustment \| Body: Bypass (PTFE) \| Pilot port dir.: 3 \| Mounting: Bottom mount

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AMD5*3R Air Operated Valve for Chemicals (Orifice 20 mm)
