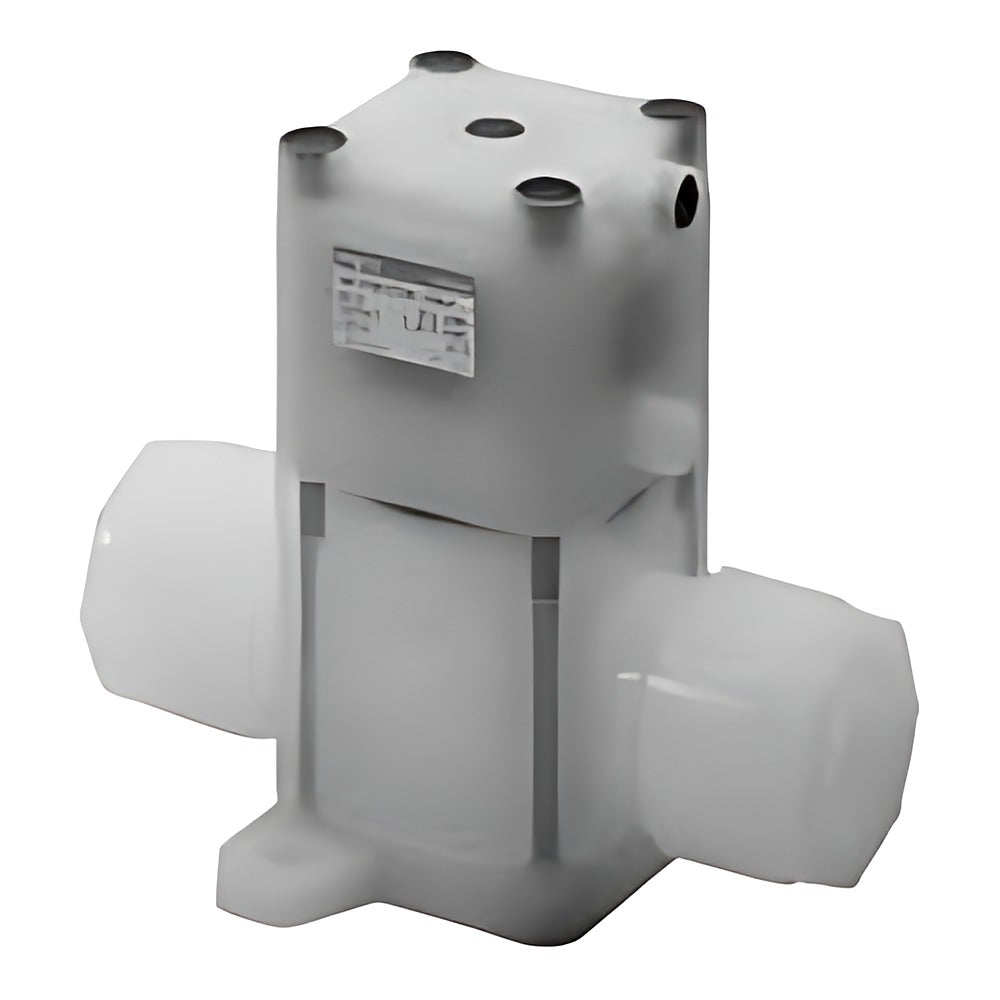

CKD AMDZ*3R Air Operated Valve for Chemicals (Orifice 2-4 mm)

CKD AMDZ*3R Air Operated Valve for Chemicals (Orifice 2-4 mm)

CKD AMDZ*3R compact air-operated 2-port diaphragm valve for chemicals and pure water with integrated fittings, OD1/8 in to OD1/4 in tube, orifice 2 to 4 mm.

Key features

  • Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
  • Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
  • Wide chemical compatibility (acids and alkalis); operating pressure range A-B and B-A 0.5 MPa
  • Actuator option Z0 ON-OFF only; NC, NO or double acting
  • Pilot port direction 1-4 and mounting X (bottom) or H (4-point flange) in code
  • Order example: AMDZ13R-6UP-Z0N4X; PTFE body (UR) is made to order

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure 1.0 MPa
Operating pressure A-B / B-A 0-0.5 MPa
Seat leakage 0 (water)
Back pressure 0-0.5 MPa
Pilot port Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure NC/NO 0.4-0.5 MPa, double 0.3-0.4 MPa
Cv 0.07 (2 mm), 0.22 (3.5 mm), 0.25 (4 mm)
Mass 0.07 kg
Source CKD Korea catalog CB-03-1SK-9, p. 1168-1169
AMDZ13R-6BUP-Z0N4X Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N4H Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N1X Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N1H Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N2X Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N2H Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N3X Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N3H Action: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N4X Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N4H Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N1X Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N1H Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N2X Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N2H Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N3X Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N3H Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N4X Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N4H Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N1X Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N1H Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N2X Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N2H Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N3X Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N3H Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N4X Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N4H Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N1X Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N1H Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N2X Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N2H Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N3X Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N3H Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N4X Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N4H Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N1X Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N1H Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N2X Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N2H Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N3X Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N3H Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N4X Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N4H Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N1X Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N1H Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N2X Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N2H Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N3X Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N3H Action: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N4X Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N4H Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N1X Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N1H Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N2X Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N2H Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N3X Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N3H Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N4X Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N4H Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N1X Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N1H Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N2X Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N2H Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N3X Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N3H Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N4X Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N4H Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N1X Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N1H Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N2X Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N2H Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N3X Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N3H Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N4X Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N4H Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N1X Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N1H Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N2X Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N2H Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N3X Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N3H Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N4X Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N4H Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N1X Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N1H Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N2X Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N2H Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N3X Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N3H Action: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N4X Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N4H Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N1X Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N1H Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N2X Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N2H Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N3X Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N3H Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N4X Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N4H Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N1X Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N1H Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N2X Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N2H Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N3X Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N3H Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N4X Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N4H Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N1X Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N1H Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N2X Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N2H Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N3X Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N3H Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N4X Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N4H Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N1X Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N1H Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N2X Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N2H Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N3X Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N3H Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
Air Operated ValvesCKD
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMDZ*3R Air Operated Valve for Chemicals (Orifice 2-4 mm)

Brand CKD·Air Operated Valves

Available part numbers (120)

AMDZ13R-6BUP-Z0N4X, AMDZ13R-6BUP-Z0N4H, AMDZ13R-6BUP-Z0N1X, AMDZ13R-6BUP-Z0N1H, AMDZ13R-6BUP-Z0N2X, AMDZ13R-6BUP-Z0N2H, AMDZ13R-6BUP-Z0N3X, AMDZ13R-6BUP-Z0N3H, AMDZ13R-6UP-Z0N4X, AMDZ13R-6UP-Z0N4H + 110 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMDZ13R-6BUP-Z0N4XAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N4HAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N1XAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N1HAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N2XAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N2HAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6BUP-Z0N3XAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6BUP-Z0N3HAction: NC | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N4XAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N4HAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N1XAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N1HAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N2XAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N2HAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6UP-Z0N3XAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6UP-Z0N3HAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N4XAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N4HAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N1XAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N1HAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N2XAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N2HAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-8BUP-Z0N3XAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-8BUP-Z0N3HAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N4XAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N4HAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N1XAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N1HAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N2XAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N2HAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-6UR-Z0N3XAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-6UR-Z0N3HAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N4XAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N4HAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N1XAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N1HAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N2XAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N2HAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ13R-8BUR-Z0N3XAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ13R-8BUR-Z0N3HAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N4XAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N4HAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N1XAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N1HAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N2XAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N2HAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6BUP-Z0N3XAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6BUP-Z0N3HAction: NO | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N4XAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N4HAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N1XAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N1HAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N2XAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N2HAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6UP-Z0N3XAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6UP-Z0N3HAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N4XAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N4HAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N1XAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N1HAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N2XAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N2HAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-8BUP-Z0N3XAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-8BUP-Z0N3HAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N4XAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N4HAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N1XAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N1HAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N2XAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N2HAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-6UR-Z0N3XAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-6UR-Z0N3HAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N4XAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N4HAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N1XAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N1HAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N2XAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N2HAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ23R-8BUR-Z0N3XAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ23R-8BUR-Z0N3HAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N4XAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N4HAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N1XAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N1HAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N2XAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N2HAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6BUP-Z0N3XAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6BUP-Z0N3HAction: Double acting | Connection: Pillar S300 1/8x0.086 in (orif. 2) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N4XAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N4HAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N1XAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N1HAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N2XAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N2HAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6UP-Z0N3XAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6UP-Z0N3HAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N4XAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N4HAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N1XAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N1HAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N2XAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N2HAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-8BUP-Z0N3XAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-8BUP-Z0N3HAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Body: Normal (PFA) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N4XAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N4HAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N1XAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N1HAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N2XAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N2HAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-6UR-Z0N3XAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-6UR-Z0N3HAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N4XAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N4HAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 4 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N1XAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N1HAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 1 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N2XAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N2HAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 2 | Mounting: 4-point flange
AMDZ33R-8BUR-Z0N3XAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: Bottom mount
AMDZ33R-8BUR-Z0N3HAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Body: Normal (PTFE) | Pilot port dir.: 3 | Mounting: 4-point flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
