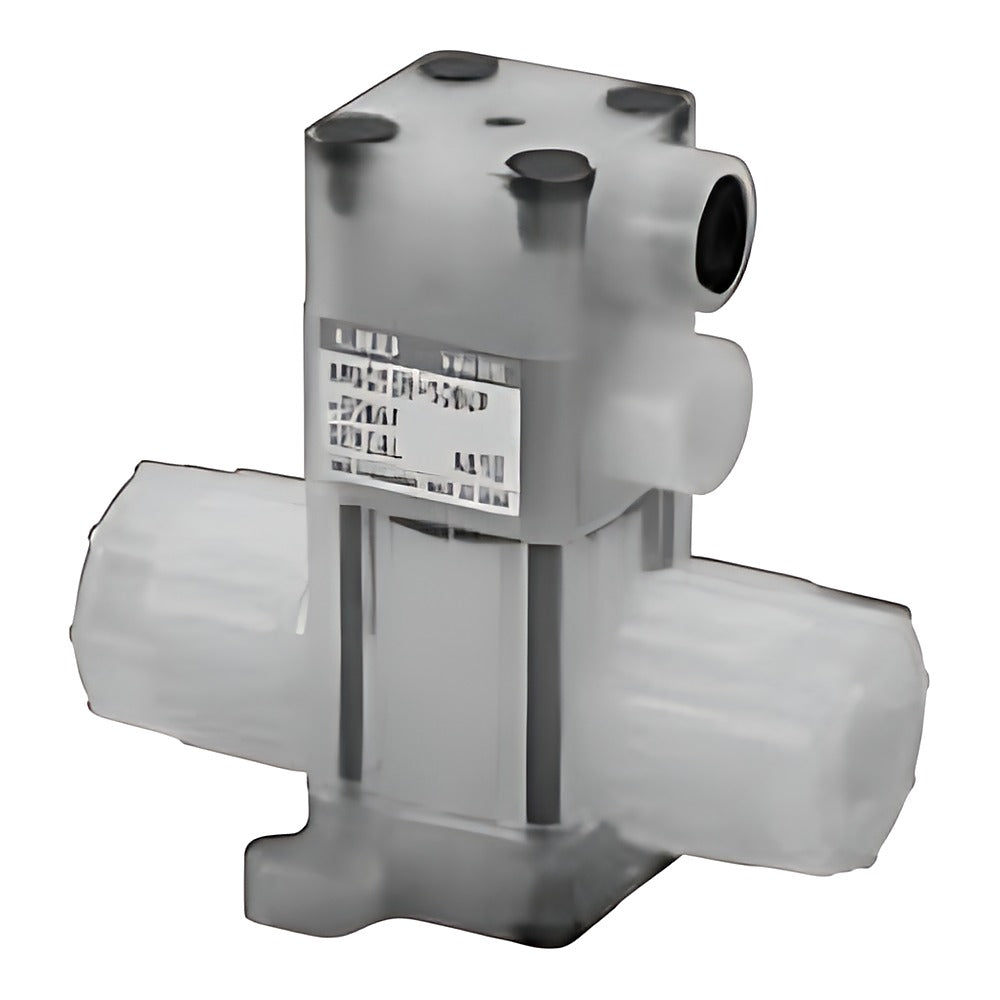

CKD AMDZ*3R Chemical Air Operated Valve (Part3R, 3-6 mm Tube)

CKD AMDZ*3R Chemical Air Operated Valve (Part3R, 3-6 mm Tube)

CKD AMDZ*3R Part3R compact chemical air-operated 2-port diaphragm valve with integrated fittings for OD 3 mm, 6 mm, 1/8" and 1/4" tube.

Key features

  • NC, NO and double-acting actuators; PVDF actuator, PTFE diaphragm, PFA or PTFE body
  • Integrated Super 300 Pillar P-series (UP/BUP) or F-LOCK 60 (UR/BUR) tube fittings
  • Orifice 2 mm (3UP/6BUP), 4 mm (6UP/8BUP) or 3.5 mm (F-LOCK 60); Cv 0.07-0.25
  • ON-OFF (Z0) or flow-adjustment (10, NC only) actuator; bottom (X) or 4-point flange (H) mounting
  • Pilot port direction 1-4 selectable; PTFE body versions are made to order

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5-120 C (HF 5-80 C; F-LOCK 60 5-100 C)
Proof pressure 1.0 MPa
Operating pressure 0-0.5 MPa (A to B and B to A)
Seat leakage 0 cm3/min (water pressure)
Diaphragm / body PTFE / PFA or PTFE
Pilot port Rc1/8
Operating air pressure NC/NO 0.4-0.5 MPa, double acting 0.3-0.4 MPa
Mass 0.07 kg
Source CKD Korea catalog CB-031K-15, p. 22-25
AMDZ13R-3UP-Z0N4X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-3UP-Z0N4H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-3UP-Z0N1X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-3UP-Z0N1H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-3UP-Z0N2X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-3UP-Z0N2H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-3UP-Z0N3X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-3UP-Z0N3H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-3UP-10N4X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-3UP-10N4H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-3UP-10N1X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-3UP-10N1H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-3UP-10N2X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-3UP-10N2H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-3UP-10N3X Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-3UP-10N3H Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-6BUP-10N4X Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-6BUP-10N4H Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-6BUP-10N1X Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-6BUP-10N1H Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-6BUP-10N2X Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-6BUP-10N2H Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-6BUP-10N3X Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-6BUP-10N3H Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-6UP-10N4X Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-6UP-10N4H Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-6UP-10N1X Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-6UP-10N1H Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-6UP-10N2X Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-6UP-10N2H Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-6UP-10N3X Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-6UP-10N3H Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-8BUP-10N4X Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-8BUP-10N4H Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-8BUP-10N1X Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-8BUP-10N1H Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-8BUP-10N2X Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-8BUP-10N2H Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-8BUP-10N3X Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-8BUP-10N3H Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-6UR-10N4X Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-6UR-10N4H Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-6UR-10N1X Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-6UR-10N1H Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-6UR-10N2X Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-6UR-10N2H Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-6UR-10N3X Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-6UR-10N3H Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ13R-8BUR-10N4X Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ13R-8BUR-10N4H Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ13R-8BUR-10N1X Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ13R-8BUR-10N1H Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ13R-8BUR-10N2X Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ13R-8BUR-10N2H Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ13R-8BUR-10N3X Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ13R-8BUR-10N3H Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ23R-3UP-Z0N4X Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ23R-3UP-Z0N4H Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ23R-3UP-Z0N1X Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ23R-3UP-Z0N1H Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ23R-3UP-Z0N2X Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ23R-3UP-Z0N2H Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ23R-3UP-Z0N3X Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ23R-3UP-Z0N3H Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: 4-point flange
AMDZ33R-3UP-Z0N4X Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: Bottom mount
AMDZ33R-3UP-Z0N4H Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 4 | Mounting: 4-point flange
AMDZ33R-3UP-Z0N1X Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: Bottom mount
AMDZ33R-3UP-Z0N1H Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 1 | Mounting: 4-point flange
AMDZ33R-3UP-Z0N2X Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: Bottom mount
AMDZ33R-3UP-Z0N2H Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 2 | Mounting: 4-point flange
AMDZ33R-3UP-Z0N3X Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: Bottom mount
AMDZ33R-3UP-Z0N3H Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Pilot port dir: 3 | Mounting: 4-point flange
