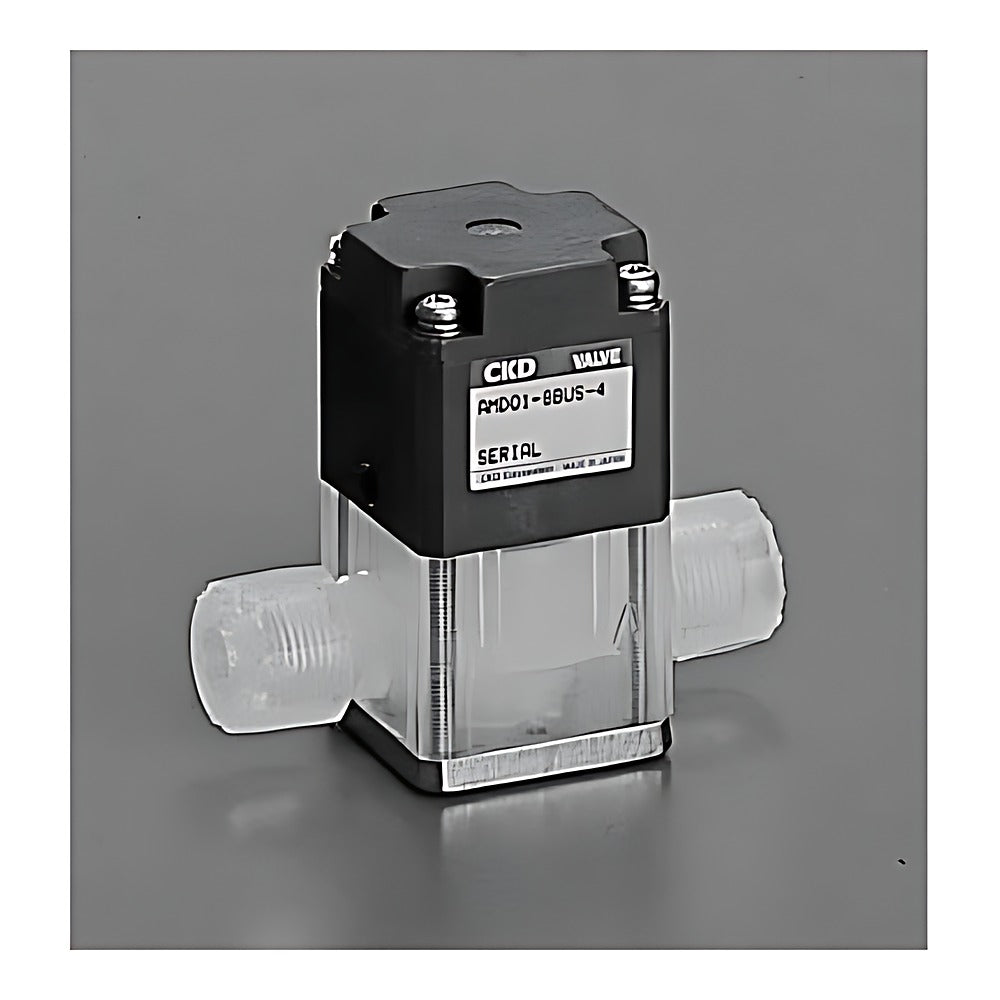

CKD AMDZ/AMD0 Part1 Compact Chemical Air Operated Valve

CKD AMDZ/AMD0 Part1 Compact Chemical Air Operated Valve

CKD AMDZ and AMD0 Part1 compact air-operated 2-port diaphragm valves for pure water and non-acidic chemicals, OD 3-6.35 mm, 1/8"-1/4" tube or Rc1/8.

Key features

  • NC, NO and double-acting actuators with M5 pilot port
  • Rc1/8 thread or integrated Super pillar, Super 300 P, F-LOCK 20/60, Final Lock, Flare Tek fittings
  • AMDZ orifice 2 mm (1.6 mm F-LOCK 60 3 mm) or 3.5 mm; AMD0 orifice 3-4 mm
  • Flow adjustment option (1; AMDZ NC only); stainless body (D) for Rc1/8 type
  • Not for acidic fluids (use Part3R / Part2)

Specifications

Fluid Chemicals, pure water, N2 gas, air (non-acidic)
Fluid temperature 5-80 C
Proof pressure 1.0 MPa
Operating pressure A to B 0-0.5 MPa, B to A 0-0.3 MPa
Seat leakage 0 cm3/min (water pressure)
Pilot port M5
Mass 0.06 kg (AMDZ), 0.11 kg (AMD0)
Source CKD Korea catalog CB-031K-15, p. 120-123
AMDZ1-6-2 Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6-2-D Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ1-6-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6-2-1D Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMDZ1-3US-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3US-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUS-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUS-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UP-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UP-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUP-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUP-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UF-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UF-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UR-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UR-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUR-2 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUR-2-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6UR-4 Model: AMDZ | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6UR-4-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-8BUR-4 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-8BUR-4-1 Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ2-6-2 Model: AMDZ | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6-2-D Model: AMDZ | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ2-3US-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUS-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UP-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUP-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UF-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UR-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUR-2 Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6UR-4 Model: AMDZ | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-8BUR-4 Model: AMDZ | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6-2 Model: AMDZ | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6-2-D Model: AMDZ | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ3-3US-2 Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUS-2 Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UP-2 Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUP-2 Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UF-2 Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UR-2 Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUR-2 Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6UR-4 Model: AMDZ | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-8BUR-4 Model: AMDZ | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6-4 Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6-4-D Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD01-6-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6-4-1D Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD01-6US-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6US-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUS-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUS-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UP-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UP-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUP-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUP-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UF-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UF-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUF-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUF-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UR-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UR-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUR-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUR-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UK-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UK-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUK-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUK-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUW-4 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUW-4-1 Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6-4 Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6-4-D Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD02-6-4-1 Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6-4-1D Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD02-6US-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6US-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUS-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUS-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UP-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UP-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUP-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUP-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UF-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UF-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUF-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUF-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UR-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UR-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUR-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUR-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UK-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UK-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUK-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUK-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUW-4 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUW-4-1 Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6-4 Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6-4-D Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD03-6-4-1 Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6-4-1D Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD03-6US-4 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6US-4-1 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUS-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUS-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UP-4 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UP-4-1 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUP-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUP-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UF-4 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UF-4-1 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUF-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUF-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UR-4 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UR-4-1 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUR-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUR-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UK-4 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UK-4-1 Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUK-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUK-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUW-4 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUW-4-1 Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE
Air Operated ValvesCKD
122 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMDZ/AMD0 Part1 Compact Chemical Air Operated Valve

Brand CKD·Air Operated Valves

Available part numbers (122)

AMDZ1-6-2, AMDZ1-6-2-D, AMDZ1-6-2-1, AMDZ1-6-2-1D, AMDZ1-3US-2, AMDZ1-3US-2-1, AMDZ1-6BUS-2, AMDZ1-6BUS-2-1, AMDZ1-3UP-2, AMDZ1-3UP-2-1 + 112 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMDZ1-6-2Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6-2-DModel: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ1-6-2-1Model: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6-2-1DModel: AMDZ | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMDZ1-3US-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3US-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUS-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUS-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UP-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UP-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUP-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUP-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UF-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UF-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-3UR-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-3UR-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 3 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6BUR-2Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6BUR-2-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/8" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-6UR-4Model: AMDZ | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-6UR-4-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ1-8BUR-4Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ1-8BUR-4-1Model: AMDZ | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMDZ2-6-2Model: AMDZ | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6-2-DModel: AMDZ | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ2-3US-2Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUS-2Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UP-2Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUP-2Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UF-2Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-3UR-2Model: AMDZ | Action: NO (normally open) | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6BUR-2Model: AMDZ | Action: NO (normally open) | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-6UR-4Model: AMDZ | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ2-8BUR-4Model: AMDZ | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6-2Model: AMDZ | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6-2-DModel: AMDZ | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMDZ3-3US-2Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUS-2Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UP-2Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUP-2Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UF-2Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-3UR-2Model: AMDZ | Action: Double acting | Connection: OD 3 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6BUR-2Model: AMDZ | Action: Double acting | Connection: OD 1/8" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-6UR-4Model: AMDZ | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMDZ3-8BUR-4Model: AMDZ | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6-4Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6-4-DModel: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD01-6-4-1Model: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6-4-1DModel: AMD0 | Action: NC (normally closed) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD01-6US-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6US-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUS-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUS-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UP-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UP-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUP-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUP-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UF-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UF-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUF-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUF-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UR-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UR-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUR-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUR-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD01-6UK-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD01-6UK-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUK-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUK-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD01-8BUW-4Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD01-8BUW-4-1Model: AMD0 | Action: NC (normally closed) | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6-4Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6-4-DModel: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD02-6-4-1Model: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6-4-1DModel: AMD0 | Action: NO (normally open) | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD02-6US-4Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6US-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUS-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUS-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UP-4Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UP-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUP-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUP-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UF-4Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UF-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUF-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUF-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UR-4Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UR-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUR-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUR-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD02-6UK-4Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD02-6UK-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUK-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUK-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD02-8BUW-4Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD02-8BUW-4-1Model: AMD0 | Action: NO (normally open) | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6-4Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6-4-DModel: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: ON-OFF only | Body: Stainless steel
AMD03-6-4-1Model: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6-4-1DModel: AMD0 | Action: Double acting | Connection: Rc1/8 thread | Option: Flow adjustment | Body: Stainless steel
AMD03-6US-4Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6US-4-1Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUS-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super pillar | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUS-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super pillar | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UP-4Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UP-4-1Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUP-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super 300 P | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUP-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Super 300 P | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UF-4Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UF-4-1Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUF-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 20 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUF-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 20 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UR-4Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UR-4-1Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUR-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUR-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, F-LOCK 60 | Option: Flow adjustment | Body: PFA/PTFE
AMD03-6UK-4Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD03-6UK-4-1Model: AMD0 | Action: Double acting | Connection: OD 6 mm tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUK-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Final Lock | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUK-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Final Lock | Option: Flow adjustment | Body: PFA/PTFE
AMD03-8BUW-4Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Flare Tek | Option: ON-OFF only | Body: PFA/PTFE
AMD03-8BUW-4-1Model: AMD0 | Action: Double acting | Connection: OD 1/4" tube, Flare Tek | Option: Flow adjustment | Body: PFA/PTFE

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
