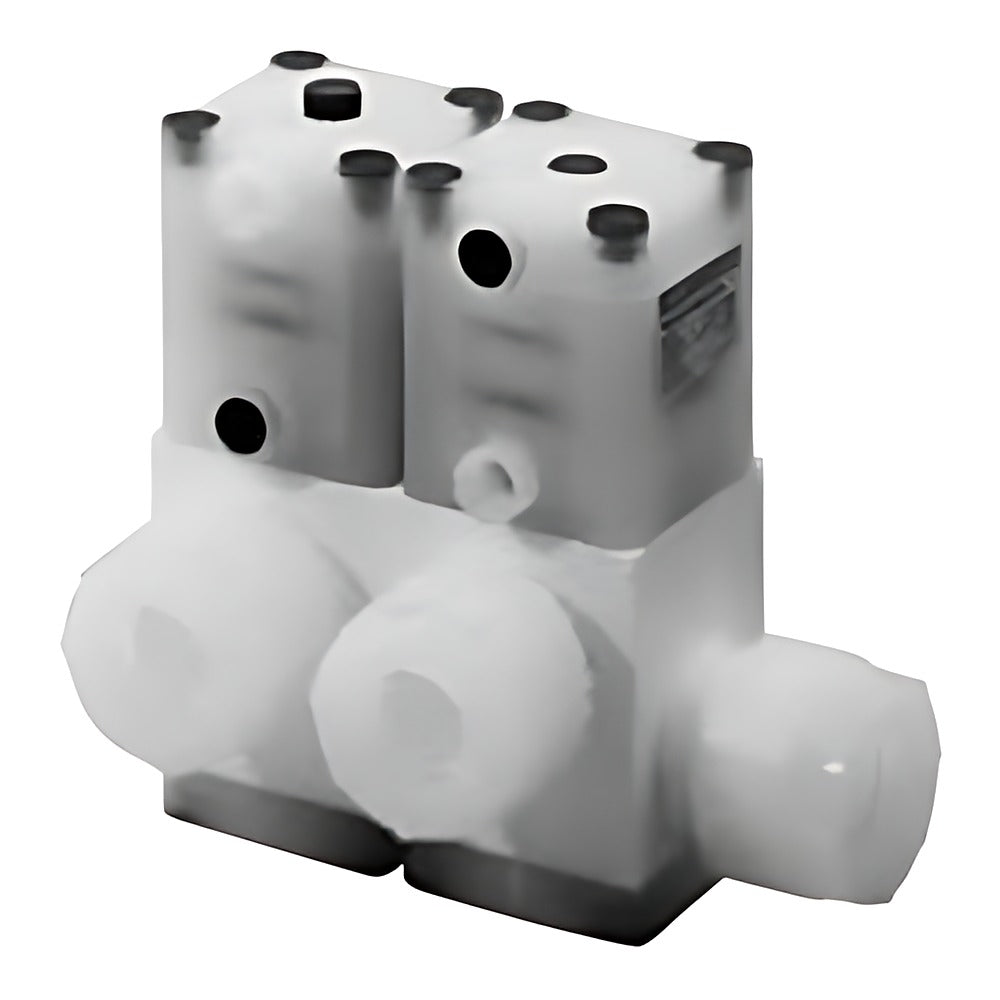

CKD AMG003R Air Operated 3-Port Valve for Chemicals (Made to Order)

CKD AMG003R Air Operated 3-Port Valve for Chemicals (Made to Order)

CKD AMG003R made-to-order air-operated 3-port (NC + NO pair) diaphragm valve for chemicals and pure water, OD6-10 / 1/4-3/8 in tube, orifice 3.5 to 8 mm.

Key features

  • Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
  • Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
  • NC/NO valve pair with common A port; A port position L or R
  • PTFE body; actuator 00 ON-OFF with indicator or 10 with flow adjustment
  • Order example: AMG003R-10UP-00L (made to order)

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure 1.0 MPa
Operating pressure A-B / B-A 0-0.5 MPa
Seat leakage 0 (water)
Back pressure 0-0.5 MPa
Operating (pilot) pressure 0.35-0.5 MPa
Pilot port Rc1/8
Mass 0.22 kg
Source CKD Korea catalog CB-03-1SK-9, p. 1188-1191
AMG003R-6UP-00L Connection: Pillar S300 OD6x4 (orif. 4) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-6UP-00R Connection: Pillar S300 OD6x4 (orif. 4) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-6UP-10L Connection: Pillar S300 OD6x4 (orif. 4) | Actuator: With flow adjustment | A port position: Left
AMG003R-6UP-10R Connection: Pillar S300 OD6x4 (orif. 4) | Actuator: With flow adjustment | A port position: Right
AMG003R-8BUP-00L Connection: Pillar S300 1/4x5/32 in (orif. 4) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-8BUP-00R Connection: Pillar S300 1/4x5/32 in (orif. 4) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-8BUP-10L Connection: Pillar S300 1/4x5/32 in (orif. 4) | Actuator: With flow adjustment | A port position: Left
AMG003R-8BUP-10R Connection: Pillar S300 1/4x5/32 in (orif. 4) | Actuator: With flow adjustment | A port position: Right
AMG003R-8UP-00L Connection: Pillar S300 OD8x6 (orif. 6) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-8UP-00R Connection: Pillar S300 OD8x6 (orif. 6) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-8UP-10L Connection: Pillar S300 OD8x6 (orif. 6) | Actuator: With flow adjustment | A port position: Left
AMG003R-8UP-10R Connection: Pillar S300 OD8x6 (orif. 6) | Actuator: With flow adjustment | A port position: Right
AMG003R-10UP-00L Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-10UP-00R Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-10UP-10L Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | A port position: Left
AMG003R-10UP-10R Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | A port position: Right
AMG003R-10BUP-00L Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-10BUP-00R Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-10BUP-10L Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | A port position: Left
AMG003R-10BUP-10R Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | A port position: Right
AMG003R-6UR-00L Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-6UR-00R Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-6UR-10L Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Actuator: With flow adjustment | A port position: Left
AMG003R-6UR-10R Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Actuator: With flow adjustment | A port position: Right
AMG003R-8BUR-00L Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-8BUR-00R Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-8BUR-10L Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Actuator: With flow adjustment | A port position: Left
AMG003R-8BUR-10R Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Actuator: With flow adjustment | A port position: Right
AMG003R-8UR-00L Connection: F-LOCK 60 OD8x6 (orif. 6) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-8UR-00R Connection: F-LOCK 60 OD8x6 (orif. 6) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-8UR-10L Connection: F-LOCK 60 OD8x6 (orif. 6) | Actuator: With flow adjustment | A port position: Left
AMG003R-8UR-10R Connection: F-LOCK 60 OD8x6 (orif. 6) | Actuator: With flow adjustment | A port position: Right
AMG003R-10UR-00L Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-10UR-00R Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-10UR-10L Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | A port position: Left
AMG003R-10UR-10R Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | A port position: Right
AMG003R-10BUR-00L Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | A port position: Left
AMG003R-10BUR-00R Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | A port position: Right
AMG003R-10BUR-10L Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | A port position: Left
AMG003R-10BUR-10R Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | A port position: Right
Air Operated ValvesCKD
40 product codes available in this family
