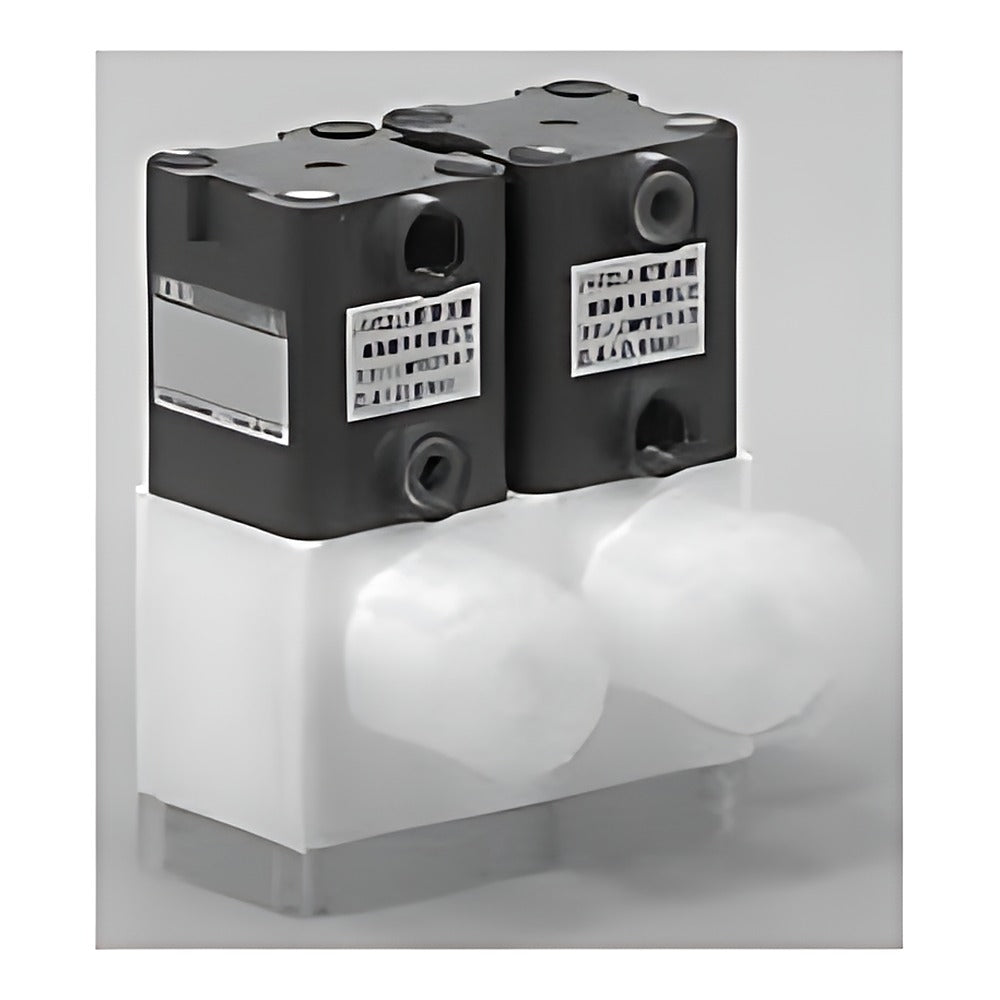

CKD AMG302/402/502 Chemical 3-Port Air Operated Valve (Part2)

CKD AMG302/AMG402/AMG502 Part2 chemical air-operated 3-port diaphragm valves (NC + NO pair, PTFE machined body) for OD 10 mm to 1" tube.

Key features

NC and NO valves combined in one PTFE machined body (made to order)
Options: ON-OFF (0), flow adjustment (1), indicator (6)
Fluid versions: standard, ammonia (M), nitric/HF acid (P), high temperature 5-160 C (Y, AMG302/402)
A port right (standard) or left (L); integrated Super pillar, Super 300 P, F-LOCK 20A/60, Final Lock, Flare Tek fittings
High-pressure versions (suffix B: both ports 0.3 MPa, Q: 0.4 MPa) and pilot-port reinforcing ring (R) are ordered as suffixes and not expanded

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5-90 C (high-temp versions 5-160 C)
Proof pressure	1.0 MPa
Operating pressure	A to B 0-0.3 MPa, B to A 0-0.1 MPa
Seat leakage	0 cm3/min (water pressure)
Pilot port	Rc1/8
Orifice	6-10 mm / 14.7-16 mm / 20 mm
Operating air pressure	0.3-0.5 MPa (high temp 0.3-0.35 MPa)
Mass	0.44 / 1.0 / 2.1 kg
Source	CKD Korea catalog CB-031K-15, p. 94-101

AMG302-10US-0		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10US-0-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10US-0-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10US-0-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10US-0-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10US-0-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10US-0-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10US-0-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10US-1		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10US-1-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10US-1-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10US-1-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10US-1-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10US-1-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10US-1-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10US-1-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10US-6		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10US-6-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10US-6-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10US-6-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10US-6-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10US-6-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10US-6-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10US-6-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUS-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUS-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUS-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUS-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUS-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUS-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUS-0-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUS-0-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUS-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUS-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUS-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUS-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUS-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUS-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUS-1-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUS-1-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUS-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUS-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUS-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUS-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUS-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUS-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUS-6-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUS-6-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UP-0		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10UP-0-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10UP-0-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10UP-0-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10UP-0-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UP-0-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UP-0-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UP-0-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UP-1		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10UP-1-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10UP-1-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10UP-1-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10UP-1-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UP-1-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UP-1-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UP-1-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UP-6		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10UP-6-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10UP-6-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10UP-6-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10UP-6-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UP-6-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UP-6-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UP-6-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUP-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUP-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUP-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUP-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUP-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUP-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUP-0-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUP-0-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUP-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUP-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUP-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUP-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUP-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUP-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUP-1-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUP-1-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUP-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUP-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUP-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUP-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUP-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUP-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUP-6-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUP-6-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UA-0		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10UA-0-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10UA-0-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10UA-0-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10UA-0-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UA-0-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UA-0-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UA-0-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UA-1		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10UA-1-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10UA-1-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10UA-1-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10UA-1-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UA-1-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UA-1-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UA-1-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UA-6		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10UA-6-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10UA-6-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10UA-6-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10UA-6-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UA-6-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UA-6-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UA-6-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUA-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUA-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUA-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUA-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUA-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUA-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUA-0-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUA-0-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUA-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUA-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUA-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUA-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUA-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUA-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUA-1-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUA-1-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUA-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUA-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUA-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUA-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUA-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUA-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUA-6-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUA-6-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UR-0		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10UR-0-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10UR-0-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10UR-0-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10UR-0-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UR-0-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UR-1		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10UR-1-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10UR-1-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10UR-1-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10UR-1-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UR-1-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UR-6		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10UR-6-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10UR-6-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10UR-6-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10UR-6-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UR-6-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUR-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUR-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUR-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUR-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUR-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUR-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUR-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUR-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUR-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUR-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUR-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUR-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUR-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUR-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUR-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUR-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUR-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUR-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UK-0		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10UK-0-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10UK-0-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10UK-0-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10UK-0-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UK-0-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UK-0-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UK-0-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UK-1		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10UK-1-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10UK-1-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10UK-1-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10UK-1-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UK-1-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UK-1-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UK-1-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10UK-6		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10UK-6-L		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10UK-6-M		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10UK-6-ML		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10UK-6-P		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10UK-6-PL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10UK-6-Y		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10UK-6-YL		Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUK-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUK-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUK-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUK-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUK-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUK-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUK-0-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUK-0-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUK-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUK-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUK-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUK-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUK-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUK-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUK-1-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUK-1-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUK-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUK-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUK-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUK-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUK-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUK-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUK-6-Y		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-10BUK-6-YL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-10BUW-0		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-10BUW-0-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-10BUW-0-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-10BUW-0-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-10BUW-0-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUW-0-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUW-1		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-10BUW-1-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-10BUW-1-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-10BUW-1-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-10BUW-1-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUW-1-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-10BUW-6		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-10BUW-6-L		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-10BUW-6-M		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-10BUW-6-ML		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-10BUW-6-P		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-10BUW-6-PL		Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12US-0		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-12US-0-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-12US-0-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-12US-0-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-12US-0-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12US-0-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12US-0-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12US-0-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12US-1		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-12US-1-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-12US-1-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-12US-1-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-12US-1-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12US-1-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12US-1-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12US-1-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12US-6		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-12US-6-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-12US-6-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-12US-6-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-12US-6-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12US-6-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12US-6-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12US-6-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUS-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUS-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUS-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUS-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUS-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUS-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUS-0-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUS-0-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUS-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUS-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUS-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUS-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUS-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUS-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUS-1-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUS-1-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUS-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUS-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUS-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUS-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUS-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUS-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUS-6-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUS-6-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UP-0		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-12UP-0-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-12UP-0-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-12UP-0-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-12UP-0-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UP-0-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UP-0-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UP-0-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UP-1		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-12UP-1-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-12UP-1-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-12UP-1-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-12UP-1-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UP-1-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UP-1-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UP-1-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UP-6		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-12UP-6-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-12UP-6-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-12UP-6-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-12UP-6-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UP-6-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UP-6-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UP-6-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUP-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUP-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUP-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUP-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUP-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUP-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUP-0-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUP-0-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUP-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUP-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUP-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUP-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUP-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUP-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUP-1-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUP-1-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUP-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUP-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUP-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUP-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUP-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUP-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUP-6-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUP-6-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UA-0		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-12UA-0-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-12UA-0-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-12UA-0-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-12UA-0-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UA-0-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UA-0-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UA-0-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UA-1		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-12UA-1-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-12UA-1-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-12UA-1-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-12UA-1-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UA-1-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UA-1-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UA-1-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UA-6		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-12UA-6-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-12UA-6-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-12UA-6-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-12UA-6-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UA-6-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UA-6-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UA-6-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUA-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUA-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUA-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUA-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUA-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUA-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUA-0-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUA-0-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUA-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUA-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUA-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUA-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUA-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUA-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUA-1-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUA-1-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUA-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUA-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUA-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUA-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUA-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUA-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUA-6-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUA-6-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UR-0		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-12UR-0-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-12UR-0-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-12UR-0-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-12UR-0-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UR-0-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UR-1		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-12UR-1-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-12UR-1-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-12UR-1-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-12UR-1-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UR-1-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UR-6		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-12UR-6-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-12UR-6-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-12UR-6-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-12UR-6-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UR-6-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUR-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUR-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUR-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUR-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUR-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUR-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUR-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUR-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUR-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUR-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUR-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUR-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUR-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUR-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUR-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUR-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUR-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUR-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UK-0		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-12UK-0-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-12UK-0-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-12UK-0-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-12UK-0-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UK-0-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UK-0-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UK-0-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UK-1		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-12UK-1-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-12UK-1-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-12UK-1-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-12UK-1-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UK-1-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UK-1-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UK-1-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-12UK-6		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-12UK-6-L		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-12UK-6-M		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-12UK-6-ML		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-12UK-6-P		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-12UK-6-PL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-12UK-6-Y		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-12UK-6-YL		Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUK-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUK-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUK-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUK-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUK-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUK-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUK-0-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUK-0-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUK-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUK-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUK-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUK-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUK-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUK-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUK-1-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUK-1-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUK-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUK-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUK-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUK-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUK-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUK-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUK-6-Y		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG302-15BUK-6-YL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG302-15BUW-0		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG302-15BUW-0-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG302-15BUW-0-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG302-15BUW-0-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG302-15BUW-0-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUW-0-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUW-1		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG302-15BUW-1-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG302-15BUW-1-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG302-15BUW-1-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG302-15BUW-1-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUW-1-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG302-15BUW-6		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG302-15BUW-6-L		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG302-15BUW-6-M		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG302-15BUW-6-ML		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG302-15BUW-6-P		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG302-15BUW-6-PL		Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUS-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUS-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUS-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUS-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUS-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUS-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUS-0-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUS-0-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUS-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUS-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUS-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUS-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUS-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUS-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUS-1-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUS-1-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUS-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUS-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUS-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUS-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUS-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUS-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUS-6-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUS-6-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUP-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUP-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUP-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUP-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUP-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUP-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUP-0-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUP-0-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUP-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUP-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUP-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUP-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUP-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUP-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUP-1-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUP-1-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUP-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUP-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUP-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUP-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUP-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUP-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUP-6-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUP-6-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUA-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUA-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUA-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUA-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUA-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUA-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUA-0-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUA-0-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUA-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUA-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUA-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUA-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUA-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUA-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUA-1-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUA-1-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUA-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUA-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUA-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUA-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUA-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUA-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUA-6-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUA-6-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUR-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUR-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUR-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUR-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUR-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUR-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUR-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUR-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUR-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUR-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUR-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUR-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUR-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUR-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUR-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUR-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUR-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUR-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUK-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUK-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUK-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUK-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUK-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUK-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUK-0-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUK-0-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUK-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUK-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUK-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUK-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUK-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUK-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUK-1-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUK-1-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUK-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUK-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUK-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUK-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUK-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUK-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUK-6-Y		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
AMG402-20BUK-6-YL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
AMG402-20BUW-0		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG402-20BUW-0-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG402-20BUW-0-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG402-20BUW-0-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG402-20BUW-0-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUW-0-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUW-1		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG402-20BUW-1-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG402-20BUW-1-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG402-20BUW-1-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG402-20BUW-1-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUW-1-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG402-20BUW-6		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG402-20BUW-6-L		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG402-20BUW-6-M		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG402-20BUW-6-ML		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG402-20BUW-6-P		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG402-20BUW-6-PL		Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25US-0		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25US-0-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25US-0-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25US-0-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25US-0-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25US-0-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25US-1		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25US-1-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25US-1-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25US-1-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25US-1-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25US-1-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25US-6		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25US-6-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25US-6-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25US-6-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25US-6-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25US-6-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUS-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUS-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUS-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUS-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUS-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUS-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUS-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUS-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUS-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUS-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUS-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUS-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUS-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUS-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUS-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUS-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUS-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUS-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UP-0		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25UP-0-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25UP-0-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25UP-0-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25UP-0-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UP-0-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UP-1		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25UP-1-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25UP-1-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25UP-1-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25UP-1-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UP-1-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UP-6		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25UP-6-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25UP-6-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25UP-6-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25UP-6-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UP-6-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUP-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUP-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUP-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUP-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUP-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUP-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUP-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUP-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUP-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUP-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUP-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUP-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUP-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUP-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUP-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUP-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUP-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUP-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUA-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUA-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUA-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUA-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUA-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUA-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUA-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUA-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUA-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUA-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUA-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUA-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUA-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUA-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUA-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUA-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUA-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUA-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UR-0		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25UR-0-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25UR-0-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25UR-0-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25UR-0-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UR-0-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UR-1		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25UR-1-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25UR-1-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25UR-1-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25UR-1-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UR-1-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UR-6		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25UR-6-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25UR-6-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25UR-6-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25UR-6-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UR-6-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUR-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUR-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUR-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUR-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUR-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUR-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUR-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUR-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUR-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUR-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUR-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUR-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUR-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUR-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUR-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUR-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUR-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUR-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UK-0		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25UK-0-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25UK-0-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25UK-0-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25UK-0-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UK-0-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UK-1		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25UK-1-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25UK-1-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25UK-1-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25UK-1-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UK-1-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25UK-6		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25UK-6-L		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25UK-6-M		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25UK-6-ML		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25UK-6-P		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25UK-6-PL		Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUK-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUK-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUK-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUK-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUK-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUK-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUK-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUK-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUK-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUK-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUK-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUK-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUK-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUK-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUK-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUK-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUK-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUK-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUW-0		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
AMG502-25BUW-0-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
AMG502-25BUW-0-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
AMG502-25BUW-0-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
AMG502-25BUW-0-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUW-0-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUW-1		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
AMG502-25BUW-1-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
AMG502-25BUW-1-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
AMG502-25BUW-1-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
AMG502-25BUW-1-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUW-1-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
AMG502-25BUW-6		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
AMG502-25BUW-6-L		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
AMG502-25BUW-6-M		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
AMG502-25BUW-6-ML		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
AMG502-25BUW-6-P		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
AMG502-25BUW-6-PL		Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left

Air Operated ValvesCKD

804 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMG302/402/502 Chemical 3-Port Air Operated Valve (Part2)

Brand CKD·Air Operated Valves

Available part numbers (804)

AMG302-10US-0, AMG302-10US-0-L, AMG302-10US-0-M, AMG302-10US-0-ML, AMG302-10US-0-P, AMG302-10US-0-PL, AMG302-10US-0-Y, AMG302-10US-0-YL, AMG302-10US-1, AMG302-10US-1-L + 794 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMG302-10US-0	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10US-0-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10US-0-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10US-0-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10US-0-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10US-0-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10US-0-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10US-0-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10US-1	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10US-1-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10US-1-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10US-1-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10US-1-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10US-1-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10US-1-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10US-1-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10US-6	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10US-6-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10US-6-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10US-6-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10US-6-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10US-6-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10US-6-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10US-6-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUS-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUS-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUS-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUS-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUS-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUS-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUS-0-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUS-0-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUS-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUS-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUS-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUS-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUS-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUS-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUS-1-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUS-1-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUS-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUS-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUS-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUS-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUS-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUS-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUS-6-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUS-6-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UP-0	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10UP-0-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10UP-0-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10UP-0-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10UP-0-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UP-0-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UP-0-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UP-0-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UP-1	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10UP-1-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10UP-1-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10UP-1-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10UP-1-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UP-1-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UP-1-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UP-1-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UP-6	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10UP-6-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10UP-6-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10UP-6-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10UP-6-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UP-6-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UP-6-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UP-6-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUP-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUP-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUP-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUP-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUP-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUP-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUP-0-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUP-0-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUP-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUP-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUP-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUP-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUP-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUP-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUP-1-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUP-1-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUP-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUP-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUP-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUP-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUP-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUP-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUP-6-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUP-6-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UA-0	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10UA-0-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10UA-0-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10UA-0-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10UA-0-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UA-0-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UA-0-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UA-0-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UA-1	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10UA-1-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10UA-1-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10UA-1-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10UA-1-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UA-1-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UA-1-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UA-1-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UA-6	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10UA-6-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10UA-6-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10UA-6-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10UA-6-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UA-6-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UA-6-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UA-6-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUA-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUA-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUA-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUA-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUA-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUA-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUA-0-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUA-0-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUA-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUA-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUA-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUA-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUA-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUA-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUA-1-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUA-1-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUA-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUA-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUA-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUA-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUA-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUA-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUA-6-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUA-6-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UR-0	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10UR-0-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10UR-0-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10UR-0-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10UR-0-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UR-0-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UR-1	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10UR-1-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10UR-1-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10UR-1-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10UR-1-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UR-1-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UR-6	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10UR-6-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10UR-6-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10UR-6-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10UR-6-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UR-6-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUR-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUR-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUR-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUR-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUR-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUR-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUR-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUR-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUR-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUR-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUR-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUR-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUR-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUR-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUR-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUR-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUR-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUR-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UK-0	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10UK-0-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10UK-0-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10UK-0-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10UK-0-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UK-0-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UK-0-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UK-0-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UK-1	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10UK-1-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10UK-1-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10UK-1-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10UK-1-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UK-1-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UK-1-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UK-1-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10UK-6	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10UK-6-L	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10UK-6-M	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10UK-6-ML	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10UK-6-P	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10UK-6-PL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10UK-6-Y	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10UK-6-YL	Model: AMG302 \| Tube: OD 10 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUK-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUK-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUK-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUK-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUK-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUK-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUK-0-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUK-0-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUK-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUK-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUK-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUK-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUK-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUK-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUK-1-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUK-1-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUK-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUK-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUK-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUK-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUK-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUK-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUK-6-Y	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-10BUK-6-YL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-10BUW-0	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-10BUW-0-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-10BUW-0-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-10BUW-0-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-10BUW-0-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUW-0-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUW-1	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-10BUW-1-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-10BUW-1-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-10BUW-1-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-10BUW-1-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUW-1-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-10BUW-6	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-10BUW-6-L	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-10BUW-6-M	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-10BUW-6-ML	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-10BUW-6-P	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-10BUW-6-PL	Model: AMG302 \| Tube: OD 3/8" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12US-0	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-12US-0-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-12US-0-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-12US-0-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-12US-0-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12US-0-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12US-0-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12US-0-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12US-1	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-12US-1-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-12US-1-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-12US-1-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-12US-1-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12US-1-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12US-1-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12US-1-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12US-6	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-12US-6-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-12US-6-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-12US-6-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-12US-6-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12US-6-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12US-6-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12US-6-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUS-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUS-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUS-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUS-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUS-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUS-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUS-0-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUS-0-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUS-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUS-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUS-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUS-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUS-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUS-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUS-1-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUS-1-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUS-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUS-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUS-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUS-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUS-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUS-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUS-6-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUS-6-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UP-0	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-12UP-0-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-12UP-0-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-12UP-0-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-12UP-0-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UP-0-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UP-0-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UP-0-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UP-1	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-12UP-1-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-12UP-1-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-12UP-1-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-12UP-1-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UP-1-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UP-1-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UP-1-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UP-6	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-12UP-6-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-12UP-6-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-12UP-6-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-12UP-6-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UP-6-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UP-6-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UP-6-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUP-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUP-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUP-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUP-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUP-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUP-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUP-0-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUP-0-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUP-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUP-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUP-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUP-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUP-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUP-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUP-1-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUP-1-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUP-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUP-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUP-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUP-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUP-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUP-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUP-6-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUP-6-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UA-0	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-12UA-0-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-12UA-0-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-12UA-0-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-12UA-0-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UA-0-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UA-0-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UA-0-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UA-1	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-12UA-1-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-12UA-1-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-12UA-1-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-12UA-1-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UA-1-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UA-1-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UA-1-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UA-6	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-12UA-6-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-12UA-6-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-12UA-6-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-12UA-6-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UA-6-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UA-6-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UA-6-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUA-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUA-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUA-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUA-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUA-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUA-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUA-0-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUA-0-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUA-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUA-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUA-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUA-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUA-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUA-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUA-1-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUA-1-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUA-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUA-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUA-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUA-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUA-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUA-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUA-6-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUA-6-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UR-0	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-12UR-0-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-12UR-0-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-12UR-0-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-12UR-0-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UR-0-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UR-1	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-12UR-1-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-12UR-1-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-12UR-1-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-12UR-1-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UR-1-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UR-6	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-12UR-6-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-12UR-6-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-12UR-6-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-12UR-6-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UR-6-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUR-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUR-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUR-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUR-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUR-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUR-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUR-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUR-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUR-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUR-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUR-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUR-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUR-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUR-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUR-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUR-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUR-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUR-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UK-0	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-12UK-0-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-12UK-0-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-12UK-0-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-12UK-0-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UK-0-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UK-0-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UK-0-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UK-1	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-12UK-1-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-12UK-1-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-12UK-1-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-12UK-1-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UK-1-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UK-1-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UK-1-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-12UK-6	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-12UK-6-L	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-12UK-6-M	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-12UK-6-ML	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-12UK-6-P	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-12UK-6-PL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-12UK-6-Y	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-12UK-6-YL	Model: AMG302 \| Tube: OD 12 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUK-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUK-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUK-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUK-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUK-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUK-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUK-0-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUK-0-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUK-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUK-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUK-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUK-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUK-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUK-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUK-1-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUK-1-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUK-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUK-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUK-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUK-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUK-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUK-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUK-6-Y	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG302-15BUK-6-YL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG302-15BUW-0	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG302-15BUW-0-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG302-15BUW-0-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG302-15BUW-0-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG302-15BUW-0-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUW-0-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUW-1	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG302-15BUW-1-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG302-15BUW-1-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG302-15BUW-1-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG302-15BUW-1-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUW-1-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG302-15BUW-6	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG302-15BUW-6-L	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG302-15BUW-6-M	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG302-15BUW-6-ML	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG302-15BUW-6-P	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG302-15BUW-6-PL	Model: AMG302 \| Tube: OD 1/2" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUS-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUS-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUS-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUS-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUS-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUS-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUS-0-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUS-0-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUS-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUS-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUS-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUS-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUS-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUS-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUS-1-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUS-1-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUS-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUS-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUS-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUS-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUS-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUS-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUS-6-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUS-6-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUP-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUP-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUP-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUP-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUP-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUP-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUP-0-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUP-0-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUP-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUP-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUP-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUP-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUP-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUP-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUP-1-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUP-1-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUP-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUP-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUP-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUP-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUP-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUP-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUP-6-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUP-6-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUA-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUA-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUA-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUA-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUA-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUA-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUA-0-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUA-0-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUA-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUA-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUA-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUA-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUA-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUA-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUA-1-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUA-1-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUA-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUA-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUA-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUA-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUA-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUA-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUA-6-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUA-6-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUR-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUR-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUR-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUR-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUR-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUR-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUR-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUR-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUR-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUR-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUR-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUR-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUR-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUR-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUR-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUR-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUR-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUR-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUK-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUK-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUK-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUK-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUK-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUK-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUK-0-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUK-0-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUK-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUK-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUK-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUK-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUK-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUK-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUK-1-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUK-1-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUK-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUK-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUK-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUK-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUK-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUK-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUK-6-Y	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Right
	AMG402-20BUK-6-YL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: High temp 5-160 C \| A port: Left
	AMG402-20BUW-0	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG402-20BUW-0-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG402-20BUW-0-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG402-20BUW-0-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG402-20BUW-0-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUW-0-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUW-1	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG402-20BUW-1-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG402-20BUW-1-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG402-20BUW-1-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG402-20BUW-1-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUW-1-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG402-20BUW-6	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG402-20BUW-6-L	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG402-20BUW-6-M	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG402-20BUW-6-ML	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG402-20BUW-6-P	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG402-20BUW-6-PL	Model: AMG402 \| Tube: OD 3/4" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25US-0	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25US-0-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25US-0-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25US-0-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25US-0-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25US-0-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25US-1	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25US-1-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25US-1-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25US-1-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25US-1-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25US-1-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25US-6	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25US-6-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25US-6-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25US-6-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25US-6-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25US-6-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUS-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUS-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUS-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUS-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUS-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUS-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUS-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUS-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUS-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUS-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUS-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUS-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUS-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUS-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUS-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUS-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUS-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUS-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super pillar \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UP-0	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25UP-0-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25UP-0-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25UP-0-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25UP-0-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UP-0-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UP-1	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25UP-1-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25UP-1-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25UP-1-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25UP-1-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UP-1-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UP-6	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25UP-6-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25UP-6-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25UP-6-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25UP-6-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UP-6-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUP-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUP-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUP-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUP-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUP-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUP-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUP-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUP-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUP-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUP-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUP-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUP-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUP-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUP-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUP-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUP-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUP-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUP-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Super 300 P \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUA-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUA-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUA-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUA-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUA-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUA-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUA-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUA-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUA-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUA-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUA-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUA-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUA-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUA-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUA-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUA-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUA-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUA-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 20A \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UR-0	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25UR-0-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25UR-0-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25UR-0-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25UR-0-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UR-0-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UR-1	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25UR-1-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25UR-1-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25UR-1-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25UR-1-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UR-1-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UR-6	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25UR-6-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25UR-6-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25UR-6-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25UR-6-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UR-6-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUR-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUR-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUR-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUR-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUR-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUR-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUR-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUR-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUR-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUR-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUR-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUR-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUR-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUR-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUR-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUR-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUR-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUR-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: F-LOCK 60 \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UK-0	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25UK-0-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25UK-0-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25UK-0-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25UK-0-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UK-0-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UK-1	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25UK-1-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25UK-1-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25UK-1-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25UK-1-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UK-1-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25UK-6	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25UK-6-L	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25UK-6-M	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25UK-6-ML	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25UK-6-P	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25UK-6-PL	Model: AMG502 \| Tube: OD 25 mm tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUK-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUK-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUK-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUK-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUK-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUK-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUK-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUK-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUK-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUK-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUK-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUK-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUK-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUK-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUK-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUK-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUK-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUK-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Final Lock \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUW-0	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Right
	AMG502-25BUW-0-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Standard \| A port: Left
	AMG502-25BUW-0-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Right
	AMG502-25BUW-0-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Ammonia \| A port: Left
	AMG502-25BUW-0-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUW-0-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF only \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUW-1	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Right
	AMG502-25BUW-1-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Standard \| A port: Left
	AMG502-25BUW-1-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Right
	AMG502-25BUW-1-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Ammonia \| A port: Left
	AMG502-25BUW-1-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUW-1-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: Flow adjustment \| Fluid: Nitric/HF acid \| A port: Left
	AMG502-25BUW-6	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Right
	AMG502-25BUW-6-L	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Standard \| A port: Left
	AMG502-25BUW-6-M	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Right
	AMG502-25BUW-6-ML	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Ammonia \| A port: Left
	AMG502-25BUW-6-P	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Right
	AMG502-25BUW-6-PL	Model: AMG502 \| Tube: OD 1" tube \| Fitting: Flare Tek \| Option: ON-OFF, indicator \| Fluid: Nitric/HF acid \| A port: Left

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD AMG302/402/502 Chemical 3-Port Air Operated Valve (Part2)
