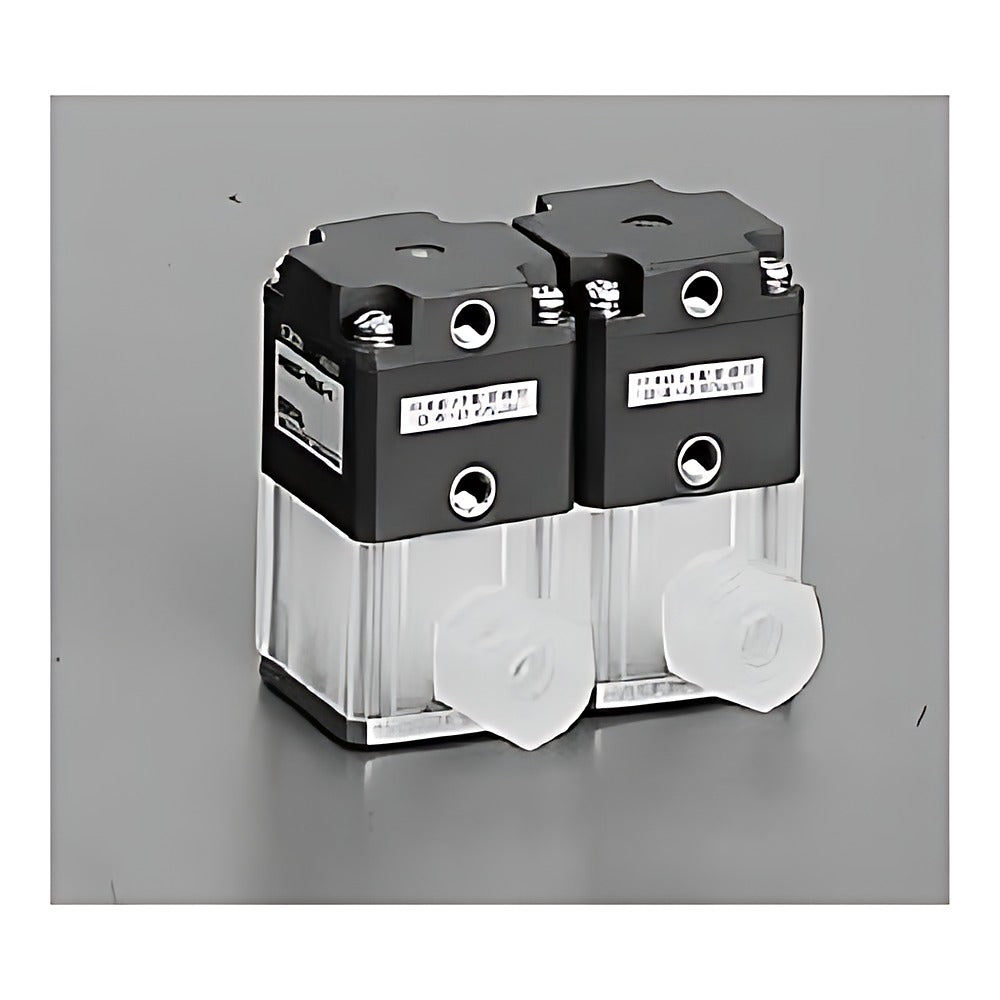

CKD AMGZ0/AMG00 Part1 Compact Chemical 3-Port Air Operated Valve

CKD AMGZ0 and AMG00 Part1 compact air-operated 3-port diaphragm valves for pure water and non-acidic chemicals, OD 3-6.35 mm and 1/8"-1/4" tube.

Key features

Compact 3-port switching valve with PTFE diaphragm
AMGZ0 orifice 2 mm (Cv 0.08), AMG00 orifice 4 mm (Cv 0.32)
Integrated Super pillar, Super 300 P, F-LOCK 20/60, Final Lock and Flare Tek fittings
Not for acidic fluids; PTFE machined bodies made to order

Specifications

Fluid	Chemicals, pure water, N2 gas, air (non-acidic)
Fluid temperature	5-80 C
Proof pressure	1.0 MPa
Operating pressure	A to B 0-0.5 MPa, B to A 0-0.3 MPa
Operating air pressure	0.3-0.5 MPa
Pilot port	M5
Mass	0.12 kg (AMGZ0), 0.21 kg (AMG00)
Source	CKD Korea catalog CB-031K-15, p. 124-127

AMGZ0-3US-2		Model: AMGZ0 \| Connection: OD 3 mm tube, Super pillar \| Orifice: 2 mm
AMGZ0-6BUS-2		Model: AMGZ0 \| Connection: OD 1/8" tube, Super pillar \| Orifice: 2 mm
AMGZ0-3UP-2		Model: AMGZ0 \| Connection: OD 3 mm tube, Super 300 P \| Orifice: 2 mm
AMGZ0-6BUP-2		Model: AMGZ0 \| Connection: OD 1/8" tube, Super 300 P \| Orifice: 2 mm
AMGZ0-3UF-2		Model: AMGZ0 \| Connection: OD 3 mm tube, F-LOCK 20 \| Orifice: 2 mm
AMGZ0-3UR-2		Model: AMGZ0 \| Connection: OD 3 mm tube, F-LOCK 60 \| Orifice: 1.6 mm
AMGZ0-6BUR-2		Model: AMGZ0 \| Connection: OD 1/8" tube, F-LOCK 60 \| Orifice: 1.6 mm
AMG00-6US-4		Model: AMG00 \| Connection: OD 6 mm tube, Super pillar \| Orifice: 4 mm
AMG00-8BUS-4		Model: AMG00 \| Connection: OD 1/4" tube, Super pillar \| Orifice: 4 mm
AMG00-6UP-4		Model: AMG00 \| Connection: OD 6 mm tube, Super 300 P \| Orifice: 4 mm
AMG00-8BUP-4		Model: AMG00 \| Connection: OD 1/4" tube, Super 300 P \| Orifice: 4 mm
AMG00-6UF-4		Model: AMG00 \| Connection: OD 6 mm tube, F-LOCK 20 \| Orifice: 4 mm
AMG00-8BUF-4		Model: AMG00 \| Connection: OD 1/4" tube, F-LOCK 20 \| Orifice: 4 mm
AMG00-6UR-4		Model: AMG00 \| Connection: OD 6 mm tube, F-LOCK 60 \| Orifice: 3.5 mm
AMG00-8BUR-4		Model: AMG00 \| Connection: OD 1/4" tube, F-LOCK 60 \| Orifice: 3.5 mm
AMG00-6UK-4		Model: AMG00 \| Connection: OD 6 mm tube, Final Lock \| Orifice: 4 mm
AMG00-8BUK-4		Model: AMG00 \| Connection: OD 1/4" tube, Final Lock \| Orifice: 4 mm
AMG00-8BUW-4		Model: AMG00 \| Connection: OD 1/4" tube, Flare Tek \| Orifice: 3 mm

Air Operated ValvesCKD

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AMGZ0/AMG00 Part1 Compact Chemical 3-Port Air Operated Valve

Brand CKD·Air Operated Valves

Available part numbers (18)

AMGZ0-3US-2, AMGZ0-6BUS-2, AMGZ0-3UP-2, AMGZ0-6BUP-2, AMGZ0-3UF-2, AMGZ0-3UR-2, AMGZ0-6BUR-2, AMG00-6US-4, AMG00-8BUS-4, AMG00-6UP-4 + 8 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
