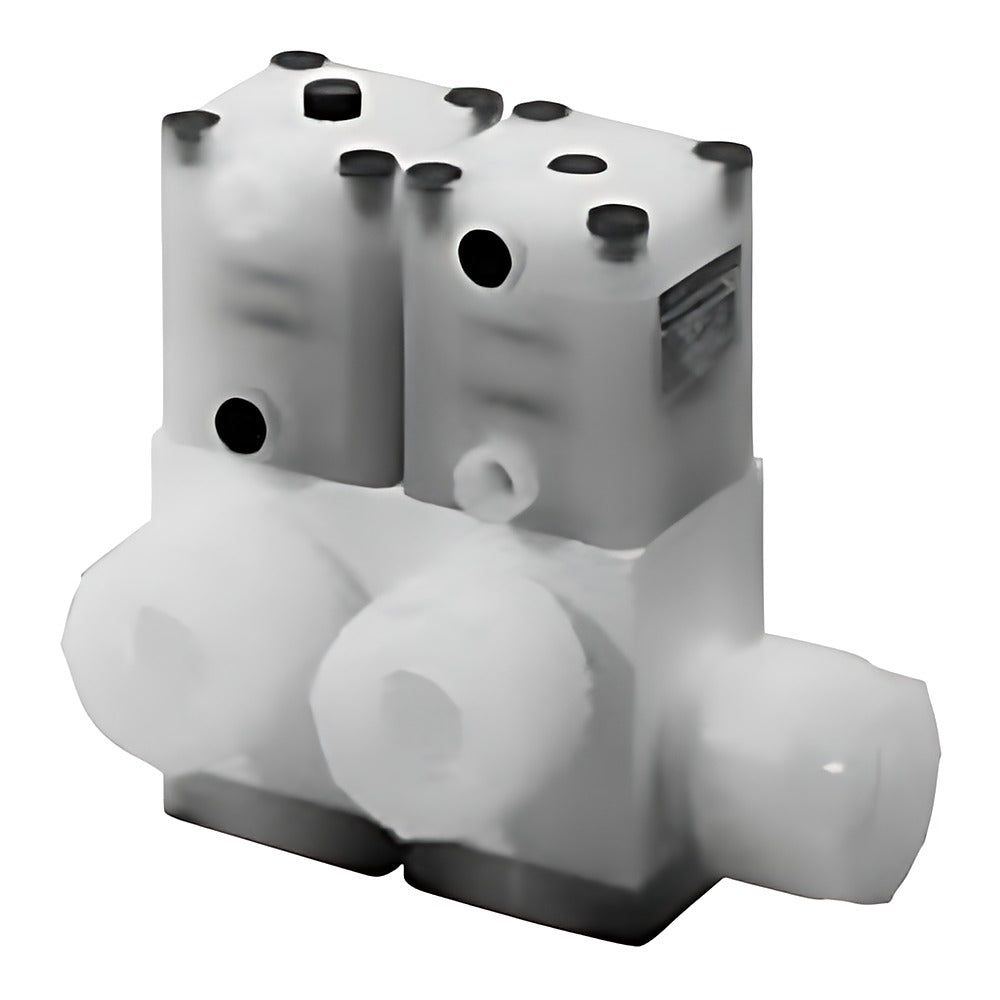

CKD AMGZ03R Air Operated 3-Port Valve for Chemicals (Made to Order)

CKD AMGZ03R Air Operated 3-Port Valve for Chemicals (Made to Order)

CKD AMGZ03R made-to-order compact air-operated 3-port (NC + NO pair) diaphragm valve for chemicals and pure water, OD6 / 1/4 in tube, orifice 3.5 to 4 mm.

Key features

  • Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
  • Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
  • NC and NO valve pair on a common A port; A port position left (L) or right (R) decides NC/NO arrangement
  • PTFE body, actuator option Z0 ON-OFF only
  • Order example: AMGZ03R-6UP-Z0L (made to order)

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure 1.0 MPa
Operating pressure A-B / B-A 0-0.5 MPa
Seat leakage 0 (water)
Back pressure 0-0.5 MPa
Operating (pilot) pressure 0.4-0.5 MPa
Pilot port Rc1/8
Mass 0.13 kg
Source CKD Korea catalog CB-03-1SK-9, p. 1186-1187
AMGZ03R-6UP-Z0L Connection: Pillar S300 OD6x4 (orif. 4) | A port position: Left
AMGZ03R-6UP-Z0R Connection: Pillar S300 OD6x4 (orif. 4) | A port position: Right
AMGZ03R-8BUP-Z0L Connection: Pillar S300 1/4x5/32 in (orif. 4) | A port position: Left
AMGZ03R-8BUP-Z0R Connection: Pillar S300 1/4x5/32 in (orif. 4) | A port position: Right
AMGZ03R-6UR-Z0L Connection: F-LOCK 60 OD6x4 (orif. 3.5) | A port position: Left
AMGZ03R-6UR-Z0R Connection: F-LOCK 60 OD6x4 (orif. 3.5) | A port position: Right
AMGZ03R-8BUR-Z0L Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | A port position: Left
AMGZ03R-8BUR-Z0R Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | A port position: Right
Air Operated ValvesCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
