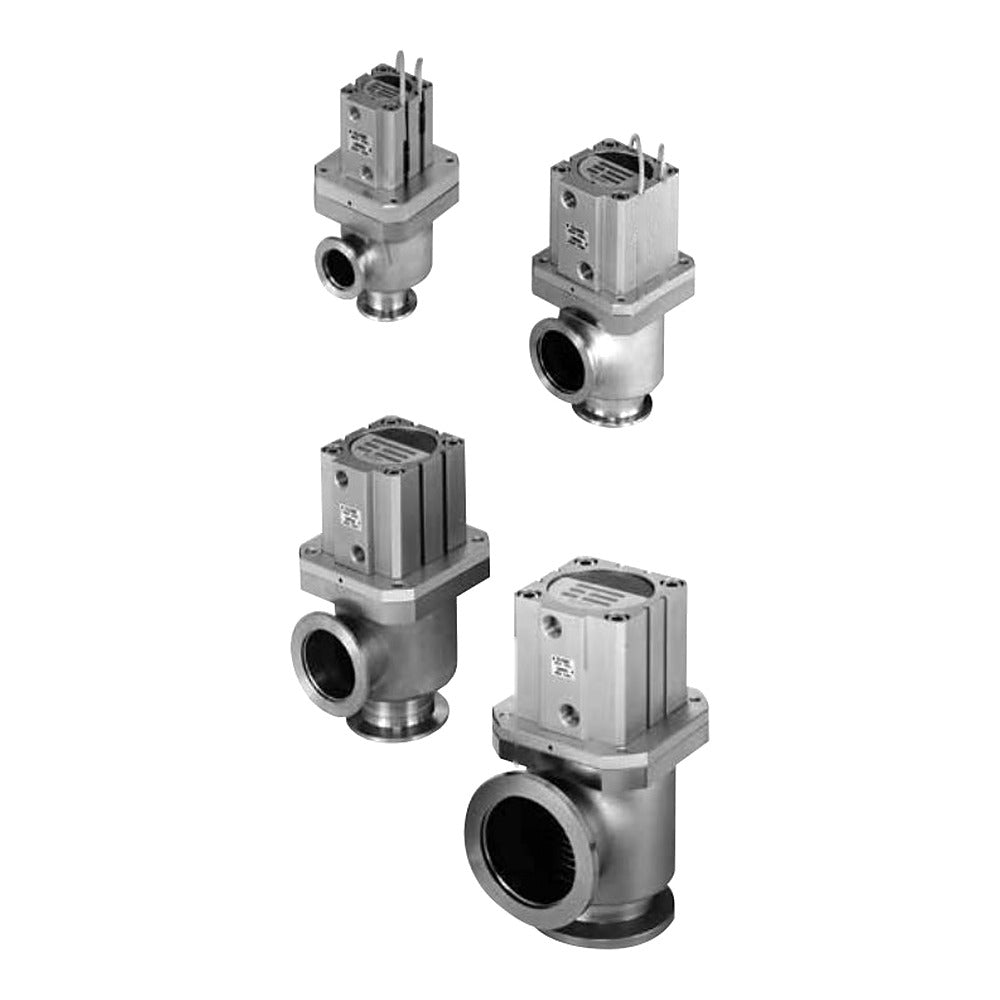

CKD AVB*3 High Vacuum Air Operated Valve (Stainless Compact)

CKD AVB*3 High Vacuum Air Operated Valve (Stainless Compact)

Compact stainless-body high-vacuum angle valve with long-life ASL350 formed bellows, NC/NO/double-acting, NW25 to NW80.

Key features

  • Formed bellows in special stainless ASL350, 1 million cycle durability
  • Bulge-formed flow path with no dead space and no sliding parts in the wetted area (low particle)
  • Either port may be connected to the vacuum pump
  • Compact reed switch can be fitted: add switch model, lead length and detection suffix, e.g. AVB613-40K-T5H3-H
  • Made to order: soft exhaust (bypass valve built-in/external), straight flange, heated jacket versions (AVB*3-X)

Specifications

Fluid Vacuum and inert gas
Operating pressure 1.3x10^-6 to 1x10^5 Pa (abs)
Max differential pressure 0.1 MPa
Seat leak 1.3x10^-10 Pa m3/s (He)
Proof pressure 0.3 MPa
Fluid temperature 5-60 C
Pilot pressure 0.4-0.6 MPa
Body Stainless steel
Source CKD Korea catalog CB-035K, p. 118-127
AVB513-25K Operation: NC | Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s
AVB523-25K Operation: NO | Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s
AVB533-25K Operation: Double acting | Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s
AVB613-40K Operation: NC | Orifice: 40 mm | Connection: NW40 | Conductance: 52 L/s
AVB623-40K Operation: NO | Orifice: 40 mm | Connection: NW40 | Conductance: 52 L/s
AVB633-40K Operation: Double acting | Orifice: 40 mm | Connection: NW40 | Conductance: 52 L/s
AVB713-50K Operation: NC | Orifice: 50 mm | Connection: NW50 | Conductance: 80 L/s
AVB723-50K Operation: NO | Orifice: 50 mm | Connection: NW50 | Conductance: 80 L/s
AVB733-50K Operation: Double acting | Orifice: 50 mm | Connection: NW50 | Conductance: 80 L/s
AVB813-80K Operation: NC | Orifice: 80 mm | Connection: NW80 | Conductance: 242 L/s
AVB823-80K Operation: NO | Orifice: 80 mm | Connection: NW80 | Conductance: 242 L/s
AVB833-80K Operation: Double acting | Orifice: 80 mm | Connection: NW80 | Conductance: 242 L/s
