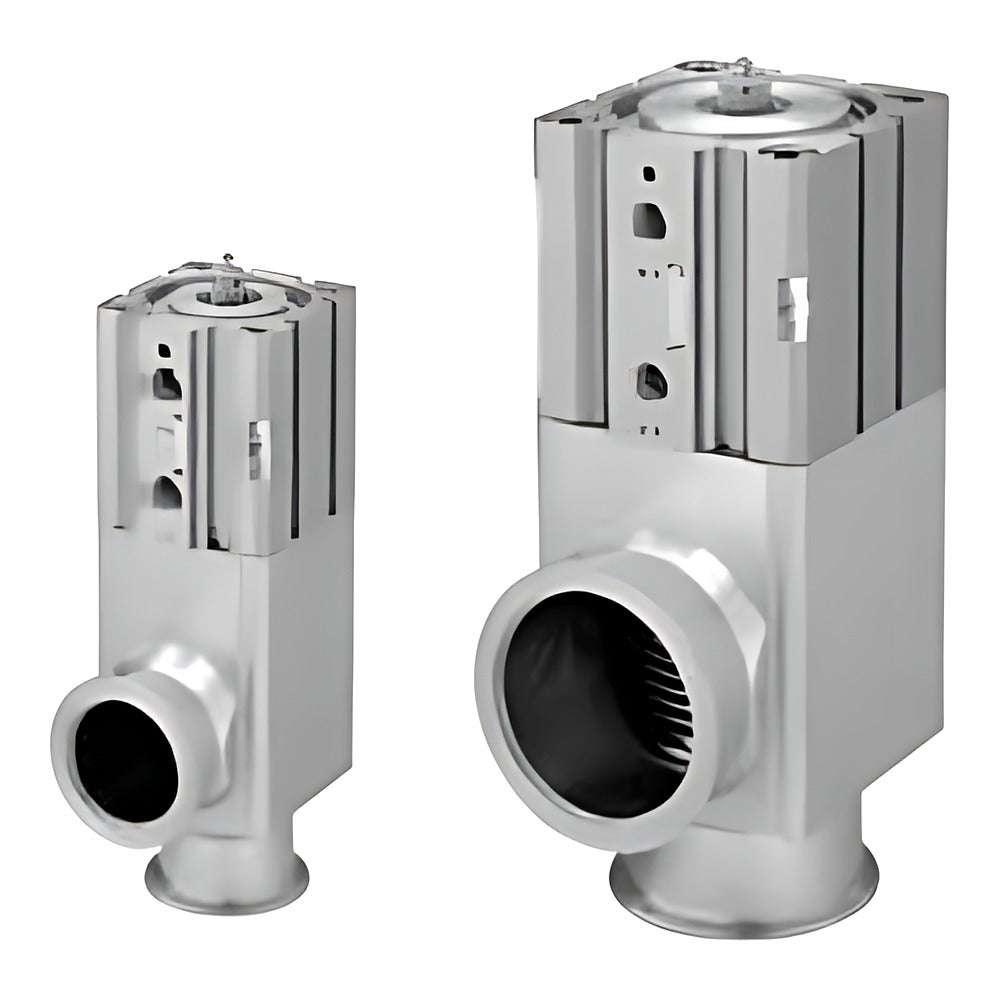

CKD AVB*47 High Vacuum Air Operated Valve (2-Stage Soft Exhaust)

CKD AVB*47 High Vacuum Air Operated Valve (2-Stage Soft Exhaust)

Two-stage high-vacuum angle valve that performs soft (slow) and main exhaust from one body, NW25 to NW63.

Key features

  • Two-stage operation: soft exhaust then main exhaust, separate pilot ports (0.4-0.6 MPa each)
  • Soft exhaust conductance set by adjusting nut rotation
  • CKD formed bellows (SUS316L) with aluminium body; seat leak 1.3x10^-10 Pa m3/s (He)
  • High-temp option H0 (5-150 C, no magnet); H0M (with magnet) only with ET0H/ET0V switch
  • Auto switches mount on the main exhaust valve only, e.g. AVB447-40K-4-DT5H3-H

Specifications

Operation 2-stage (soft + main exhaust)
Fluid Vacuum and inert gas
Operating pressure 1.3x10^-6 to 1x10^5 Pa (abs)
Max differential pressure 0.1 MPa
Proof pressure 0.3 MPa
Pilot pressure 0.4-0.6 MPa (main and soft)
Body Aluminium A6063
Ambient temperature 0-60 C (no freezing)
Source CKD Korea catalog CB-035K, p. 112-115
AVB347-25K-4 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB347-25K-1 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB347-25K-2 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB347-25K-3 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB347-25K-H0-4 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB347-25K-H0-1 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB347-25K-H0-2 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB347-25K-H0-3 Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB447-40K-4 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB447-40K-1 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB447-40K-2 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB447-40K-3 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB447-40K-H0-4 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB447-40K-H0-1 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB447-40K-H0-2 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB447-40K-H0-3 Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB547-50K-4 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB547-50K-1 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB547-50K-2 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB547-50K-3 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB547-50K-H0-4 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB547-50K-H0-1 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB547-50K-H0-2 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB547-50K-H0-3 Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB647-63K-4 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB647-63K-1 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB647-63K-2 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB647-63K-3 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB647-63K-H0-4 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB647-63K-H0-1 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB647-63K-H0-2 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB647-63K-H0-3 Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
Vacuum ValvesCKD
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AVB*47 High Vacuum Air Operated Valve (2-Stage Soft Exhaust)

Brand CKD·Vacuum Valves

Available part numbers (32)

AVB347-25K-4, AVB347-25K-1, AVB347-25K-2, AVB347-25K-3, AVB347-25K-H0-4, AVB347-25K-H0-1, AVB347-25K-H0-2, AVB347-25K-H0-3, AVB447-40K-4, AVB447-40K-1 + 22 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AVB347-25K-4Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB347-25K-1Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB347-25K-2Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB347-25K-3Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB347-25K-H0-4Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB347-25K-H0-1Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB347-25K-H0-2Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB347-25K-H0-3Orifice: 24 mm | Connection: NW25 | Conductance: 13 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB447-40K-4Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB447-40K-1Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB447-40K-2Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB447-40K-3Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB447-40K-H0-4Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB447-40K-H0-1Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB447-40K-H0-2Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB447-40K-H0-3Orifice: 39 mm | Connection: NW40 | Conductance: 43 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB547-50K-4Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB547-50K-1Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB547-50K-2Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB547-50K-3Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB547-50K-H0-4Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB547-50K-H0-1Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB547-50K-H0-2Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB547-50K-H0-3Orifice: 48 mm | Connection: NW50 | Conductance: 74 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
AVB647-63K-4Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 4
AVB647-63K-1Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 1
AVB647-63K-2Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 2
AVB647-63K-3Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-60 C (magnet built-in) | Pilot port position: 3
AVB647-63K-H0-4Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 4
AVB647-63K-H0-1Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 1
AVB647-63K-H0-2Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 2
AVB647-63K-H0-3Orifice: 68 mm | Connection: NW63 | Conductance: 166 L/s | Fluid temp: 5-150 C (no magnet) | Pilot port position: 3
