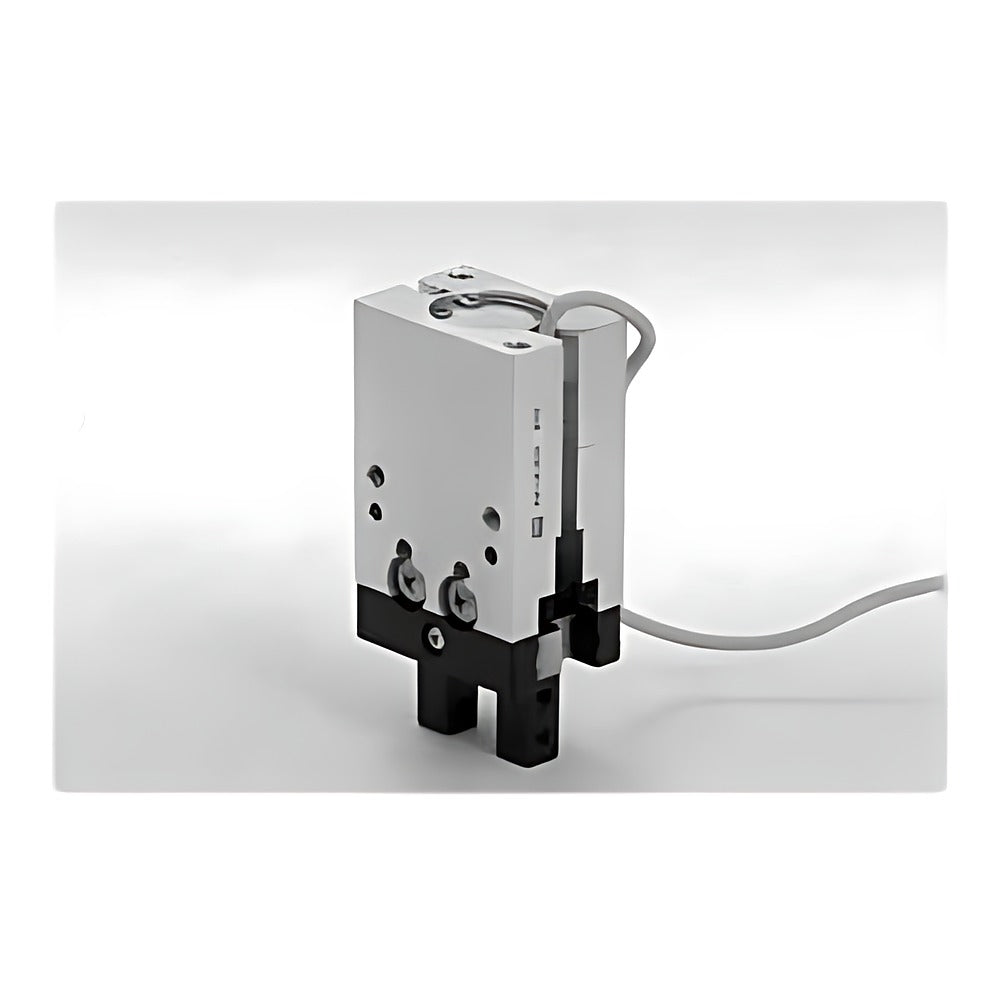

CKD BHA/BHG/BHE-LN Air Gripper with Linear Gnome Sensor

CKD BHA/BHG/BHE-LN Air Gripper with Linear Gnome Sensor

CKD BHA/BHG cross roller parallel hands and BHE centering hands with a built-in linear gnome sensor for jaw position measurement.

Key features

  • Sizes 01CS/03CS/04CS/05CS (o12-o25); sensor 05 for 01/03CS, 10 for 04/05CS
  • Amp built-in switch type S1PAH/S1PAV (1 output, V lead) for all sizes
  • Separate amp: S2S (01/03CS), S12S 2-point switch, LS analog 1-5V and LDS for the LN-DN display (04/05CS)
  • DN suffix adds the LN-DN 2-channel display (NPN switch outputs)
  • Detects intermediate gripping: mixed-work sorting, wrong-part and gripping-posture checks

Specifications

Fluid Compressed air
Max operating pressure 0.7 MPa
Min operating pressure 0.1 (BHA) / 0.15 (BHG) / 0.2 (BHE) MPa
Ambient temperature 5 to 60 C
Port M3 (01CS), M5 (03-05CS)
Sensor power DC24V +/-10%
Repeatability +/-0.1 mm
Code format BHE-LN-04CS-10HCLDSDN
Source CKD Korea catalog CB-030SK-9, p. 1566-1579
BHA-LN-01CS-05VS1PAH Hand: Cross roller parallel | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHA-LN-01CS-05VS1PAV Hand: Cross roller parallel | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHA-LN-01CS-05HCS2S Hand: Cross roller parallel | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHA-LN-01CS-05VCS2S Hand: Cross roller parallel | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHA-LN-03CS-05VS1PAH Hand: Cross roller parallel | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHA-LN-03CS-05VS1PAV Hand: Cross roller parallel | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHA-LN-03CS-05HCS2S Hand: Cross roller parallel | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHA-LN-03CS-05VCS2S Hand: Cross roller parallel | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHA-LN-04CS-10VS1PAH Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHA-LN-04CS-10VS1PAV Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHA-LN-04CS-10HCS12S Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHA-LN-04CS-10HCLS Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHA-LN-04CS-10HCLDS Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHA-LN-04CS-10HCLDSDN Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: With LN-DN display | Sensor lead: Straight
BHA-LN-04CS-10VCS12S Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHA-LN-04CS-10VCLS Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHA-LN-04CS-10VCLDS Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHA-LN-04CS-10VCLDSDN Hand: Cross roller parallel | Bore: 20 mm | Stroke both jaws: 11 mm | Output: With LN-DN display | Sensor lead: L type
BHA-LN-05CS-10VS1PAH Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHA-LN-05CS-10VS1PAV Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHA-LN-05CS-10HCS12S Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHA-LN-05CS-10HCLS Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHA-LN-05CS-10HCLDS Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHA-LN-05CS-10HCLDSDN Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: With LN-DN display | Sensor lead: Straight
BHA-LN-05CS-10VCS12S Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHA-LN-05CS-10VCLS Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHA-LN-05CS-10VCLDS Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHA-LN-05CS-10VCLDSDN Hand: Cross roller parallel | Bore: 25 mm | Stroke both jaws: 15 mm | Output: With LN-DN display | Sensor lead: L type
BHG-LN-01CS-05VS1PAH Hand: Parallel, rubber cover | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHG-LN-01CS-05VS1PAV Hand: Parallel, rubber cover | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHG-LN-01CS-05HCS2S Hand: Parallel, rubber cover | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHG-LN-01CS-05VCS2S Hand: Parallel, rubber cover | Bore: 12 mm | Stroke both jaws: 5 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHG-LN-03CS-05VS1PAH Hand: Parallel, rubber cover | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHG-LN-03CS-05VS1PAV Hand: Parallel, rubber cover | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHG-LN-03CS-05HCS2S Hand: Parallel, rubber cover | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHG-LN-03CS-05VCS2S Hand: Parallel, rubber cover | Bore: 16 mm | Stroke both jaws: 9 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHG-LN-04CS-10VS1PAH Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHG-LN-04CS-10VS1PAV Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHG-LN-04CS-10HCS12S Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHG-LN-04CS-10HCLS Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHG-LN-04CS-10HCLDS Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHG-LN-04CS-10HCLDSDN Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: With LN-DN display | Sensor lead: Straight
BHG-LN-04CS-10VCS12S Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHG-LN-04CS-10VCLS Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHG-LN-04CS-10VCLDS Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHG-LN-04CS-10VCLDSDN Hand: Parallel, rubber cover | Bore: 20 mm | Stroke both jaws: 11 mm | Output: With LN-DN display | Sensor lead: L type
BHG-LN-05CS-10VS1PAH Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHG-LN-05CS-10VS1PAV Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHG-LN-05CS-10HCS12S Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHG-LN-05CS-10HCLS Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHG-LN-05CS-10HCLDS Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHG-LN-05CS-10HCLDSDN Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: With LN-DN display | Sensor lead: Straight
BHG-LN-05CS-10VCS12S Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHG-LN-05CS-10VCLS Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHG-LN-05CS-10VCLDS Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHG-LN-05CS-10VCLDSDN Hand: Parallel, rubber cover | Bore: 25 mm | Stroke both jaws: 15 mm | Output: With LN-DN display | Sensor lead: L type
BHE-LN-01CS-05VS1PAH Hand: Centering | Bore: 12 mm | Stroke both jaws: 7 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHE-LN-01CS-05VS1PAV Hand: Centering | Bore: 12 mm | Stroke both jaws: 7 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHE-LN-01CS-05HCS2S Hand: Centering | Bore: 12 mm | Stroke both jaws: 7 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHE-LN-01CS-05VCS2S Hand: Centering | Bore: 12 mm | Stroke both jaws: 7 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHE-LN-03CS-05VS1PAH Hand: Centering | Bore: 16 mm | Stroke both jaws: 10 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHE-LN-03CS-05VS1PAV Hand: Centering | Bore: 16 mm | Stroke both jaws: 10 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHE-LN-03CS-05HCS2S Hand: Centering | Bore: 16 mm | Stroke both jaws: 10 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHE-LN-03CS-05VCS2S Hand: Centering | Bore: 16 mm | Stroke both jaws: 10 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHE-LN-04CS-10VS1PAH Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHE-LN-04CS-10VS1PAV Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHE-LN-04CS-10HCS12S Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHE-LN-04CS-10HCLS Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHE-LN-04CS-10HCLDS Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHE-LN-04CS-10HCLDSDN Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: With LN-DN display | Sensor lead: Straight
BHE-LN-04CS-10VCS12S Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHE-LN-04CS-10VCLS Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHE-LN-04CS-10VCLDS Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHE-LN-04CS-10VCLDSDN Hand: Centering | Bore: 20 mm | Stroke both jaws: 14 mm | Output: With LN-DN display | Sensor lead: L type
BHE-LN-05CS-10VS1PAH Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Amp built-in switch, straight | Sensor lead: L type
BHE-LN-05CS-10VS1PAV Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Amp built-in switch, L | Sensor lead: L type
BHE-LN-05CS-10HCS12S Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp 2-pt switch | Sensor lead: Straight
BHE-LN-05CS-10HCLS Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp analog 1-5V | Sensor lead: Straight
BHE-LN-05CS-10HCLDS Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp for LN-DN | Sensor lead: Straight
BHE-LN-05CS-10HCLDSDN Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: With LN-DN display | Sensor lead: Straight
BHE-LN-05CS-10VCS12S Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp 2-pt switch | Sensor lead: L type
BHE-LN-05CS-10VCLS Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp analog 1-5V | Sensor lead: L type
BHE-LN-05CS-10VCLDS Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: Separate amp for LN-DN | Sensor lead: L type
BHE-LN-05CS-10VCLDSDN Hand: Centering | Bore: 25 mm | Stroke both jaws: 16 mm | Output: With LN-DN display | Sensor lead: L type
