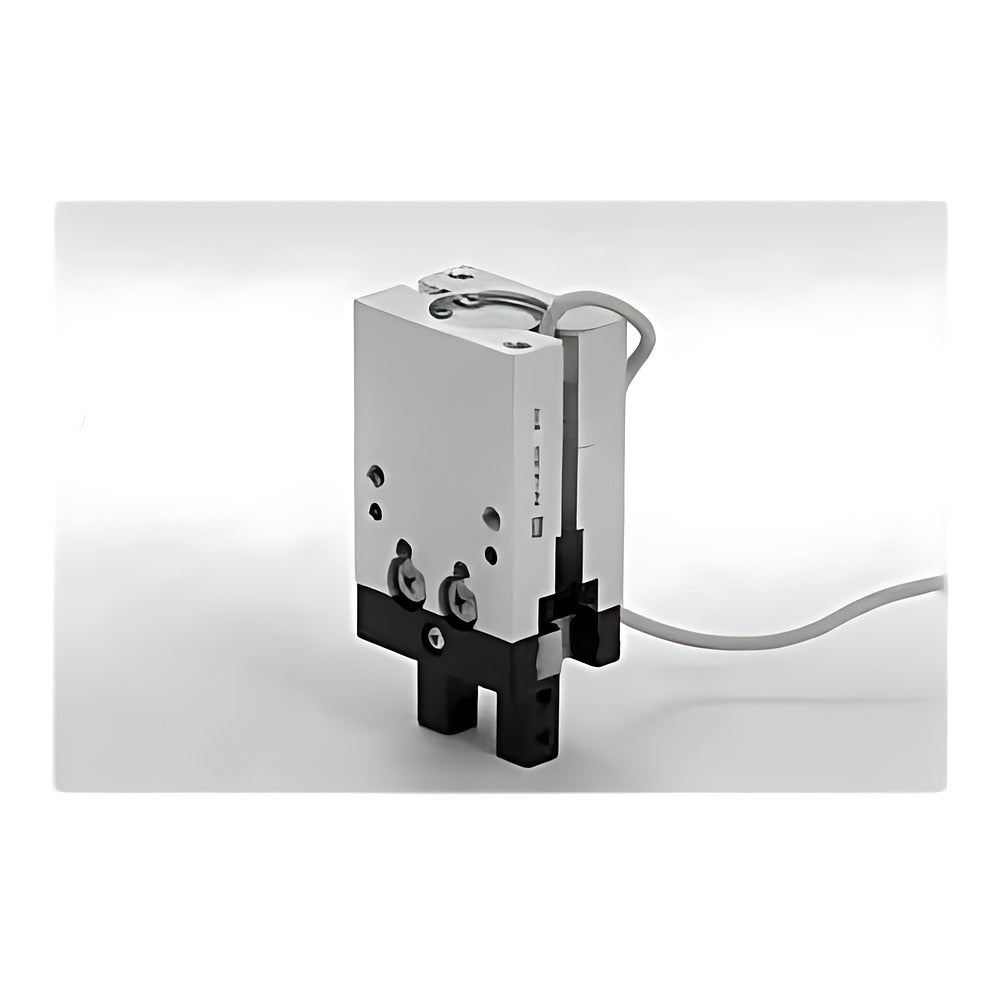

CKD BHA-FP1 Compact Cross Roller Parallel Hand (Food Grade)

CKD BHA-FP1 Compact Cross Roller Parallel Hand (Food Grade)

CKD BHA-FP1 small cross-roller guided parallel hand, bore 12-25 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Cross roller guide for high rigidity and +/-0.01 mm repeatability; strokes 5/9/11/15 mm
  • Double acting, single acting normally open (O) or normally closed (C); small fingers Y1/Y2 supplied 2 pcs
  • Switch magnet built in; T2H/T3H switches with count R/H/D ordered as suffix

Specifications

Fluid Compressed air
Lubrication Not required
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa (double), 0.3 MPa (single)
Ambient temperature 5 to 60 C
Port M3 (01), M5 (03-05)
Source CKD Korea catalog CC-1271K, p. 100-101
BHA-01CS1-FP1 Size: 01CS1 | Bore: 12 mm | Stroke: 5 mm | Action / option: Double acting (std)
BHA-01CS1-O-FP1 Size: 01CS1 | Bore: 12 mm | Stroke: 5 mm | Action / option: Single acting, normally open
BHA-01CS1-C-FP1 Size: 01CS1 | Bore: 12 mm | Stroke: 5 mm | Action / option: Single acting, normally closed
BHA-01CS1-Y1-FP1 Size: 01CS1 | Bore: 12 mm | Stroke: 5 mm | Action / option: Double acting, fingers S50C (Y1)
BHA-01CS1-Y2-FP1 Size: 01CS1 | Bore: 12 mm | Stroke: 5 mm | Action / option: Double acting, fingers MC nylon (Y2)
BHA-03CS1-FP1 Size: 03CS1 | Bore: 16 mm | Stroke: 9 mm | Action / option: Double acting (std)
BHA-03CS1-O-FP1 Size: 03CS1 | Bore: 16 mm | Stroke: 9 mm | Action / option: Single acting, normally open
BHA-03CS1-C-FP1 Size: 03CS1 | Bore: 16 mm | Stroke: 9 mm | Action / option: Single acting, normally closed
BHA-03CS1-Y1-FP1 Size: 03CS1 | Bore: 16 mm | Stroke: 9 mm | Action / option: Double acting, fingers S50C (Y1)
BHA-03CS1-Y2-FP1 Size: 03CS1 | Bore: 16 mm | Stroke: 9 mm | Action / option: Double acting, fingers MC nylon (Y2)
BHA-04CS1-FP1 Size: 04CS1 | Bore: 20 mm | Stroke: 11 mm | Action / option: Double acting (std)
BHA-04CS1-O-FP1 Size: 04CS1 | Bore: 20 mm | Stroke: 11 mm | Action / option: Single acting, normally open
BHA-04CS1-C-FP1 Size: 04CS1 | Bore: 20 mm | Stroke: 11 mm | Action / option: Single acting, normally closed
BHA-04CS1-Y1-FP1 Size: 04CS1 | Bore: 20 mm | Stroke: 11 mm | Action / option: Double acting, fingers S50C (Y1)
BHA-04CS1-Y2-FP1 Size: 04CS1 | Bore: 20 mm | Stroke: 11 mm | Action / option: Double acting, fingers MC nylon (Y2)
BHA-05CS1-FP1 Size: 05CS1 | Bore: 25 mm | Stroke: 15 mm | Action / option: Double acting (std)
BHA-05CS1-O-FP1 Size: 05CS1 | Bore: 25 mm | Stroke: 15 mm | Action / option: Single acting, normally open
BHA-05CS1-C-FP1 Size: 05CS1 | Bore: 25 mm | Stroke: 15 mm | Action / option: Single acting, normally closed
BHA-05CS1-Y1-FP1 Size: 05CS1 | Bore: 25 mm | Stroke: 15 mm | Action / option: Double acting, fingers S50C (Y1)
BHA-05CS1-Y2-FP1 Size: 05CS1 | Bore: 25 mm | Stroke: 15 mm | Action / option: Double acting, fingers MC nylon (Y2)
Air GrippersCKD
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
