CKD C1060-C8060-W-FP1 F.M Combination (Food Grade, Rc1/8-1)

CKD C1060-C8060-W-FP1 F.M Combination (Food Grade, Rc1/8-1)

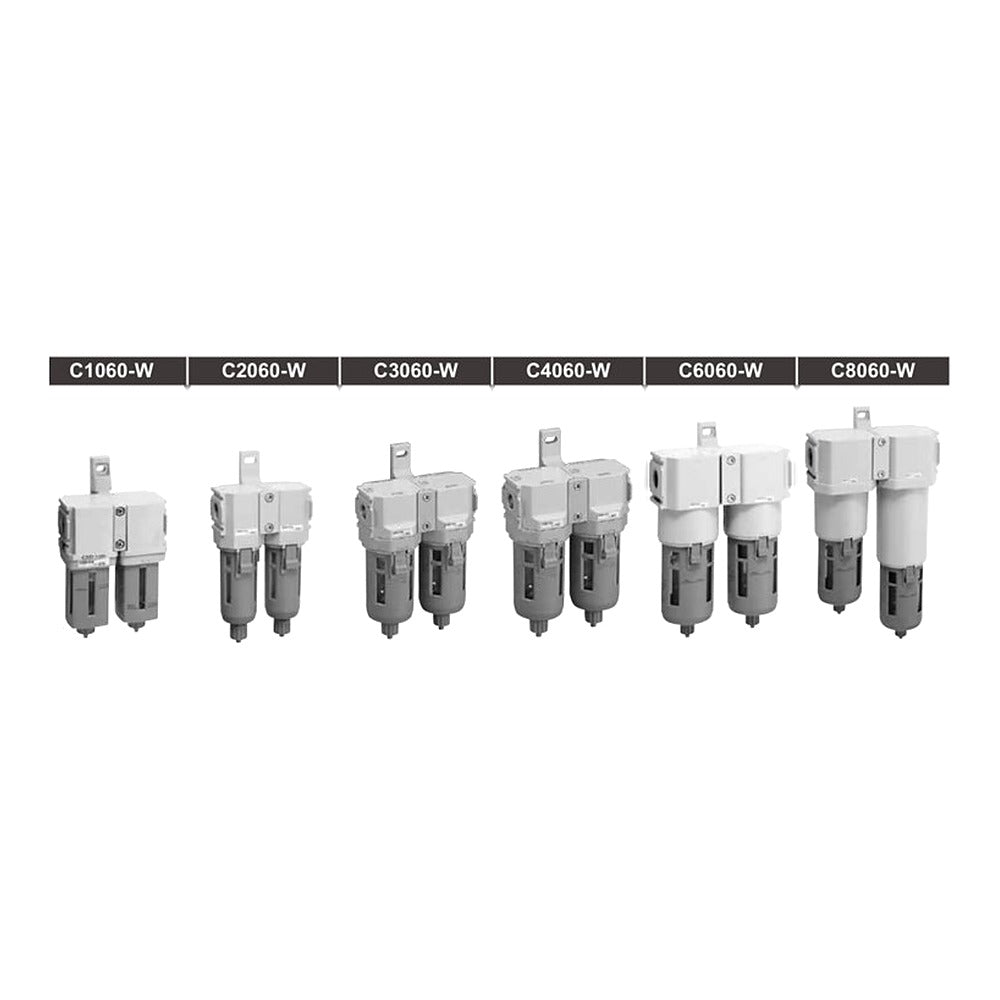

CKD F.M combination C1060-W to C8060-W FP1: air filter and oil mist filter integrated in one food-processing unit.

Key features

  • FP1 food-processing white series using NSF H1 registered grease
  • Air filter 5 um + oil mist filter 0.01 mg/m3
  • Drain: manual, auto F (C3060 and up) or F1
  • Max. flow 0.15 to 2.6 m3/min (ANR)
  • Ports Rc1/8 to Rc1
  • Other options (bowl Z/M/M1, Q, L, N, T/T8/T6, X1), piping adapter sets and gauge options added per ordering chart

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient/fluid temperature 5 to 60 C
Outlet oil content 0.01 mg/m3 or less
Filtration 5 um
Source CKD Korea catalog CC-1271K-5, p. 262-263
C1060-6-W-FP1 Model: C1060-W | Port: Rc1/8 | Drain: Manual drain cock
C1060-6-W-F1-FP1 Model: C1060-W | Port: Rc1/8 | Drain: Auto drain N.C.
C1060-8-W-FP1 Model: C1060-W | Port: Rc1/4 | Drain: Manual drain cock
C1060-8-W-F1-FP1 Model: C1060-W | Port: Rc1/4 | Drain: Auto drain N.C.
C2060-8-W-FP1 Model: C2060-W | Port: Rc1/4 | Drain: Manual drain cock
C2060-8-W-F1-FP1 Model: C2060-W | Port: Rc1/4 | Drain: Auto drain N.C.
C2060-10-W-FP1 Model: C2060-W | Port: Rc3/8 | Drain: Manual drain cock
C2060-10-W-F1-FP1 Model: C2060-W | Port: Rc3/8 | Drain: Auto drain N.C.
C3060-8-W-FP1 Model: C3060-W | Port: Rc1/4 | Drain: Manual drain cock
C3060-8-W-F-FP1 Model: C3060-W | Port: Rc1/4 | Drain: Auto drain N.O.
C3060-8-W-F1-FP1 Model: C3060-W | Port: Rc1/4 | Drain: Auto drain N.C.
C3060-10-W-FP1 Model: C3060-W | Port: Rc3/8 | Drain: Manual drain cock
C3060-10-W-F-FP1 Model: C3060-W | Port: Rc3/8 | Drain: Auto drain N.O.
C3060-10-W-F1-FP1 Model: C3060-W | Port: Rc3/8 | Drain: Auto drain N.C.
C4060-8-W-FP1 Model: C4060-W | Port: Rc1/4 | Drain: Manual drain cock
C4060-8-W-F-FP1 Model: C4060-W | Port: Rc1/4 | Drain: Auto drain N.O.
C4060-8-W-F1-FP1 Model: C4060-W | Port: Rc1/4 | Drain: Auto drain N.C.
C4060-10-W-FP1 Model: C4060-W | Port: Rc3/8 | Drain: Manual drain cock
C4060-10-W-F-FP1 Model: C4060-W | Port: Rc3/8 | Drain: Auto drain N.O.
C4060-10-W-F1-FP1 Model: C4060-W | Port: Rc3/8 | Drain: Auto drain N.C.
C4060-15-W-FP1 Model: C4060-W | Port: Rc1/2 | Drain: Manual drain cock
C4060-15-W-F-FP1 Model: C4060-W | Port: Rc1/2 | Drain: Auto drain N.O.
C4060-15-W-F1-FP1 Model: C4060-W | Port: Rc1/2 | Drain: Auto drain N.C.
C4060-20-W-FP1 Model: C4060-W | Port: Rc3/4 | Drain: Manual drain cock
C4060-20-W-F-FP1 Model: C4060-W | Port: Rc3/4 | Drain: Auto drain N.O.
C4060-20-W-F1-FP1 Model: C4060-W | Port: Rc3/4 | Drain: Auto drain N.C.
C6060-20-W-FP1 Model: C6060-W | Port: Rc3/4 | Drain: Manual drain cock
C6060-20-W-F-FP1 Model: C6060-W | Port: Rc3/4 | Drain: Auto drain N.O.
C6060-20-W-F1-FP1 Model: C6060-W | Port: Rc3/4 | Drain: Auto drain N.C.
C6060-25-W-FP1 Model: C6060-W | Port: Rc1 | Drain: Manual drain cock
C6060-25-W-F-FP1 Model: C6060-W | Port: Rc1 | Drain: Auto drain N.O.
C6060-25-W-F1-FP1 Model: C6060-W | Port: Rc1 | Drain: Auto drain N.C.
C8060-20-W-FP1 Model: C8060-W | Port: Rc3/4 | Drain: Manual drain cock
C8060-20-W-F-FP1 Model: C8060-W | Port: Rc3/4 | Drain: Auto drain N.O.
C8060-20-W-F1-FP1 Model: C8060-W | Port: Rc3/4 | Drain: Auto drain N.C.
C8060-25-W-FP1 Model: C8060-W | Port: Rc1 | Drain: Manual drain cock
C8060-25-W-F-FP1 Model: C8060-W | Port: Rc1 | Drain: Auto drain N.O.
C8060-25-W-F1-FP1 Model: C8060-W | Port: Rc1 | Drain: Auto drain N.C.
FRL UnitsCKD
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD C1060-C8060-W-FP1 F.M Combination (Food Grade, Rc1/8-1)

Brand CKD·FRL Units

Available part numbers (38)

C1060-6-W-FP1, C1060-6-W-F1-FP1, C1060-8-W-FP1, C1060-8-W-F1-FP1, C2060-8-W-FP1, C2060-8-W-F1-FP1, C2060-10-W-FP1, C2060-10-W-F1-FP1, C3060-8-W-FP1, C3060-8-W-F-FP1 + 28 more — see full table ↓
