CKD CAC-N32/N40 Lightweight Clamp Cylinder

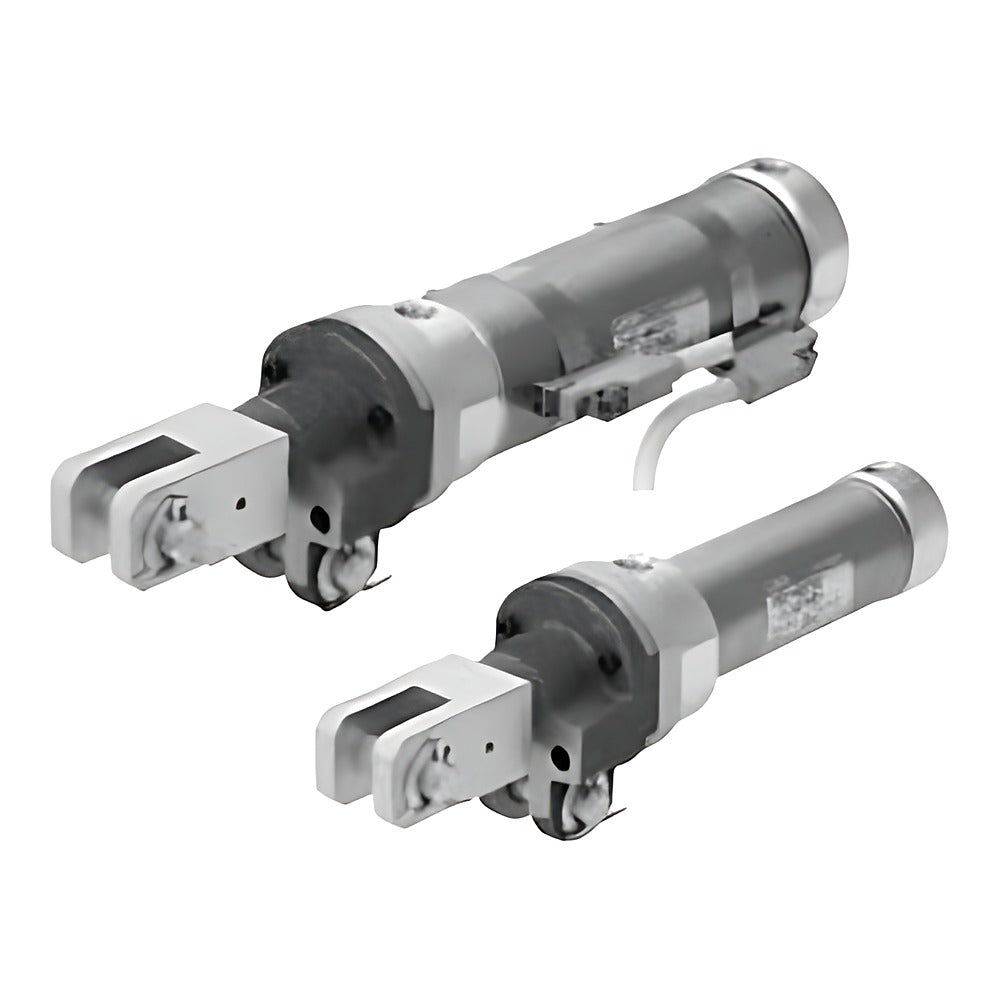

CKD CAC-N32/N40 compact lightweight double-acting clamp cylinder with double-clevis mounting, contributing to lighter welding jigs.

Key features

Compact, lightweight body with stainless tube and aluminium covers (caulked, not disassemblable)
Rubber cushion; built-in switch magnet
T-type switches with tie-rod (A/C) or band mounting
Double knuckle Y and clevis pin shared with UCAC-N
Standard strokes 50-150 mm; NPT/G threads made to order

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa (N32), 0.7 MPa (N40)
Min. operating pressure	0.15 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8
Piston speed	50-500 (N32), 50-400 (N40) mm/s
Cushion	Rubber cushion
Mounting	Double clevis
Source	CKD Korea catalog CB-030SK-9, p. 1131-1139

CAC-N32-50		Item: Cylinder \| Bore: 32 mm \| Stroke: 50 mm
CAC-N32-75		Item: Cylinder \| Bore: 32 mm \| Stroke: 75 mm
CAC-N32-100		Item: Cylinder \| Bore: 32 mm \| Stroke: 100 mm
CAC-N32-125		Item: Cylinder \| Bore: 32 mm \| Stroke: 125 mm
CAC-N32-150		Item: Cylinder \| Bore: 32 mm \| Stroke: 150 mm
CAC-N40-50		Item: Cylinder \| Bore: 40 mm \| Stroke: 50 mm
CAC-N40-75		Item: Cylinder \| Bore: 40 mm \| Stroke: 75 mm
CAC-N40-100		Item: Cylinder \| Bore: 40 mm \| Stroke: 100 mm
CAC-N40-125		Item: Cylinder \| Bore: 40 mm \| Stroke: 125 mm
CAC-N40-150		Item: Cylinder \| Bore: 40 mm \| Stroke: 150 mm
CAC-N-Y		Item: Double knuckle (Y) \| Bore: 32, 40 \| Stroke: -
CAC-N-P		Item: Clevis pin \| Bore: 32, 40 \| Stroke: -
