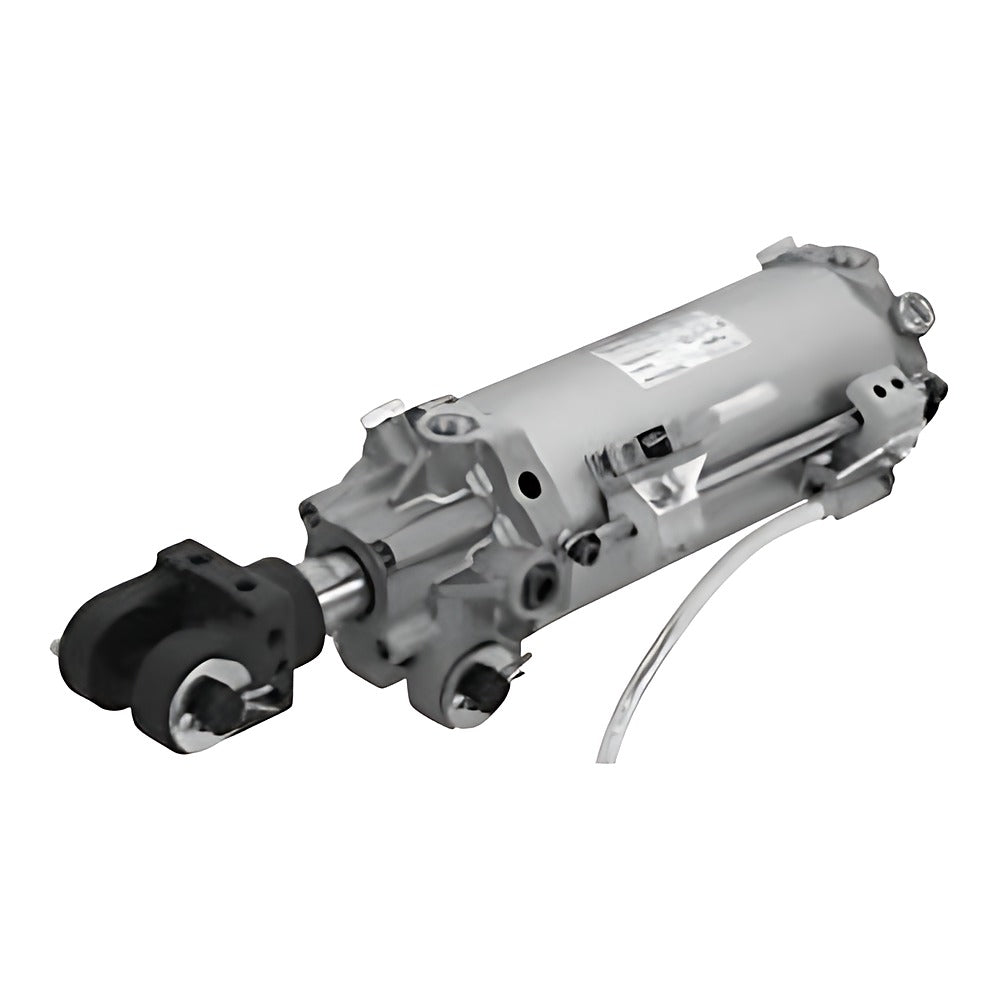

CKD CAC4 Clamp Cylinder (Bore 40-80)

CKD CAC4 double-acting clamp cylinder with double-clevis mounting, built-in speed control needles and head-end air cushion for welding and assembly jigs.

Key features

Clevis width A 16.5 mm / B 19.5 mm (AL/BL with axial foot) for bores 40-63; 28 mm for bore 80
Built-in speed control needles on both, rod or head end (blank/R/H/N)
Metal scraper standard; bellows K (100 C), limit switch dog bracket D/D1 and clamp bracket Q as options
Switch magnet built in; T-type switches by tie-rod or band mounting; CAC4-L2 version for strong magnetic field H0/H0Y switches
Accessories: double knuckle Y (cast iron) / Y1 (steel), single knuckle I
Standard strokes 50-150 mm; other strokes made to order

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/4 (40-63), Rc3/8 (80)
Mounting	Double clevis
Piston speed	50-500 (40), 50-400 (50), 50-300 (63-80) mm/s
Magnet	Built in (switch ready)
Source	CKD Korea catalog CB-030SK-9, p. 1093-1107

CAC4-80-50		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-80-50R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-80-50H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-80-50N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-80-75		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-80-75R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-80-75H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-80-75N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-80-100		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-80-100R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-80-100H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-80-100N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-80-125		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-80-125R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-80-125H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-80-125N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-80-150		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-80-150R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-80-150H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-80-150N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-80B-50		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-80B-50R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-80B-50H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-80B-50N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-80B-75		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-80B-75R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-80B-75H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-80B-75N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-80B-100		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-80B-100R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-80B-100H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-80B-100N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-80B-125		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-80B-125R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-80B-125H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-80B-125N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-80B-150		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-80B-150R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-80B-150H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-80B-150N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-80N-50		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-80N-50R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-80N-50H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-80N-50N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-80N-75		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-80N-75R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-80N-75H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-80N-75N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-80N-100		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-80N-100R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-80N-100H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-80N-100N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-80N-125		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-80N-125R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-80N-125H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-80N-125N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-80N-150		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-80N-150R		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-80N-150H		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-80N-150N		Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-A-40-50		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-40-50R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-40-50H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-40-50N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-A-40-75		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-40-75R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-40-75H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-40-75N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-A-40-100		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-40-100R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-40-100H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-40-100N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-A-40-125		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-40-125R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-40-125H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-40-125N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-A-40-150		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-40-150R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-40-150H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-40-150N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-A-40B-50		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-40B-50R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-40B-50H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-40B-50N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-A-40B-75		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-40B-75R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-40B-75H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-40B-75N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-A-40B-100		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-40B-100R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-40B-100H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-40B-100N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-A-40B-125		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-40B-125R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-40B-125H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-40B-125N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-A-40B-150		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-40B-150R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-40B-150H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-40B-150N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-A-40N-50		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-40N-50R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-40N-50H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-40N-50N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-A-40N-75		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-40N-75R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-40N-75H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-40N-75N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-A-40N-100		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-40N-100R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-40N-100H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-40N-100N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-A-40N-125		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-40N-125R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-40N-125H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-40N-125N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-A-40N-150		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-40N-150R		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-40N-150H		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-40N-150N		Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-A-50-50		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-50-50R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-50-50H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-50-50N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-A-50-75		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-50-75R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-50-75H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-50-75N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-A-50-100		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-50-100R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-50-100H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-50-100N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-A-50-125		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-50-125R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-50-125H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-50-125N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-A-50-150		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-50-150R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-50-150H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-50-150N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-A-50B-50		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-50B-50R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-50B-50H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-50B-50N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-A-50B-75		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-50B-75R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-50B-75H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-50B-75N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-A-50B-100		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-50B-100R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-50B-100H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-50B-100N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-A-50B-125		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-50B-125R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-50B-125H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-50B-125N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-A-50B-150		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-50B-150R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-50B-150H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-50B-150N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-A-50N-50		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-50N-50R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-50N-50H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-50N-50N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-A-50N-75		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-50N-75R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-50N-75H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-50N-75N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-A-50N-100		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-50N-100R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-50N-100H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-50N-100N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-A-50N-125		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-50N-125R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-50N-125H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-50N-125N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-A-50N-150		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-50N-150R		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-50N-150H		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-50N-150N		Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-A-63-50		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-63-50R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-63-50H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-63-50N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-A-63-75		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-63-75R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-63-75H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-63-75N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-A-63-100		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-63-100R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-63-100H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-63-100N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-A-63-125		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-63-125R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-63-125H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-63-125N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-A-63-150		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-63-150R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-63-150H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-63-150N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-A-63B-50		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-63B-50R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-63B-50H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-63B-50N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-A-63B-75		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-63B-75R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-63B-75H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-63B-75N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-A-63B-100		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-63B-100R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-63B-100H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-63B-100N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-A-63B-125		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-63B-125R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-63B-125H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-63B-125N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-A-63B-150		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-63B-150R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-63B-150H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-63B-150N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-A-63N-50		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-A-63N-50R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-A-63N-50H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-A-63N-50N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-A-63N-75		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-A-63N-75R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-A-63N-75H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-A-63N-75N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-A-63N-100		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-A-63N-100R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-A-63N-100H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-A-63N-100N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-A-63N-125		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-A-63N-125R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-A-63N-125H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-A-63N-125N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-A-63N-150		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-A-63N-150R		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-A-63N-150H		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-A-63N-150N		Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-B-40-50		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-40-50R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-40-50H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-40-50N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-B-40-75		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-40-75R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-40-75H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-40-75N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-B-40-100		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-40-100R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-40-100H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-40-100N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-B-40-125		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-40-125R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-40-125H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-40-125N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-B-40-150		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-40-150R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-40-150H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-40-150N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-B-40B-50		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-40B-50R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-40B-50H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-40B-50N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-B-40B-75		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-40B-75R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-40B-75H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-40B-75N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-B-40B-100		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-40B-100R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-40B-100H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-40B-100N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-B-40B-125		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-40B-125R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-40B-125H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-40B-125N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-B-40B-150		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-40B-150R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-40B-150H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-40B-150N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-B-40N-50		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-40N-50R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-40N-50H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-40N-50N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-B-40N-75		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-40N-75R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-40N-75H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-40N-75N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-B-40N-100		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-40N-100R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-40N-100H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-40N-100N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-B-40N-125		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-40N-125R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-40N-125H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-40N-125N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-B-40N-150		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-40N-150R		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-40N-150H		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-40N-150N		Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-B-50-50		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-50-50R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-50-50H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-50-50N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-B-50-75		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-50-75R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-50-75H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-50-75N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-B-50-100		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-50-100R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-50-100H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-50-100N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-B-50-125		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-50-125R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-50-125H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-50-125N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-B-50-150		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-50-150R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-50-150H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-50-150N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-B-50B-50		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-50B-50R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-50B-50H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-50B-50N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-B-50B-75		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-50B-75R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-50B-75H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-50B-75N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-B-50B-100		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-50B-100R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-50B-100H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-50B-100N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-B-50B-125		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-50B-125R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-50B-125H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-50B-125N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-B-50B-150		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-50B-150R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-50B-150H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-50B-150N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-B-50N-50		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-50N-50R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-50N-50H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-50N-50N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-B-50N-75		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-50N-75R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-50N-75H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-50N-75N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-B-50N-100		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-50N-100R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-50N-100H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-50N-100N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-B-50N-125		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-50N-125R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-50N-125H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-50N-125N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-B-50N-150		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-50N-150R		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-50N-150H		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-50N-150N		Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-B-63-50		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-63-50R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-63-50H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-63-50N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-B-63-75		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-63-75R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-63-75H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-63-75N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-B-63-100		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-63-100R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-63-100H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-63-100N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-B-63-125		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-63-125R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-63-125H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-63-125N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-B-63-150		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-63-150R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-63-150H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-63-150N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-B-63B-50		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-63B-50R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-63B-50H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-63B-50N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-B-63B-75		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-63B-75R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-63B-75H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-63B-75N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-B-63B-100		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-63B-100R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-63B-100H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-63B-100N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-B-63B-125		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-63B-125R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-63B-125H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-63B-125N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-B-63B-150		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-63B-150R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-63B-150H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-63B-150N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-B-63N-50		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-B-63N-50R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-B-63N-50H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-B-63N-50N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-B-63N-75		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-B-63N-75R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-B-63N-75H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-B-63N-75N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-B-63N-100		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-B-63N-100R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-B-63N-100H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-B-63N-100N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-B-63N-125		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-B-63N-125R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-B-63N-125H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-B-63N-125N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-B-63N-150		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-B-63N-150R		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-B-63N-150H		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-B-63N-150N		Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-40-50		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-40-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-40-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-40-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-40-75		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-40-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-40-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-40-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-40-100		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-40-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-40-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-40-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-40-125		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-40-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-40-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-40-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-40-150		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-40-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-40-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-40-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-40B-50		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-40B-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-40B-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-40B-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-40B-75		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-40B-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-40B-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-40B-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-40B-100		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-40B-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-40B-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-40B-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-40B-125		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-40B-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-40B-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-40B-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-40B-150		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-40B-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-40B-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-40B-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-40N-50		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-40N-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-40N-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-40N-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-40N-75		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-40N-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-40N-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-40N-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-40N-100		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-40N-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-40N-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-40N-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-40N-125		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-40N-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-40N-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-40N-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-40N-150		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-40N-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-40N-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-40N-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-50-50		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-50-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-50-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-50-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-50-75		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-50-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-50-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-50-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-50-100		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-50-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-50-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-50-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-50-125		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-50-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-50-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-50-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-50-150		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-50-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-50-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-50-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-50B-50		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-50B-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-50B-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-50B-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-50B-75		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-50B-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-50B-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-50B-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-50B-100		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-50B-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-50B-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-50B-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-50B-125		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-50B-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-50B-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-50B-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-50B-150		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-50B-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-50B-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-50B-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-50N-50		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-50N-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-50N-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-50N-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-50N-75		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-50N-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-50N-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-50N-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-50N-100		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-50N-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-50N-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-50N-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-50N-125		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-50N-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-50N-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-50N-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-50N-150		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-50N-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-50N-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-50N-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-63-50		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-63-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-63-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-63-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-63-75		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-63-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-63-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-63-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-63-100		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-63-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-63-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-63-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-63-125		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-63-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-63-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-63-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-63-150		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-63-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-63-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-63-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-63B-50		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-63B-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-63B-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-63B-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-63B-75		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-63B-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-63B-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-63B-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-63B-100		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-63B-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-63B-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-63B-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-63B-125		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-63B-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-63B-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-63B-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-63B-150		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-63B-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-63B-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-63B-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-AL-63N-50		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-AL-63N-50R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-AL-63N-50H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-AL-63N-50N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-AL-63N-75		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-AL-63N-75R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-AL-63N-75H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-AL-63N-75N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-AL-63N-100		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-AL-63N-100R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-AL-63N-100H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-AL-63N-100N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-AL-63N-125		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-AL-63N-125R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-AL-63N-125H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-AL-63N-125N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-AL-63N-150		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-AL-63N-150R		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-AL-63N-150H		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-AL-63N-150N		Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-40-50		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-40-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-40-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-40-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-40-75		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-40-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-40-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-40-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-40-100		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-40-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-40-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-40-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-40-125		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-40-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-40-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-40-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-40-150		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-40-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-40-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-40-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-40B-50		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-40B-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-40B-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-40B-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-40B-75		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-40B-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-40B-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-40B-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-40B-100		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-40B-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-40B-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-40B-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-40B-125		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-40B-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-40B-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-40B-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-40B-150		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-40B-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-40B-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-40B-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-40N-50		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-40N-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-40N-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-40N-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-40N-75		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-40N-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-40N-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-40N-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-40N-100		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-40N-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-40N-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-40N-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-40N-125		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-40N-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-40N-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-40N-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-40N-150		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-40N-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-40N-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-40N-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-50-50		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-50-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-50-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-50-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-50-75		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-50-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-50-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-50-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-50-100		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-50-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-50-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-50-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-50-125		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-50-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-50-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-50-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-50-150		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-50-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-50-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-50-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-50B-50		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-50B-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-50B-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-50B-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-50B-75		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-50B-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-50B-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-50B-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-50B-100		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-50B-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-50B-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-50B-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-50B-125		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-50B-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-50B-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-50B-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-50B-150		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-50B-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-50B-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-50B-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-50N-50		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-50N-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-50N-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-50N-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-50N-75		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-50N-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-50N-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-50N-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-50N-100		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-50N-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-50N-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-50N-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-50N-125		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-50N-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-50N-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-50N-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-50N-150		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-50N-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-50N-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-50N-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-63-50		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-63-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-63-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-63-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-63-75		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-63-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-63-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-63-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-63-100		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-63-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-63-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-63-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-63-125		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-63-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-63-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-63-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-63-150		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-63-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-63-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-63-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-63B-50		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-63B-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-63B-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-63B-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-63B-75		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-63B-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-63B-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-63B-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-63B-100		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-63B-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-63B-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-63B-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-63B-125		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-63B-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-63B-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-63B-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-63B-150		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-63B-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-63B-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-63B-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
CAC4-BL-63N-50		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
CAC4-BL-63N-50R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
CAC4-BL-63N-50H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
CAC4-BL-63N-50N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
CAC4-BL-63N-75		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
CAC4-BL-63N-75R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
CAC4-BL-63N-75H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
CAC4-BL-63N-75N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
CAC4-BL-63N-100		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
CAC4-BL-63N-100R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
CAC4-BL-63N-100H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
CAC4-BL-63N-100N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
CAC4-BL-63N-125		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
CAC4-BL-63N-125R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
CAC4-BL-63N-125H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
CAC4-BL-63N-125N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
CAC4-BL-63N-150		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
CAC4-BL-63N-150R		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
CAC4-BL-63N-150H		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
CAC4-BL-63N-150N		Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None

Clamp CylindersCKD

780 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CAC4 Clamp Cylinder (Bore 40-80)

Brand CKD·Clamp Cylinders

Available part numbers (780)

CAC4-80-50, CAC4-80-50R, CAC4-80-50H, CAC4-80-50N, CAC4-80-75, CAC4-80-75R, CAC4-80-75H, CAC4-80-75N, CAC4-80-100, CAC4-80-100R + 770 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CAC4-80-50	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-80-50R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-80-50H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-80-50N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-80-75	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-80-75R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-80-75H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-80-75N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-80-100	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-80-100R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-80-100H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-80-100N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-80-125	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-80-125R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-80-125H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-80-125N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-80-150	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-80-150R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-80-150H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-80-150N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-80B-50	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-80B-50R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-80B-50H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-80B-50N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-80B-75	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-80B-75R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-80B-75H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-80B-75N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-80B-100	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-80B-100R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-80B-100H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-80B-100N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-80B-125	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-80B-125R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-80B-125H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-80B-125N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-80B-150	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-80B-150R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-80B-150H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-80B-150N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-80N-50	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-80N-50R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-80N-50H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-80N-50N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-80N-75	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-80N-75R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-80N-75H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-80N-75N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-80N-100	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-80N-100R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-80N-100H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-80N-100N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-80N-125	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-80N-125R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-80N-125H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-80N-125N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-80N-150	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-80N-150R	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-80N-150H	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-80N-150N	Clevis: - 28 mm \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-40-50	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-40-50R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-40-50H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-40-50N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-40-75	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-40-75R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-40-75H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-40-75N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-40-100	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-40-100R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-40-100H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-40-100N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-40-125	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-40-125R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-40-125H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-40-125N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-40-150	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-40-150R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-40-150H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-40-150N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-40B-50	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-40B-50R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-40B-50H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-40B-50N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-40B-75	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-40B-75R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-40B-75H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-40B-75N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-40B-100	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-40B-100R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-40B-100H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-40B-100N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-40B-125	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-40B-125R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-40B-125H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-40B-125N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-40B-150	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-40B-150R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-40B-150H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-40B-150N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-40N-50	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-40N-50R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-40N-50H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-40N-50N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-40N-75	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-40N-75R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-40N-75H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-40N-75N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-40N-100	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-40N-100R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-40N-100H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-40N-100N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-40N-125	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-40N-125R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-40N-125H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-40N-125N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-40N-150	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-40N-150R	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-40N-150H	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-40N-150N	Clevis: A 16.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-50-50	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-50-50R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-50-50H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-50-50N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-50-75	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-50-75R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-50-75H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-50-75N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-50-100	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-50-100R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-50-100H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-50-100N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-50-125	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-50-125R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-50-125H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-50-125N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-50-150	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-50-150R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-50-150H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-50-150N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-50B-50	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-50B-50R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-50B-50H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-50B-50N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-50B-75	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-50B-75R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-50B-75H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-50B-75N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-50B-100	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-50B-100R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-50B-100H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-50B-100N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-50B-125	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-50B-125R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-50B-125H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-50B-125N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-50B-150	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-50B-150R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-50B-150H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-50B-150N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-50N-50	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-50N-50R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-50N-50H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-50N-50N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-50N-75	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-50N-75R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-50N-75H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-50N-75N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-50N-100	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-50N-100R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-50N-100H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-50N-100N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-50N-125	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-50N-125R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-50N-125H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-50N-125N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-50N-150	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-50N-150R	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-50N-150H	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-50N-150N	Clevis: A 16.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-63-50	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-63-50R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-63-50H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-63-50N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-63-75	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-63-75R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-63-75H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-63-75N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-63-100	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-63-100R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-63-100H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-63-100N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-63-125	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-63-125R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-63-125H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-63-125N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-63-150	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-63-150R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-63-150H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-63-150N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-63B-50	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-63B-50R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-63B-50H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-63B-50N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-63B-75	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-63B-75R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-63B-75H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-63B-75N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-63B-100	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-63B-100R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-63B-100H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-63B-100N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-63B-125	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-63B-125R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-63B-125H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-63B-125N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-63B-150	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-63B-150R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-63B-150H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-63B-150N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-A-63N-50	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-A-63N-50R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-A-63N-50H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-A-63N-50N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-A-63N-75	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-A-63N-75R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-A-63N-75H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-A-63N-75N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-A-63N-100	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-A-63N-100R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-A-63N-100H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-A-63N-100N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-A-63N-125	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-A-63N-125R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-A-63N-125H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-A-63N-125N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-A-63N-150	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-A-63N-150R	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-A-63N-150H	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-A-63N-150N	Clevis: A 16.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-40-50	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-40-50R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-40-50H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-40-50N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-40-75	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-40-75R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-40-75H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-40-75N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-40-100	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-40-100R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-40-100H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-40-100N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-40-125	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-40-125R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-40-125H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-40-125N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-40-150	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-40-150R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-40-150H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-40-150N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-40B-50	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-40B-50R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-40B-50H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-40B-50N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-40B-75	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-40B-75R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-40B-75H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-40B-75N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-40B-100	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-40B-100R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-40B-100H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-40B-100N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-40B-125	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-40B-125R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-40B-125H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-40B-125N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-40B-150	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-40B-150R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-40B-150H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-40B-150N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-40N-50	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-40N-50R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-40N-50H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-40N-50N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-40N-75	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-40N-75R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-40N-75H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-40N-75N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-40N-100	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-40N-100R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-40N-100H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-40N-100N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-40N-125	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-40N-125R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-40N-125H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-40N-125N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-40N-150	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-40N-150R	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-40N-150H	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-40N-150N	Clevis: B 19.5 mm \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-50-50	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-50-50R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-50-50H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-50-50N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-50-75	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-50-75R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-50-75H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-50-75N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-50-100	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-50-100R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-50-100H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-50-100N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-50-125	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-50-125R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-50-125H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-50-125N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-50-150	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-50-150R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-50-150H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-50-150N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-50B-50	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-50B-50R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-50B-50H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-50B-50N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-50B-75	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-50B-75R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-50B-75H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-50B-75N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-50B-100	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-50B-100R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-50B-100H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-50B-100N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-50B-125	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-50B-125R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-50B-125H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-50B-125N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-50B-150	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-50B-150R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-50B-150H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-50B-150N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-50N-50	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-50N-50R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-50N-50H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-50N-50N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-50N-75	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-50N-75R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-50N-75H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-50N-75N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-50N-100	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-50N-100R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-50N-100H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-50N-100N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-50N-125	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-50N-125R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-50N-125H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-50N-125N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-50N-150	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-50N-150R	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-50N-150H	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-50N-150N	Clevis: B 19.5 mm \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-63-50	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-63-50R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-63-50H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-63-50N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-63-75	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-63-75R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-63-75H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-63-75N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-63-100	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-63-100R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-63-100H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-63-100N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-63-125	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-63-125R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-63-125H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-63-125N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-63-150	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-63-150R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-63-150H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-63-150N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-63B-50	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-63B-50R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-63B-50H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-63B-50N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-63B-75	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-63B-75R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-63B-75H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-63B-75N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-63B-100	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-63B-100R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-63B-100H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-63B-100N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-63B-125	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-63B-125R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-63B-125H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-63B-125N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-63B-150	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-63B-150R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-63B-150H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-63B-150N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-B-63N-50	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-B-63N-50R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-B-63N-50H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-B-63N-50N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-B-63N-75	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-B-63N-75R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-B-63N-75H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-B-63N-75N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-B-63N-100	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-B-63N-100R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-B-63N-100H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-B-63N-100N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-B-63N-125	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-B-63N-125R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-B-63N-125H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-B-63N-125N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-B-63N-150	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-B-63N-150R	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-B-63N-150H	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-B-63N-150N	Clevis: B 19.5 mm \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-40-50	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-40-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-40-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-40-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-40-75	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-40-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-40-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-40-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-40-100	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-40-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-40-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-40-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-40-125	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-40-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-40-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-40-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-40-150	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-40-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-40-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-40-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-40B-50	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-40B-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-40B-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-40B-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-40B-75	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-40B-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-40B-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-40B-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-40B-100	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-40B-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-40B-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-40B-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-40B-125	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-40B-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-40B-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-40B-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-40B-150	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-40B-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-40B-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-40B-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-40N-50	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-40N-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-40N-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-40N-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-40N-75	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-40N-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-40N-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-40N-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-40N-100	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-40N-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-40N-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-40N-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-40N-125	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-40N-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-40N-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-40N-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-40N-150	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-40N-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-40N-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-40N-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-50-50	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-50-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-50-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-50-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-50-75	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-50-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-50-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-50-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-50-100	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-50-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-50-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-50-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-50-125	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-50-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-50-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-50-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-50-150	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-50-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-50-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-50-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-50B-50	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-50B-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-50B-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-50B-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-50B-75	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-50B-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-50B-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-50B-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-50B-100	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-50B-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-50B-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-50B-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-50B-125	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-50B-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-50B-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-50B-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-50B-150	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-50B-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-50B-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-50B-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-50N-50	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-50N-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-50N-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-50N-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-50N-75	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-50N-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-50N-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-50N-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-50N-100	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-50N-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-50N-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-50N-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-50N-125	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-50N-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-50N-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-50N-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-50N-150	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-50N-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-50N-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-50N-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-63-50	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-63-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-63-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-63-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-63-75	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-63-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-63-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-63-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-63-100	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-63-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-63-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-63-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-63-125	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-63-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-63-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-63-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-63-150	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-63-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-63-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-63-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-63B-50	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-63B-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-63B-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-63B-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-63B-75	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-63B-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-63B-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-63B-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-63B-100	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-63B-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-63B-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-63B-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-63B-125	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-63B-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-63B-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-63B-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-63B-150	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-63B-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-63B-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-63B-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-AL-63N-50	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-AL-63N-50R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-AL-63N-50H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-AL-63N-50N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-AL-63N-75	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-AL-63N-75R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-AL-63N-75H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-AL-63N-75N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-AL-63N-100	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-AL-63N-100R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-AL-63N-100H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-AL-63N-100N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-AL-63N-125	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-AL-63N-125R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-AL-63N-125H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-AL-63N-125N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-AL-63N-150	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-AL-63N-150R	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-AL-63N-150H	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-AL-63N-150N	Clevis: AL 16.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-40-50	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-40-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-40-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-40-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-40-75	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-40-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-40-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-40-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-40-100	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-40-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-40-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-40-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-40-125	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-40-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-40-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-40-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-40-150	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-40-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-40-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-40-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-40B-50	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-40B-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-40B-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-40B-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-40B-75	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-40B-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-40B-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-40B-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-40B-100	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-40B-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-40B-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-40B-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-40B-125	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-40B-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-40B-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-40B-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-40B-150	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-40B-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-40B-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-40B-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-40N-50	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-40N-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-40N-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-40N-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-40N-75	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-40N-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-40N-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-40N-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-40N-100	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-40N-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-40N-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-40N-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-40N-125	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-40N-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-40N-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-40N-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-40N-150	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-40N-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-40N-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-40N-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-50-50	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-50-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-50-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-50-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-50-75	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-50-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-50-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-50-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-50-100	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-50-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-50-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-50-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-50-125	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-50-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-50-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-50-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-50-150	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-50-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-50-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-50-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-50B-50	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-50B-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-50B-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-50B-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-50B-75	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-50B-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-50B-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-50B-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-50B-100	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-50B-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-50B-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-50B-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-50B-125	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-50B-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-50B-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-50B-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-50B-150	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-50B-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-50B-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-50B-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-50N-50	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-50N-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-50N-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-50N-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-50N-75	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-50N-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-50N-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-50N-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-50N-100	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-50N-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-50N-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-50N-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-50N-125	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-50N-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-50N-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-50N-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-50N-150	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-50N-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-50N-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-50N-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-63-50	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-63-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-63-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-63-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-63-75	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-63-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-63-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-63-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-63-100	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-63-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-63-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-63-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-63-125	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-63-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-63-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-63-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-63-150	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-63-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-63-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-63-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-63B-50	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-63B-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-63B-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-63B-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-63B-75	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-63B-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-63B-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-63B-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-63B-100	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-63B-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-63B-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-63B-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-63B-125	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-63B-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-63B-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-63B-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-63B-150	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-63B-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-63B-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-63B-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm \| Speed needle: None
	CAC4-BL-63N-50	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Both ends
	CAC4-BL-63N-50R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Rod end
	CAC4-BL-63N-50H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: Head end
	CAC4-BL-63N-50N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Speed needle: None
	CAC4-BL-63N-75	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Both ends
	CAC4-BL-63N-75R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Rod end
	CAC4-BL-63N-75H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: Head end
	CAC4-BL-63N-75N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Speed needle: None
	CAC4-BL-63N-100	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Both ends
	CAC4-BL-63N-100R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Rod end
	CAC4-BL-63N-100H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: Head end
	CAC4-BL-63N-100N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Speed needle: None
	CAC4-BL-63N-125	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Both ends
	CAC4-BL-63N-125R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Rod end
	CAC4-BL-63N-125H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: Head end
	CAC4-BL-63N-125N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 125 mm \| Speed needle: None
	CAC4-BL-63N-150	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Both ends
	CAC4-BL-63N-150R	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Rod end
	CAC4-BL-63N-150H	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: Head end
	CAC4-BL-63N-150N	Clevis: BL 19.5 mm, axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm \| Speed needle: None

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD CAC4 Clamp Cylinder (Bore 40-80)
