CKD CAT Cartridge Cylinder (Single-Acting Push, 6-15 mm)

CKD CAT Cartridge Cylinder (Single-Acting Push, 6-15 mm)

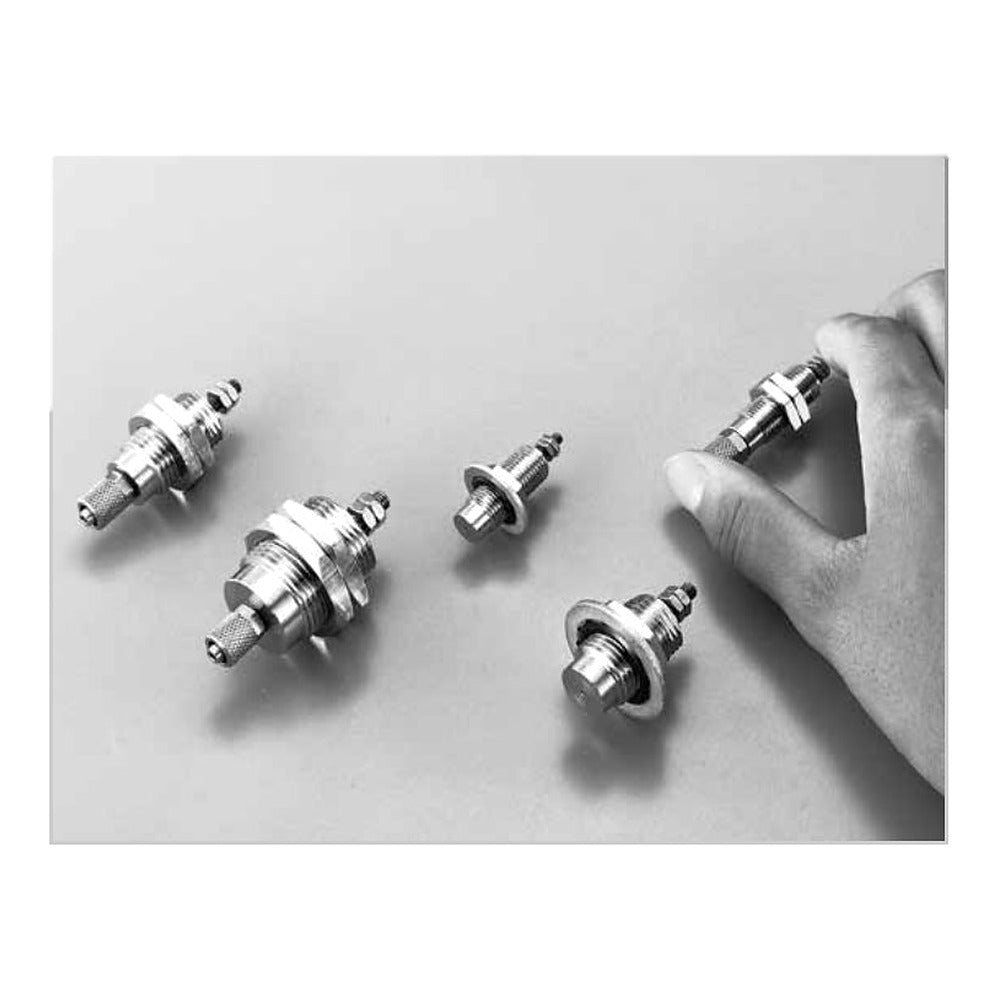

CKD CAT cartridge cylinder, ultra-compact single-acting push (spring return) cylinder with threaded outer tube for panel or built-in mounting, bore 6, 10 and 15 mm.

Key features

  • Thumb-sized body with external thread on the tube for direct mounting into jigs and panels
  • Panel mount type (N) or built-in type (O) sealed with a seal washer - no O-ring groove machining needed
  • Single air connection (M5); spring return on retraction
  • Piston rod end with male thread (M) or without thread (F)
  • Standard strokes 5, 10, 15 mm only

Specifications

Action Single-acting push (spring return)
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa (6), 0.15 MPa (10, 15)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Port M5
Piston speed 50-500 mm/s
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 1339-1344
CAT-N-6-5-M Mounting: Panel mount | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CAT-N-6-5-F Mounting: Panel mount | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CAT-N-6-10-M Mounting: Panel mount | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CAT-N-6-10-F Mounting: Panel mount | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CAT-N-6-15-M Mounting: Panel mount | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CAT-N-6-15-F Mounting: Panel mount | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CAT-N-10-5-M Mounting: Panel mount | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CAT-N-10-5-F Mounting: Panel mount | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CAT-N-10-10-M Mounting: Panel mount | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CAT-N-10-10-F Mounting: Panel mount | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CAT-N-10-15-M Mounting: Panel mount | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CAT-N-10-15-F Mounting: Panel mount | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CAT-N-15-5-M Mounting: Panel mount | Bore: 15 mm | Stroke: 5 mm | Rod end: Male thread
CAT-N-15-5-F Mounting: Panel mount | Bore: 15 mm | Stroke: 5 mm | Rod end: No thread
CAT-N-15-10-M Mounting: Panel mount | Bore: 15 mm | Stroke: 10 mm | Rod end: Male thread
CAT-N-15-10-F Mounting: Panel mount | Bore: 15 mm | Stroke: 10 mm | Rod end: No thread
CAT-N-15-15-M Mounting: Panel mount | Bore: 15 mm | Stroke: 15 mm | Rod end: Male thread
CAT-N-15-15-F Mounting: Panel mount | Bore: 15 mm | Stroke: 15 mm | Rod end: No thread
CAT-O-6-5-M Mounting: Built-in | Bore: 6 mm | Stroke: 5 mm | Rod end: Male thread
CAT-O-6-5-F Mounting: Built-in | Bore: 6 mm | Stroke: 5 mm | Rod end: No thread
CAT-O-6-10-M Mounting: Built-in | Bore: 6 mm | Stroke: 10 mm | Rod end: Male thread
CAT-O-6-10-F Mounting: Built-in | Bore: 6 mm | Stroke: 10 mm | Rod end: No thread
CAT-O-6-15-M Mounting: Built-in | Bore: 6 mm | Stroke: 15 mm | Rod end: Male thread
CAT-O-6-15-F Mounting: Built-in | Bore: 6 mm | Stroke: 15 mm | Rod end: No thread
CAT-O-10-5-M Mounting: Built-in | Bore: 10 mm | Stroke: 5 mm | Rod end: Male thread
CAT-O-10-5-F Mounting: Built-in | Bore: 10 mm | Stroke: 5 mm | Rod end: No thread
CAT-O-10-10-M Mounting: Built-in | Bore: 10 mm | Stroke: 10 mm | Rod end: Male thread
CAT-O-10-10-F Mounting: Built-in | Bore: 10 mm | Stroke: 10 mm | Rod end: No thread
CAT-O-10-15-M Mounting: Built-in | Bore: 10 mm | Stroke: 15 mm | Rod end: Male thread
CAT-O-10-15-F Mounting: Built-in | Bore: 10 mm | Stroke: 15 mm | Rod end: No thread
CAT-O-15-5-M Mounting: Built-in | Bore: 15 mm | Stroke: 5 mm | Rod end: Male thread
CAT-O-15-5-F Mounting: Built-in | Bore: 15 mm | Stroke: 5 mm | Rod end: No thread
CAT-O-15-10-M Mounting: Built-in | Bore: 15 mm | Stroke: 10 mm | Rod end: Male thread
CAT-O-15-10-F Mounting: Built-in | Bore: 15 mm | Stroke: 10 mm | Rod end: No thread
CAT-O-15-15-M Mounting: Built-in | Bore: 15 mm | Stroke: 15 mm | Rod end: Male thread
CAT-O-15-15-F Mounting: Built-in | Bore: 15 mm | Stroke: 15 mm | Rod end: No thread
Pneumatic CylindersCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
