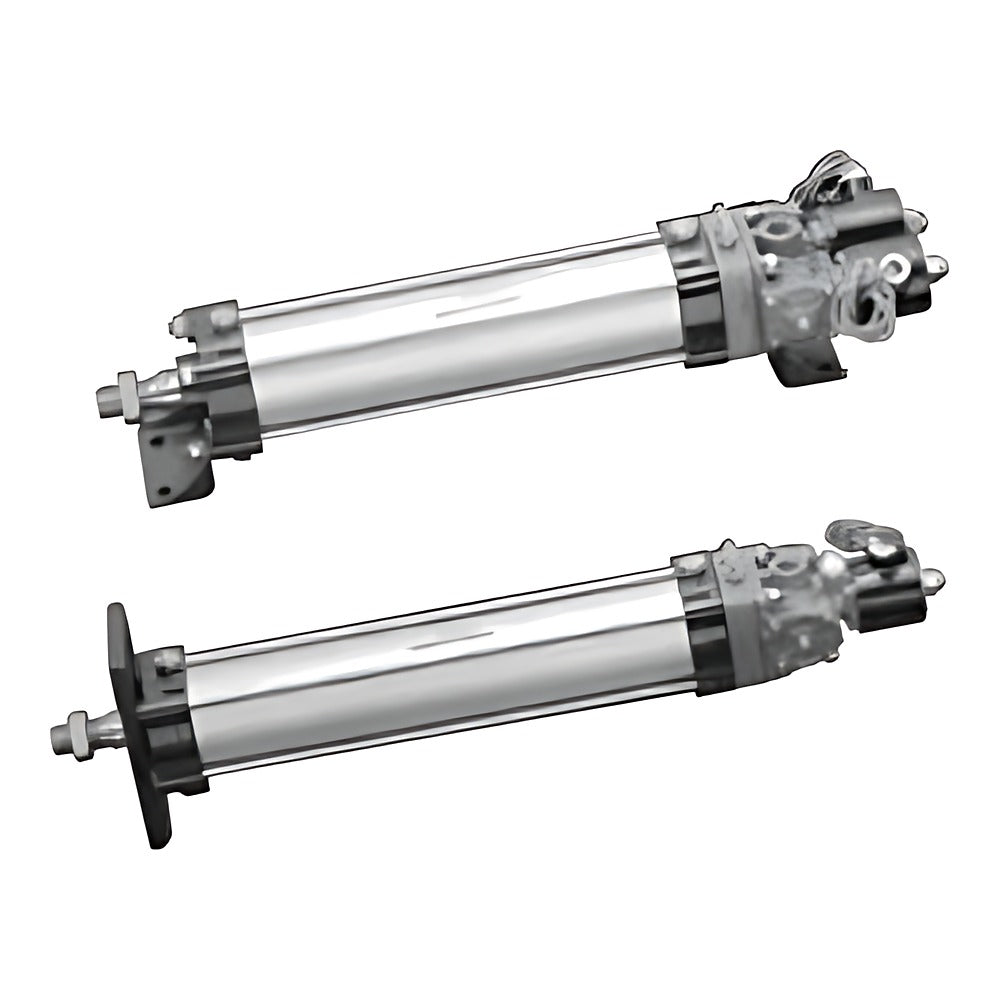

CKD CAV2 Cylinder with Valve (Double Solenoid, Bore 50-100)

CKD CAV2 is a double-solenoid double-acting cylinder with a built-in solenoid valve, offered in bores 50, 75 and 100 mm.

Key features

Tie-rod cylinder with integrated 4-port slide valve on the head cover; only a power supply and one air line are needed
Slider valve uses PTFE resin for high wear resistance and long life
Speed-control needles built in; air cushion (B) or no cushion (N); short-length cushioned bodies (S/NS)
Lubricated and non-lube (N) types; rod-end knuckles (I/Y), 2-pin bracket (B2) and terminal boxes (TB1/TB2) available
T-type auto switches (T0H, T2H, T2WH, T3H ...) with R/H/D/T switch count and 1/3/5 m leads are added as suffixes

Specifications

Operation	Double acting, Double solenoid (CAV2)
Port size	Rc1/4
Max. operating pressure	0.7 MPa
Min. operating pressure	0.15 MPa
Proof pressure	1 MPa
Ambient temperature	5 to 40 C
Piston speed	50-750 (50), 50-450 (75), 50-250 (100) mm/s
Valve rated voltage	AC100V / AC200V (50/60 Hz); DC24V made to order
Max. stroke	500 (50), 600 (75), 800 (100) mm; intermediate in 1 mm steps
Switch magnet	Built in (switches ordered separately or by suffix)
Source	CKD Korea catalog CB-029SK-9, p. 791-830

CAV2-LB-50B-50-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-50B-50-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-50B-75-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-50B-75-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-50B-100-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-50B-100-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-50B-150-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-50B-150-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-50B-200-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-50B-200-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-50B-300-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-50B-300-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-LB-75B-50-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-75B-50-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-75B-75-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-75B-75-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-75B-100-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-75B-100-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-75B-150-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-75B-150-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-75B-200-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-75B-200-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-75B-300-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-75B-300-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-LB-100B-50-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-100B-50-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-100B-75-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-100B-75-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-100B-100-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-100B-100-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-100B-150-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-100B-150-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-100B-200-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-100B-200-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-100B-300-1		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-100B-300-2		Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-50B-50-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-50B-50-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-50B-75-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-50B-75-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-50B-100-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-50B-100-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-50B-150-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-50B-150-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-50B-200-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-50B-200-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-50B-300-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-50B-300-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-75B-50-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-75B-50-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-75B-75-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-75B-75-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-75B-100-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-75B-100-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-75B-150-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-75B-150-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-75B-200-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-75B-200-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-75B-300-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-75B-300-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-100B-50-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-100B-50-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-100B-75-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-100B-75-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-100B-100-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-100B-100-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-100B-150-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-100B-150-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-100B-200-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-100B-200-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-100B-300-1		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-100B-300-2		Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-50B-50-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-50B-50-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-50B-75-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-50B-75-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-50B-100-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-50B-100-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-50B-150-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-50B-150-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-50B-200-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-50B-200-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-50B-300-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-50B-300-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-75B-50-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-75B-50-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-75B-75-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-75B-75-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-75B-100-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-75B-100-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-75B-150-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-75B-150-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-75B-200-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-75B-200-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-75B-300-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-75B-300-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-100B-50-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-100B-50-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-100B-75-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-100B-75-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-100B-100-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-100B-100-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-100B-150-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-100B-150-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-100B-200-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-100B-200-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-100B-300-1		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-100B-300-2		Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-50B-50-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-50B-50-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-50B-75-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-50B-75-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-50B-100-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-50B-100-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-50B-150-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-50B-150-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-50B-200-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-50B-200-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-50B-300-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-50B-300-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-75B-50-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-75B-50-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-75B-75-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-75B-75-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-75B-100-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-75B-100-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-75B-150-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-75B-150-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-75B-200-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-75B-200-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-75B-300-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-75B-300-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-100B-50-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-100B-50-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-100B-75-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-100B-75-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-100B-100-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-100B-100-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-100B-150-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-100B-150-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-100B-200-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-100B-200-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-100B-300-1		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-100B-300-2		Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-50B-50-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-50B-50-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-50B-75-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-50B-75-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-50B-100-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-50B-100-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-50B-150-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-50B-150-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-50B-200-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-50B-200-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-50B-300-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-50B-300-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-75B-50-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-75B-50-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-75B-75-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-75B-75-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-75B-100-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-75B-100-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-75B-150-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-75B-150-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-75B-200-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-75B-200-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-75B-300-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-75B-300-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-100B-50-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-100B-50-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-100B-75-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-100B-75-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-100B-100-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-100B-100-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-100B-150-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-100B-150-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-100B-200-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-100B-200-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-100B-300-1		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-100B-300-2		Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-LB-50N-50-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-50N-50-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-50N-75-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-50N-75-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-50N-100-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-50N-100-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-50N-150-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-50N-150-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-50N-200-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-50N-200-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-50N-300-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-50N-300-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-LB-75N-50-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-75N-50-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-75N-75-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-75N-75-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-75N-100-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-75N-100-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-75N-150-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-75N-150-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-75N-200-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-75N-200-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-75N-300-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-75N-300-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-LB-100N-50-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-LB-100N-50-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-LB-100N-75-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-LB-100N-75-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-LB-100N-100-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-LB-100N-100-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-LB-100N-150-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-LB-100N-150-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-LB-100N-200-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-LB-100N-200-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-LB-100N-300-1		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-LB-100N-300-2		Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-50N-50-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-50N-50-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-50N-75-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-50N-75-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-50N-100-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-50N-100-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-50N-150-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-50N-150-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-50N-200-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-50N-200-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-50N-300-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-50N-300-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-75N-50-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-75N-50-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-75N-75-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-75N-75-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-75N-100-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-75N-100-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-75N-150-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-75N-150-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-75N-200-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-75N-200-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-75N-300-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-75N-300-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-FA-100N-50-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-FA-100N-50-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-FA-100N-75-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-FA-100N-75-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-FA-100N-100-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-FA-100N-100-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-FA-100N-150-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-FA-100N-150-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-FA-100N-200-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-FA-100N-200-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-FA-100N-300-1		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-FA-100N-300-2		Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-50N-50-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-50N-50-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-50N-75-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-50N-75-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-50N-100-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-50N-100-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-50N-150-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-50N-150-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-50N-200-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-50N-200-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-50N-300-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-50N-300-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-75N-50-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-75N-50-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-75N-75-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-75N-75-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-75N-100-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-75N-100-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-75N-150-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-75N-150-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-75N-200-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-75N-200-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-75N-300-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-75N-300-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-CA-100N-50-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-CA-100N-50-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-CA-100N-75-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-CA-100N-75-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-CA-100N-100-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-CA-100N-100-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-CA-100N-150-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-CA-100N-150-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-CA-100N-200-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-CA-100N-200-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-CA-100N-300-1		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-CA-100N-300-2		Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-50N-50-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-50N-50-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-50N-75-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-50N-75-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-50N-100-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-50N-100-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-50N-150-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-50N-150-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-50N-200-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-50N-200-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-50N-300-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-50N-300-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-75N-50-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-75N-50-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-75N-75-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-75N-75-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-75N-100-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-75N-100-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-75N-150-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-75N-150-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-75N-200-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-75N-200-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-75N-300-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-75N-300-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TC-100N-50-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TC-100N-50-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TC-100N-75-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TC-100N-75-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TC-100N-100-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TC-100N-100-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TC-100N-150-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TC-100N-150-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TC-100N-200-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TC-100N-200-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TC-100N-300-1		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TC-100N-300-2		Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-50N-50-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-50N-50-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-50N-75-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-50N-75-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-50N-100-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-50N-100-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-50N-150-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-50N-150-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-50N-200-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-50N-200-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-50N-300-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-50N-300-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-75N-50-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-75N-50-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-75N-75-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-75N-75-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-75N-100-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-75N-100-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-75N-150-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-75N-150-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-75N-200-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-75N-200-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-75N-300-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-75N-300-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-TF-100N-50-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-TF-100N-50-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-TF-100N-75-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-TF-100N-75-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-TF-100N-100-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-TF-100N-100-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-TF-100N-150-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-TF-100N-150-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-TF-100N-200-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-TF-100N-200-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-TF-100N-300-1		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-TF-100N-300-2		Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-50-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-50-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-75-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-75-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-100-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-100-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-150-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-150-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-200-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-200-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-50B-300-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-50B-300-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-50-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-50-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-75-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-75-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-100-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-100-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-150-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-150-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-200-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-200-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-75B-300-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-75B-300-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-50-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-50-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-75-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-75-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-100-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-100-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-150-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-150-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-200-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-200-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-100B-300-1		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-100B-300-2		Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-50-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-50-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-75-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-75-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-100-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-100-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-150-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-150-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-200-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-200-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-50B-300-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-50B-300-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-50-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-50-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-75-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-75-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-100-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-100-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-150-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-150-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-200-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-200-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-75B-300-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-75B-300-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-50-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-50-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-75-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-75-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-100-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-100-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-150-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-150-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-200-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-200-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-100B-300-1		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-100B-300-2		Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-50-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-50-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-75-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-75-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-100-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-100-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-150-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-150-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-200-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-200-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-50B-300-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-50B-300-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-50-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-50-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-75-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-75-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-100-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-100-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-150-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-150-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-200-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-200-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-75B-300-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-75B-300-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-50-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-50-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-75-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-75-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-100-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-100-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-150-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-150-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-200-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-200-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-100B-300-1		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-100B-300-2		Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-50-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-50-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-75-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-75-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-100-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-100-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-150-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-150-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-200-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-200-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-50B-300-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-50B-300-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-50-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-50-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-75-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-75-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-100-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-100-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-150-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-150-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-200-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-200-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-75B-300-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-75B-300-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-50-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-50-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-75-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-75-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-100-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-100-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-150-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-150-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-200-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-200-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-100B-300-1		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-100B-300-2		Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-50-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-50-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-75-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-75-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-100-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-100-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-150-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-150-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-200-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-200-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-50B-300-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-50B-300-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-50-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-50-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-75-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-75-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-100-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-100-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-150-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-150-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-200-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-200-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-75B-300-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-75B-300-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-50-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-50-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-75-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-75-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-100-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-100-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-150-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-150-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-200-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-200-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-100B-300-1		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-100B-300-2		Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-50-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-50-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-75-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-75-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-100-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-100-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-150-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-150-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-200-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-200-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-50N-300-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-50N-300-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-50-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-50-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-75-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-75-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-100-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-100-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-150-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-150-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-200-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-200-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-75N-300-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-75N-300-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-50-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-50-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-75-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-75-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-100-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-100-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-150-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-150-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-200-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-200-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-LB-100N-300-1		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-LB-100N-300-2		Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-50-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-50-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-75-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-75-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-100-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-100-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-150-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-150-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-200-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-200-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-50N-300-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-50N-300-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-50-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-50-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-75-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-75-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-100-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-100-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-150-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-150-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-200-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-200-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-75N-300-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-75N-300-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-50-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-50-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-75-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-75-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-100-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-100-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-150-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-150-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-200-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-200-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-FA-100N-300-1		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-FA-100N-300-2		Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-50-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-50-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-75-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-75-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-100-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-100-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-150-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-150-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-200-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-200-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-50N-300-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-50N-300-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-50-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-50-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-75-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-75-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-100-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-100-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-150-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-150-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-200-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-200-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-75N-300-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-75N-300-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-50-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-50-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-75-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-75-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-100-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-100-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-150-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-150-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-200-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-200-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-CA-100N-300-1		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-CA-100N-300-2		Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-50-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-50-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-75-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-75-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-100-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-100-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-150-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-150-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-200-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-200-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-50N-300-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-50N-300-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-50-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-50-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-75-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-75-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-100-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-100-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-150-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-150-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-200-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-200-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-75N-300-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-75N-300-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-50-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-50-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-75-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-75-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-100-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-100-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-150-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-150-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-200-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-200-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TC-100N-300-1		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TC-100N-300-2		Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-50-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-50-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-75-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-75-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-100-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-100-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-150-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-150-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-200-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-200-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-50N-300-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-50N-300-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-50-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-50-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-75-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-75-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-100-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-100-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-150-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-150-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-200-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-200-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-75N-300-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-75N-300-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-50-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-50-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-75-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-75-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-100-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-100-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-150-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-150-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-200-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-200-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-N-TF-100N-300-1		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-N-TF-100N-300-2		Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-50-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-50-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-75-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-75-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-100-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-100-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-150-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-150-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-200-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-200-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-LB-50B-300-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-LB-50B-300-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-50-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-50-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-75-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-75-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-100-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-100-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-150-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-150-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-200-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-200-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-LB-75B-300-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-LB-75B-300-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-50-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-50-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-75-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-75-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-100-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-100-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-150-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-150-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-200-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-200-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-LB-100B-300-1		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-LB-100B-300-2		Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-50-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-50-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-75-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-75-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-100-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-100-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-150-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-150-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-200-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-200-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-FA-50B-300-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-FA-50B-300-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-50-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-50-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-75-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-75-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-100-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-100-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-150-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-150-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-200-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-200-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-FA-75B-300-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-FA-75B-300-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-50-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-50-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-75-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-75-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-100-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-100-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-150-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-150-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-200-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-200-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-FA-100B-300-1		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-FA-100B-300-2		Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-50-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-50-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-75-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-75-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-100-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-100-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-150-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-150-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-200-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-200-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-CA-50B-300-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-CA-50B-300-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-50-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-50-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-75-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-75-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-100-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-100-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-150-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-150-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-200-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-200-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-CA-75B-300-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-CA-75B-300-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-50-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-50-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-75-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-75-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-100-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-100-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-150-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-150-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-200-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-200-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-CA-100B-300-1		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-CA-100B-300-2		Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-50-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-50-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-75-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-75-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-100-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-100-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-150-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-150-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-200-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-200-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TC-50B-300-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TC-50B-300-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-50-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-50-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-75-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-75-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-100-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-100-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-150-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-150-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-200-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-200-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TC-75B-300-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TC-75B-300-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-50-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-50-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-75-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-75-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-100-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-100-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-150-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-150-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-200-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-200-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TC-100B-300-1		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TC-100B-300-2		Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-50-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-50-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-75-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-75-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-100-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-100-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-150-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-150-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-200-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-200-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TF-50B-300-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TF-50B-300-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-50-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-50-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-75-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-75-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-100-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-100-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-150-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-150-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-200-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-200-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TF-75B-300-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TF-75B-300-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-50-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-50-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-75-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-75-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-100-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-100-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-150-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-150-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-200-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-200-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-S-TF-100B-300-1		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-S-TF-100B-300-2		Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-50-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-50-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-75-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-75-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-100-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-100-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-150-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-150-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-200-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-200-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-LB-50B-300-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-LB-50B-300-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-50-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-50-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-75-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-75-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-100-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-100-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-150-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-150-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-200-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-200-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-LB-75B-300-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-LB-75B-300-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-50-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-50-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-75-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-75-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-100-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-100-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-150-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-150-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-200-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-200-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-LB-100B-300-1		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-LB-100B-300-2		Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-50-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-50-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-75-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-75-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-100-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-100-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-150-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-150-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-200-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-200-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-FA-50B-300-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-FA-50B-300-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-50-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-50-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-75-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-75-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-100-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-100-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-150-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-150-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-200-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-200-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-FA-75B-300-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-FA-75B-300-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-50-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-50-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-75-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-75-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-100-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-100-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-150-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-150-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-200-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-200-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-FA-100B-300-1		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-FA-100B-300-2		Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-50-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-50-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-75-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-75-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-100-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-100-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-150-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-150-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-200-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-200-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-CA-50B-300-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-CA-50B-300-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-50-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-50-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-75-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-75-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-100-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-100-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-150-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-150-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-200-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-200-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-CA-75B-300-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-CA-75B-300-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-50-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-50-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-75-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-75-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-100-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-100-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-150-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-150-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-200-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-200-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-CA-100B-300-1		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-CA-100B-300-2		Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-50-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-50-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-75-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-75-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-100-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-100-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-150-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-150-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-200-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-200-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TC-50B-300-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TC-50B-300-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-50-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-50-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-75-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-75-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-100-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-100-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-150-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-150-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-200-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-200-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TC-75B-300-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TC-75B-300-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-50-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-50-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-75-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-75-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-100-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-100-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-150-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-150-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-200-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-200-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TC-100B-300-1		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TC-100B-300-2		Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-50-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-50-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-75-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-75-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-100-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-100-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-150-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-150-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-200-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-200-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TF-50B-300-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TF-50B-300-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-50-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-50-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-75-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-75-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-100-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-100-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-150-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-150-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-200-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-200-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TF-75B-300-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TF-75B-300-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-50-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-50-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-75-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-75-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-100-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-100-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-150-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-150-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-200-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-200-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
CAV2-NS-TF-100B-300-1		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
CAV2-NS-TF-100B-300-2		Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
CAV2-50-LB		Legacy code \| Item: Foot bracket (LB) \| Bore: 50 mm
CAV2-75-LB		Legacy code \| Item: Foot bracket (LB) \| Bore: 75 mm
CAV2-100-LB		Legacy code \| Item: Foot bracket (LB) \| Bore: 100 mm
CAV2-50-FA		Legacy code \| Item: Flange bracket (FA) \| Bore: 50 mm
CAV2-75-FA		Legacy code \| Item: Flange bracket (FA) \| Bore: 75 mm
CAV2-100-FA		Legacy code \| Item: Flange bracket (FA) \| Bore: 100 mm
CAV2-50-CA		Legacy code \| Item: Clevis bracket (CA) \| Bore: 50 mm
CAV2-75-CA		Legacy code \| Item: Clevis bracket (CA) \| Bore: 75 mm
CAV2-100-CA		Legacy code \| Item: Clevis bracket (CA) \| Bore: 100 mm
CAV2-50-TC		Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 50 mm
CAV2-75-TC		Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 75 mm
CAV2-100-TC		Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 100 mm
CAV2-50-TF		Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 50 mm
CAV2-75-TF		Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 75 mm
CAV2-100-TF		Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 100 mm
CAV2-50-I		Legacy code \| Item: Single knuckle (I) \| Bore: 50 mm
CAV2-50-Y		Legacy code \| Item: Double knuckle (Y) \| Bore: 50 mm
CAV2-75-I		Legacy code \| Item: Single knuckle (I) \| Bore: 75 mm
CAV2-75-Y		Legacy code \| Item: Double knuckle (Y) \| Bore: 75 mm
CAV2-50-P1		Legacy code \| Item: Knuckle pin (P1) \| Bore: 50 mm
CAV2-75-P1		Legacy code \| Item: Knuckle pin (P1) \| Bore: 75 mm
CAV2-75-B2		Legacy code \| Item: 2-pin bracket (B2) \| Bore: 75 mm
CAV2-50-B2		Legacy code \| Item: 2-pin bracket (B2) \| Bore: 50 mm
CAV2-50-P2		Legacy code \| Item: Bracket pin (P2) \| Bore: 50 mm
CAV2-75-P2		Legacy code \| Item: Bracket pin (P2) \| Bore: 75 mm
CAV2-50BK		Legacy code \| Item: Cylinder seal kit \| Bore: 50 mm
CAV2-75BK		Legacy code \| Item: Cylinder seal kit \| Bore: 75 mm
CAV2-100BK		Legacy code \| Item: Cylinder seal kit \| Bore: 100 mm

Pneumatic CylindersCKD

1108 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CAV2 Cylinder with Valve (Double Solenoid, Bore 50-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (1108)

CAV2-LB-50B-50-1, CAV2-LB-50B-50-2, CAV2-LB-50B-75-1, CAV2-LB-50B-75-2, CAV2-LB-50B-100-1, CAV2-LB-50B-100-2, CAV2-LB-50B-150-1, CAV2-LB-50B-150-2, CAV2-LB-50B-200-1, CAV2-LB-50B-200-2 + 1098 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CAV2-LB-50B-50-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-50B-50-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-50B-75-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-50B-75-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-50B-100-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-50B-100-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-50B-150-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-50B-150-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-50B-200-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-50B-200-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-50B-300-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-50B-300-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-LB-75B-50-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-75B-50-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-75B-75-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-75B-75-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-75B-100-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-75B-100-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-75B-150-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-75B-150-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-75B-200-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-75B-200-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-75B-300-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-75B-300-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-LB-100B-50-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-100B-50-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-100B-75-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-100B-75-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-100B-100-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-100B-100-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-100B-150-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-100B-150-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-100B-200-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-100B-200-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-100B-300-1	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-100B-300-2	Type: Lubricated, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-50B-50-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-50B-50-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-50B-75-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-50B-75-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-50B-100-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-50B-100-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-50B-150-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-50B-150-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-50B-200-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-50B-200-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-50B-300-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-50B-300-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-75B-50-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-75B-50-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-75B-75-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-75B-75-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-75B-100-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-75B-100-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-75B-150-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-75B-150-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-75B-200-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-75B-200-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-75B-300-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-75B-300-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-100B-50-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-100B-50-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-100B-75-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-100B-75-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-100B-100-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-100B-100-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-100B-150-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-100B-150-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-100B-200-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-100B-200-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-100B-300-1	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-100B-300-2	Type: Lubricated, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-50B-50-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-50B-50-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-50B-75-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-50B-75-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-50B-100-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-50B-100-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-50B-150-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-50B-150-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-50B-200-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-50B-200-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-50B-300-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-50B-300-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-75B-50-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-75B-50-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-75B-75-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-75B-75-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-75B-100-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-75B-100-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-75B-150-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-75B-150-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-75B-200-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-75B-200-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-75B-300-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-75B-300-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-100B-50-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-100B-50-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-100B-75-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-100B-75-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-100B-100-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-100B-100-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-100B-150-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-100B-150-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-100B-200-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-100B-200-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-100B-300-1	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-100B-300-2	Type: Lubricated, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-50B-50-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-50B-50-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-50B-75-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-50B-75-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-50B-100-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-50B-100-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-50B-150-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-50B-150-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-50B-200-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-50B-200-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-50B-300-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-50B-300-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-75B-50-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-75B-50-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-75B-75-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-75B-75-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-75B-100-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-75B-100-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-75B-150-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-75B-150-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-75B-200-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-75B-200-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-75B-300-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-75B-300-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-100B-50-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-100B-50-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-100B-75-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-100B-75-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-100B-100-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-100B-100-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-100B-150-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-100B-150-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-100B-200-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-100B-200-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-100B-300-1	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-100B-300-2	Type: Lubricated, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-50B-50-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-50B-50-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-50B-75-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-50B-75-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-50B-100-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-50B-100-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-50B-150-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-50B-150-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-50B-200-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-50B-200-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-50B-300-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-50B-300-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-75B-50-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-75B-50-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-75B-75-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-75B-75-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-75B-100-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-75B-100-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-75B-150-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-75B-150-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-75B-200-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-75B-200-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-75B-300-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-75B-300-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-100B-50-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-100B-50-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-100B-75-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-100B-75-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-100B-100-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-100B-100-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-100B-150-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-100B-150-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-100B-200-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-100B-200-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-100B-300-1	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-100B-300-2	Type: Lubricated, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-LB-50N-50-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-50N-50-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-50N-75-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-50N-75-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-50N-100-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-50N-100-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-50N-150-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-50N-150-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-50N-200-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-50N-200-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-50N-300-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-50N-300-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-LB-75N-50-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-75N-50-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-75N-75-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-75N-75-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-75N-100-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-75N-100-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-75N-150-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-75N-150-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-75N-200-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-75N-200-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-75N-300-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-75N-300-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-LB-100N-50-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-LB-100N-50-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-LB-100N-75-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-LB-100N-75-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-LB-100N-100-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-LB-100N-100-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-LB-100N-150-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-LB-100N-150-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-LB-100N-200-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-LB-100N-200-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-LB-100N-300-1	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-LB-100N-300-2	Type: Lubricated, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-50N-50-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-50N-50-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-50N-75-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-50N-75-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-50N-100-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-50N-100-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-50N-150-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-50N-150-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-50N-200-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-50N-200-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-50N-300-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-50N-300-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-75N-50-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-75N-50-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-75N-75-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-75N-75-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-75N-100-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-75N-100-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-75N-150-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-75N-150-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-75N-200-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-75N-200-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-75N-300-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-75N-300-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-FA-100N-50-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-FA-100N-50-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-FA-100N-75-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-FA-100N-75-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-FA-100N-100-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-FA-100N-100-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-FA-100N-150-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-FA-100N-150-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-FA-100N-200-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-FA-100N-200-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-FA-100N-300-1	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-FA-100N-300-2	Type: Lubricated, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-50N-50-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-50N-50-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-50N-75-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-50N-75-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-50N-100-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-50N-100-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-50N-150-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-50N-150-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-50N-200-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-50N-200-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-50N-300-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-50N-300-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-75N-50-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-75N-50-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-75N-75-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-75N-75-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-75N-100-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-75N-100-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-75N-150-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-75N-150-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-75N-200-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-75N-200-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-75N-300-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-75N-300-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-CA-100N-50-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-CA-100N-50-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-CA-100N-75-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-CA-100N-75-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-CA-100N-100-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-CA-100N-100-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-CA-100N-150-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-CA-100N-150-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-CA-100N-200-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-CA-100N-200-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-CA-100N-300-1	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-CA-100N-300-2	Type: Lubricated, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-50N-50-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-50N-50-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-50N-75-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-50N-75-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-50N-100-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-50N-100-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-50N-150-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-50N-150-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-50N-200-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-50N-200-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-50N-300-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-50N-300-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-75N-50-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-75N-50-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-75N-75-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-75N-75-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-75N-100-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-75N-100-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-75N-150-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-75N-150-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-75N-200-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-75N-200-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-75N-300-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-75N-300-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TC-100N-50-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TC-100N-50-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TC-100N-75-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TC-100N-75-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TC-100N-100-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TC-100N-100-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TC-100N-150-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TC-100N-150-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TC-100N-200-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TC-100N-200-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TC-100N-300-1	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TC-100N-300-2	Type: Lubricated, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-50N-50-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-50N-50-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-50N-75-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-50N-75-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-50N-100-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-50N-100-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-50N-150-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-50N-150-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-50N-200-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-50N-200-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-50N-300-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-50N-300-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-75N-50-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-75N-50-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-75N-75-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-75N-75-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-75N-100-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-75N-100-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-75N-150-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-75N-150-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-75N-200-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-75N-200-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-75N-300-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-75N-300-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-TF-100N-50-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-TF-100N-50-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-TF-100N-75-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-TF-100N-75-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-TF-100N-100-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-TF-100N-100-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-TF-100N-150-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-TF-100N-150-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-TF-100N-200-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-TF-100N-200-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-TF-100N-300-1	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-TF-100N-300-2	Type: Lubricated, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-50-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-50-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-75-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-75-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-100-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-100-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-150-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-150-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-200-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-200-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-50B-300-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-50B-300-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-50-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-50-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-75-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-75-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-100-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-100-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-150-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-150-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-200-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-200-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-75B-300-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-75B-300-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-50-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-50-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-75-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-75-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-100-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-100-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-150-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-150-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-200-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-200-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-100B-300-1	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-100B-300-2	Type: Non-lube, cushioned \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-50-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-50-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-75-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-75-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-100-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-100-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-150-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-150-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-200-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-200-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-50B-300-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-50B-300-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-50-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-50-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-75-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-75-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-100-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-100-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-150-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-150-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-200-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-200-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-75B-300-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-75B-300-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-50-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-50-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-75-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-75-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-100-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-100-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-150-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-150-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-200-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-200-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-100B-300-1	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-100B-300-2	Type: Non-lube, cushioned \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-50-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-50-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-75-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-75-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-100-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-100-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-150-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-150-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-200-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-200-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-50B-300-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-50B-300-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-50-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-50-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-75-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-75-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-100-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-100-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-150-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-150-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-200-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-200-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-75B-300-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-75B-300-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-50-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-50-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-75-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-75-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-100-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-100-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-150-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-150-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-200-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-200-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-100B-300-1	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-100B-300-2	Type: Non-lube, cushioned \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-50-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-50-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-75-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-75-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-100-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-100-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-150-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-150-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-200-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-200-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-50B-300-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-50B-300-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-50-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-50-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-75-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-75-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-100-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-100-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-150-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-150-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-200-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-200-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-75B-300-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-75B-300-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-50-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-50-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-75-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-75-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-100-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-100-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-150-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-150-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-200-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-200-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-100B-300-1	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-100B-300-2	Type: Non-lube, cushioned \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-50-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-50-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-75-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-75-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-100-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-100-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-150-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-150-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-200-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-200-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-50B-300-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-50B-300-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-50-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-50-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-75-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-75-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-100-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-100-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-150-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-150-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-200-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-200-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-75B-300-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-75B-300-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-50-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-50-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-75-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-75-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-100-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-100-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-150-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-150-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-200-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-200-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-100B-300-1	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-100B-300-2	Type: Non-lube, cushioned \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-50-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-50-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-75-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-75-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-100-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-100-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-150-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-150-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-200-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-200-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-50N-300-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-50N-300-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-50-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-50-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-75-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-75-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-100-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-100-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-150-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-150-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-200-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-200-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-75N-300-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-75N-300-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-50-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-50-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-75-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-75-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-100-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-100-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-150-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-150-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-200-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-200-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-LB-100N-300-1	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-LB-100N-300-2	Type: Non-lube, no cushion \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-50-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-50-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-75-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-75-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-100-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-100-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-150-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-150-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-200-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-200-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-50N-300-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-50N-300-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-50-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-50-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-75-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-75-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-100-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-100-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-150-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-150-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-200-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-200-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-75N-300-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-75N-300-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-50-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-50-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-75-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-75-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-100-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-100-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-150-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-150-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-200-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-200-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-FA-100N-300-1	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-FA-100N-300-2	Type: Non-lube, no cushion \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-50-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-50-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-75-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-75-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-100-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-100-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-150-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-150-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-200-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-200-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-50N-300-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-50N-300-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-50-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-50-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-75-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-75-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-100-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-100-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-150-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-150-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-200-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-200-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-75N-300-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-75N-300-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-50-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-50-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-75-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-75-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-100-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-100-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-150-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-150-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-200-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-200-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-CA-100N-300-1	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-CA-100N-300-2	Type: Non-lube, no cushion \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-50-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-50-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-75-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-75-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-100-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-100-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-150-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-150-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-200-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-200-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-50N-300-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-50N-300-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-50-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-50-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-75-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-75-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-100-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-100-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-150-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-150-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-200-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-200-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-75N-300-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-75N-300-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-50-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-50-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-75-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-75-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-100-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-100-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-150-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-150-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-200-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-200-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TC-100N-300-1	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TC-100N-300-2	Type: Non-lube, no cushion \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-50-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-50-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-75-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-75-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-100-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-100-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-150-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-150-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-200-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-200-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-50N-300-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-50N-300-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-50-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-50-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-75-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-75-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-100-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-100-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-150-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-150-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-200-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-200-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-75N-300-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-75N-300-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-50-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-50-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-75-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-75-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-100-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-100-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-150-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-150-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-200-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-200-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-N-TF-100N-300-1	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-N-TF-100N-300-2	Type: Non-lube, no cushion \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-50-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-50-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-75-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-75-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-100-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-100-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-150-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-150-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-200-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-200-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-LB-50B-300-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-LB-50B-300-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-50-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-50-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-75-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-75-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-100-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-100-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-150-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-150-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-200-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-200-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-LB-75B-300-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-LB-75B-300-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-50-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-50-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-75-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-75-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-100-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-100-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-150-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-150-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-200-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-200-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-LB-100B-300-1	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-LB-100B-300-2	Type: Lubricated, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-50-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-50-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-75-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-75-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-100-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-100-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-150-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-150-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-200-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-200-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-FA-50B-300-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-FA-50B-300-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-50-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-50-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-75-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-75-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-100-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-100-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-150-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-150-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-200-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-200-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-FA-75B-300-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-FA-75B-300-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-50-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-50-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-75-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-75-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-100-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-100-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-150-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-150-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-200-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-200-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-FA-100B-300-1	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-FA-100B-300-2	Type: Lubricated, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-50-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-50-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-75-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-75-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-100-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-100-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-150-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-150-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-200-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-200-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-CA-50B-300-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-CA-50B-300-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-50-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-50-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-75-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-75-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-100-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-100-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-150-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-150-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-200-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-200-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-CA-75B-300-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-CA-75B-300-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-50-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-50-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-75-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-75-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-100-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-100-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-150-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-150-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-200-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-200-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-CA-100B-300-1	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-CA-100B-300-2	Type: Lubricated, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-50-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-50-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-75-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-75-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-100-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-100-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-150-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-150-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-200-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-200-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TC-50B-300-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TC-50B-300-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-50-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-50-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-75-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-75-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-100-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-100-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-150-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-150-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-200-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-200-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TC-75B-300-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TC-75B-300-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-50-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-50-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-75-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-75-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-100-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-100-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-150-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-150-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-200-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-200-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TC-100B-300-1	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TC-100B-300-2	Type: Lubricated, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-50-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-50-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-75-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-75-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-100-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-100-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-150-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-150-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-200-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-200-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TF-50B-300-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TF-50B-300-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-50-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-50-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-75-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-75-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-100-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-100-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-150-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-150-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-200-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-200-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TF-75B-300-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TF-75B-300-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-50-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-50-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-75-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-75-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-100-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-100-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-150-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-150-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-200-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-200-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-S-TF-100B-300-1	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-S-TF-100B-300-2	Type: Lubricated, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-50-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-50-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-75-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-75-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-100-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-100-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-150-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-150-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-200-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-200-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-LB-50B-300-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-LB-50B-300-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-50-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-50-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-75-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-75-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-100-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-100-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-150-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-150-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-200-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-200-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-LB-75B-300-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-LB-75B-300-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-50-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-50-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-75-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-75-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-100-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-100-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-150-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-150-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-200-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-200-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-LB-100B-300-1	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-LB-100B-300-2	Type: Non-lube, cushioned, short \| Mounting: Axial foot (LB) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-50-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-50-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-75-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-75-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-100-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-100-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-150-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-150-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-200-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-200-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-FA-50B-300-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-FA-50B-300-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-50-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-50-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-75-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-75-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-100-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-100-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-150-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-150-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-200-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-200-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-FA-75B-300-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-FA-75B-300-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-50-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-50-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-75-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-75-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-100-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-100-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-150-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-150-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-200-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-200-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-FA-100B-300-1	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-FA-100B-300-2	Type: Non-lube, cushioned, short \| Mounting: Rod flange (FA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-50-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-50-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-75-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-75-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-100-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-100-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-150-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-150-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-200-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-200-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-CA-50B-300-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-CA-50B-300-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-50-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-50-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-75-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-75-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-100-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-100-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-150-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-150-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-200-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-200-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-CA-75B-300-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-CA-75B-300-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-50-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-50-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-75-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-75-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-100-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-100-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-150-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-150-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-200-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-200-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-CA-100B-300-1	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-CA-100B-300-2	Type: Non-lube, cushioned, short \| Mounting: Clevis (CA) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-50-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-50-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-75-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-75-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-100-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-100-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-150-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-150-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-200-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-200-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TC-50B-300-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TC-50B-300-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-50-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-50-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-75-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-75-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-100-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-100-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-150-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-150-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-200-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-200-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TC-75B-300-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TC-75B-300-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-50-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-50-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-75-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-75-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-100-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-100-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-150-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-150-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-200-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-200-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TC-100B-300-1	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TC-100B-300-2	Type: Non-lube, cushioned, short \| Mounting: Center trunnion (TC) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-50-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-50-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-75-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-75-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-100-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-100-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-150-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-150-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-200-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-200-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TF-50B-300-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TF-50B-300-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 50 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-50-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-50-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-75-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-75-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-100-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-100-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-150-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-150-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-200-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-200-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TF-75B-300-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TF-75B-300-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 75 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-50-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-50-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 50 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-75-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-75-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 75 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-100-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-100-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 100 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-150-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-150-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 150 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-200-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-200-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 200 mm \| Coil voltage: AC200V
	CAV2-NS-TF-100B-300-1	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC100V
	CAV2-NS-TF-100B-300-2	Type: Non-lube, cushioned, short \| Mounting: Trunnion, hole type (TF) \| Bore: 100 mm \| Stroke: 300 mm \| Coil voltage: AC200V
	CAV2-50-LB	Legacy code \| Item: Foot bracket (LB) \| Bore: 50 mm
	CAV2-75-LB	Legacy code \| Item: Foot bracket (LB) \| Bore: 75 mm
	CAV2-100-LB	Legacy code \| Item: Foot bracket (LB) \| Bore: 100 mm
	CAV2-50-FA	Legacy code \| Item: Flange bracket (FA) \| Bore: 50 mm
	CAV2-75-FA	Legacy code \| Item: Flange bracket (FA) \| Bore: 75 mm
	CAV2-100-FA	Legacy code \| Item: Flange bracket (FA) \| Bore: 100 mm
	CAV2-50-CA	Legacy code \| Item: Clevis bracket (CA) \| Bore: 50 mm
	CAV2-75-CA	Legacy code \| Item: Clevis bracket (CA) \| Bore: 75 mm
	CAV2-100-CA	Legacy code \| Item: Clevis bracket (CA) \| Bore: 100 mm
	CAV2-50-TC	Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 50 mm
	CAV2-75-TC	Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 75 mm
	CAV2-100-TC	Legacy code \| Item: Center trunnion bracket (TC) \| Bore: 100 mm
	CAV2-50-TF	Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 50 mm
	CAV2-75-TF	Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 75 mm
	CAV2-100-TF	Legacy code \| Item: Hole-type trunnion (TF) \| Bore: 100 mm
	CAV2-50-I	Legacy code \| Item: Single knuckle (I) \| Bore: 50 mm
	CAV2-50-Y	Legacy code \| Item: Double knuckle (Y) \| Bore: 50 mm
	CAV2-75-I	Legacy code \| Item: Single knuckle (I) \| Bore: 75 mm
	CAV2-75-Y	Legacy code \| Item: Double knuckle (Y) \| Bore: 75 mm
	CAV2-50-P1	Legacy code \| Item: Knuckle pin (P1) \| Bore: 50 mm
	CAV2-75-P1	Legacy code \| Item: Knuckle pin (P1) \| Bore: 75 mm
	CAV2-75-B2	Legacy code \| Item: 2-pin bracket (B2) \| Bore: 75 mm
	CAV2-50-B2	Legacy code \| Item: 2-pin bracket (B2) \| Bore: 50 mm
	CAV2-50-P2	Legacy code \| Item: Bracket pin (P2) \| Bore: 50 mm
	CAV2-75-P2	Legacy code \| Item: Bracket pin (P2) \| Bore: 75 mm
	CAV2-50BK	Legacy code \| Item: Cylinder seal kit \| Bore: 50 mm
	CAV2-75BK	Legacy code \| Item: Cylinder seal kit \| Bore: 75 mm
	CAV2-100BK	Legacy code \| Item: Cylinder seal kit \| Bore: 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD CAV2 Cylinder with Valve (Double Solenoid, Bore 50-100)
