CKD CHC Auto Hand Changer (Robot Tool Changer, Size 1-20)

CKD CHC Auto Hand Changer (Robot Tool Changer, Size 1-20)

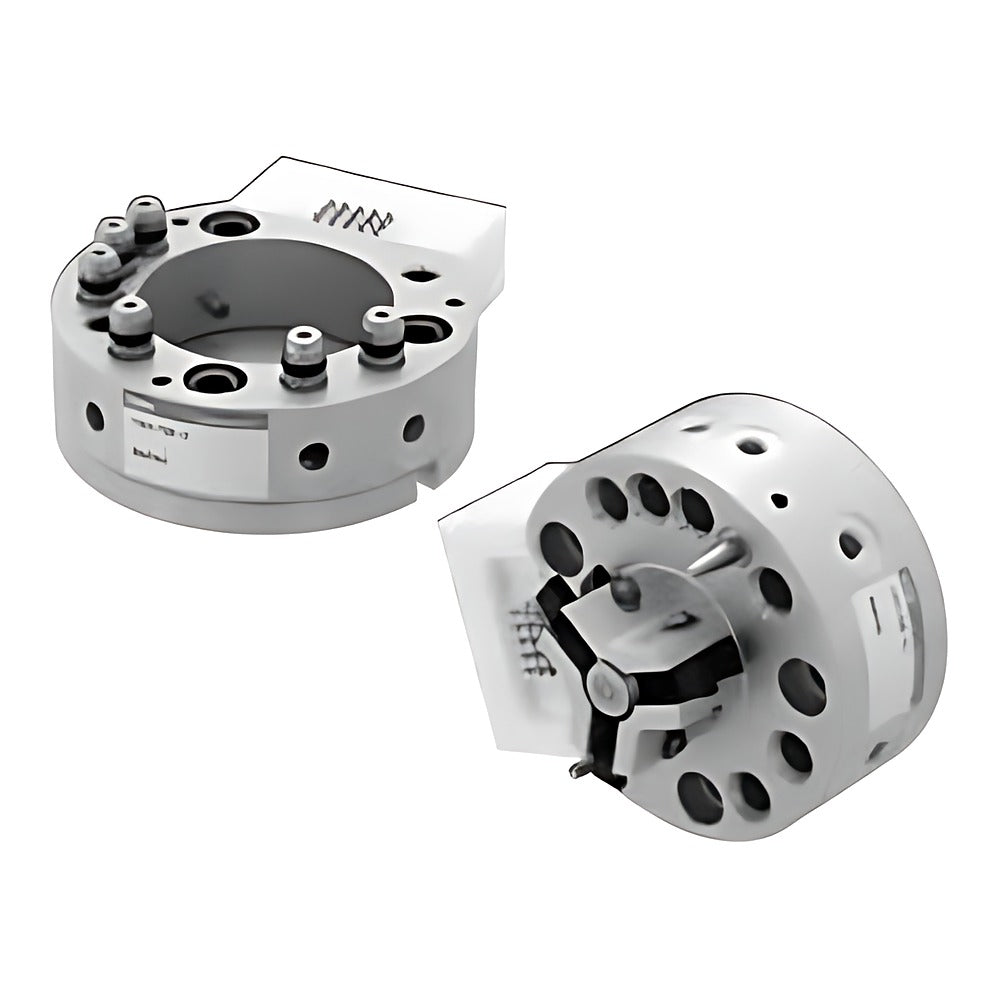

CKD CHC auto hand changer for automatic exchange of robot end-of-arm tools, with master (R) and tool adapter (H) sides.

Key features

  • Master side mounts on the robot, tool adapter side carries the hand or chuck
  • Coupling force 78, 245, 676 and 1087 N for payloads of 1, 5, 10 and 20 kg
  • Six air passages and optional 15-contact electrode block (solder or 15-pin D-sub)
  • Drop prevention mechanism holds the tool if supply pressure is lost
  • Check valve option (B) on master side for sizes 5 to 20; electrode blocks can be added later

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.3 MPa
Ambient temperature 5 to 60 C
Repeatability +/-0.01 mm
Air passages 6 (M3 size 1, M5 others)
Electrical contacts 15, contact probe type, 2 A each
Source CKD Korea catalog CB-030SK-9, p. 1962-1969
CHC-1R Size: 1 | Part: Master (robot side) | Option: Standard
CHC-1R-D1 Size: 1 | Part: Master (robot side) | Option: Electrode block, solder
CHC-1H Size: 1 | Part: Tool adapter | Option: Standard
CHC-1H-D Size: 1 | Part: Tool adapter | Option: Electrode block, solder
CHC-5R Size: 5 | Part: Master (robot side) | Option: Standard
CHC-5R-D1 Size: 5 | Part: Master (robot side) | Option: Electrode block, solder
CHC-5R-D3 Size: 5 | Part: Master (robot side) | Option: Electrode block, D-sub socket
CHC-5R-B Size: 5 | Part: Master (robot side) | Option: Check valve
CHC-5H Size: 5 | Part: Tool adapter | Option: Standard
CHC-5H-D Size: 5 | Part: Tool adapter | Option: Electrode block, solder
CHC-5H-D3 Size: 5 | Part: Tool adapter | Option: Electrode block, D-sub socket
CHC-10R Size: 10 | Part: Master (robot side) | Option: Standard
CHC-10R-D1 Size: 10 | Part: Master (robot side) | Option: Electrode block, solder
CHC-10R-D3 Size: 10 | Part: Master (robot side) | Option: Electrode block, D-sub socket
CHC-10R-B Size: 10 | Part: Master (robot side) | Option: Check valve
CHC-10H Size: 10 | Part: Tool adapter | Option: Standard
CHC-10H-D Size: 10 | Part: Tool adapter | Option: Electrode block, solder
CHC-10H-D3 Size: 10 | Part: Tool adapter | Option: Electrode block, D-sub socket
CHC-20R Size: 20 | Part: Master (robot side) | Option: Standard
CHC-20R-D1 Size: 20 | Part: Master (robot side) | Option: Electrode block, solder
CHC-20R-D3 Size: 20 | Part: Master (robot side) | Option: Electrode block, D-sub socket
CHC-20R-B Size: 20 | Part: Master (robot side) | Option: Check valve
CHC-20H Size: 20 | Part: Tool adapter | Option: Standard
CHC-20H-D Size: 20 | Part: Tool adapter | Option: Electrode block, solder
CHC-20H-D3 Size: 20 | Part: Tool adapter | Option: Electrode block, D-sub socket
CHC-1RS-D1 Size: 1 | Part: Electrode block, master side | Option: solder
CHC-1HS-D Size: 1 | Part: Electrode block, tool side | Option: solder
CHC-5RS-D1 Size: 5 | Part: Electrode block, master side | Option: solder
CHC-5RS-D3 Size: 5 | Part: Electrode block, master side | Option: D-sub socket
CHC-5HS-D Size: 5 | Part: Electrode block, tool side | Option: solder
CHC-5HS-D3 Size: 5 | Part: Electrode block, tool side | Option: D-sub socket
CHC-10RS-D1 Size: 10 | Part: Electrode block, master side | Option: solder
CHC-10RS-D3 Size: 10 | Part: Electrode block, master side | Option: D-sub socket
CHC-10HS-D Size: 10 | Part: Electrode block, tool side | Option: solder
CHC-10HS-D3 Size: 10 | Part: Electrode block, tool side | Option: D-sub socket
CHC-20RS-D1 Size: 20 | Part: Electrode block, master side | Option: solder
CHC-20RS-D3 Size: 20 | Part: Electrode block, master side | Option: D-sub socket
CHC-20HS-D Size: 20 | Part: Electrode block, tool side | Option: solder
CHC-20HS-D3 Size: 20 | Part: Electrode block, tool side | Option: D-sub socket
