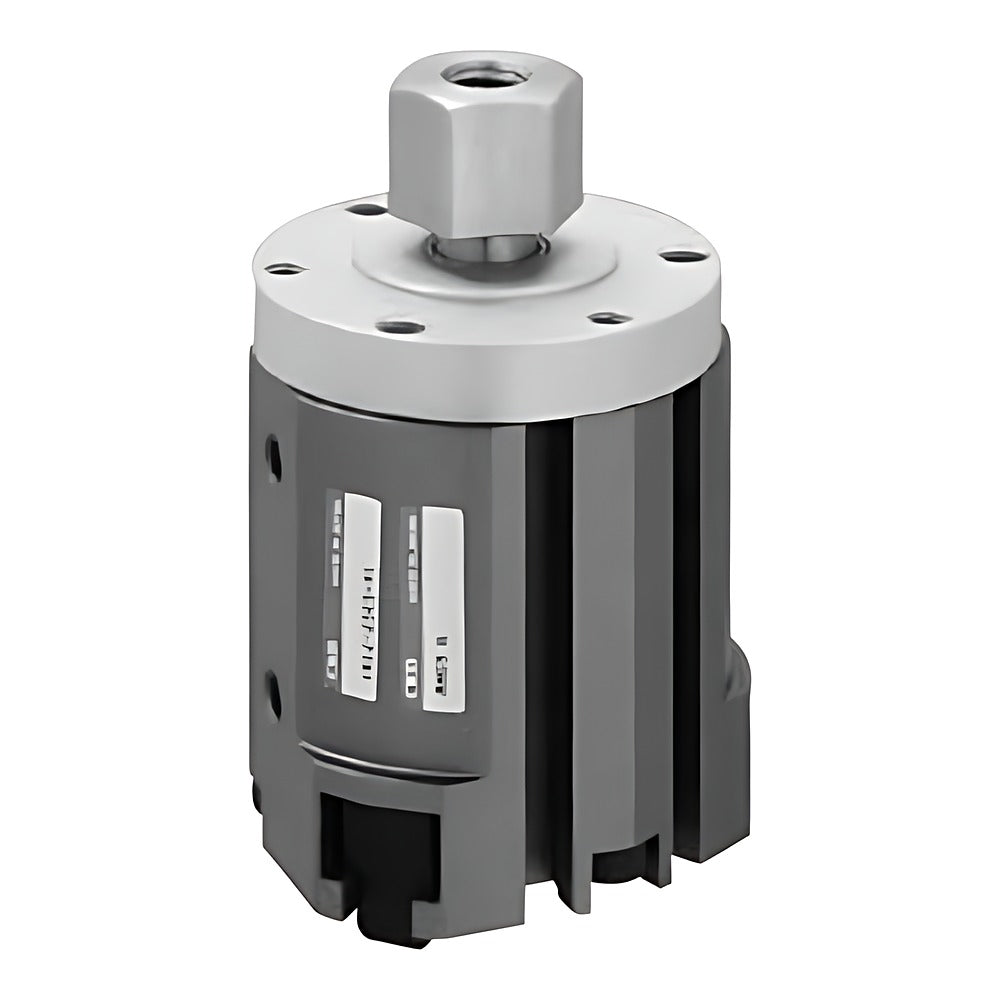

CKD CKL2-FC Mechanical 3-Jaw Chuck (Spring Close, Size 20-40)

CKD CKL2-FC Mechanical 3-Jaw Chuck (Spring Close, Size 20-40)

CKD CKL2-FC mechanical 3-jaw chuck that grips by spring force and opens by an external push, with no air supply required.

Key features

  • No air piping: opening by external force on the stopper rod, closing by spring
  • Ideal for index tables and shuttle movers where air cannot be routed
  • Sizes 20CS to 40CS, stroke 5 to 10 mm, spring gripping force 20 to 150 N
  • Repeatability +/-0.01 mm; sealed unit, not disassemblable

Specifications

Actuation Close by spring, open by external force
Ambient temperature 5 to 60 C
Repeatability +/-0.01 mm
Opening force required 165 to 1050 N (by size)
Source CKD Korea catalog CB-030SK-9, p. 1971-1975
CKL2-20CS-FC Size: 20CS | Cylinder bore: 20 mm | Stroke: 5 mm | Gripping force: 20-33 N | Mass: 202 g
CKL2-25CS-FC Size: 25CS | Cylinder bore: 25 mm | Stroke: 6 mm | Gripping force: 33-53 N | Mass: 320 g
CKL2-32CS-FC Size: 32CS | Cylinder bore: 32 mm | Stroke: 8 mm | Gripping force: 50-105 N | Mass: 433 g
CKL2-40CS-FC Size: 40CS | Cylinder bore: 40 mm | Stroke: 10 mm | Gripping force: 83-150 N | Mass: 834 g
Mechanical GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CKL2-FC Mechanical 3-Jaw Chuck (Spring Close, Size 20-40)

Brand CKD·Mechanical Grippers

Available part numbers (4)

CKL2-20CS-FC, CKL2-25CS-FC, CKL2-32CS-FC, CKL2-40CS-FC

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKL2-20CS-FCSize: 20CS | Cylinder bore: 20 mm | Stroke: 5 mm | Gripping force: 20-33 N | Mass: 202 g
CKL2-25CS-FCSize: 25CS | Cylinder bore: 25 mm | Stroke: 6 mm | Gripping force: 33-53 N | Mass: 320 g
CKL2-32CS-FCSize: 32CS | Cylinder bore: 32 mm | Stroke: 8 mm | Gripping force: 50-105 N | Mass: 433 g
CKL2-40CS-FCSize: 40CS | Cylinder bore: 40 mm | Stroke: 10 mm | Gripping force: 83-150 N | Mass: 834 g
