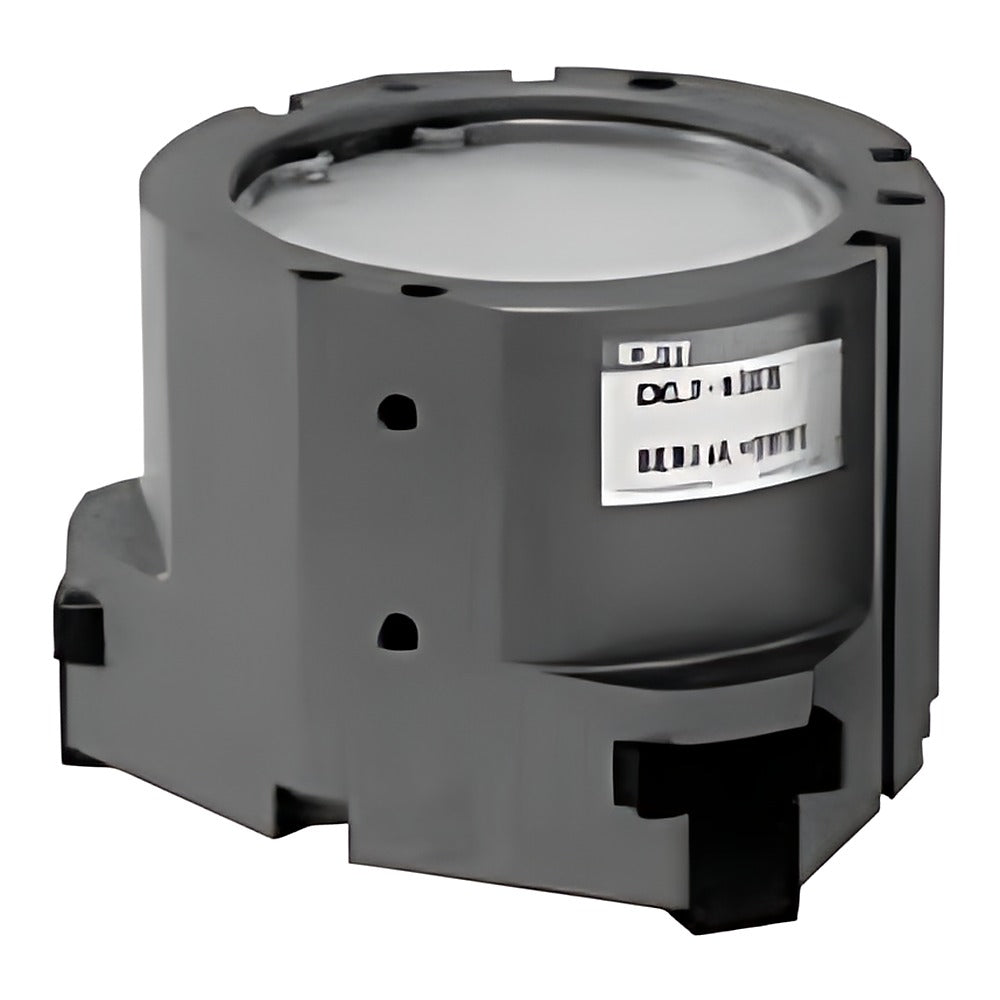

CKD CKL2-FP1 Powerful 3-Jaw Chuck (Food Processing, Size 20-100)

CKD CKL2-FP1 Powerful 3-Jaw Chuck (Food Processing, Size 20-100)

CKD CKL2-FP1 powerful 3-jaw pneumatic chuck for food manufacturing processes, lubricated with NSF H1 food-grade grease.

Key features

  • FP1 specification: sliding and flow-path parts lubricated with NSF H1 registered grease
  • Sizes 20CS to 100CS (bore 20 to 100 mm), jaw stroke 5 to 23 mm
  • Double acting standard; single acting normally open (O) or normally closed (C)
  • Auto switch magnet built in; T2H/T2V, T3H/T3V switches with R/H/D switch count
  • Soft jaw options Y1 (S50C) / Y2 (MC nylon) available (not listed)

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.3 MPa
Ambient temperature 5 to 60 C
Repeatability +/-0.01 mm
Lubrication Not required
Sliding-part grease NSF H1 food-grade
Auto switch T2H/T2V, T3H/T3V (appended to code)
Source CKD Korea catalog CC-1271K-5, p. 110-111
CKL2-20CS-FP1 Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Double acting | Port: M5
CKL2-20CS-O-FP1 Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Single acting, normally open | Port: M5
CKL2-20CS-C-FP1 Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Single acting, normally closed | Port: M5
CKL2-25CS-FP1 Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Double acting | Port: M5
CKL2-25CS-O-FP1 Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Single acting, normally open | Port: M5
CKL2-25CS-C-FP1 Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Single acting, normally closed | Port: M5
CKL2-32CS-FP1 Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Double acting | Port: M5
CKL2-32CS-O-FP1 Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Single acting, normally open | Port: M5
CKL2-32CS-C-FP1 Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Single acting, normally closed | Port: M5
CKL2-40CS-FP1 Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Double acting | Port: M5
CKL2-40CS-O-FP1 Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Single acting, normally open | Port: M5
CKL2-40CS-C-FP1 Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Single acting, normally closed | Port: M5
CKL2-50CS-FP1 Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Double acting | Port: M5
CKL2-50CS-O-FP1 Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Single acting, normally open | Port: M5
CKL2-50CS-C-FP1 Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Single acting, normally closed | Port: M5
CKL2-63CS-FP1 Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Double acting | Port: M5
CKL2-63CS-O-FP1 Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Single acting, normally open | Port: M5
CKL2-63CS-C-FP1 Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Single acting, normally closed | Port: M5
CKL2-80CS-FP1 Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Double acting | Port: Rc1/8
CKL2-80CS-O-FP1 Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Single acting, normally open | Port: Rc1/8
CKL2-80CS-C-FP1 Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Single acting, normally closed | Port: Rc1/8
CKL2-100CS-FP1 Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Double acting | Port: Rc1/8
CKL2-100CS-O-FP1 Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Single acting, normally open | Port: Rc1/8
CKL2-100CS-C-FP1 Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Single acting, normally closed | Port: Rc1/8
Pneumatic ChucksCKD
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CKL2-FP1 Powerful 3-Jaw Chuck (Food Processing, Size 20-100)

Brand CKD·Pneumatic Chucks

Available part numbers (24)

CKL2-20CS-FP1, CKL2-20CS-O-FP1, CKL2-20CS-C-FP1, CKL2-25CS-FP1, CKL2-25CS-O-FP1, CKL2-25CS-C-FP1, CKL2-32CS-FP1, CKL2-32CS-O-FP1, CKL2-32CS-C-FP1, CKL2-40CS-FP1 + 14 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKL2-20CS-FP1Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Double acting | Port: M5
CKL2-20CS-O-FP1Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Single acting, normally open | Port: M5
CKL2-20CS-C-FP1Size: 20CS | Bore: 20 mm | Stroke: 5 mm | Type: Single acting, normally closed | Port: M5
CKL2-25CS-FP1Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Double acting | Port: M5
CKL2-25CS-O-FP1Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Single acting, normally open | Port: M5
CKL2-25CS-C-FP1Size: 25CS | Bore: 25 mm | Stroke: 6 mm | Type: Single acting, normally closed | Port: M5
CKL2-32CS-FP1Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Double acting | Port: M5
CKL2-32CS-O-FP1Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Single acting, normally open | Port: M5
CKL2-32CS-C-FP1Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Type: Single acting, normally closed | Port: M5
CKL2-40CS-FP1Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Double acting | Port: M5
CKL2-40CS-O-FP1Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Single acting, normally open | Port: M5
CKL2-40CS-C-FP1Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Type: Single acting, normally closed | Port: M5
CKL2-50CS-FP1Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Double acting | Port: M5
CKL2-50CS-O-FP1Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Single acting, normally open | Port: M5
CKL2-50CS-C-FP1Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Type: Single acting, normally closed | Port: M5
CKL2-63CS-FP1Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Double acting | Port: M5
CKL2-63CS-O-FP1Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Single acting, normally open | Port: M5
CKL2-63CS-C-FP1Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Type: Single acting, normally closed | Port: M5
CKL2-80CS-FP1Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Double acting | Port: Rc1/8
CKL2-80CS-O-FP1Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Single acting, normally open | Port: Rc1/8
CKL2-80CS-C-FP1Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Type: Single acting, normally closed | Port: Rc1/8
CKL2-100CS-FP1Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Double acting | Port: Rc1/8
CKL2-100CS-O-FP1Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Single acting, normally open | Port: Rc1/8
CKL2-100CS-C-FP1Size: 100CS | Bore: 100 mm | Stroke: 23 mm | Type: Single acting, normally closed | Port: Rc1/8
