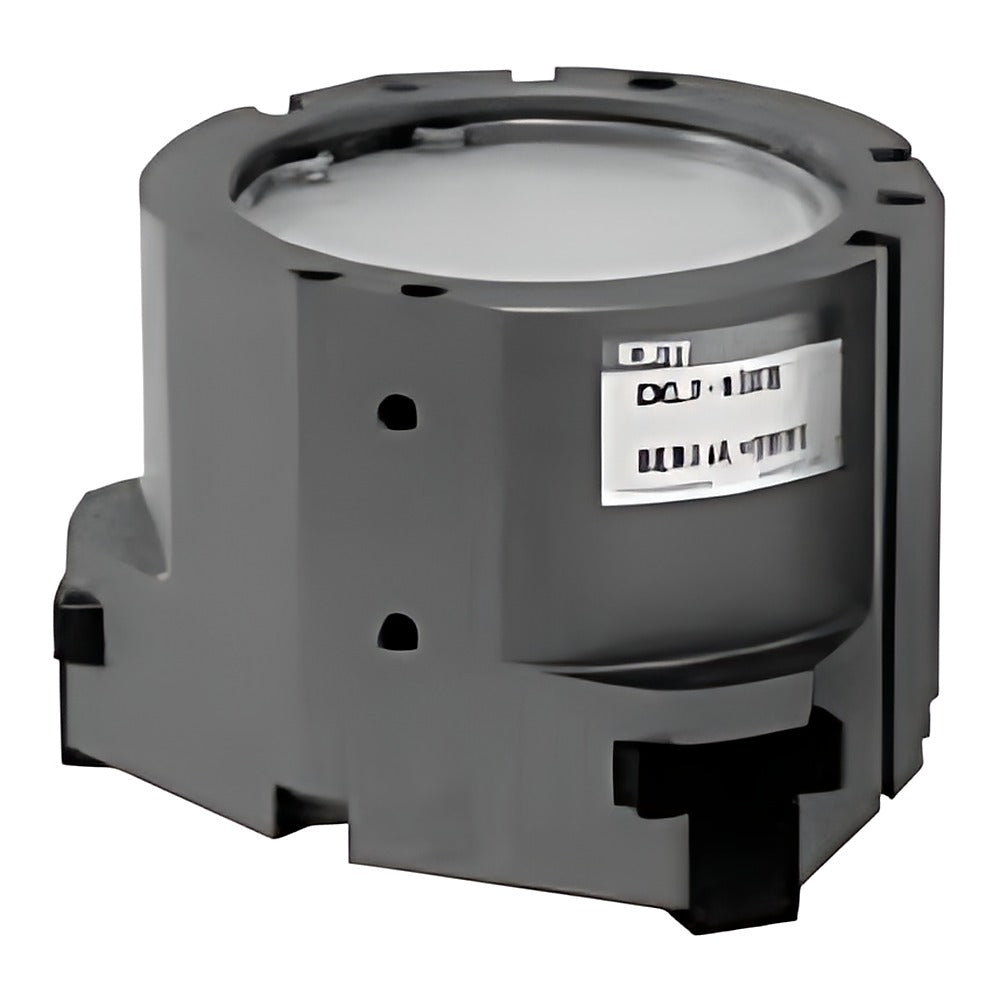

CKD CKL2-HC Drop-Prevention Powerful Chuck (Size 32-80)

CKD CKL2-HC Drop-Prevention Powerful Chuck (Size 32-80)

CKD CKL2-HC 3-jaw powerful chuck with spring clamping that keeps holding the workpiece if air pressure is lost.

Key features

  • Spring-clamp single acting (normally closed) design prevents workpiece drop on air loss
  • Sizes 32CS to 80CS, jaw stroke 8 to 20 mm
  • Only the open port is piped; the closed port is fitted with a filter/plug
  • Repeatability +/-0.01 mm; auto switch magnet built in
  • Soft jaw options Y1 (S45C) / Y2 (MC nylon) available (not listed)

Specifications

Action Single acting, normally closed (spring)
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.4 MPa
Ambient temperature 5 to 60 C
Repeatability +/-0.01 mm
Auto switch T2H/T2V, T3H/T3V (ordered in code)
Source CKD Korea catalog CB-030SK-9, p. 1882-1887
CKL2-32CS-HC Size: 32CS | Bore: 32 mm | Stroke: 8 mm | Port: M5
CKL2-40CS-HC Size: 40CS | Bore: 40 mm | Stroke: 10 mm | Port: M5
CKL2-50CS-HC Size: 50CS | Bore: 50 mm | Stroke: 12 mm | Port: M5
CKL2-63CS-HC Size: 63CS | Bore: 63 mm | Stroke: 16 mm | Port: M5
CKL2-80CS-HC Size: 80CS | Bore: 80 mm | Stroke: 20 mm | Port: Rc1/8
Pneumatic ChucksCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CKL2-HC Drop-Prevention Powerful Chuck (Size 32-80)

Brand CKD·Pneumatic Chucks

Available part numbers (5)

CKL2-32CS-HC, CKL2-40CS-HC, CKL2-50CS-HC, CKL2-63CS-HC, CKL2-80CS-HC
