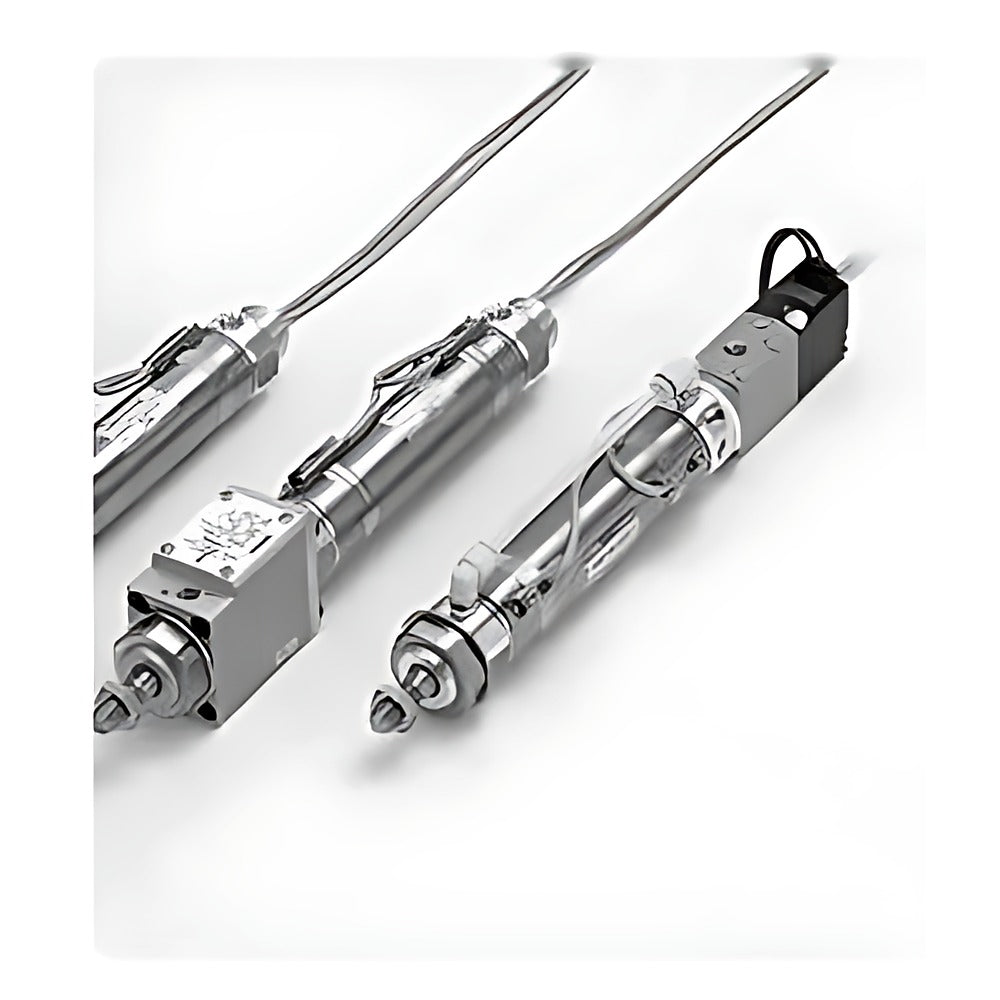

CKD CKV2-M Small Cell Cylinder with Valve (Non-Rotating, Bore 20-40)

CKD CKV2-M small cell cylinder with an integrated 4-port solenoid valve and rod anti-rotation guide, bore 20 to 40 mm.

Key features

Rod anti-rotation guide; non-rotating accuracy +/-1.5 deg (bore 20-32), +/-1 deg (bore 40)
Valve coil voltage 1: AC100V, 2: AC200V, 3: DC24V; grommet lead (no symbol) or DIN terminal (U)
Mountings 00, LB, FA, TA, TB; mounting brackets shipped with the product
Standard strokes 25 to 200 mm; intermediate strokes in 1 mm steps (5 to 750 mm)
Stainless cylinder tube, urethane cushion rubber, non-lube packings; switch magnet built in
T-type switches (max. 3), options (J/L bellows, M, W silencer, G surge killer, E lamp, X push-on-energize, P6) and accessories as suffixes

Specifications

Action	Double acting, valve mounted
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.15 MPa
Proof pressure	1.6 MPa
Ambient temperature	-5 to 60 C (no freezing)
Piston speed	50 to 500 mm/s (bore 32: 430, bore 40: 300)
Lubrication	Not required
Port	Rc1/8
Cushion	Rubber cushion
Source	CKD Korea catalog CB-029SK-9, p. 780-787

CKV2-M-00-20-25-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-25-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-25-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-25-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-25-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-25-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-20-50-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-50-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-50-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-50-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-50-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-50-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-20-75-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-75-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-75-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-75-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-75-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-75-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-20-100-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-100-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-100-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-100-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-100-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-100-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-20-150-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-150-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-150-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-150-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-150-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-150-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-20-200-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-20-200-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-20-200-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-20-200-U-1		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-20-200-U-2		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-20-200-U-3		Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-25-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-25-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-25-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-25-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-25-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-25-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-50-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-50-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-50-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-50-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-50-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-50-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-75-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-75-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-75-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-75-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-75-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-75-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-100-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-100-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-100-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-100-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-100-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-100-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-150-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-150-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-150-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-150-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-150-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-150-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-25-200-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-25-200-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-25-200-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-25-200-U-1		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-25-200-U-2		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-25-200-U-3		Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-25-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-25-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-25-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-25-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-25-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-25-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-50-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-50-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-50-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-50-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-50-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-50-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-75-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-75-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-75-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-75-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-75-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-75-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-100-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-100-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-100-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-100-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-100-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-100-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-150-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-150-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-150-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-150-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-150-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-150-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-32-200-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-32-200-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-32-200-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-32-200-U-1		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-32-200-U-2		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-32-200-U-3		Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-25-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-25-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-25-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-25-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-25-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-25-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-50-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-50-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-50-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-50-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-50-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-50-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-75-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-75-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-75-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-75-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-75-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-75-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-100-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-100-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-100-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-100-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-100-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-100-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-150-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-150-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-150-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-150-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-150-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-150-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-00-40-200-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-00-40-200-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-00-40-200-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-00-40-200-U-1		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-00-40-200-U-2		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-00-40-200-U-3		Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-25-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-25-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-25-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-25-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-25-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-25-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-50-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-50-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-50-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-50-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-50-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-50-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-75-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-75-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-75-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-75-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-75-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-75-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-100-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-100-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-100-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-100-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-100-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-100-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-150-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-150-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-150-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-150-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-150-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-150-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-20-200-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-20-200-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-20-200-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-20-200-U-1		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-20-200-U-2		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-20-200-U-3		Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-25-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-25-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-25-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-25-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-25-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-25-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-50-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-50-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-50-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-50-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-50-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-50-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-75-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-75-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-75-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-75-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-75-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-75-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-100-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-100-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-100-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-100-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-100-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-100-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-150-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-150-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-150-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-150-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-150-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-150-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-25-200-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-25-200-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-25-200-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-25-200-U-1		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-25-200-U-2		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-25-200-U-3		Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-25-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-25-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-25-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-25-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-25-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-25-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-50-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-50-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-50-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-50-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-50-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-50-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-75-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-75-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-75-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-75-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-75-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-75-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-100-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-100-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-100-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-100-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-100-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-100-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-150-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-150-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-150-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-150-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-150-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-150-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-32-200-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-32-200-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-32-200-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-32-200-U-1		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-32-200-U-2		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-32-200-U-3		Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-25-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-25-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-25-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-25-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-25-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-25-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-50-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-50-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-50-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-50-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-50-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-50-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-75-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-75-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-75-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-75-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-75-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-75-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-100-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-100-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-100-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-100-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-100-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-100-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-150-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-150-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-150-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-150-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-150-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-150-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-LB-40-200-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-LB-40-200-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-LB-40-200-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-LB-40-200-U-1		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-LB-40-200-U-2		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-LB-40-200-U-3		Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-25-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-25-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-25-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-25-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-25-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-25-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-50-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-50-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-50-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-50-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-50-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-50-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-75-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-75-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-75-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-75-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-75-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-75-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-100-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-100-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-100-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-100-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-100-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-100-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-150-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-150-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-150-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-150-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-150-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-150-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-20-200-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-20-200-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-20-200-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-20-200-U-1		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-20-200-U-2		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-20-200-U-3		Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-25-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-25-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-25-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-25-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-25-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-25-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-50-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-50-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-50-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-50-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-50-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-50-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-75-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-75-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-75-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-75-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-75-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-75-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-100-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-100-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-100-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-100-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-100-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-100-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-150-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-150-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-150-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-150-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-150-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-150-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-25-200-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-25-200-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-25-200-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-25-200-U-1		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-25-200-U-2		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-25-200-U-3		Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-25-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-25-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-25-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-25-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-25-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-25-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-50-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-50-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-50-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-50-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-50-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-50-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-75-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-75-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-75-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-75-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-75-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-75-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-100-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-100-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-100-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-100-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-100-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-100-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-150-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-150-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-150-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-150-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-150-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-150-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-32-200-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-32-200-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-32-200-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-32-200-U-1		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-32-200-U-2		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-32-200-U-3		Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-25-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-25-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-25-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-25-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-25-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-25-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-50-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-50-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-50-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-50-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-50-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-50-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-75-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-75-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-75-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-75-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-75-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-75-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-100-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-100-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-100-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-100-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-100-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-100-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-150-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-150-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-150-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-150-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-150-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-150-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-FA-40-200-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-FA-40-200-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-FA-40-200-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-FA-40-200-U-1		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-FA-40-200-U-2		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-FA-40-200-U-3		Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-25-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-25-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-25-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-25-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-25-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-25-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-50-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-50-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-50-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-75-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-75-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-75-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-100-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-100-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-100-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-150-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-150-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-150-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-20-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-20-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-20-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-20-200-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-20-200-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-20-200-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-25-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-25-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-25-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-25-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-25-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-25-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-50-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-50-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-50-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-75-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-75-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-75-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-100-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-100-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-100-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-150-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-150-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-150-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-25-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-25-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-25-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-25-200-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-25-200-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-25-200-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-25-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-25-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-25-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-25-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-25-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-25-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-50-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-50-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-50-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-75-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-75-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-75-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-100-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-100-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-100-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-150-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-150-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-150-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-32-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-32-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-32-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-32-200-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-32-200-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-32-200-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-25-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-25-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-25-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-25-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-25-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-25-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-50-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-50-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-50-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-50-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-50-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-50-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-75-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-75-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-75-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-75-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-75-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-75-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-100-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-100-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-100-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-100-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-100-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-100-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-150-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-150-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-150-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-150-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-150-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-150-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TA-40-200-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TA-40-200-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TA-40-200-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TA-40-200-U-1		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TA-40-200-U-2		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TA-40-200-U-3		Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-25-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-25-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-25-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-25-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-25-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-25-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-50-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-50-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-50-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-50-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-50-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-50-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-75-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-75-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-75-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-75-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-75-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-75-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-100-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-100-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-100-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-100-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-100-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-100-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-150-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-150-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-150-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-150-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-150-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-150-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-20-200-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-20-200-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-20-200-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-20-200-U-1		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-20-200-U-2		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-20-200-U-3		Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-25-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-25-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-25-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-25-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-25-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-25-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-50-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-50-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-50-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-50-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-50-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-50-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-75-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-75-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-75-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-75-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-75-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-75-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-100-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-100-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-100-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-100-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-100-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-100-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-150-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-150-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-150-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-150-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-150-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-150-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-25-200-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-25-200-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-25-200-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-25-200-U-1		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-25-200-U-2		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-25-200-U-3		Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-25-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-25-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-25-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-25-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-25-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-25-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-50-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-50-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-50-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-50-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-50-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-50-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-75-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-75-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-75-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-75-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-75-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-75-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-100-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-100-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-100-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-100-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-100-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-100-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-150-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-150-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-150-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-150-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-150-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-150-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-32-200-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-32-200-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-32-200-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-32-200-U-1		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-32-200-U-2		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-32-200-U-3		Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-25-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-25-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-25-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-25-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-25-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-25-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-50-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-50-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-50-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-50-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-50-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-50-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-75-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-75-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-75-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-75-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-75-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-75-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-100-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-100-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-100-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-100-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-100-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-100-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-150-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-150-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-150-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-150-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-150-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-150-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
CKV2-M-TB-40-200-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
CKV2-M-TB-40-200-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
CKV2-M-TB-40-200-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
CKV2-M-TB-40-200-U-1		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
CKV2-M-TB-40-200-U-2		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
CKV2-M-TB-40-200-U-3		Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V

Pneumatic CylindersCKD

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CKV2-M Small Cell Cylinder with Valve (Non-Rotating, Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (720)

CKV2-M-00-20-25-1, CKV2-M-00-20-25-2, CKV2-M-00-20-25-3, CKV2-M-00-20-25-U-1, CKV2-M-00-20-25-U-2, CKV2-M-00-20-25-U-3, CKV2-M-00-20-50-1, CKV2-M-00-20-50-2, CKV2-M-00-20-50-3, CKV2-M-00-20-50-U-1 + 710 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CKV2-M-00-20-25-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-25-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-25-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-25-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-25-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-25-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-20-50-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-50-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-50-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-50-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-50-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-50-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-20-75-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-75-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-75-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-75-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-75-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-75-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-20-100-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-100-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-100-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-100-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-100-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-100-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-20-150-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-150-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-150-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-150-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-150-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-150-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-20-200-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-20-200-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-20-200-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-20-200-U-1	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-20-200-U-2	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-20-200-U-3	Mounting: Basic (00) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-25-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-25-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-25-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-25-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-25-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-25-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-50-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-50-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-50-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-50-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-50-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-50-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-75-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-75-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-75-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-75-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-75-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-75-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-100-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-100-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-100-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-100-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-100-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-100-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-150-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-150-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-150-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-150-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-150-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-150-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-25-200-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-25-200-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-25-200-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-25-200-U-1	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-25-200-U-2	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-25-200-U-3	Mounting: Basic (00) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-25-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-25-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-25-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-25-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-25-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-25-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-50-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-50-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-50-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-50-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-50-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-50-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-75-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-75-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-75-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-75-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-75-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-75-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-100-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-100-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-100-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-100-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-100-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-100-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-150-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-150-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-150-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-150-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-150-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-150-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-32-200-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-32-200-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-32-200-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-32-200-U-1	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-32-200-U-2	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-32-200-U-3	Mounting: Basic (00) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-25-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-25-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-25-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-25-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-25-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-25-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-50-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-50-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-50-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-50-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-50-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-50-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-75-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-75-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-75-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-75-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-75-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-75-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-100-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-100-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-100-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-100-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-100-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-100-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-150-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-150-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-150-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-150-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-150-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-150-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-00-40-200-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-00-40-200-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-00-40-200-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-00-40-200-U-1	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-00-40-200-U-2	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-00-40-200-U-3	Mounting: Basic (00) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-25-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-25-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-25-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-25-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-25-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-25-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-50-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-50-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-50-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-50-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-50-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-50-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-75-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-75-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-75-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-75-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-75-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-75-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-100-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-100-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-100-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-100-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-100-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-100-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-150-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-150-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-150-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-150-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-150-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-150-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-20-200-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-20-200-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-20-200-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-20-200-U-1	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-20-200-U-2	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-20-200-U-3	Mounting: Axial foot (LB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-25-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-25-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-25-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-25-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-25-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-25-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-50-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-50-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-50-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-50-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-50-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-50-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-75-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-75-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-75-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-75-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-75-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-75-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-100-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-100-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-100-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-100-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-100-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-100-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-150-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-150-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-150-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-150-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-150-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-150-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-25-200-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-25-200-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-25-200-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-25-200-U-1	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-25-200-U-2	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-25-200-U-3	Mounting: Axial foot (LB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-25-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-25-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-25-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-25-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-25-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-25-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-50-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-50-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-50-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-50-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-50-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-50-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-75-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-75-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-75-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-75-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-75-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-75-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-100-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-100-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-100-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-100-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-100-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-100-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-150-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-150-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-150-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-150-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-150-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-150-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-32-200-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-32-200-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-32-200-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-32-200-U-1	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-32-200-U-2	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-32-200-U-3	Mounting: Axial foot (LB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-25-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-25-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-25-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-25-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-25-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-25-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-50-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-50-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-50-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-50-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-50-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-50-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-75-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-75-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-75-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-75-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-75-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-75-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-100-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-100-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-100-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-100-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-100-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-100-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-150-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-150-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-150-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-150-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-150-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-150-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-LB-40-200-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-LB-40-200-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-LB-40-200-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-LB-40-200-U-1	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-LB-40-200-U-2	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-LB-40-200-U-3	Mounting: Axial foot (LB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-25-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-25-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-25-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-25-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-25-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-25-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-50-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-50-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-50-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-50-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-50-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-50-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-75-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-75-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-75-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-75-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-75-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-75-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-100-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-100-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-100-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-100-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-100-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-100-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-150-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-150-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-150-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-150-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-150-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-150-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-20-200-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-20-200-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-20-200-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-20-200-U-1	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-20-200-U-2	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-20-200-U-3	Mounting: Rod-end flange (FA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-25-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-25-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-25-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-25-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-25-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-25-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-50-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-50-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-50-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-50-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-50-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-50-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-75-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-75-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-75-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-75-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-75-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-75-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-100-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-100-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-100-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-100-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-100-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-100-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-150-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-150-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-150-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-150-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-150-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-150-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-25-200-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-25-200-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-25-200-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-25-200-U-1	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-25-200-U-2	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-25-200-U-3	Mounting: Rod-end flange (FA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-25-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-25-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-25-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-25-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-25-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-25-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-50-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-50-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-50-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-50-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-50-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-50-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-75-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-75-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-75-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-75-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-75-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-75-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-100-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-100-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-100-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-100-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-100-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-100-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-150-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-150-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-150-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-150-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-150-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-150-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-32-200-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-32-200-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-32-200-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-32-200-U-1	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-32-200-U-2	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-32-200-U-3	Mounting: Rod-end flange (FA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-25-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-25-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-25-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-25-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-25-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-25-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-50-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-50-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-50-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-50-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-50-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-50-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-75-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-75-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-75-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-75-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-75-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-75-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-100-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-100-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-100-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-100-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-100-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-100-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-150-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-150-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-150-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-150-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-150-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-150-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-FA-40-200-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-FA-40-200-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-FA-40-200-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-FA-40-200-U-1	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-FA-40-200-U-2	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-FA-40-200-U-3	Mounting: Rod-end flange (FA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-25-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-25-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-25-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-25-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-25-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-25-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-50-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-50-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-50-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-75-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-75-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-75-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-100-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-100-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-100-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-150-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-150-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-150-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-20-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-20-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-20-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-20-200-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-20-200-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-20-200-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-25-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-25-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-25-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-25-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-25-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-25-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-50-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-50-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-50-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-75-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-75-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-75-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-100-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-100-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-100-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-150-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-150-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-150-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-25-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-25-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-25-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-25-200-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-25-200-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-25-200-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-25-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-25-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-25-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-25-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-25-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-25-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-50-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-50-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-50-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-75-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-75-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-75-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-100-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-100-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-100-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-150-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-150-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-150-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-32-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-32-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-32-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-32-200-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-32-200-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-32-200-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-25-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-25-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-25-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-25-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-25-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-25-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-50-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-50-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-50-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-50-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-50-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-50-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-75-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-75-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-75-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-75-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-75-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-75-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-100-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-100-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-100-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-100-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-100-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-100-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-150-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-150-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-150-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-150-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-150-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-150-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TA-40-200-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TA-40-200-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TA-40-200-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TA-40-200-U-1	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TA-40-200-U-2	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TA-40-200-U-3	Mounting: Rod-end trunnion (TA) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-25-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-25-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-25-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-25-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-25-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-25-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-50-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-50-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-50-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-50-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-50-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-50-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-75-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-75-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-75-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-75-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-75-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-75-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-100-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-100-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-100-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-100-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-100-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-100-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-150-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-150-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-150-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-150-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-150-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-150-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-20-200-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-20-200-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-20-200-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-20-200-U-1	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-20-200-U-2	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-20-200-U-3	Mounting: Head-end trunnion (TB) \| Bore: 20 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-25-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-25-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-25-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-25-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-25-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-25-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-50-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-50-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-50-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-50-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-50-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-50-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-75-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-75-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-75-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-75-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-75-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-75-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-100-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-100-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-100-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-100-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-100-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-100-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-150-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-150-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-150-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-150-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-150-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-150-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-25-200-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-25-200-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-25-200-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-25-200-U-1	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-25-200-U-2	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-25-200-U-3	Mounting: Head-end trunnion (TB) \| Bore: 25 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-25-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-25-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-25-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-25-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-25-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-25-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-50-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-50-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-50-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-50-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-50-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-50-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-75-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-75-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-75-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-75-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-75-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-75-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-100-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-100-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-100-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-100-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-100-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-100-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-150-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-150-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-150-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-150-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-150-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-150-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-32-200-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-32-200-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-32-200-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-32-200-U-1	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-32-200-U-2	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-32-200-U-3	Mounting: Head-end trunnion (TB) \| Bore: 32 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-25-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-25-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-25-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-25-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-25-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-25-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 25 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-50-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-50-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-50-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-50-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-50-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-50-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 50 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-75-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-75-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-75-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-75-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-75-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-75-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 75 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-100-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-100-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-100-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-100-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-100-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-100-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 100 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-150-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-150-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-150-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-150-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-150-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-150-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 150 mm \| Connection: DIN terminal \| Voltage: DC24V
	CKV2-M-TB-40-200-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC100V
	CKV2-M-TB-40-200-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: AC200V
	CKV2-M-TB-40-200-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: Grommet lead 300 mm \| Voltage: DC24V
	CKV2-M-TB-40-200-U-1	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC100V
	CKV2-M-TB-40-200-U-2	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: AC200V
	CKV2-M-TB-40-200-U-3	Mounting: Head-end trunnion (TB) \| Bore: 40 mm \| Stroke: 200 mm \| Connection: DIN terminal \| Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD CKV2-M Small Cell Cylinder with Valve (Non-Rotating, Bore 20-40)
