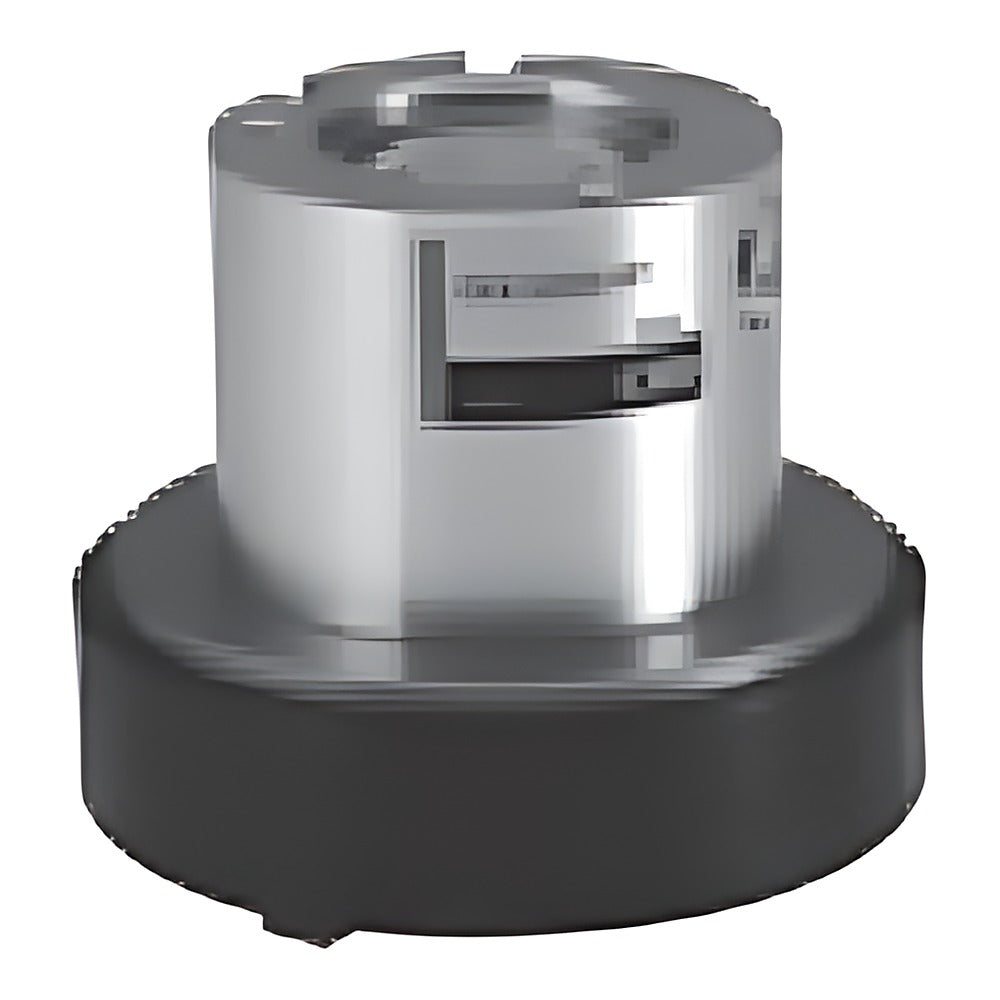

CKD CKW-G/CKW-F-HP1 3-Jaw Chuck (Long-Life, Rubber Cover)

CKD CKW-G/CKW-F-HP1 long-life three-jaw air chuck with chloroprene or fluoro rubber cover, bore ø16 to ø40.

Key features

Rubber cover protects the jaw guides against dust and splashes
Jaw stroke 4, 6, 8 mm; gripping force up to 130 N open (ø40)
Optional high-precision locating hole (A)
Switch magnet built in; F-type solid-state switches (F2S/F3S, F2H/F2V, F3H/F3V, F3PH/F3PV); example CKW-G20DA-F2H3-R-HP1

Specifications

Action	Double acting
Max. operating pressure	0.7 MPa
Port size	M3 (ø16), M5 (ø20-ø40)
Repeatability	±0.01 mm
Ambient temperature	-10 to 60°C
Source	CKD Korea catalog CC-1421KR-7, p. 180-181

CKW-G16DN-HP1		Rubber cover: Chloroprene \| Bore: 16 mm \| Locating hole: None
CKW-G16DA-HP1		Rubber cover: Chloroprene \| Bore: 16 mm \| Locating hole: Yes
CKW-G20DN-HP1		Rubber cover: Chloroprene \| Bore: 20 mm \| Locating hole: None
CKW-G20DA-HP1		Rubber cover: Chloroprene \| Bore: 20 mm \| Locating hole: Yes
CKW-G25DN-HP1		Rubber cover: Chloroprene \| Bore: 25 mm \| Locating hole: None
CKW-G25DA-HP1		Rubber cover: Chloroprene \| Bore: 25 mm \| Locating hole: Yes
CKW-G32DN-HP1		Rubber cover: Chloroprene \| Bore: 32 mm \| Locating hole: None
CKW-G32DA-HP1		Rubber cover: Chloroprene \| Bore: 32 mm \| Locating hole: Yes
CKW-G40DN-HP1		Rubber cover: Chloroprene \| Bore: 40 mm \| Locating hole: None
CKW-G40DA-HP1		Rubber cover: Chloroprene \| Bore: 40 mm \| Locating hole: Yes
CKW-F16DN-HP1		Rubber cover: Fluoro rubber \| Bore: 16 mm \| Locating hole: None
CKW-F16DA-HP1		Rubber cover: Fluoro rubber \| Bore: 16 mm \| Locating hole: Yes
CKW-F20DN-HP1		Rubber cover: Fluoro rubber \| Bore: 20 mm \| Locating hole: None
CKW-F20DA-HP1		Rubber cover: Fluoro rubber \| Bore: 20 mm \| Locating hole: Yes
CKW-F25DN-HP1		Rubber cover: Fluoro rubber \| Bore: 25 mm \| Locating hole: None
CKW-F25DA-HP1		Rubber cover: Fluoro rubber \| Bore: 25 mm \| Locating hole: Yes
CKW-F32DN-HP1		Rubber cover: Fluoro rubber \| Bore: 32 mm \| Locating hole: None
CKW-F32DA-HP1		Rubber cover: Fluoro rubber \| Bore: 32 mm \| Locating hole: Yes
CKW-F40DN-HP1		Rubber cover: Fluoro rubber \| Bore: 40 mm \| Locating hole: None
CKW-F40DA-HP1		Rubber cover: Fluoro rubber \| Bore: 40 mm \| Locating hole: Yes

Air GrippersCKD

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CKW-G/CKW-F-HP1 3-Jaw Chuck (Long-Life, Rubber Cover)

Brand CKD·Air Grippers

Available part numbers (20)

CKW-G16DN-HP1, CKW-G16DA-HP1, CKW-G20DN-HP1, CKW-G20DA-HP1, CKW-G25DN-HP1, CKW-G25DA-HP1, CKW-G32DN-HP1, CKW-G32DA-HP1, CKW-G40DN-HP1, CKW-G40DA-HP1 + 10 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
