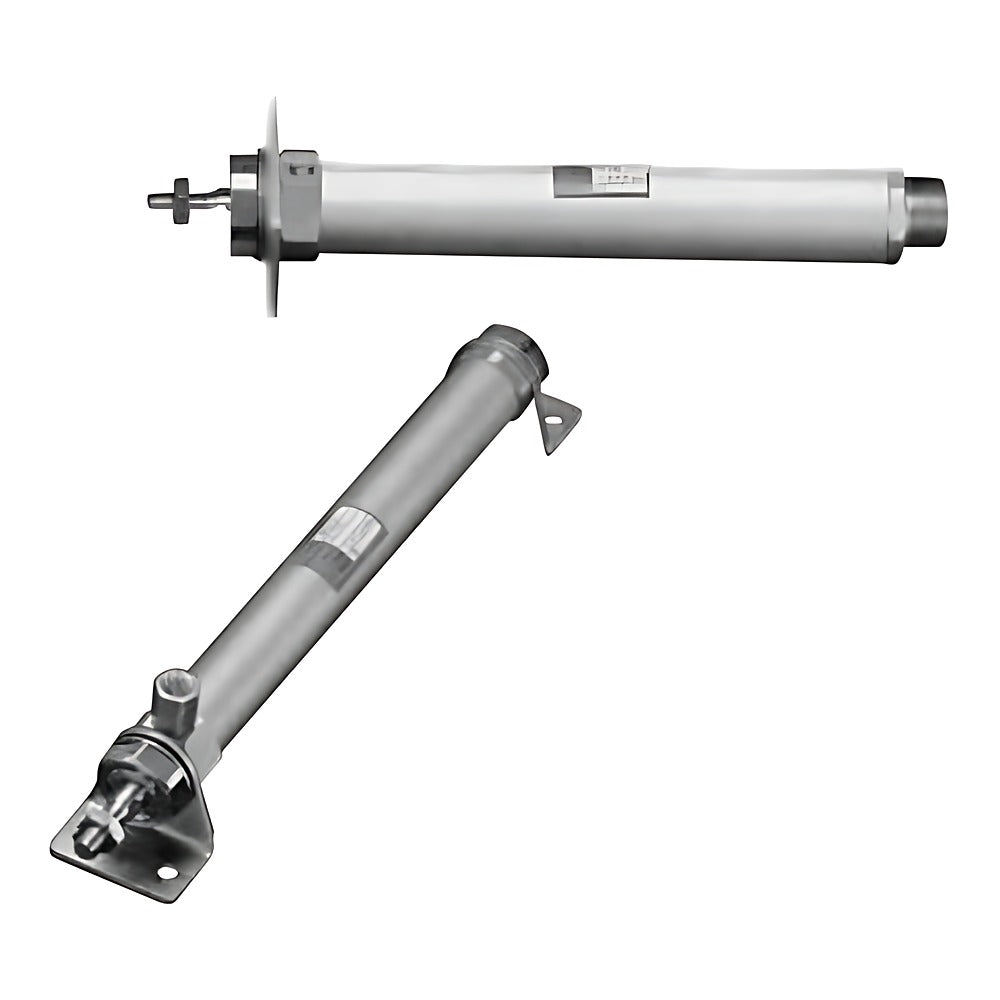

CKD CMA2-E Micro Cylinder (Double Acting, Direct Mount)

CKD CMA2-E Micro Cylinder (Double Acting, Direct Mount)

CKD CMA2-E micro cylinder is a direct-mount double-acting version of the CMA2 with integral side-foot or flange mounting.

Key features

  • Direct mounting: LS side foot or FA flange
  • Bores 20, 30 and 40 mm; standard strokes 25-300 mm, max. 700 mm
  • Auto-switch magnet built in; T-type switches with band and rail mounting
  • Option M stainless piston rod; I/Y rod-end accessories ordered separately
  • Internal structure identical to standard CMA2

Specifications

Bore sizes 20, 30, 40 mm
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.0 MPa
Ambient temperature -10 to 60 C
Port size Rc1/8
Piston speed 50-500 mm/s
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 310-315
