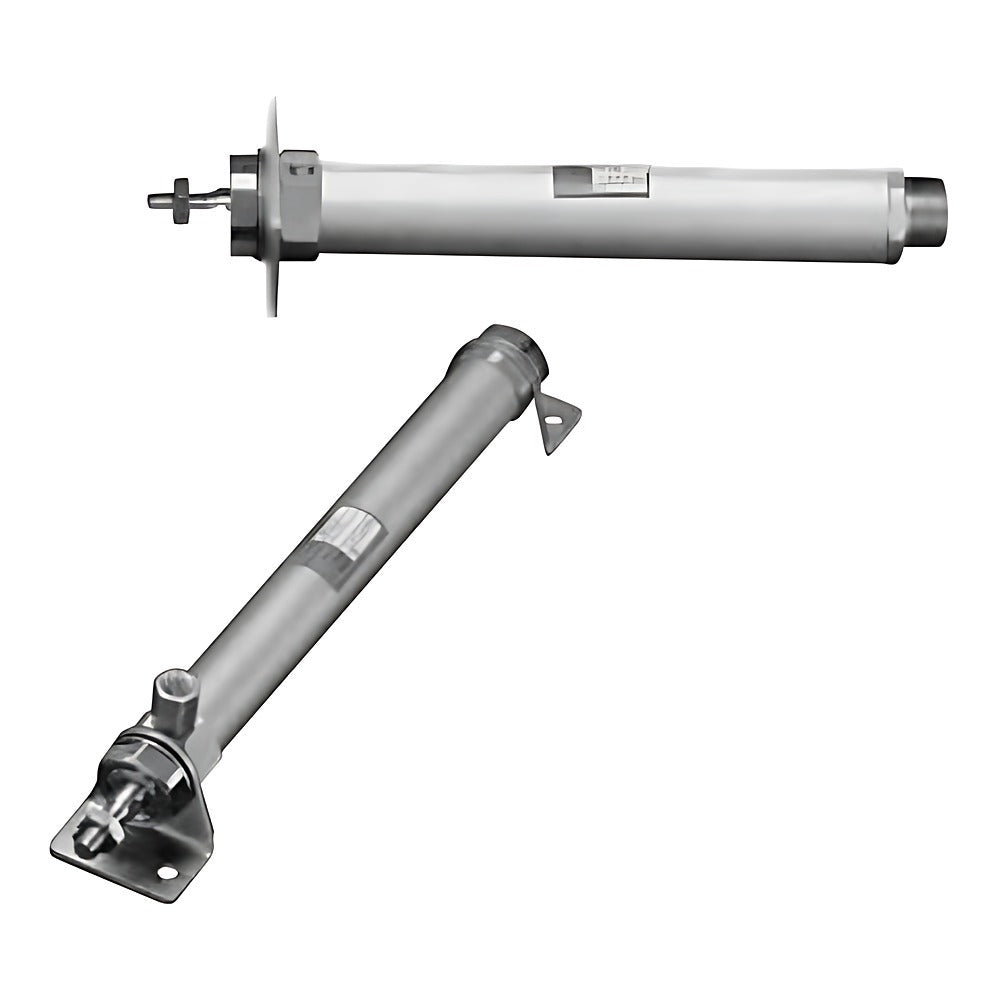

CKD CMA2 Micro Cylinder (Double Acting, Single Rod)

CKD CMA2 Micro Cylinder (Double Acting, Single Rod)

CKD CMA2 micro cylinder is a compact, disassemblable double-acting single-rod round-body cylinder in bores 20, 30 and 40 mm.

Key features

  • Disassemblable round-body design for medium bores 20-40 mm
  • Nine mounting styles; one-side axial foot (LS) limited to 50 mm stroke
  • Auto-switch magnet built in; T-type reed and solid-state switches mounted with band and rail
  • Options J/L bellows, M stainless rod, P same-direction ports and P6; I/Y/B2 accessories ordered separately
  • Standard strokes 25-300 mm, max. 700 mm (up to 1000/1200/1500 mm made to order)

Specifications

Bore sizes 20, 30, 40 mm
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C
Port size Rc1/8
Piston speed 50-500 mm/s
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 293-309
CMA2-00-20-25 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMA2-00-20-50 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMA2-00-20-75 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMA2-00-20-100 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMA2-00-20-150 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMA2-00-20-200 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMA2-00-20-250 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMA2-00-20-300 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMA2-00-30-25 Mounting: Basic | Bore: 30 mm | Stroke: 25 mm
CMA2-00-30-50 Mounting: Basic | Bore: 30 mm | Stroke: 50 mm
CMA2-00-30-75 Mounting: Basic | Bore: 30 mm | Stroke: 75 mm
CMA2-00-30-100 Mounting: Basic | Bore: 30 mm | Stroke: 100 mm
CMA2-00-30-150 Mounting: Basic | Bore: 30 mm | Stroke: 150 mm
CMA2-00-30-200 Mounting: Basic | Bore: 30 mm | Stroke: 200 mm
CMA2-00-30-250 Mounting: Basic | Bore: 30 mm | Stroke: 250 mm
CMA2-00-30-300 Mounting: Basic | Bore: 30 mm | Stroke: 300 mm
CMA2-00-40-25 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMA2-00-40-50 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMA2-00-40-75 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMA2-00-40-100 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMA2-00-40-150 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMA2-00-40-200 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMA2-00-40-250 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMA2-00-40-300 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMA2-LB-20-25 Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
CMA2-LB-20-50 Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
CMA2-LB-20-75 Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
CMA2-LB-20-100 Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
CMA2-LB-20-150 Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
CMA2-LB-20-200 Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
CMA2-LB-20-250 Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm
CMA2-LB-20-300 Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm
CMA2-LB-30-25 Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm
CMA2-LB-30-50 Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm
CMA2-LB-30-75 Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm
CMA2-LB-30-100 Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm
CMA2-LB-30-150 Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm
CMA2-LB-30-200 Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm
CMA2-LB-30-250 Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm
CMA2-LB-30-300 Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm
CMA2-LB-40-25 Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
CMA2-LB-40-50 Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
CMA2-LB-40-75 Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
CMA2-LB-40-100 Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
CMA2-LB-40-150 Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
CMA2-LB-40-200 Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
CMA2-LB-40-250 Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm
CMA2-LB-40-300 Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm
CMA2-LS-20-25 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMA2-LS-20-50 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMA2-LS-30-25 Mounting: Axial foot, one side | Bore: 30 mm | Stroke: 25 mm
CMA2-LS-30-50 Mounting: Axial foot, one side | Bore: 30 mm | Stroke: 50 mm
CMA2-LS-40-25 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMA2-LS-40-50 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMA2-FA-20-25 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
CMA2-FA-20-50 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
CMA2-FA-20-75 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
CMA2-FA-20-100 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
CMA2-FA-20-150 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
CMA2-FA-20-200 Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
CMA2-FA-20-250 Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm
CMA2-FA-20-300 Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm
CMA2-FA-30-25 Mounting: Rod flange | Bore: 30 mm | Stroke: 25 mm
CMA2-FA-30-50 Mounting: Rod flange | Bore: 30 mm | Stroke: 50 mm
CMA2-FA-30-75 Mounting: Rod flange | Bore: 30 mm | Stroke: 75 mm
CMA2-FA-30-100 Mounting: Rod flange | Bore: 30 mm | Stroke: 100 mm
CMA2-FA-30-150 Mounting: Rod flange | Bore: 30 mm | Stroke: 150 mm
CMA2-FA-30-200 Mounting: Rod flange | Bore: 30 mm | Stroke: 200 mm
CMA2-FA-30-250 Mounting: Rod flange | Bore: 30 mm | Stroke: 250 mm
CMA2-FA-30-300 Mounting: Rod flange | Bore: 30 mm | Stroke: 300 mm
CMA2-FA-40-25 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
CMA2-FA-40-50 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
CMA2-FA-40-75 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
CMA2-FA-40-100 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
CMA2-FA-40-150 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
CMA2-FA-40-200 Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
CMA2-FA-40-250 Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm
CMA2-FA-40-300 Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm
CMA2-FB-20-25 Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
CMA2-FB-20-50 Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
CMA2-FB-20-75 Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
CMA2-FB-20-100 Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
CMA2-FB-20-150 Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
CMA2-FB-20-200 Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
CMA2-FB-20-250 Mounting: Head flange | Bore: 20 mm | Stroke: 250 mm
CMA2-FB-20-300 Mounting: Head flange | Bore: 20 mm | Stroke: 300 mm
CMA2-FB-30-25 Mounting: Head flange | Bore: 30 mm | Stroke: 25 mm
CMA2-FB-30-50 Mounting: Head flange | Bore: 30 mm | Stroke: 50 mm
CMA2-FB-30-75 Mounting: Head flange | Bore: 30 mm | Stroke: 75 mm
CMA2-FB-30-100 Mounting: Head flange | Bore: 30 mm | Stroke: 100 mm
CMA2-FB-30-150 Mounting: Head flange | Bore: 30 mm | Stroke: 150 mm
CMA2-FB-30-200 Mounting: Head flange | Bore: 30 mm | Stroke: 200 mm
CMA2-FB-30-250 Mounting: Head flange | Bore: 30 mm | Stroke: 250 mm
CMA2-FB-30-300 Mounting: Head flange | Bore: 30 mm | Stroke: 300 mm
CMA2-FB-40-25 Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
CMA2-FB-40-50 Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
CMA2-FB-40-75 Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
CMA2-FB-40-100 Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
CMA2-FB-40-150 Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
CMA2-FB-40-200 Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
CMA2-FB-40-250 Mounting: Head flange | Bore: 40 mm | Stroke: 250 mm
CMA2-FB-40-300 Mounting: Head flange | Bore: 40 mm | Stroke: 300 mm
CMA2-CA-20-25 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMA2-CA-20-50 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMA2-CA-20-75 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMA2-CA-20-100 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMA2-CA-20-150 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMA2-CA-20-200 Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMA2-CA-20-250 Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMA2-CA-20-300 Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMA2-CA-30-25 Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm
CMA2-CA-30-50 Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm
CMA2-CA-30-75 Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm
CMA2-CA-30-100 Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm
CMA2-CA-30-150 Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm
CMA2-CA-30-200 Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm
CMA2-CA-30-250 Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm
CMA2-CA-30-300 Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm
CMA2-CA-40-25 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMA2-CA-40-50 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMA2-CA-40-75 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMA2-CA-40-100 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMA2-CA-40-150 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMA2-CA-40-200 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMA2-CA-40-250 Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMA2-CA-40-300 Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMA2-CB-20-25 Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMA2-CB-20-50 Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMA2-CB-20-75 Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMA2-CB-20-100 Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMA2-CB-20-150 Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMA2-CB-20-200 Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMA2-CB-20-250 Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMA2-CB-20-300 Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMA2-CB-30-25 Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm
CMA2-CB-30-50 Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm
CMA2-CB-30-75 Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm
CMA2-CB-30-100 Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm
CMA2-CB-30-150 Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm
CMA2-CB-30-200 Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm
CMA2-CB-30-250 Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm
CMA2-CB-30-300 Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm
CMA2-CB-40-25 Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMA2-CB-40-50 Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMA2-CB-40-75 Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMA2-CB-40-100 Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMA2-CB-40-150 Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMA2-CB-40-200 Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMA2-CB-40-250 Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMA2-CB-40-300 Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMA2-TA-20-25 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
CMA2-TA-20-50 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
CMA2-TA-20-75 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
CMA2-TA-20-100 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
CMA2-TA-20-150 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
CMA2-TA-20-200 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
CMA2-TA-20-250 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm
CMA2-TA-20-300 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm
CMA2-TA-30-25 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 25 mm
CMA2-TA-30-50 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 50 mm
CMA2-TA-30-75 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 75 mm
CMA2-TA-30-100 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 100 mm
CMA2-TA-30-150 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 150 mm
CMA2-TA-30-200 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 200 mm
CMA2-TA-30-250 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 250 mm
CMA2-TA-30-300 Mounting: Rod trunnion | Bore: 30 mm | Stroke: 300 mm
CMA2-TA-40-25 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
CMA2-TA-40-50 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
CMA2-TA-40-75 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
CMA2-TA-40-100 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
CMA2-TA-40-150 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
CMA2-TA-40-200 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
CMA2-TA-40-250 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm
CMA2-TA-40-300 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm
CMA2-TB-20-25 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
CMA2-TB-20-50 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
CMA2-TB-20-75 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
CMA2-TB-20-100 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
CMA2-TB-20-150 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
CMA2-TB-20-200 Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
CMA2-TB-20-250 Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm
CMA2-TB-20-300 Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm
CMA2-TB-30-25 Mounting: Head trunnion | Bore: 30 mm | Stroke: 25 mm
CMA2-TB-30-50 Mounting: Head trunnion | Bore: 30 mm | Stroke: 50 mm
CMA2-TB-30-75 Mounting: Head trunnion | Bore: 30 mm | Stroke: 75 mm
CMA2-TB-30-100 Mounting: Head trunnion | Bore: 30 mm | Stroke: 100 mm
CMA2-TB-30-150 Mounting: Head trunnion | Bore: 30 mm | Stroke: 150 mm
CMA2-TB-30-200 Mounting: Head trunnion | Bore: 30 mm | Stroke: 200 mm
CMA2-TB-30-250 Mounting: Head trunnion | Bore: 30 mm | Stroke: 250 mm
CMA2-TB-30-300 Mounting: Head trunnion | Bore: 30 mm | Stroke: 300 mm
CMA2-TB-40-25 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
CMA2-TB-40-50 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
CMA2-TB-40-75 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
CMA2-TB-40-100 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
CMA2-TB-40-150 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
CMA2-TB-40-200 Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm
CMA2-TB-40-250 Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm
CMA2-TB-40-300 Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMA2 Micro Cylinder (Double Acting, Single Rod)

Brand CKD·Pneumatic Cylinders

Available part numbers (198)

CMA2-00-20-25, CMA2-00-20-50, CMA2-00-20-75, CMA2-00-20-100, CMA2-00-20-150, CMA2-00-20-200, CMA2-00-20-250, CMA2-00-20-300, CMA2-00-30-25, CMA2-00-30-50 + 188 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMA2-00-20-25Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMA2-00-20-50Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMA2-00-20-75Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMA2-00-20-100Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMA2-00-20-150Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMA2-00-20-200Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMA2-00-20-250Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMA2-00-20-300Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMA2-00-30-25Mounting: Basic | Bore: 30 mm | Stroke: 25 mm
CMA2-00-30-50Mounting: Basic | Bore: 30 mm | Stroke: 50 mm
CMA2-00-30-75Mounting: Basic | Bore: 30 mm | Stroke: 75 mm
CMA2-00-30-100Mounting: Basic | Bore: 30 mm | Stroke: 100 mm
CMA2-00-30-150Mounting: Basic | Bore: 30 mm | Stroke: 150 mm
CMA2-00-30-200Mounting: Basic | Bore: 30 mm | Stroke: 200 mm
CMA2-00-30-250Mounting: Basic | Bore: 30 mm | Stroke: 250 mm
CMA2-00-30-300Mounting: Basic | Bore: 30 mm | Stroke: 300 mm
CMA2-00-40-25Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMA2-00-40-50Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMA2-00-40-75Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMA2-00-40-100Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMA2-00-40-150Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMA2-00-40-200Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMA2-00-40-250Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMA2-00-40-300Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMA2-LB-20-25Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm
CMA2-LB-20-50Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm
CMA2-LB-20-75Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm
CMA2-LB-20-100Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm
CMA2-LB-20-150Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm
CMA2-LB-20-200Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm
CMA2-LB-20-250Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm
CMA2-LB-20-300Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm
CMA2-LB-30-25Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm
CMA2-LB-30-50Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm
CMA2-LB-30-75Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm
CMA2-LB-30-100Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm
CMA2-LB-30-150Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm
CMA2-LB-30-200Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm
CMA2-LB-30-250Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm
CMA2-LB-30-300Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm
CMA2-LB-40-25Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm
CMA2-LB-40-50Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
CMA2-LB-40-75Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
CMA2-LB-40-100Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
CMA2-LB-40-150Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
CMA2-LB-40-200Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
CMA2-LB-40-250Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm
CMA2-LB-40-300Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm
CMA2-LS-20-25Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMA2-LS-20-50Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMA2-LS-30-25Mounting: Axial foot, one side | Bore: 30 mm | Stroke: 25 mm
CMA2-LS-30-50Mounting: Axial foot, one side | Bore: 30 mm | Stroke: 50 mm
CMA2-LS-40-25Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMA2-LS-40-50Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMA2-FA-20-25Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
CMA2-FA-20-50Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
CMA2-FA-20-75Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
CMA2-FA-20-100Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
CMA2-FA-20-150Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
CMA2-FA-20-200Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
CMA2-FA-20-250Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm
CMA2-FA-20-300Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm
CMA2-FA-30-25Mounting: Rod flange | Bore: 30 mm | Stroke: 25 mm
CMA2-FA-30-50Mounting: Rod flange | Bore: 30 mm | Stroke: 50 mm
CMA2-FA-30-75Mounting: Rod flange | Bore: 30 mm | Stroke: 75 mm
CMA2-FA-30-100Mounting: Rod flange | Bore: 30 mm | Stroke: 100 mm
CMA2-FA-30-150Mounting: Rod flange | Bore: 30 mm | Stroke: 150 mm
CMA2-FA-30-200Mounting: Rod flange | Bore: 30 mm | Stroke: 200 mm
CMA2-FA-30-250Mounting: Rod flange | Bore: 30 mm | Stroke: 250 mm
CMA2-FA-30-300Mounting: Rod flange | Bore: 30 mm | Stroke: 300 mm
CMA2-FA-40-25Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
CMA2-FA-40-50Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
CMA2-FA-40-75Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
CMA2-FA-40-100Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
CMA2-FA-40-150Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
CMA2-FA-40-200Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
CMA2-FA-40-250Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm
CMA2-FA-40-300Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm
CMA2-FB-20-25Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
CMA2-FB-20-50Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
CMA2-FB-20-75Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
CMA2-FB-20-100Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
CMA2-FB-20-150Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
CMA2-FB-20-200Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
CMA2-FB-20-250Mounting: Head flange | Bore: 20 mm | Stroke: 250 mm
CMA2-FB-20-300Mounting: Head flange | Bore: 20 mm | Stroke: 300 mm
CMA2-FB-30-25Mounting: Head flange | Bore: 30 mm | Stroke: 25 mm
CMA2-FB-30-50Mounting: Head flange | Bore: 30 mm | Stroke: 50 mm
CMA2-FB-30-75Mounting: Head flange | Bore: 30 mm | Stroke: 75 mm
CMA2-FB-30-100Mounting: Head flange | Bore: 30 mm | Stroke: 100 mm
CMA2-FB-30-150Mounting: Head flange | Bore: 30 mm | Stroke: 150 mm
CMA2-FB-30-200Mounting: Head flange | Bore: 30 mm | Stroke: 200 mm
CMA2-FB-30-250Mounting: Head flange | Bore: 30 mm | Stroke: 250 mm
CMA2-FB-30-300Mounting: Head flange | Bore: 30 mm | Stroke: 300 mm
CMA2-FB-40-25Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
CMA2-FB-40-50Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
CMA2-FB-40-75Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
CMA2-FB-40-100Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
CMA2-FB-40-150Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
CMA2-FB-40-200Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
CMA2-FB-40-250Mounting: Head flange | Bore: 40 mm | Stroke: 250 mm
CMA2-FB-40-300Mounting: Head flange | Bore: 40 mm | Stroke: 300 mm
CMA2-CA-20-25Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMA2-CA-20-50Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMA2-CA-20-75Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMA2-CA-20-100Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMA2-CA-20-150Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMA2-CA-20-200Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMA2-CA-20-250Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMA2-CA-20-300Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMA2-CA-30-25Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm
CMA2-CA-30-50Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm
CMA2-CA-30-75Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm
CMA2-CA-30-100Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm
CMA2-CA-30-150Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm
CMA2-CA-30-200Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm
CMA2-CA-30-250Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm
CMA2-CA-30-300Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm
CMA2-CA-40-25Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMA2-CA-40-50Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMA2-CA-40-75Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMA2-CA-40-100Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMA2-CA-40-150Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMA2-CA-40-200Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMA2-CA-40-250Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMA2-CA-40-300Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMA2-CB-20-25Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMA2-CB-20-50Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMA2-CB-20-75Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMA2-CB-20-100Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMA2-CB-20-150Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMA2-CB-20-200Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMA2-CB-20-250Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMA2-CB-20-300Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMA2-CB-30-25Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm
CMA2-CB-30-50Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm
CMA2-CB-30-75Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm
CMA2-CB-30-100Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm
CMA2-CB-30-150Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm
CMA2-CB-30-200Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm
CMA2-CB-30-250Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm
CMA2-CB-30-300Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm
CMA2-CB-40-25Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMA2-CB-40-50Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMA2-CB-40-75Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMA2-CB-40-100Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMA2-CB-40-150Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMA2-CB-40-200Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMA2-CB-40-250Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMA2-CB-40-300Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMA2-TA-20-25Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
CMA2-TA-20-50Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
CMA2-TA-20-75Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
CMA2-TA-20-100Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
CMA2-TA-20-150Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
CMA2-TA-20-200Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
CMA2-TA-20-250Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm
CMA2-TA-20-300Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm
CMA2-TA-30-25Mounting: Rod trunnion | Bore: 30 mm | Stroke: 25 mm
CMA2-TA-30-50Mounting: Rod trunnion | Bore: 30 mm | Stroke: 50 mm
CMA2-TA-30-75Mounting: Rod trunnion | Bore: 30 mm | Stroke: 75 mm
CMA2-TA-30-100Mounting: Rod trunnion | Bore: 30 mm | Stroke: 100 mm
CMA2-TA-30-150Mounting: Rod trunnion | Bore: 30 mm | Stroke: 150 mm
CMA2-TA-30-200Mounting: Rod trunnion | Bore: 30 mm | Stroke: 200 mm
CMA2-TA-30-250Mounting: Rod trunnion | Bore: 30 mm | Stroke: 250 mm
CMA2-TA-30-300Mounting: Rod trunnion | Bore: 30 mm | Stroke: 300 mm
CMA2-TA-40-25Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
CMA2-TA-40-50Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
CMA2-TA-40-75Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
CMA2-TA-40-100Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
CMA2-TA-40-150Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
CMA2-TA-40-200Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
CMA2-TA-40-250Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm
CMA2-TA-40-300Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm
CMA2-TB-20-25Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
CMA2-TB-20-50Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
CMA2-TB-20-75Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
CMA2-TB-20-100Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
CMA2-TB-20-150Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
CMA2-TB-20-200Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
CMA2-TB-20-250Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm
CMA2-TB-20-300Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm
CMA2-TB-30-25Mounting: Head trunnion | Bore: 30 mm | Stroke: 25 mm
CMA2-TB-30-50Mounting: Head trunnion | Bore: 30 mm | Stroke: 50 mm
CMA2-TB-30-75Mounting: Head trunnion | Bore: 30 mm | Stroke: 75 mm
CMA2-TB-30-100Mounting: Head trunnion | Bore: 30 mm | Stroke: 100 mm
CMA2-TB-30-150Mounting: Head trunnion | Bore: 30 mm | Stroke: 150 mm
CMA2-TB-30-200Mounting: Head trunnion | Bore: 30 mm | Stroke: 200 mm
CMA2-TB-30-250Mounting: Head trunnion | Bore: 30 mm | Stroke: 250 mm
CMA2-TB-30-300Mounting: Head trunnion | Bore: 30 mm | Stroke: 300 mm
CMA2-TB-40-25Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
CMA2-TB-40-50Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
CMA2-TB-40-75Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
CMA2-TB-40-100Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
CMA2-TB-40-150Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
CMA2-TB-40-200Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm
CMA2-TB-40-250Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm
CMA2-TB-40-300Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
