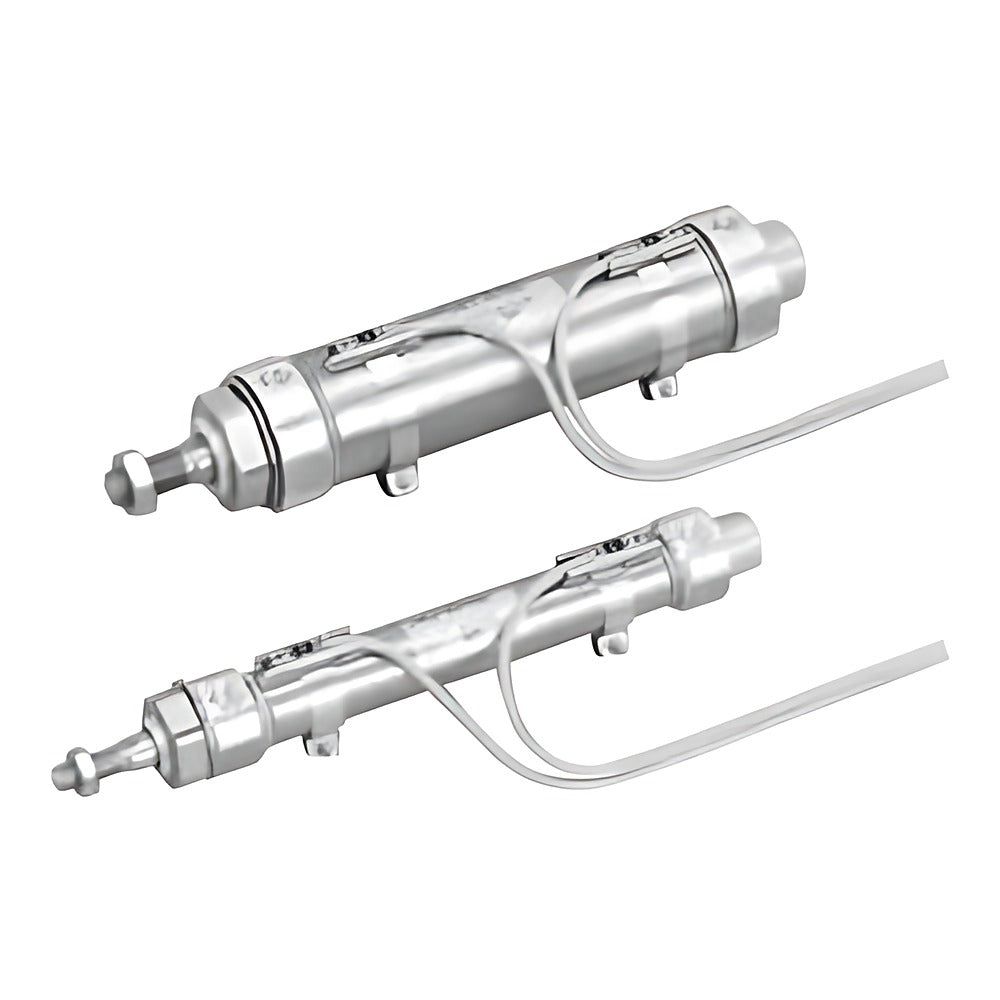

CKD CMK2-*C Tight Cylinder (Rubber Air Cushion)

CKD CMK2-*C Tight Cylinder (Rubber Air Cushion)

CKD CMK2-*C double-acting tight cylinder with rubber air cushion for reduced impact noise and acceleration, bores 20 to 40 mm.

Key features

  • Cushion symbol C follows the bore (e.g. CMK2-00-20C-100)
  • Standard strokes 25 to 300 mm; max. 750 mm (650 mm with bellows)
  • Mounting: 00, LB, LS, FA, FB, CA, CC, CC1, CB, TA, TB (LS max. stroke 50 mm)
  • Magnet for switches built in as standard; auto switches T0/T5/T8 (reed), T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J (solid state) added after the stroke with quantity R/H/D/T (max. 3)
  • Options J/L bellows, F/FE fittings, M stainless rod, V boss cut; I/Y/B2 suffix

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.6 MPa
Port size Rc1/8
Ambient temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber air cushion
Source CKD Korea catalog CB-029SK-9, p. 216-223
CMK2-00-20C-25 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-00-20C-50 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-00-20C-75 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-00-20C-100 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-00-20C-150 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-00-20C-200 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-00-20C-250 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-00-20C-300 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-00-25C-25 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-00-25C-50 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-00-25C-75 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-00-25C-100 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-00-25C-150 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-00-25C-200 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-00-25C-250 Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-00-25C-300 Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-00-32C-25 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-00-32C-50 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-00-32C-75 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-00-32C-100 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-00-32C-150 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-00-32C-200 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-00-32C-250 Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-00-32C-300 Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-00-40C-25 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-00-40C-50 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-00-40C-75 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-00-40C-100 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-00-40C-150 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-00-40C-200 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-00-40C-250 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-00-40C-300 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-LB-20C-25 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-LB-20C-50 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-LB-20C-75 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-LB-20C-100 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-LB-20C-150 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-LB-20C-200 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-LB-20C-250 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-LB-20C-300 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-LB-25C-25 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-LB-25C-50 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-LB-25C-75 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-LB-25C-100 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-LB-25C-150 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-LB-25C-200 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-LB-25C-250 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-LB-25C-300 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-LB-32C-25 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-LB-32C-50 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-LB-32C-75 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-LB-32C-100 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-LB-32C-150 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-LB-32C-200 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-LB-32C-250 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-LB-32C-300 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-LB-40C-25 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-LB-40C-50 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-LB-40C-75 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-LB-40C-100 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-LB-40C-150 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-LB-40C-200 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-LB-40C-250 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-LB-40C-300 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-LS-20C-25 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-LS-20C-50 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-LS-25C-25 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-LS-25C-50 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-LS-32C-25 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-LS-32C-50 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-LS-40C-25 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-LS-40C-50 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-FA-20C-25 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-FA-20C-50 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-FA-20C-75 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-FA-20C-100 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-FA-20C-150 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-FA-20C-200 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-FA-20C-250 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-FA-20C-300 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-FA-25C-25 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-FA-25C-50 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-FA-25C-75 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-FA-25C-100 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-FA-25C-150 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-FA-25C-200 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-FA-25C-250 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-FA-25C-300 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-FA-32C-25 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-FA-32C-50 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-FA-32C-75 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-FA-32C-100 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-FA-32C-150 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-FA-32C-200 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-FA-32C-250 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-FA-32C-300 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-FA-40C-25 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-FA-40C-50 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-FA-40C-75 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-FA-40C-100 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-FA-40C-150 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-FA-40C-200 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-FA-40C-250 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-FA-40C-300 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-FB-20C-25 Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-FB-20C-50 Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-FB-20C-75 Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-FB-20C-100 Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-FB-20C-150 Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-FB-20C-200 Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-FB-20C-250 Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-FB-20C-300 Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-FB-25C-25 Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-FB-25C-50 Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-FB-25C-75 Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-FB-25C-100 Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-FB-25C-150 Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-FB-25C-200 Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-FB-25C-250 Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-FB-25C-300 Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-FB-32C-25 Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-FB-32C-50 Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-FB-32C-75 Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-FB-32C-100 Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-FB-32C-150 Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-FB-32C-200 Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-FB-32C-250 Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-FB-32C-300 Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-FB-40C-25 Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-FB-40C-50 Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-FB-40C-75 Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-FB-40C-100 Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-FB-40C-150 Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-FB-40C-200 Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-FB-40C-250 Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-FB-40C-300 Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-CA-20C-25 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-CA-20C-50 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-CA-20C-75 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-CA-20C-100 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-CA-20C-150 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-CA-20C-200 Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-CA-20C-250 Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-CA-20C-300 Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-CA-25C-25 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-CA-25C-50 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-CA-25C-75 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-CA-25C-100 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-CA-25C-150 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-CA-25C-200 Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-CA-25C-250 Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-CA-25C-300 Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-CA-32C-25 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-CA-32C-50 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-CA-32C-75 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-CA-32C-100 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-CA-32C-150 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-CA-32C-200 Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-CA-32C-250 Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-CA-32C-300 Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-CA-40C-25 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-CA-40C-50 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-CA-40C-75 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-CA-40C-100 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-CA-40C-150 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-CA-40C-200 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-CA-40C-250 Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-CA-40C-300 Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-CC-20C-25 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-CC-20C-50 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-CC-20C-75 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-CC-20C-100 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-CC-20C-150 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-CC-20C-200 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-CC-20C-250 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-CC-20C-300 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-CC-25C-25 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-CC-25C-50 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-CC-25C-75 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-CC-25C-100 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-CC-25C-150 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-CC-25C-200 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-CC-25C-250 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-CC-25C-300 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-CC-32C-25 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-CC-32C-50 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-CC-32C-75 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-CC-32C-100 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-CC-32C-150 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-CC-32C-200 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-CC-32C-250 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-CC-32C-300 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-CC-40C-25 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-CC-40C-50 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-CC-40C-75 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-CC-40C-100 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-CC-40C-150 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-CC-40C-200 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-CC-40C-250 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-CC-40C-300 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-CC1-20C-25 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 25 mm
CMK2-CC1-20C-50 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 50 mm
CMK2-CC1-20C-75 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 75 mm
CMK2-CC1-20C-100 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 100 mm
CMK2-CC1-20C-150 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 150 mm
CMK2-CC1-20C-200 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 200 mm
CMK2-CC1-20C-250 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 250 mm
CMK2-CC1-20C-300 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 300 mm
CMK2-CC1-25C-25 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 25 mm
CMK2-CC1-25C-50 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 50 mm
CMK2-CC1-25C-75 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 75 mm
CMK2-CC1-25C-100 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 100 mm
CMK2-CC1-25C-150 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 150 mm
CMK2-CC1-25C-200 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 200 mm
CMK2-CC1-25C-250 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 250 mm
CMK2-CC1-25C-300 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 300 mm
CMK2-CC1-32C-25 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 25 mm
CMK2-CC1-32C-50 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 50 mm
CMK2-CC1-32C-75 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 75 mm
CMK2-CC1-32C-100 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 100 mm
CMK2-CC1-32C-150 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 150 mm
CMK2-CC1-32C-200 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 200 mm
CMK2-CC1-32C-250 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 250 mm
CMK2-CC1-32C-300 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 300 mm
CMK2-CC1-40C-25 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 25 mm
CMK2-CC1-40C-50 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 50 mm
CMK2-CC1-40C-75 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 75 mm
CMK2-CC1-40C-100 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 100 mm
CMK2-CC1-40C-150 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 150 mm
CMK2-CC1-40C-200 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 200 mm
CMK2-CC1-40C-250 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 250 mm
CMK2-CC1-40C-300 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 300 mm
CMK2-CB-20C-25 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm
CMK2-CB-20C-50 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm
CMK2-CB-20C-75 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm
CMK2-CB-20C-100 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm
CMK2-CB-20C-150 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm
CMK2-CB-20C-200 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm
CMK2-CB-20C-250 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm
CMK2-CB-20C-300 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm
CMK2-CB-25C-25 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm
CMK2-CB-25C-50 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm
CMK2-CB-25C-75 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm
CMK2-CB-25C-100 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm
CMK2-CB-25C-150 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm
CMK2-CB-25C-200 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm
CMK2-CB-25C-250 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm
CMK2-CB-25C-300 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm
CMK2-CB-32C-25 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm
CMK2-CB-32C-50 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm
CMK2-CB-32C-75 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm
CMK2-CB-32C-100 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm
CMK2-CB-32C-150 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm
CMK2-CB-32C-200 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm
CMK2-CB-32C-250 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm
CMK2-CB-32C-300 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm
CMK2-CB-40C-25 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm
CMK2-CB-40C-50 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm
CMK2-CB-40C-75 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm
CMK2-CB-40C-100 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm
CMK2-CB-40C-150 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm
CMK2-CB-40C-200 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm
CMK2-CB-40C-250 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm
CMK2-CB-40C-300 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm
CMK2-TA-20C-25 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-TA-20C-50 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-TA-20C-75 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-TA-20C-100 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-TA-20C-150 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-TA-20C-200 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-TA-20C-250 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-TA-20C-300 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-TA-25C-25 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-TA-25C-50 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-TA-25C-75 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-TA-25C-100 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-TA-25C-150 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-TA-25C-200 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-TA-25C-250 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-TA-25C-300 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-TA-32C-25 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-TA-32C-50 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-TA-32C-75 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-TA-32C-100 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-TA-32C-150 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-TA-32C-200 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-TA-32C-250 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-TA-32C-300 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-TA-40C-25 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-TA-40C-50 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-TA-40C-75 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-TA-40C-100 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-TA-40C-150 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-TA-40C-200 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-TA-40C-250 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-TA-40C-300 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-TB-20C-25 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-TB-20C-50 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-TB-20C-75 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-TB-20C-100 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-TB-20C-150 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-TB-20C-200 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-TB-20C-250 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-TB-20C-300 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-TB-25C-25 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-TB-25C-50 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-TB-25C-75 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-TB-25C-100 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-TB-25C-150 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-TB-25C-200 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-TB-25C-250 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-TB-25C-300 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-TB-32C-25 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-TB-32C-50 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-TB-32C-75 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-TB-32C-100 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-TB-32C-150 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-TB-32C-200 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-TB-32C-250 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-TB-32C-300 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-TB-40C-25 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-TB-40C-50 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-TB-40C-75 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-TB-40C-100 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-TB-40C-150 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-TB-40C-200 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-TB-40C-250 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-TB-40C-300 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-*C Tight Cylinder (Rubber Air Cushion)

Brand CKD·Pneumatic Cylinders

Available part numbers (328)

CMK2-00-20C-25, CMK2-00-20C-50, CMK2-00-20C-75, CMK2-00-20C-100, CMK2-00-20C-150, CMK2-00-20C-200, CMK2-00-20C-250, CMK2-00-20C-300, CMK2-00-25C-25, CMK2-00-25C-50 + 318 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-00-20C-25Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-00-20C-50Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-00-20C-75Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-00-20C-100Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-00-20C-150Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-00-20C-200Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-00-20C-250Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-00-20C-300Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-00-25C-25Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-00-25C-50Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-00-25C-75Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-00-25C-100Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-00-25C-150Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-00-25C-200Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-00-25C-250Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-00-25C-300Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-00-32C-25Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-00-32C-50Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-00-32C-75Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-00-32C-100Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-00-32C-150Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-00-32C-200Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-00-32C-250Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-00-32C-300Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-00-40C-25Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-00-40C-50Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-00-40C-75Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-00-40C-100Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-00-40C-150Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-00-40C-200Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-00-40C-250Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-00-40C-300Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-LB-20C-25Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-LB-20C-50Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-LB-20C-75Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-LB-20C-100Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-LB-20C-150Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-LB-20C-200Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-LB-20C-250Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-LB-20C-300Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-LB-25C-25Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-LB-25C-50Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-LB-25C-75Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-LB-25C-100Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-LB-25C-150Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-LB-25C-200Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-LB-25C-250Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-LB-25C-300Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-LB-32C-25Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-LB-32C-50Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-LB-32C-75Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-LB-32C-100Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-LB-32C-150Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-LB-32C-200Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-LB-32C-250Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-LB-32C-300Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-LB-40C-25Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-LB-40C-50Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-LB-40C-75Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-LB-40C-100Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-LB-40C-150Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-LB-40C-200Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-LB-40C-250Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-LB-40C-300Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-LS-20C-25Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-LS-20C-50Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-LS-25C-25Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-LS-25C-50Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-LS-32C-25Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-LS-32C-50Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-LS-40C-25Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-LS-40C-50Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-FA-20C-25Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-FA-20C-50Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-FA-20C-75Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-FA-20C-100Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-FA-20C-150Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-FA-20C-200Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-FA-20C-250Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-FA-20C-300Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-FA-25C-25Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-FA-25C-50Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-FA-25C-75Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-FA-25C-100Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-FA-25C-150Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-FA-25C-200Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-FA-25C-250Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-FA-25C-300Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-FA-32C-25Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-FA-32C-50Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-FA-32C-75Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-FA-32C-100Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-FA-32C-150Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-FA-32C-200Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-FA-32C-250Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-FA-32C-300Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-FA-40C-25Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-FA-40C-50Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-FA-40C-75Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-FA-40C-100Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-FA-40C-150Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-FA-40C-200Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-FA-40C-250Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-FA-40C-300Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-FB-20C-25Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-FB-20C-50Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-FB-20C-75Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-FB-20C-100Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-FB-20C-150Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-FB-20C-200Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-FB-20C-250Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-FB-20C-300Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-FB-25C-25Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-FB-25C-50Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-FB-25C-75Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-FB-25C-100Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-FB-25C-150Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-FB-25C-200Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-FB-25C-250Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-FB-25C-300Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-FB-32C-25Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-FB-32C-50Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-FB-32C-75Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-FB-32C-100Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-FB-32C-150Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-FB-32C-200Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-FB-32C-250Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-FB-32C-300Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-FB-40C-25Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-FB-40C-50Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-FB-40C-75Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-FB-40C-100Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-FB-40C-150Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-FB-40C-200Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-FB-40C-250Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-FB-40C-300Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-CA-20C-25Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-CA-20C-50Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-CA-20C-75Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-CA-20C-100Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-CA-20C-150Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-CA-20C-200Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-CA-20C-250Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-CA-20C-300Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-CA-25C-25Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-CA-25C-50Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-CA-25C-75Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-CA-25C-100Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-CA-25C-150Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-CA-25C-200Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-CA-25C-250Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-CA-25C-300Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-CA-32C-25Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-CA-32C-50Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-CA-32C-75Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-CA-32C-100Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-CA-32C-150Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-CA-32C-200Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-CA-32C-250Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-CA-32C-300Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-CA-40C-25Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-CA-40C-50Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-CA-40C-75Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-CA-40C-100Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-CA-40C-150Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-CA-40C-200Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-CA-40C-250Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-CA-40C-300Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-CC-20C-25Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-CC-20C-50Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-CC-20C-75Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-CC-20C-100Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-CC-20C-150Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-CC-20C-200Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-CC-20C-250Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-CC-20C-300Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-CC-25C-25Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-CC-25C-50Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-CC-25C-75Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-CC-25C-100Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-CC-25C-150Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-CC-25C-200Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-CC-25C-250Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-CC-25C-300Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-CC-32C-25Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-CC-32C-50Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-CC-32C-75Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-CC-32C-100Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-CC-32C-150Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-CC-32C-200Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-CC-32C-250Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-CC-32C-300Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-CC-40C-25Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-CC-40C-50Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-CC-40C-75Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-CC-40C-100Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-CC-40C-150Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-CC-40C-200Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-CC-40C-250Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-CC-40C-300Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-CC1-20C-25Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 25 mm
CMK2-CC1-20C-50Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 50 mm
CMK2-CC1-20C-75Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 75 mm
CMK2-CC1-20C-100Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 100 mm
CMK2-CC1-20C-150Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 150 mm
CMK2-CC1-20C-200Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 200 mm
CMK2-CC1-20C-250Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 250 mm
CMK2-CC1-20C-300Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 300 mm
CMK2-CC1-25C-25Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 25 mm
CMK2-CC1-25C-50Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 50 mm
CMK2-CC1-25C-75Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 75 mm
CMK2-CC1-25C-100Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 100 mm
CMK2-CC1-25C-150Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 150 mm
CMK2-CC1-25C-200Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 200 mm
CMK2-CC1-25C-250Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 250 mm
CMK2-CC1-25C-300Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 300 mm
CMK2-CC1-32C-25Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 25 mm
CMK2-CC1-32C-50Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 50 mm
CMK2-CC1-32C-75Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 75 mm
CMK2-CC1-32C-100Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 100 mm
CMK2-CC1-32C-150Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 150 mm
CMK2-CC1-32C-200Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 200 mm
CMK2-CC1-32C-250Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 250 mm
CMK2-CC1-32C-300Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 300 mm
CMK2-CC1-40C-25Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 25 mm
CMK2-CC1-40C-50Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 50 mm
CMK2-CC1-40C-75Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 75 mm
CMK2-CC1-40C-100Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 100 mm
CMK2-CC1-40C-150Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 150 mm
CMK2-CC1-40C-200Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 200 mm
CMK2-CC1-40C-250Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 250 mm
CMK2-CC1-40C-300Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 300 mm
CMK2-CB-20C-25Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm
CMK2-CB-20C-50Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm
CMK2-CB-20C-75Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm
CMK2-CB-20C-100Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm
CMK2-CB-20C-150Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm
CMK2-CB-20C-200Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm
CMK2-CB-20C-250Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm
CMK2-CB-20C-300Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm
CMK2-CB-25C-25Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm
CMK2-CB-25C-50Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm
CMK2-CB-25C-75Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm
CMK2-CB-25C-100Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm
CMK2-CB-25C-150Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm
CMK2-CB-25C-200Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm
CMK2-CB-25C-250Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm
CMK2-CB-25C-300Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm
CMK2-CB-32C-25Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm
CMK2-CB-32C-50Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm
CMK2-CB-32C-75Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm
CMK2-CB-32C-100Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm
CMK2-CB-32C-150Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm
CMK2-CB-32C-200Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm
CMK2-CB-32C-250Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm
CMK2-CB-32C-300Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm
CMK2-CB-40C-25Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm
CMK2-CB-40C-50Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm
CMK2-CB-40C-75Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm
CMK2-CB-40C-100Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm
CMK2-CB-40C-150Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm
CMK2-CB-40C-200Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm
CMK2-CB-40C-250Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm
CMK2-CB-40C-300Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm
CMK2-TA-20C-25Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-TA-20C-50Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-TA-20C-75Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-TA-20C-100Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-TA-20C-150Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-TA-20C-200Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-TA-20C-250Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-TA-20C-300Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-TA-25C-25Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-TA-25C-50Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-TA-25C-75Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-TA-25C-100Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-TA-25C-150Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-TA-25C-200Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-TA-25C-250Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-TA-25C-300Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-TA-32C-25Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-TA-32C-50Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-TA-32C-75Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-TA-32C-100Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-TA-32C-150Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-TA-32C-200Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-TA-32C-250Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-TA-32C-300Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-TA-40C-25Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-TA-40C-50Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-TA-40C-75Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-TA-40C-100Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-TA-40C-150Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-TA-40C-200Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-TA-40C-250Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-TA-40C-300Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-TB-20C-25Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-TB-20C-50Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-TB-20C-75Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-TB-20C-100Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-TB-20C-150Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-TB-20C-200Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-TB-20C-250Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-TB-20C-300Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-TB-25C-25Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-TB-25C-50Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-TB-25C-75Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-TB-25C-100Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-TB-25C-150Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-TB-25C-200Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-TB-25C-250Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-TB-25C-300Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-TB-32C-25Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-TB-32C-50Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-TB-32C-75Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-TB-32C-100Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-TB-32C-150Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-TB-32C-200Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-TB-32C-250Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-TB-32C-300Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-TB-40C-25Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-TB-40C-50Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-TB-40C-75Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-TB-40C-100Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-TB-40C-150Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-TB-40C-200Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-TB-40C-250Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-TB-40C-300Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
