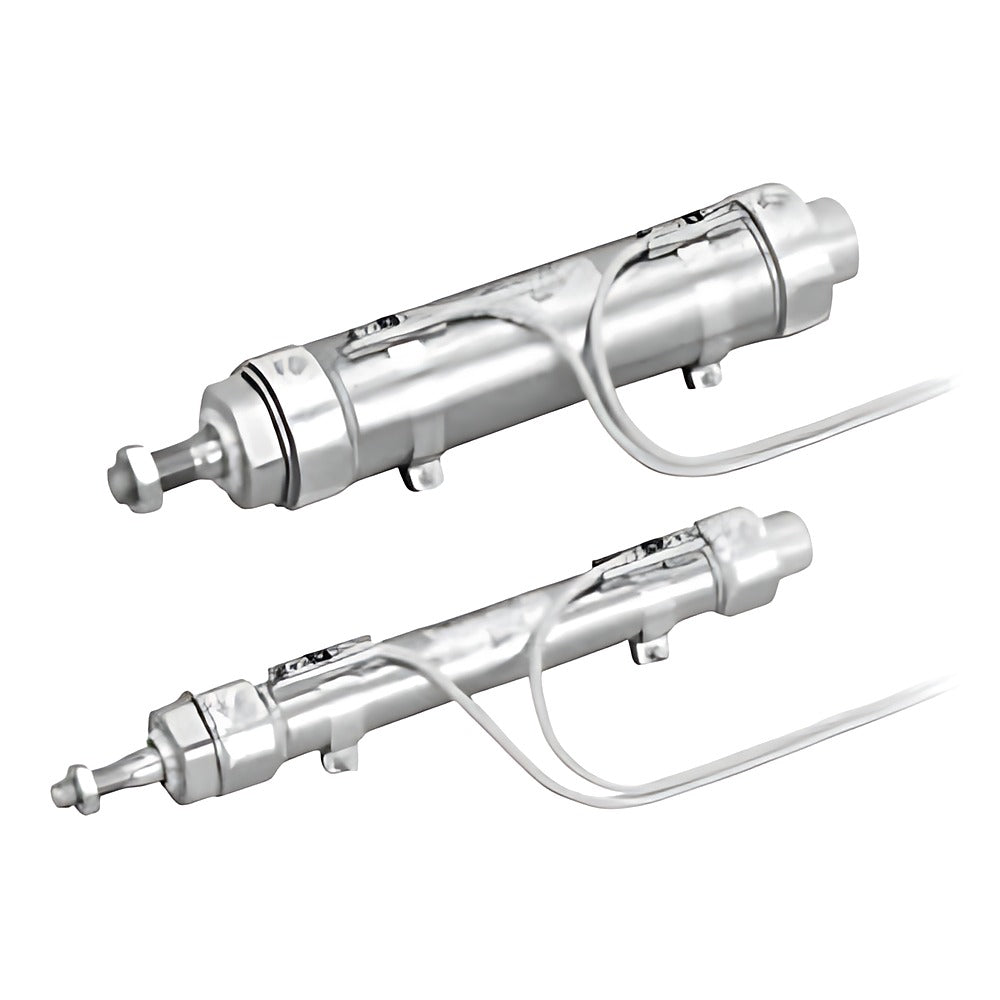

CKD CMK2-FP1 Tight Cylinder (Stroke Adjust P/R, Dual Stroke B)

CKD CMK2-FP1 tight cylinder with stroke adjustment (extend P / retract R) or back-to-back dual-stroke combination (B), with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Tight cylinder with switch magnet built in; bore 20/25/32/40 mm
Auto switches (T0H, T2H, T3H, T2WH etc.) with count R/H/D/T, bellows J/L, stainless piston rod M, boss cut V and rod-end I/Y/B2 ordered as suffixes
One-side foot LS limited to 50 mm stroke; intermediate strokes in 1 mm steps; NPT/G threads made to order
P/R adjust range 25 or 50 mm; B combination gives S1, S2 and S1+S2 positions (standard strokes 25-300 mm each)

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	Rc1/8
Piston speed	50-500 mm/s
Cushion	Rubber cushion
Source	CKD Korea catalog CC-1271K, p. 54-59

CMK2-P-00-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-00-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-00-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LB-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LB-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LS-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LS-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LS-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-LS-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-LS-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FA-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FA-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-FB-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-FB-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TA-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TA-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-20-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-20-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-25-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-25-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-32-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-32-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-25-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-50-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-50-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-75-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-75-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-100-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-100-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-150-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-150-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-200-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-200-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-250-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-250-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-P-TB-40-300-25-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-P-TB-40-300-50-FP1		Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-00-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-00-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LB-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LB-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LS-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LS-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LS-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-LS-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-LS-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FA-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FA-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-FB-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-FB-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TA-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TA-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-20-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-20-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-25-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-25-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-32-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-32-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-25-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-50-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-50-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-75-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-75-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-100-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-100-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-150-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-150-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-200-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-200-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-250-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-250-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
CMK2-R-TB-40-300-25-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
CMK2-R-TB-40-300-50-FP1		Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
CMK2-B-00-20-25-25-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 25 mm
CMK2-B-00-20-25-50-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 50 mm
CMK2-B-00-20-25-75-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 75 mm
CMK2-B-00-20-25-100-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 100 mm
CMK2-B-00-20-25-150-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 150 mm
CMK2-B-00-20-25-200-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 200 mm
CMK2-B-00-20-25-250-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 250 mm
CMK2-B-00-20-25-300-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 300 mm
CMK2-B-00-20-50-25-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 25 mm
CMK2-B-00-20-50-50-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 50 mm
CMK2-B-00-20-50-75-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 75 mm
CMK2-B-00-20-50-100-FP1		Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 100 mm

Pneumatic CylindersCKD

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-FP1 Tight Cylinder (Stroke Adjust P/R, Dual Stroke B)

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

CMK2-P-00-20-25-25-FP1, CMK2-P-00-20-50-25-FP1, CMK2-P-00-20-50-50-FP1, CMK2-P-00-20-75-25-FP1, CMK2-P-00-20-75-50-FP1, CMK2-P-00-20-100-25-FP1, CMK2-P-00-20-100-50-FP1, CMK2-P-00-20-150-25-FP1, CMK2-P-00-20-150-50-FP1, CMK2-P-00-20-200-25-FP1 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CMK2-P-00-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-00-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-00-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LB-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LB-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LS-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LS-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LS-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-LS-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-LS-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FA-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FA-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-FB-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-FB-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TA-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TA-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-20-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-20-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-25-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-25-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-32-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-32-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-25-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-50-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-50-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-75-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-75-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-100-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-100-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-150-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-150-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-200-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-200-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-250-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-250-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-P-TB-40-300-25-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-P-TB-40-300-50-FP1	Type: Stroke adjust, extend (P) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-00-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-00-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Basic \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LB-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LB-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LS-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LS-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LS-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-LS-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-LS-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FA-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FA-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-FB-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-FB-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side flange \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TA-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TA-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-20-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-20-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-25-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-25-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-32-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-32-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-25-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 25 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-50-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-50-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 50 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-75-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-75-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 75 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-100-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-100-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 100 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-150-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-150-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 150 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-200-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-200-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 200 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-250-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-250-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 250 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-R-TB-40-300-25-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 25 mm
	CMK2-R-TB-40-300-50-FP1	Type: Stroke adjust, retract (R) \| Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke (S1): 300 mm \| Adjust range / S2: Adjust 50 mm
	CMK2-B-00-20-25-25-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 25 mm
	CMK2-B-00-20-25-50-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 50 mm
	CMK2-B-00-20-25-75-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 75 mm
	CMK2-B-00-20-25-100-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 100 mm
	CMK2-B-00-20-25-150-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 150 mm
	CMK2-B-00-20-25-200-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 200 mm
	CMK2-B-00-20-25-250-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 250 mm
	CMK2-B-00-20-25-300-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 25 mm \| Adjust range / S2: S2 300 mm
	CMK2-B-00-20-50-25-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 25 mm
	CMK2-B-00-20-50-50-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 50 mm
	CMK2-B-00-20-50-75-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 75 mm
	CMK2-B-00-20-50-100-FP1	Type: Dual stroke combination (B) \| Mounting: Basic \| Bore: 20 mm \| Stroke (S1): 50 mm \| Adjust range / S2: S2 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD CMK2-FP1 Tight Cylinder (Stroke Adjust P/R, Dual Stroke B)
