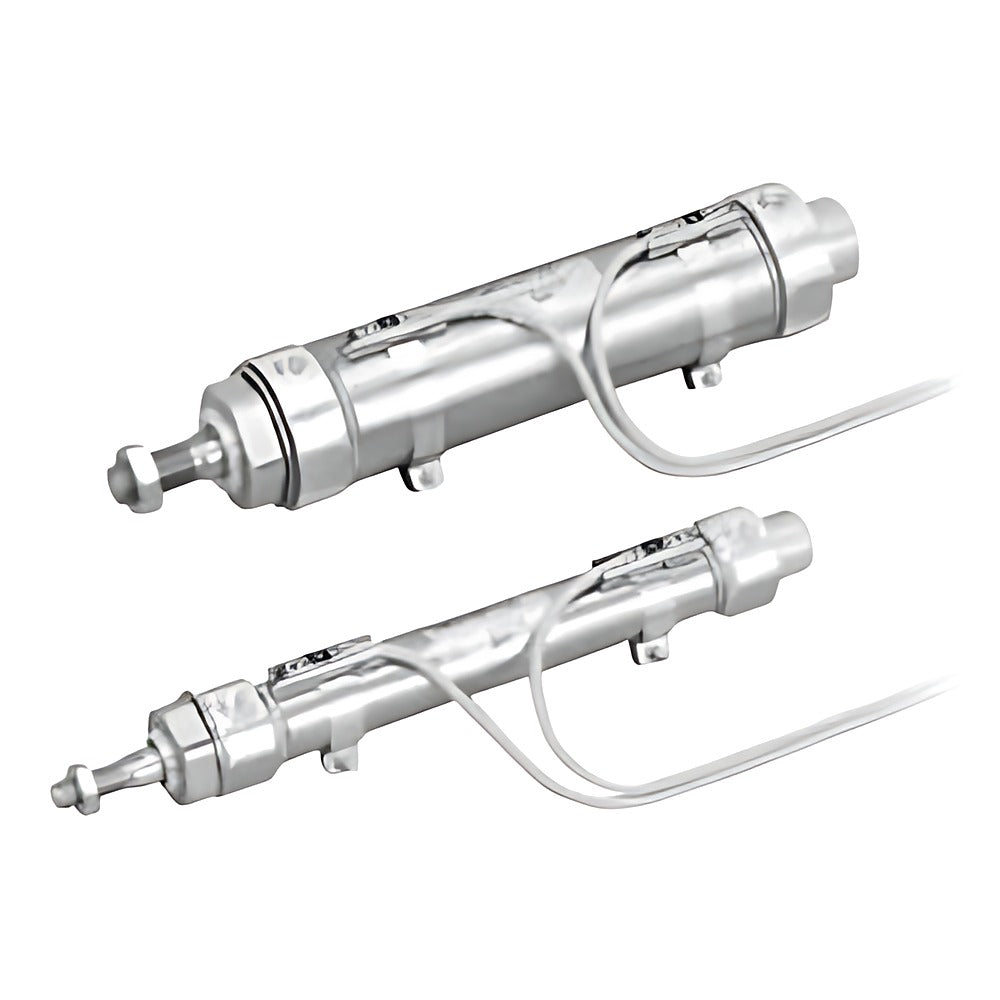

CKD CMK2-G-FP1-HP1 Tight Cylinder (Food Process, Strong Scraper)

CKD CMK2-G-FP1-HP1 Tight Cylinder (Food Process, Strong Scraper)

CKD CMK2-G-FP1-HP1 double-acting tight cylinder with strong scraper and food-grade grease, bore ø20 to ø40.

Key features

  • Food-grade (NSF-H1) grease in sliding and flow-path parts (FP1); materials and dimensions same as standard
  • Strong scraper (G) environment-resistant construction with HP1 long-life sealing
  • Eleven mounting styles incl. CC1 bushed clevis; LS max. 50 mm stroke
  • Rc thread standard (NPT NN / G GN made to order); strokes to 750 mm in 1 mm steps
  • Options M (stainless rod) and V (boss cut); example CMK2-G-00-20-100-T0H-R-VFP1Y-HP1
  • FP1 clevis brackets M1-CA/CB--FP1; ø40 uses CMK2-G2-40-LS/FA/TA rod-side brackets

Specifications

Specification Food process FP1 (NSF-H1 grease), HP1
Action Double acting, single rod
Max. operating pressure 1.0 MPa
Port size Rc1/8
Cushion Rubber cushion
Source CKD Korea catalog CC-1421KR-7, p. 242-243
CMK2-G-00-20-25-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-G-00-20-50-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-G-00-20-75-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-G-00-20-100-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-G-00-20-150-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-G-00-20-200-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-G-00-20-250-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-G-00-20-300-FP1-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LB-20-25-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LB-20-50-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LB-20-75-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-G-LB-20-100-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-G-LB-20-150-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-G-LB-20-200-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-G-LB-20-250-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-G-LB-20-300-FP1-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LS-20-25-FP1-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LS-20-50-FP1-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-25-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FA-20-50-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-75-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FA-20-100-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FA-20-150-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FA-20-200-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FA-20-250-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FA-20-300-FP1-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FB-20-25-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FB-20-50-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FB-20-75-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FB-20-100-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FB-20-150-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FB-20-200-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FB-20-250-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FB-20-300-FP1-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CA-20-25-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CA-20-50-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CA-20-75-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CA-20-100-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CA-20-150-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CA-20-200-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CA-20-250-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CA-20-300-FP1-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC-20-25-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC-20-50-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC-20-75-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC-20-100-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC-20-150-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC-20-200-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC-20-250-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC-20-300-FP1-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC1-20-25-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC1-20-50-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC1-20-75-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC1-20-100-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC1-20-150-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC1-20-200-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC1-20-250-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC1-20-300-FP1-HP1 Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CB-20-25-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CB-20-50-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CB-20-75-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CB-20-100-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CB-20-150-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CB-20-200-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CB-20-250-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CB-20-300-FP1-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TA-20-25-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TA-20-50-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TA-20-75-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TA-20-100-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TA-20-150-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TA-20-200-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TA-20-250-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TA-20-300-FP1-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TB-20-25-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TB-20-50-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TB-20-75-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TB-20-100-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TB-20-150-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TB-20-200-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TB-20-250-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TB-20-300-FP1-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-00-25-25-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-G-00-25-50-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-G-00-25-75-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-G-00-25-100-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-G-00-25-150-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-G-00-25-200-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-G-00-25-250-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-G-00-25-300-FP1-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LB-25-25-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LB-25-50-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LB-25-75-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-G-LB-25-100-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-G-LB-25-150-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-G-LB-25-200-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-G-LB-25-250-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-G-LB-25-300-FP1-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LS-25-25-FP1-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LS-25-50-FP1-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-25-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FA-25-50-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-75-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FA-25-100-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FA-25-150-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FA-25-200-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FA-25-250-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FA-25-300-FP1-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FB-25-25-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FB-25-50-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FB-25-75-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FB-25-100-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FB-25-150-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FB-25-200-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FB-25-250-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FB-25-300-FP1-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CA-25-25-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CA-25-50-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CA-25-75-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CA-25-100-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CA-25-150-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CA-25-200-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CA-25-250-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CA-25-300-FP1-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC-25-25-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC-25-50-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC-25-75-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC-25-100-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC-25-150-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC-25-200-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC-25-250-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC-25-300-FP1-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC1-25-25-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC1-25-50-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC1-25-75-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC1-25-100-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC1-25-150-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC1-25-200-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC1-25-250-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC1-25-300-FP1-HP1 Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CB-25-25-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CB-25-50-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CB-25-75-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CB-25-100-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CB-25-150-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CB-25-200-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CB-25-250-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CB-25-300-FP1-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TA-25-25-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TA-25-50-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TA-25-75-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TA-25-100-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TA-25-150-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TA-25-200-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TA-25-250-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TA-25-300-FP1-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TB-25-25-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TB-25-50-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TB-25-75-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TB-25-100-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TB-25-150-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TB-25-200-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TB-25-250-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TB-25-300-FP1-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-00-32-25-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-G-00-32-50-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-G-00-32-75-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-G-00-32-100-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-G-00-32-150-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-G-00-32-200-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-G-00-32-250-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-G-00-32-300-FP1-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LB-32-25-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LB-32-50-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LB-32-75-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-G-LB-32-100-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-G-LB-32-150-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-G-LB-32-200-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-G-LB-32-250-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-G-LB-32-300-FP1-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LS-32-25-FP1-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LS-32-50-FP1-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-25-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FA-32-50-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-75-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FA-32-100-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FA-32-150-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FA-32-200-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FA-32-250-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FA-32-300-FP1-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FB-32-25-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FB-32-50-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FB-32-75-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FB-32-100-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FB-32-150-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FB-32-200-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FB-32-250-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FB-32-300-FP1-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CA-32-25-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CA-32-50-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CA-32-75-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CA-32-100-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CA-32-150-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CA-32-200-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CA-32-250-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CA-32-300-FP1-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC-32-25-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC-32-50-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC-32-75-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC-32-100-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC-32-150-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC-32-200-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC-32-250-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC-32-300-FP1-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC1-32-25-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC1-32-50-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC1-32-75-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC1-32-100-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC1-32-150-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC1-32-200-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC1-32-250-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC1-32-300-FP1-HP1 Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CB-32-25-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CB-32-50-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CB-32-75-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CB-32-100-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CB-32-150-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CB-32-200-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CB-32-250-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CB-32-300-FP1-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TA-32-25-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TA-32-50-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TA-32-75-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TA-32-100-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TA-32-150-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TA-32-200-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TA-32-250-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TA-32-300-FP1-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TB-32-25-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TB-32-50-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TB-32-75-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TB-32-100-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TB-32-150-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TB-32-200-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TB-32-250-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TB-32-300-FP1-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-00-40-25-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-G-00-40-50-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-G-00-40-75-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-G-00-40-100-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-G-00-40-150-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-G-00-40-200-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-G-00-40-250-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-G-00-40-300-FP1-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LB-40-25-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LB-40-50-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-G-LB-40-75-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-G-LB-40-100-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-G-LB-40-150-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-G-LB-40-200-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-G-LB-40-250-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-G-LB-40-300-FP1-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LS-40-25-FP1-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LS-40-50-FP1-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-25-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FA-40-50-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-75-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FA-40-100-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FA-40-150-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FA-40-200-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FA-40-250-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FA-40-300-FP1-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-FB-40-25-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FB-40-50-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FB-40-75-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FB-40-100-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FB-40-150-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FB-40-200-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FB-40-250-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FB-40-300-FP1-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CA-40-25-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CA-40-50-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CA-40-75-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CA-40-100-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CA-40-150-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CA-40-200-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CA-40-250-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CA-40-300-FP1-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC-40-25-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC-40-50-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC-40-75-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC-40-100-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC-40-150-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC-40-200-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC-40-250-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC-40-300-FP1-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC1-40-25-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC1-40-50-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC1-40-75-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC1-40-100-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC1-40-150-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC1-40-200-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC1-40-250-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC1-40-300-FP1-HP1 Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CB-40-25-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CB-40-50-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CB-40-75-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CB-40-100-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CB-40-150-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CB-40-200-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CB-40-250-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CB-40-300-FP1-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TA-40-25-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TA-40-50-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TA-40-75-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TA-40-100-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TA-40-150-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TA-40-200-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TA-40-250-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TA-40-300-FP1-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TB-40-25-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TB-40-50-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TB-40-75-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TB-40-100-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TB-40-150-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TB-40-200-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TB-40-250-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TB-40-300-FP1-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-G-FP1-HP1 Tight Cylinder (Food Process, Strong Scraper)

Brand CKD·Pneumatic Cylinders

Available part numbers (328)

CMK2-G-00-20-25-FP1-HP1, CMK2-G-00-20-50-FP1-HP1, CMK2-G-00-20-75-FP1-HP1, CMK2-G-00-20-100-FP1-HP1, CMK2-G-00-20-150-FP1-HP1, CMK2-G-00-20-200-FP1-HP1, CMK2-G-00-20-250-FP1-HP1, CMK2-G-00-20-300-FP1-HP1, CMK2-G-LB-20-25-FP1-HP1, CMK2-G-LB-20-50-FP1-HP1 + 318 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-G-00-20-25-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-G-00-20-50-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-G-00-20-75-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-G-00-20-100-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-G-00-20-150-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-G-00-20-200-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-G-00-20-250-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-G-00-20-300-FP1-HP1Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LB-20-25-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LB-20-50-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LB-20-75-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-G-LB-20-100-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-G-LB-20-150-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-G-LB-20-200-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-G-LB-20-250-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-G-LB-20-300-FP1-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LS-20-25-FP1-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LS-20-50-FP1-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-25-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FA-20-50-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-75-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FA-20-100-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FA-20-150-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FA-20-200-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FA-20-250-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FA-20-300-FP1-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FB-20-25-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FB-20-50-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FB-20-75-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FB-20-100-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FB-20-150-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FB-20-200-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FB-20-250-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FB-20-300-FP1-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CA-20-25-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CA-20-50-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CA-20-75-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CA-20-100-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CA-20-150-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CA-20-200-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CA-20-250-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CA-20-300-FP1-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC-20-25-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC-20-50-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC-20-75-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC-20-100-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC-20-150-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC-20-200-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC-20-250-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC-20-300-FP1-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC1-20-25-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC1-20-50-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC1-20-75-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC1-20-100-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC1-20-150-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC1-20-200-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC1-20-250-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC1-20-300-FP1-HP1Mounting: Single clevis, bushed | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CB-20-25-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CB-20-50-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CB-20-75-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CB-20-100-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CB-20-150-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CB-20-200-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CB-20-250-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CB-20-300-FP1-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TA-20-25-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TA-20-50-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TA-20-75-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TA-20-100-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TA-20-150-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TA-20-200-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TA-20-250-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TA-20-300-FP1-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TB-20-25-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TB-20-50-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TB-20-75-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TB-20-100-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TB-20-150-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TB-20-200-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TB-20-250-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TB-20-300-FP1-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-00-25-25-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-G-00-25-50-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-G-00-25-75-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-G-00-25-100-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-G-00-25-150-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-G-00-25-200-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-G-00-25-250-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-G-00-25-300-FP1-HP1Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LB-25-25-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LB-25-50-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LB-25-75-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-G-LB-25-100-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-G-LB-25-150-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-G-LB-25-200-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-G-LB-25-250-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-G-LB-25-300-FP1-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LS-25-25-FP1-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LS-25-50-FP1-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-25-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FA-25-50-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-75-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FA-25-100-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FA-25-150-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FA-25-200-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FA-25-250-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FA-25-300-FP1-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FB-25-25-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FB-25-50-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FB-25-75-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FB-25-100-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FB-25-150-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FB-25-200-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FB-25-250-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FB-25-300-FP1-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CA-25-25-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CA-25-50-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CA-25-75-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CA-25-100-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CA-25-150-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CA-25-200-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CA-25-250-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CA-25-300-FP1-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC-25-25-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC-25-50-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC-25-75-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC-25-100-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC-25-150-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC-25-200-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC-25-250-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC-25-300-FP1-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC1-25-25-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC1-25-50-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC1-25-75-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC1-25-100-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC1-25-150-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC1-25-200-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC1-25-250-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC1-25-300-FP1-HP1Mounting: Single clevis, bushed | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CB-25-25-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CB-25-50-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CB-25-75-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CB-25-100-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CB-25-150-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CB-25-200-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CB-25-250-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CB-25-300-FP1-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TA-25-25-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TA-25-50-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TA-25-75-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TA-25-100-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TA-25-150-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TA-25-200-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TA-25-250-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TA-25-300-FP1-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TB-25-25-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TB-25-50-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TB-25-75-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TB-25-100-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TB-25-150-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TB-25-200-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TB-25-250-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TB-25-300-FP1-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-00-32-25-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-G-00-32-50-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-G-00-32-75-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-G-00-32-100-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-G-00-32-150-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-G-00-32-200-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-G-00-32-250-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-G-00-32-300-FP1-HP1Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LB-32-25-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LB-32-50-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LB-32-75-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-G-LB-32-100-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-G-LB-32-150-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-G-LB-32-200-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-G-LB-32-250-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-G-LB-32-300-FP1-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LS-32-25-FP1-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LS-32-50-FP1-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-25-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FA-32-50-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-75-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FA-32-100-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FA-32-150-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FA-32-200-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FA-32-250-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FA-32-300-FP1-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FB-32-25-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FB-32-50-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FB-32-75-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FB-32-100-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FB-32-150-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FB-32-200-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FB-32-250-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FB-32-300-FP1-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CA-32-25-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CA-32-50-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CA-32-75-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CA-32-100-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CA-32-150-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CA-32-200-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CA-32-250-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CA-32-300-FP1-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC-32-25-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC-32-50-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC-32-75-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC-32-100-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC-32-150-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC-32-200-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC-32-250-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC-32-300-FP1-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC1-32-25-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC1-32-50-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC1-32-75-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC1-32-100-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC1-32-150-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC1-32-200-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC1-32-250-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC1-32-300-FP1-HP1Mounting: Single clevis, bushed | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CB-32-25-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CB-32-50-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CB-32-75-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CB-32-100-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CB-32-150-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CB-32-200-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CB-32-250-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CB-32-300-FP1-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TA-32-25-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TA-32-50-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TA-32-75-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TA-32-100-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TA-32-150-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TA-32-200-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TA-32-250-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TA-32-300-FP1-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TB-32-25-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TB-32-50-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TB-32-75-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TB-32-100-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TB-32-150-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TB-32-200-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TB-32-250-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TB-32-300-FP1-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-00-40-25-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-G-00-40-50-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-G-00-40-75-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-G-00-40-100-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-G-00-40-150-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-G-00-40-200-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-G-00-40-250-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-G-00-40-300-FP1-HP1Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LB-40-25-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LB-40-50-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-G-LB-40-75-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-G-LB-40-100-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-G-LB-40-150-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-G-LB-40-200-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-G-LB-40-250-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-G-LB-40-300-FP1-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LS-40-25-FP1-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LS-40-50-FP1-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-25-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FA-40-50-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-75-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FA-40-100-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FA-40-150-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FA-40-200-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FA-40-250-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FA-40-300-FP1-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-FB-40-25-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FB-40-50-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FB-40-75-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FB-40-100-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FB-40-150-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FB-40-200-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FB-40-250-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FB-40-300-FP1-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CA-40-25-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CA-40-50-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CA-40-75-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CA-40-100-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CA-40-150-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CA-40-200-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CA-40-250-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CA-40-300-FP1-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC-40-25-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC-40-50-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC-40-75-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC-40-100-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC-40-150-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC-40-200-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC-40-250-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC-40-300-FP1-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC1-40-25-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC1-40-50-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC1-40-75-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC1-40-100-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC1-40-150-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC1-40-200-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC1-40-250-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC1-40-300-FP1-HP1Mounting: Single clevis, bushed | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CB-40-25-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CB-40-50-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CB-40-75-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CB-40-100-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CB-40-150-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CB-40-200-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CB-40-250-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CB-40-300-FP1-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TA-40-25-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TA-40-50-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TA-40-75-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TA-40-100-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TA-40-150-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TA-40-200-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TA-40-250-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TA-40-300-FP1-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TB-40-25-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TB-40-50-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TB-40-75-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TB-40-100-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TB-40-150-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TB-40-200-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TB-40-250-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TB-40-300-FP1-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
